Model IPSO BA2411 Washer – Common Parts & Diagrams

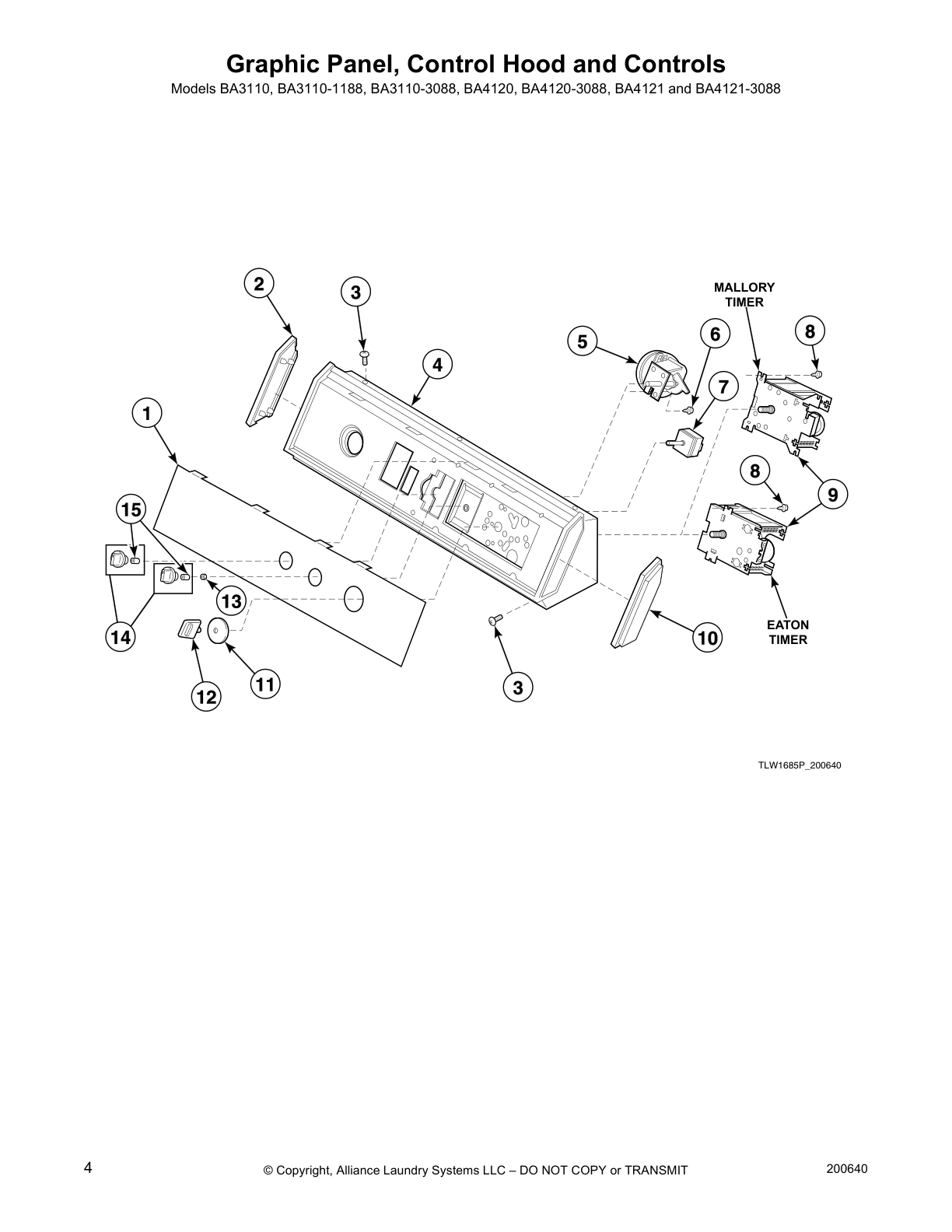

Graphic Panel, Control Hood and Controls

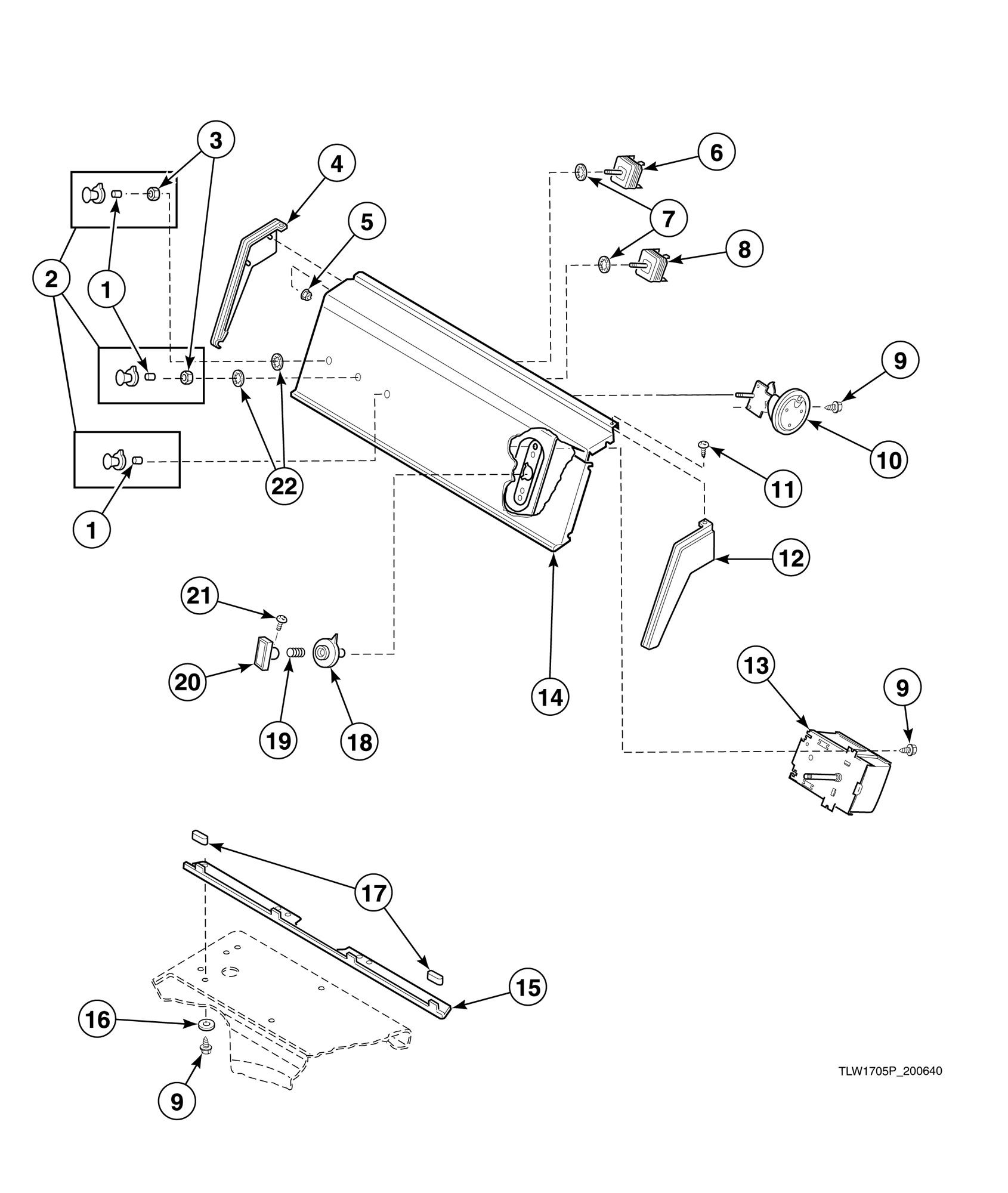

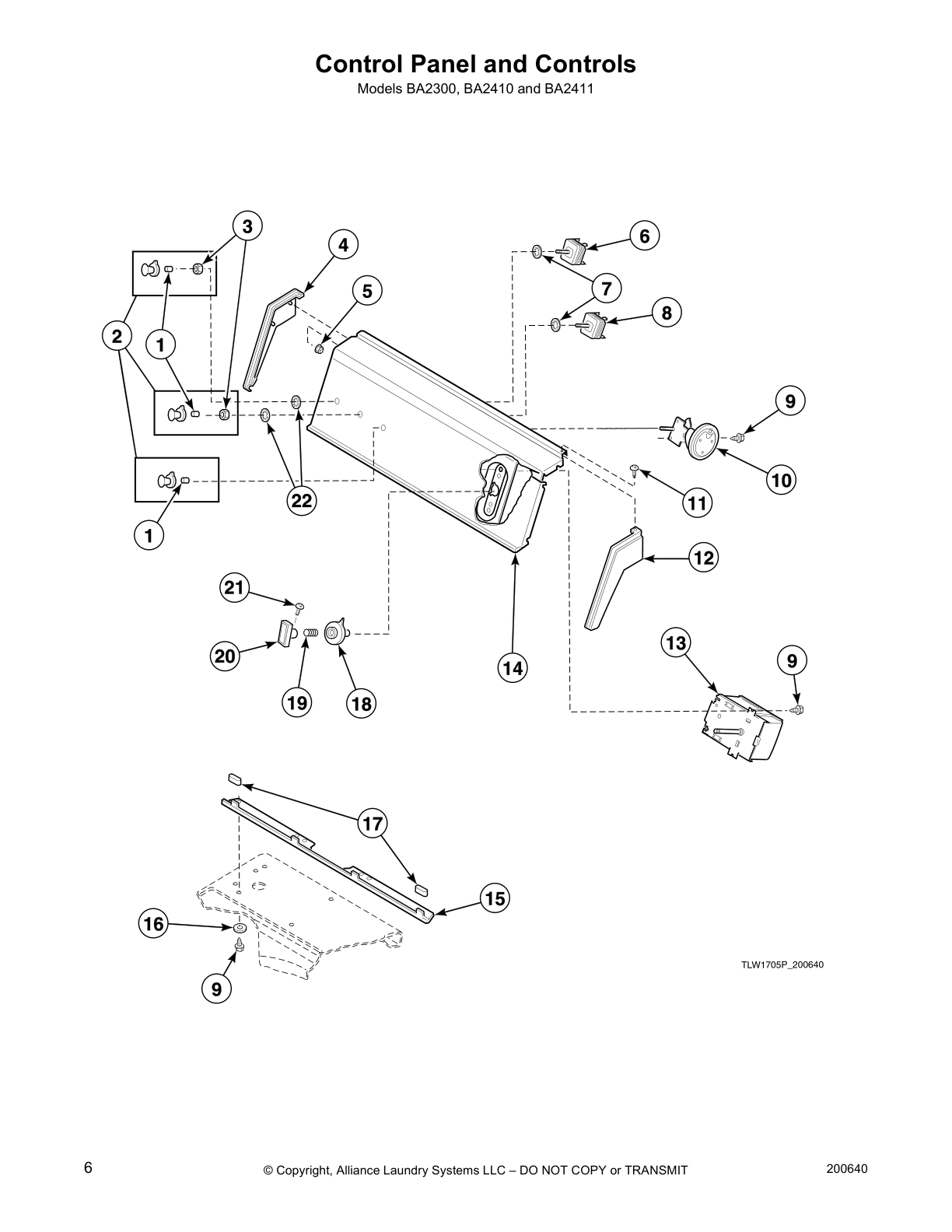

Control Panel and Controls

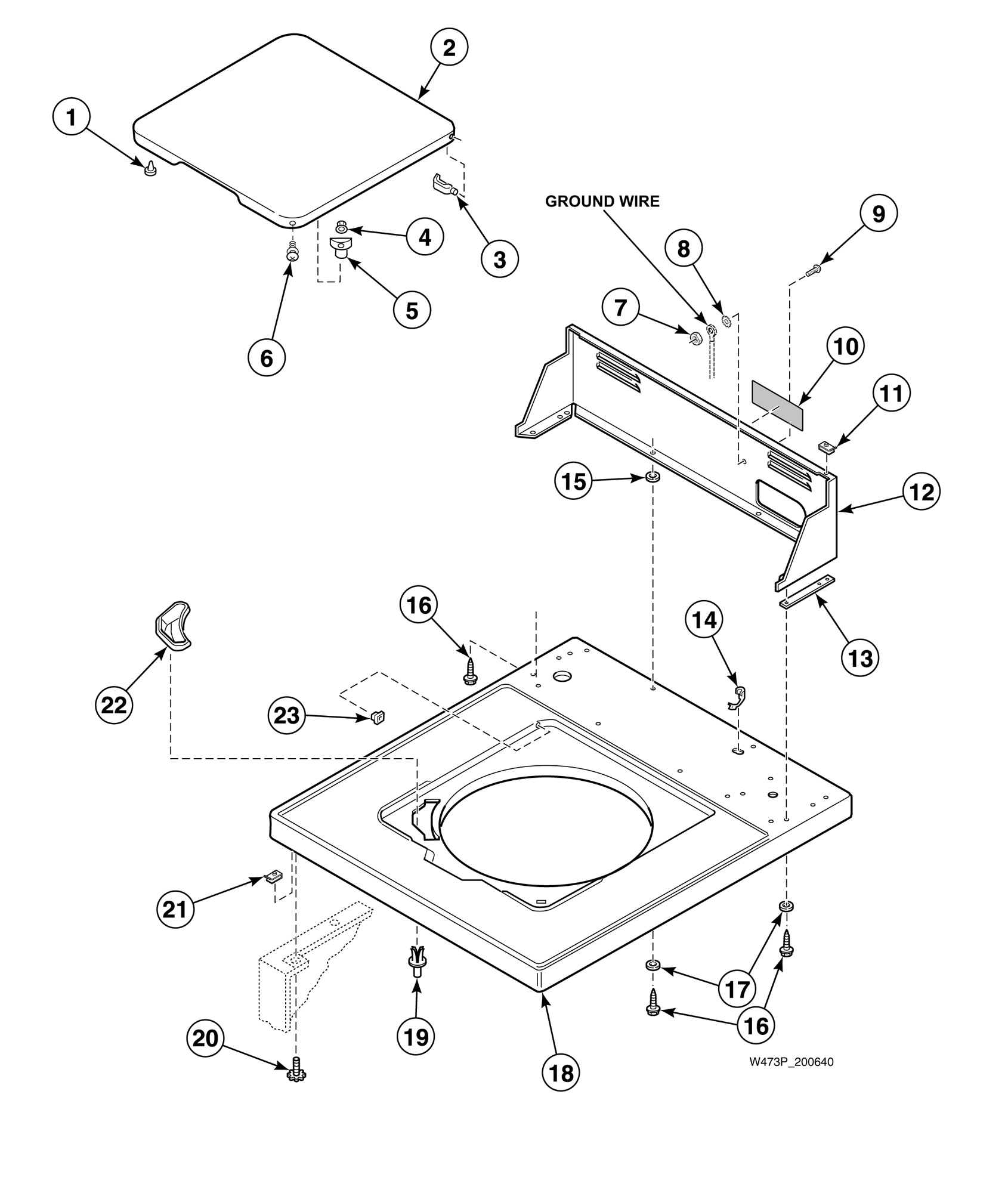

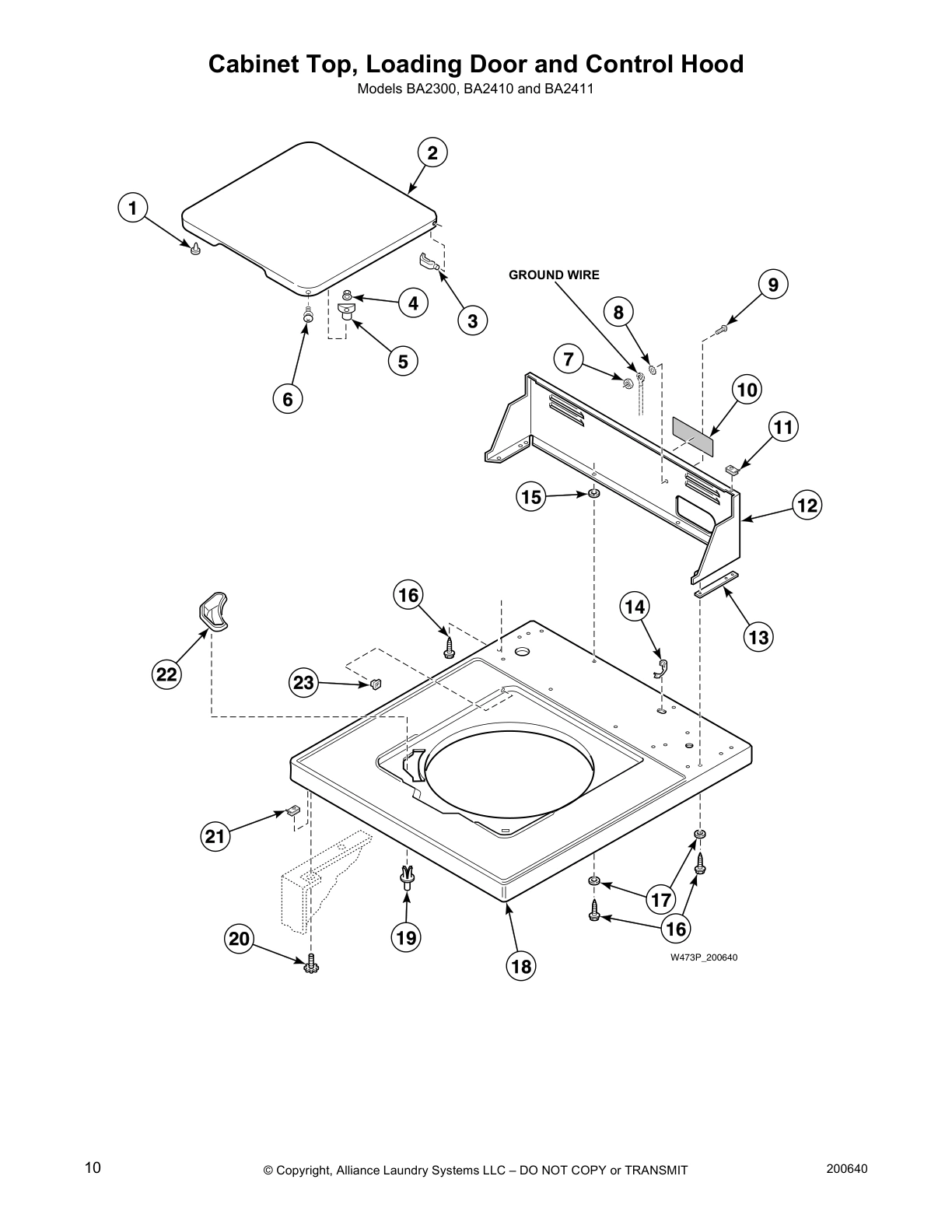

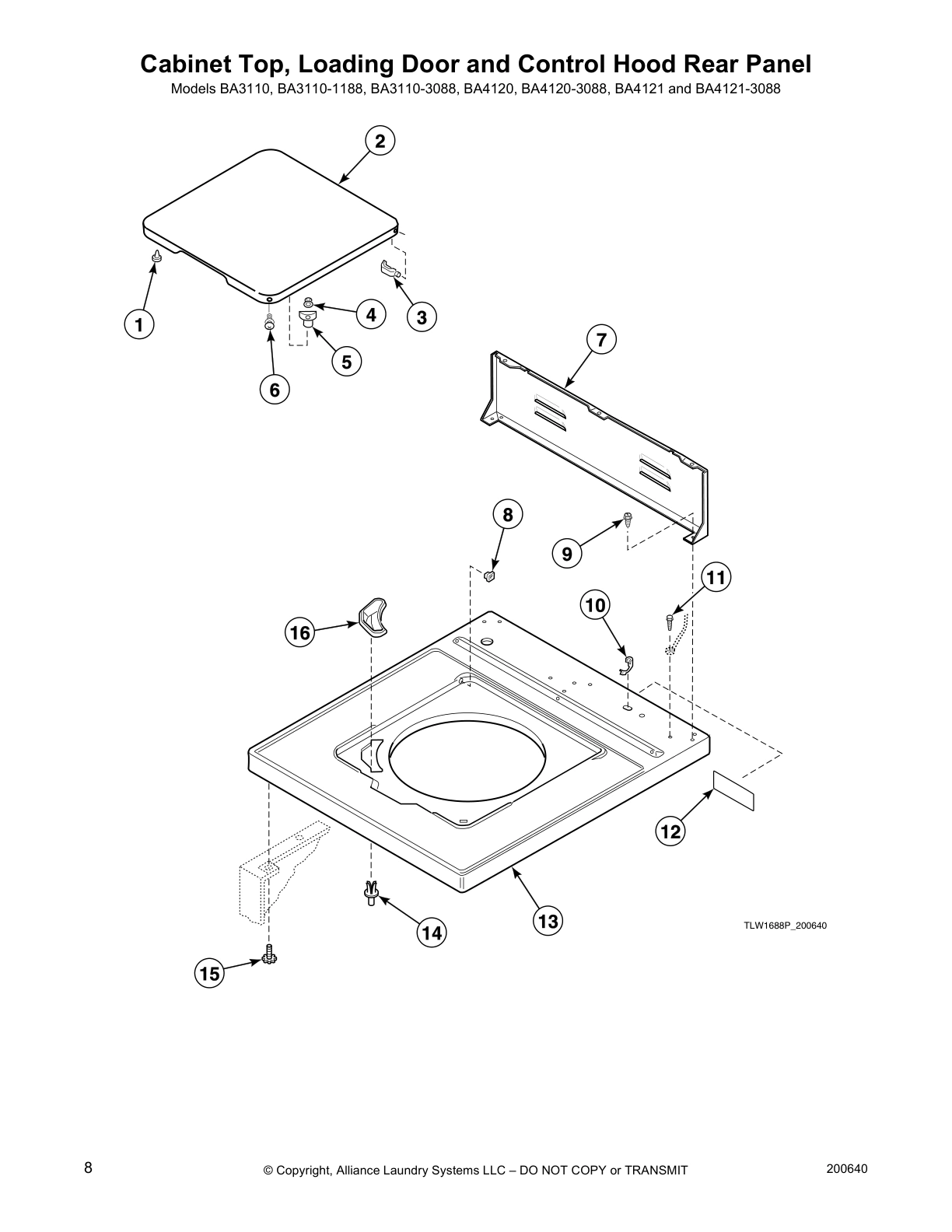

Cabinet Top, Loading Door and Control Hood Rear Panel
Cabinet Top, Loading Door and Control Hood

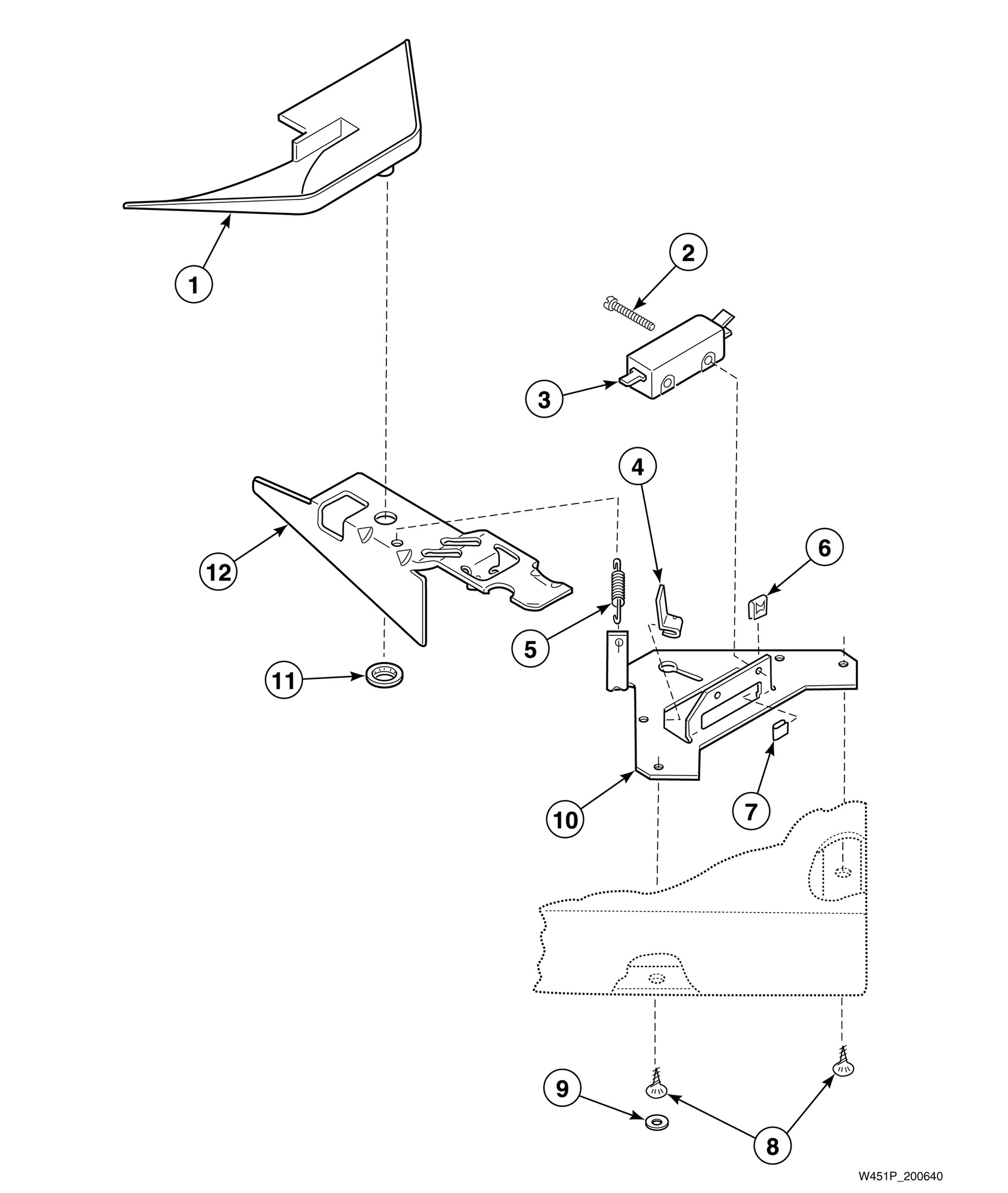

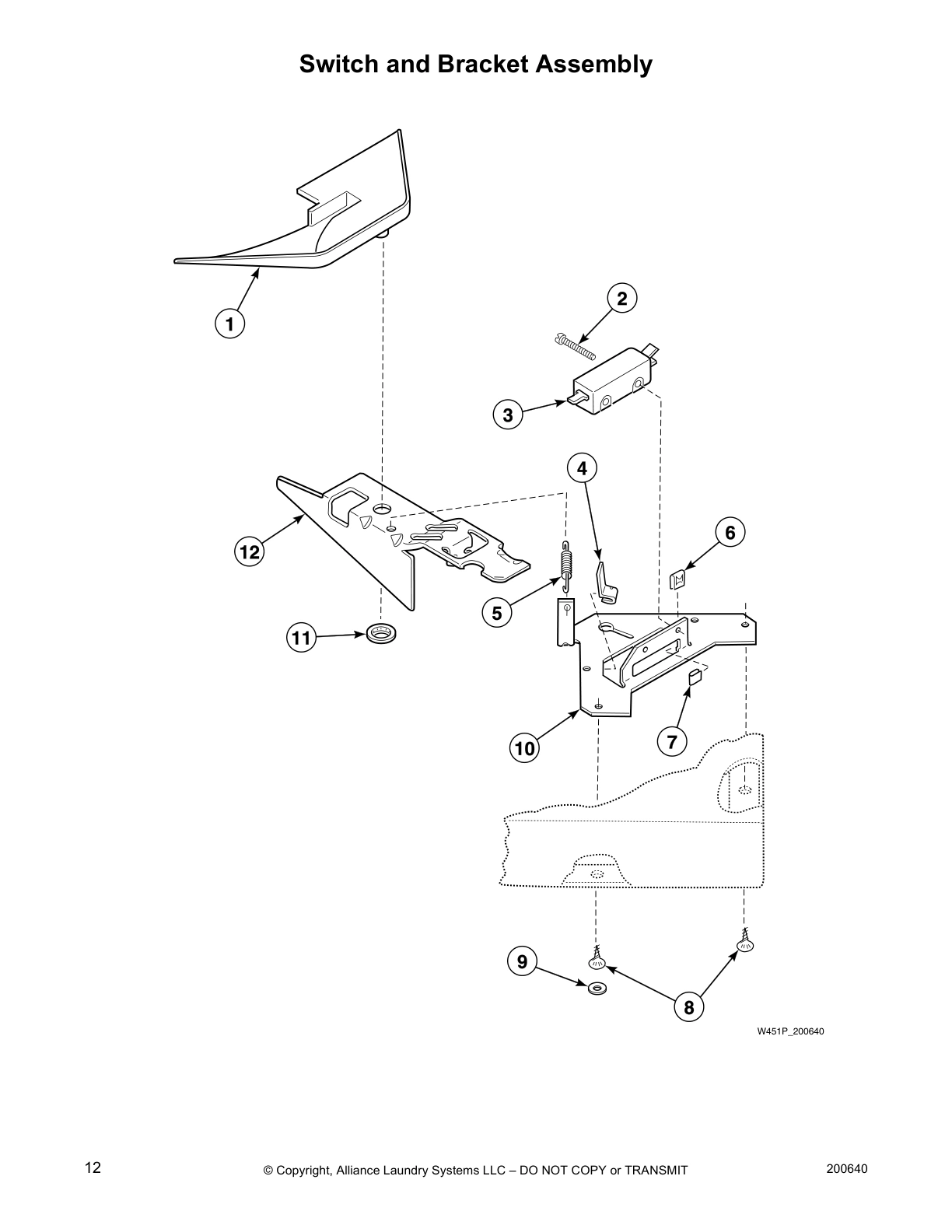

Switch and Bracket Assembly

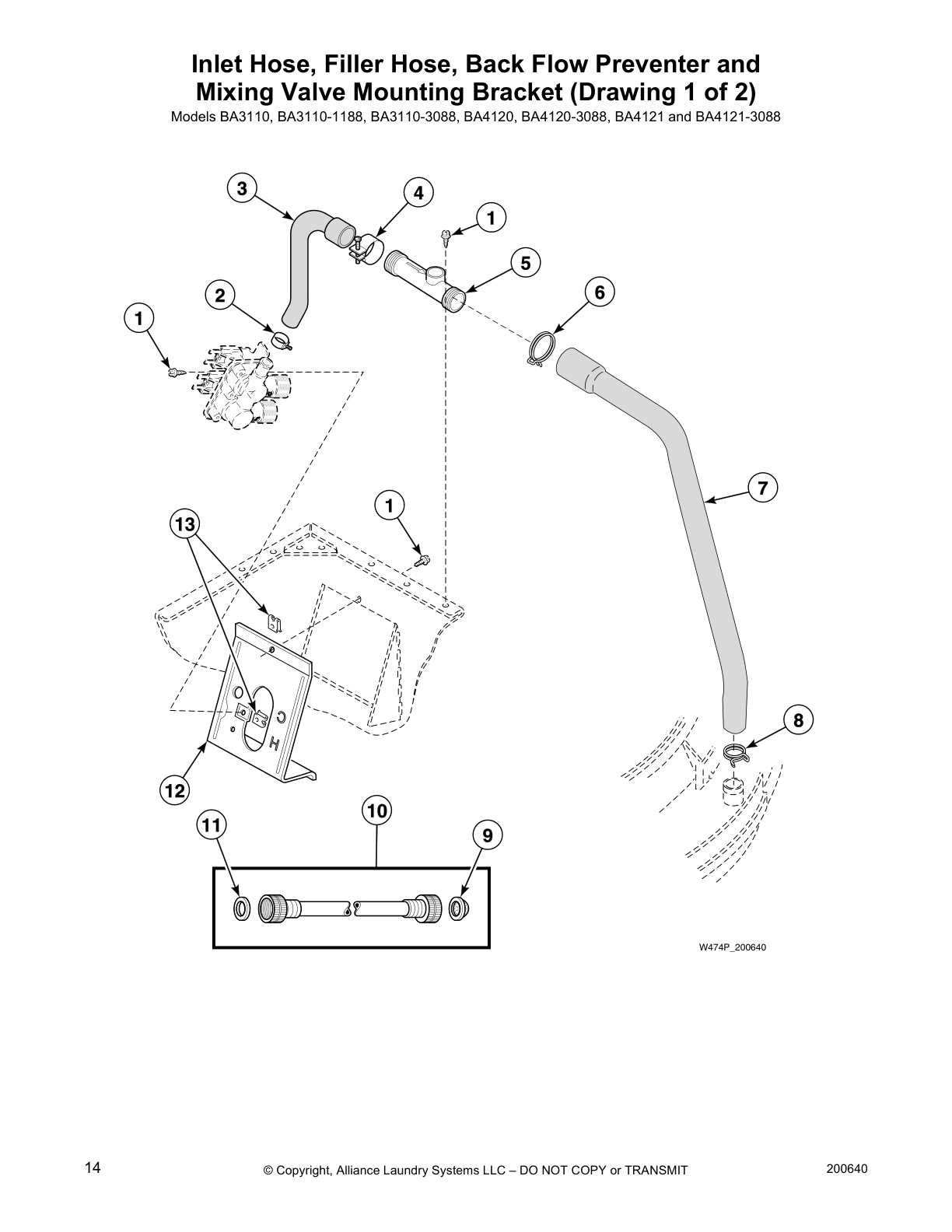

Inlet Hose, Filler Hose, Back Flow Preventer and
Mixing Valve Mounting Bracket (Drawing 1 of 2)
Inlet Hose, Filler Hose, Back Flow Preventer and Mixing Valve

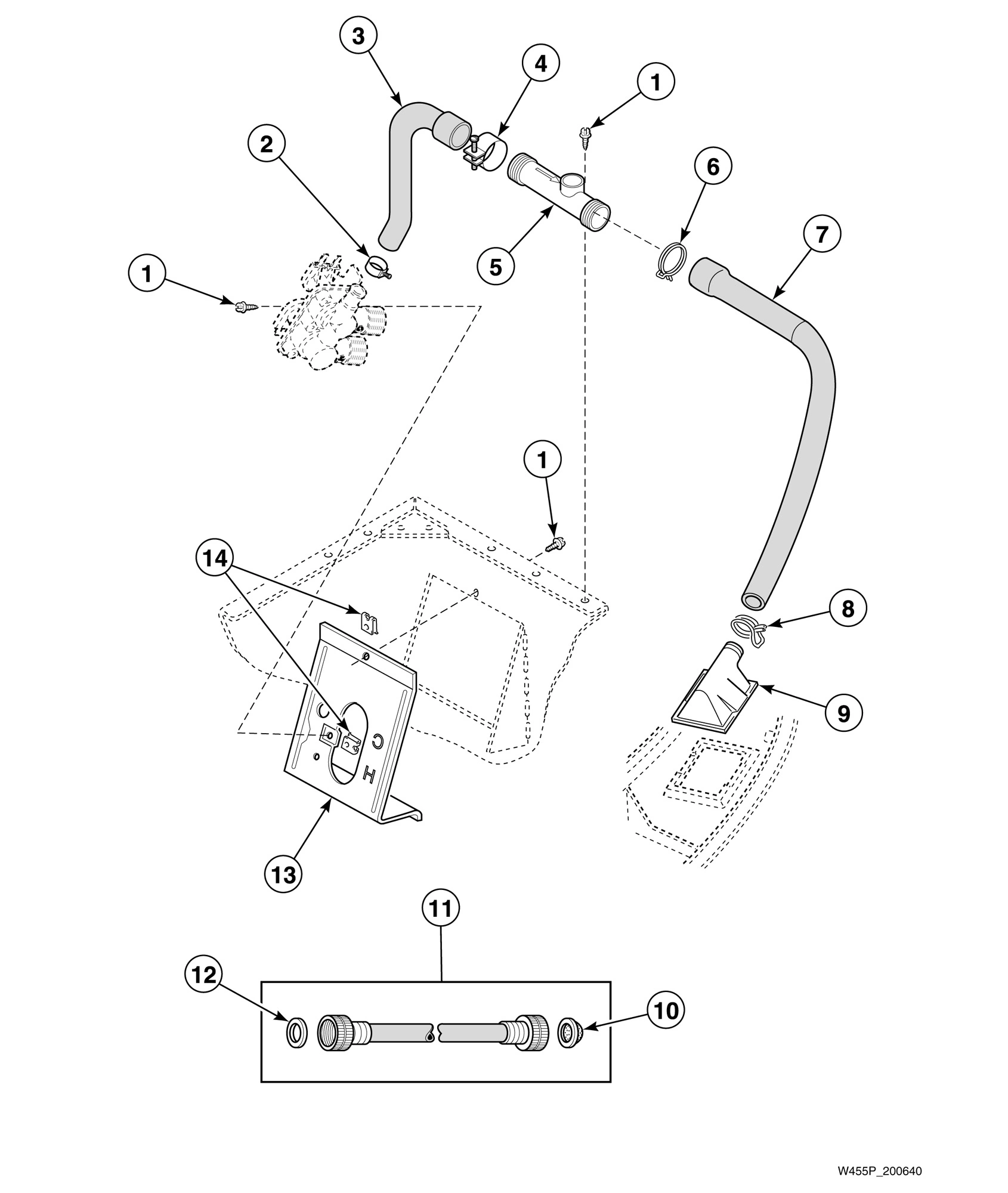

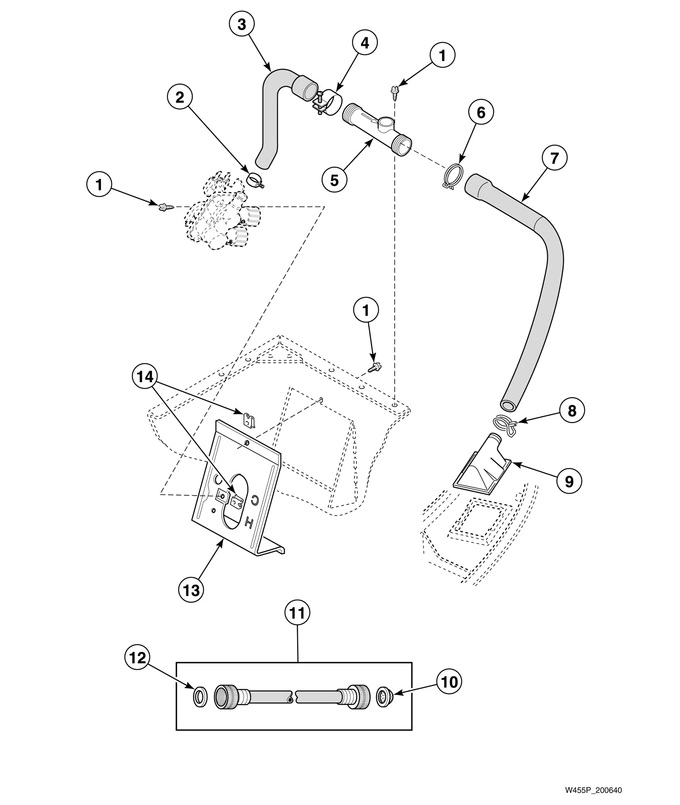

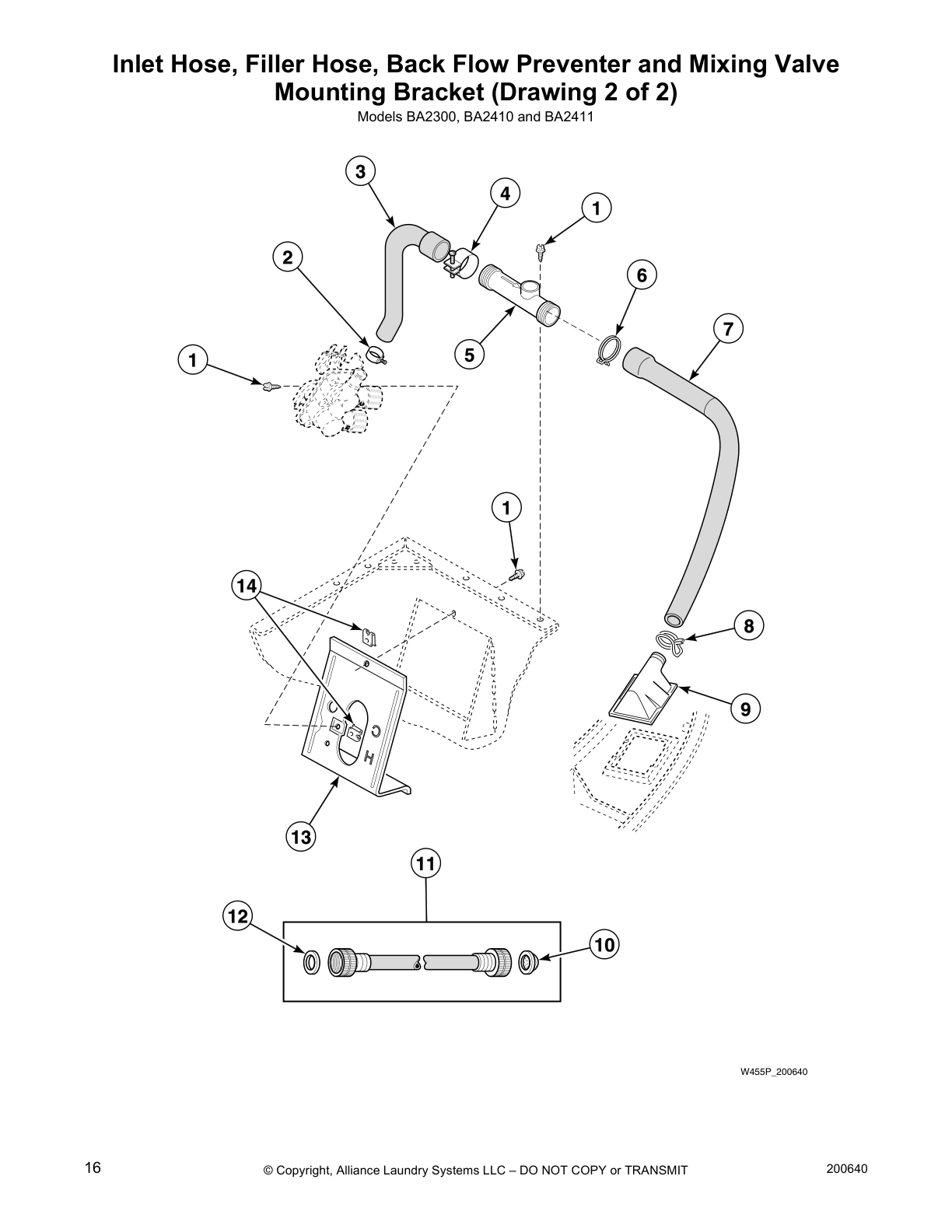

Mounting Bracket (Drawing 2 of 2)

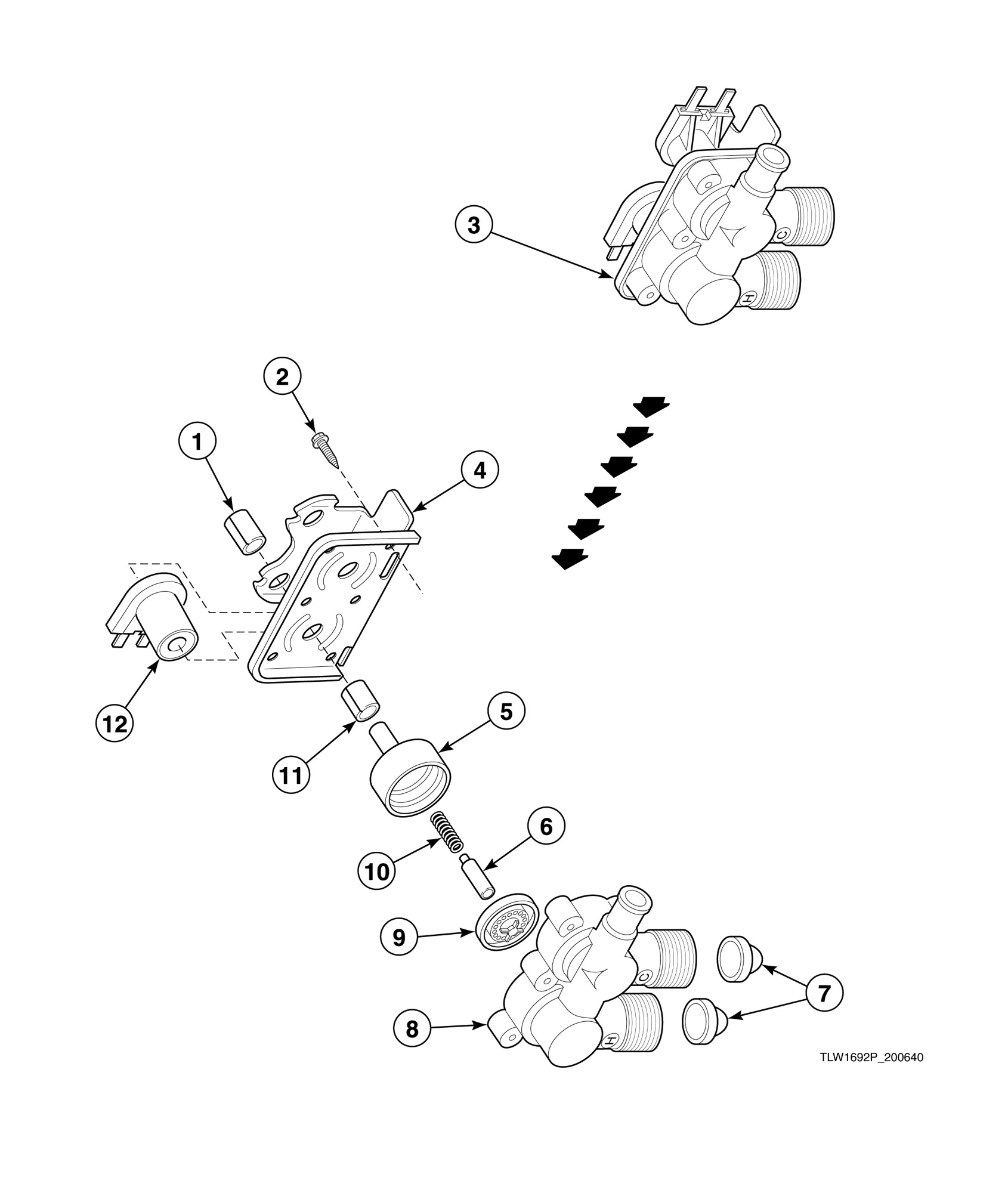

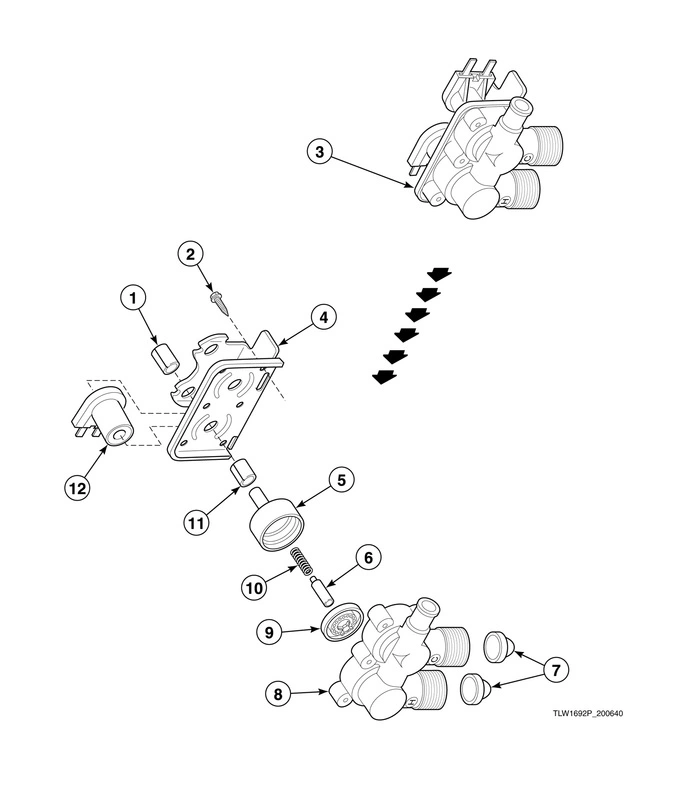

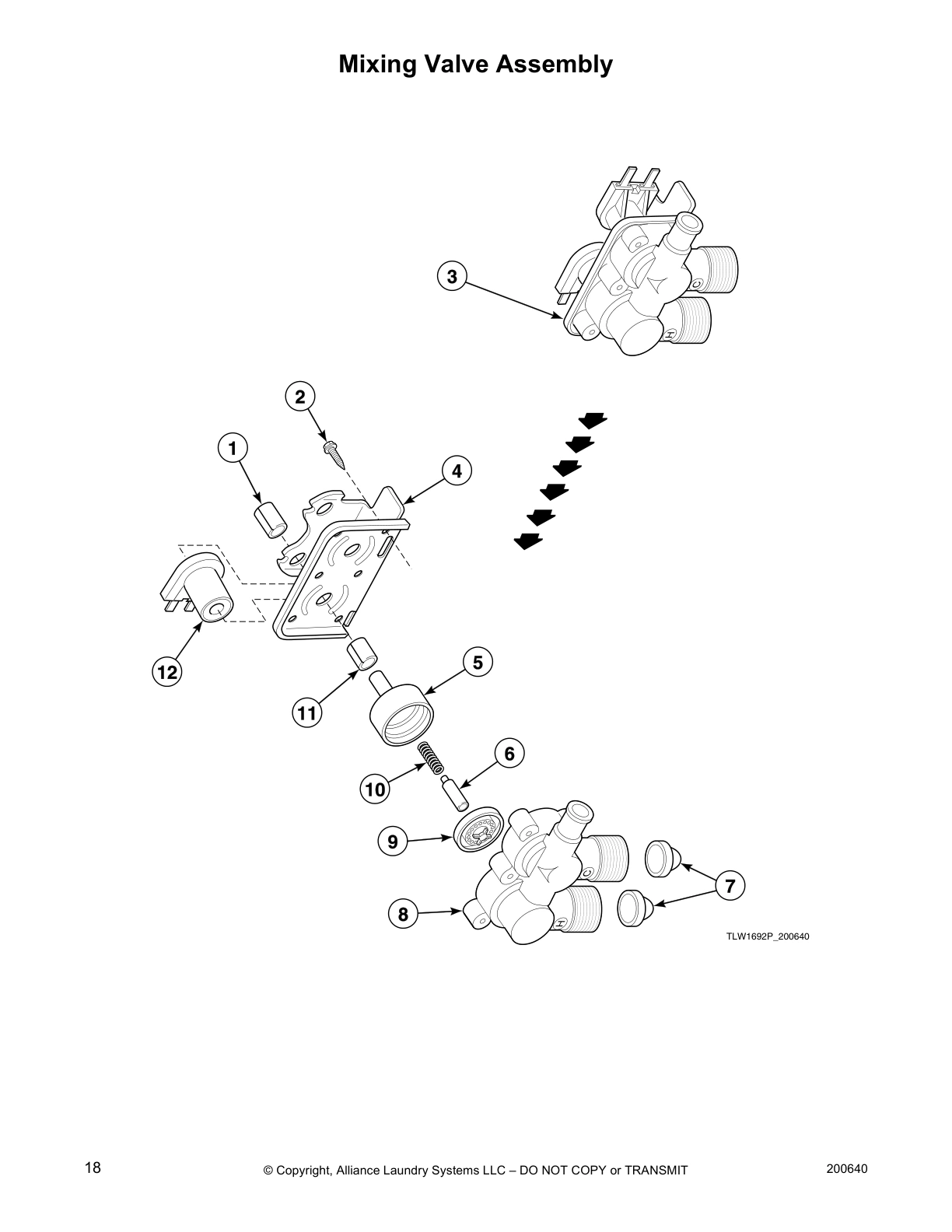

Mixing Valve Assembly

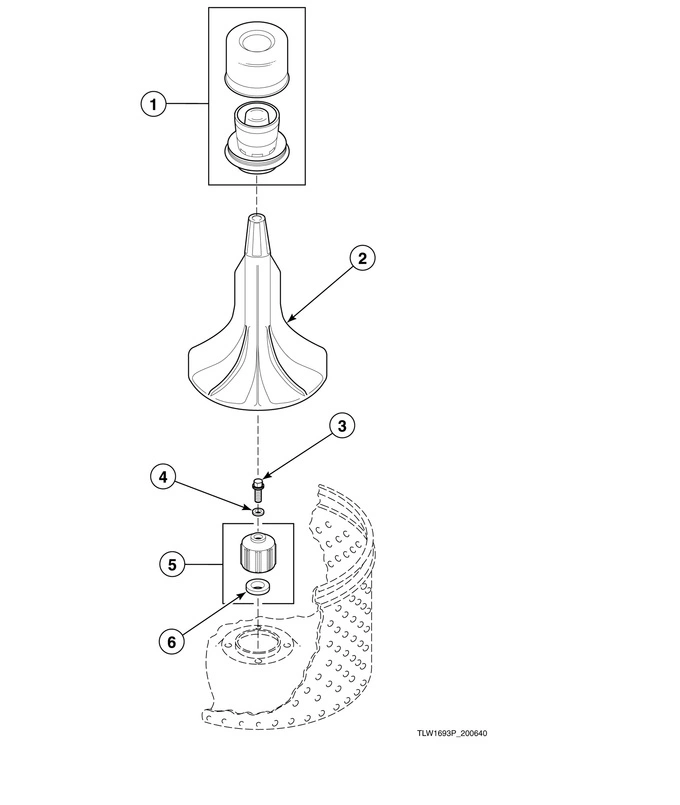

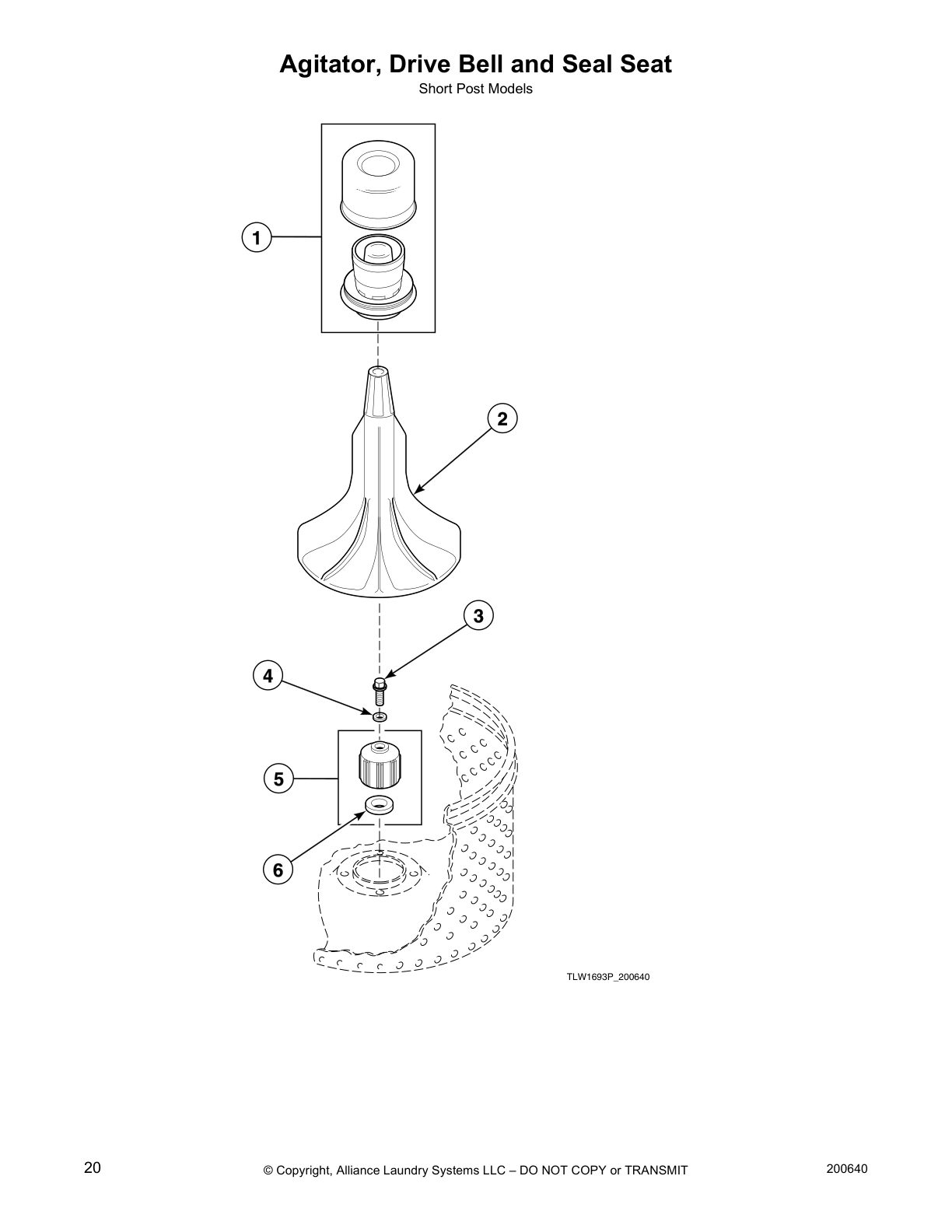

Agitator, Drive Bell and Seal Seat

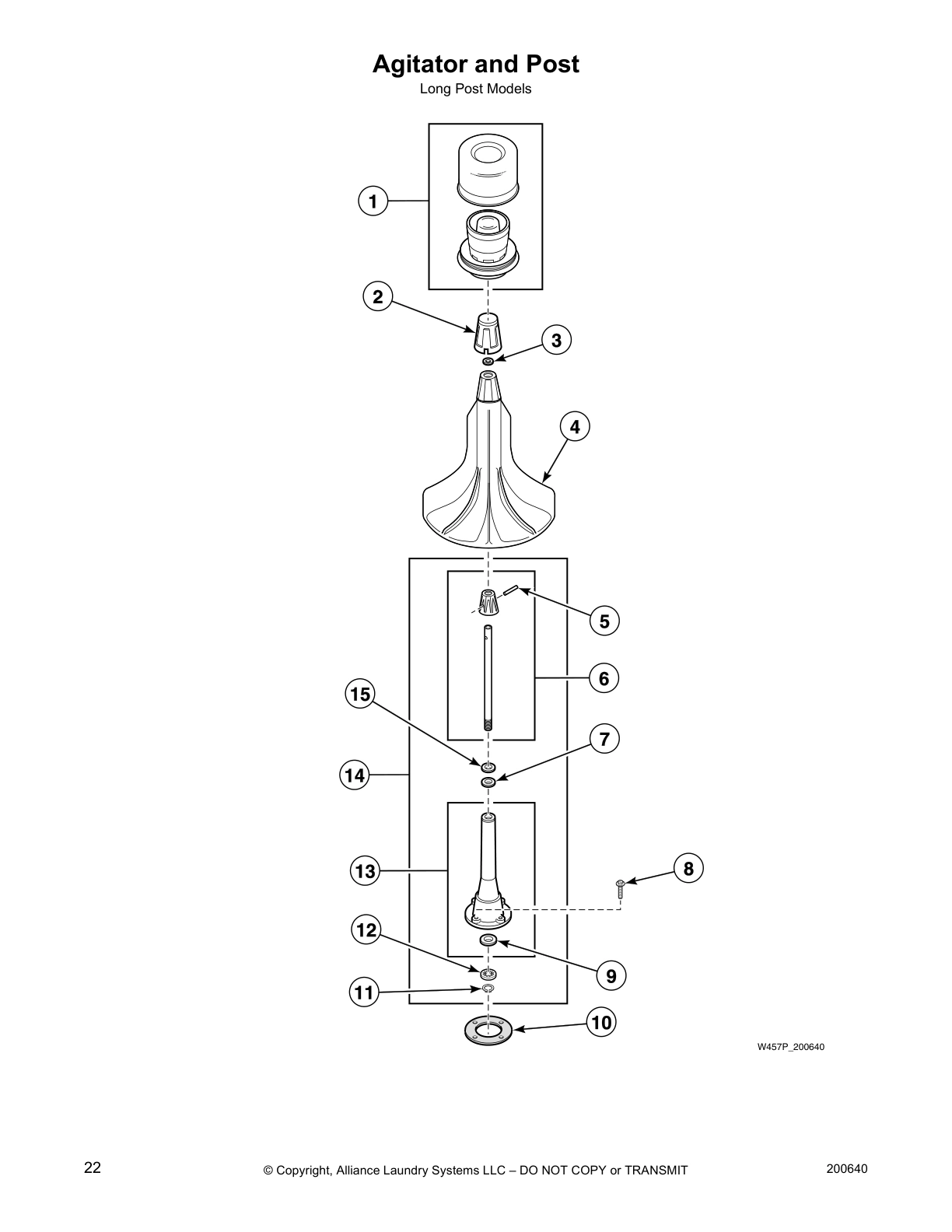

Agitator and Post

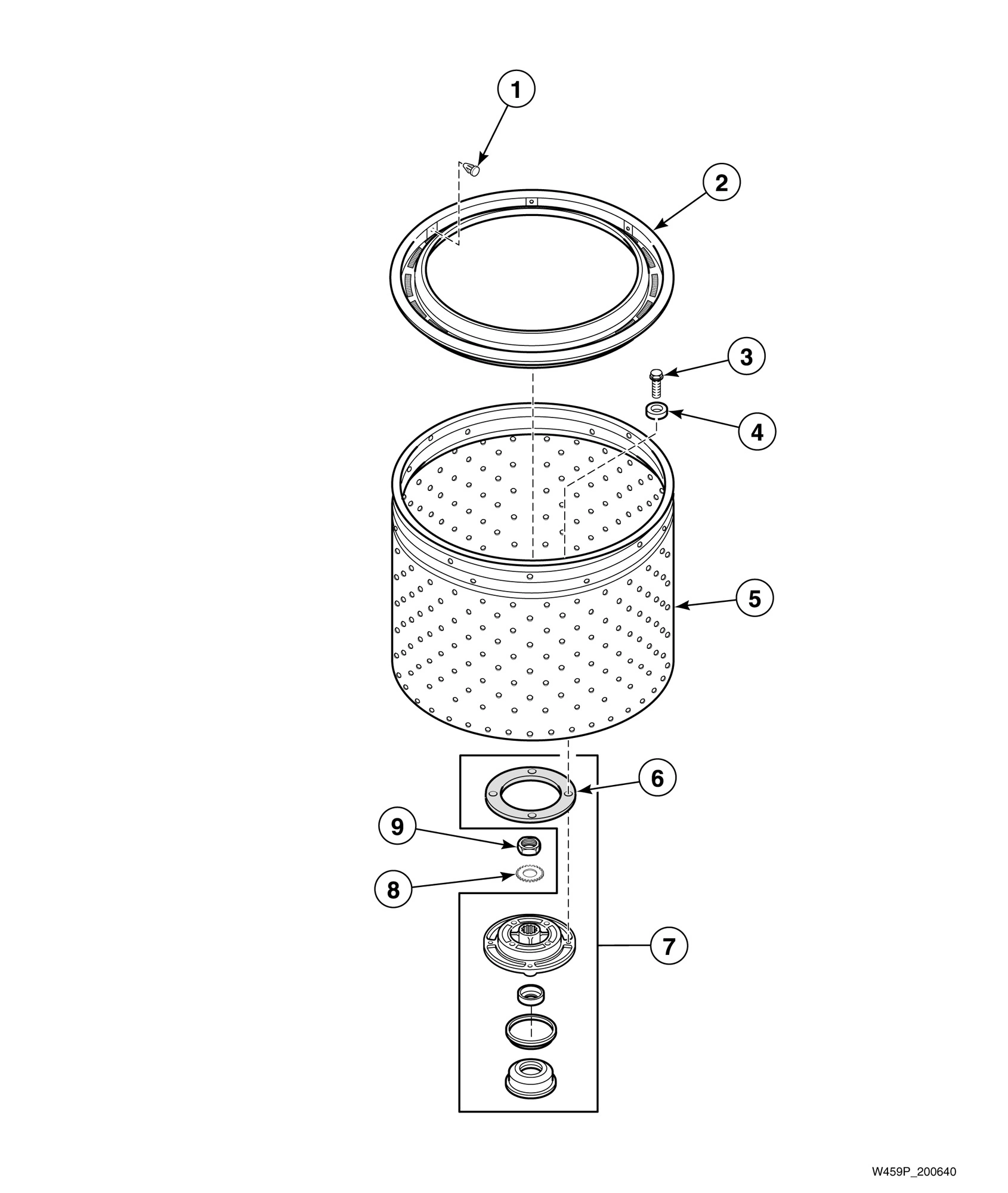

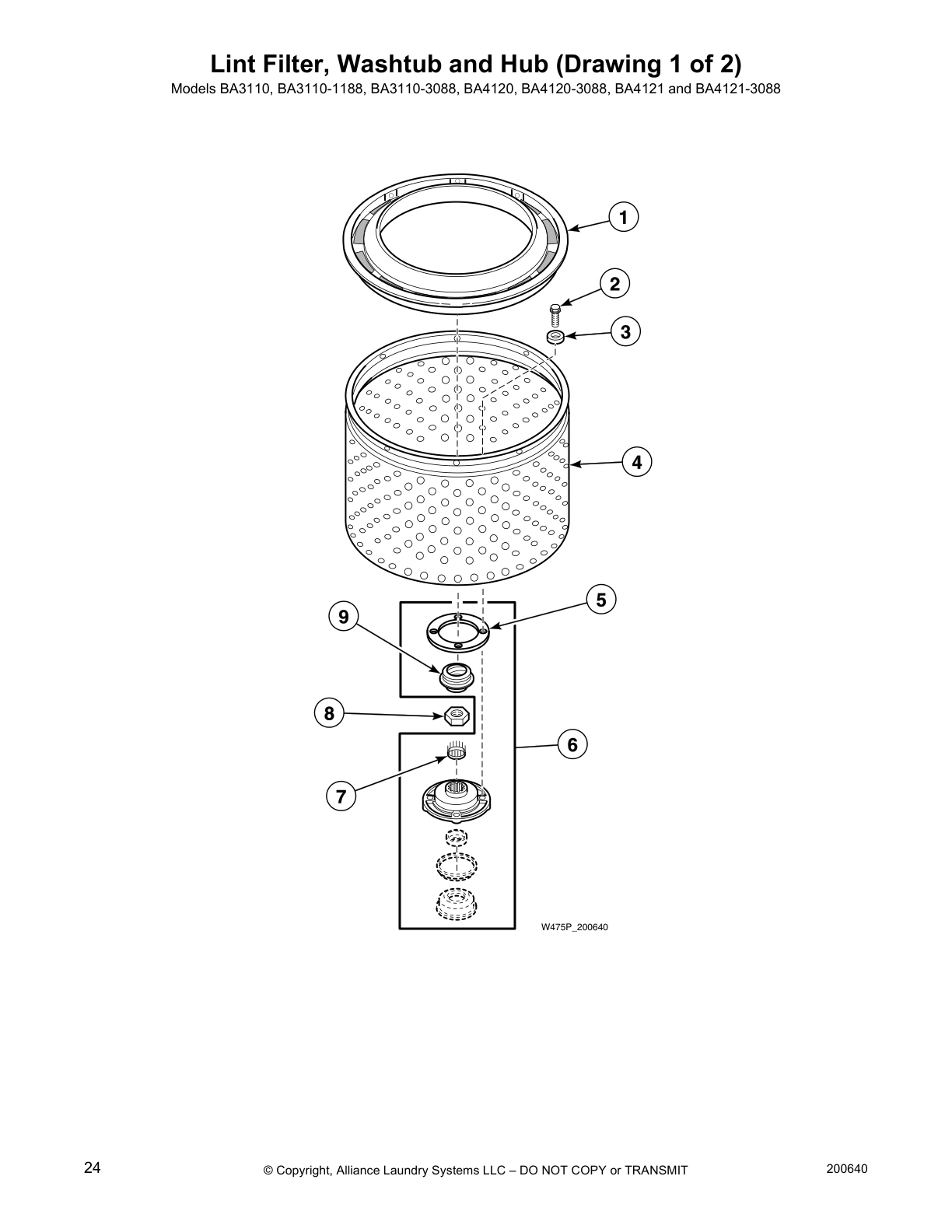

Lint Filter, Washtub and Hub (Drawing 1 of 2)

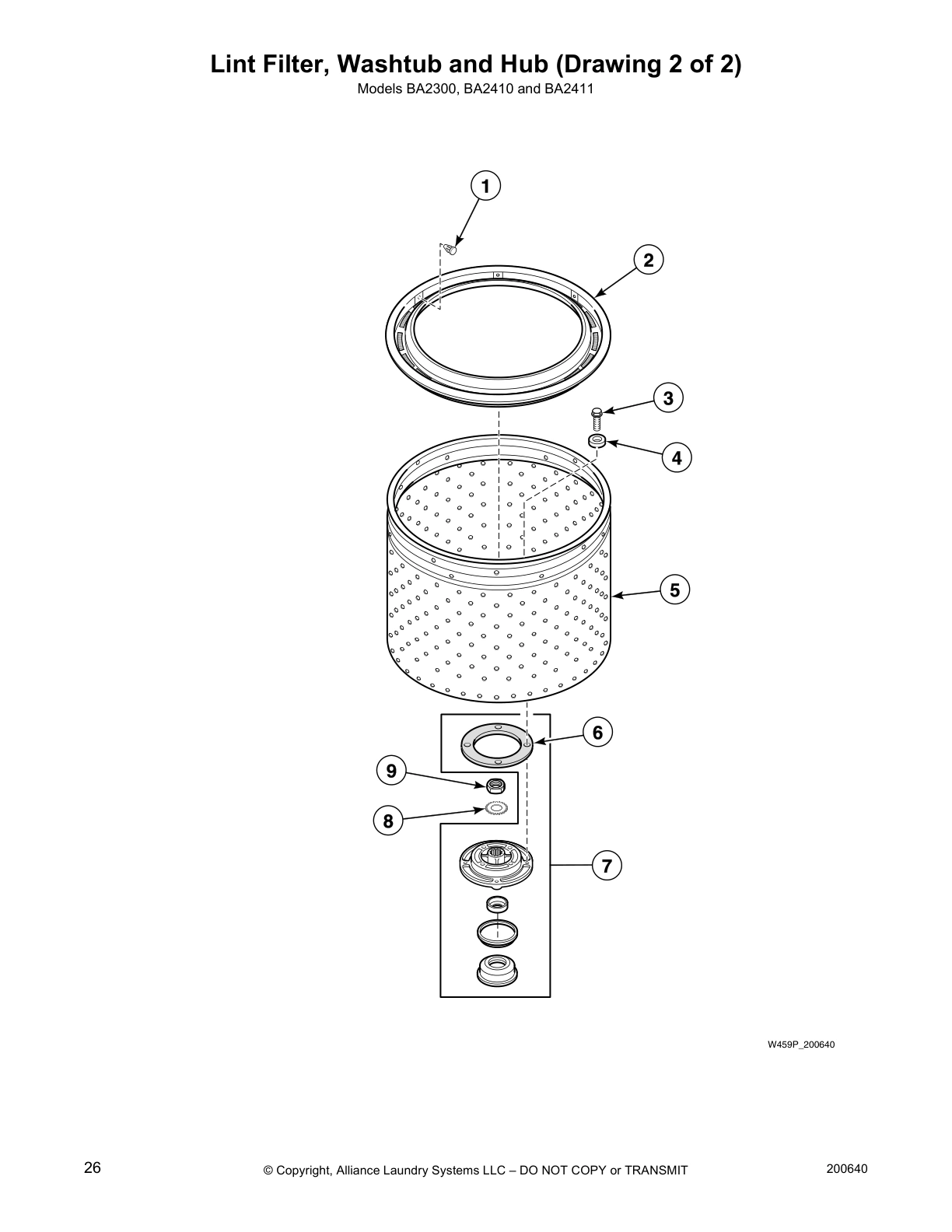

Lint Filter, Washtub and Hub (Drawing 2 of 2)

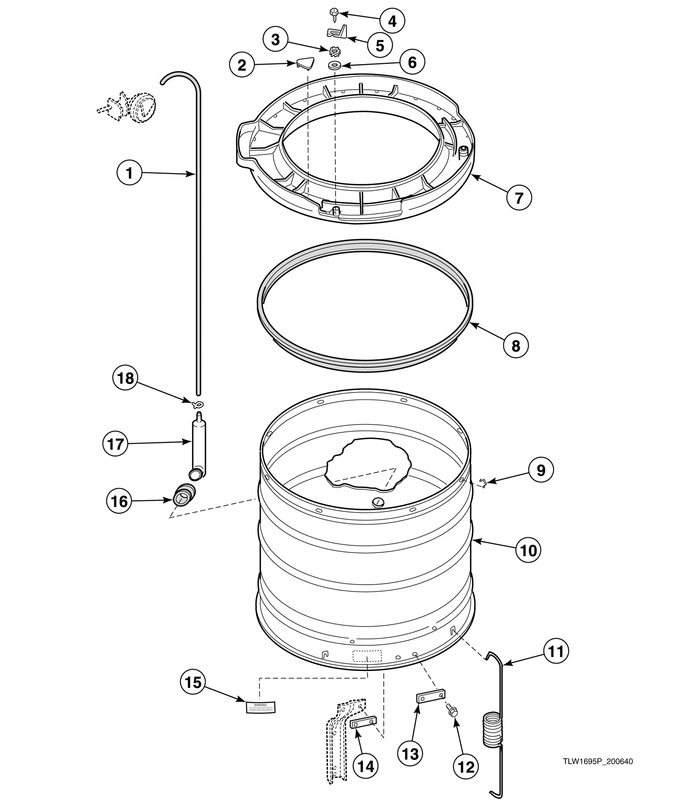

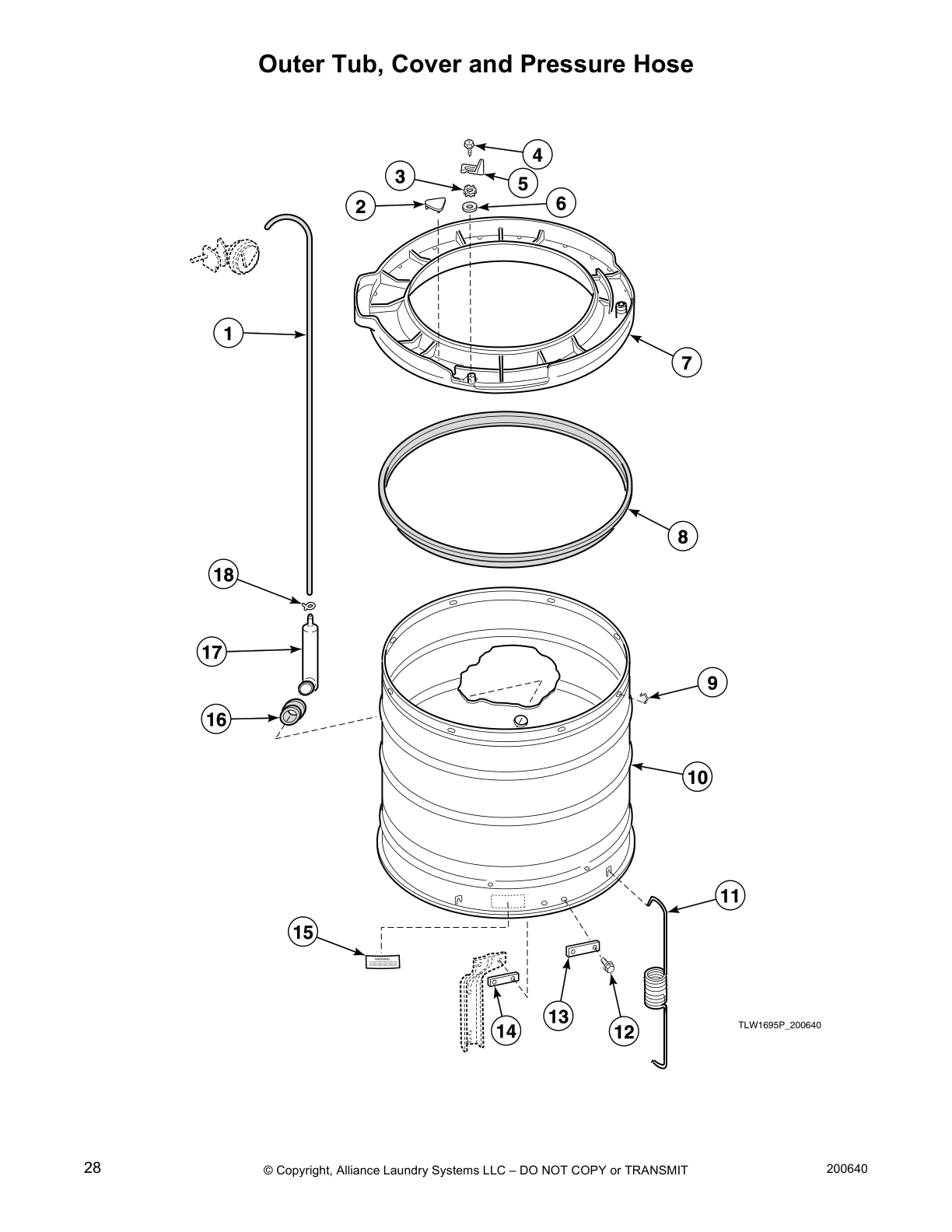

Outer Tub, Cover and Pressure Hose

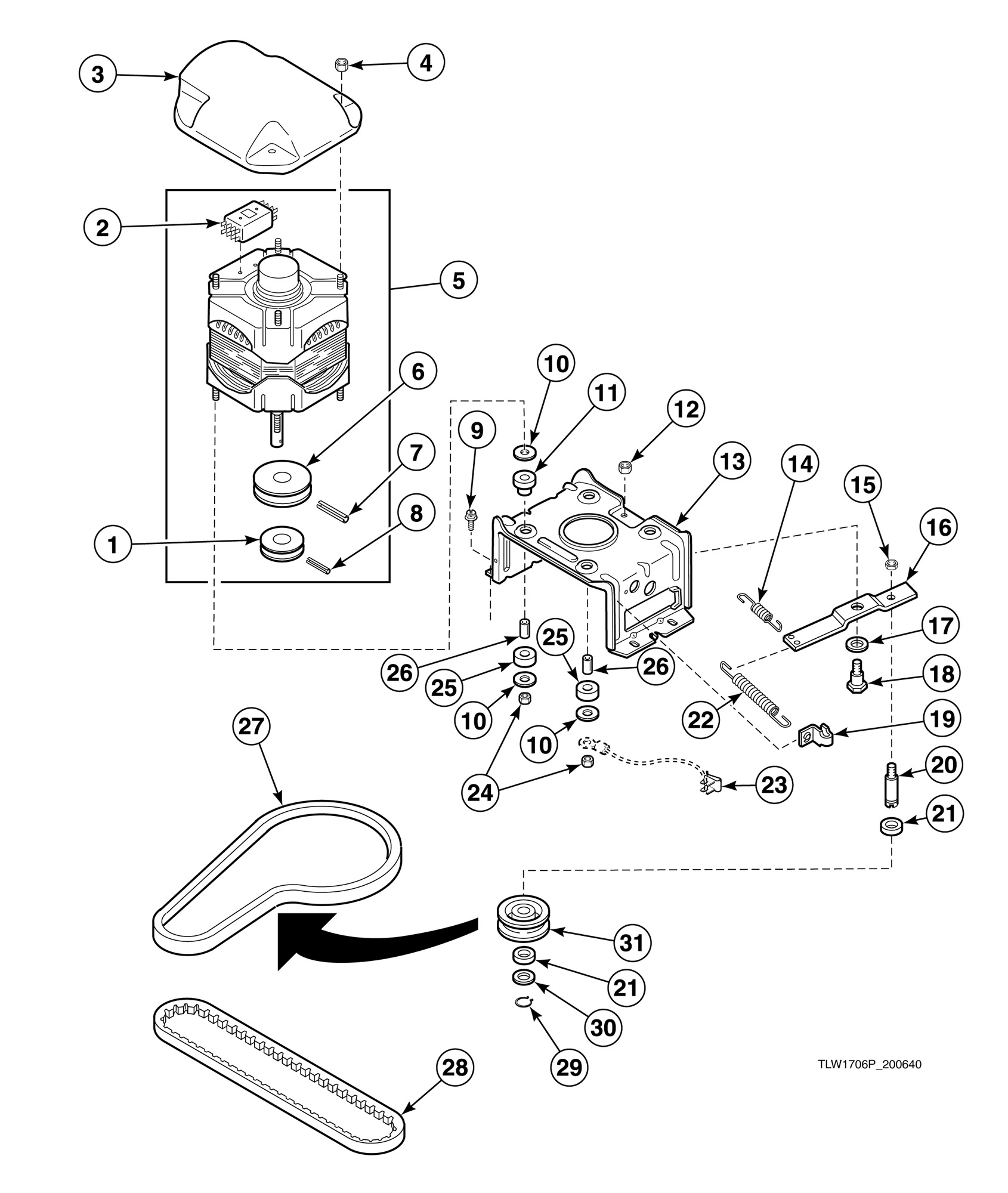

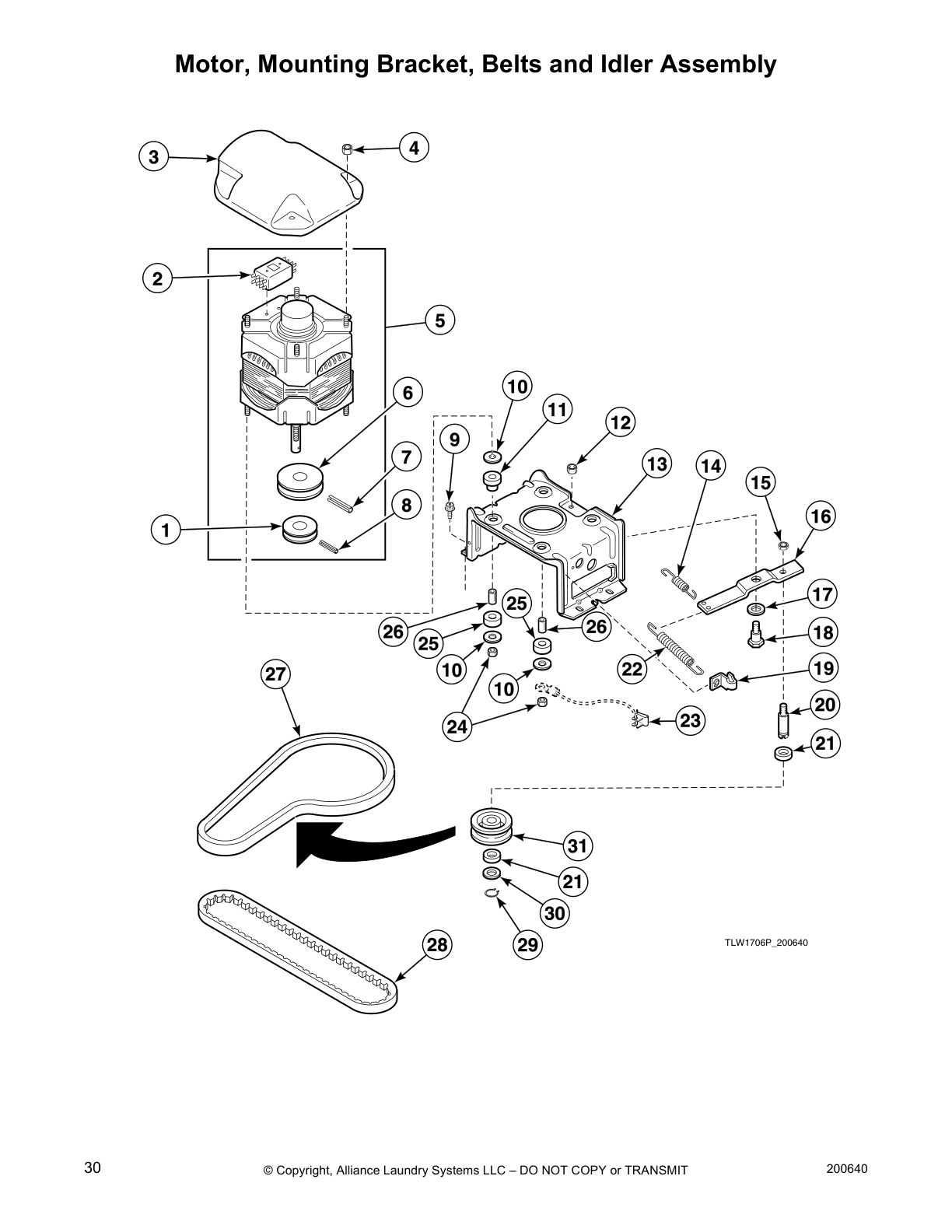

Motor, Mounting Bracket, Belts and Idler Assembly

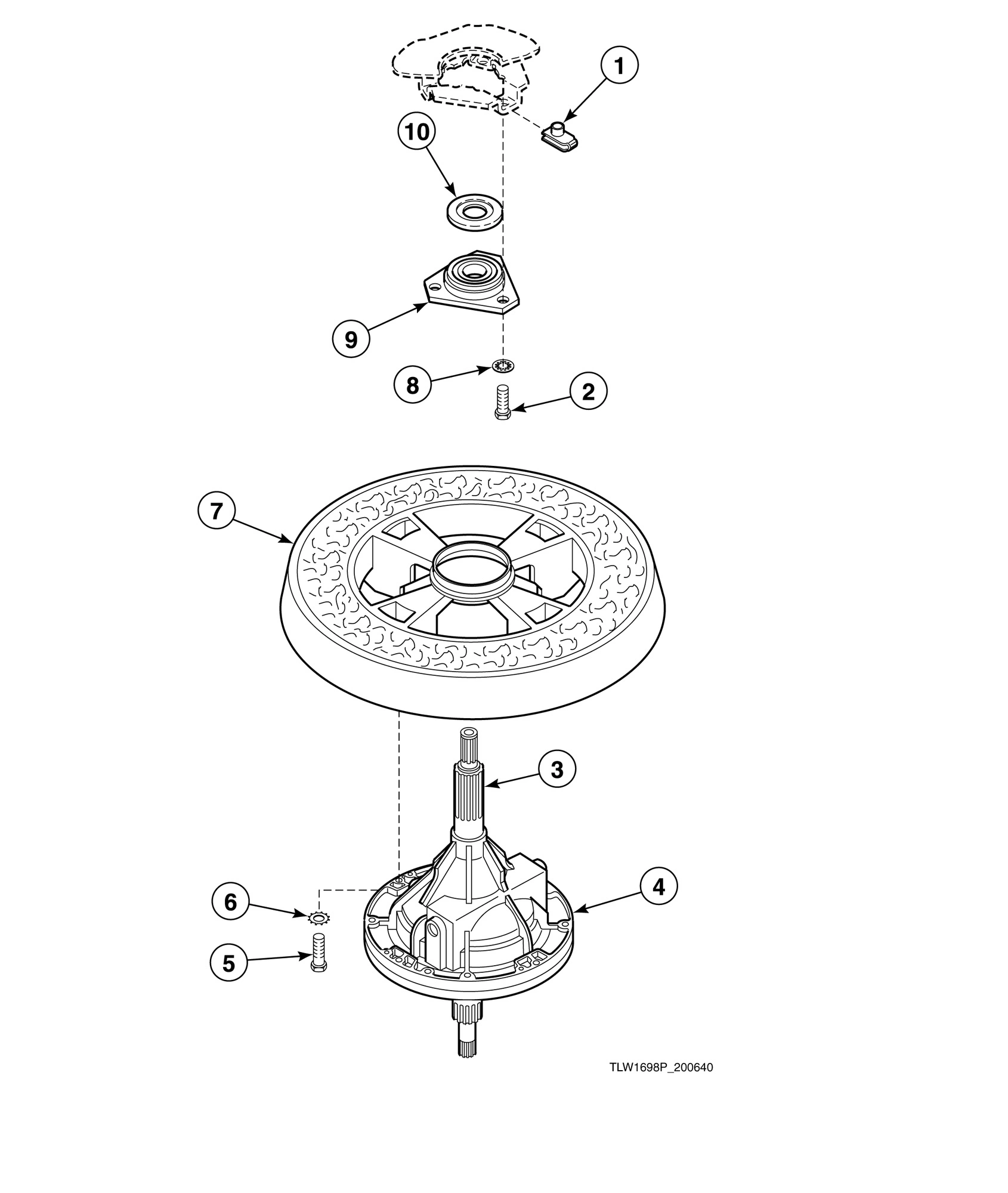

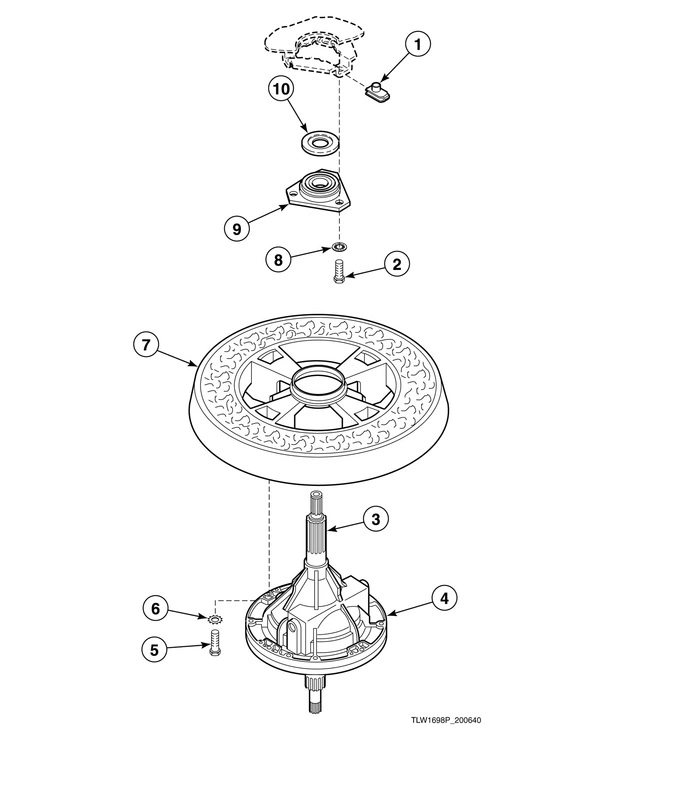

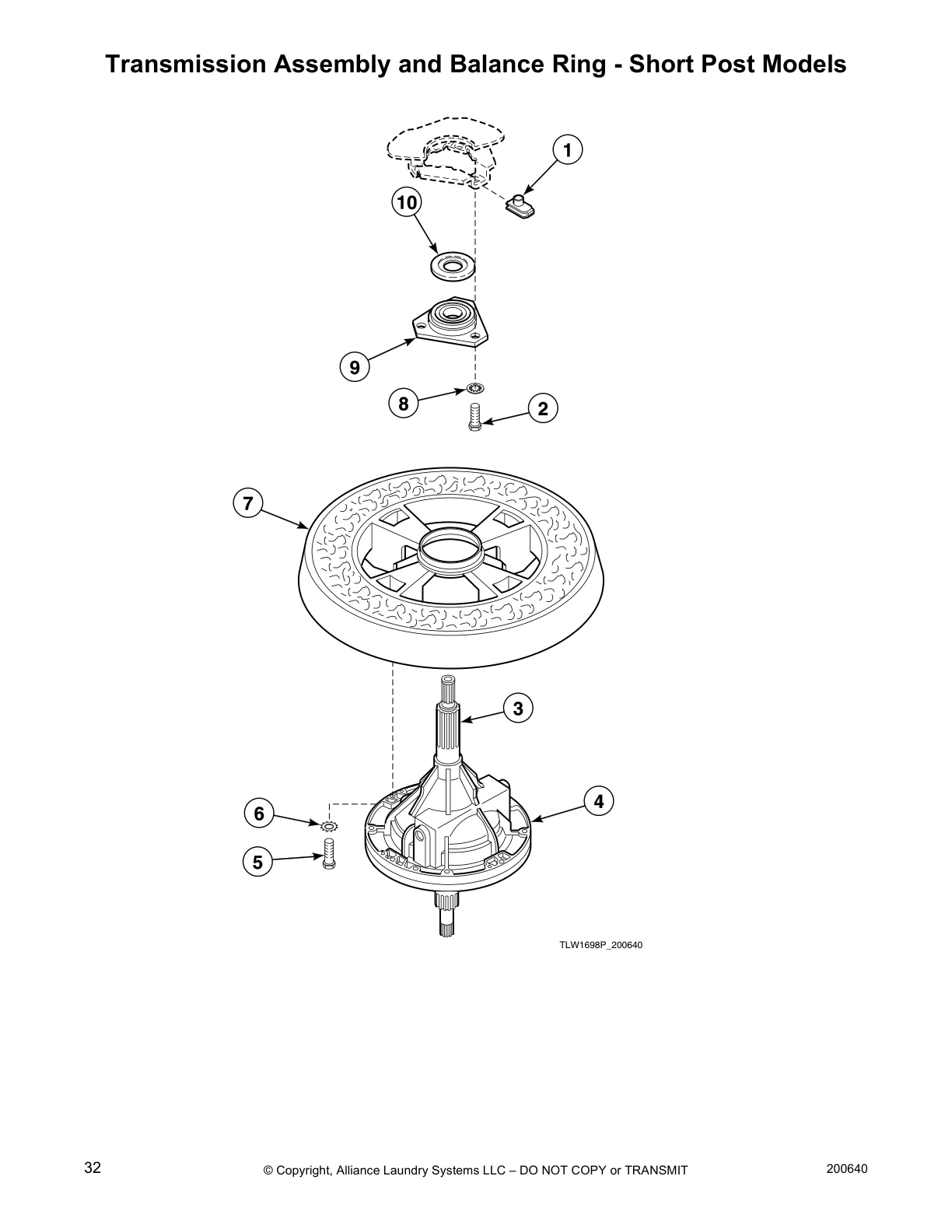

Transmission Assembly and Balance Ring - Short Post Models

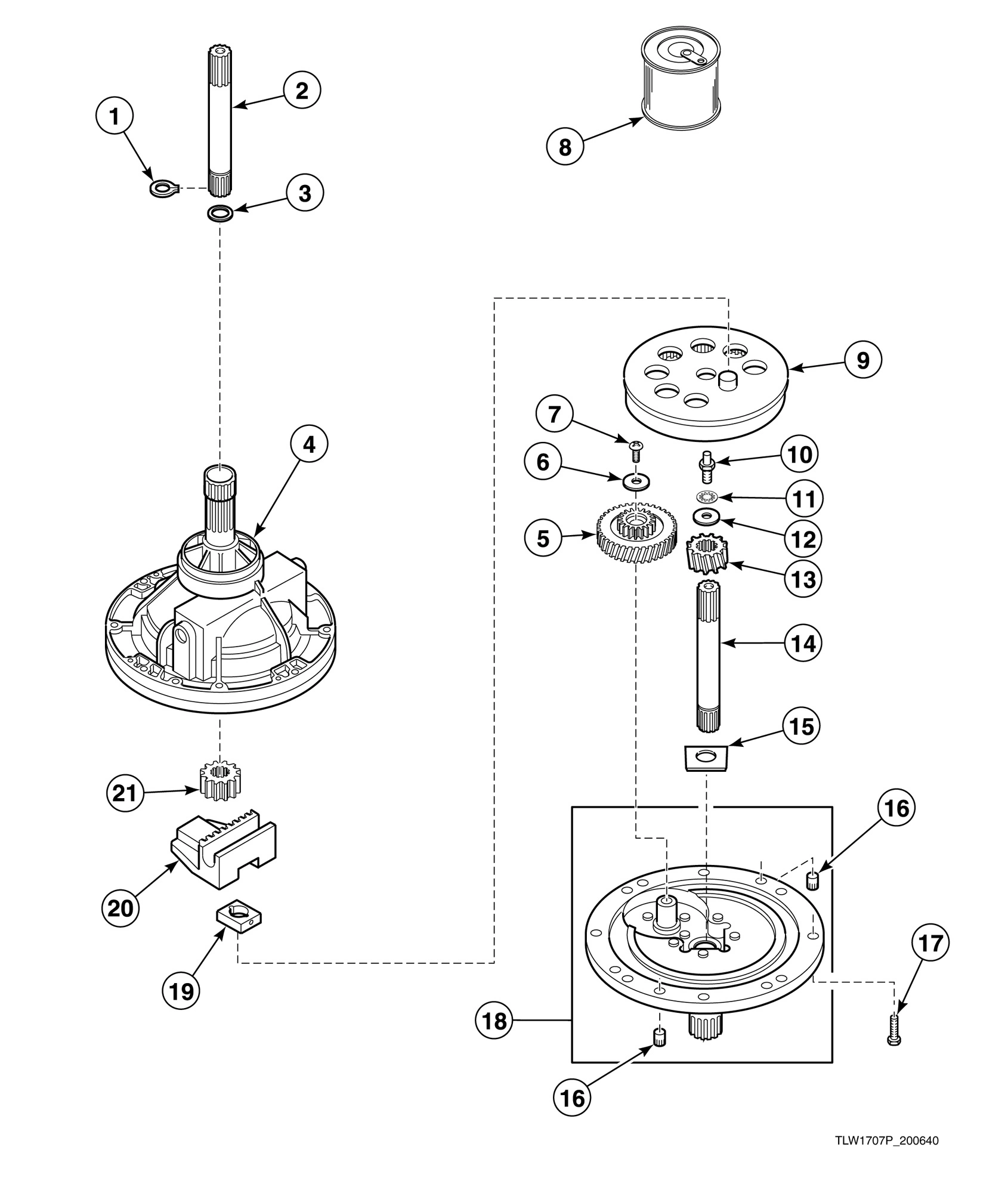

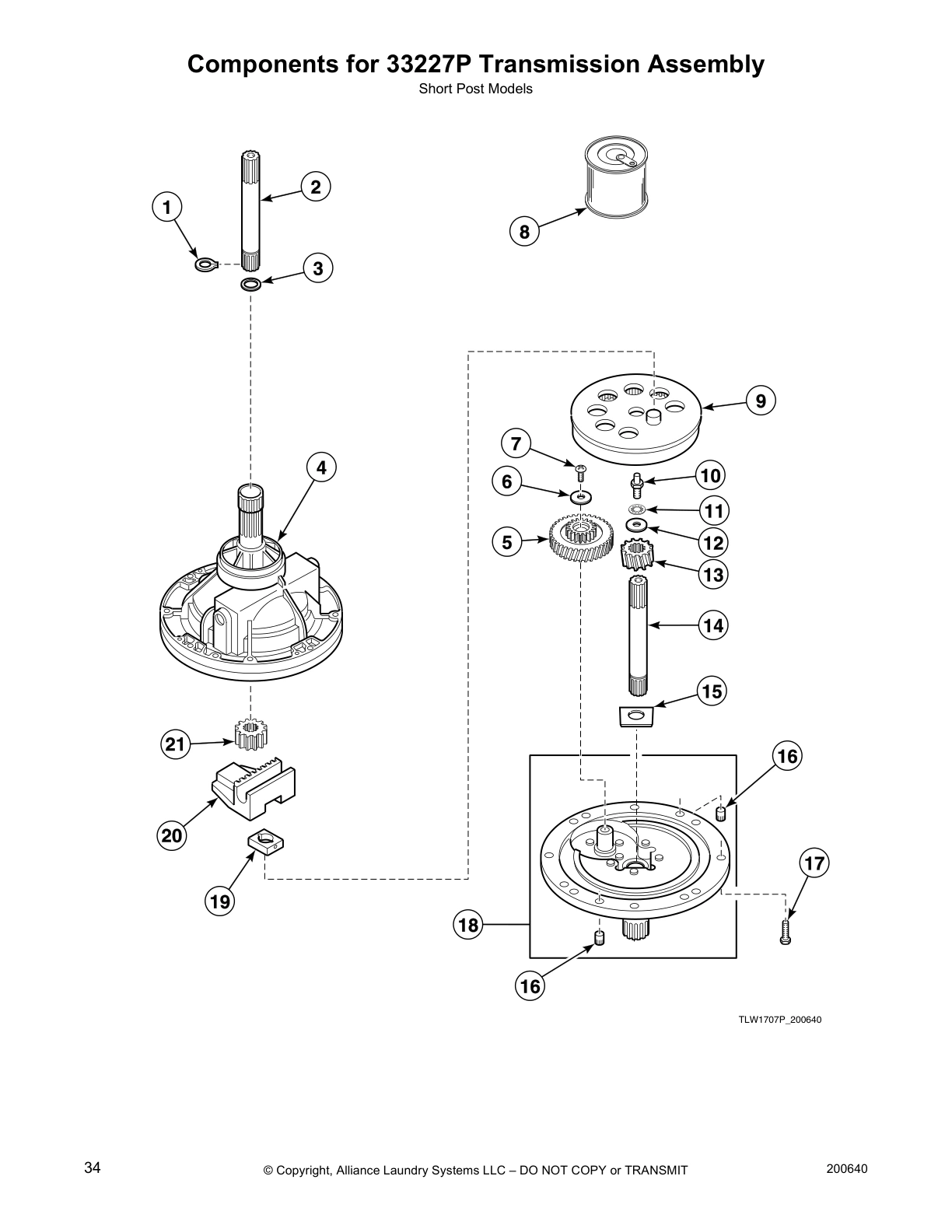

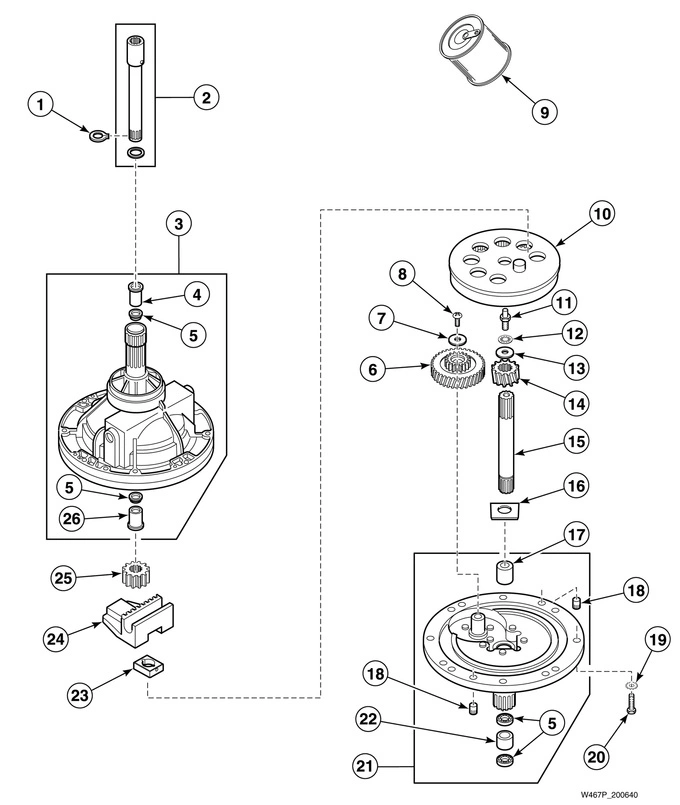

Components for 33227P Transmission Assembly

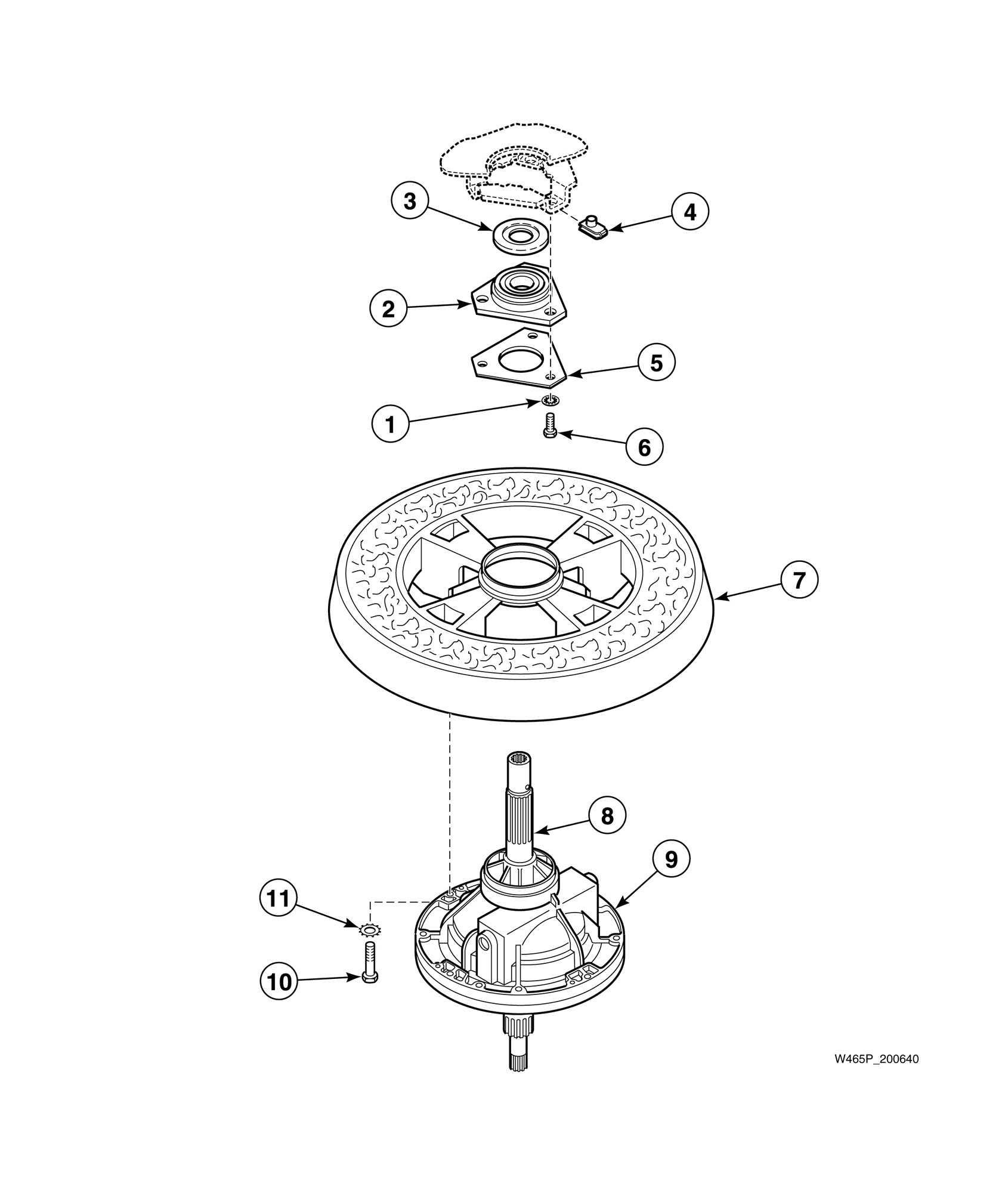

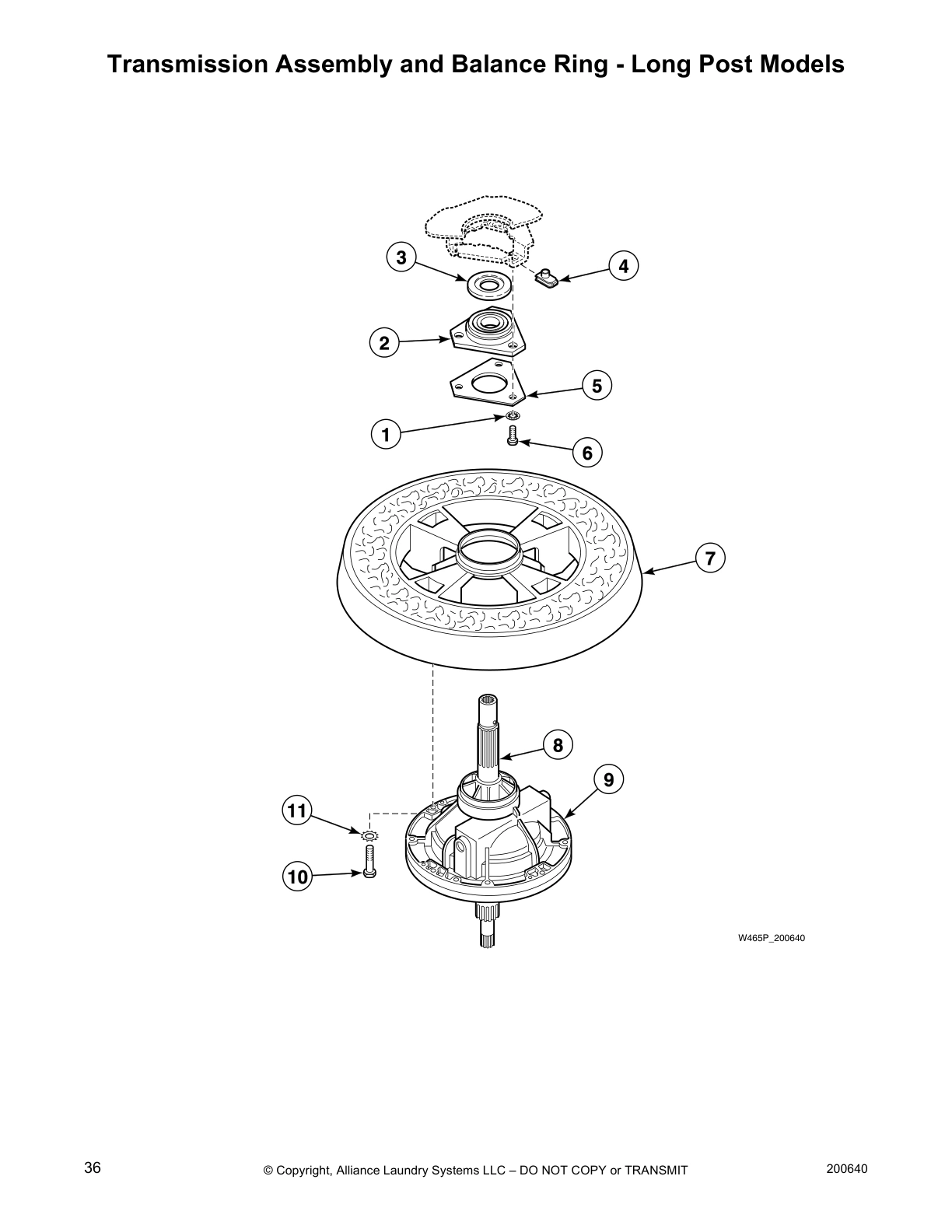

Transmission Assembly and Balance Ring - Long Post Models

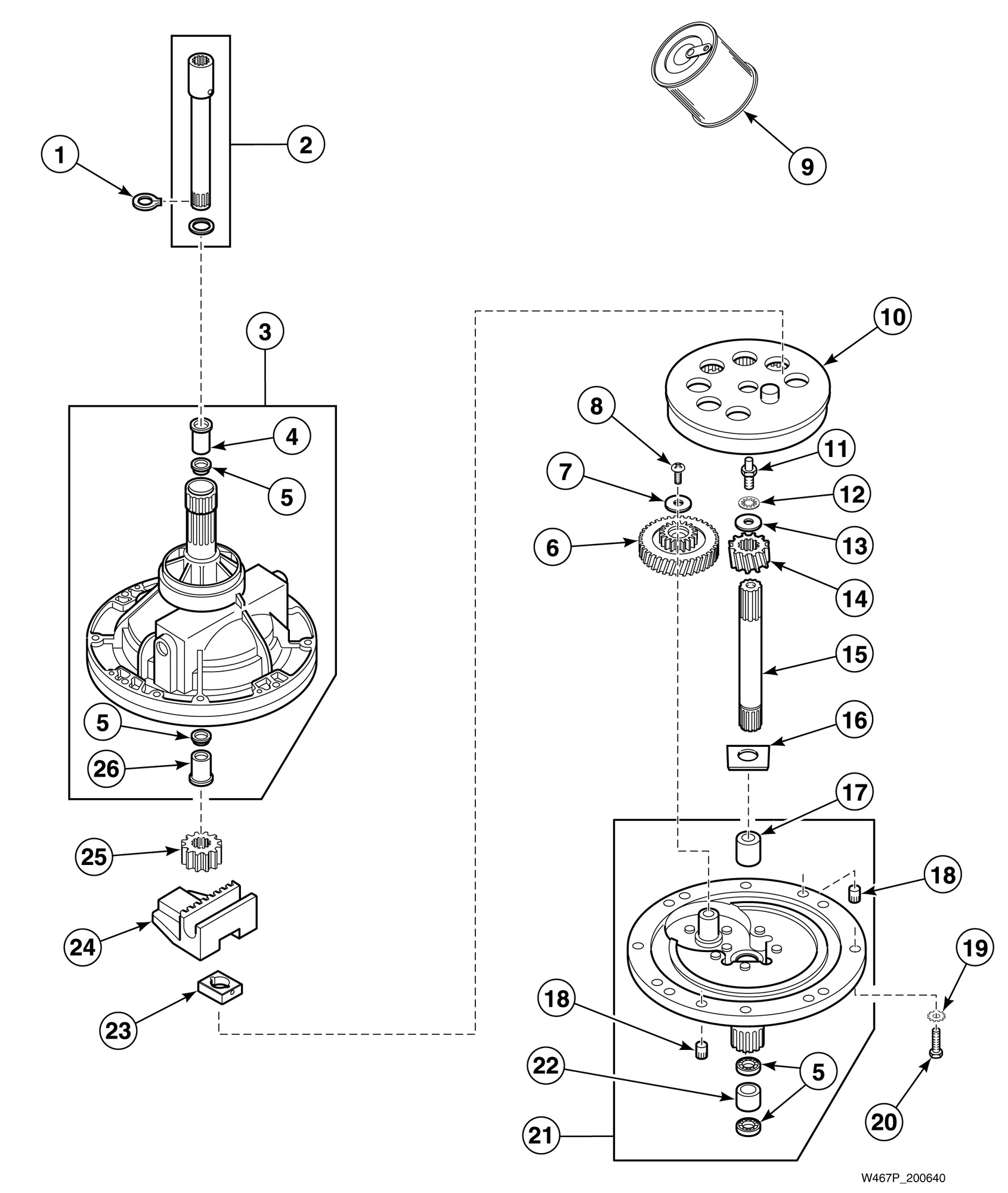

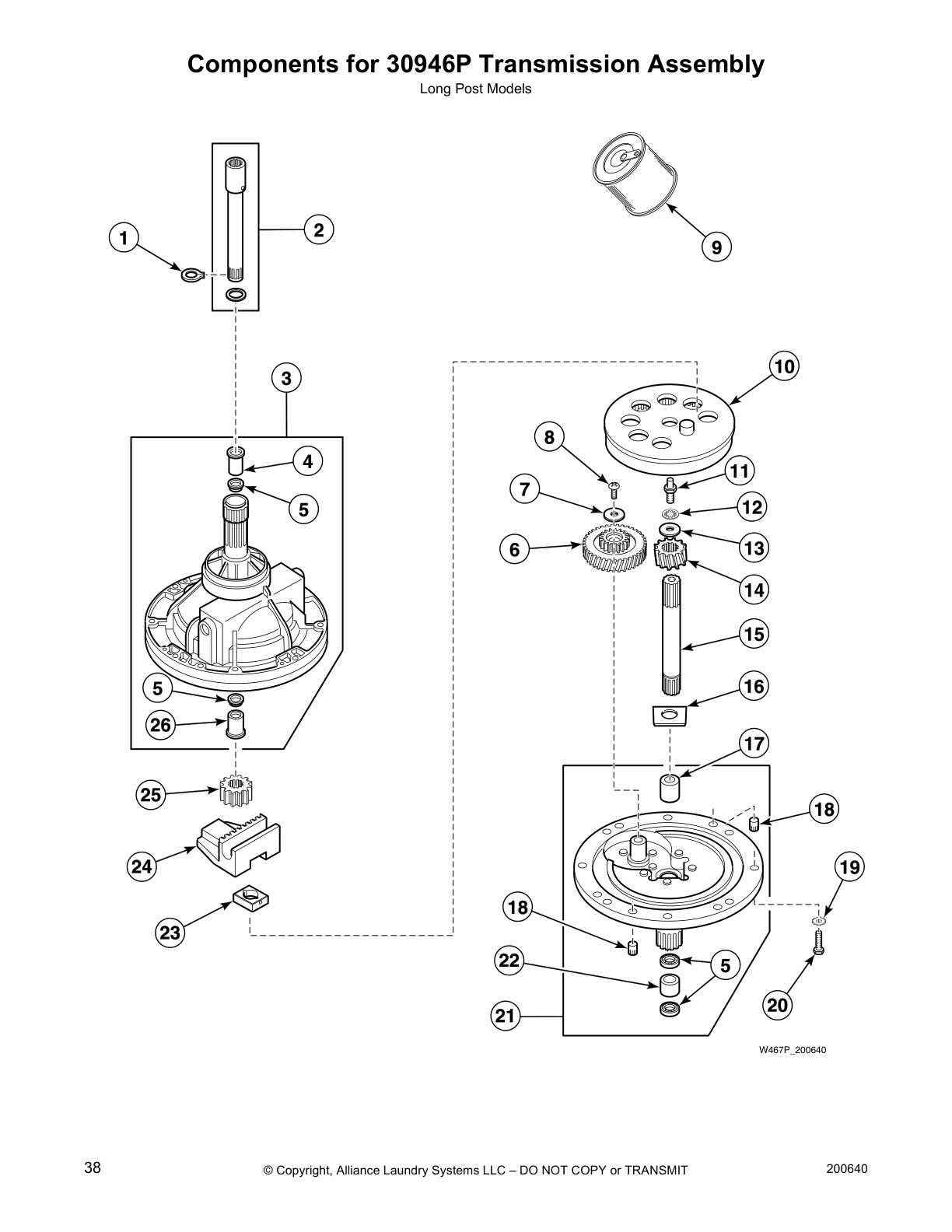

Components for 30946P Transmission Assembly

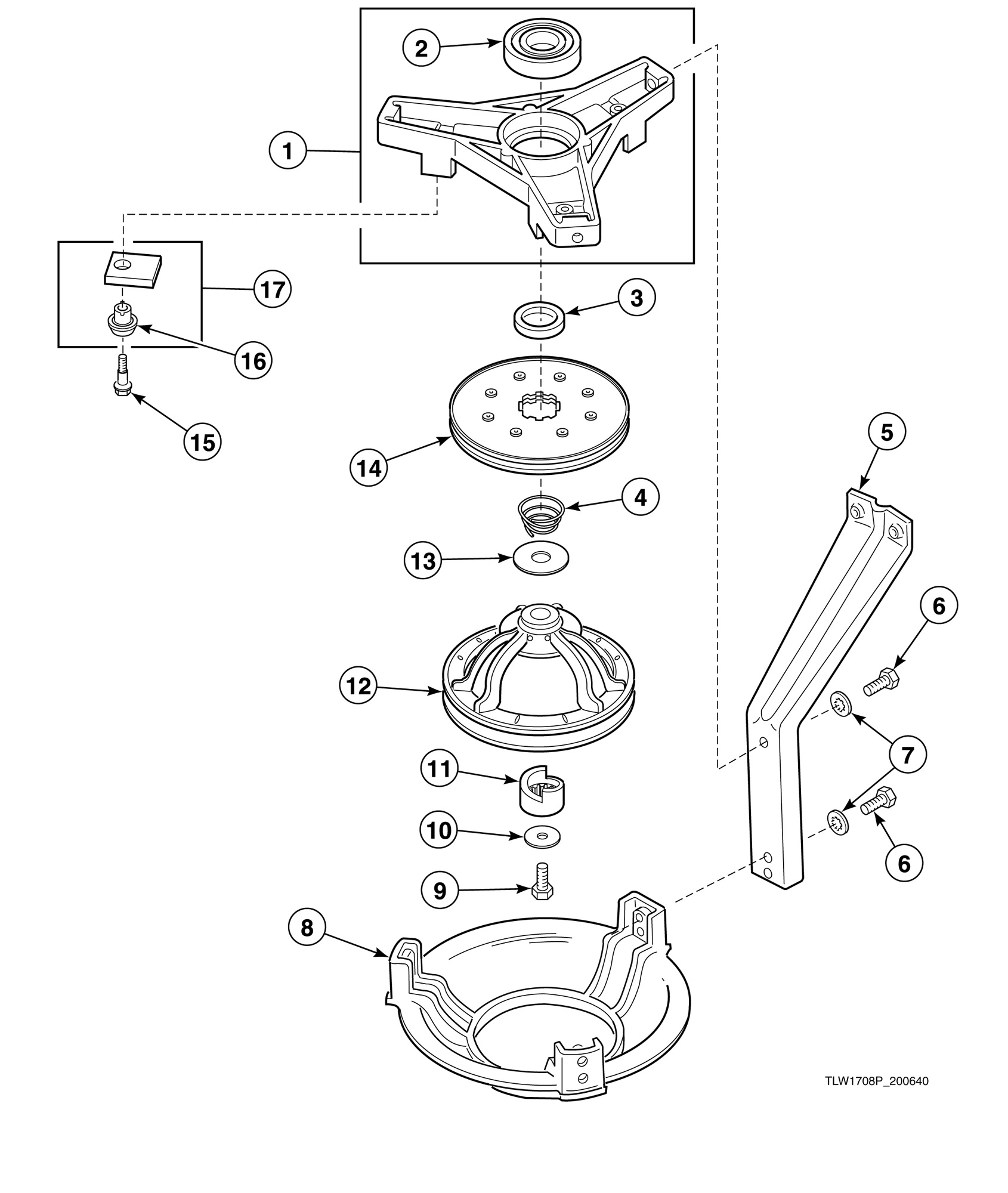

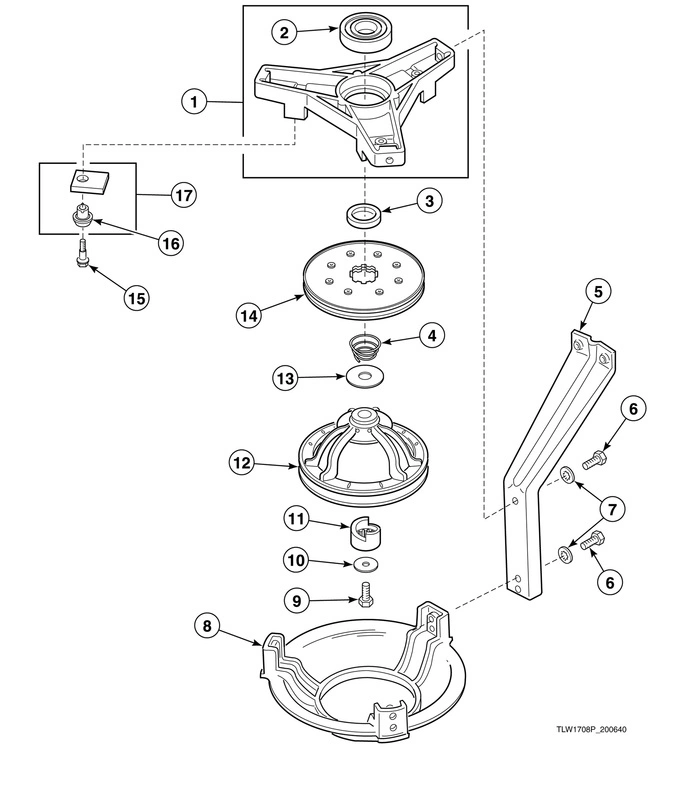

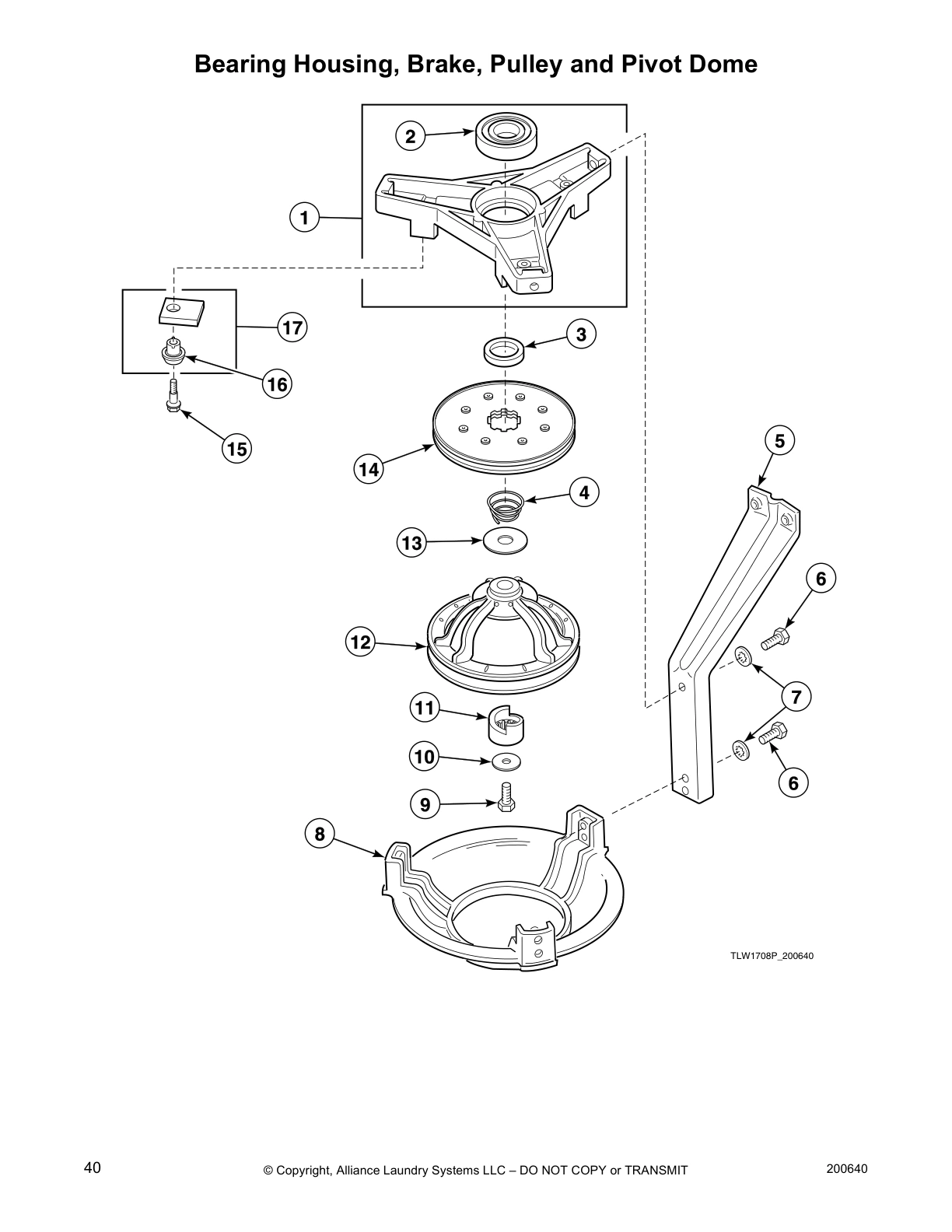

Bearing Housing, Brake, Pulley and Pivot Dome

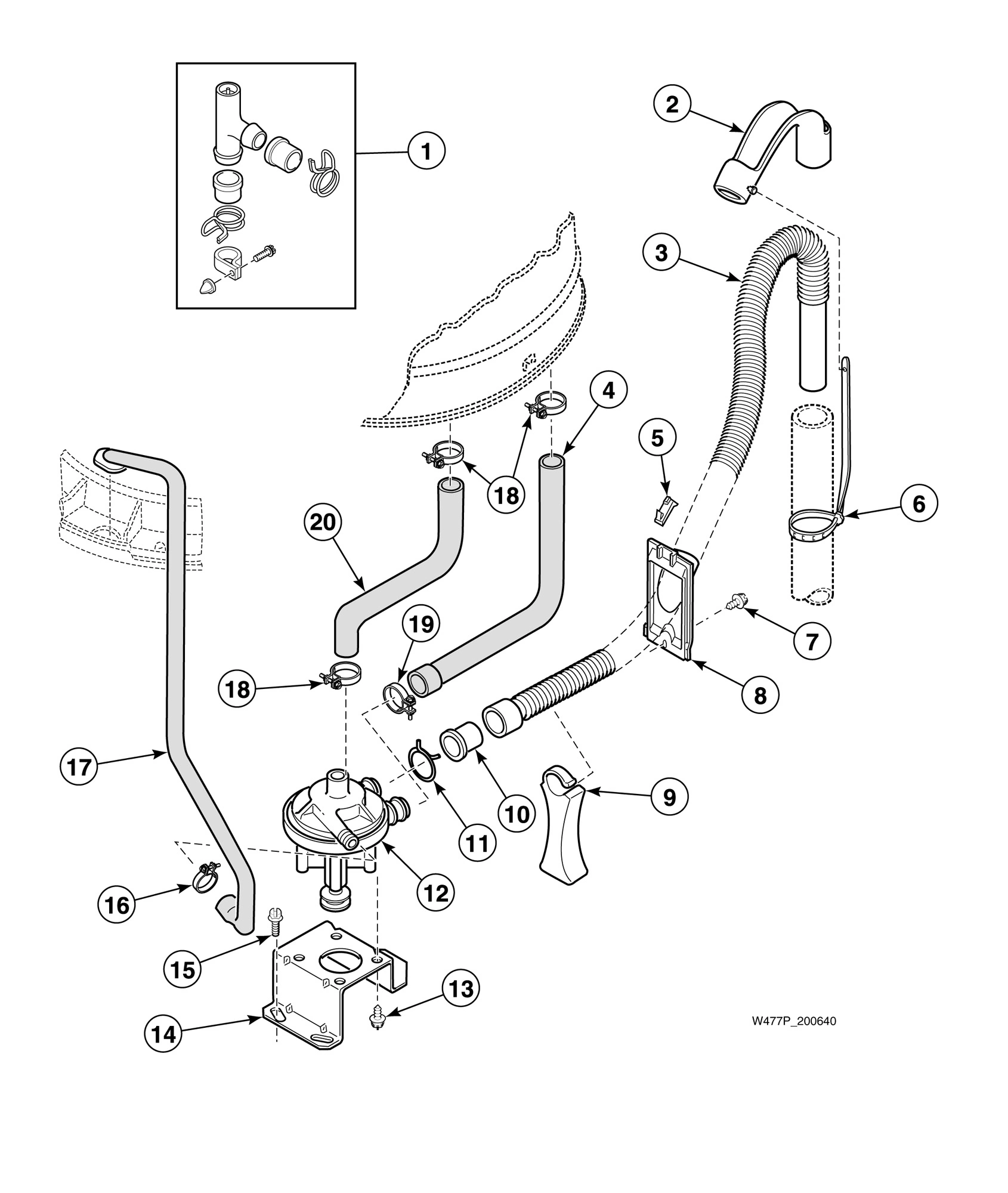

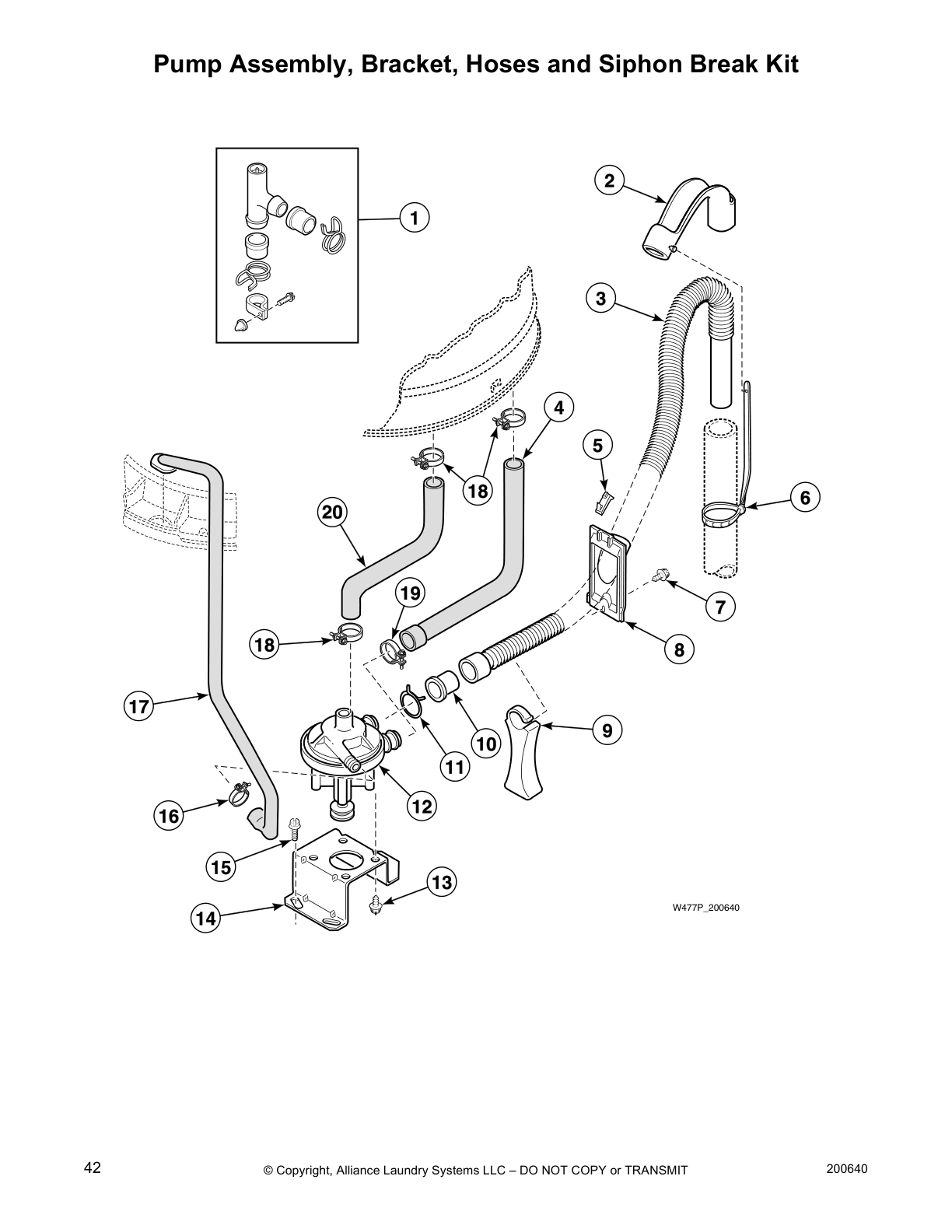

Pump Assembly, Bracket, Hoses and Siphon Break Kit

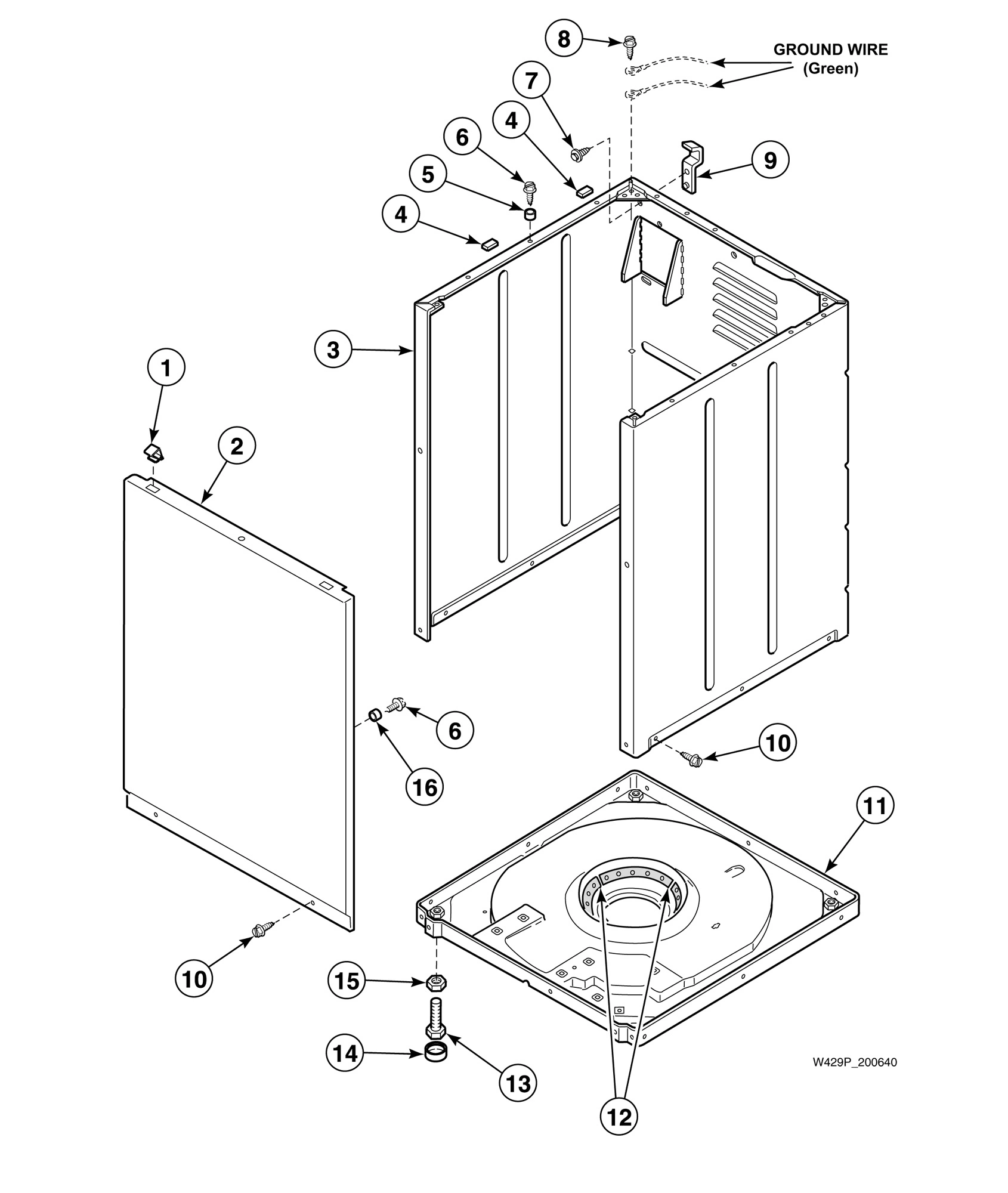

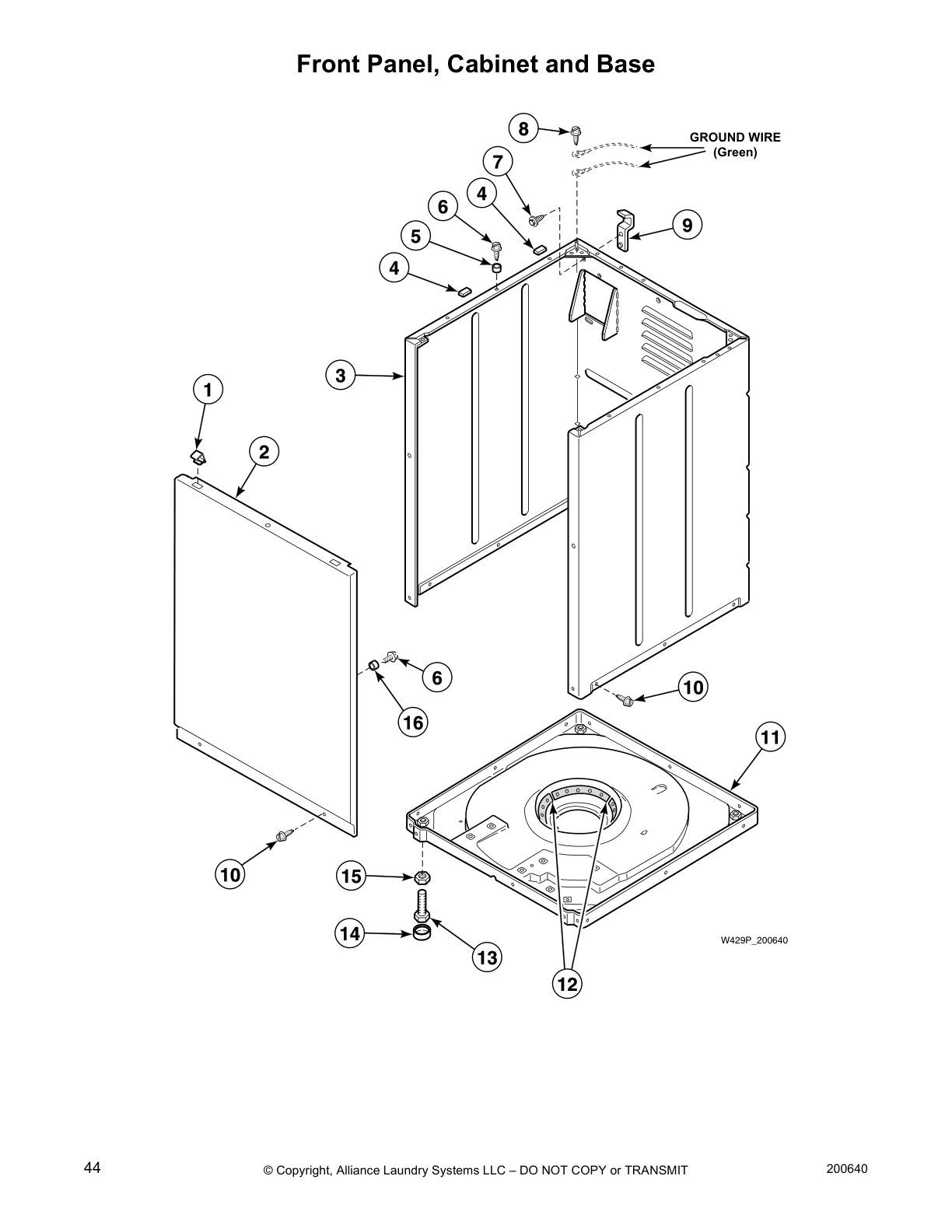

Front Panel, Cabinet and Base

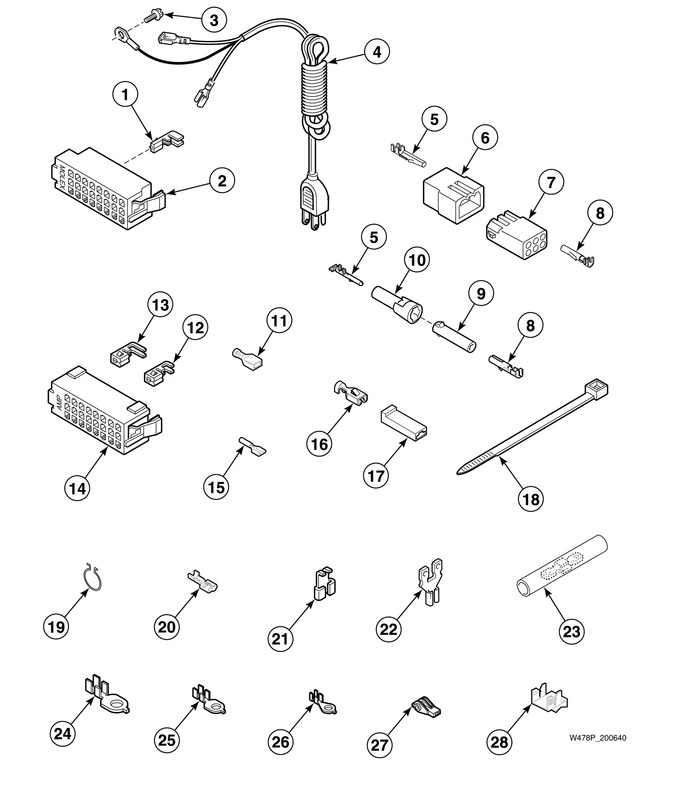

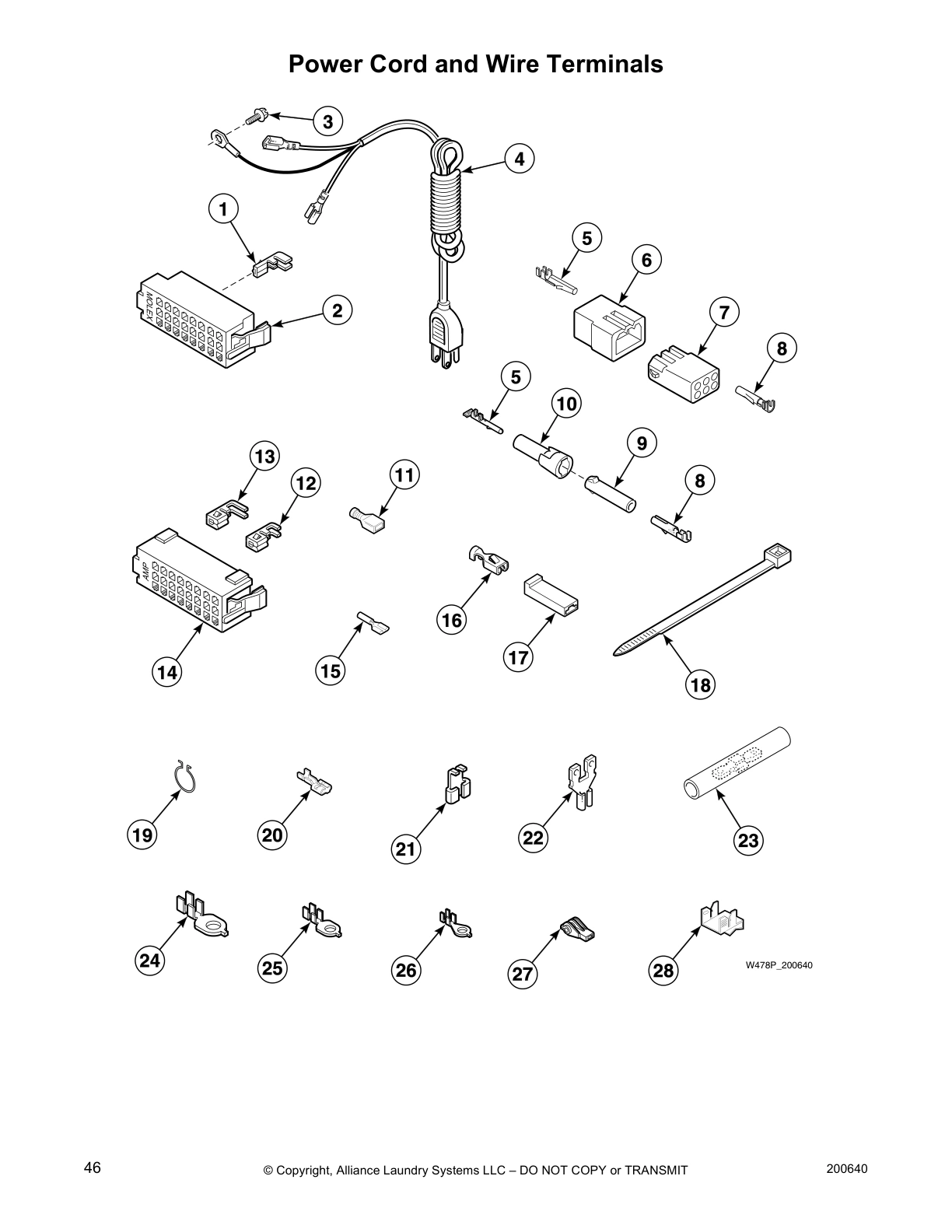

Power Cord and Wire Terminals

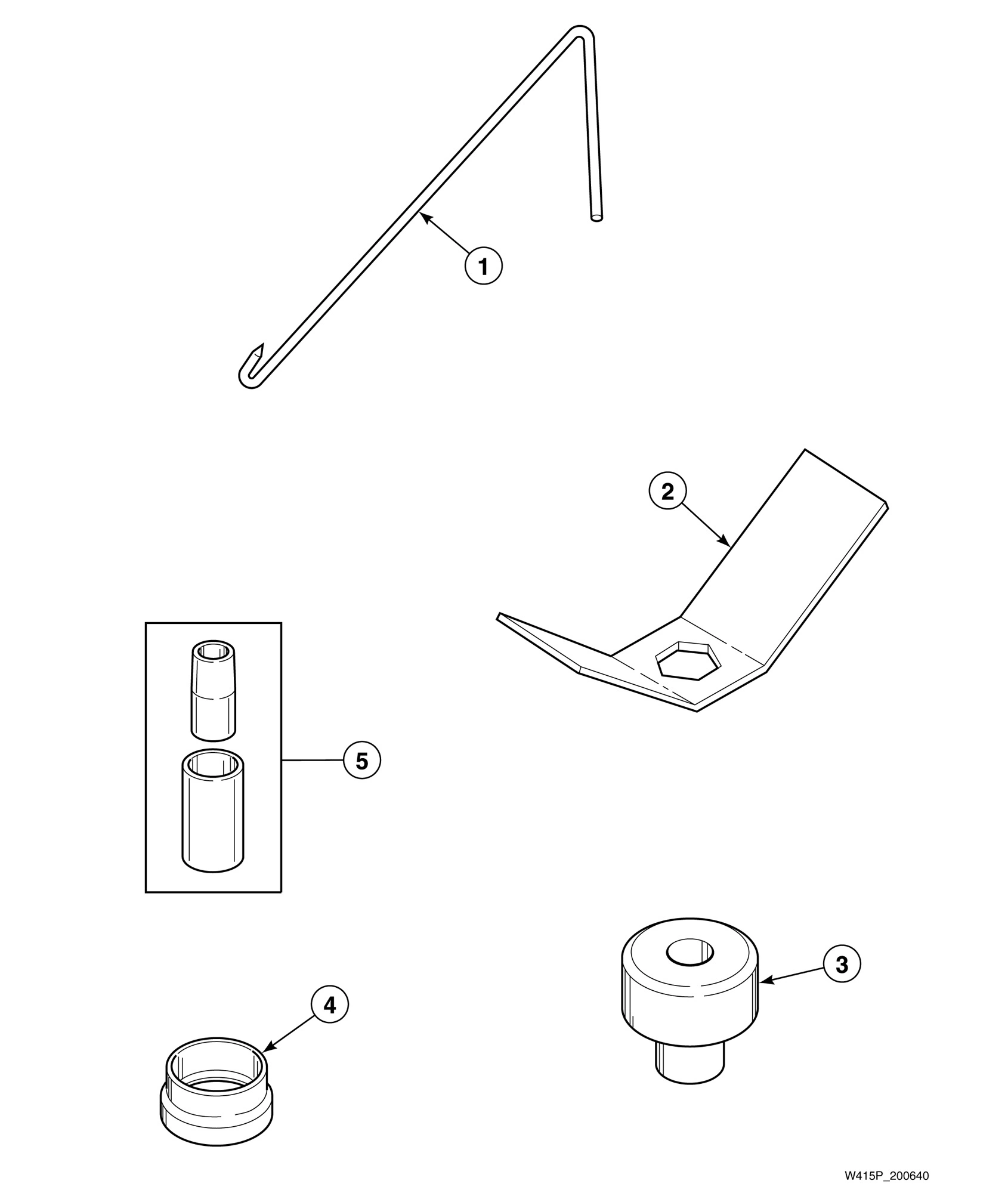

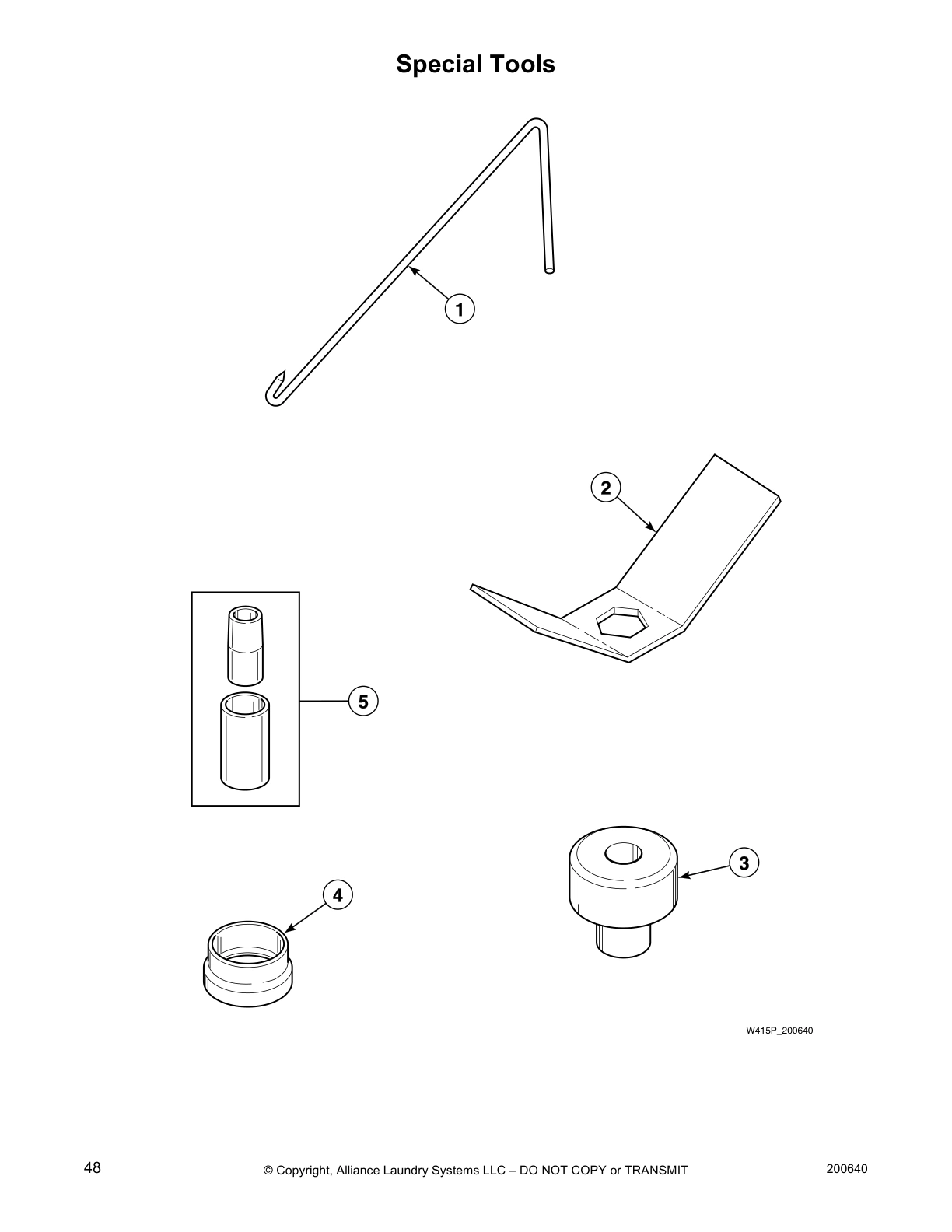

Special Tools

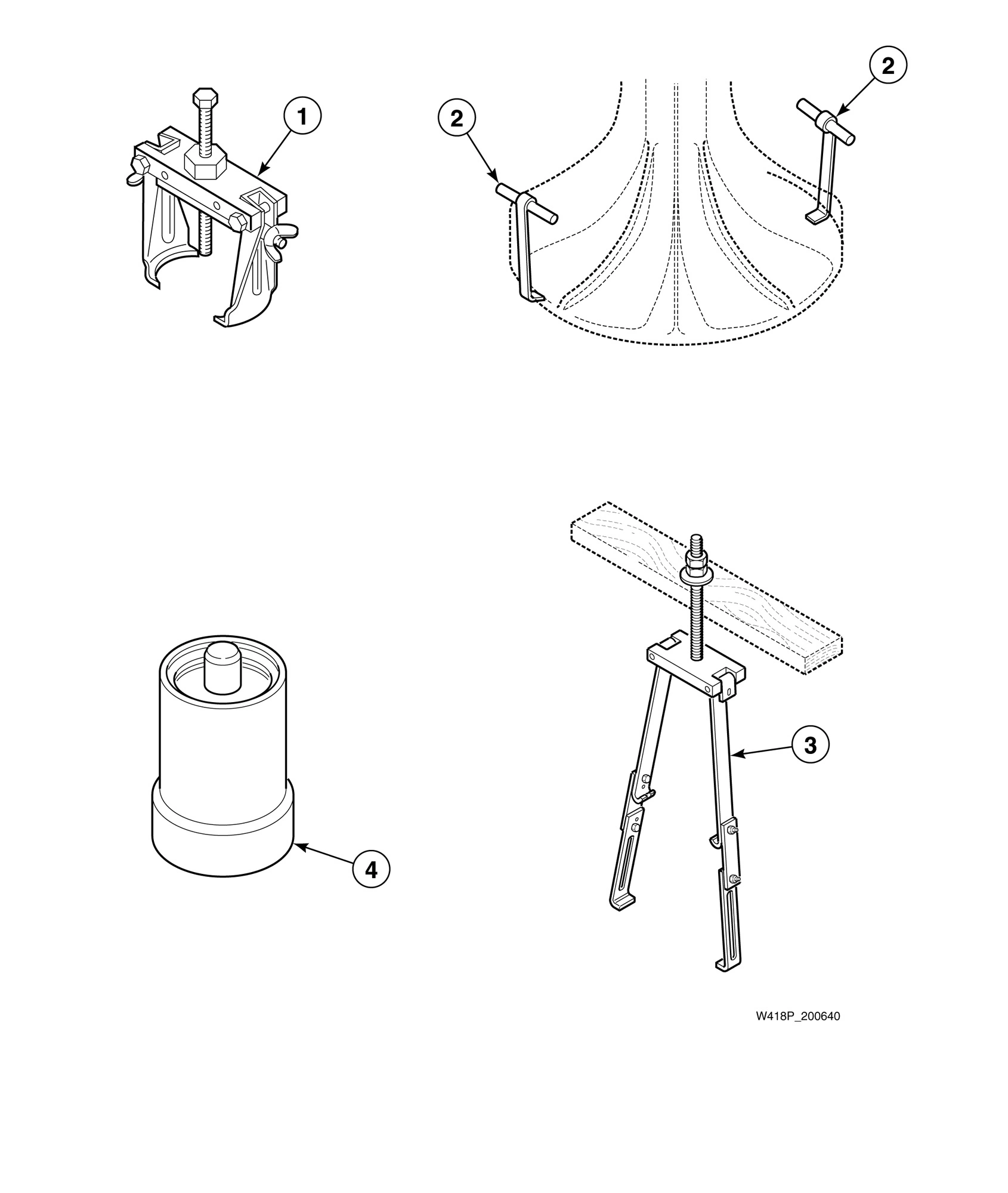

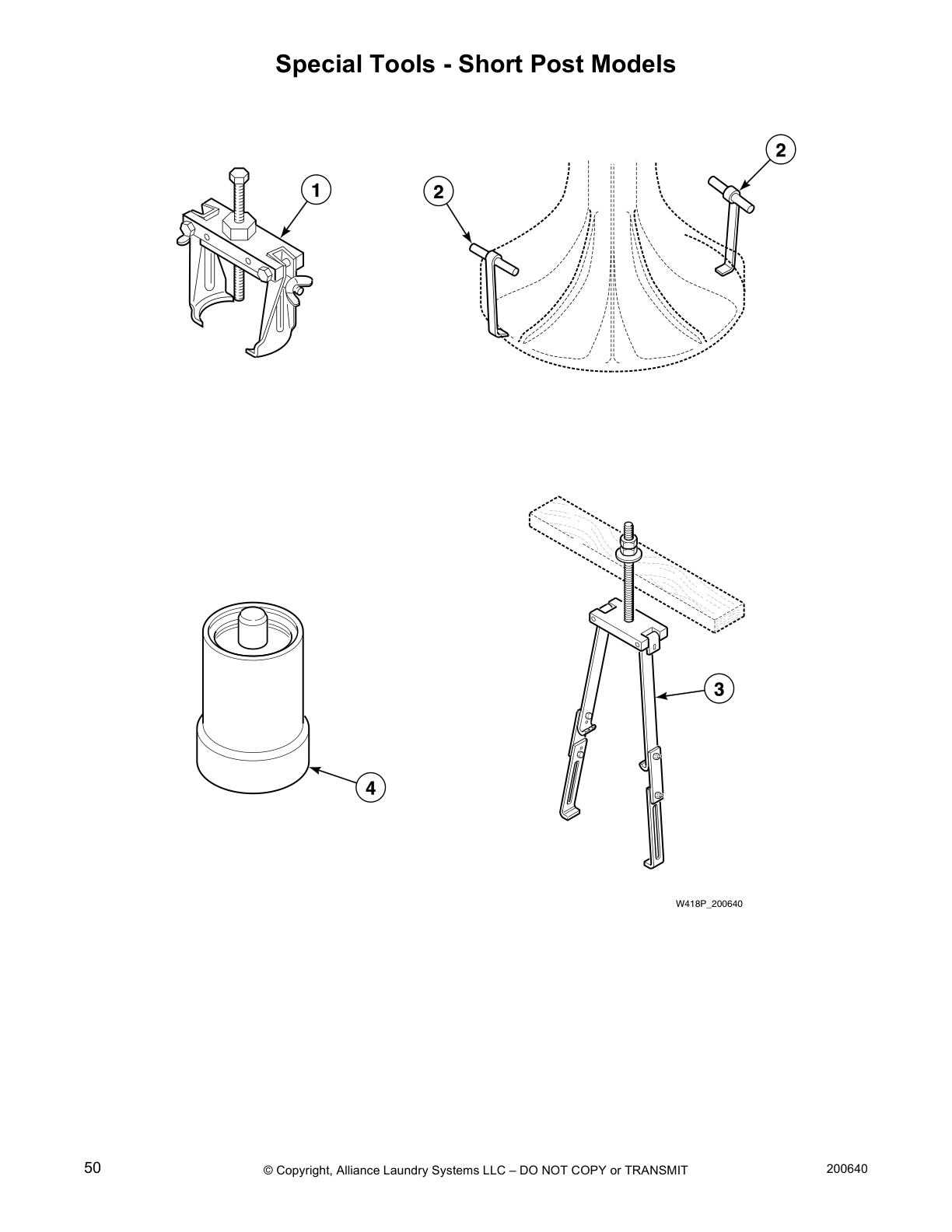

Special Tools - Short Post Models
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Cabinet Top, Loading Door And Control Hood
Front Panel, Cabinet And Base
Cabinet Top, Loading Door And Control Hood
Front Panel, Cabinet And Base
Cabinet Top, Loading Door And Control Hood
Power Cord And Wire Terminals
Control Panel And Controls
Outer Tub, Cover And Pressure Hose
Cabinet Top, Loading Door And Control Hood
Motor, Mounting Bracket, Belts And Idler Assembly
Mixing Valve Assembly
Motor, Mounting Bracket, Belts And Idler Assembly
Mixing Valve Assembly
Cabinet Top, Loading Door And Control Hood
Power Cord And Wire Terminals
Control Panel And Controls
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Power Cord And Wire Terminals
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Outer Tub, Cover And Pressure Hose

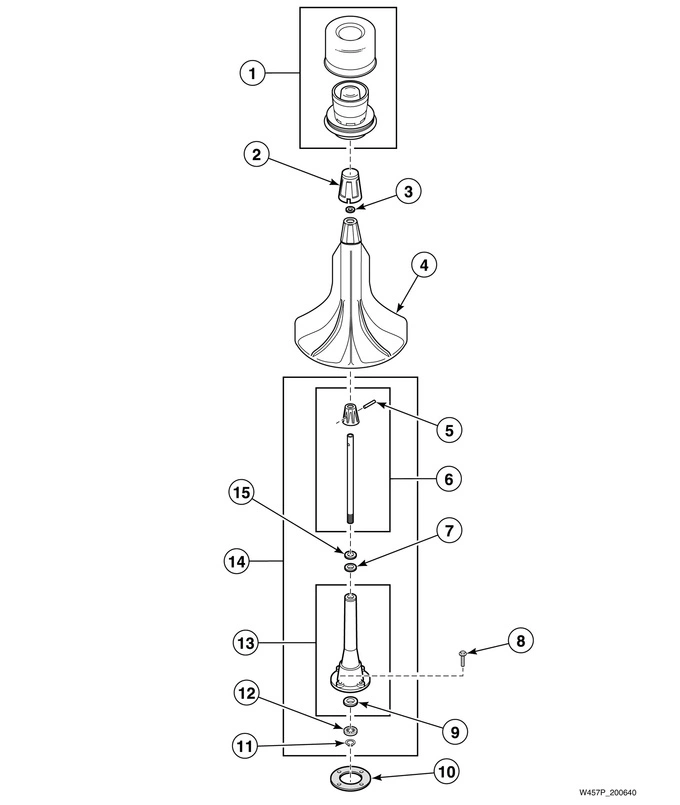

Agitator And Post (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Agitator And Post (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Motor, Mounting Bracket, Belts And Idler Assembly
Agitator And Post (long Post Models)
Cabinet Top, Loading Door And Control Hood
Motor, Mounting Bracket, Belts And Idler Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Agitator And Post (long Post Models)
Transmission Assembly And Balance Ring - Long Post Models
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Outer Tub, Cover And Pressure Hose
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Agitator And Post (long Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Cabinet Top, Loading Door And Control Hood
Bearing Housing, Brake, Pulley And Pivot Dome
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Outer Tub, Cover And Pressure Hose
Cabinet Top, Loading Door And Control Hood
Control Panel And Controls
Outer Tub, Cover And Pressure Hose
Agitator And Post (long Post Models)
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Control Panel And Controls
Switch And Bracket Assembly
Control Panel And Controls
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Agitator And Post (long Post Models)
Control Panel And Controls
Switch And Bracket Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Outer Tub, Cover And Pressure Hose
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Motor, Mounting Bracket, Belts And Idler Assembly
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Power Cord And Wire Terminals
Bearing Housing, Brake, Pulley And Pivot Dome
Agitator, Drive Bell And Seal Seat (short Post Models)
Outer Tub, Cover And Pressure Hose
Motor, Mounting Bracket, Belts And Idler Assembly
Agitator, Drive Bell And Seal Seat (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Outer Tub, Cover And Pressure Hose
Components For 33227p Transmission Assembly (short Post Models)
Power Cord And Wire Terminals
Bearing Housing, Brake, Pulley And Pivot Dome
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Agitator, Drive Bell And Seal Seat (short Post Models)
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Front Panel, Cabinet And Base
Power Cord And Wire Terminals
Transmission Assembly And Balance Ring - Long Post Models
Cabinet Top, Loading Door And Control Hood
Components For 33227p Transmission Assembly (short Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Cabinet Top, Loading Door And Control Hood
Bearing Housing, Brake, Pulley And Pivot Dome
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Motor, Mounting Bracket, Belts And Idler Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Power Cord And Wire Terminals
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Power Cord And Wire Terminals
Motor, Mounting Bracket, Belts And Idler Assembly
Cabinet Top, Loading Door And Control Hood
Control Panel And Controls
Power Cord And Wire Terminals
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Control Panel And Controls
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Bearing Housing, Brake, Pulley And Pivot Dome
Outer Tub, Cover And Pressure Hose
Front Panel, Cabinet And Base
Outer Tub, Cover And Pressure Hose
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Motor, Mounting Bracket, Belts And Idler Assembly
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Special Tools
Mixing Valve Assembly
Motor, Mounting Bracket, Belts And Idler Assembly
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Cabinet Top, Loading Door And Control Hood
Motor, Mounting Bracket, Belts And Idler Assembly
Control Panel And Controls
Bearing Housing, Brake, Pulley And Pivot Dome
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Special Tools
Special Tools
Motor, Mounting Bracket, Belts And Idler Assembly
Front Panel, Cabinet And Base
Special Tools
Front Panel, Cabinet And Base
Components For 33227p Transmission Assembly (short Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Mixing Valve Assembly
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Components For 30946p Transmission Assembly (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Agitator And Post (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Front Panel, Cabinet And Base
Agitator, Drive Bell And Seal Seat (short Post Models)
Front Panel, Cabinet And Base
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Bearing Housing, Brake, Pulley And Pivot Dome
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Outer Tub, Cover And Pressure Hose
Motor, Mounting Bracket, Belts And Idler Assembly
Cabinet Top, Loading Door And Control Hood
Control Panel And Controls
Components For 33227p Transmission Assembly (short Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Switch And Bracket Assembly
Mixing Valve Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Front Panel, Cabinet And Base
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing Valve Mounting Bracket (drawing 2 Of 2)
Front Panel, Cabinet And Base
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Front Panel, Cabinet And Base
Control Panel And Controls
Lint Filter, Washtub And Hub (drawing 2 Of 2)
Agitator And Post (long Post Models)
Common parts from model IPSO BA2411 Washer
1
Fabric Softener Dispenser Assembly (comment: SPQ 33510 Contact Us For Availability
2
Agitator SPQ 33514 Contact Us For Availability
2
Lint Filter SPQ 33521 Contact Us For Availability
2
Screw SPQ 25817C Contact Us For Availability
2
Loading Door SPQ 27665W Contact Us For Availability
2
Motor Switch (comment: Used With 30897 Genera SPQ 30897AP Contact Us For Availability
2
Front Panel (comment: Almond) SPQ 32708LP Contact Us For Availability
2
MAIN BEARI NS SPQ WP40004201P Contact Us For Availability
3
Drain Extension Kit SPQ 39952 Contact Us For Availability
3
Screw SPQ 30852 Contact Us For Availability
3
Nut SPQ 57584 Contact Us For Availability
3
Guide Spindle (comment: Use To Remove Hub Fro SPQ 230P4 Contact Us For Availability
3
Agitator Puller Assembly (comment: Use To Rem SPQ 256P4P Contact Us For Availability
3
Service Cabinet Kit (comment: Almond) SPQ 38612LP Contact Us For Availability
4
Support Leg SPQ 33435 Contact Us For Availability
4
Seal SPQ 30853 Contact Us For Availability
4
Seal Installer (comment: Use To Install 356p3 SPQ 241P4 Contact Us For Availability
4
Seal Tool (comment: Use To Install The Seal S SPQ 255P4 Contact Us For Availability
4
CLAMP SPQ WP285655 Contact Us For Availability
5
SPQ 34280 SPQ 34280 Contact Us For Availability
5
Spring Installer SPQ 242P4 Contact Us For Availability
6
Temperature Switch SPQ 21300 Contact Us For Availability
6
Seat Seal Assembly SPQ 30021 Contact Us For Availability
6
Reduction Gear SPQ 29161P Contact Us For Availability
7
Water Inlet Hose SPQ 29182 Contact Us For Availability
7
Balance Ring Assembly SPQ 34731 Contact Us For Availability
7
Washer SPQ 202010 Contact Us For Availability
7
STRAINER SPQ WP22002960 Contact Us For Availability
7
SCREW SPQ WP3390631 Contact Us For Availability
8
Screw (Replaces: 27202) SPQ WPW10116787 Contact Us For Availability
9
Nut SPQ 356P3 Contact Us For Availability
9
Water Inlet Head SPQ 29154 Contact Us For Availability
9
Gear And Stud Assembly (Replaces: 26577) SPQ DE81-05916A Contact Us For Availability
9
M SCREW WAS 211294 SPQ WP90767 Contact Us For Availability
10
Hose Adapter SPQ 29143 Contact Us For Availability
10
Outer Tub (comment: Models Through Serial No. SPQ 30508 Contact Us For Availability
10
Disconnect Power Warning Label SPQ D505281 Contact Us For Availability
10
SCREW SPQ WP27001200 Contact Us For Availability
11
Hose Clamp SPQ 29172 Contact Us For Availability
11
Rubber Motor Mount (comment: Upper) SPQ 01952A Contact Us For Availability
11
Base Assembly (comment: Includes Snubber Pads SPQ 31653P Contact Us For Availability
12
Pump Assembly SPQ 31968 Contact Us For Availability
12
Snubber Pad Kit (comment: Includes 4 Pads) SPQ 434P3 Contact Us For Availability
13
Screw SPQ 31098 Contact Us For Availability
13
Timer SPQ 28918P Contact Us For Availability
14
Idler Lever Helper Spring SPQ 30620 Contact Us For Availability
14
Nut (comment: Use With 27126 Mixing Valve Mou SPQ 54038 Contact Us For Availability
16
Screw SPQ 31054 Contact Us For Availability
16
Anti-rotation Sleeve SPQ 29993 Contact Us For Availability
17
Clutch And Bearing Assembly SPQ 30893 Contact Us For Availability
17
Screw SPQ 31709 Contact Us For Availability
17
Receptacle Housing SPQ 90789 Contact Us For Availability
18
Hose Clamp (Replaces: 20391) SPQ 43261 Contact Us For Availability
18
Top Assembly SPQ 27662W Contact Us For Availability
19
Wire Clip SPQ 51291 Contact Us For Availability
20
Grounding Clip SPQ 28802P Contact Us For Availability
20
Timer Knob Assembly (Replaces: 27382) SPQ DE81-02554A Contact Us For Availability
21
Transmission Cover Assembly SPQ 38287P Contact Us For Availability
22
Pump Belt SPQ 39666 Contact Us For Availability
22
Washer SPQ 91176 Contact Us For Availability
22
Terminal Adapter SPQ 29673 Contact Us For Availability
26
Bearing SPQ 36107P Contact Us For Availability
27
Insulator SPQ 70210 Contact Us For Availability
NA
Capacitor Kit (comment: For Areas Where Low V SPQ 258P3 Contact Us For Availability
NA
Motor Switch (comment: Used With 30895 Genera SPQ 30895A Contact Us For Availability
NA
Front Panel (comment: White) SPQ 32708WP Contact Us For Availability
× ![]()
Login and Registration Form
