Model Whirlpool ARR6200W ELECTRIC RANGE – Common Parts & Diagrams

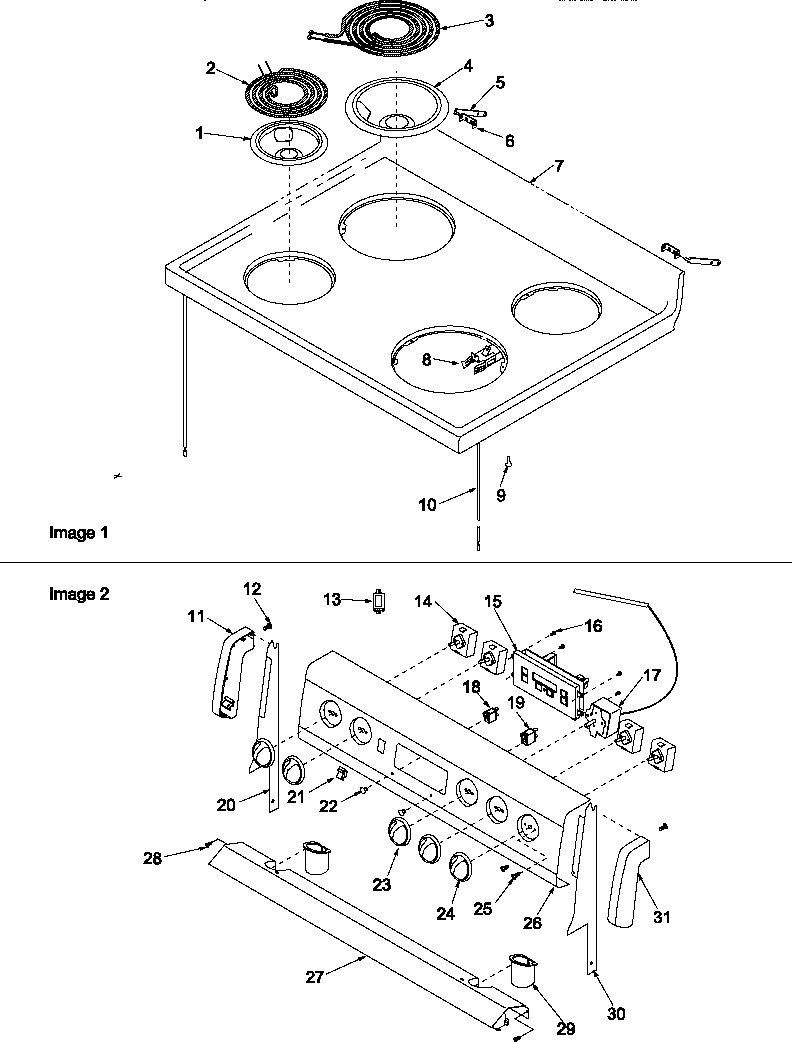

03 - MAIN TOP AND BACKGUARD

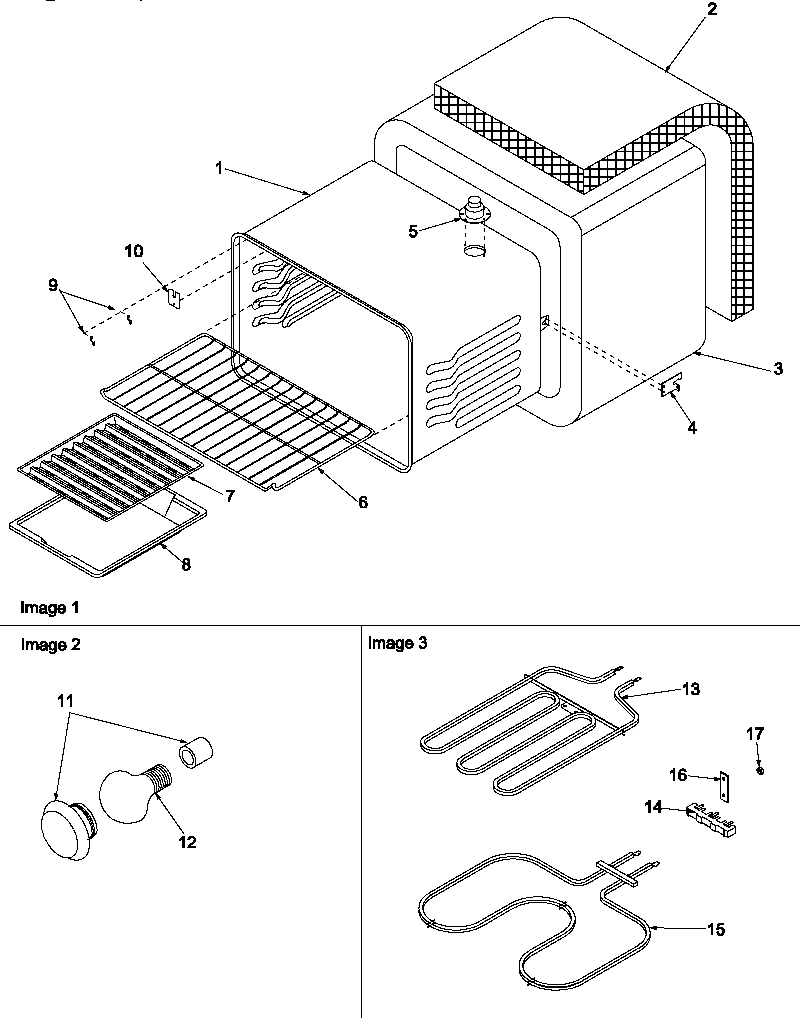

02 - CAVITY

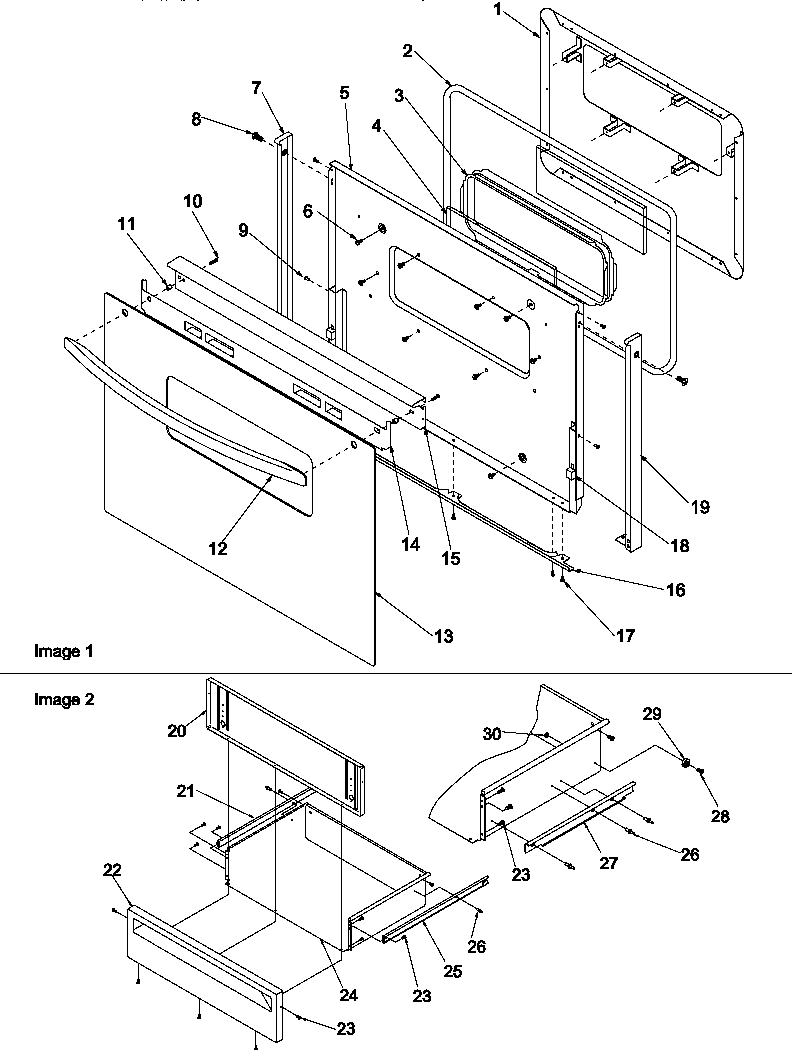

04 - OVEN DOOR AND STORAGE

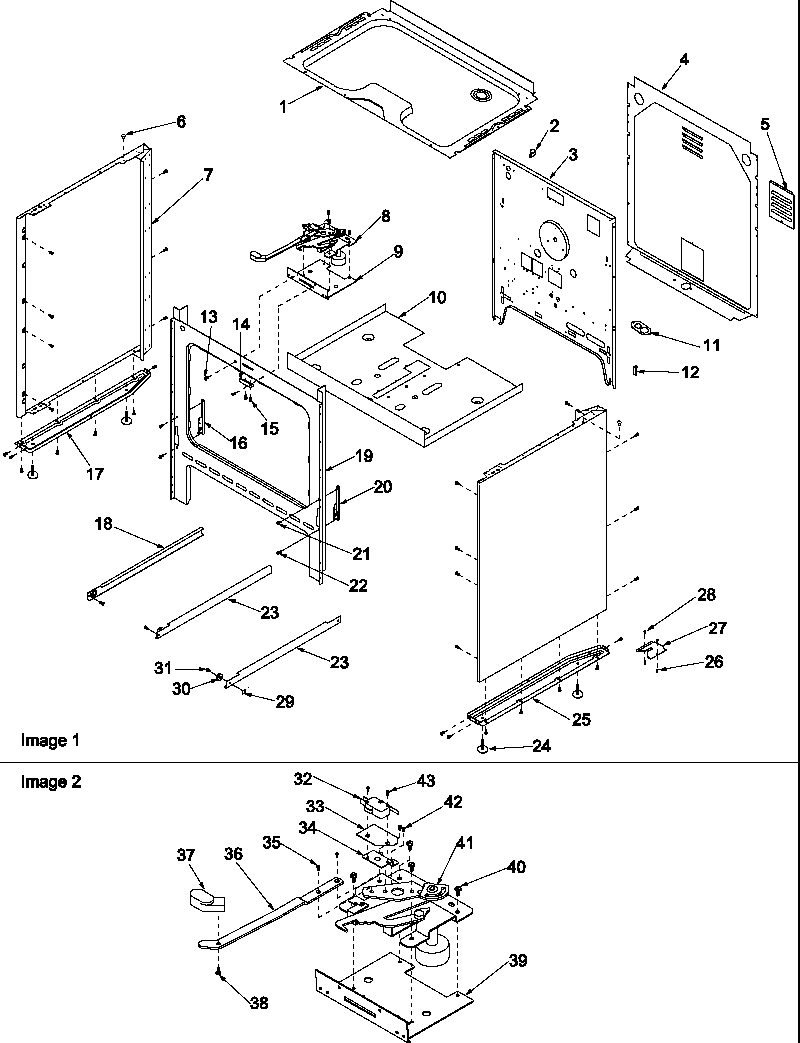

01 - CABINET
Common parts from model Whirlpool ARR6200W ELECTRIC RANGE
1
OVEN SHELL (EL. W/LT) WPL 316953CG Contact Us For Availability
1
PAD, DOOR (ENAMELED) WPL 316976CG Contact Us For Availability
1
BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability
2
INSULATION, REAR WPL Y0316949 Contact Us For Availability
2
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
2
WIRE CLIP WPL Y0041875 Contact Us For Availability
3
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
3
FRAME, WINDOW PACK WPL Y0316975 Contact Us For Availability
3
RETAINER, REAR (ELEC) WPL 31733901 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
GLASS, DOUBLE COATED WPL Y0316974 Contact Us For Availability
4
COVER, REAR WPL Y0307342 Contact Us For Availability
5
PIN, HINGE WPL Y0315931 Contact Us For Availability
5
SMOKE ELIMINATOR, TALL WPL Y0316951 Contact Us For Availability
5
BACKER, OVEN DOOR (SM WINDOW) WPL 316978CG Contact Us For Availability
5
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
6
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
6
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
7
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
7
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
7
PANEL, SIDE (WHT) WPL 31734003W Contact Us For Availability
8
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
9
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
9
RIVET, POP WPL Y0302648 Contact Us For Availability
10
SUPPORT, MAINTOP WPL Y0315430 Contact Us For Availability
10
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
10
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
11
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
11
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
12
BULB, LIGHT WPL Y0042175 Contact Us For Availability
12
HANDLE, OVEN DOOR (BLK) WPL 31689501B Contact Us For Availability
12
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
13
RELAY WPL Y0317033 Contact Us For Availability
13
GLASS, OVEN DOOR WPL 315943B Contact Us For Availability
13
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
14
ASSY, GLASS HEAT SHIELD WPL 31783001 Contact Us For Availability
14
COVER, CHIP WPL Y0315022 Contact Us For Availability
15
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
15
CLOCK, CLEAN W/OVERLAY WPL 315568B Contact Us For Availability
15
TRIM, DOOR TOP WPL 31782102B Contact Us For Availability
16
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
16
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
17
THERMOSTAT, SC ELEC WPL Y0316972 Contact Us For Availability
17
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
17
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
18
LIGHT, INDICATOR (250V) WPL 31722802 Contact Us For Availability
18
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
19
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
19
SEE NOTE FRONT FRAME,TALL -- (NOT FIELD REPLA WPL Y00000000 Contact Us For Availability
20
BKGD. SUPPORT-LH WPL 315877B Contact Us For Availability
20
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
20
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
21
SWITCH, ROCKER WPL Y0063997 Contact Us For Availability
22
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
22
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
23
KNOB, THERMOSTAT (BLK) WPL 31760301B Contact Us For Availability
23
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
24
KNOB, INFINITE SWITCH (BLK) WPL 31760101B Contact Us For Availability
24
DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability
24
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
25
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
25
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
26
PANEL, BKGRD CLK W/LIGHT RS WPL 31746402 Contact Us For Availability
26
RIVET, POP WPL Y0097822 Contact Us For Availability
26
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
27
SHIELD, BKGD TRIM HEAT WPL 31722702B Contact Us For Availability
27
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
27
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
28
SCREW, No.8-18 X 1/4 PTRSHD(BLK) WPL 31750409 Contact Us For Availability
28
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
29
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
30
BKGD. SUPPORT-RH WPL 315876B Contact Us For Availability
31
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
32
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
33
INSULATION, ESM WPL Y0091523 Contact Us For Availability
34
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
36
LATCH ARM WPL 303039B Contact Us For Availability
37
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
38
SCREW 6 32X5/16 PH FH WPL Y0041769 Contact Us For Availability
39
BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability
41
LATCH, OVEN DOOR (ELEC) WPL 31719901 Contact Us For Availability
42
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
43
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
NI
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
NI
BRKT CLOCK MTG GALV WPL 31778901 Contact Us For Availability
NI
CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability
NI
HARNESS, COIL ELEM L.H. WPL Y0315918 Contact Us For Availability
NI
HARNESS, COIL ELEM. R.H. WPL Y0315919 Contact Us For Availability
NI
WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
× ![]()
