Model Maytag AER5710BAH ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL/TOP ASSEMBLY

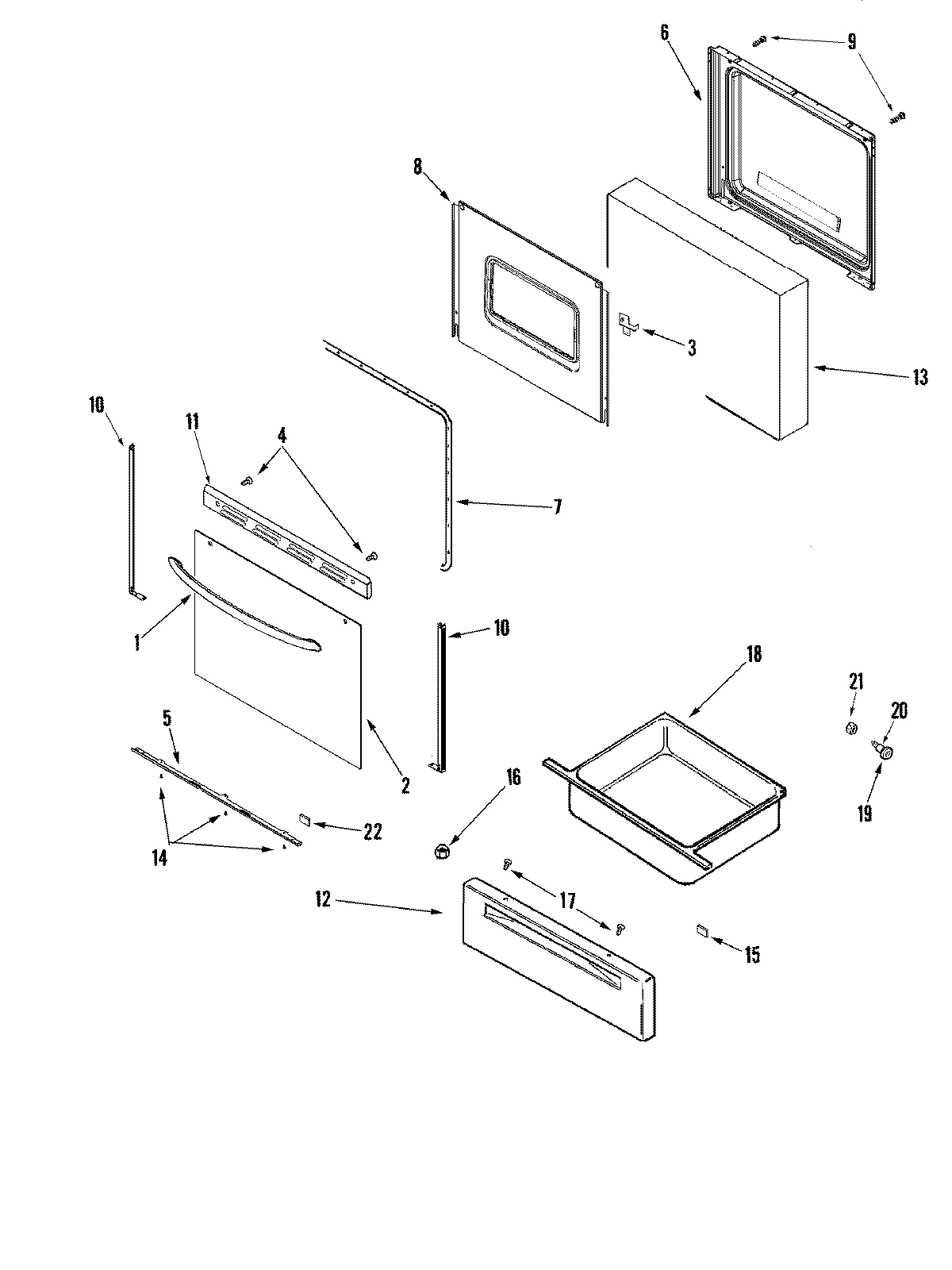

03 - DOOR/DRAWER

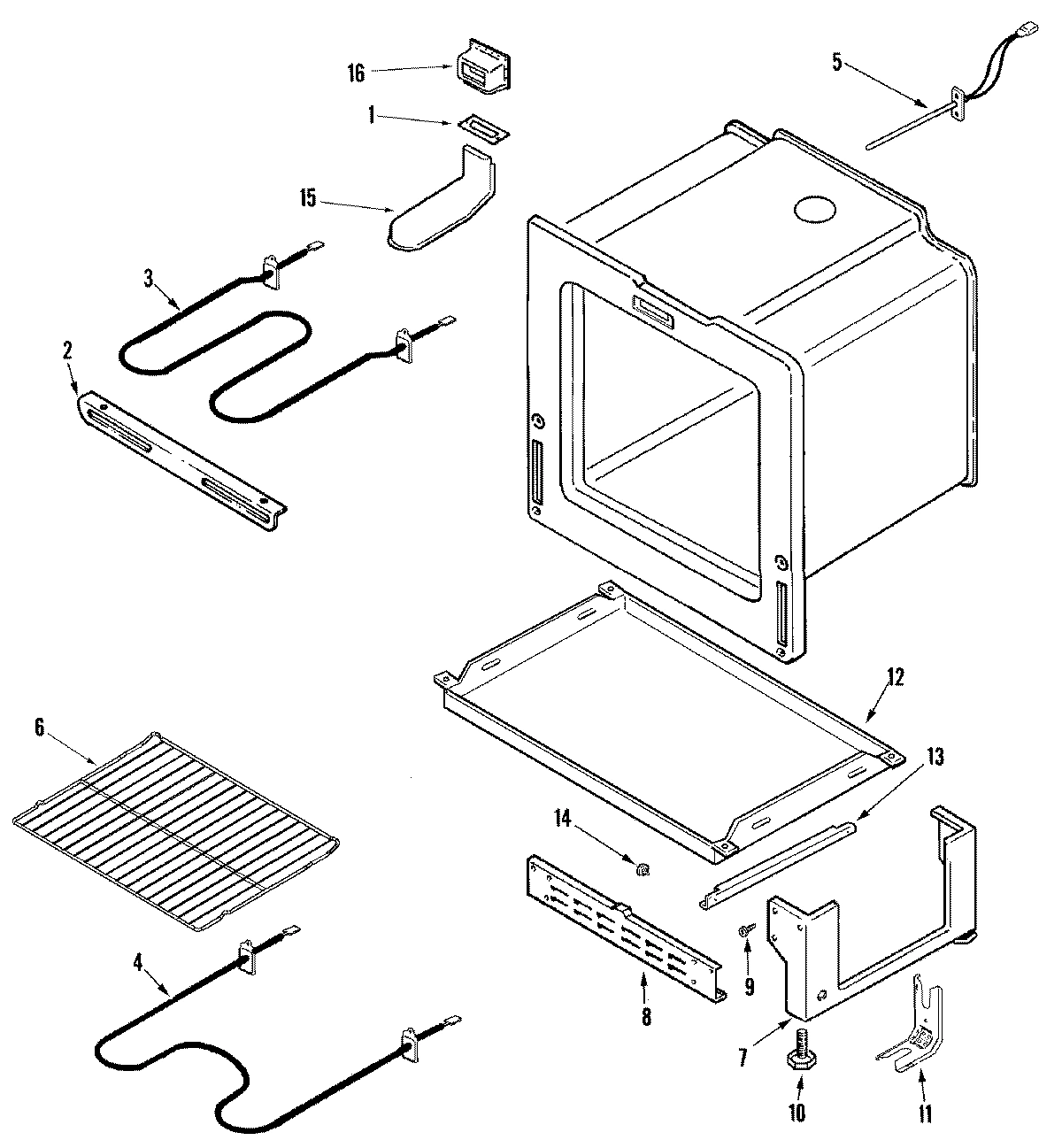

04 - OVEN/BASE
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION
Common parts from model Maytag AER5710BAH ELECTRIC RANGE
1
MAY 74011448 MAY 74011448 Contact Us For Availability
1
HANDLE, DOOR (BLK) MAY 74008318 Contact Us For Availability
1
MAY 74003285 MAY 74003285 Contact Us For Availability
1
MAY 74009739 MAY 74009739 Contact Us For Availability
2
MAY 74010335 MAY 74010335 Contact Us For Availability
2
MAY 74008716 MAY 74008716 Contact Us For Availability
2
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability
2
MAY 74009741 MAY 74009741 Contact Us For Availability
3
MAY 74008731 MAY 74008731 Contact Us For Availability
3
MAY 74009742 MAY 74009742 Contact Us For Availability
4
MAY 74006792 MAY 74006792 Contact Us For Availability
5
SUPPORT, GLASS (BLK) MAY 74009686 Contact Us For Availability
5
MAY 8113P428-60 MAY 8113P428-60 Contact Us For Availability
5
MAY 8113P542-60 MAY 8113P542-60 Contact Us For Availability
6
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
6
MAY 74003245 MAY 74003245 Contact Us For Availability
6
MAY 20001080 MAY 20001080 Contact Us For Availability
7
MAY 74006325 MAY 74006325 Contact Us For Availability
8
MAY 74010201 MAY 74010201 Contact Us For Availability
8
MAY 74010202 MAY 74010202 Contact Us For Availability
8
MAY 74010933 MAY 74010933 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 16023528 MAY 16023528 Contact Us For Availability
9
MAY 74009978 MAY 74009978 Contact Us For Availability
10
MAY 74010243 MAY 74010243 Contact Us For Availability
10
MAY 74010983 MAY 74010983 Contact Us For Availability
10
TRIM, DOOR (BLK-LT) MAY 74009693 Contact Us For Availability
11
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
11
MAY 71001394 MAY 71001394 Contact Us For Availability
11
MAY 74009689 MAY 74009689 Contact Us For Availability
12
MAY 74009201 MAY 74009201 Contact Us For Availability
12
MAY 74011447 MAY 74011447 Contact Us For Availability
12
MAY 74003399 MAY 74003399 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) MAY 74006522 Contact Us For Availability
13
MAY 74001842 MAY 74001842 Contact Us For Availability
13
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
14
SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability
15
MAY 74007476 MAY 74007476 Contact Us For Availability
15
MAY 74003394 MAY 74003394 Contact Us For Availability
15
SCREEN, SMOKE ELIMINATOR MAY 74008597 Contact Us For Availability
16
MAY 74004534 MAY 74004534 Contact Us For Availability
17
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
18
MAY 74009701 MAY 74009701 Contact Us For Availability
18
MAY 74008337 MAY 74008337 Contact Us For Availability
19
SUPPORT, CERAMIC ELEMENT MAY 74003072 Contact Us For Availability
20
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
20
MAY 74009591 MAY 74009591 Contact Us For Availability
21
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
22
MAY 74003384 MAY 74003384 Contact Us For Availability
22
SPACER, RUBBER (BLK-SQUARE) MAY 74010267 Contact Us For Availability
23
MAY 74003385 MAY 74003385 Contact Us For Availability
24
MAY 74004532 MAY 74004532 Contact Us For Availability
25
MAY 74011046 MAY 74011046 Contact Us For Availability
26
MAY 7101P337-60 MAY 7101P337-60 Contact Us For Availability
NI
MAY 15003512 MAY 15003512 Contact Us For Availability
× ![]()
