Model Whirlpool AER4111AAW ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL/TOP ASSEMBLY

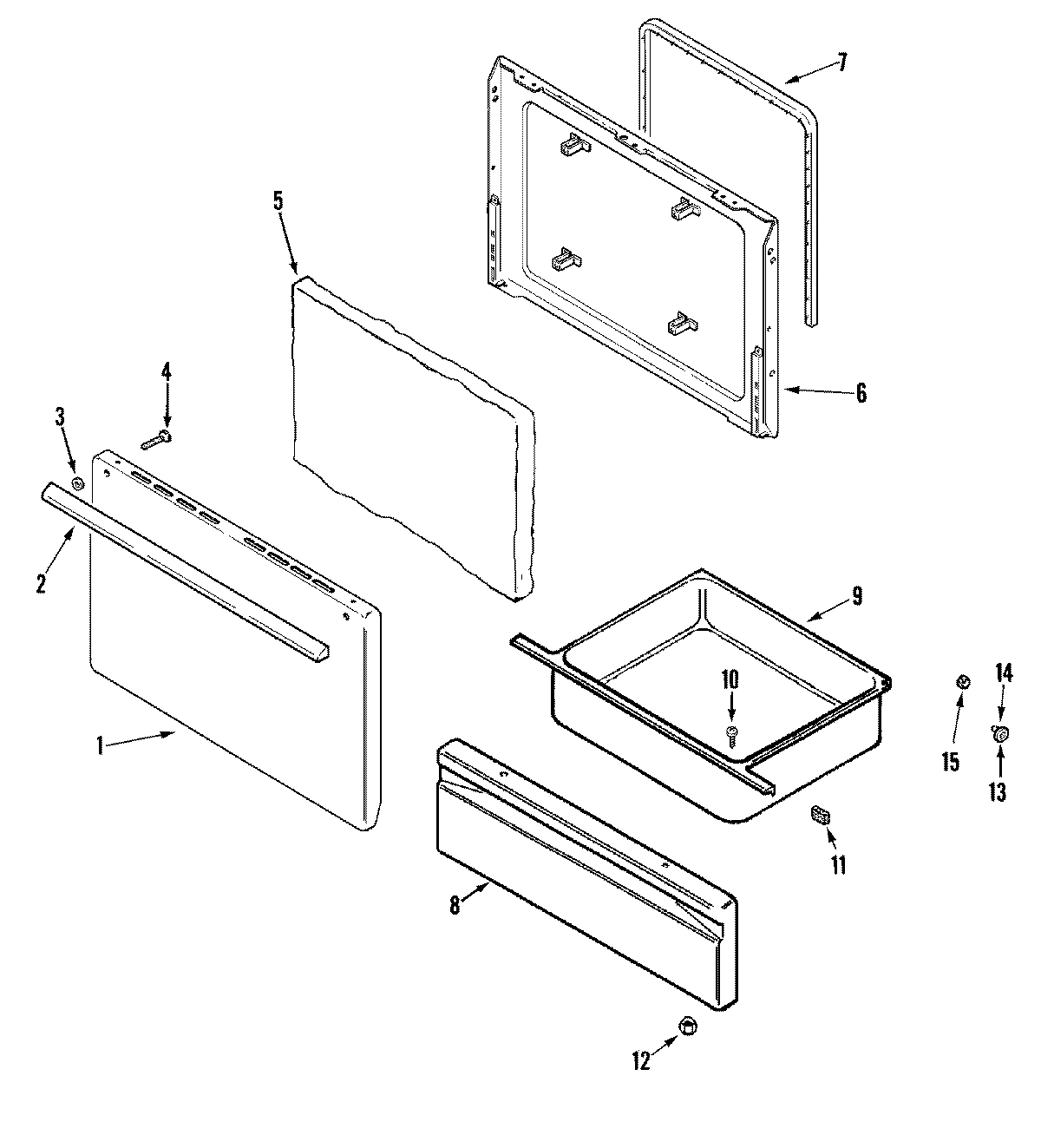

03 - DOOR/DRAWER
06 - WIRING INFORMATION

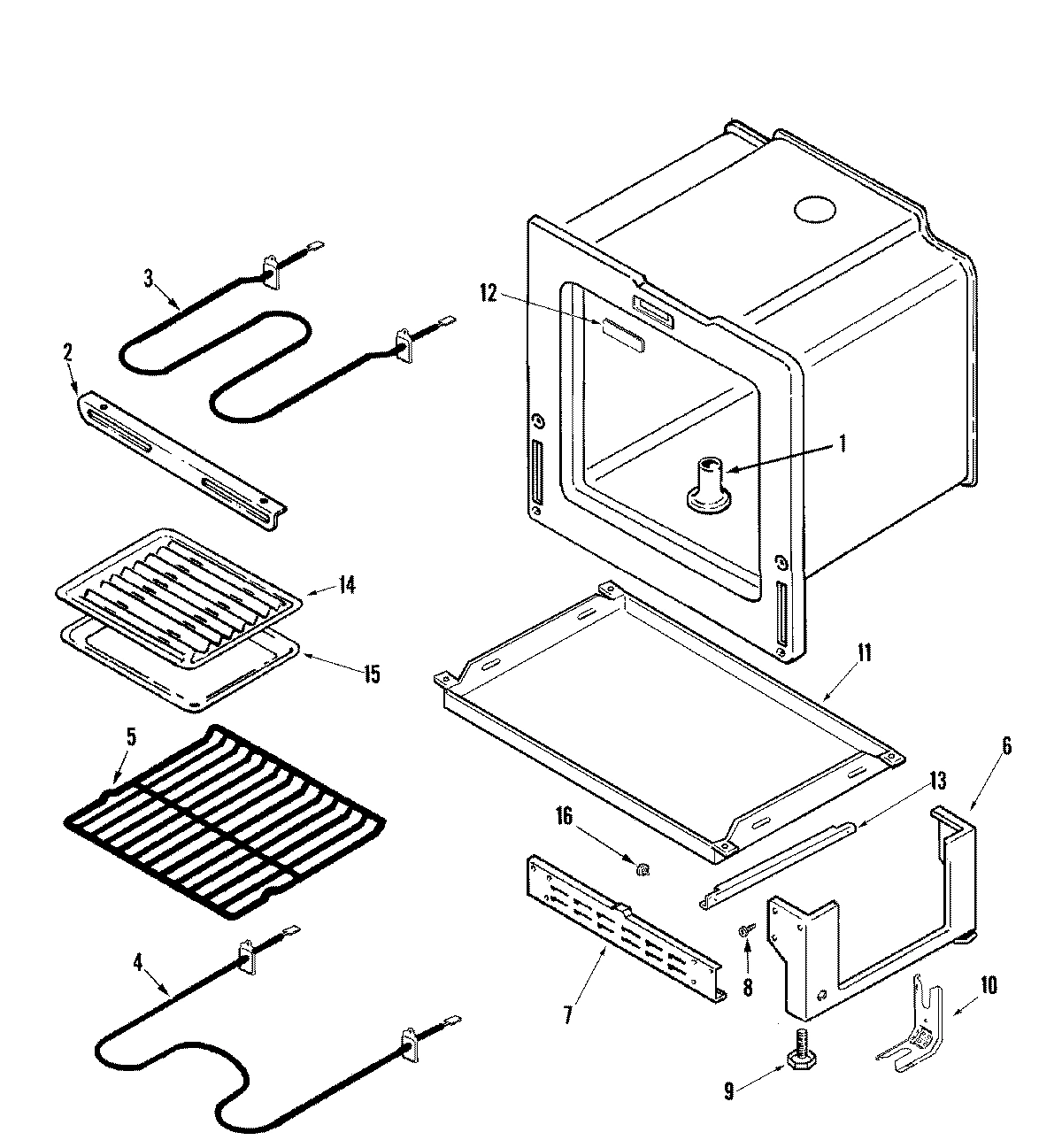

04 - OVEN/BASE
05 - SUPPLEMENTAL INFORMATION

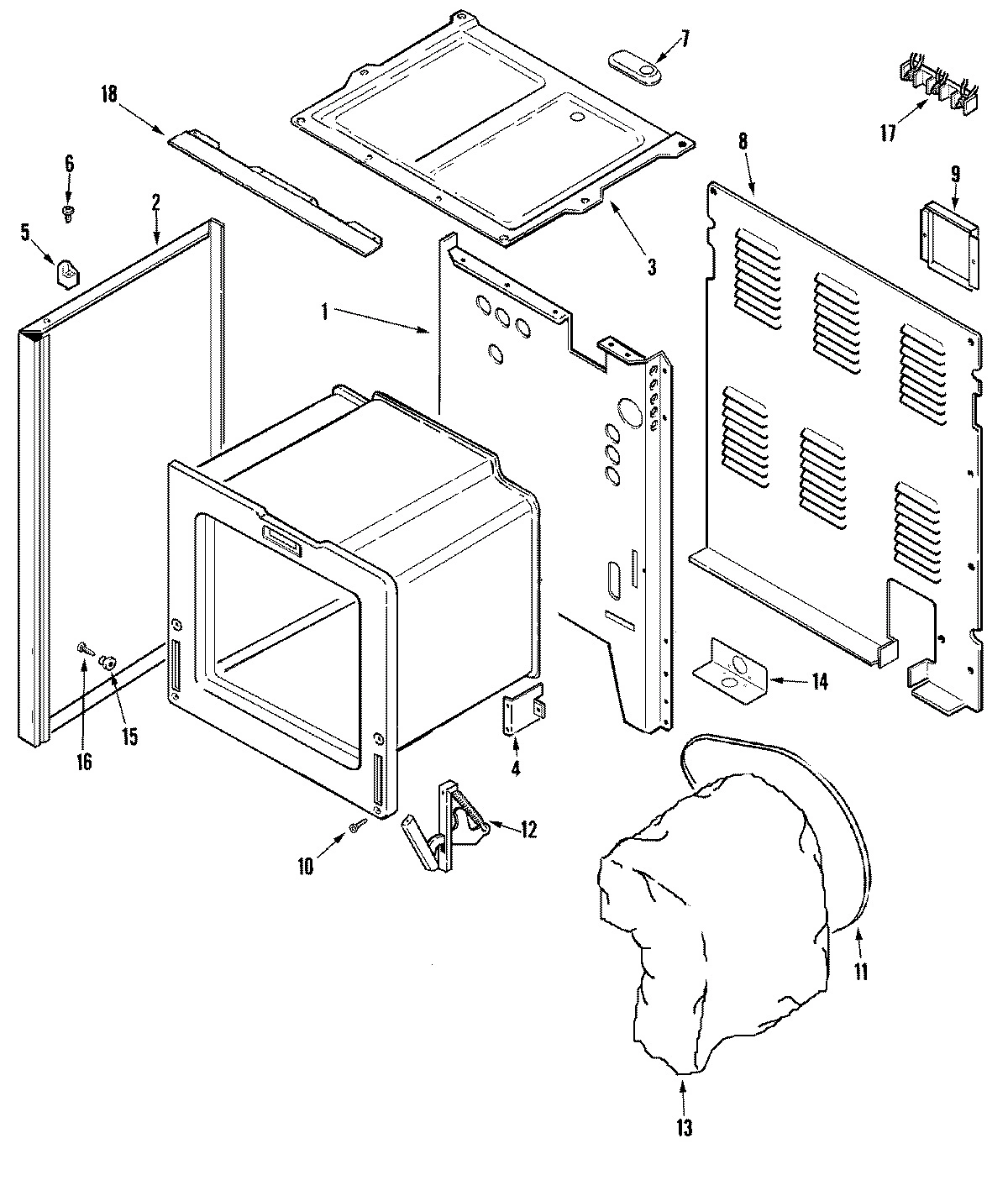

01 - BODY
Common parts from model Whirlpool AER4111AAW ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P53960 Contact Us For Availability
1
BACK, MAIN (ELEC) WPL 74011304 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
HARNESS, TOP/BACKGUARD (LT) WPL 74010939 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
3
SUPPORT, BACKGUARD (RT-WHT) WPL 74010212 Contact Us For Availability
3
SUPPORT, BACKGUARD (LT-WHT) WPL 74010713 Contact Us For Availability
3
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
3
HARNESS, TOP/BACKGUARD (RT) WPL 74010938 Contact Us For Availability
3
BURNER BOX BOTTOM WPL 74011035 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
HARNESS, MAIN WPL 74010334 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
KNOB (WHT) WPL 74008733 Contact Us For Availability
5
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
5
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
HARNESS, TOP WPL 74010305 Contact Us For Availability
6
LINING, DOOR WPL 74003240 Contact Us For Availability
6
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
7
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
7
SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability
7
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
8
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
8
TECH SHT, RANGE, ELECT WPL 16026483 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
9
SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability
9
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
9
COVER, ACCESS WPL 74010256 Contact Us For Availability
10
SHIELD, WIRE WPL 74009978 Contact Us For Availability
10
SCREW WPL 7101P35260 Contact Us For Availability
10
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
11
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
11
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
11
STRAP, INSULATION WPL 74003385 Contact Us For Availability
12
NUT, LOCK WPL 7103P13960 Contact Us For Availability
12
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
13
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
13
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
13
INSULATION, WRAP WPL 74003112 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
15
TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability
15
NUT WPL 7103P08260 Contact Us For Availability
15
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
15
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
16
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
16
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
16
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
17
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
17
CLAMP, WIRE WPL 7111P02060 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
18
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003596 Contact Us For Availability
× ![]()
