Model Whirlpool ADW862EAS DISHWASHER – Common Parts &amp; Diagrams

1

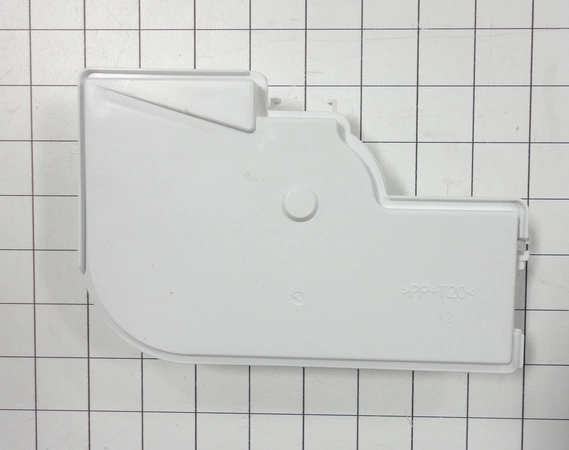

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $48.45

1

PANEL, DECORATOR (STNLS) WPL 99002169 Contact Us For Availability

1

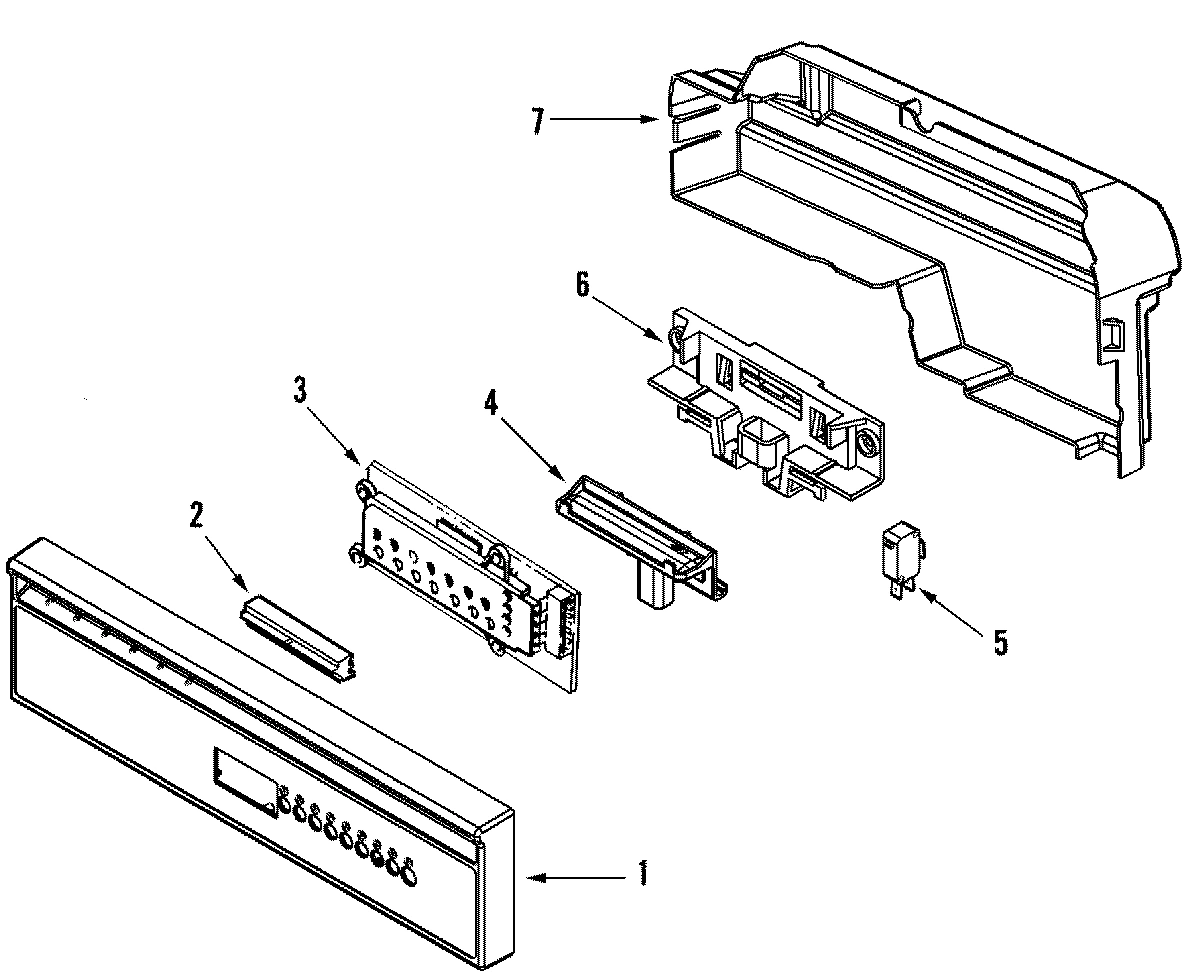

CONTROL PANEL ASY (BLK) WPL 99002544 Contact Us For Availability

1

COVER, VENT WPL 99002557 Contact Us For Availability

1

FELT, VENT WPL 99002558 Contact Us For Availability

1

FELT, CONTROL PANEL (SIDE) WPL 99002559 Contact Us For Availability

1

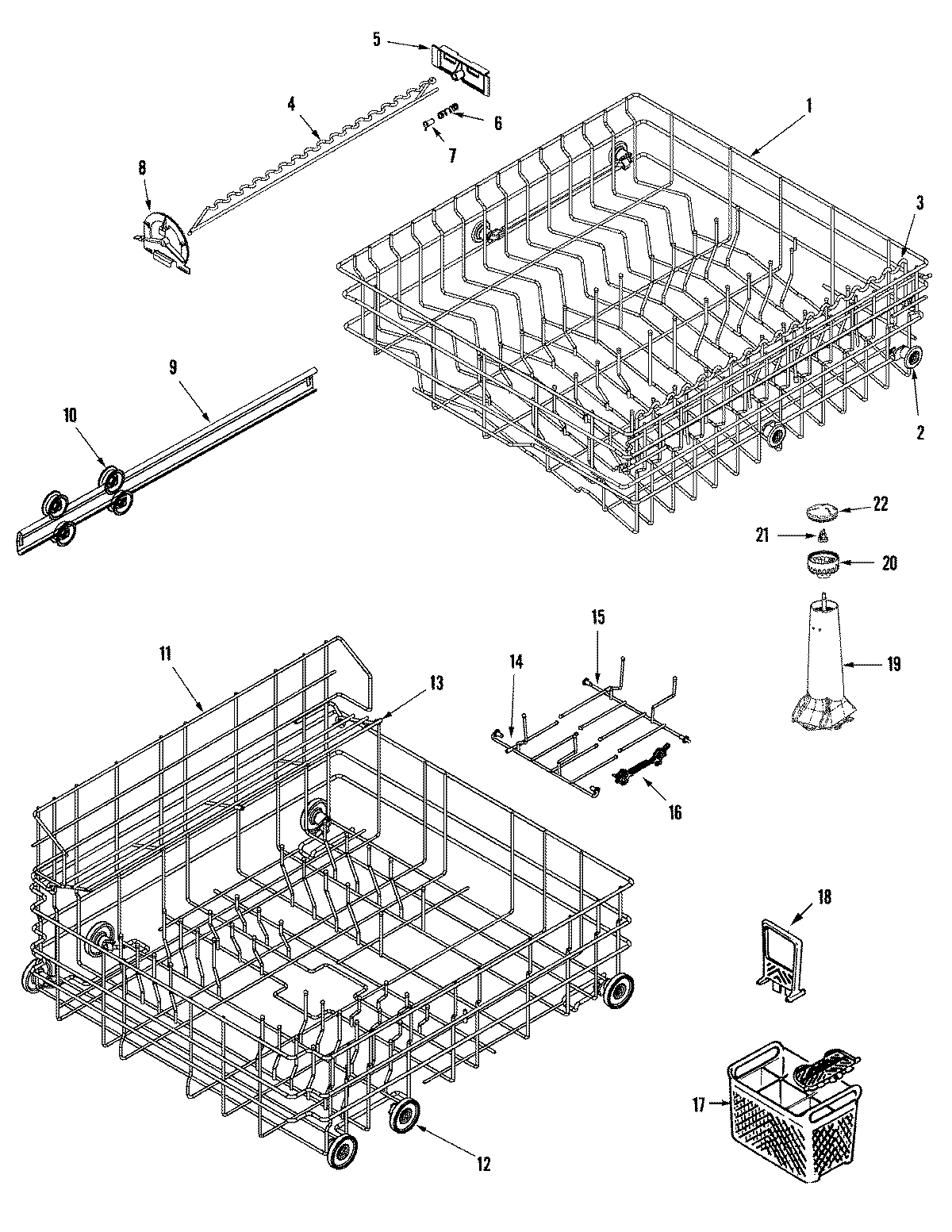

RACK ASSEMBLY (UPR) WPL 99002529 Contact Us For Availability

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $9.83

2

WP99001359 Whirlpool Dishwasher Water Valve In Stock WPL WP99001359 $48.23

2

WP99001788 Whirlpool Dishwasher Spray Arm In Stock WPL WP99001788 $87.86

2

FILLER, FRONT PANEL WPL 99001415 Contact Us For Availability

2

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

2

LINER, VENT WPL Y913116 Contact Us For Availability

2

SEAL, VENT OUTLET WPL Y913177 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

GROUND WIRE, REINFORCEMENT WPL 99001688 Contact Us For Availability

3

DOOR, OUTER WPL 99002176 Contact Us For Availability

3

O-RING, RESERVOIR WPL 99002003 Contact Us For Availability

3

CONTROL ASSEMBLY (LED) WPL 99002527 Contact Us For Availability

3

RING, SEAL WPL 912313 Contact Us For Availability

3

SHELF, RACK (UPR) WPL 99002456 Contact Us For Availability

4

W10834433 Whirlpool Dishwasher Handle Backorder WPL W10834433 $84.91

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

RETAINER, WIRE WPL 99002188 Contact Us For Availability

4

SPACER, FOAM WPL 99002362 Contact Us For Availability

4

NUT, RINSE AID WPL 99002005 Contact Us For Availability

4

COVER, LATCH WPL 99002382 Contact Us For Availability

4

FILTER ASSY., SECONDARY WPL 99001789 Contact Us For Availability

4

HANDLER, CUP WPL 99002125 Contact Us For Availability

5

WP99002207 Whirlpool Dishwasher Door Switch Backorder WPL WP99002207 $20.80

5

SCREW WPL 99001075 Contact Us For Availability

5

HINGE (LT) WPL 99001898 Contact Us For Availability

5

HINGE (RT) WPL 99001899 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

SCREW, SECONDARY FILTER WPL 99001790 Contact Us For Availability

5

SUPPORT, CUP HANDLER (REAR) WPL 99001439 Contact Us For Availability

6

WP99002240 Whirlpool Dishwasher Bracket Backorder WPL WP99002240 $48.75

6

SPRING, DOOR WPL 99002469 Contact Us For Availability

6

SLIDER WPL 99001289 Contact Us For Availability

6

SPRING, CUP HANDLER SUPPORT WPL 99001440 Contact Us For Availability

7

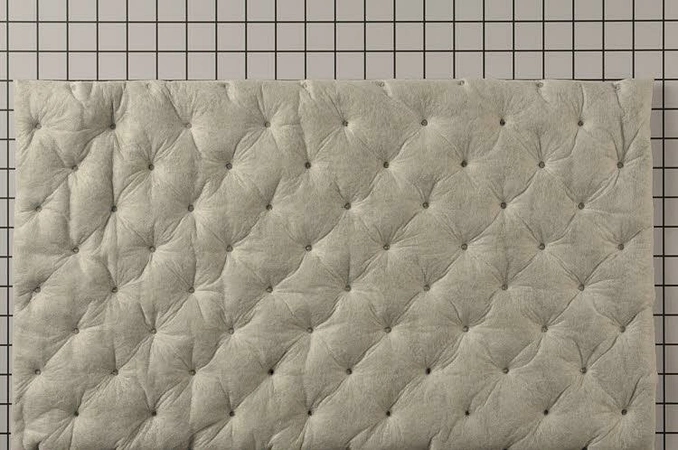

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $20.64

7

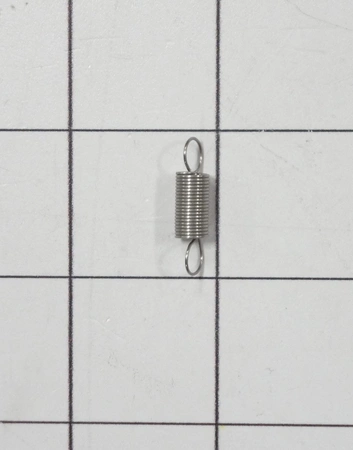

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.67

7

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

7

BARRIER, CONTROL PANEL WPL 99002432 Contact Us For Availability

7

ASSEMBLY, RINSE ARM WPL 99002043 Contact Us For Availability

7

SUPPORT CUP, VARILOCK (REAR) WPL 99001461 Contact Us For Availability

8

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $58.41

8

DOOR, INNER WPL 99002388 Contact Us For Availability

8

FELT, VENT (DOOR) WPL 99002499 Contact Us For Availability

8

DAMPER, DOOR (ASSEMBLY) WPL 99002547 Contact Us For Availability

8

DOOR LATCH HOOK ASSY WPL 903098 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

SUPPORT, CUP HANDLER (FRT) WPL 99001438 Contact Us For Availability

9

WP99002135 Whirlpool Dishwasher Rack Stop In Stock WPL WP99002135 $6.02

9

BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability

9

SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability

9

PIVOT WPL 99001287 Contact Us For Availability

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

9

SUPPORT, WASH ARM WPL 99002041 Contact Us For Availability

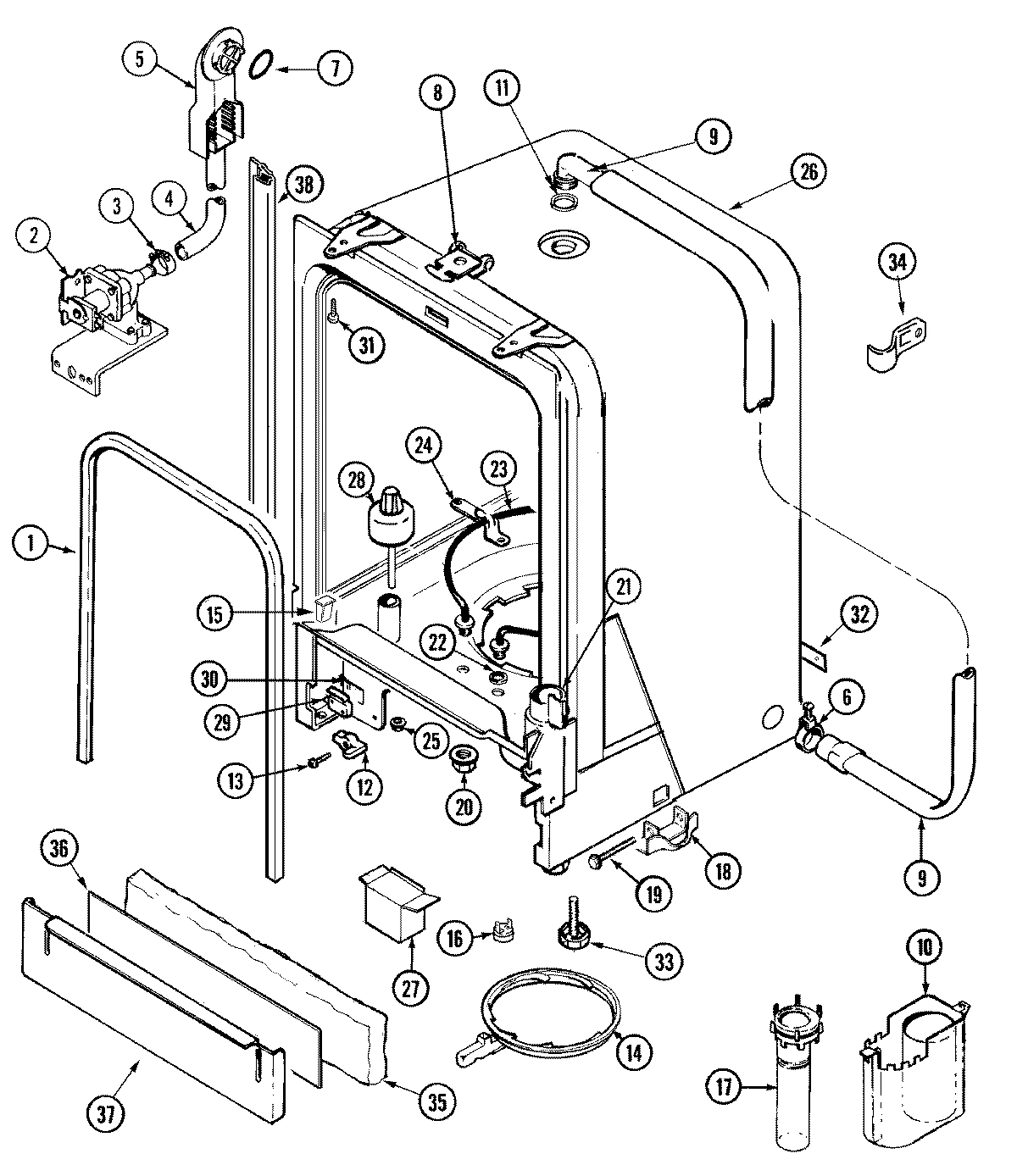

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

INSULATION, ACCESS PANEL WPL 99002412 Contact Us For Availability

DAMPER, ACCESS PANEL WPL 99002548 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

SEAL KIT (MOTOR/PUMP) WPL 99002103 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $5.30

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

DISCHARGE HOUSING ASSY (UPR) WPL 99002461 Contact Us For Availability

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $48.03

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

PANEL, ACCESS (BLK) WPL 912636 Contact Us For Availability

COVER, VENT (ACCESS PANEL) WPL 99001989 Contact Us For Availability

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

SCREW, IMPELLER WPL 910654 Contact Us For Availability

13

PIVOT PIN, ACTUATOR LEVER WPL 99002531 Contact Us For Availability

13

SHELF, RACK (LWR) WPL 99002139 Contact Us For Availability

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $6.02

WP99002069 Whirlpool Dishwasher Impeller Backorder WPL WP99002069 $46.70

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

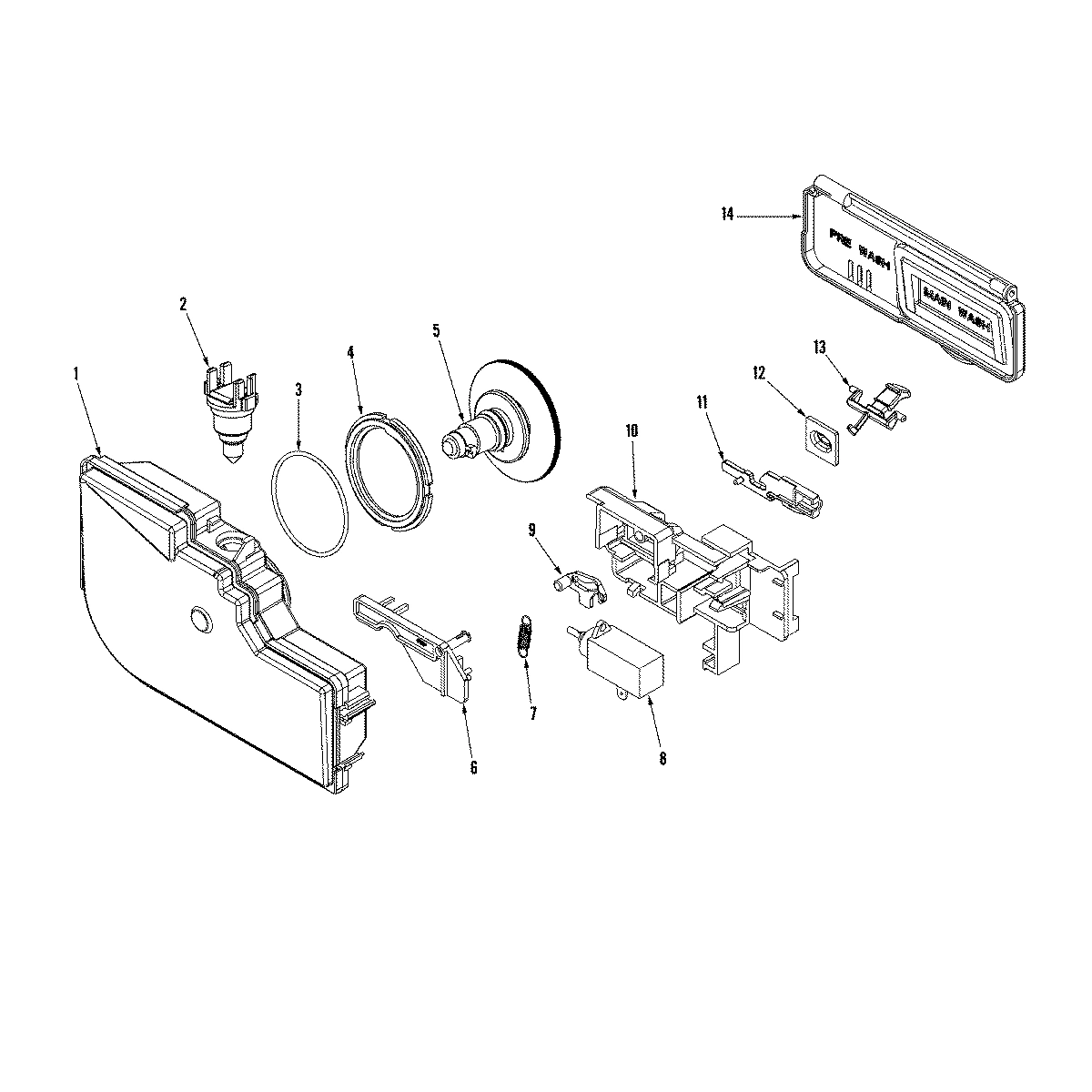

LID, DETERGENT CUP WPL 903483 Contact Us For Availability

SPRING, CUP LID WPL Y912547 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

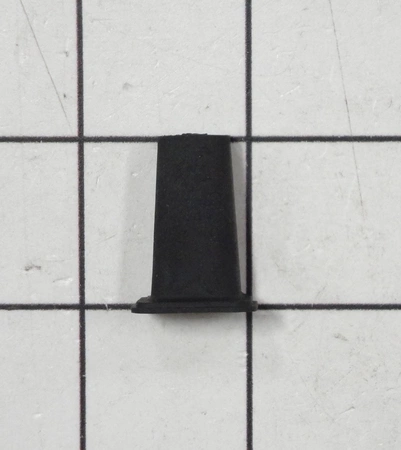

DEFLECTOR, WATER WPL WP99001885 No Longer Available

WP99002138 Whirlpool Dishwasher Tine Row Backorder WPL WP99002138 $44.52

COVER, VENT WPL Y912910 Contact Us For Availability

PLATE, SUCTION WPL 99002279 Contact Us For Availability

WPY912709 Whirlpool Dishwasher Adjuster Clip In Stock WPL WPY912709 $6.02

SHIELD, ACCESS PANEL (RT) WPL Y912809 Contact Us For Availability

SHIELD, ACCESS PANEL (LT) WPL Y912810 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001852 Contact Us For Availability

SUPPORT, FILTER WPL 99002280 Contact Us For Availability

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $38.54

COVER, WIRE (BLK) WPL 912642 Contact Us For Availability

TUBE, INLET WPL Y913096 Contact Us For Availability

O-RING WPL 912510 Contact Us For Availability

FILLER, ACCESS PANEL WPL 912525 Contact Us For Availability

CAP, ACCESS PANEL (STNLS) WPL 99002204 Contact Us For Availability

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

DISC, CUTTER WPL 912310 Contact Us For Availability

HANDLE, SILVERWARE BASKET WPL Y912708 Contact Us For Availability

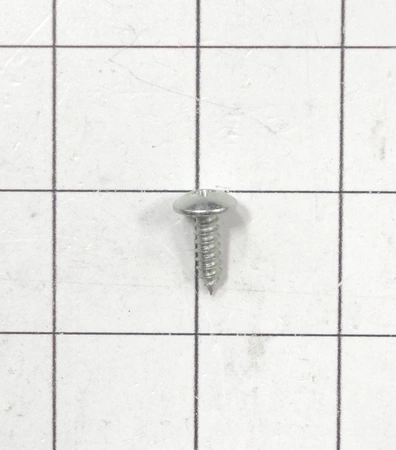

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $33.53

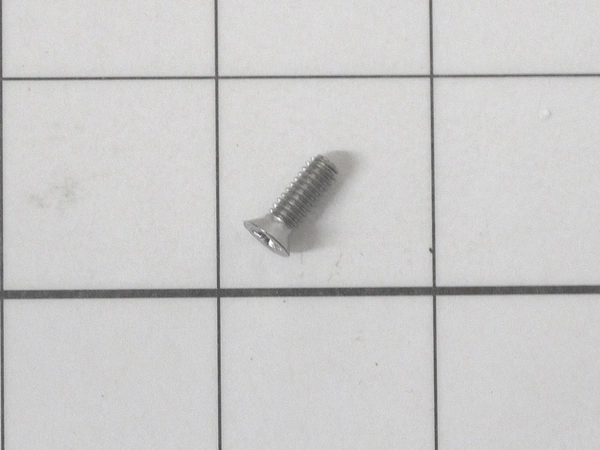

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

TOWER, SPRAY (W/SHAFT-GRAY) WPL 99001533 Contact Us For Availability

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

COVER, DRAIN WPL 99001795 Contact Us For Availability

DIVERTER, SPRAY (GRAY) WPL 99001442 Contact Us For Availability

SCREW WPL 912622 Contact Us For Availability

CAP, AIR INLET WPL Y912659 Contact Us For Availability

NUT, DISCHARGE HOUSING WPL 99001426 Contact Us For Availability

FLAPPER, VALVE WPL 99001799 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

22

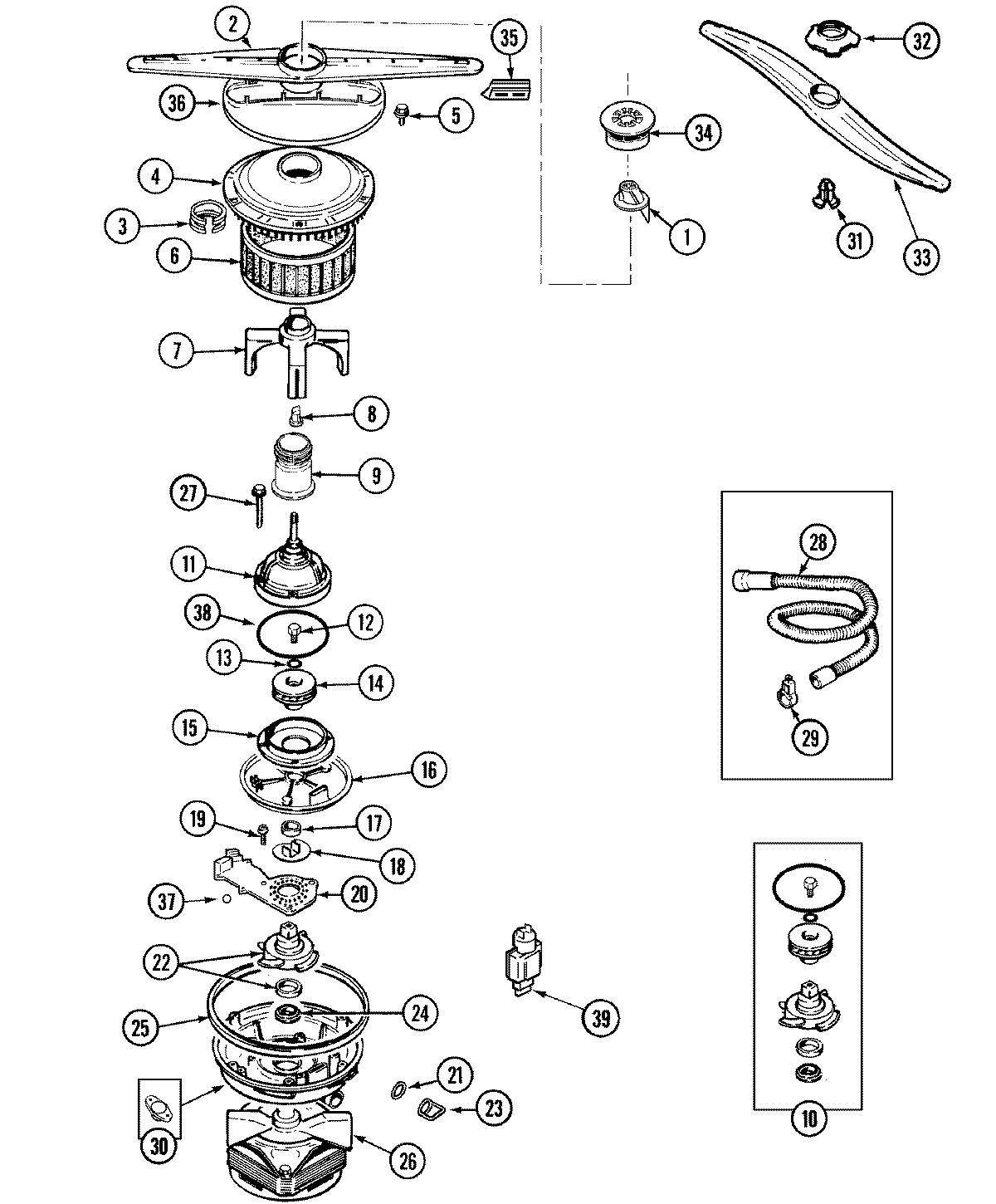

DRAIN IMPELLER ASSEMBLY WPL 903304 Contact Us For Availability

23

WP99002360 Whirlpool Dishwasher Heat Element Backorder WPL WP99002360 $101.57

23

CLIP, RETAINER WPL 99001800 Contact Us For Availability

24

BRACKET, ELEMENT WPL 99002361 Contact Us For Availability

24

SEAL, PUMP WPL 902882 Contact Us For Availability

25

GASKET, PUMP WPL 912529 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

FASTENER, INSULATION WPL 911917 Contact Us For Availability

DAMPER, TUB (ASSEMBLY) WPL 99002566 Contact Us For Availability

MOTOR/PUMP HOUSING ASSEMBLY WPL 99002482 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

27

SCREW WPL 912383 Contact Us For Availability

28

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $6.02

29

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

29

SCREW WPL 99002532 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

O-RING, PUMP THERMOSTAT WPL 99001979 Contact Us For Availability

FLANGE, THERMOSTAT/THERMISTOR WPL 99001980 Contact Us For Availability

THERMISTOR WPL 99002070 Contact Us For Availability

31

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

31

RETAINER, SNAP SPRAY WPL Y912681 Contact Us For Availability

32

STRAP, SUPPORT WPL 912654 Contact Us For Availability

33

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

33

ARM, UPPER WASH (WHT) WPL 99002551 Contact Us For Availability

34

WP99001428 Whirlpool Dishwasher Nut Backorder WPL WP99001428 $4.82

34

HOOK, DRAIN HOSE WPL Y912790 Contact Us For Availability

35

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $4.55

35

SHIELD, RADIANT WPL 99002288 Contact Us For Availability

36

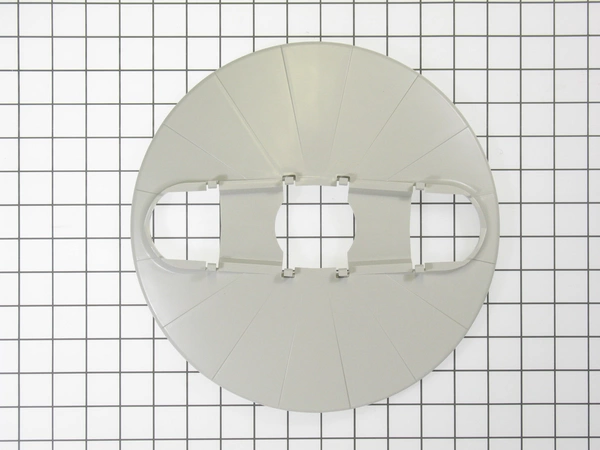

WP99001796 Whirlpool Dishwasher Guard Backorder WPL WP99001796 $12.93

36

DAMPER, TOE PANEL WPL 99001204 Contact Us For Availability

37

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

37

PANEL, TOE (BLK) WPL 912640 Contact Us For Availability

37

BALL, CHECK WPL 99002281 Contact Us For Availability

38

SEAL, SOUND (BLK) WPL 99002336 Contact Us For Availability

38

GASKET, DISCHARGE HSNG (UPR) WPL 99001326 Contact Us For Availability

39

SENSOR, TURBITITY WPL 99002071 Contact Us For Availability

NI

MANUAL, USE & CARE (AMANA) WPL 99002526 Contact Us For Availability

NI

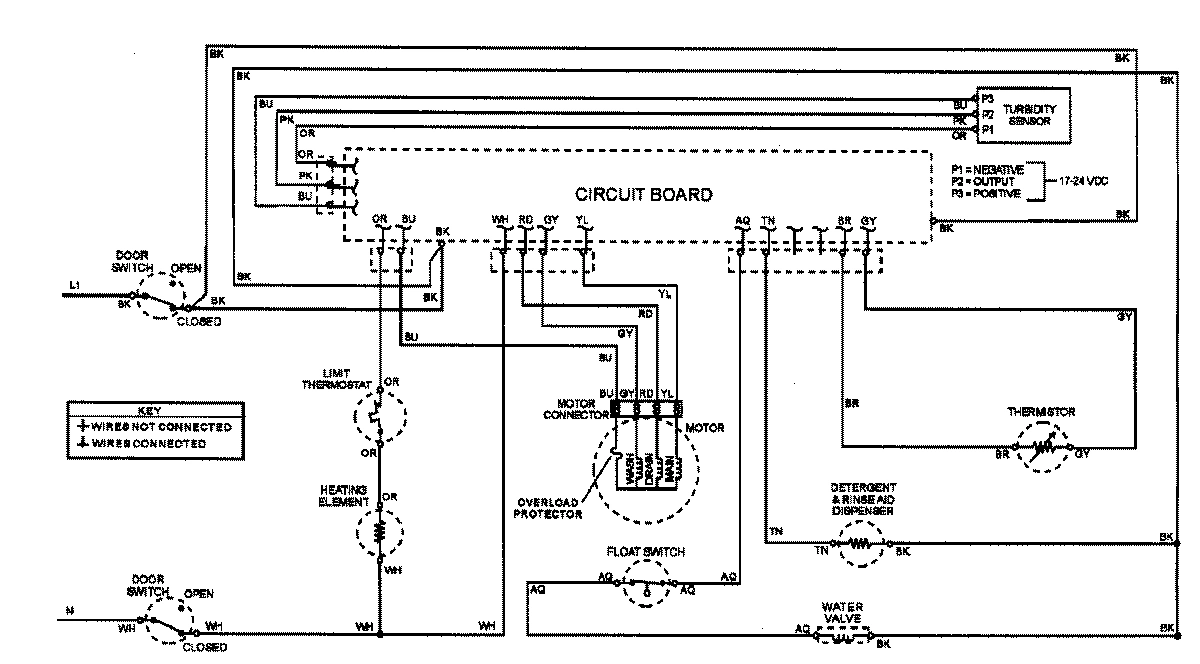

HARNESS, WIRE WPL 99002528 Contact Us For Availability

NI

CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability
