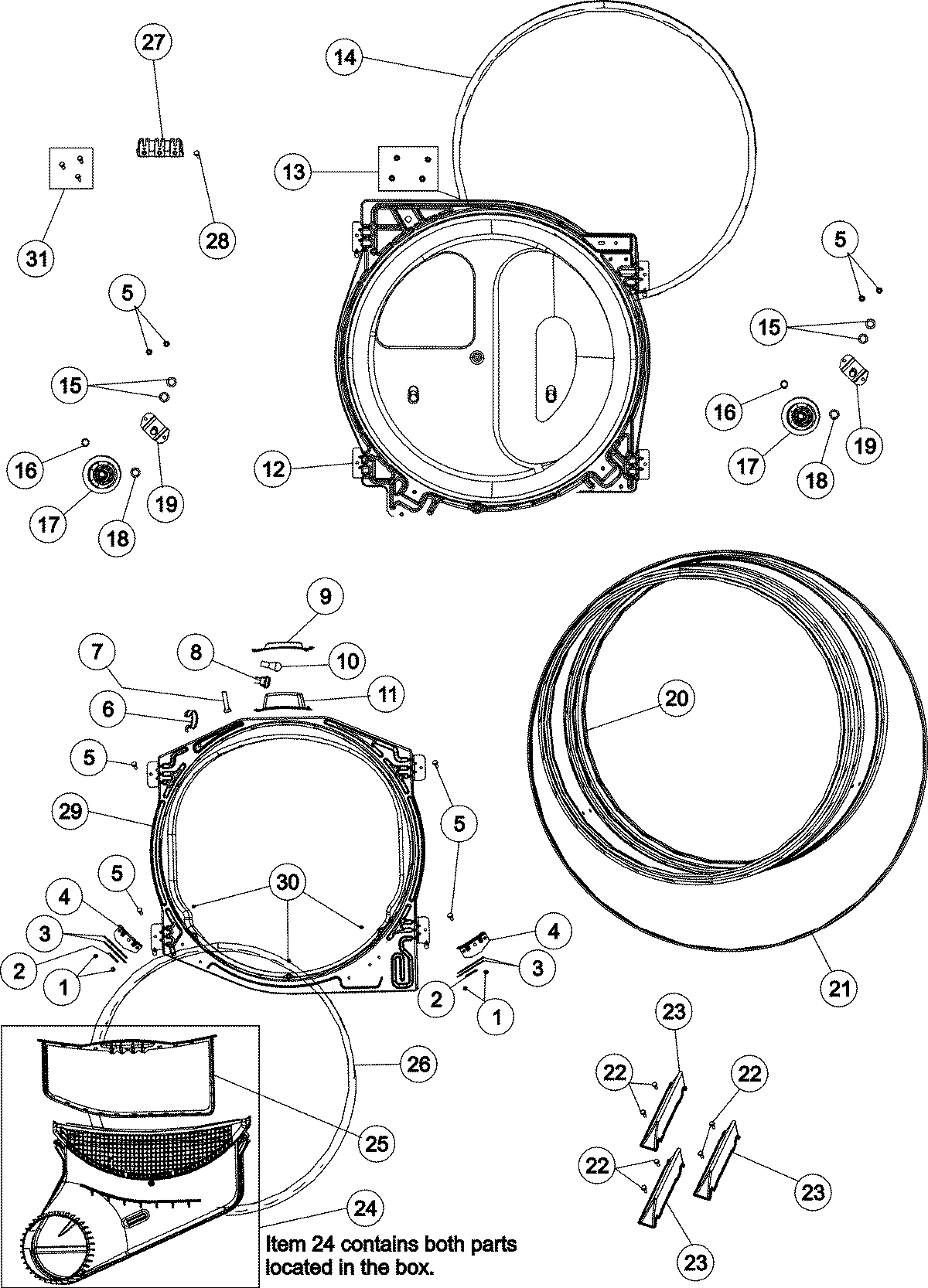

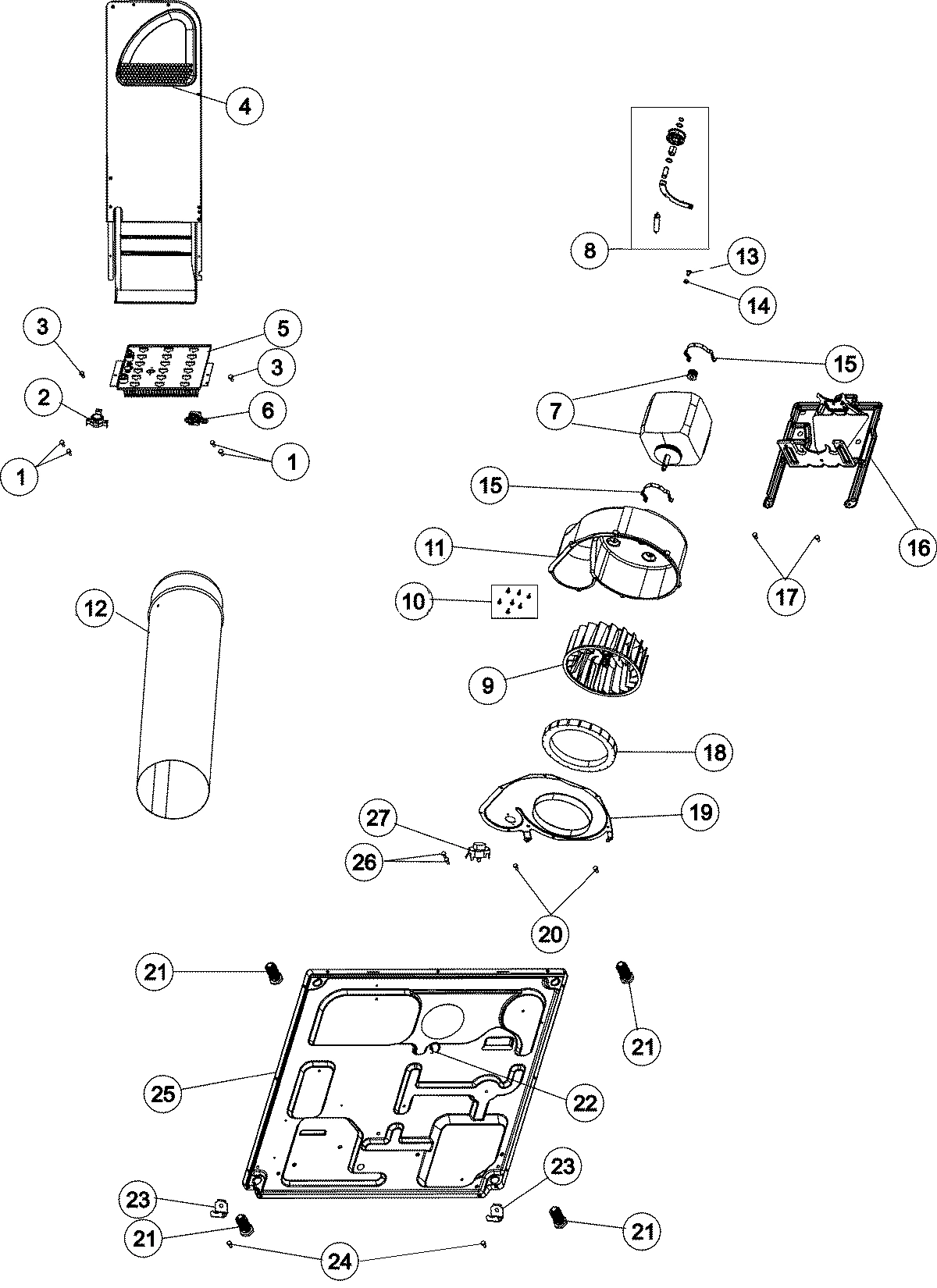

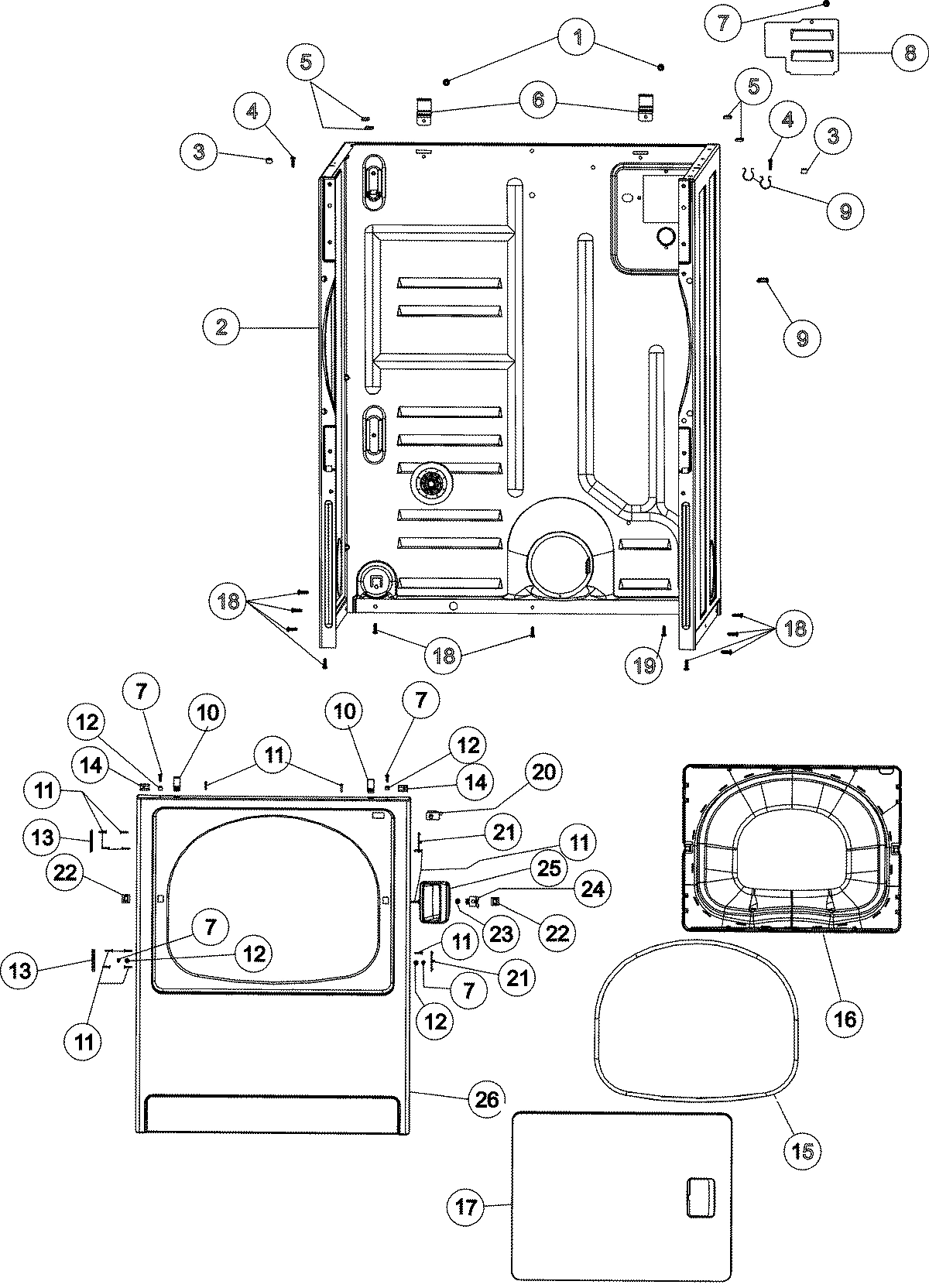

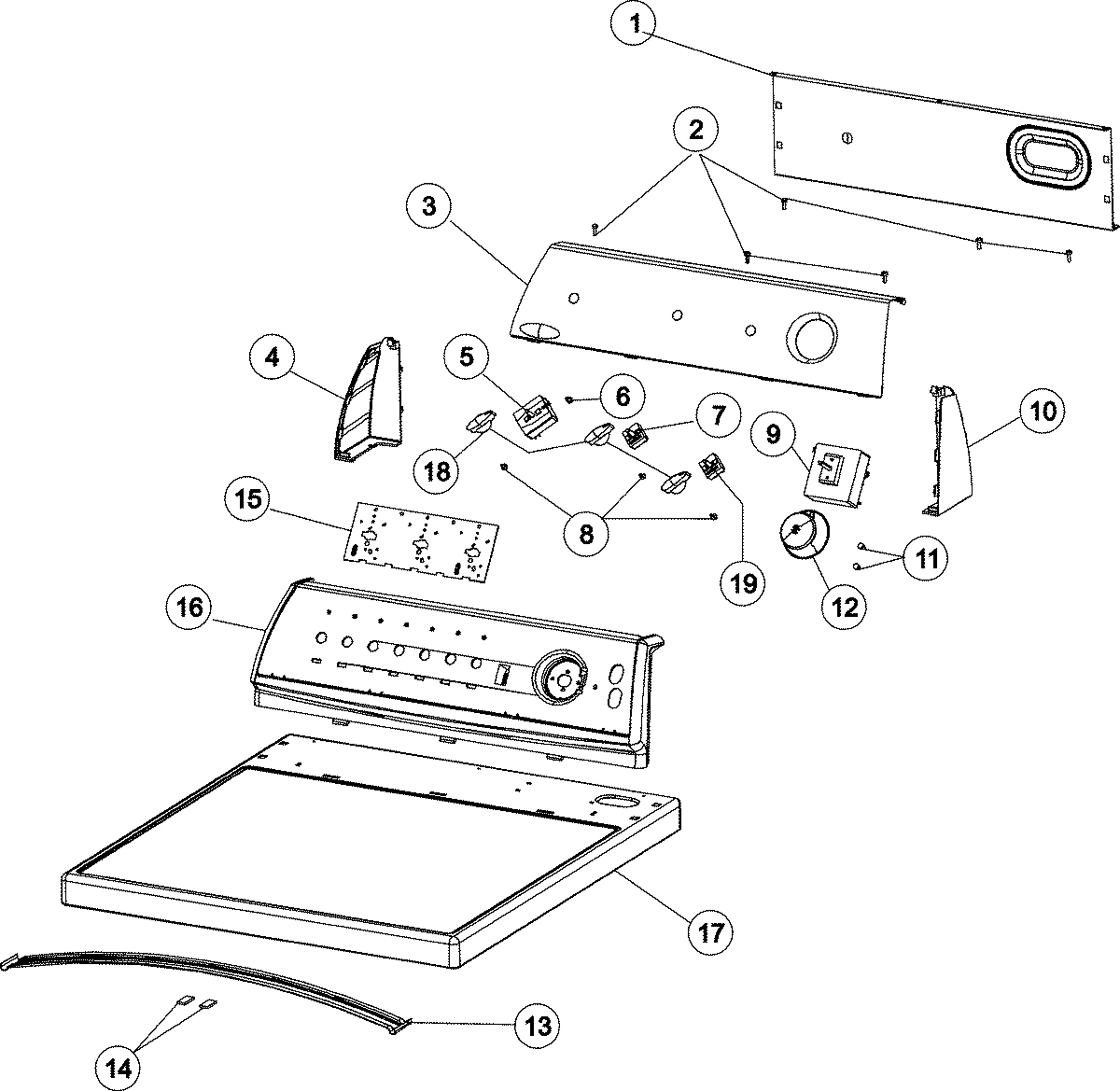

Model Whirlpool ADE9005AGW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

1

HARNESS, WIRE - EXPORT WPL 37001261 Contact Us For Availability

1

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

WP3400888 Whirlpool Compactor Screw Backorder WPL WP3400888 $4.82

2

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

2

PAD, FELT-COIN WPL 500121 Contact Us For Availability

2

MANUAL, USE & CARE WPL 2202687 Contact Us For Availability

3

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

3

FACIA WPL 37001226 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

ASSEMBLY, WIRE WPL 2200011 Contact Us For Availability

4

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

4

ENDCAP, PANEL (RT-WHT) WPL 21001636 Contact Us For Availability

5

37001139 Whirlpool Element Repair Kit 5300W Backorder WPL 37001139 $232.50

5

WIRE, GROUND WPL 37001152 Contact Us For Availability

5

SWITCH, TEMP - 4 POSITION WPL 37001165 Contact Us For Availability

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

6

HINGE, TOP WPL 500003 Contact Us For Availability

6

CLAMP, POWER CORD WPL 33002258 Contact Us For Availability

6

CLIP, WIRE WPL 504034 Contact Us For Availability

7

NUT, POWER CORD CLAMP WPL 33002260 Contact Us For Availability

7

MOTOR & PULLEY 240V/50HZ WPL 37001159 Contact Us For Availability

7

BUZZER, CYCLE SIGNAL WPL 31001448 Contact Us For Availability

8

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

8

WP37001287 Whirlpool Dryer Idler Lever Shaft In Stock WPL WP37001287 $30.33

8

TAPE, FOAM WPL 40083101 Contact Us For Availability

8

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

8

HOLDER, LAMP WPL 504458 Contact Us For Availability

9

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

9

TIMER, DRYER - EXPORT WPL 37001258 Contact Us For Availability

9

LENS, LIGHT WPL 40094301 Contact Us For Availability

10

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

10

ENDCAP, PANEL (LT-WHT) WPL 21001629 Contact Us For Availability

11

HOUSING, BLOWER WPL 56020 Contact Us For Availability

11

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

12

DUCT, EXHAUST WPL 505518 Contact Us For Availability

12

KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability

12

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

13

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

13

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

13

FRAME, CONTROL PANEL, SUPPORT WPL 21001965 Contact Us For Availability

14

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

FRAME (WHT) WPL 21001635 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

17

COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability

18

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

18

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

SWITCH, TWO POS (ON/OFF)ROTARY WPL 31001443 Contact Us For Availability

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

20

ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability

21

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

21

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

21

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

23

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

24

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

25

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

25

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

25

DRYER BASE WPL 37001156 Contact Us For Availability

26

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

26

FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability

27

SHIELD, TERMINAL BLOCK WPL 37001299 Contact Us For Availability

27

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

27

THERMOSTAT WPL Y308037 Contact Us For Availability

28

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

29

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

30

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

31

SCREW PKG, TERMINAL BLOCK WPL 37001300 Contact Us For Availability

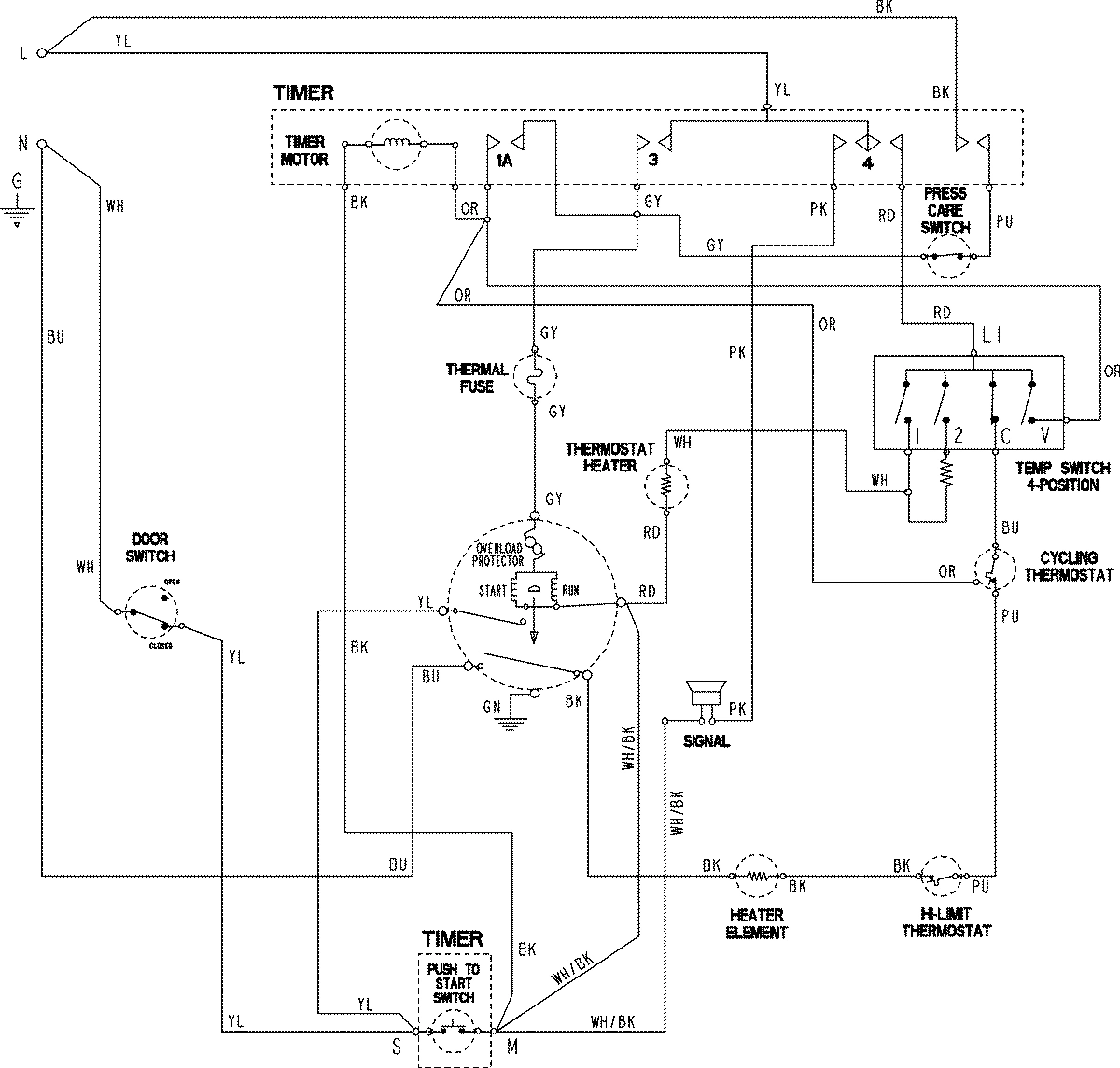

NI

WIRING INFORMATION WPL 15003846 Contact Us For Availability
