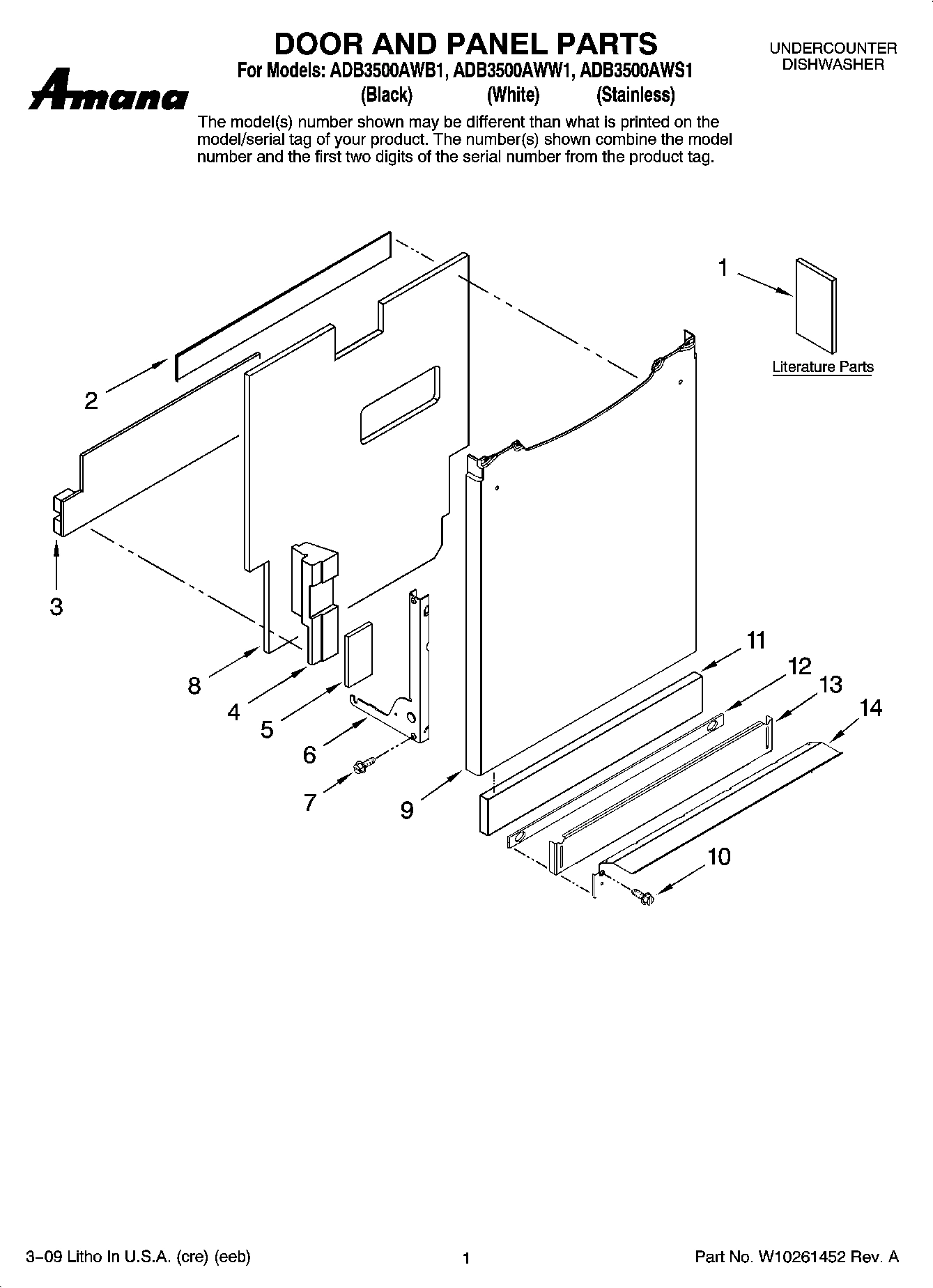

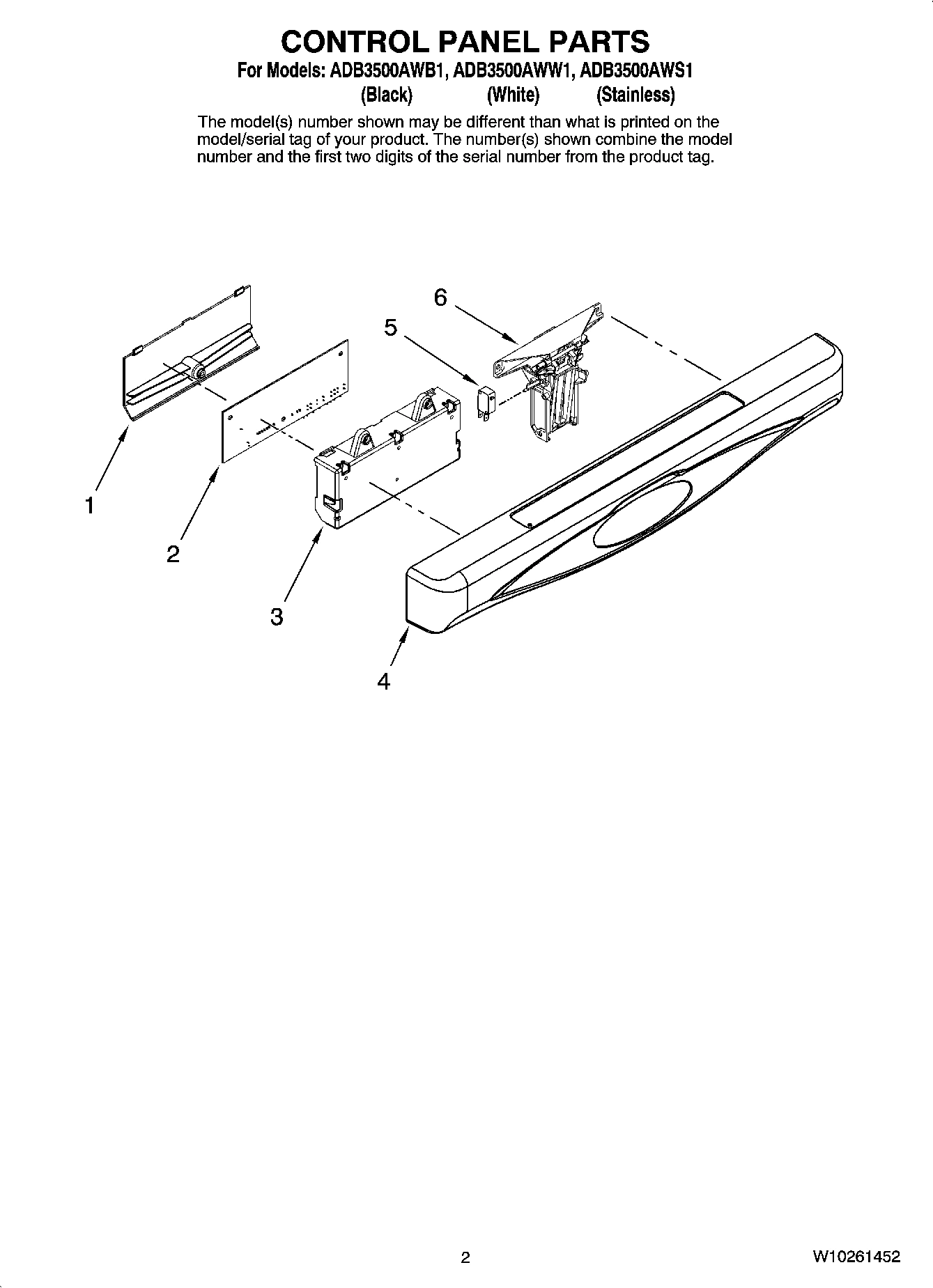

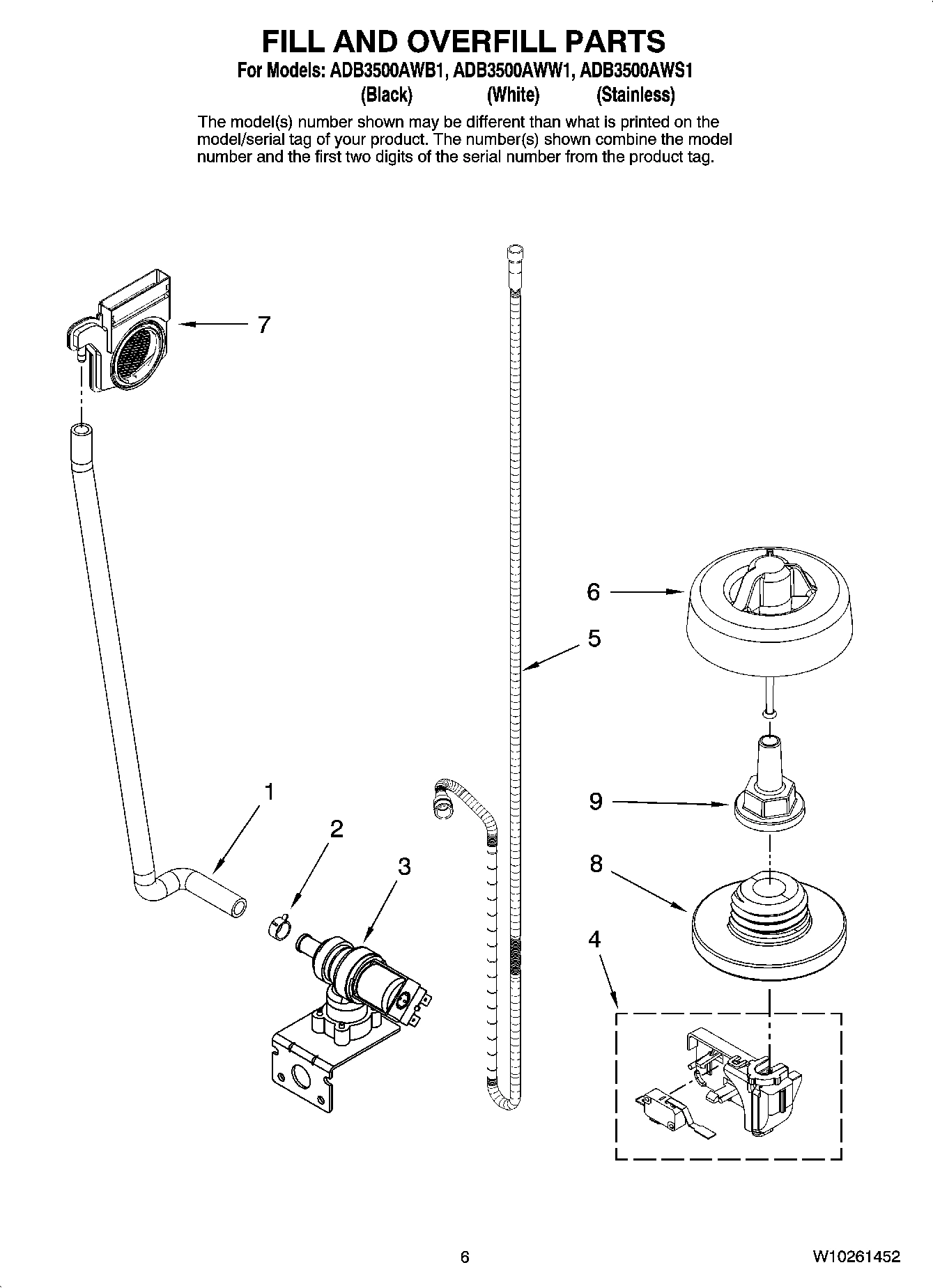

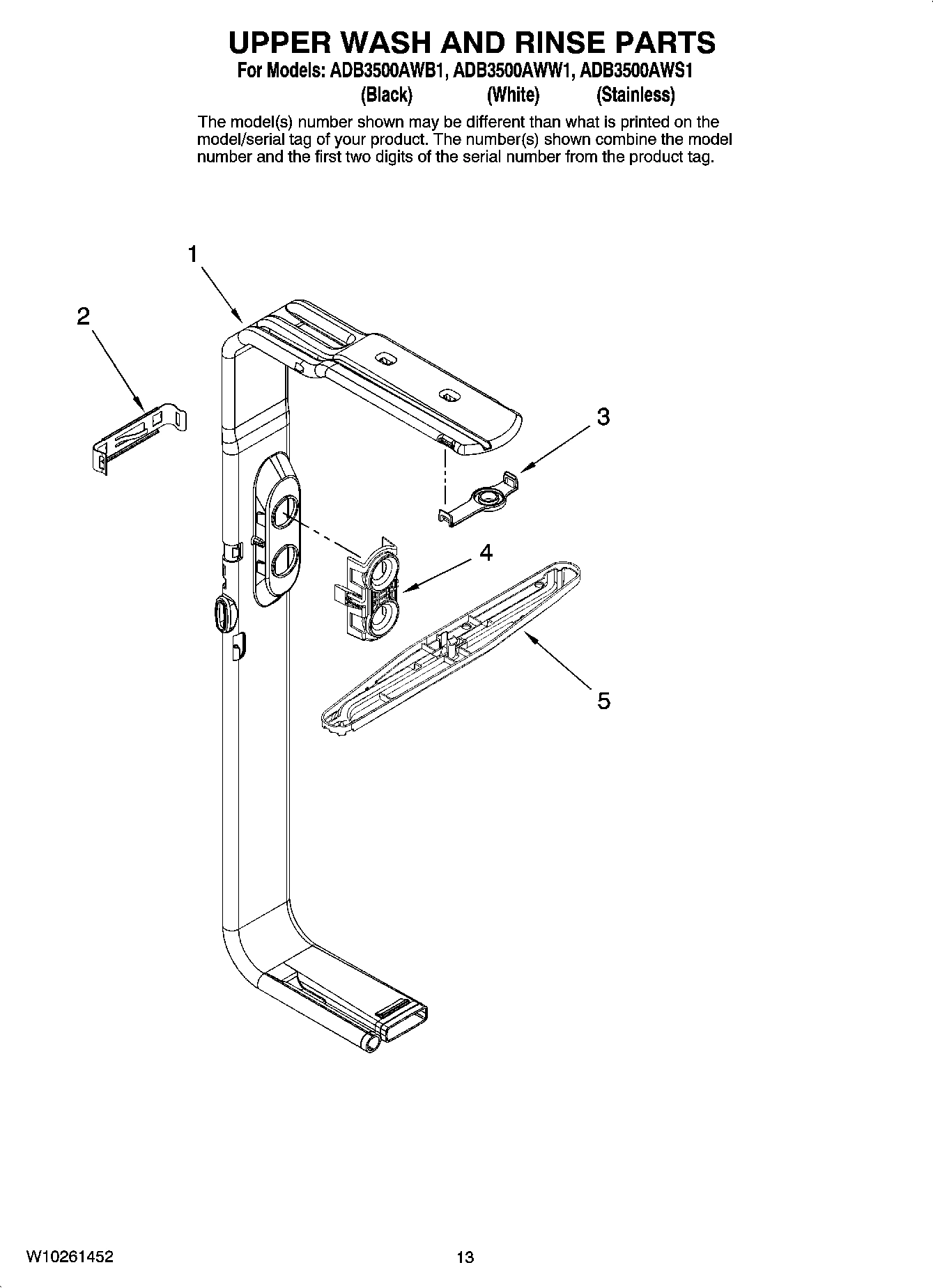

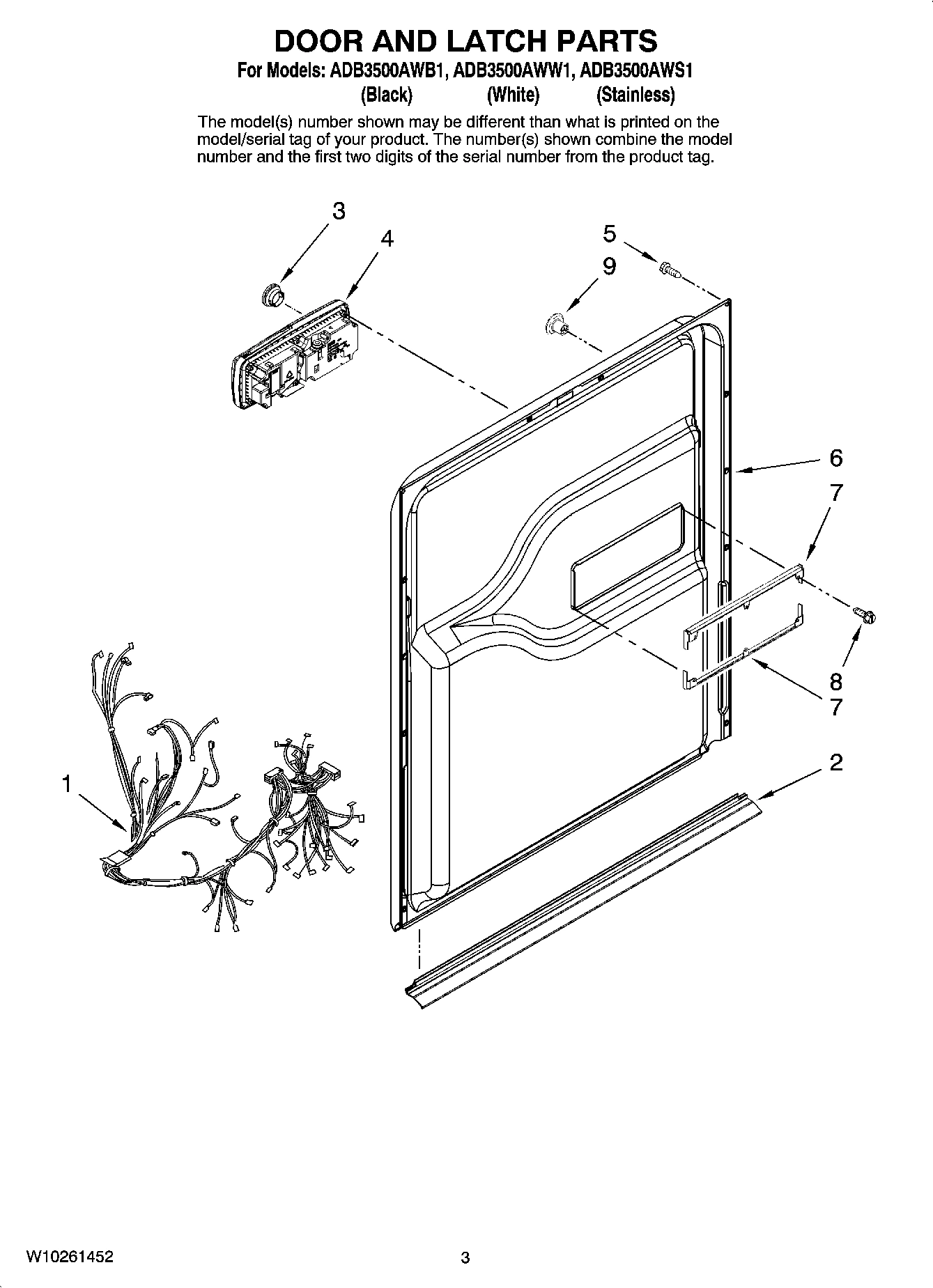

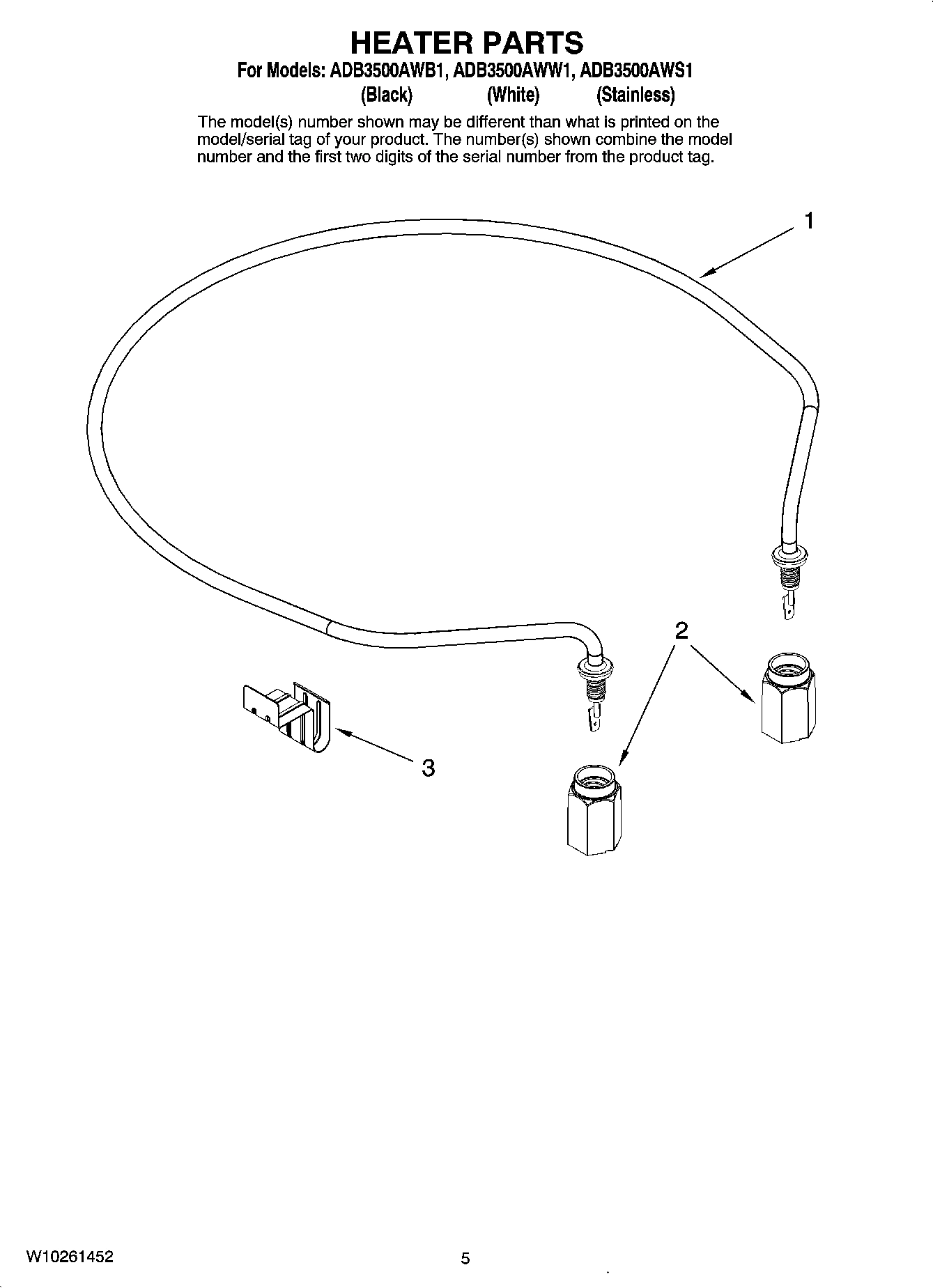

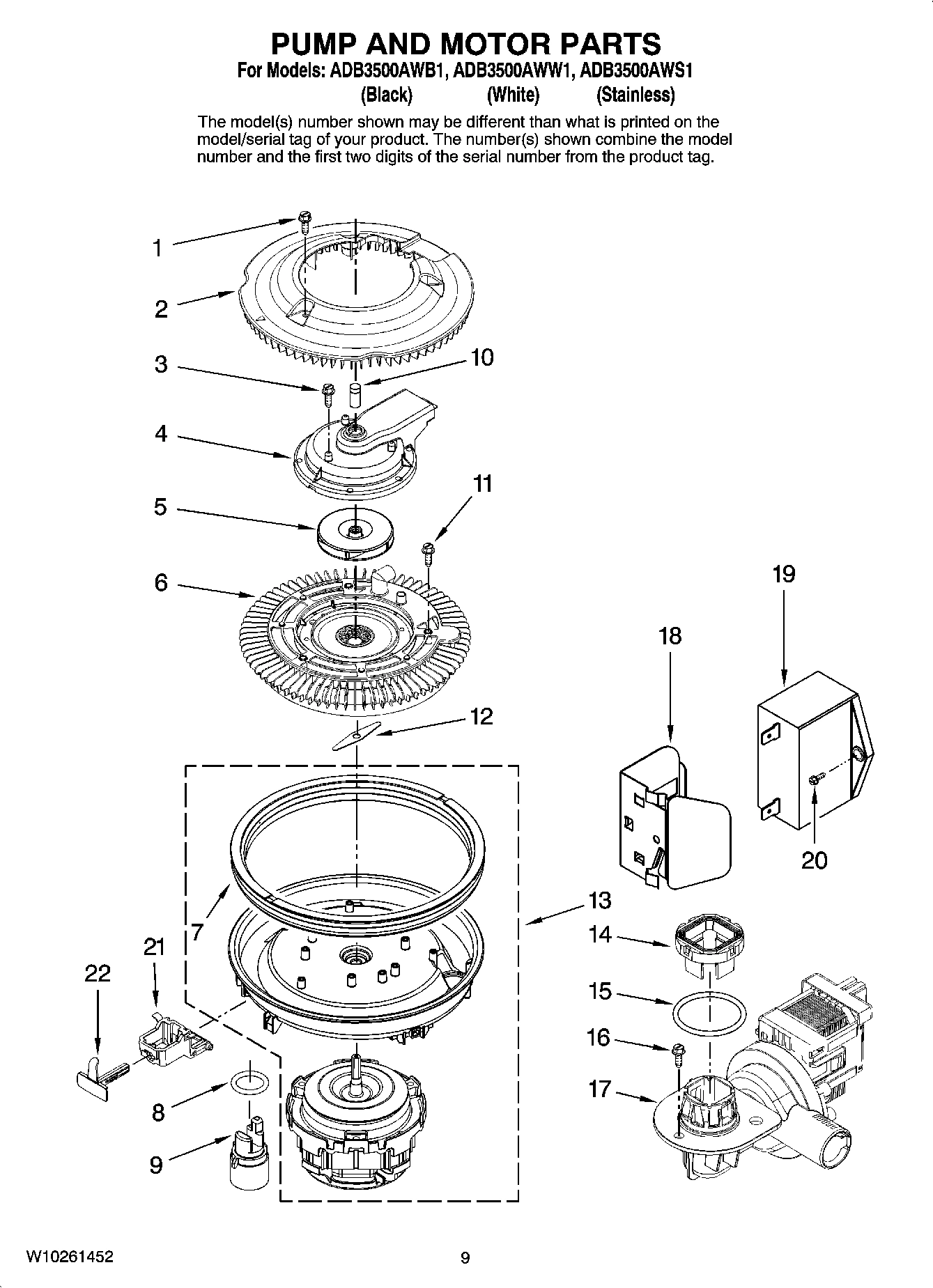

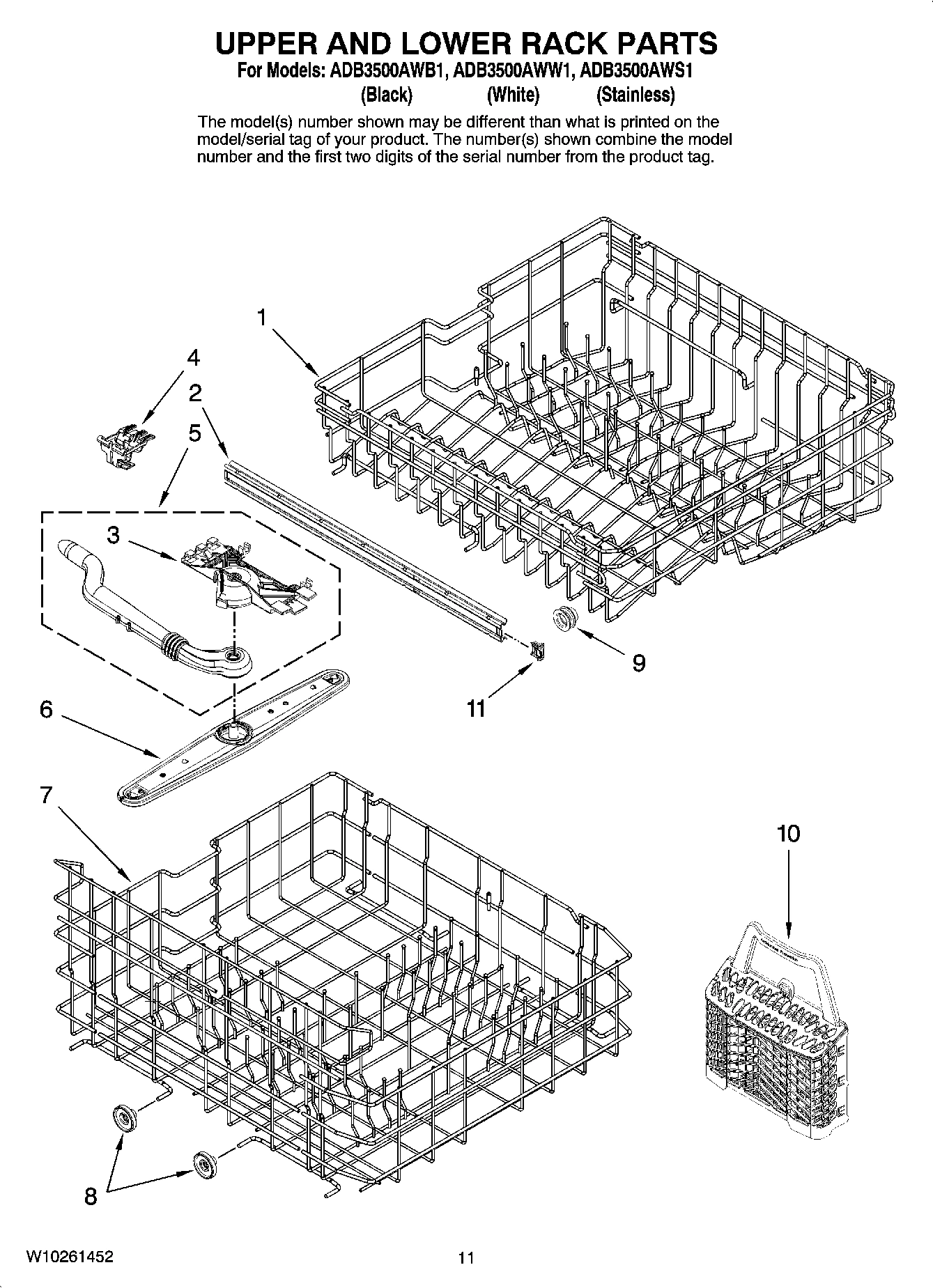

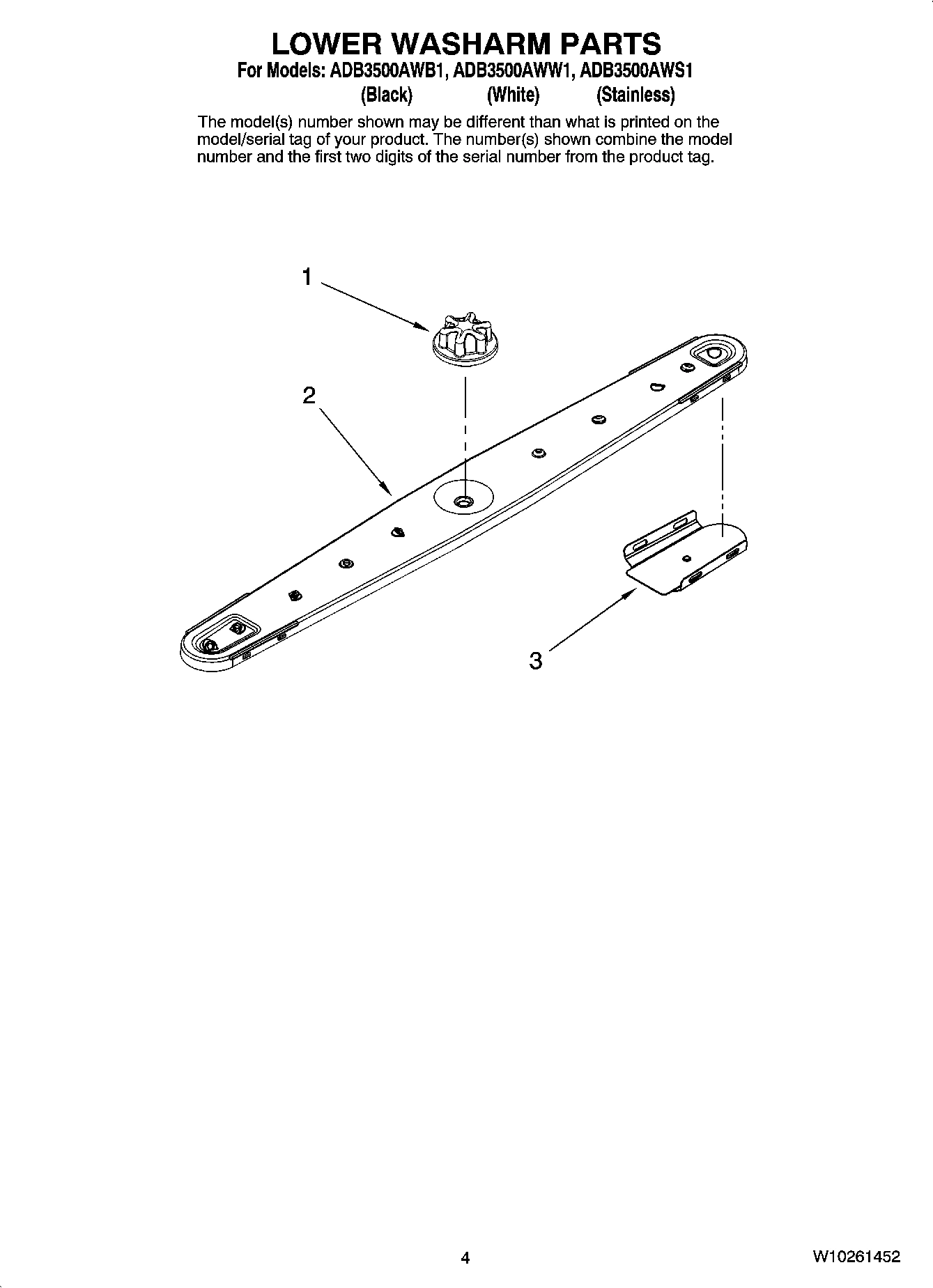

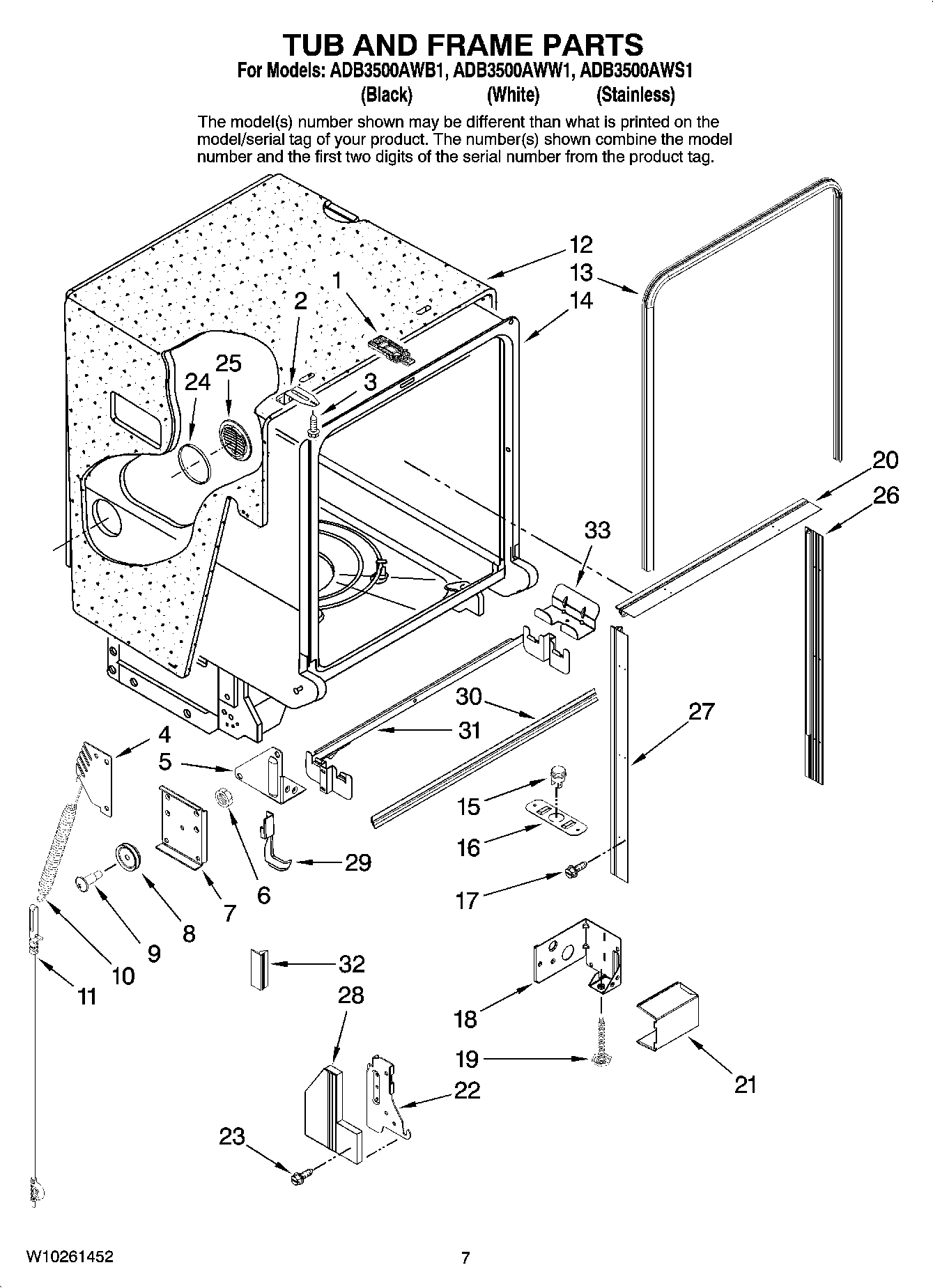

Model Whirlpool ADB3500AWS1 DISHWASHER – Common Parts &amp; Diagrams

1

WP99002654 Whirlpool Nut Backorder WPL WP99002654 $5.86

1

Strike, Door WPL W10119337 Contact Us For Availability

1

Dishrack, Upper WPL W10203877 Contact Us For Availability

1

Harness, Wiring WPL 99003308 Contact Us For Availability

1

Guide, Use & Care WPL W10157793 Contact Us For Availability

1

Instructions, Installation WPL W10158012 Contact Us For Availability

1

Energy Guide WPL W10260099 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

1

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

2

Board, Control WPL W10218837 Contact Us For Availability

2

Rail, Inner Slide WPL W10144736 Contact Us For Availability

2

Guard, Filter WPL W10166788 Contact Us For Availability

2

Seal, Door WPL 99003045 Contact Us For Availability

2

NUT, HEATER WPL 99003033 Contact Us For Availability

2

Insulation, Door WPL 99002693 Contact Us For Availability

3

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

3

Clip, Upper Wash Manifold (Front) WPL 99002669 Contact Us For Availability

3

Cap, Rinse Aid WPL 99002992 Contact Us For Availability

3

Bracket, Heater Support WPL 99003032 Contact Us For Availability

3

NOTE: If heater element is removed, it must b WPL ARI1518A19 Contact Us For Availability

3

BARRIER, FOAM WPL 99003048 Contact Us For Availability

3

Screw WPL 99002668 Contact Us For Availability

3

Shield, Radiant WPL W10218606 Contact Us For Availability

4

Switch, Float Housing WPL W10205539 Contact Us For Availability

4

Clip, Upper Wash Manifold (Back) WPL 99002945 Contact Us For Availability

4

Dispenser, Rinse Aid WPL 99003321 Contact Us For Availability

4

Block, Foam (Left) WPL 99003046 Contact Us For Availability

4

Block, Foam (Right) WPL 99003047 Contact Us For Availability

4

Discharge, Housing Assembly WPL W10212440 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability

4

Panel, Control (Black) WPL 99003463 Contact Us For Availability

4

Panel, Control (White) WPL 99003465 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

5

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

5

Wash Manifold Assy, (Upper) WPL 99002679 Contact Us For Availability

5

WRAP, FOAM WPL 99003049 Contact Us For Availability

5

Wash Arm, Top (with Retainer) WPL 99002911 Contact Us For Availability

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

6

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $186.41

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

6

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

6

Bracket, Hinge (Left) WPL W10118638 Contact Us For Availability

6

Arm, Wash (Upper) WPL 99002624 Contact Us For Availability

6

Inner Door w/Damper WPL W10203663 Contact Us For Availability

6

FLOAT WPL W10130095 Contact Us For Availability

7

Dishrack, Lower WPL W10203924 Contact Us For Availability

7

BRACKET, DISPENSER WPL 99002465 Contact Us For Availability

7

SCREW WPL 99001075 Contact Us For Availability

7

GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability

7

INLET, AIR/WATER WPL 99003028 Contact Us For Availability

8

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

8

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

8

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

8

Pad, Foam WPL 99003044 Contact Us For Availability

8

Adapter, Float WPL W10130109 Contact Us For Availability

9

Wheel Assembly (Upper) WPL WP99003147 No Longer Available

9

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

9

HANGER, BASKET WPL 99003591 Contact Us For Availability

9

Panel, Front (Black) WPL 99002768 Contact Us For Availability

9

Panel, Front (White) WPL 99002770 Contact Us For Availability

9

Panel, Front (Stainless) WPL 99002771 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

Basket, Silverware WPL 99003429 Contact Us For Availability

Screw (White) WPL 99001194 Contact Us For Availability

Pivot, Wash Arm WPL 99003697 Contact Us For Availability

11

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $4.55

11

Stop, Rail WPL WP99003281 No Longer Available

11

Screw WPL 99002664 Contact Us For Availability

12

Damper, Toe Panel (Black) WPL 99002694 Contact Us For Availability

12

Damper, Toe Panel (White) WPL 99002698 Contact Us For Availability

12

CHOPPER WPL 99003427 Contact Us For Availability

13

Panel, Toe (Black) WPL 99002765 Contact Us For Availability

13

Panel, Toe (White) WPL 99002766 Contact Us For Availability

13

Wash Motor Assy. WPL W10118627 Contact Us For Availability

14

Support, Front (Black) WPL 99002859 Contact Us For Availability

14

Support, Front (White) WPL 99002860 Contact Us For Availability

14

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

15

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

16

Screw WPL 99002740 Contact Us For Availability

17

Drain Pump Assy. WPL W10200518 Contact Us For Availability

18

Shield, Capacitor WPL W10167912 Contact Us For Availability

19

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

19

Capacitor WPL 99002665 Contact Us For Availability

20

Screw WPL 99002601 Contact Us For Availability

21

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

22

PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability

28

Backer, Hinge Seal (Left) WPL W10174569 Contact Us For Availability

28

Backer, Hinge Seal (Right) WPL W10174581 Contact Us For Availability

30

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $69.04

31

Bracket, Support (Rear) WPL W10167660 Contact Us For Availability

32

Gap Seal, Toe Kick (Black) WPL 99002701 Contact Us For Availability

32

Gap Seal, Toe Kick (White) WPL 99002703 Contact Us For Availability

33

Clamp, Rear Support WPL W10167916 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $25.16

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $39.62

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $56.69

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $39.89

INSTALLATION KIT WPL ARI1520A28 Contact Us For Availability
