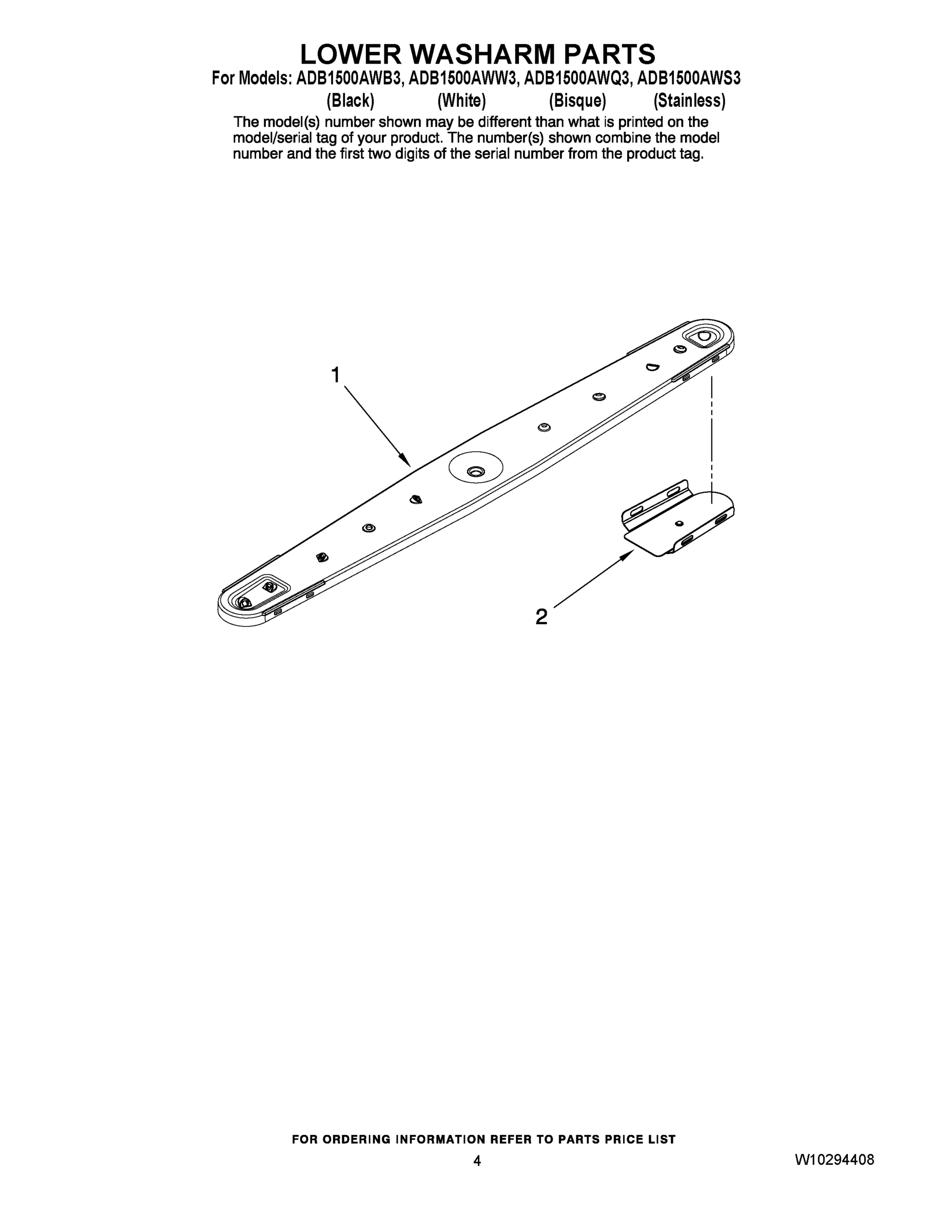

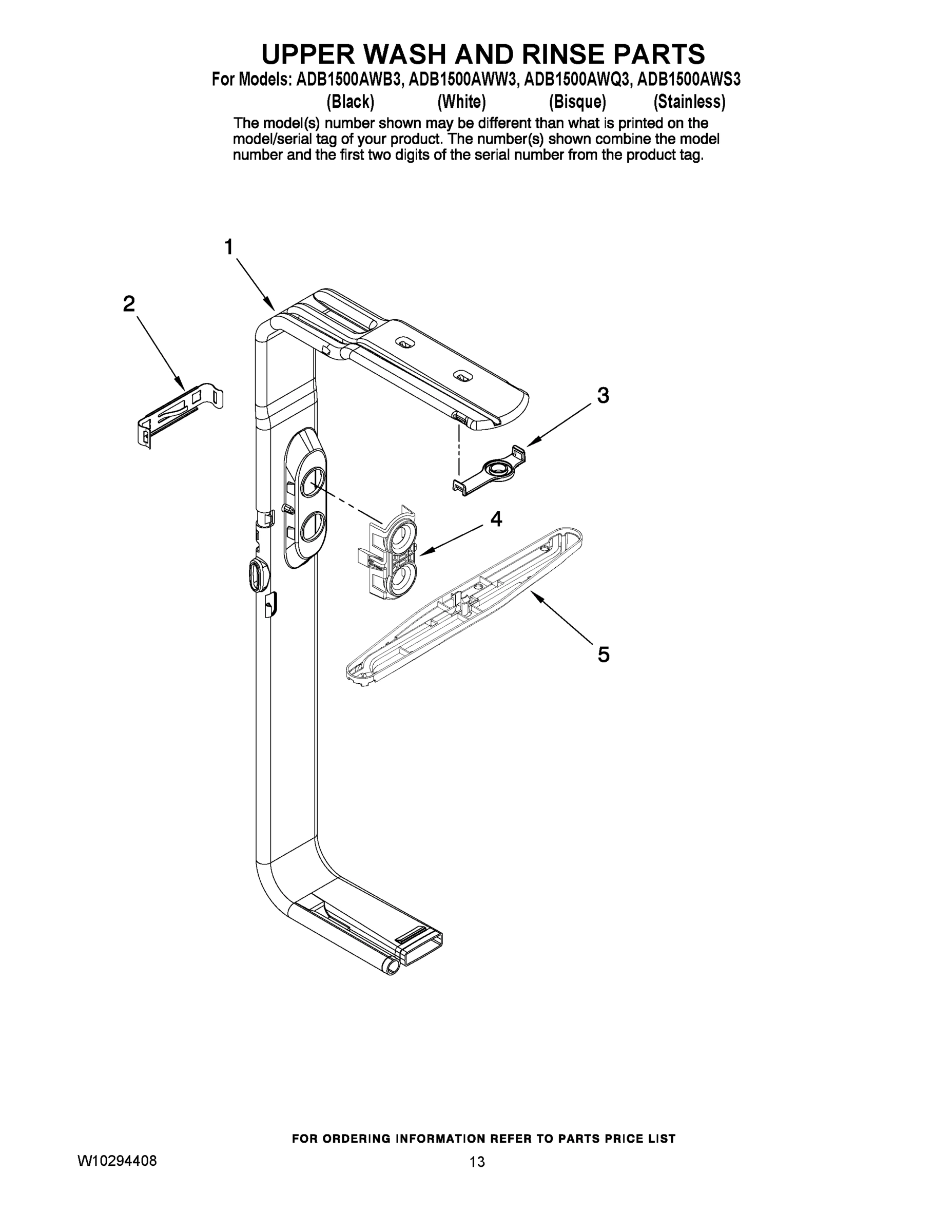

Model Whirlpool ADB1500AWB3 DISHWASHER – Common Parts &amp; Diagrams

1

Strike, Door WPL W10119337 Contact Us For Availability

1

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

1

Harness, Wiring WPL W10237911 Contact Us For Availability

1

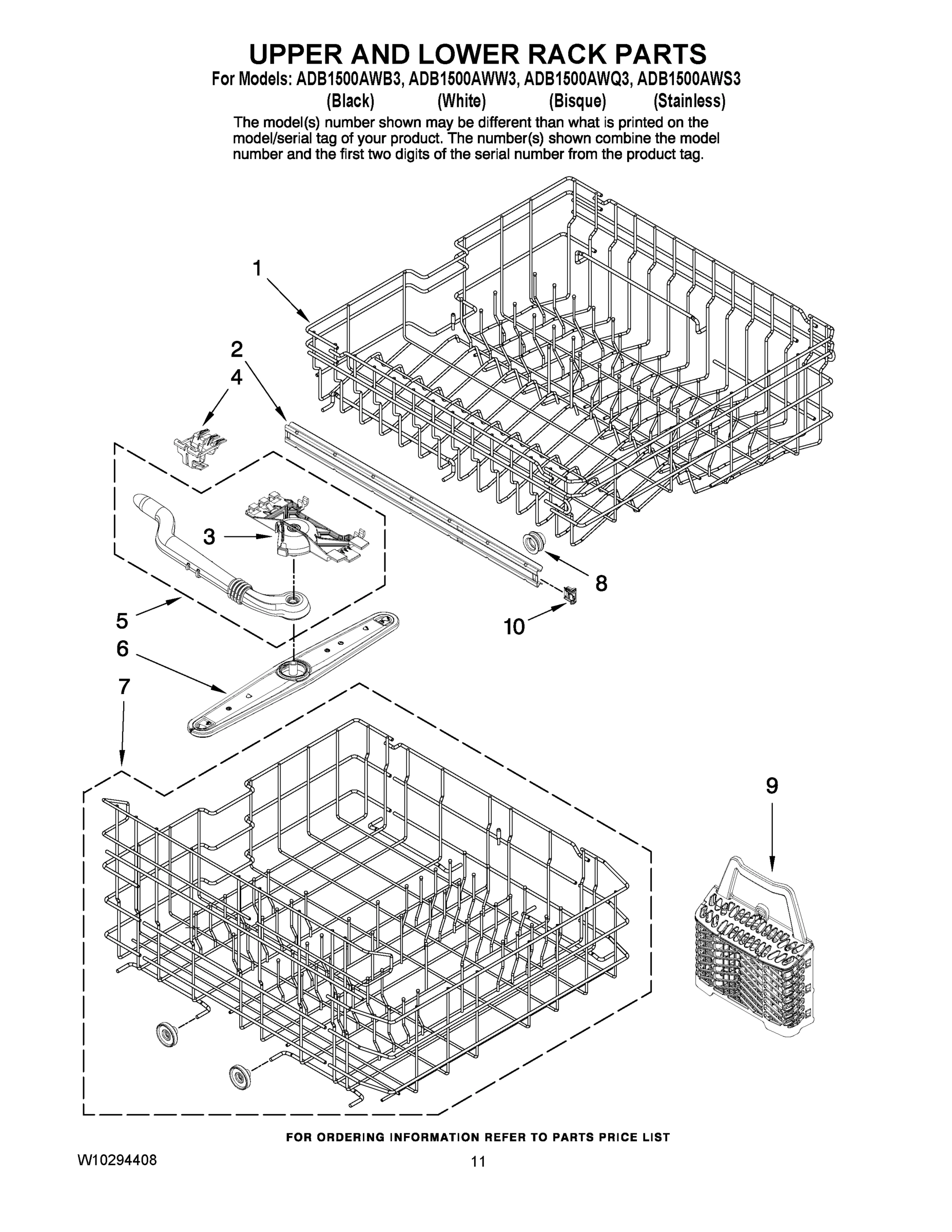

Dishrack, Upper WPL W10203876 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

2

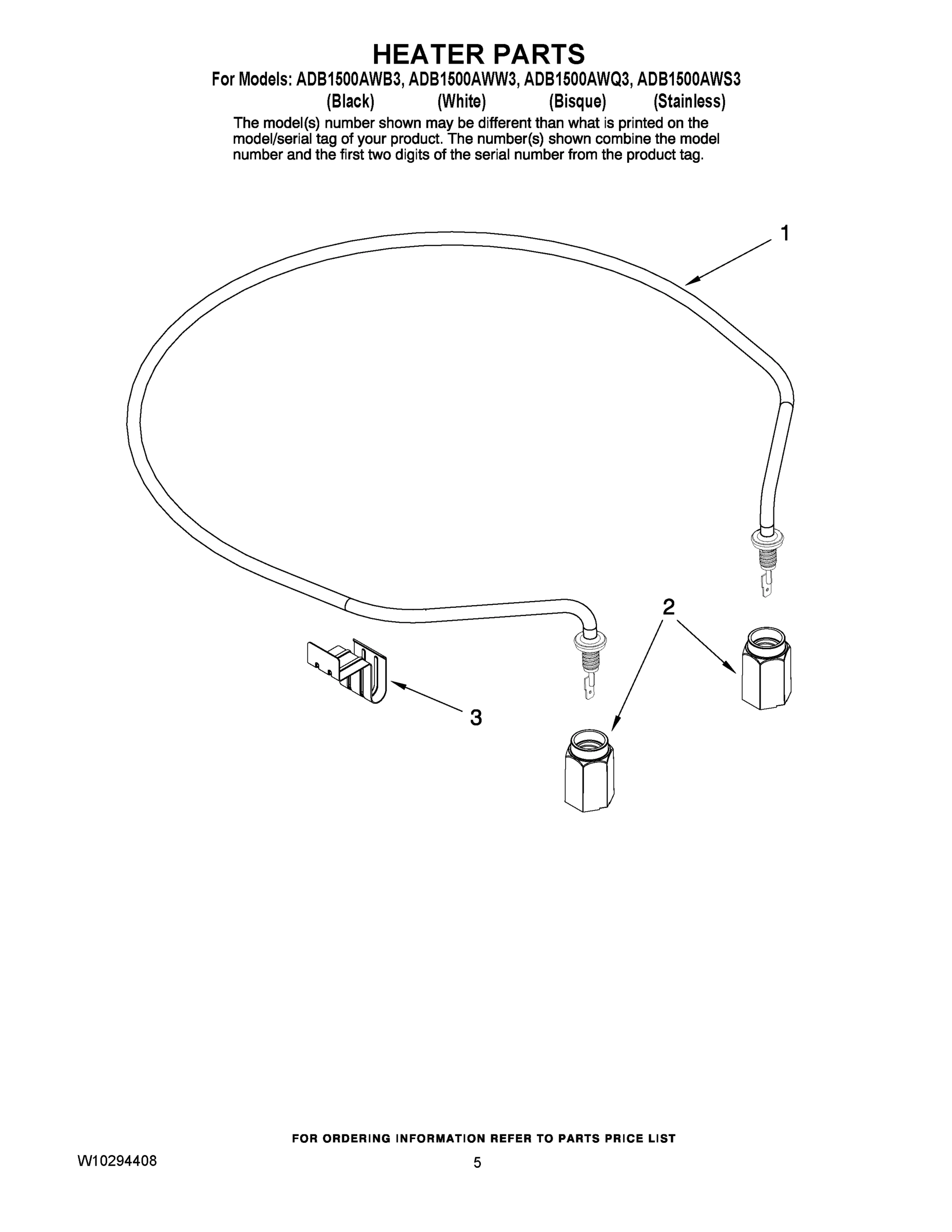

WP6-920168 Whirlpool Dishwasher Heater Nut Backorder WPL WP6-920168 $0.02

2

Board, Control WPL W10218832 Contact Us For Availability

2

Guard, Filter WPL W10166788 Contact Us For Availability

2

BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability

2

Shield, Radiant WPL W10218606 Contact Us For Availability

2

Rail, Inner Slide WPL 99002621 Contact Us For Availability

2

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

3

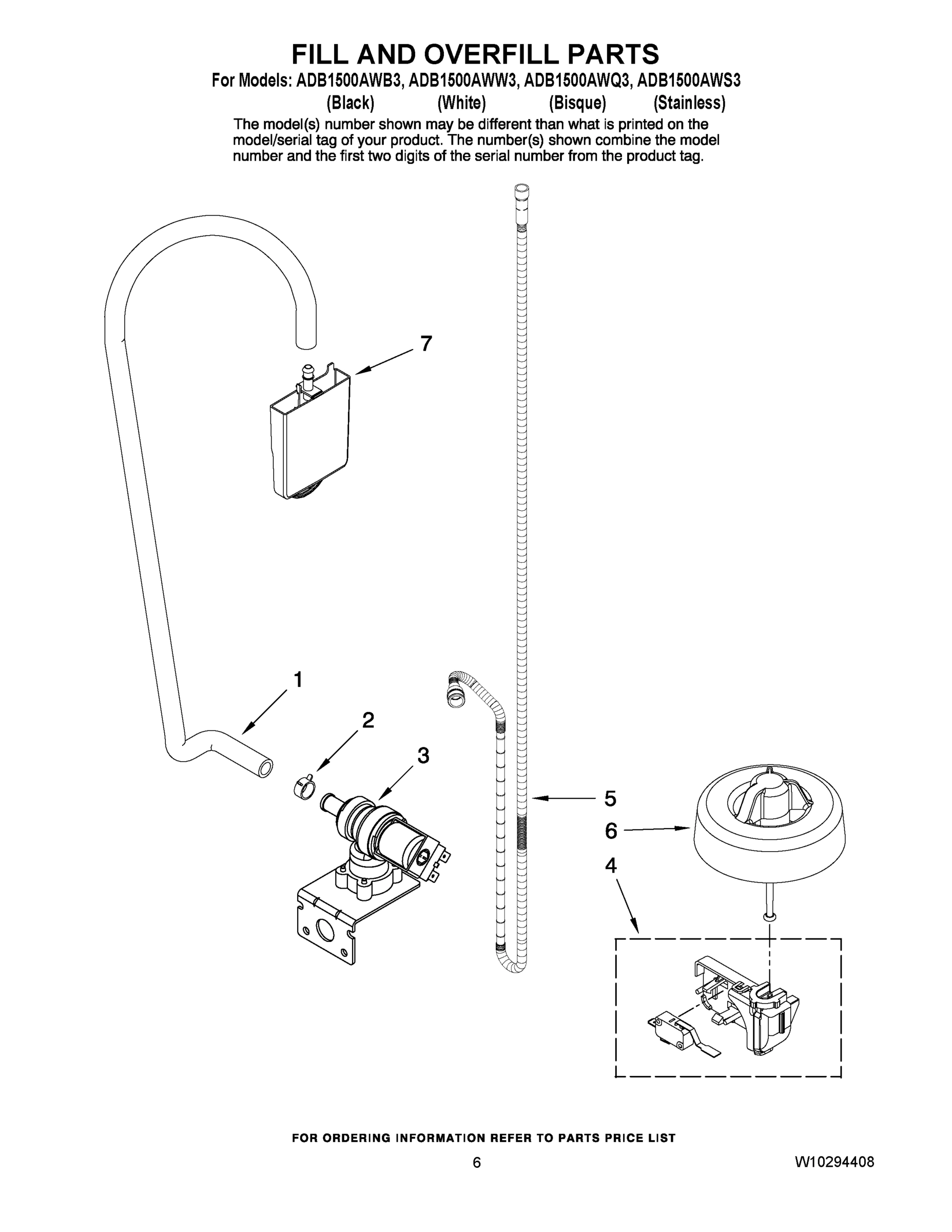

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

3

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $104.46

3

SCREW WPL W10202904 Contact Us For Availability

3

SEAL, DOOR VENT WPL 99002186 Contact Us For Availability

3

Clip, Upper Wash Manifold (Front) WPL 99002669 Contact Us For Availability

3

MOUNTING WPL 99002640 Contact Us For Availability

4

Housing, Float Switch WPL W10205539 Contact Us For Availability

4

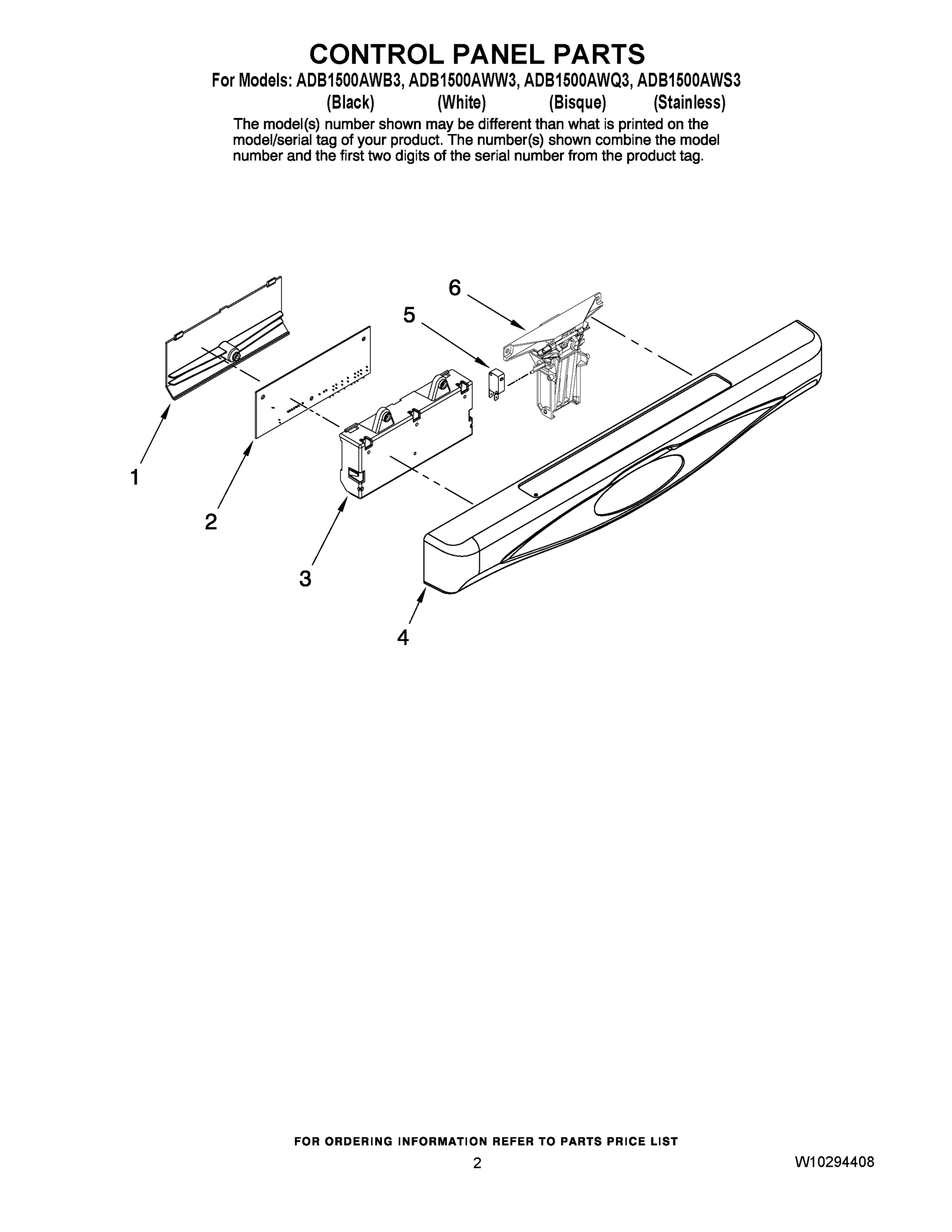

Panel, Control (Bisque) WPL 99003367 Contact Us For Availability

4

Panel, Control (White) WPL 99003368 Contact Us For Availability

4

Panel, Control (Black) WPL 99003414 Contact Us For Availability

4

Discharge, Housing Assembly WPL W10212440 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability

4

Cap, Rinse Aid WPL 99002992 Contact Us For Availability

4

Clip, Upper Wash Manifold (Back) WPL 99002945 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

5

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

5

Wash Arm, Top (with Retainer) WPL 99002676 Contact Us For Availability

5

Dispenser, Rinse Aid WPL 99003321 Contact Us For Availability

5

Wash Manifold Assy, (Upper) WPL 99002679 Contact Us For Availability

5

Bracket, Support (Left) WPL 99002636 Contact Us For Availability

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

6

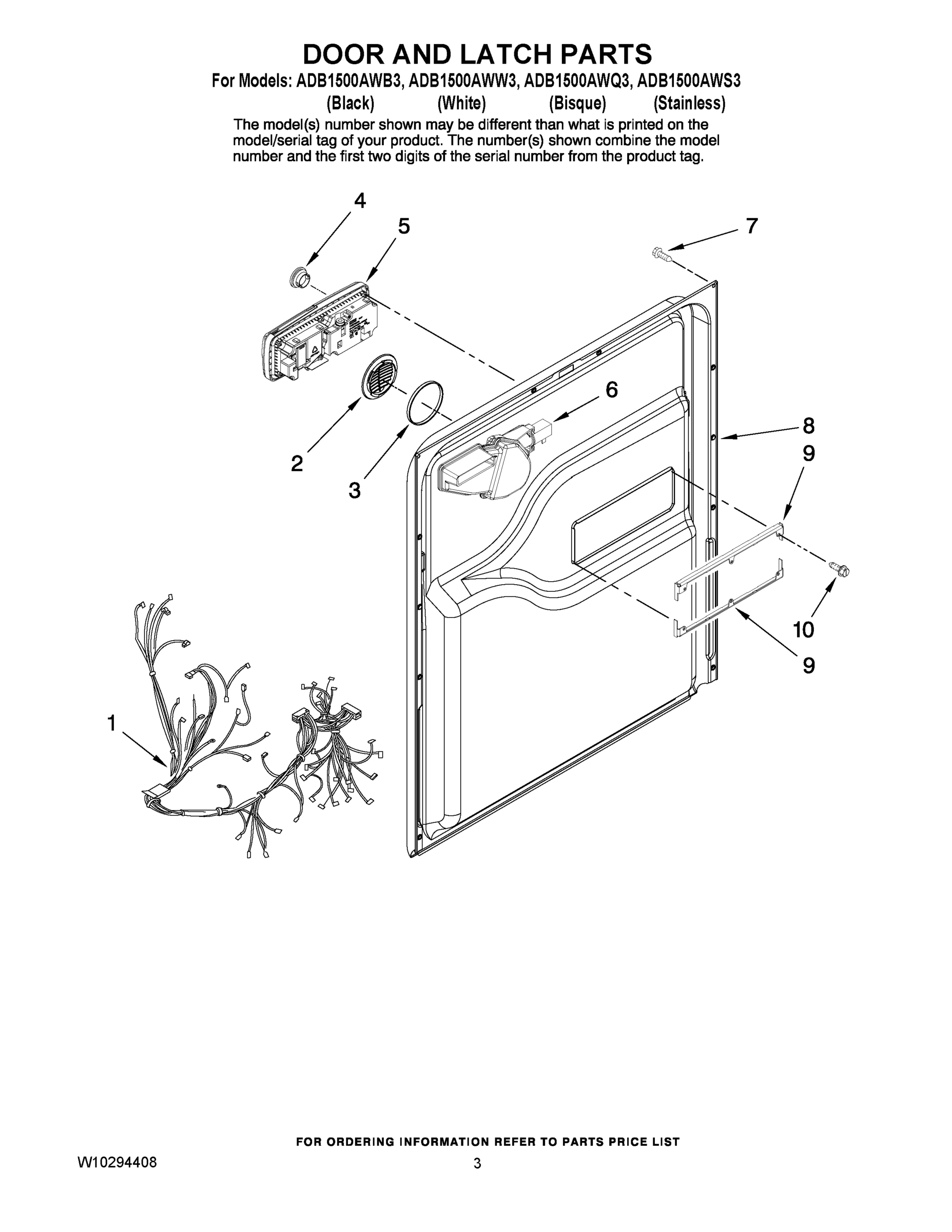

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

6

Housing, Vent Assy WPL W10190890 Contact Us For Availability

6

FLOAT WPL W10130095 Contact Us For Availability

6

Arm, Wash (Upper) WPL 99002624 Contact Us For Availability

6

Nut WPL 99003688 Contact Us For Availability

7

Gasket, Motor Mount WPL 99002663 Contact Us For Availability

7

INLET, AIR/WATER WPL 99002645 Contact Us For Availability

7

Dishrack, Lower WPL W10203921 Contact Us For Availability

7

Bracket, Cable WPL W10173920 Contact Us For Availability

8

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

8

Wheel Assembly WPL W10180776 Contact Us For Availability

8

Inner Door W/ Damper WPL 99003424 Contact Us For Availability

9

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

9

Insulation, Door WPL W10117748 Contact Us For Availability

9

Basket, Silverware WPL W10261225 Contact Us For Availability

9

Bolt, Shoulder WPL 99003687 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

WPW10261227 Whirlpool Dishwasher Stop Assembl Backorder WPL WPW10261227 $4.82

Screw WPL 99002601 Contact Us For Availability

SPRING, DOOR WPL 99002598 Contact Us For Availability

11

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

11

Screw WPL 99002664 Contact Us For Availability

12

Foam Strip (Long) WPL 99003482 Contact Us For Availability

12

CHOPPER WPL 99003427 Contact Us For Availability

12

INSULATION, TUB WPL 99002639 Contact Us For Availability

13

BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability

13

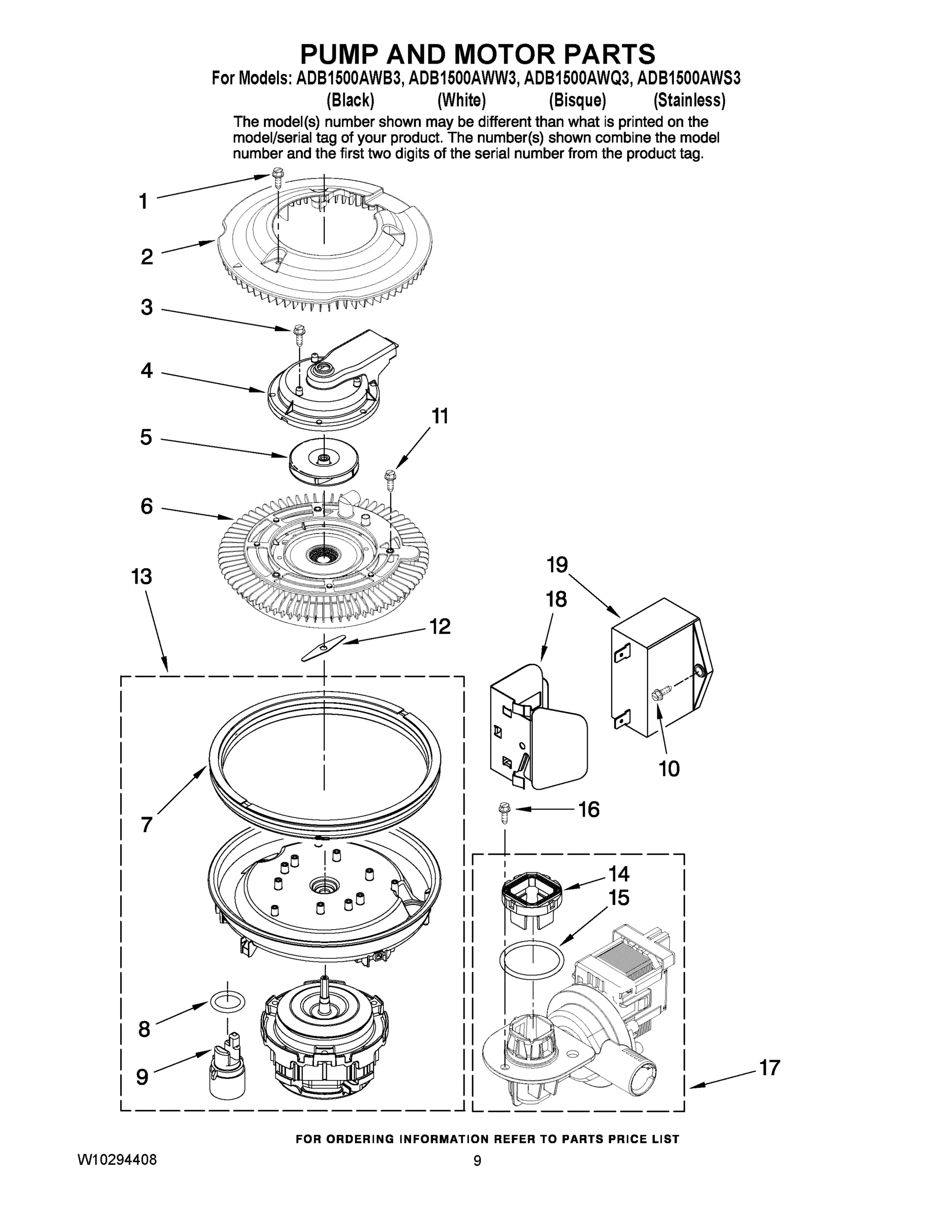

Wash Motor Assy. WPL 6919962 Contact Us For Availability

13

SEAL, DOOR WPL 99002588 Contact Us For Availability

14

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

14

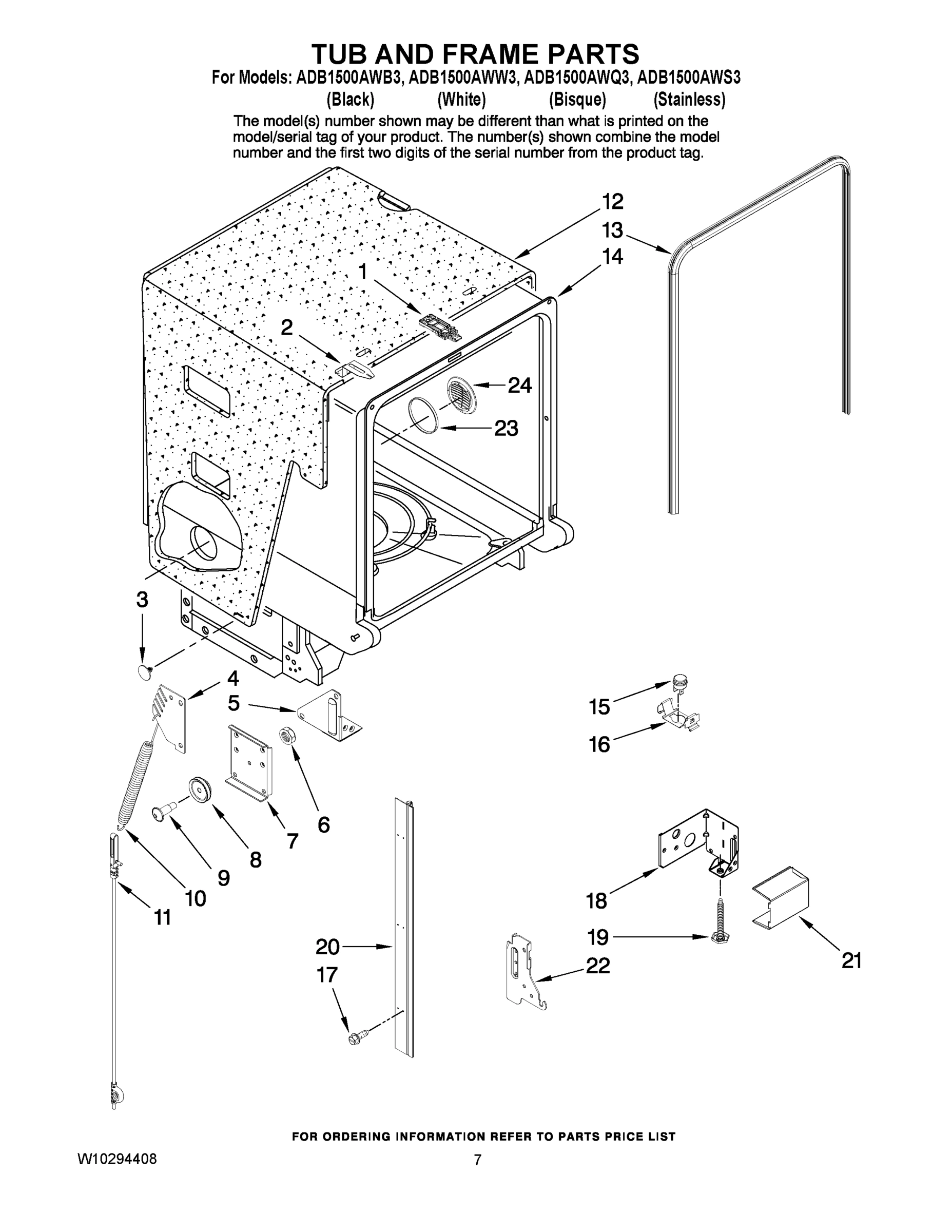

Tub Assembly WPL W10142297 Contact Us For Availability

15

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

15

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

16

Screw WPL 99002740 Contact Us For Availability

16

CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability

17

Drain Pump Assy. WPL W10200518 Contact Us For Availability

17

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

18

Shield, Capacitor WPL W10167912 Contact Us For Availability

18

Bracket, Junction Box WPL 99002637 Contact Us For Availability

19

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

19

Capacitor WPL 99002665 Contact Us For Availability

20

STRIP, TRIM WPL 99002649 Contact Us For Availability

21

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

22

Support, Hinge (Right) WPL W10137495 Contact Us For Availability

22

Support, Hinge (Left) WPL W10137496 Contact Us For Availability

24

Grill,Air/Water Inlet WPL 99002948 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $25.16

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $39.62

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $56.69

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $39.89
