Model Maytag ABB1927DEQ REFRIGERATOR – Common Parts & Diagrams

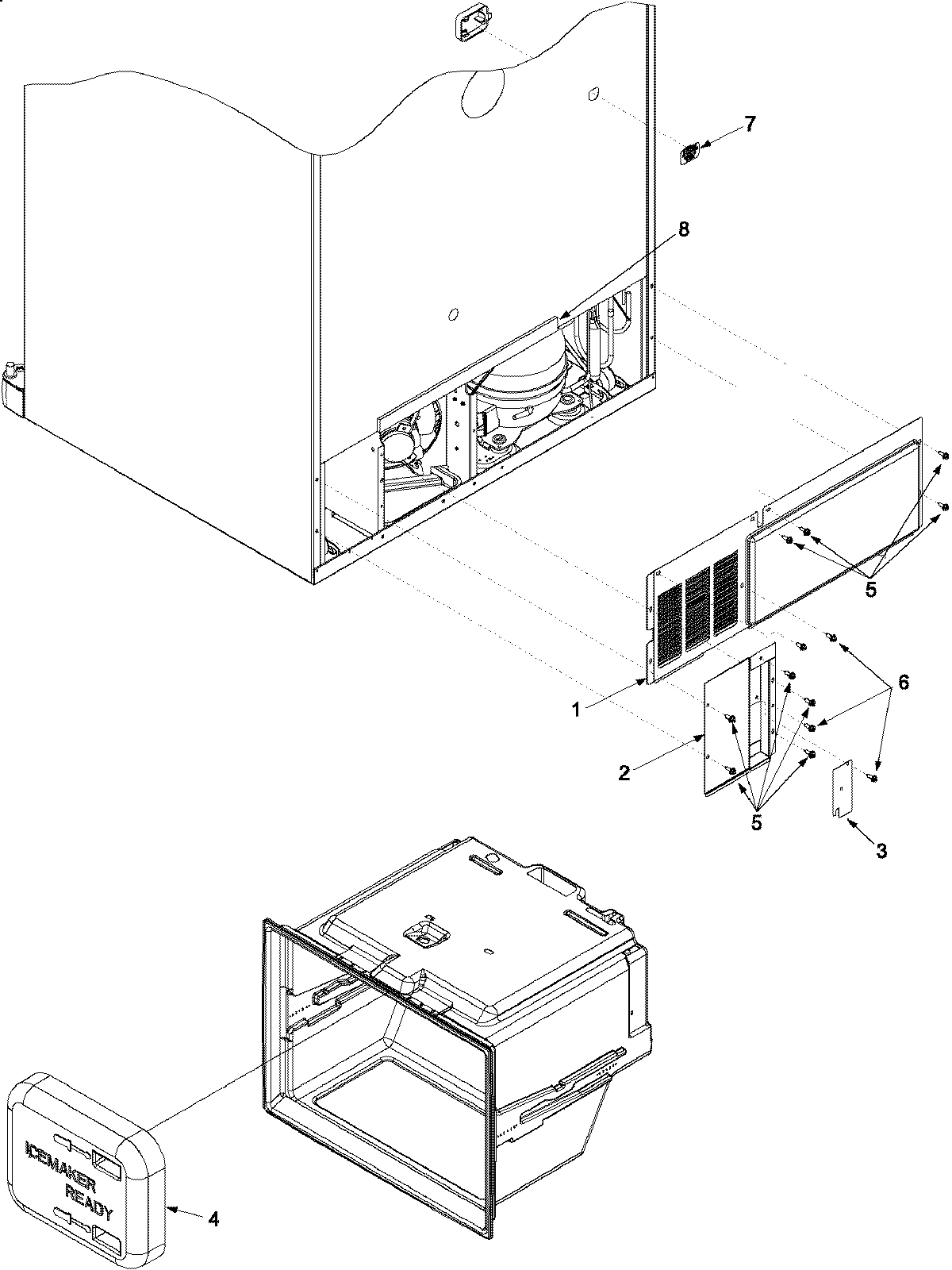

01 - CABINET BACK

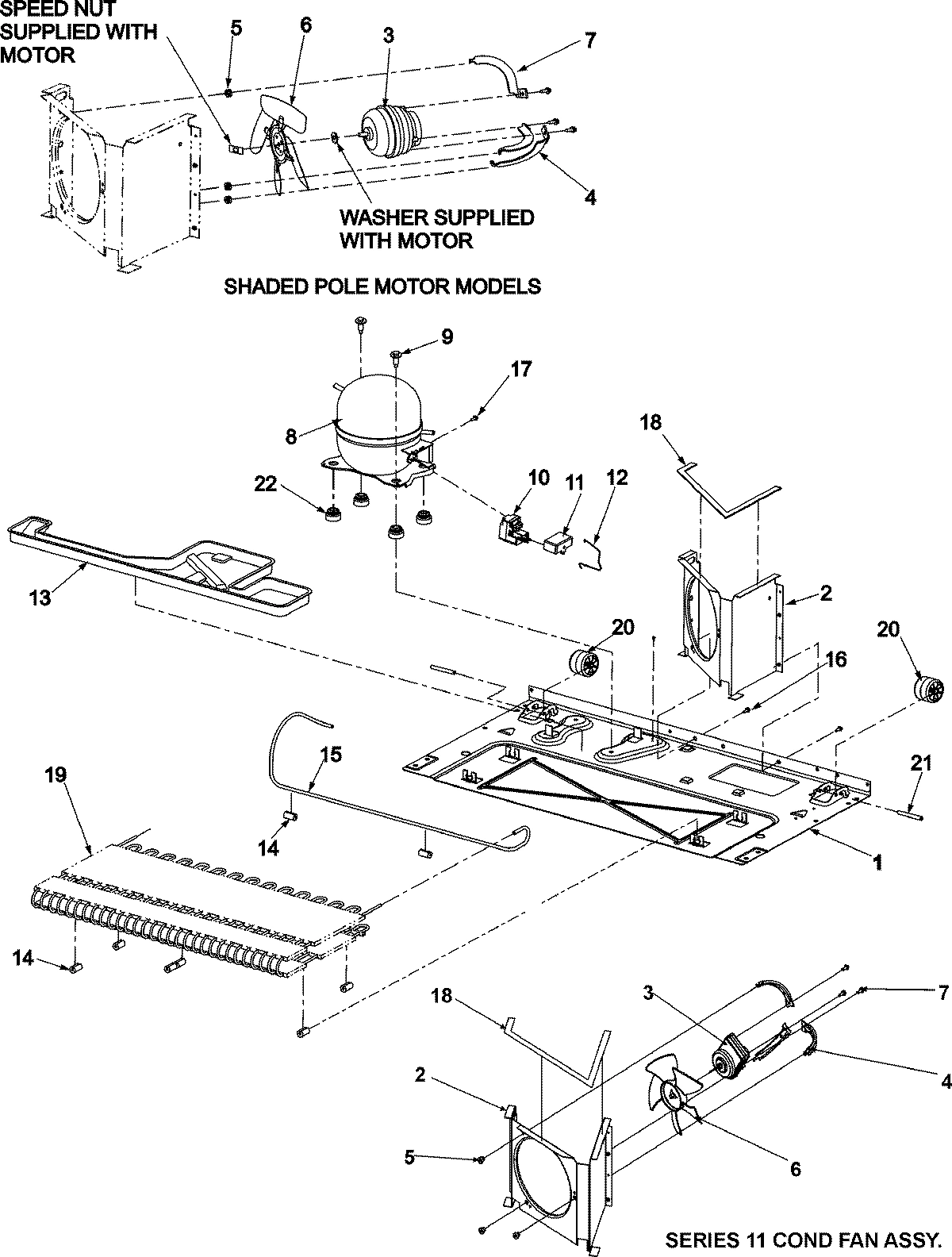

02 - COMPRESSOR
03 - CONTROLS

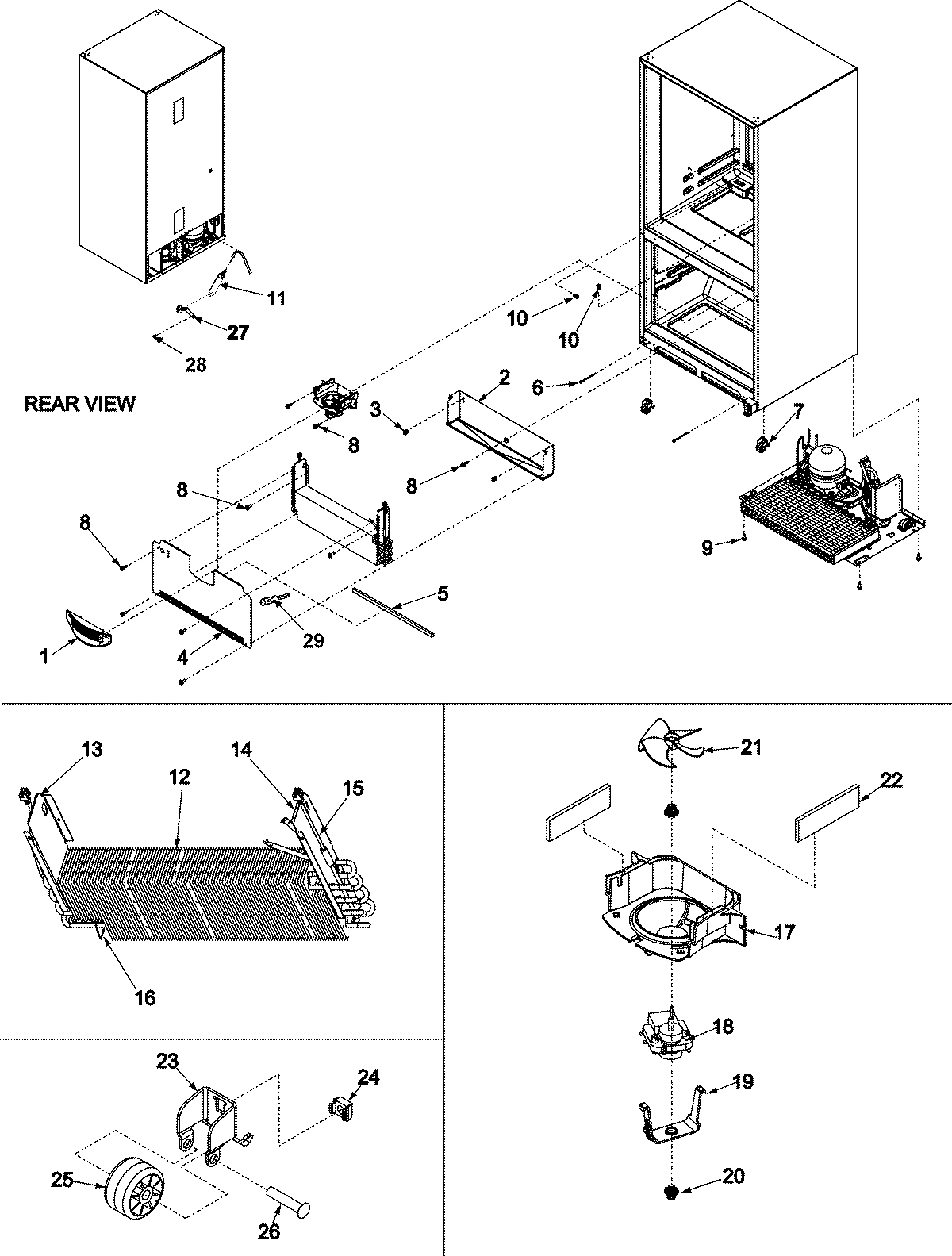

04 - EVAPORATOR AREA & ROLLERS

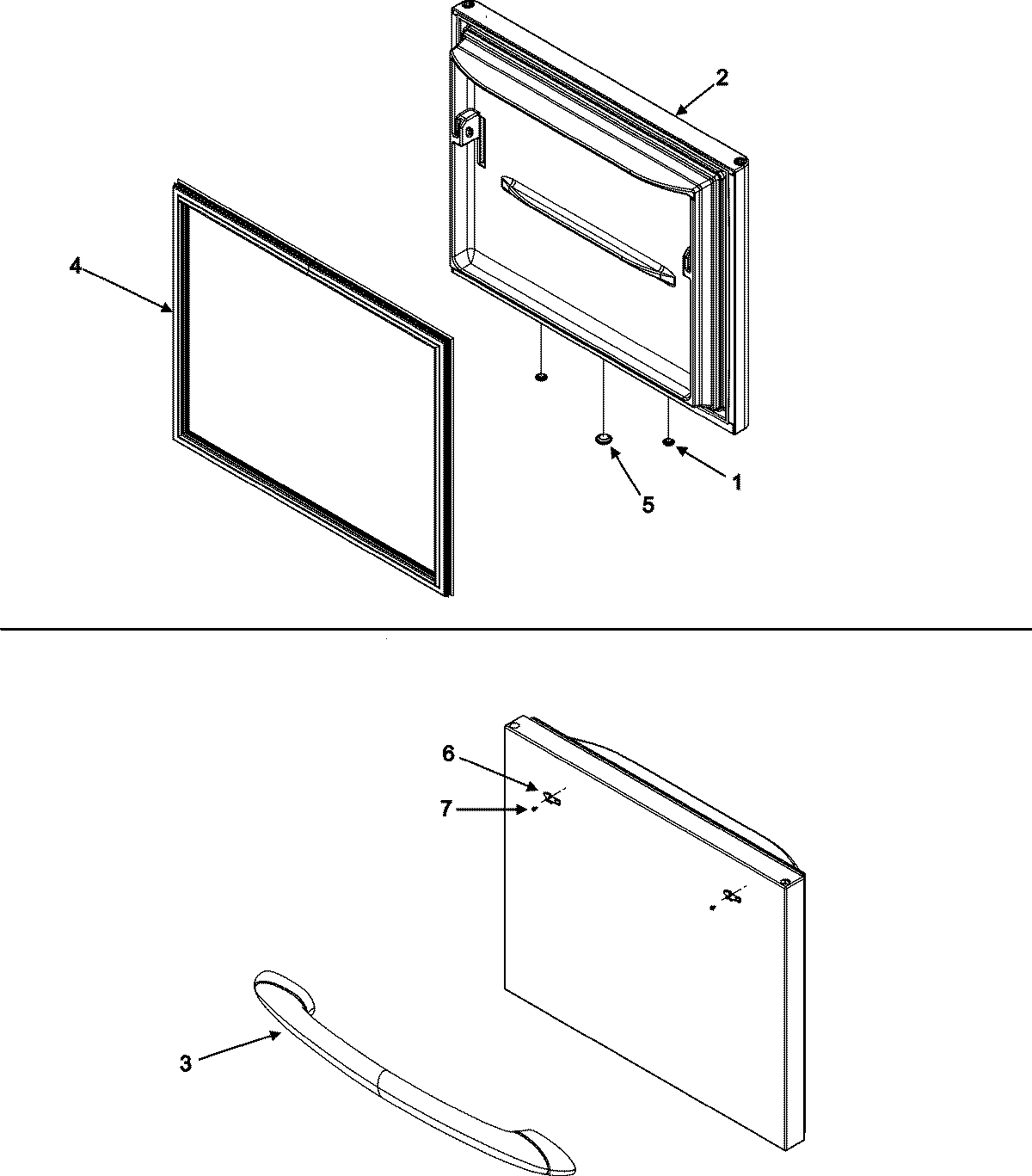

05 - FREEZER DOOR

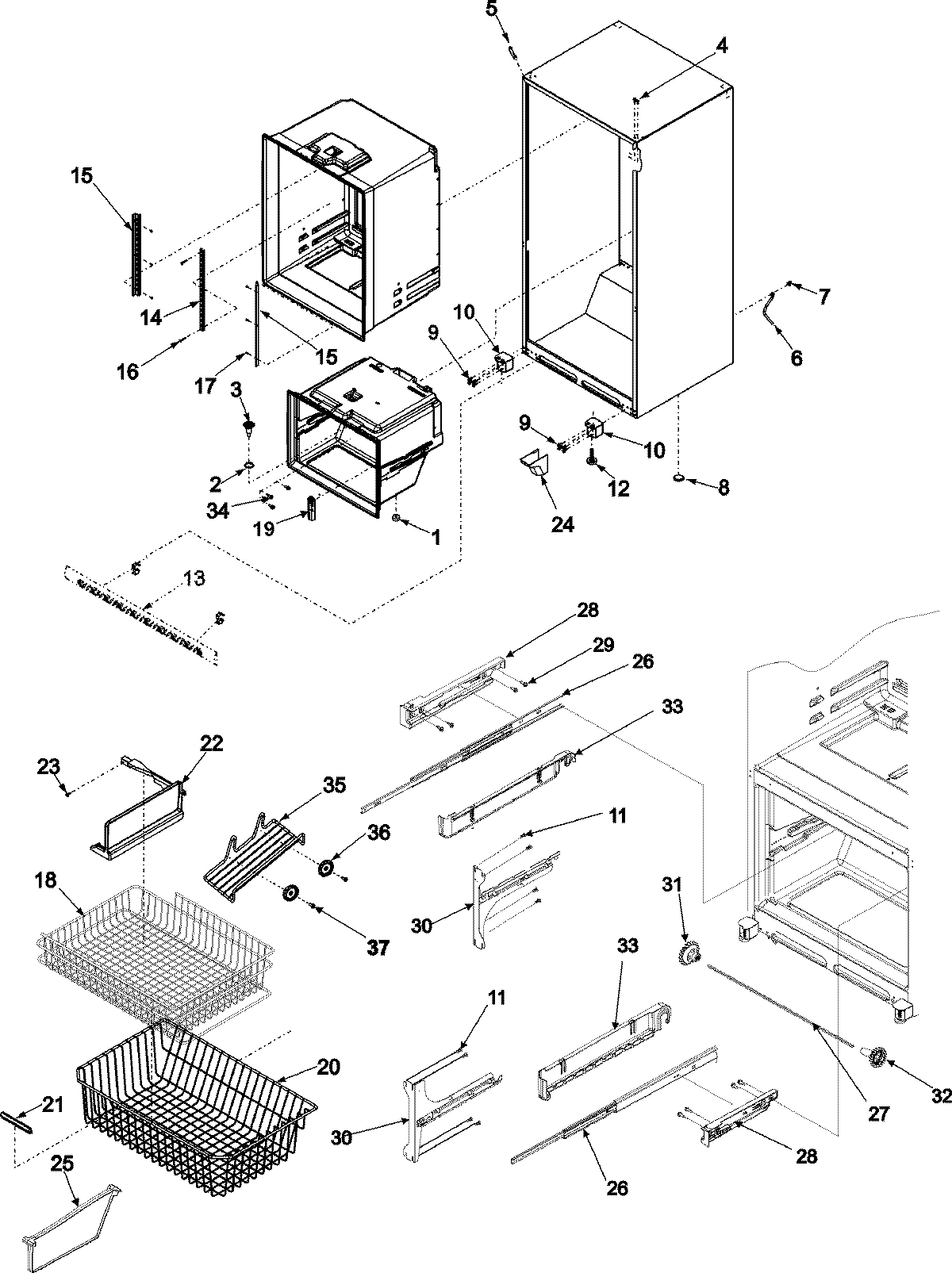

06 - INTERIOR CABINET & FREEZER SHELVING
07 - OPTIONAL ICE MAKER KIT IC11B P1328003W

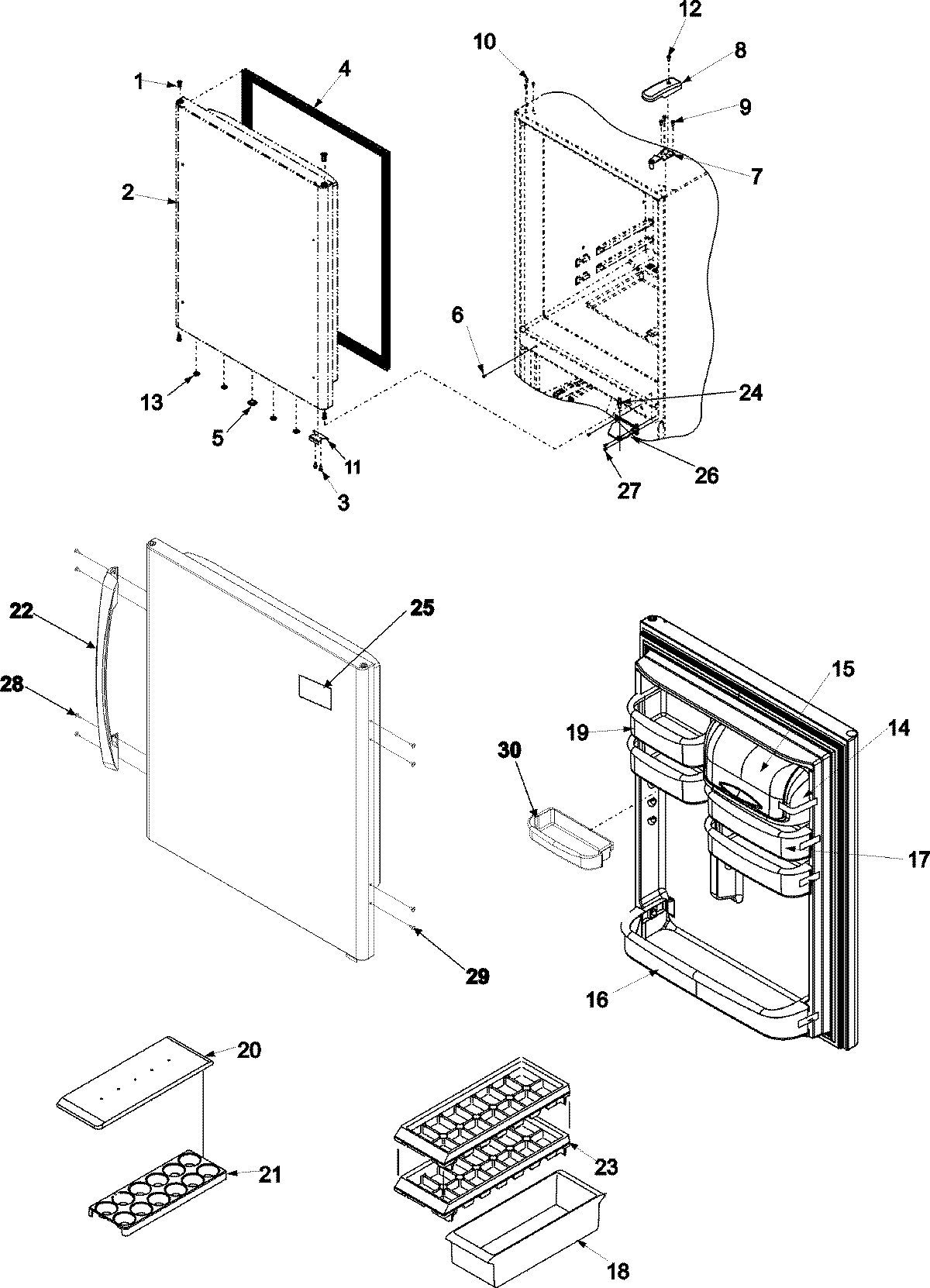

08 - REFRIGERATOR DOOR

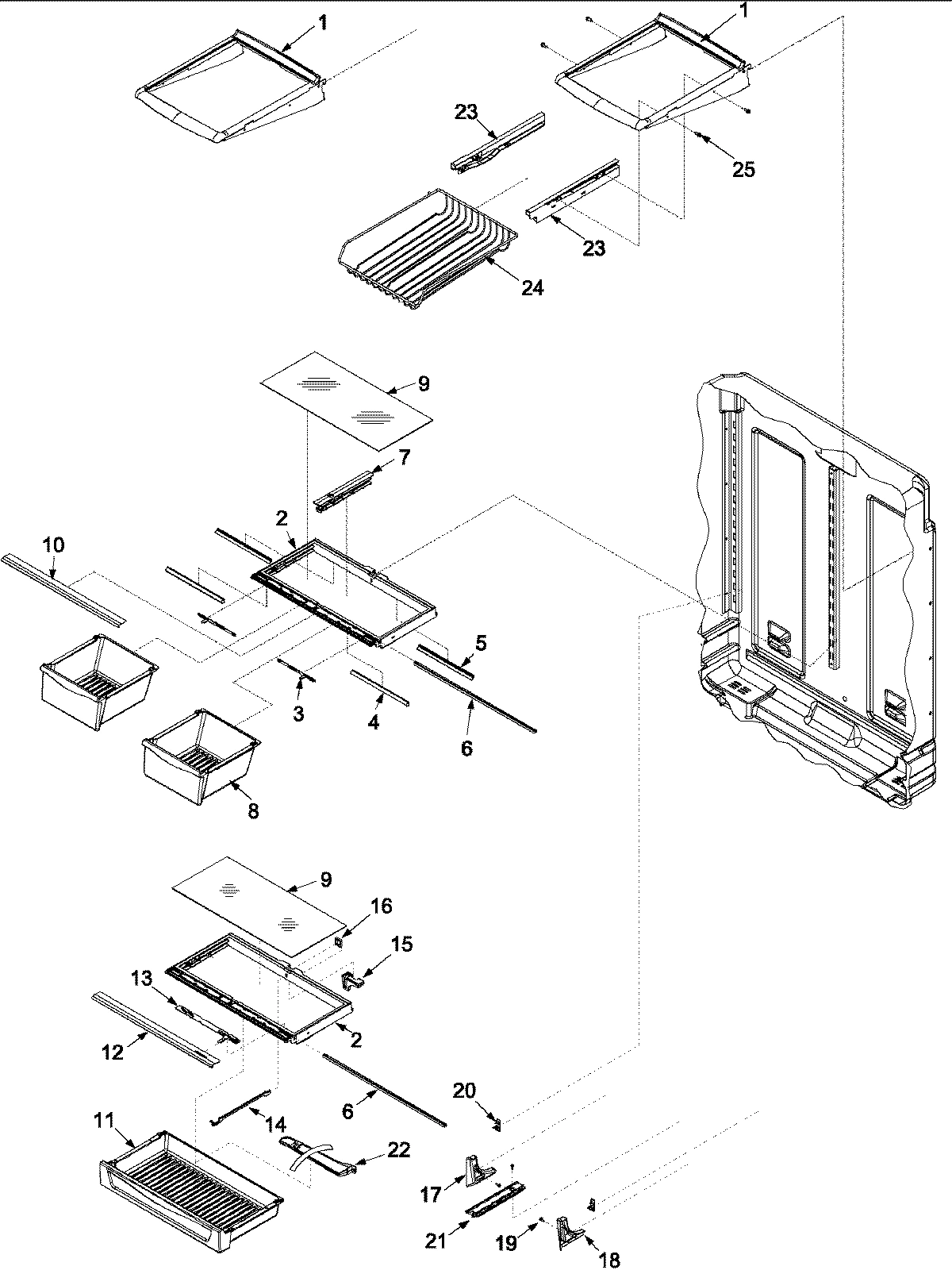

09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION

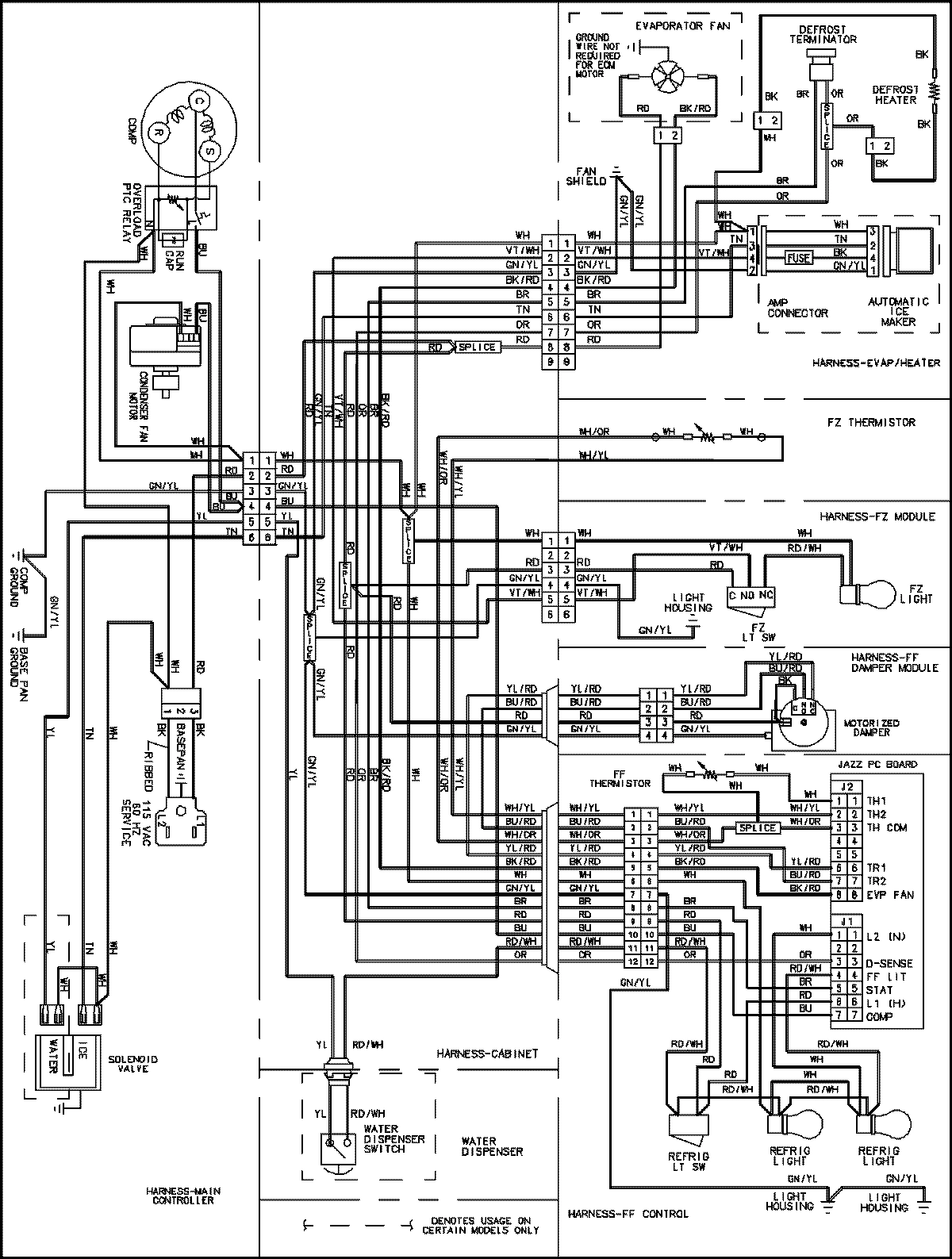

11 - WIRING INFORMATION
Common parts from model Maytag ABB1927DEQ REFRIGERATOR
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 67003707 MAY 67003707 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001133 Contact Us For Availability
2
MAY 67004051 MAY 67004051 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
DOOR ASSY., REF. FOAM (BSQ) MAY 67004037 Contact Us For Availability
2
MAY 67005904 MAY 67005904 Contact Us For Availability
2
MAY 16023096 MAY 16023096 Contact Us For Availability
2
SHEET, TECH DATA MAY 67004282 Contact Us For Availability
2
SHEET, TECH DATA MAY 67006716 Contact Us For Availability
3
MAY 67004199 MAY 67004199 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY 67003885 MAY 67003885 Contact Us For Availability
3
MAY 67006811 MAY 67006811 Contact Us For Availability
4
MAY 67001158 MAY 67001158 Contact Us For Availability
4
MAY 67003930 MAY 67003930 Contact Us For Availability
4
COVER, EVAP 30`` MAY 67005871 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 16022769 MAY 16022769 Contact Us For Availability
5
GROMMET, BRACKET MAY 61004743 Contact Us For Availability
5
GASKET MAY 67002286 Contact Us For Availability
5
MAY A3080002 MAY A3080002 Contact Us For Availability
5
COVER, CORNER (BSQ) MAY 67003486 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
5
MAY 67004376 MAY 67004376 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
7
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
SCREW, SM MAY 67006425 Contact Us For Availability
8
COVER, TOP HINGE (BSQ) MAY 67001013 Contact Us For Availability
9
MAY 67006573 MAY 67006573 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
MAY 67003858 MAY 67003858 Contact Us For Availability
9
SCREW, SM/HEX MAY 67006564 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
HINGE, BOTTOM E-CT (WHT) MAY 67001239 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (BSQ) MAY M0310738 Contact Us For Availability
10
EXTR, CRISPER FRONT MAY 67003884 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
SCREW SM/HEX MAY 67006473 Contact Us For Availability
11
MAY M0211018 MAY M0211018 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
11
MAY 67004374 MAY 67004374 Contact Us For Availability
12
KIT, EVAPORATOR MAY 12002051 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 67004279 MAY 67004279 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
12
MAY 67002279 MAY 67002279 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 67002398 MAY 67002398 Contact Us For Availability
14
INSULATION, DAMPER CONTROL MAY 67003904 Contact Us For Availability
14
INSULATION, DAMPER CONTROL MAY 67006604 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY D7824706 MAY D7824706 Contact Us For Availability
15
COVER, FZ LIGHT MAY 67003905 Contact Us For Availability
15
LADDER, SIDES MAY 67001302 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
16
MAY 67002005 MAY 67002005 Contact Us For Availability
17
MAY 67001035 MAY 67001035 Contact Us For Availability
17
GRIPPER, BUCKET MAY 67003212 Contact Us For Availability
18
MAY Y12570701 MAY Y12570701 Contact Us For Availability
18
MAY 67003381 MAY 67003381 Contact Us For Availability
18
MAY 95108-1 MAY 95108-1 Contact Us For Availability
18
MAY 10423131 MAY 10423131 Contact Us For Availability
19
CLIP, EVAP MOTOR MAY 67005633 Contact Us For Availability
19
SCREW, SM MAY 67006400 Contact Us For Availability
19
SCREW, SM MAY M0238642 Contact Us For Availability
19
MAY 67003771 MAY 67003771 Contact Us For Availability
20
MAY 12466101 MAY 12466101 Contact Us For Availability
20
MAY 12732802 MAY 12732802 Contact Us For Availability
20
MAY 10436404 MAY 10436404 Contact Us For Availability
21
SCREW, TC MAY 67006530 Contact Us For Availability
21
MAY M0226528 MAY M0226528 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
21
MAY 10436506 MAY 10436506 Contact Us For Availability
22
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
22
MAY 67003962 MAY 67003962 Contact Us For Availability
22
MAY 67001923 MAY 67001923 Contact Us For Availability
23
MAY 67001310 MAY 67001310 Contact Us For Availability
23
MAY 67001205 MAY 67001205 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 12561901C MAY 12561901C Contact Us For Availability
24
MAY 67001301 MAY 67001301 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY 67004064 MAY 67004064 Contact Us For Availability
25
MAY M0214931 MAY M0214931 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
MAY 67004065 MAY 67004065 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY 10547003 MAY 10547003 Contact Us For Availability
27
MAY M0226233 MAY M0226233 Contact Us For Availability
28
MAY 67002525 MAY 67002525 Contact Us For Availability
28
SCREW MAY 67006737 Contact Us For Availability
28
MAY 67004010 MAY 67004010 Contact Us For Availability
28A
MAY 67004011 MAY 67004011 Contact Us For Availability
29
SCREW, SM/HEX HEAD MAY 67006406 Contact Us For Availability
29
SCREW 1`` MAY M0211021 Contact Us For Availability
30
BRACKET, DRAWER SLIDE (LT) MAY 67004012 Contact Us For Availability
30
BRACKET, DRAWER SLIDE (RT) MAY 67004013 Contact Us For Availability
31
MAY 67004066 MAY 67004066 Contact Us For Availability
32
MAY 67004016 MAY 67004016 Contact Us For Availability
34
MAY M0238616 MAY M0238616 Contact Us For Availability
35
MAY 12646501 MAY 12646501 Contact Us For Availability
36
MAY 10972101 MAY 10972101 Contact Us For Availability
37
MAY M0230919 MAY M0230919 Contact Us For Availability
NI
MAY 67003908 MAY 67003908 Contact Us For Availability
NI
MAY 67006094 MAY 67006094 Contact Us For Availability
NI
MAY 67003931 MAY 67003931 Contact Us For Availability
NI
MAY 67001258 MAY 67001258 Contact Us For Availability
NI
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY 67003211 MAY 67003211 Contact Us For Availability
NI
MAY 67004276 MAY 67004276 Contact Us For Availability
NI
MAY 15003700 MAY 15003700 Contact Us For Availability
× ![]()
