Model Whirlpool 958AF-CLZ ELECTRIC RANGE – Common Parts & Diagrams

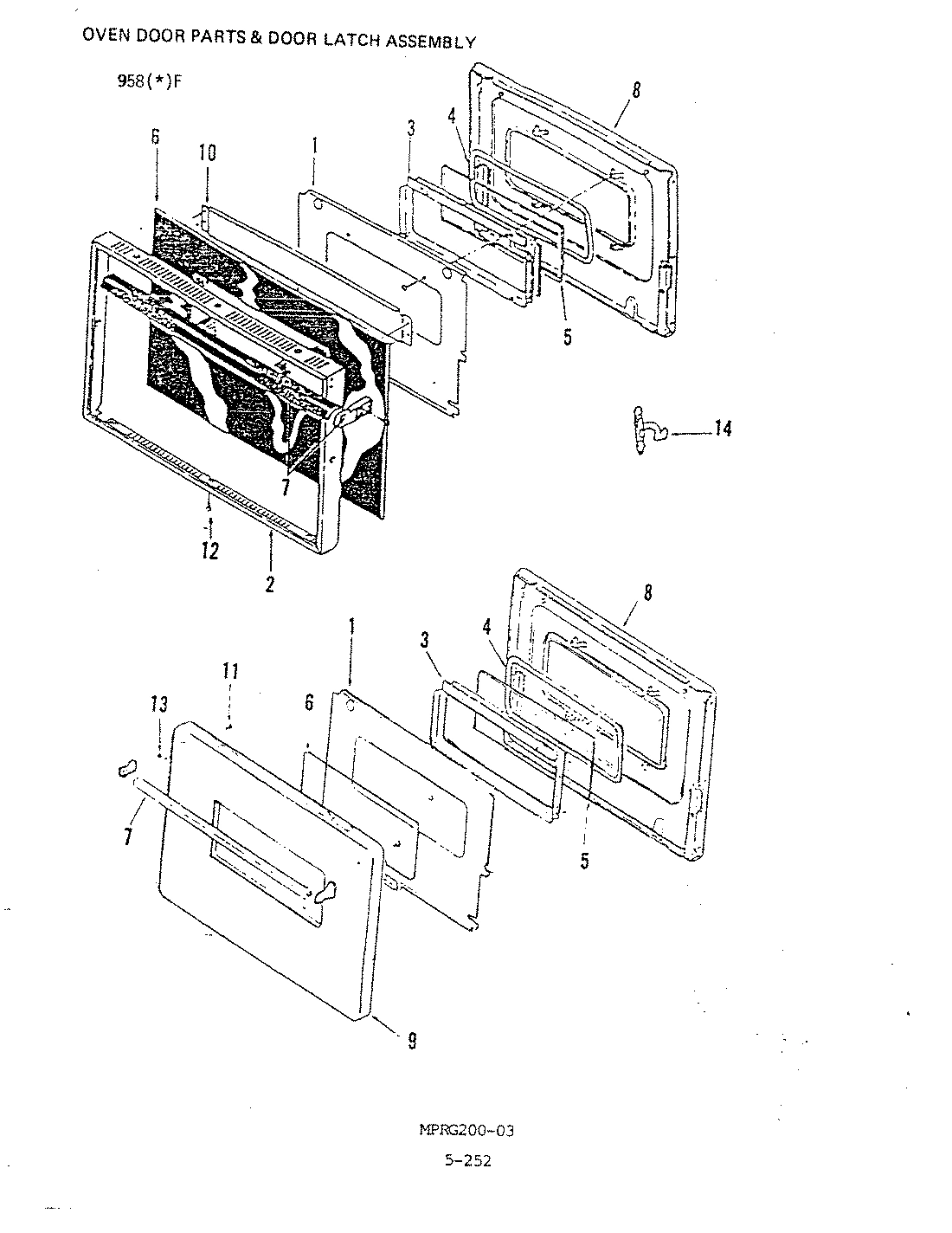

01 - DOOR & LATCH ASSY.

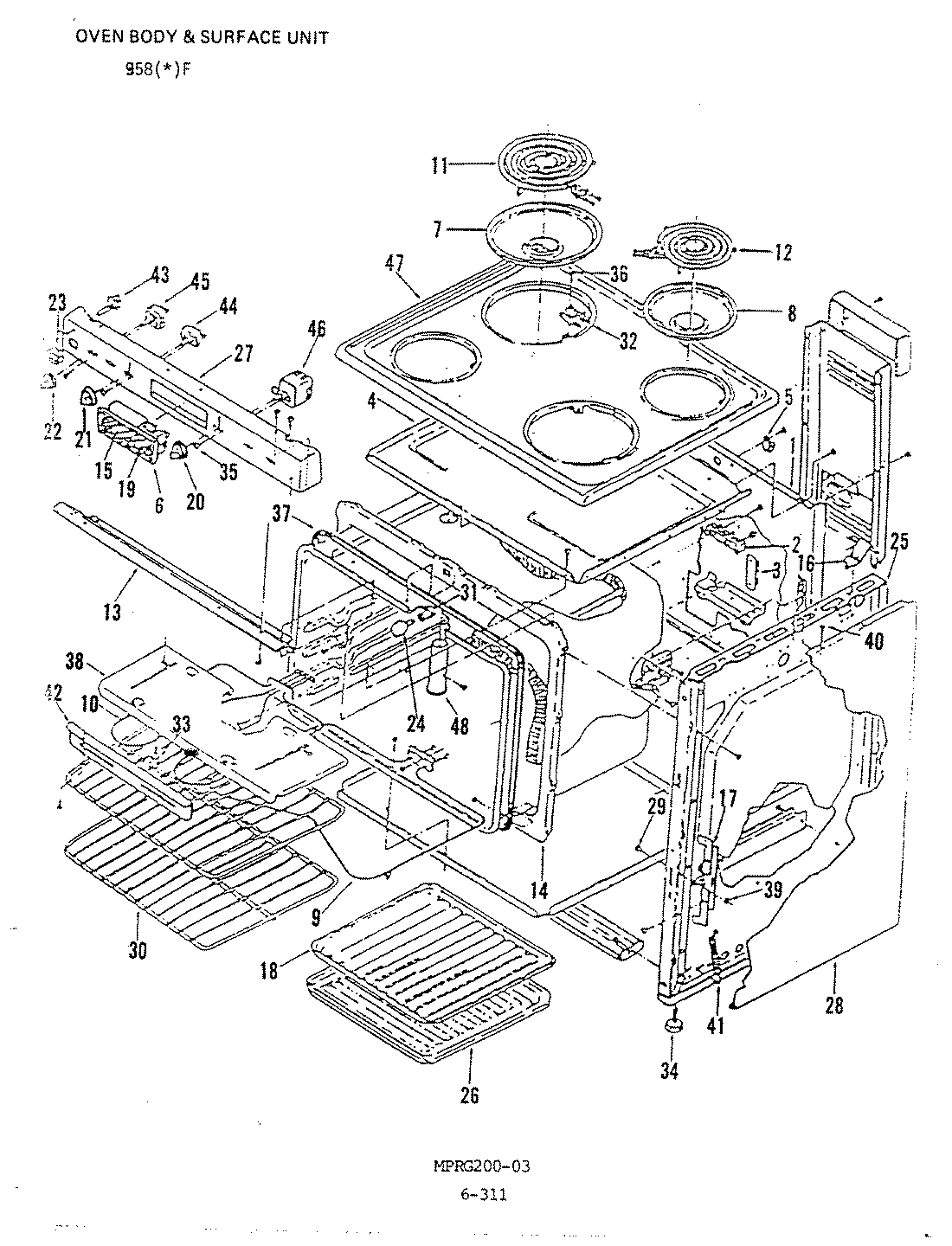

02 - TOP ASSEMBLY
Common parts from model Whirlpool 958AF-CLZ ELECTRIC RANGE
1
BAFFLE WPL 0153329 Contact Us For Availability
1
BACK, MAIN WPL 0903114 Contact Us For Availability
3
FRAME, WINDOW WPL 3603J013 Contact Us For Availability
3
BLOCK WPL 1867210 Contact Us For Availability
4
GASKET WPL 1313263 Contact Us For Availability
4
BRACE WPL 0277238 Contact Us For Availability
4
BRACE WPL 0277257 Contact Us For Availability
4
BRACKET, MANIFOLD LF WPL 0284329 Contact Us For Availability
4
BRACKET, MANIFOLD RH WPL 0284330 Contact Us For Availability
4
BRACKET WPL 3801F090 Contact Us For Availability
4
BRACE WPL 3802F04880 Contact Us For Availability
4
CHANNEL, WIRE REAR WPL 3818F021 Contact Us For Availability
4
CHANNEL, WIRE SIDE WPL 3818F022 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011C073 Contact Us For Availability
4
BOX, BURNER WPL 4011F08023 Contact Us For Availability
5
GLASS WPL 1327100 Contact Us For Availability
5
CLAMP WPL 1140201 Contact Us For Availability
6
SHIELD, ACCESS WPL 0787407 Contact Us For Availability
6
CLOCK,AUTOMATIC COOK WPL 1895435 Contact Us For Availability
6
+ CLOCK, AUTOMATIC WPL 7601P03860 Contact Us For Availability
6
CLOCK WPL 7601P05760 Contact Us For Availability
7
HANDLE, OVEN DOOR WPL 7701E013 Contact Us For Availability
8
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
8
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
8
LINING, OVEN DOOR WPL 2422L076 Contact Us For Availability
9
PANEL, DOOR (WHT) WPL 2401F04271 Contact Us For Availability
9
PANEL, DOOR (ALM) WPL 2401F04274 Contact Us For Availability
9
PANEL, DOOR (HVST WHEAT) WPL 2401F04276 Contact Us For Availability
9
PANEL, DOOR (AVOC) WPL 2401F04277 Contact Us For Availability
9
PANEL, DOOR (COFF) WPL 2401F04278 Contact Us For Availability
9
ELEMENT WPL 1938257 Contact Us For Availability
11
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
12
SEAL WPL 1726252 Contact Us For Availability
12
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
12
EXTRUSION, TRIM WPL 1259610 Contact Us For Availability
12
KS-60 FILLER STRIP WPL 1430241 Contact Us For Availability
13
SPACER, HANDLE WPL Y790034 Contact Us For Availability
13
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
14
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
14
STOP, DOOR WPL Y0112241 Contact Us For Availability
14
FRAME, OVEN WPL 2201C014 Contact Us For Availability
15
GLASS, CLOCK WPL 1327135 Contact Us For Availability
16
HINGE WPL 1376234 Contact Us For Availability
16
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
17
HINGE WPL Y0528264 Contact Us For Availability
17
HINGE WPL Y0528265 Contact Us For Availability
17
HOUSING WPL Y0537241 Contact Us For Availability
18
INSERT WPL Y0507229 Contact Us For Availability
19
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7711E006 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7711P19160 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7735P01660 Contact Us For Availability
21
KNOB, SELECTOR WPL 1362234 Contact Us For Availability
21
KNOB, SELECTOR WPL 7711P19760 Contact Us For Availability
21
KNOB, SELECTOR WPL 7739P01760 Contact Us For Availability
22
KNOB, SURFACE SWITCH WPL 1359313 Contact Us For Availability
22
KNOB, SURFACE SWITCH WPL 7737P01560 Contact Us For Availability
23
LIGHT, SIGNAL WPL 7408E020 Contact Us For Availability
25
NUT, TWIN SPEED WPL 1555267 Contact Us For Availability
25
LINING, INNER SIDE WPL 4009W03020 Contact Us For Availability
27
TRIM WPL 1916261 Contact Us For Availability
28
PANEL, ANGLE SIDE WPL 2618J029 Contact Us For Availability
28
PANEL, SIDE ASSY. WPL 2628F012 Contact Us For Availability
29
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
29
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
29
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
29
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
30
RACK, OVEN WPL 1636254 Contact Us For Availability
31
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
33
SCREW WPL 1986313 Contact Us For Availability
33
CABINET MTNG SCREW WPL 1986331 Contact Us For Availability
33
SCREW WPL 7101P05760 Contact Us For Availability
34
SCREW WPL 1986288 Contact Us For Availability
37
SEAL WPL 1726257 Contact Us For Availability
38
SHIELD WPL 0787411 Contact Us For Availability
38
RING, SNAP WPL 1013214 Contact Us For Availability
38
SHIELD WPL 3604F066 Contact Us For Availability
38
SHIELD, VENT LOWER WPL 3614K001 Contact Us For Availability
39
BUMPER WPL 1784202 Contact Us For Availability
41
SPRING, OVEN DOOR WPL 7803E024 Contact Us For Availability
42
SUPPORT, WPL Y0862419 Contact Us For Availability
43
WPL 1832414 WPL 1832414 Contact Us For Availability
43
WPL 7403P09460 WPL 7403P09460 Contact Us For Availability
44
WPL 1832377 WPL 1832377 Contact Us For Availability
48
WPL 7403P07060 WPL 7403P07060 Contact Us For Availability
48
WPL 7403P07460 WPL 7403P07460 Contact Us For Availability
49
WPL 7404E016 WPL 7404E016 Contact Us For Availability
49
WPL 7404P02960 WPL 7404P02960 Contact Us For Availability
50
WPL 0901330A WPL 0901330A Contact Us For Availability
50
WPL 0901330B WPL 0901330B Contact Us For Availability
50
WPL 0901330G WPL 0901330G Contact Us For Availability
50
WPL 0901330N WPL 0901330N Contact Us For Availability
50
WPL 0901330S WPL 0901330S Contact Us For Availability
50
WPL 0901330Y WPL 0901330Y Contact Us For Availability
50
WPL 1259607 WPL 1259607 Contact Us For Availability
50
WPL 1259608 WPL 1259608 Contact Us For Availability
50
WPL 1916160 WPL 1916160 Contact Us For Availability
50
WPL 2002W03691 WPL 2002W03691 Contact Us For Availability
50
WPL 2002W03694 WPL 2002W03694 Contact Us For Availability
50
WPL 2002W03696 WPL 2002W03696 Contact Us For Availability
50
WPL 2002W03697 WPL 2002W03697 Contact Us For Availability
50
WPL 2002W03698 WPL 2002W03698 Contact Us For Availability
50
WPL 2002W03730 WPL 2002W03730 Contact Us For Availability
51
WPL 1930359 WPL 1930359 Contact Us For Availability
× ![]()
