Model Whirlpool 665.75023100 Gas Range (Kenmore 66575023100) – Common Parts & Diagrams

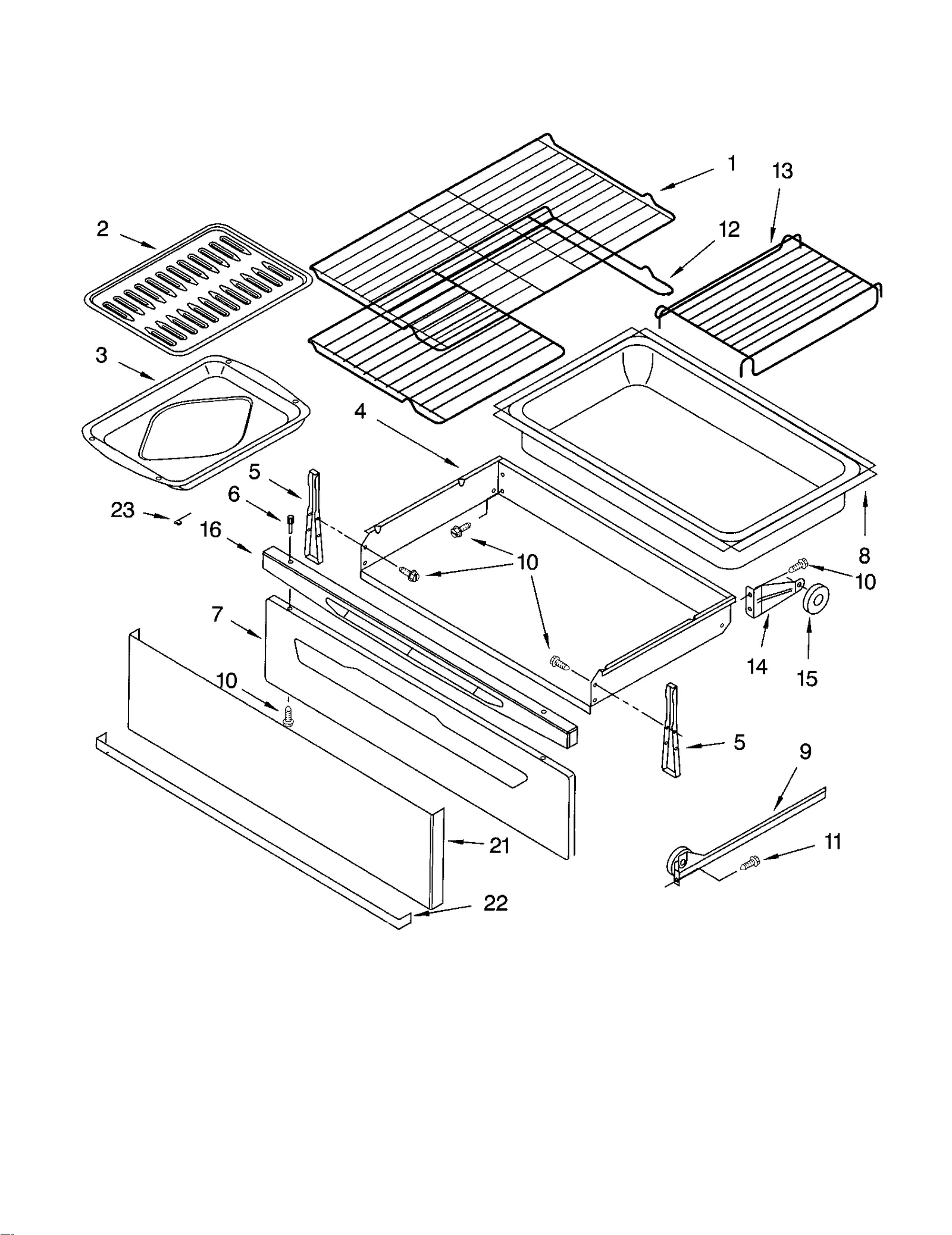

DRAWER AND BROILER

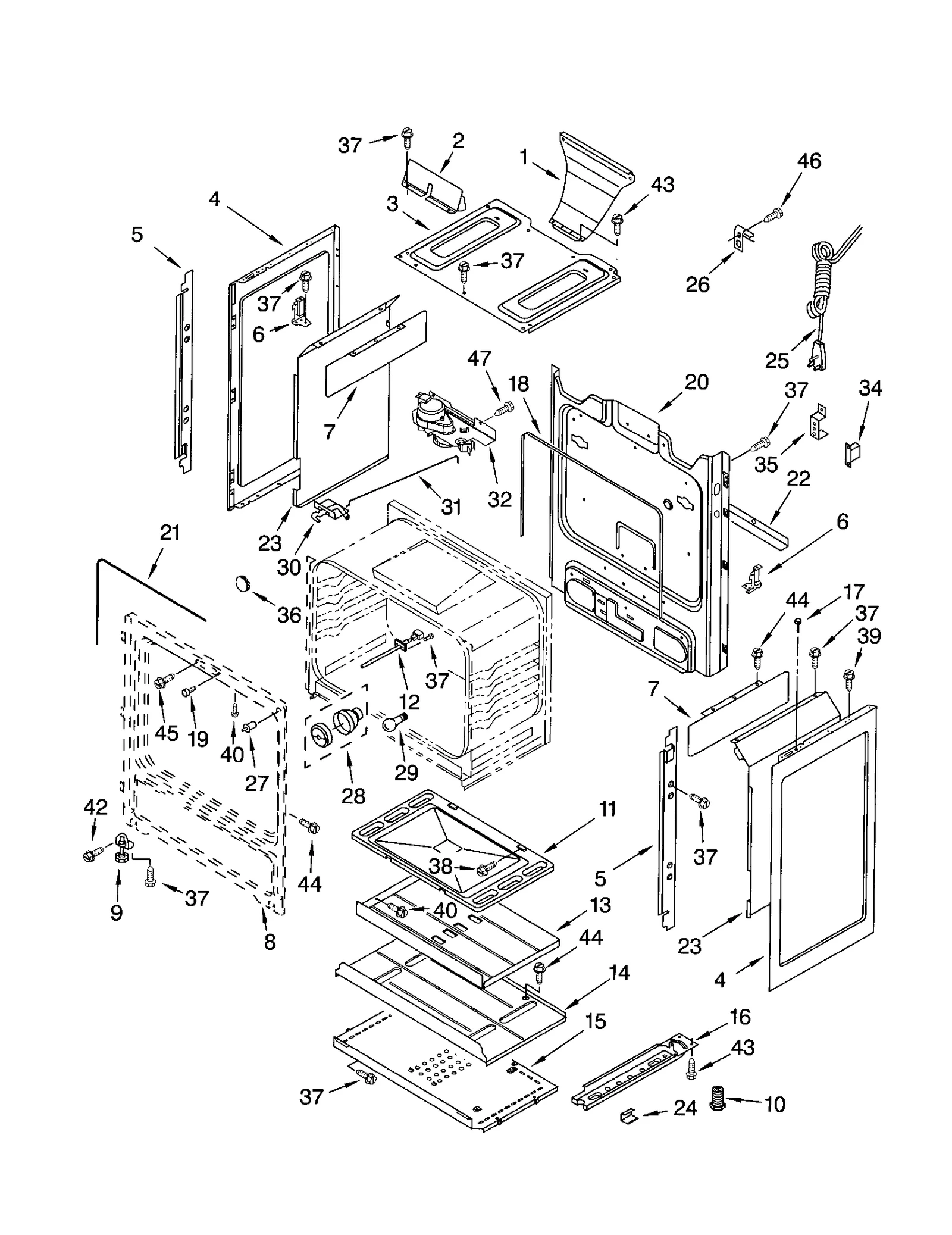

CHASSIS

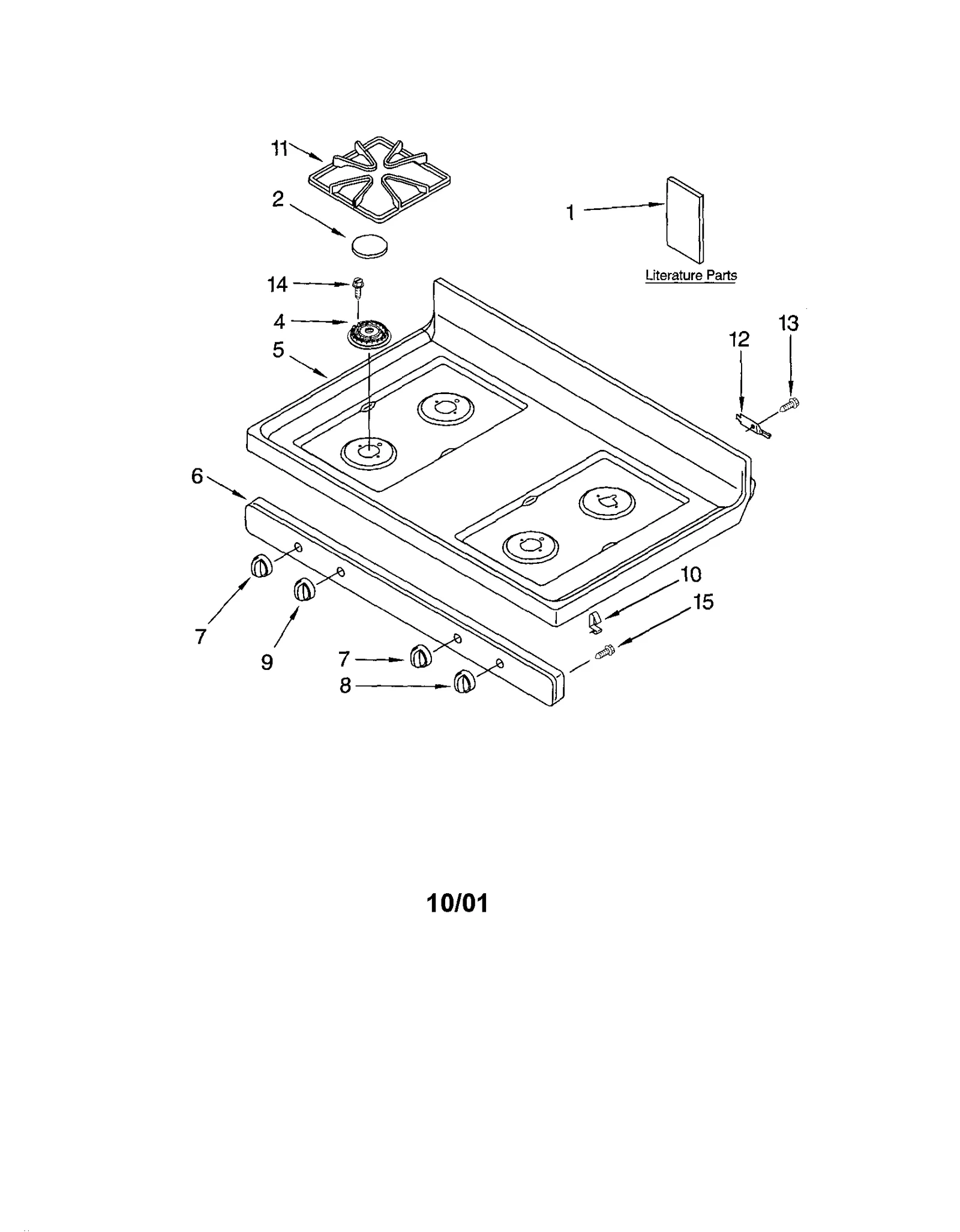

COOKTOP
All Parts

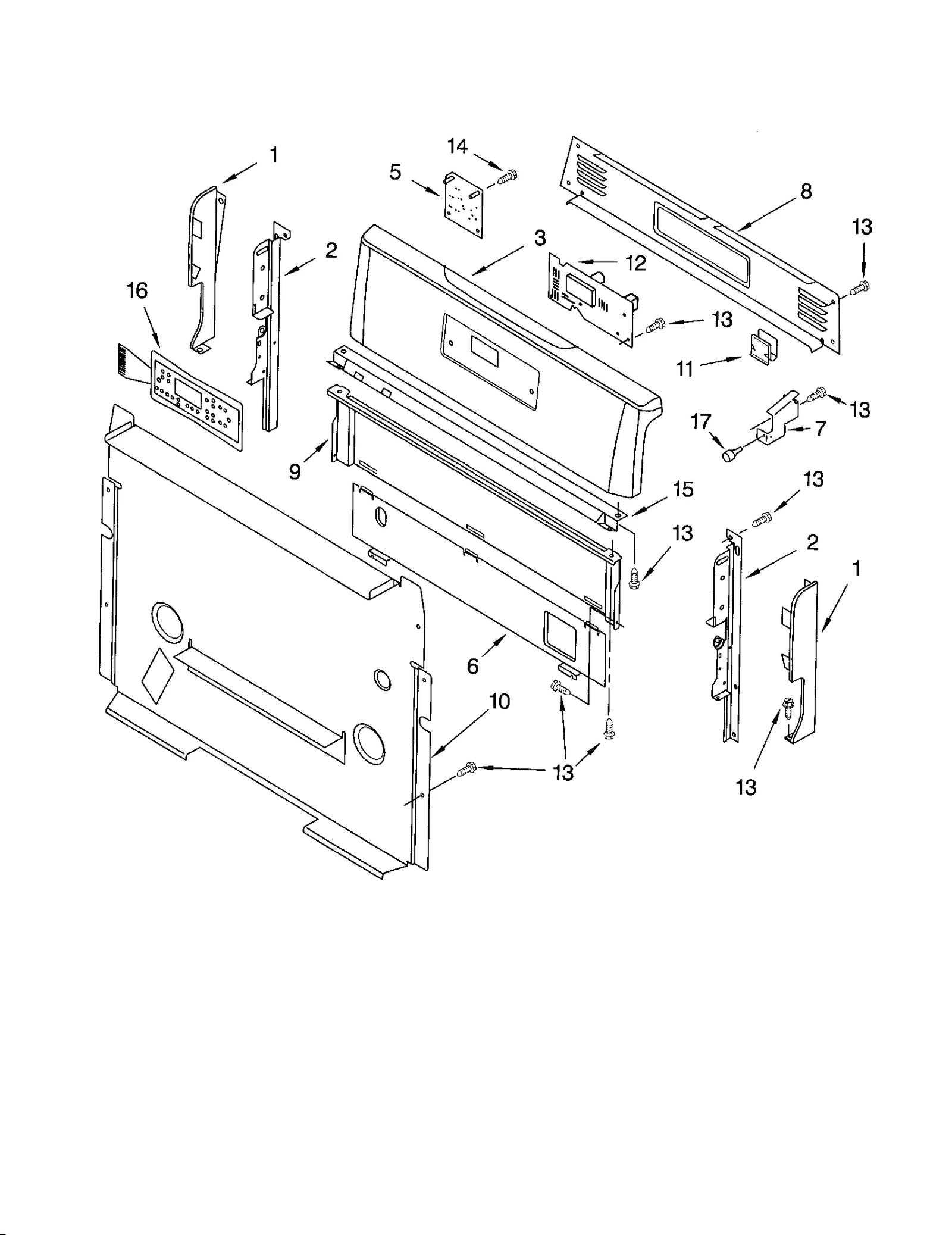

CONTROL PANEL

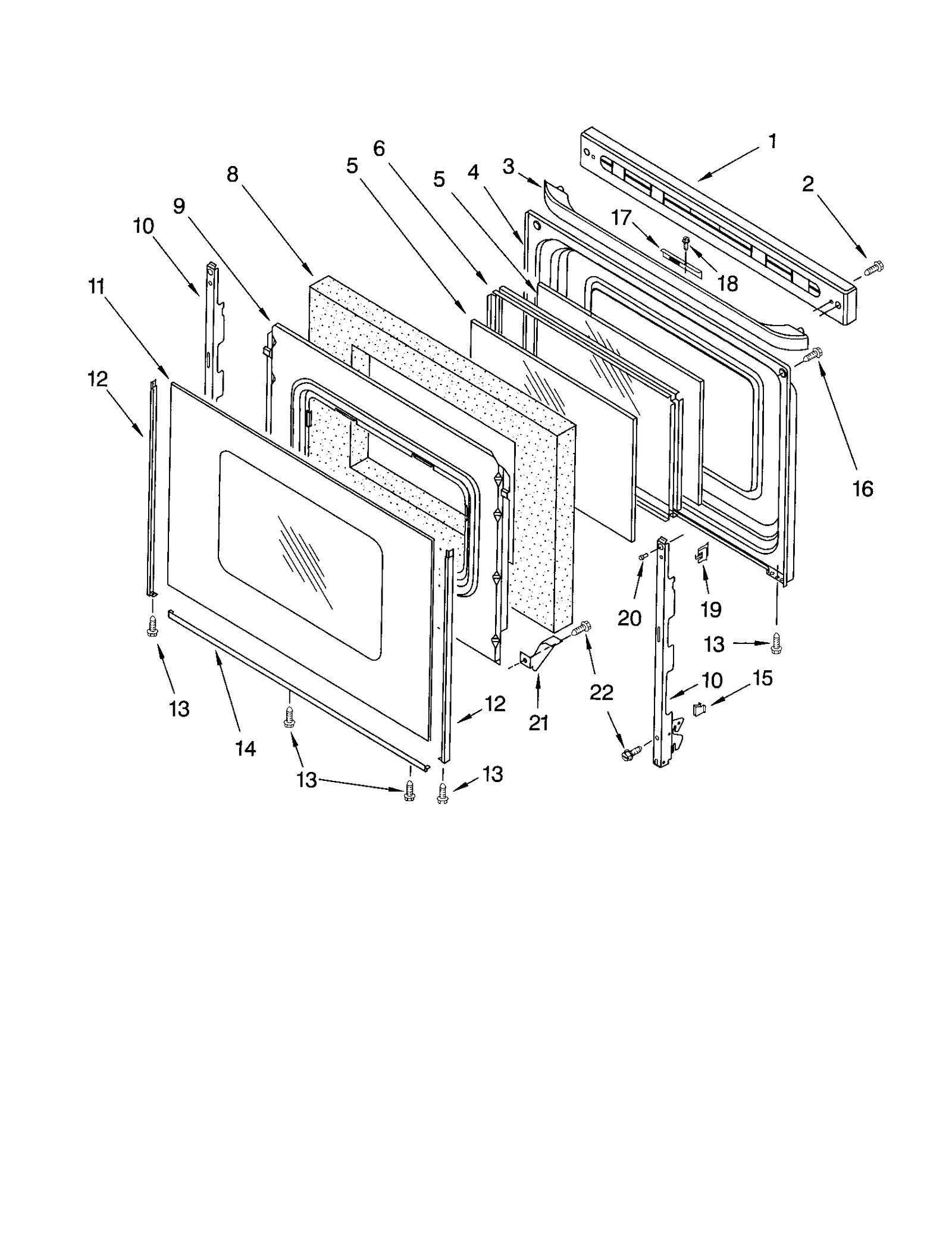

DDOR

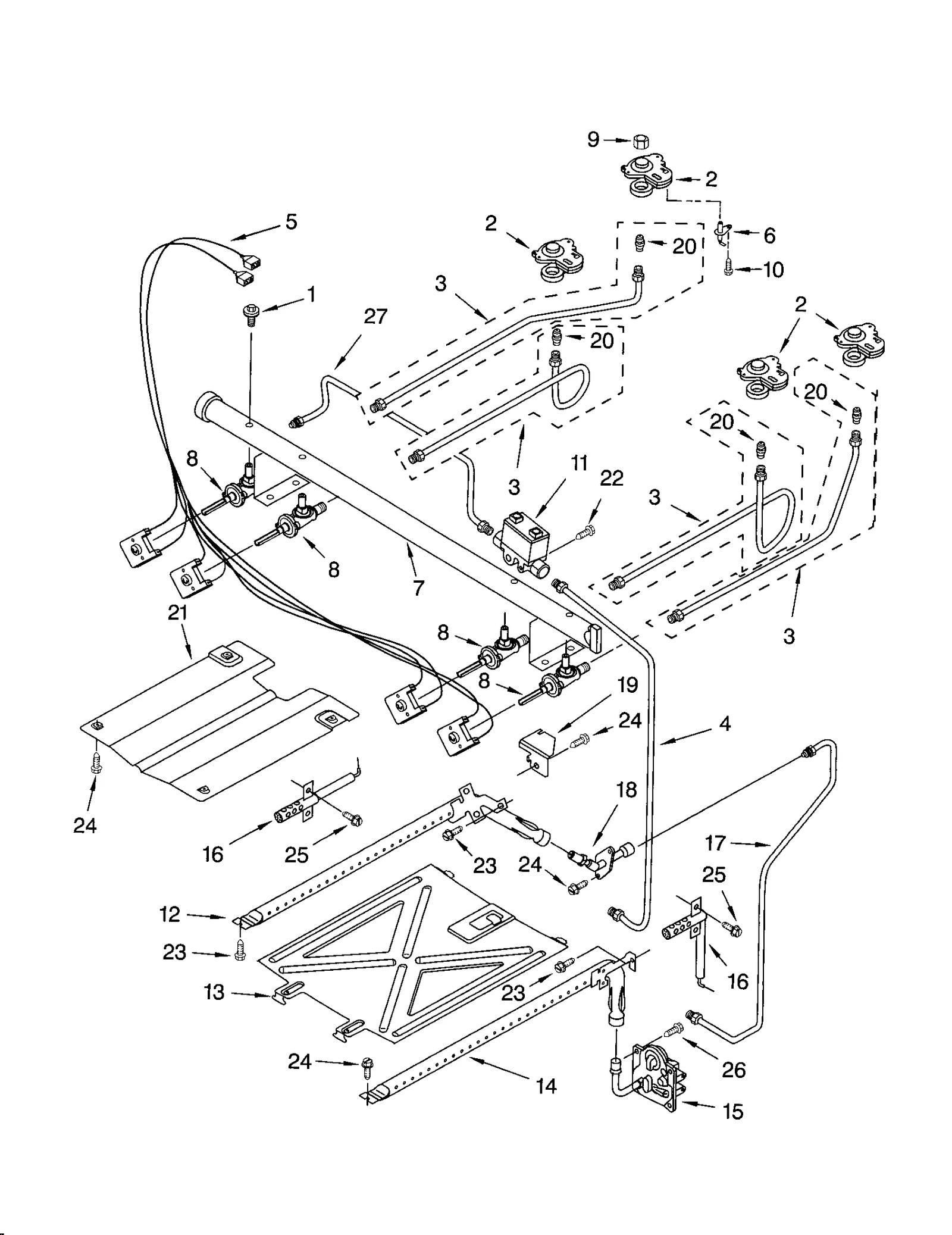

MANIFOLD
Common parts from model Whirlpool 665.75023100 Gas Range (Kenmore 66575023100)
1
Screw WPL 8273096 Contact Us For Availability
1
End Cap Panel WPL 8272633 Contact Us For Availability
1
Door Trim WPL 8054109 Contact Us For Availability
1A
End Cap Panel WPL 8273586 Contact Us For Availability
1A
Door Trim WPL 8272908 Contact Us For Availability
1B
End Cap Panel WPL 8272631 Contact Us For Availability
1B
Door Trim WPL 8054108 Contact Us For Availability
1C
End Cap Panel WPL 8272634 Contact Us For Availability
1C
Door Trim WPL 8273920 Contact Us For Availability
1D
End Cap Panel WPL 8273587 Contact Us For Availability
1E
End Cap Panel WPL 8272632 Contact Us For Availability
2
Range Burner Cap WPL 3191899 Contact Us For Availability
2
Support WPL 8272637 Contact Us For Availability
2A
Range Burner Base WPL 8273701 Contact Us For Availability
2A
Support WPL 8272638 Contact Us For Availability
3
Gas Tubing WPL 8273692 Contact Us For Availability
3
Control Panel WPL 8272735 Contact Us For Availability
3
Door Handle (White) WPL 8272430 Contact Us For Availability
3A
Control Panel WPL 8273583 Contact Us For Availability
3A
Door Handle WPL 8272923 Contact Us For Availability
3A
Gas Tubing WPL 8273694 Contact Us For Availability
3B
Range Surface Burner Tube and Orifice, Right WPL 8273695 Contact Us For Availability
3B
Control Panel WPL 8272734 Contact Us For Availability
3B
Door Handle WPL 8272432 Contact Us For Availability
3C
Gas Tubing WPL 8273697 Contact Us For Availability
3C
Control Panel WPL 8273918 Contact Us For Availability
4
Oven Door Liner WPL 3186292 Contact Us For Availability
4
Gas Tubing WPL 8272470 Contact Us For Availability
5
Range Surface Burner Igniter Switch Assembly WPL 8273075 Contact Us For Availability
6A
Panel WPL 8273028 Contact Us For Availability
7
Mounting Bracket WPL 8273553 Contact Us For Availability
7
Manifold Pipe WPL 8272411 Contact Us For Availability
7A
Range Surface Burner Knob WPL 8273565 Contact Us For Availability
7A
Mounting Bracket WPL 8273554 Contact Us For Availability
8
Rear Cover WPL 8272474 Contact Us For Availability
8A
Range Surface Burner Valve WPL 8273004 Contact Us For Availability
9
Nut WPL 8273060 Contact Us For Availability
9
Shield WPL 8053910 Contact Us For Availability
10
Clip WPL 3195813 Contact Us For Availability
10
Rear Cover WPL 8273132 Contact Us For Availability
10A
Oven Door Hinge WPL 8272822 Contact Us For Availability
11
Solenoid Valve WPL 8272467 Contact Us For Availability
11A
Range Surface Burner Grate (Espressor) WPL 8273348 Contact Us For Availability
11A
Door Glass WPL 8273591 Contact Us For Availability
11B
Range Surface Burner Grate (Black) WPL 8053905 Contact Us For Availability
12
Microcomputer WPL 8273775 Contact Us For Availability
13
Oven Baffle WPL 8053970 Contact Us For Availability
15
Oven Door Clip WPL 3196925 Contact Us For Availability
15
Mounting Bracket WPL 8272629 Contact Us For Availability
16
Switch WPL 8274082 Contact Us For Availability
16A
Oven Switch WPL 8274083 Contact Us For Availability
16B
Range Membrane Switch (Black) WPL 8274084 Contact Us For Availability
16B
Range Oven Door Handle WPL 8190282 Contact Us For Availability
17
Gas Tubing WPL 8272222 Contact Us For Availability
17
Bracket Liner WPL 3195914 Contact Us For Availability
18
Range Broil Burner Fitting WPL 3186489 Contact Us For Availability
19
Range Clip WPL 3196025 Contact Us For Availability
19
Cover Plate WPL 8272403 Contact Us For Availability
20
Range Surface Burner Orifice WPL 8273063 Contact Us For Availability
21
Glass Bracket WPL 3196794 Contact Us For Availability
22
Range Broil Drawer Outer Panel Trim, Lower WPL 8053950 Contact Us For Availability
22
Screw WPL 8272893 Contact Us For Availability
27
Gas Tubing WPL 8272469 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
NI
Aluminum Foil WPL 241430 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
NI
Wire (Black) WPL 242820 Contact Us For Availability
NI
Wire (Blue) WPL 242821 Contact Us For Availability
NI
Wire (Brown) WPL 242822 Contact Us For Availability
NI
Wire (Green) WPL 242823 Contact Us For Availability
NI
Wire (Orange) WPL 242824 Contact Us For Availability
NI
Wire (Red) WPL 242825 Contact Us For Availability
NI
Wire (White) WPL 242826 Contact Us For Availability
NI
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
NI
Wire (Black) WPL 242828 Contact Us For Availability
NI
Wire WPL 242829 Contact Us For Availability
NI
Wire (Brown) WPL 242830 Contact Us For Availability
NI
Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability
NI
Wire (Yellow) WPL 242832 Contact Us For Availability
NI
Grease WPL 261582 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Clip WPL 8053527 Contact Us For Availability
NI
Wire WPL 8273557 Contact Us For Availability
NI
Wire Harness WPL 8273966 Contact Us For Availability
NI
Wire Harness WPL 8273967 Contact Us For Availability
NI
Range Wire Harness WPL 8274087 Contact Us For Availability
NI
Wire Harness WPL 8274195 Contact Us For Availability
NI
Paint-al WPL 978883 Contact Us For Availability
NI
Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
× ![]()
