Model Whirlpool 665.68681891 Microwave/Hood Combo (Kenmore 66568681891) – Common Parts & Diagrams
CABINET AND INSTALLATION

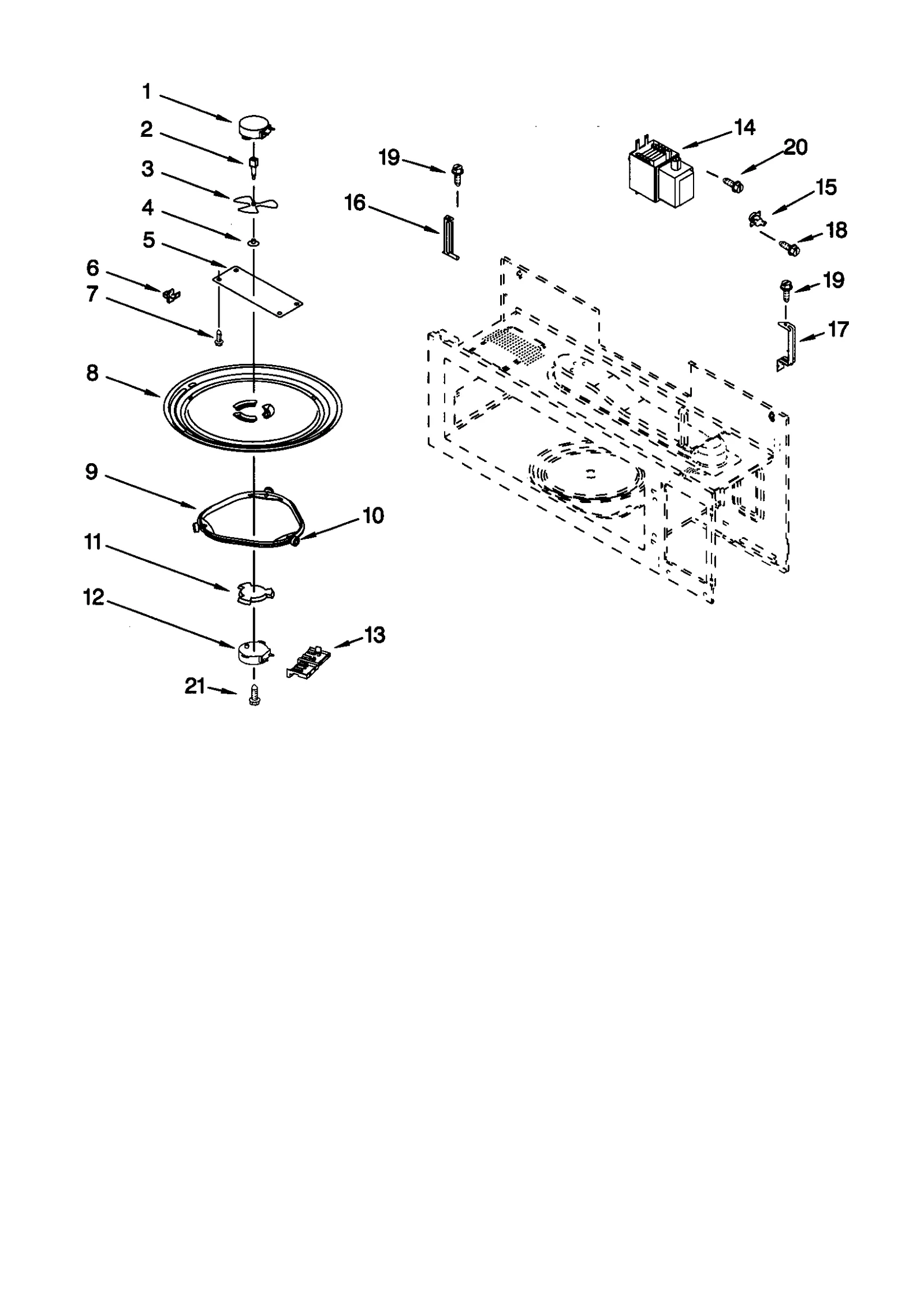

MAGNETRON AND TURNTABLE

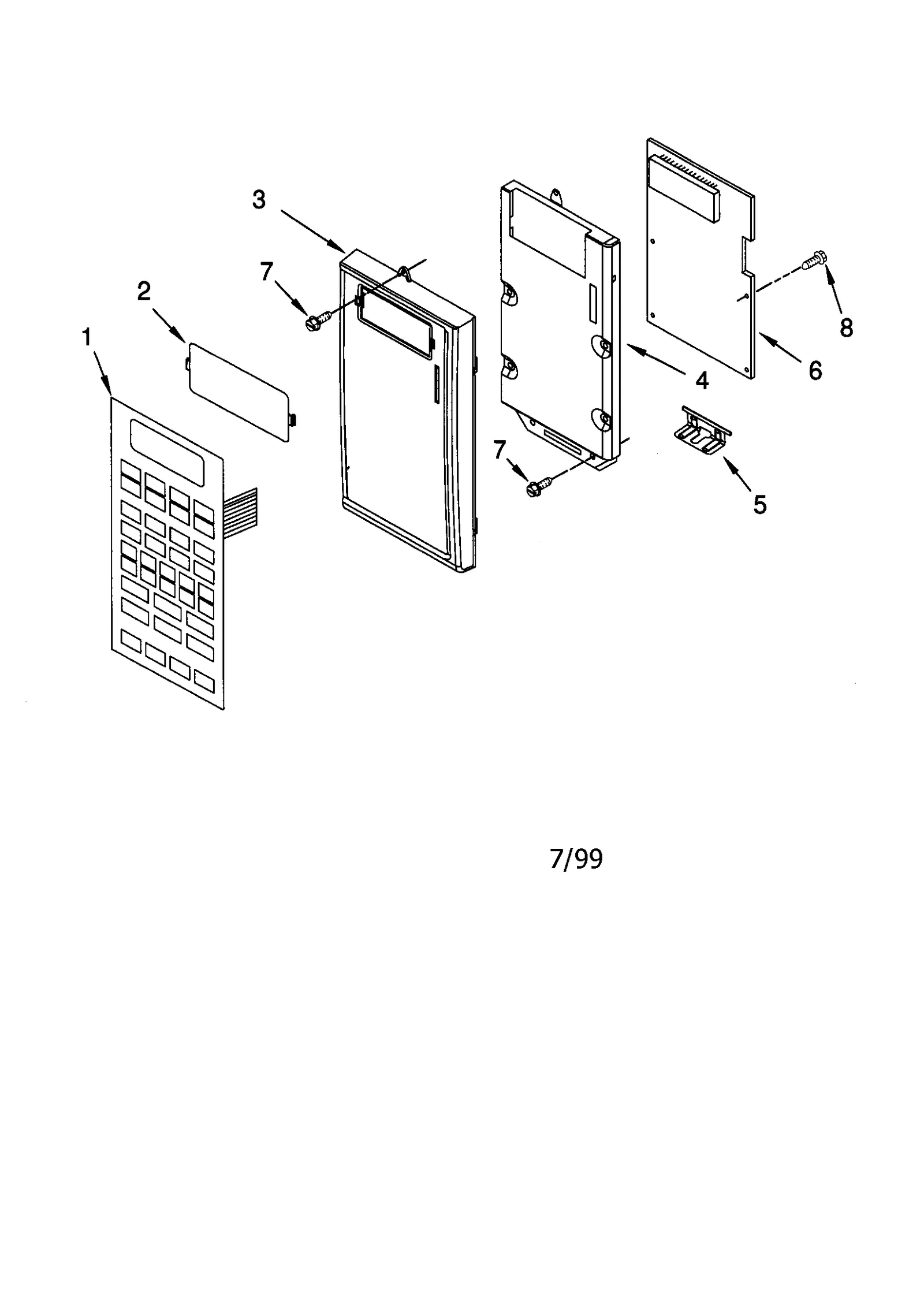

CONTROL
All Parts

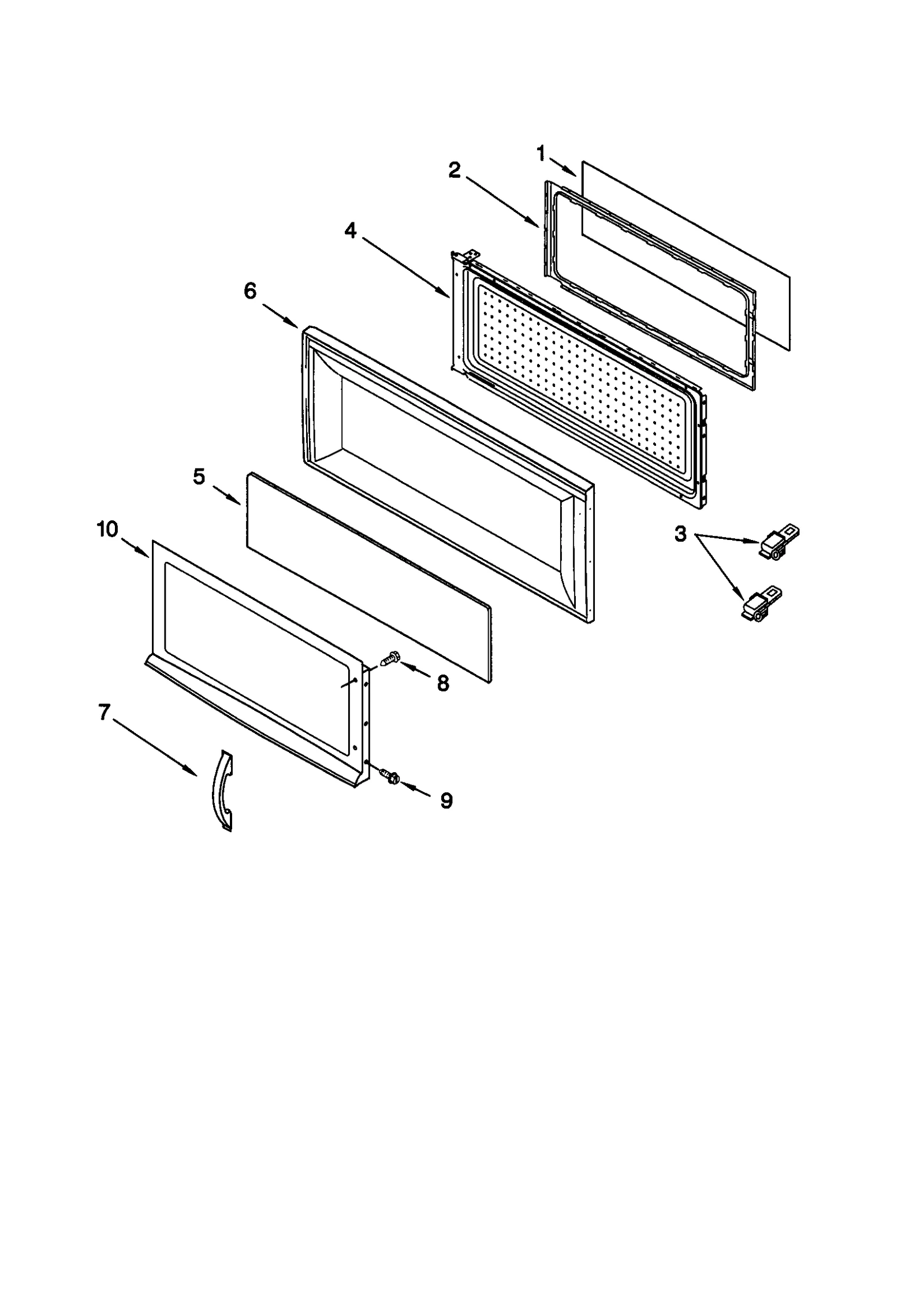

DOOR

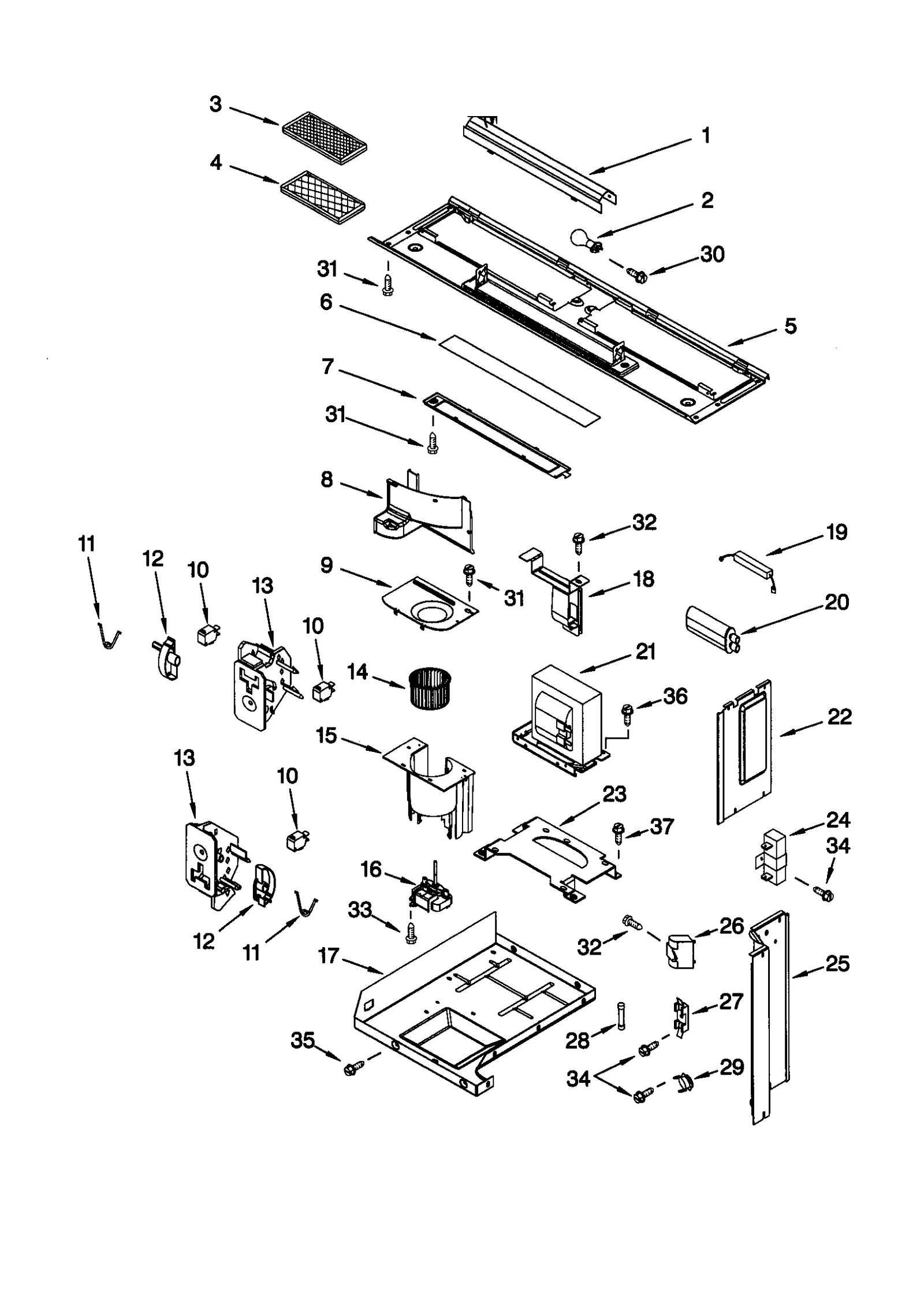

INTERIOR AND VENTILATION

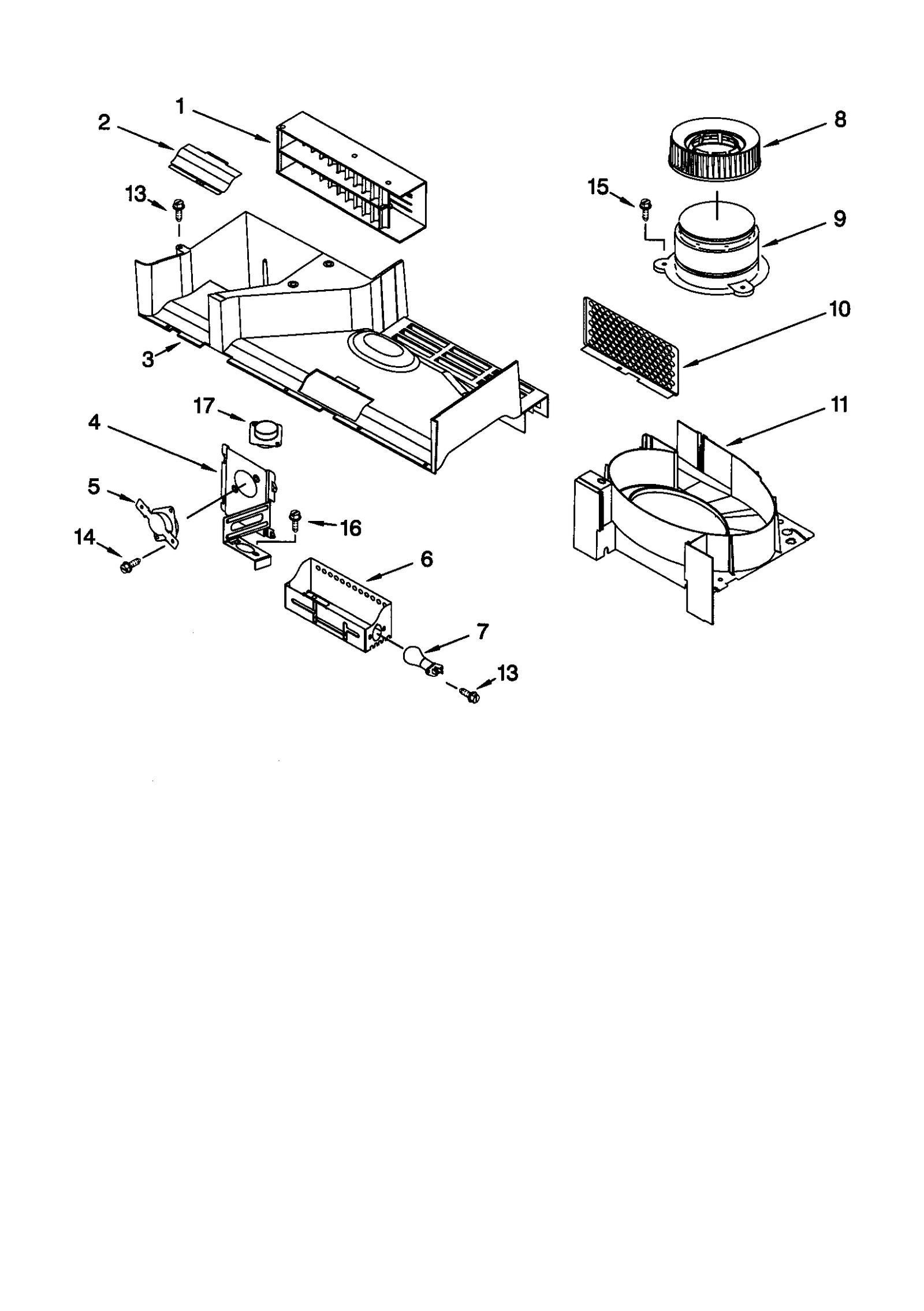

AIR FLOW
Common parts from model Whirlpool 665.68681891 Microwave/Hood Combo (Kenmore 66568681891)
1
Stirrer Motor WPL 4393746 Contact Us For Availability
1
Switch WPL 4393843 Contact Us For Availability
1
Microwave Door Film WPL 4393870 Contact Us For Availability
1
Reflector WPL 4393810 Contact Us For Availability
1
Deflct-ar WPL 4393807 Contact Us For Availability
1A
Switch WPL 4393842 Contact Us For Availability
1B
Switch WPL 4393844 Contact Us For Availability
2
Stirrer Shaft WPL 4393747 Contact Us For Availability
2
Window WPL 4393739 Contact Us For Availability
2
Choke Cover WPL 8169300 Contact Us For Availability
2
Reflector WPL 4393677 Contact Us For Availability
3
Microwave Door Latch WPL 4393913 Contact Us For Availability
3
Stirrer Blade WPL 8169330 Contact Us For Availability
3
Control Panel WPL 8169328 Contact Us For Availability
3
Air Duct WPL 4393915 Contact Us For Availability
3A
Control Panel WPL 8169329 Contact Us For Availability
3B
Control Panel WPL 8169304 Contact Us For Availability
4
Disk Holder WPL 4393749 Contact Us For Availability
4
Control Bracket WPL 4393906 Contact Us For Availability
4
Microwave Door WPL 4393722 Contact Us For Availability
4
Thermostat Bracket WPL 4393679 Contact Us For Availability
4A
Microwave Door WPL 4393723 Contact Us For Availability
4B
Microwave Door WPL 4393724 Contact Us For Availability
5
Stirrer Cover WPL 4393750 Contact Us For Availability
5
Hinge Plate WPL 4393744 Contact Us For Availability
5
Door Glass WPL 8169323 Contact Us For Availability
5
Base WPL 8169315 Contact Us For Availability
5
Thermostat WPL 4393580 Contact Us For Availability
5A
Door Glass WPL 4393811 Contact Us For Availability
5B
Door Glass WPL 8169301 Contact Us For Availability
6
Control Board WPL 8169332 Contact Us For Availability
6
Panel WPL 4393814 Contact Us For Availability
6
Lamp Glass WPL 4393693 Contact Us For Availability
6
Housing WPL 4393680 Contact Us For Availability
6A
Panel WPL 4393815 Contact Us For Availability
6B
Panel WPL 4393816 Contact Us For Availability
7
Nail WPL 4393291 Contact Us For Availability
7
Light Cover WPL 8169316 Contact Us For Availability
7A
Microwave Door Handle (Black) WPL 4393824 Contact Us For Availability
7B
Microwave/Hood Door Handle WPL 4393825 Contact Us For Availability
8
Microwave Turntable Tray WPL 4393799 No Longer Available
8
Air Guide WPL 4393695 Contact Us For Availability
8
Fan Wheel WPL 4393682 Contact Us For Availability
9
Lid Fan WPL 4393696 Contact Us For Availability
9
Fan Motor WPL 4393789 Contact Us For Availability
10
Microwave Turntable Tray Support Wheel WPL 4393861 Contact Us For Availability
10
Shield WPL 4393683 Contact Us For Availability
10B
Door Frame WPL 8169302 Contact Us For Availability
11
Spring WPL 4393914 Contact Us For Availability
11
Housng-blw WPL 4393684 Contact Us For Availability
12
Cam Plate WPL 4393597 Contact Us For Availability
13
Terminal Cover WPL 4393756 Contact Us For Availability
13
Screw WPL 4393827 Contact Us For Availability
14
Screw WPL 4393346 Contact Us For Availability
14
Fan Wheel WPL 8169317 Contact Us For Availability
15
Microwave Thermal Cut-Off WPL 4393943 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing WPL 4393699 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Connector WPL 4393797 Contact Us For Availability
16
Screw WPL 4393828 Contact Us For Availability
16
Fan Motor WPL 4393700 Contact Us For Availability
17
Spring WPL 8169322 Contact Us For Availability
17
Connector WPL 4393686 Contact Us For Availability
17
Base WPL 4393701 Contact Us For Availability
17
Sensor WPL 4393808 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Capacitor Bracket WPL 4393702 Contact Us For Availability
21
Microwave Turntable Motor Screw WPL 4393832 Contact Us For Availability
21
Transformer WPL 4393809 Contact Us For Availability
22
Plate WPL 4393705 Contact Us For Availability
23
Mounting Plate WPL 4393706 Contact Us For Availability
24
Resistor WPL 4393707 Contact Us For Availability
25
Plate WPL 4393708 Contact Us For Availability
26
Microwave Vent Motor Capacitor WPL 4393709 Contact Us For Availability
27
Fuse Block WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
33
Microwave Screw WPL 4393833 Contact Us For Availability
35
Ul-switch WPL 4393448 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
NI
Filler Panel (Black) WPL 4158311 Contact Us For Availability
NI
Filler Panel (White) WPL 4158439 Contact Us For Availability
NI
Filler Panel WPL 4378403 Contact Us For Availability
NI
Mounting Hardware WPL 4393757 Contact Us For Availability
NI
Meat Rack WPL 4393826 Contact Us For Availability
NI
Trmplate WPL 8169298 Contact Us For Availability
NI
Template WPL 8169299 Contact Us For Availability
NI
Cook Guide WPL LIT4393456 Contact Us For Availability
NI
Technical Sheet WPL LIT4393768 Contact Us For Availability
NI
Installation Instructions WPL LIT4393804 Contact Us For Availability
NI
Owner's Manual WPL LIT4393854 Contact Us For Availability
× ![]()
