Model Whirlpool 629.46776790 Electric Range (Kenmore 62946776790) – Common Parts &amp; Diagrams

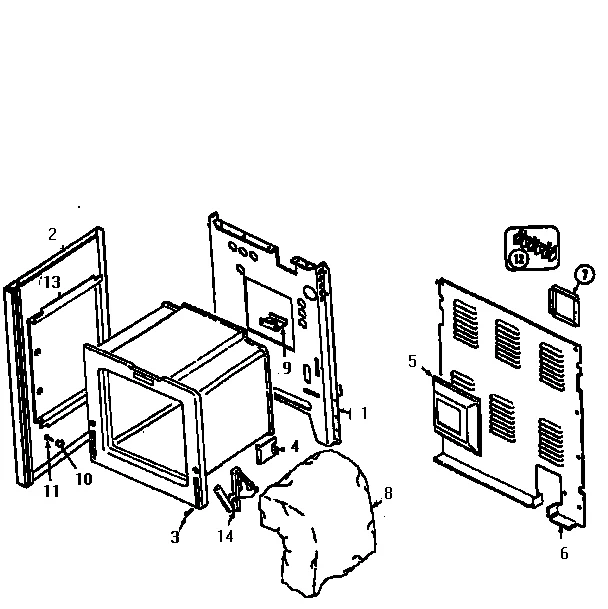

1

Broil Element Support WPL 3807F387-45 Contact Us For Availability

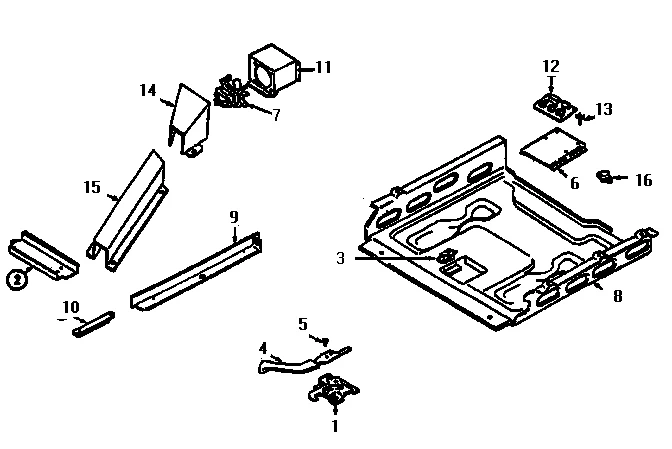

1

Door Latch WPL 74003123 Contact Us For Availability

1

Main WPL 74001873 Contact Us For Availability

1A

W10828565 Whirlpool Screw Backorder WPL W10828565 $4.82

1B

Control Panel WPL 74003118 Contact Us For Availability

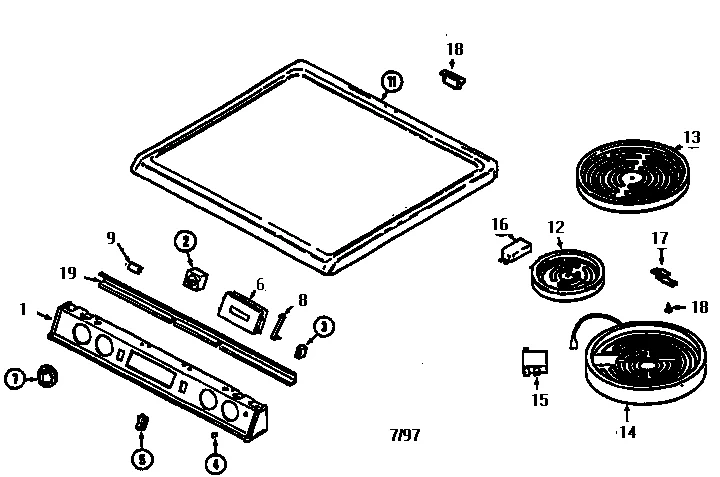

2

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $44.48

2

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $130.46

2

Air Channel WPL 3818F059-51 Contact Us For Availability

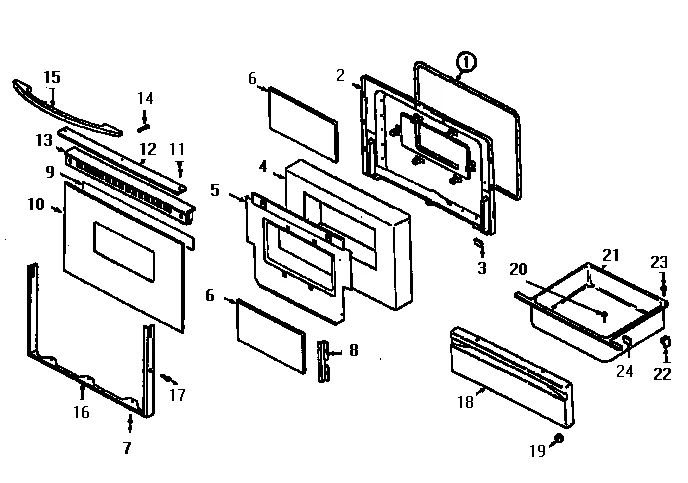

2

Lining Doo WPL 74001058 Contact Us For Availability

2

Panel WPL 2618F106-70 Contact Us For Availability

2A

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $41.89

2A

Door Linin WPL 74003244 Contact Us For Availability

2A

Panel WPL 2618F106-71 Contact Us For Availability

2B

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $24.67

2B

Panel WPL 2618F107-70 Contact Us For Availability

2C

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $4.99

2C

Panel WPL 2618F107-71 Contact Us For Availability

2D

Panel WPL 74001576 Contact Us For Availability

2E

Panel WPL 74001577 Contact Us For Availability

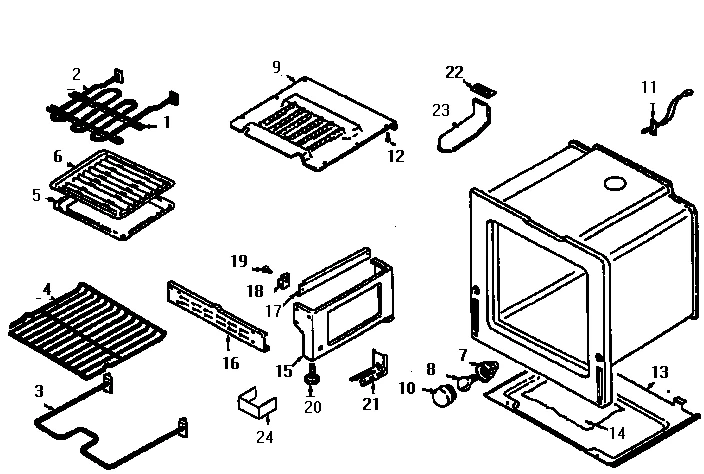

3

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $50.94

3

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

3

Switch WPL 74001708 Contact Us For Availability

3

Spacer WPL 8010P085-60 Contact Us For Availability

3A

Screw WPL 7101P031-60 Contact Us For Availability

4

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $3.51

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.69

4

Lock Lever WPL 74002973 Contact Us For Availability

4

Oven Insulation WPL 74001842 Contact Us For Availability

4

SUPPORT, OVEN (REAR) WPL 3807F400-51 Contact Us For Availability

4A

Latch Lever WPL 74003005 Contact Us For Availability

4B

LEVER, DOOR LATCH (BRN) WPL 74003006 Contact Us For Availability

5

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

5

7403P067-60 Whirlpool Light Switch Backorder WPL 7403P067-60 $70.94

5

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $4.98

5

Baffle Doo WPL 74001843 Contact Us For Availability

5

Wire Cover WPL 74001325 Contact Us For Availability

5A

Switch WPL 7403P200-60 Contact Us For Availability

5B

Switch Alm WPL 7403P358-60 Contact Us For Availability

6

Clock WPL 74003197 Contact Us For Availability

6

Latch Cover WPL 4005F466-51 Contact Us For Availability

6

Inner Glass WPL 74001841 Contact Us For Availability

6

Wire Cover WPL 4005F447-51 Contact Us For Availability

6A

Timer WPL 74003198 Contact Us For Availability

6B

Clock WPL 74003199 Contact Us For Availability

7

Burner Knob WPL 74003119 Contact Us For Availability

7

Receptacle WPL 74003125 Contact Us For Availability

7

Fan WPL 7427P012-60 Contact Us For Availability

7

Access Cover WPL 4005F427-51 Contact Us For Availability

7A

Surface Knob WPL 74003120 Contact Us For Availability

7B

Knob WPL 74003121 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

8

Bracket Clock WPL 74003191 Contact Us For Availability

8

Burner Box WPL 74002685 Contact Us For Availability

8

Glass Retainer WPL 74001844 Contact Us For Availability

8

INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability

8A

Insulation, Rear WPL 74001800 Contact Us For Availability

9

Clip WPL 7112P087-60 Contact Us For Availability

9

Oven Broiler Baffle WPL 3601F237-47 Contact Us For Availability

9

Heat Shield WPL 3604F213-51 Contact Us For Availability

9

Tape WPL 8270P090-60 Contact Us For Availability

9

PLATE, CONDUCT WPL 3605F174-51 Contact Us For Availability

9A

Heat Shield WPL 3604F214-51 Contact Us For Availability

W10857933 Whirlpool Spacer Backorder WPL W10857933 $4.82

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

Indicator Light WPL 74003053 Contact Us For Availability

Bracket WPL 3801F327-51 Contact Us For Availability

Drive Outer Glass WPL 74003126 Contact Us For Availability

10A

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

10A

Drive Outer Glass WPL 74003127 Contact Us For Availability

10B

Out Glass A WPL 74003128 Contact Us For Availability

WP7430P044-60 Whirlpool Top In Stock WPL WP7430P044-60 $100.77

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

Top WPL 74003200 Contact Us For Availability

Fan Housing WPL 4001F098-51 Contact Us For Availability

11A

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

11A

Main WPL 74003201 Contact Us For Availability

11B

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

11B

Main WPL 74003202 Contact Us For Availability

12

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $23.97

12

Insert Trim WPL 7728P094-60 Contact Us For Availability

12

Relay Board WPL 7428P021-60 Contact Us For Availability

12A

Insert Trim WPL 7728P095-60 Contact Us For Availability

12A

Screw WPL 7101P060-60 Contact Us For Availability

12B

Screw-alm WPL 7101P370-60 Contact Us For Availability

12C

Screw (wht) WPL 74001278 Contact Us For Availability

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $133.26

RETAINER, BOTTOM INSULATION WPL 3804F112-51 Contact Us For Availability

Door Trim, Upper WPL 74003192 Contact Us For Availability

Insulation Retainer WPL 74002599 Contact Us For Availability

13A

SUPPORT, RELAY (BLK) WPL 8004P020-60 Contact Us For Availability

13A

Trim WPL 74003193 Contact Us For Availability

13B

SUPPORT, RELAY (WHT) WPL 8004P032-60 Contact Us For Availability

13B

Door Trim, Upper WPL 74003194 Contact Us For Availability

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

Element WPL 74002666 Contact Us For Availability

FOIL RETAINER WPL 8312P058-60 Contact Us For Availability

Air Duct WPL 3818F056-51 Contact Us For Availability

Hinge WPL 7106P056-60 Contact Us For Availability

Limiter WPL 74002667 Contact Us For Availability

Side WPL 74003003 Contact Us For Availability

CHANNEL, AIR TOP WPL 3818F053-51 Contact Us For Availability

Handle (Black) WPL 74003133 Contact Us For Availability

15A

CHANNEL, AIR BOTTOM WPL 3818F055-51 Contact Us For Availability

15A

Door Handle WPL 74003134 Contact Us For Availability

15B

Door Handle WPL 74003203 Contact Us For Availability

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $129.55

Pedestal (fr WPL 4020F001-80 Contact Us For Availability

Thermostat WPL 7403P307-60 Contact Us For Availability

Door Frame WPL 7706P309-60 Contact Us For Availability

16A

Limiter WPL 74002652 Contact Us For Availability

16A

Door Frame WPL 7706P310-60 Contact Us For Availability

16B

Door Frame WPL 7706P311-60 Contact Us For Availability

17

Support WPL 74002976 Contact Us For Availability

17

Runr-drawr WPL 3406F028-51 Contact Us For Availability

18

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

18

Drawer Support WPL 74002312 Contact Us For Availability

18

Panel-wht WPL 2416F038-62 Contact Us For Availability

18A

Panel WPL 2416F038-64 Contact Us For Availability

18B

Panel (Black) WPL 2416F038-65 Contact Us For Availability

19

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.67

19

Clock WPL 74002647 Contact Us For Availability

19

Cover Screw WPL 74001449 Contact Us For Availability

20

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

21

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

21

Drawer WPL 3405F018-80 Contact Us For Availability

21A

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $20.30

22

WP8004P026-60 Whirlpool Support In Stock WPL WP8004P026-60 $7.93

22

Vent Gasket WPL 7201P060-60 Contact Us For Availability

23

Vent Box WPL 4006W112-45 Contact Us For Availability

23A

Vent Cover WPL 4005F453-51 Contact Us For Availability

24

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

24

COVER, LEVELING LEG WPL 4005F420-80 Contact Us For Availability

NI

Terminal Kit WPL 12001323 Contact Us For Availability

NI

Harness WPL 5170P228-60 Contact Us For Availability

NI

HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
