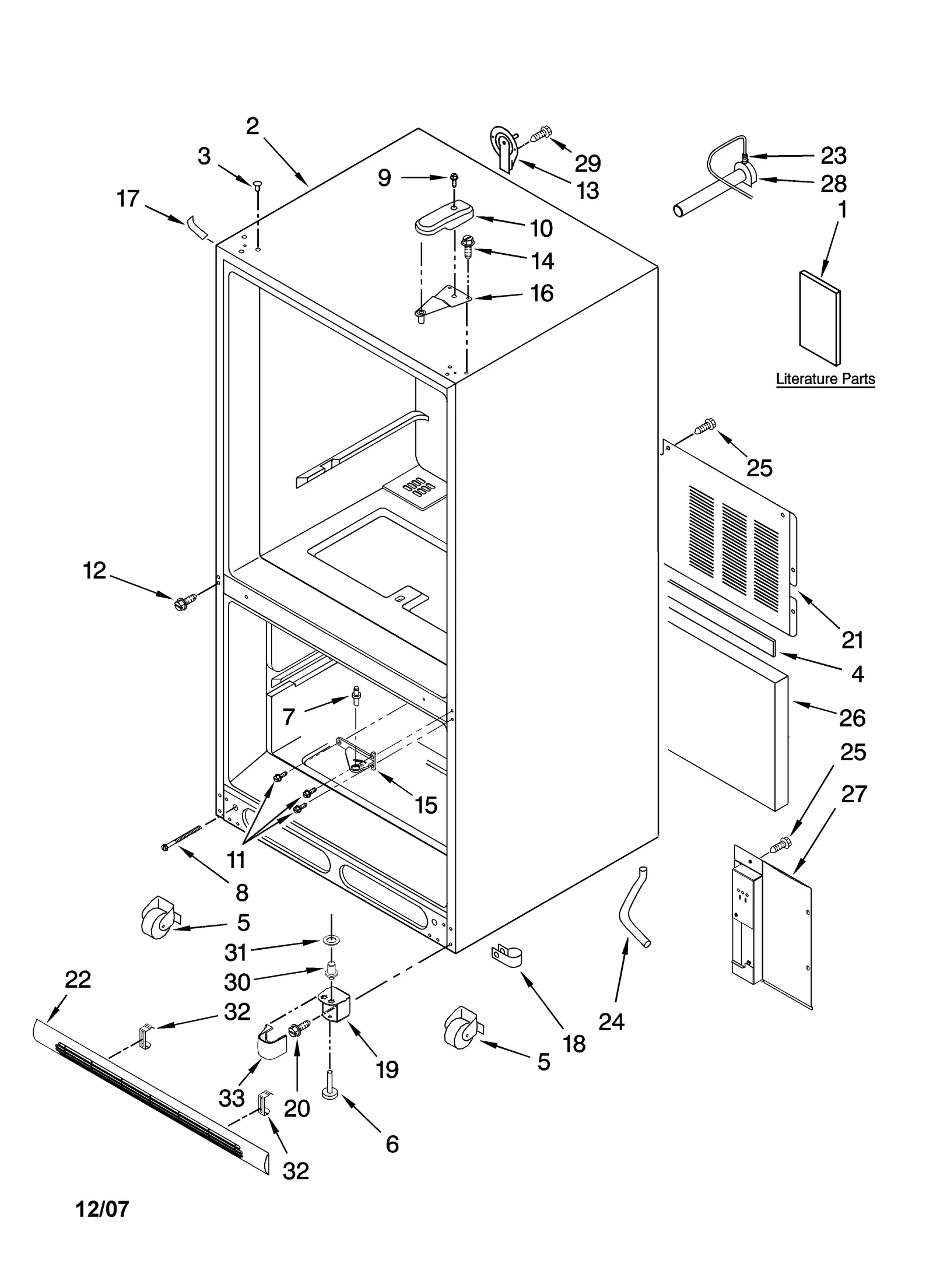

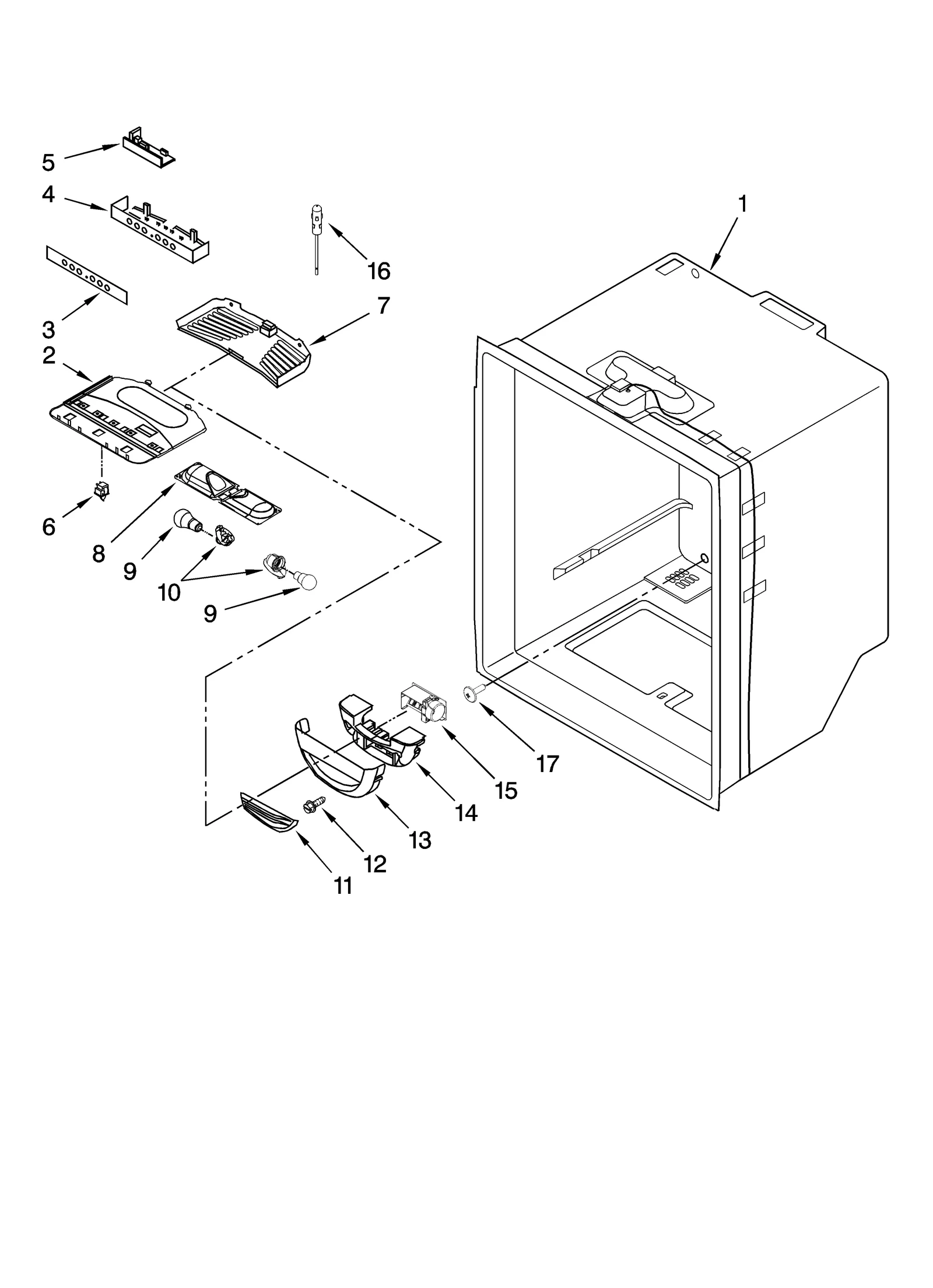

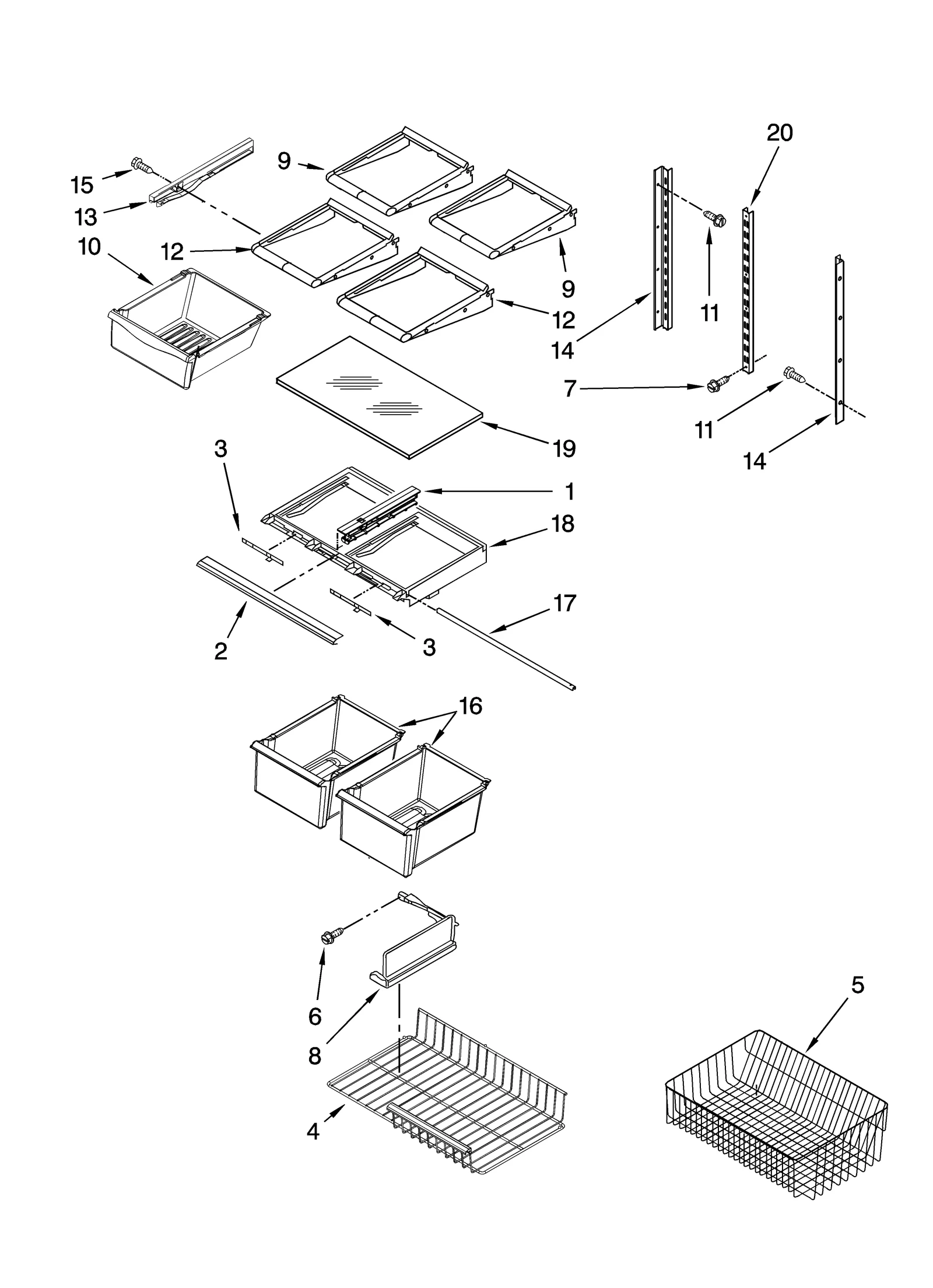

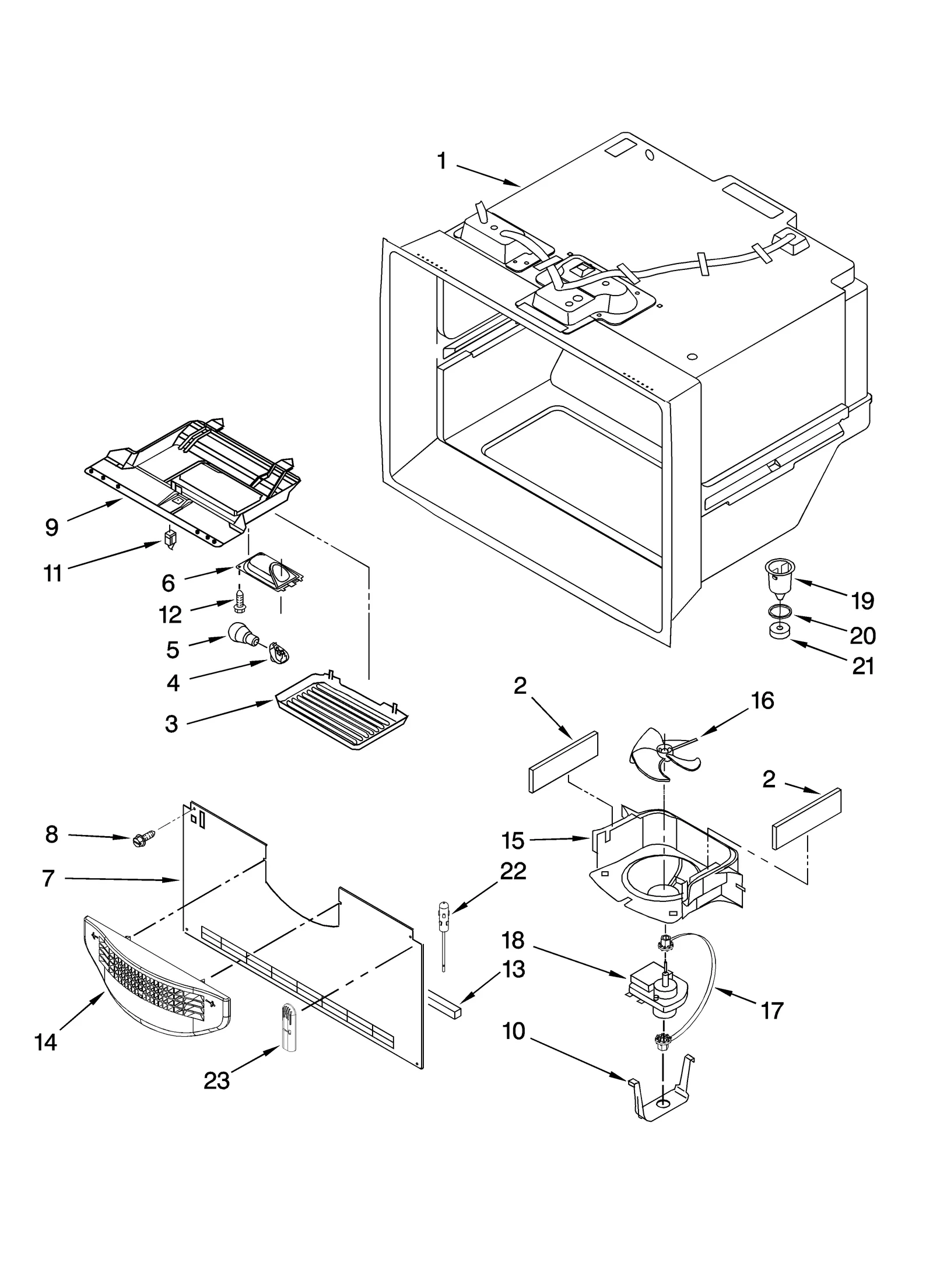

Model Whirlpool 596.75934703 Bottom-Mount Refrigerator (Kenmore 59675934703) – Common Parts &amp; Diagrams

1

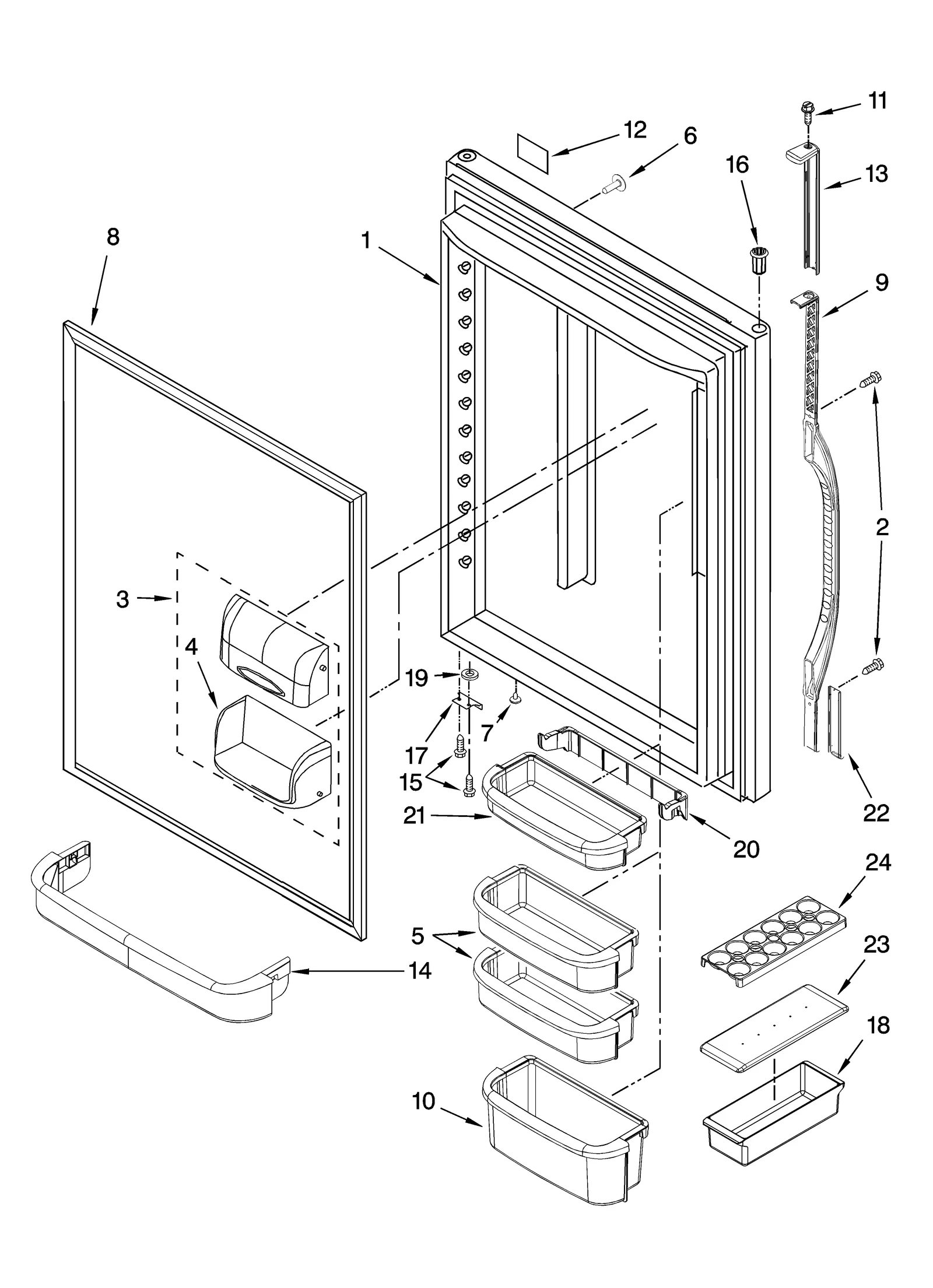

Refrigerator Door Foam WPL 67001138 Contact Us For Availability

1

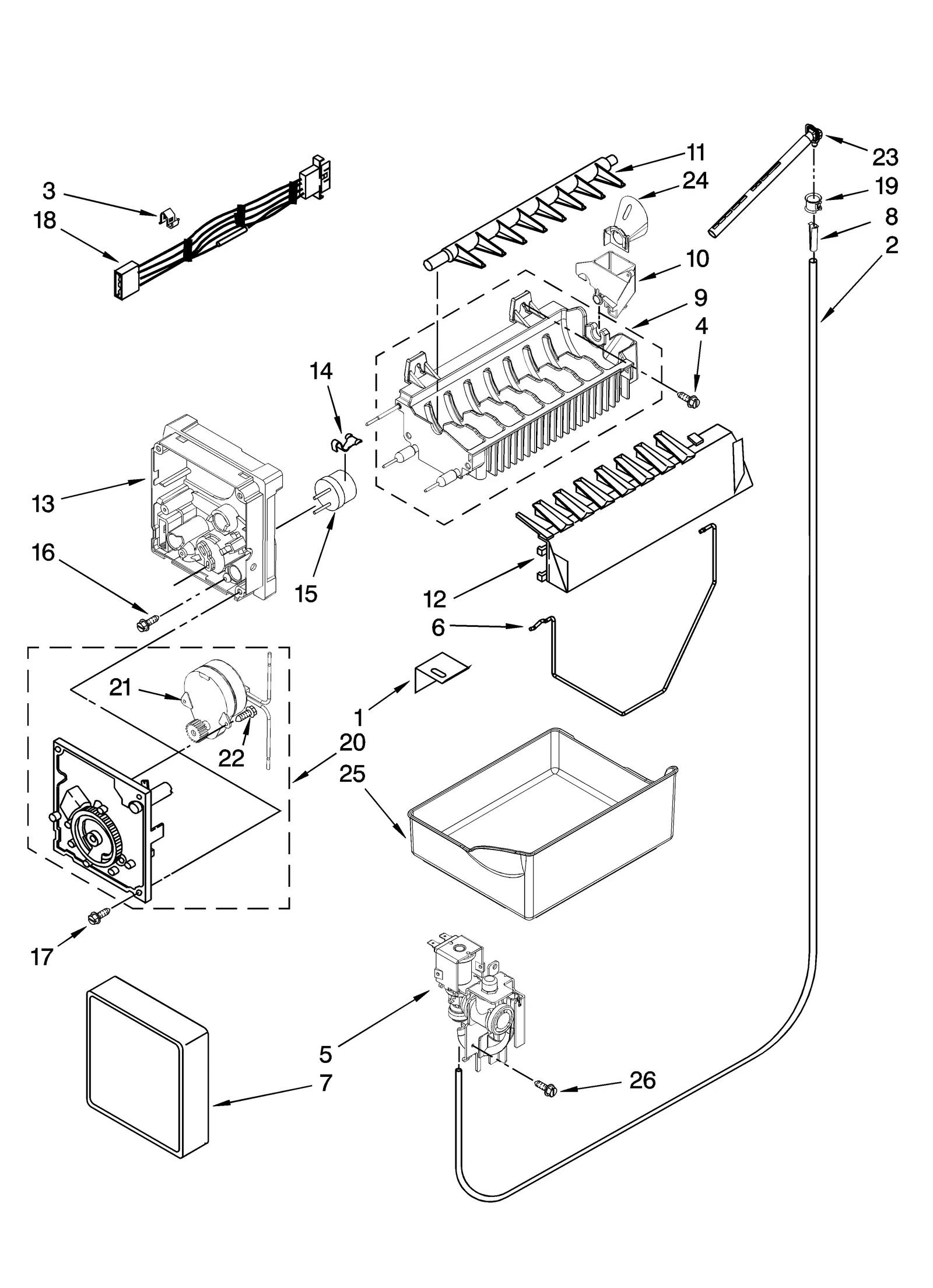

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

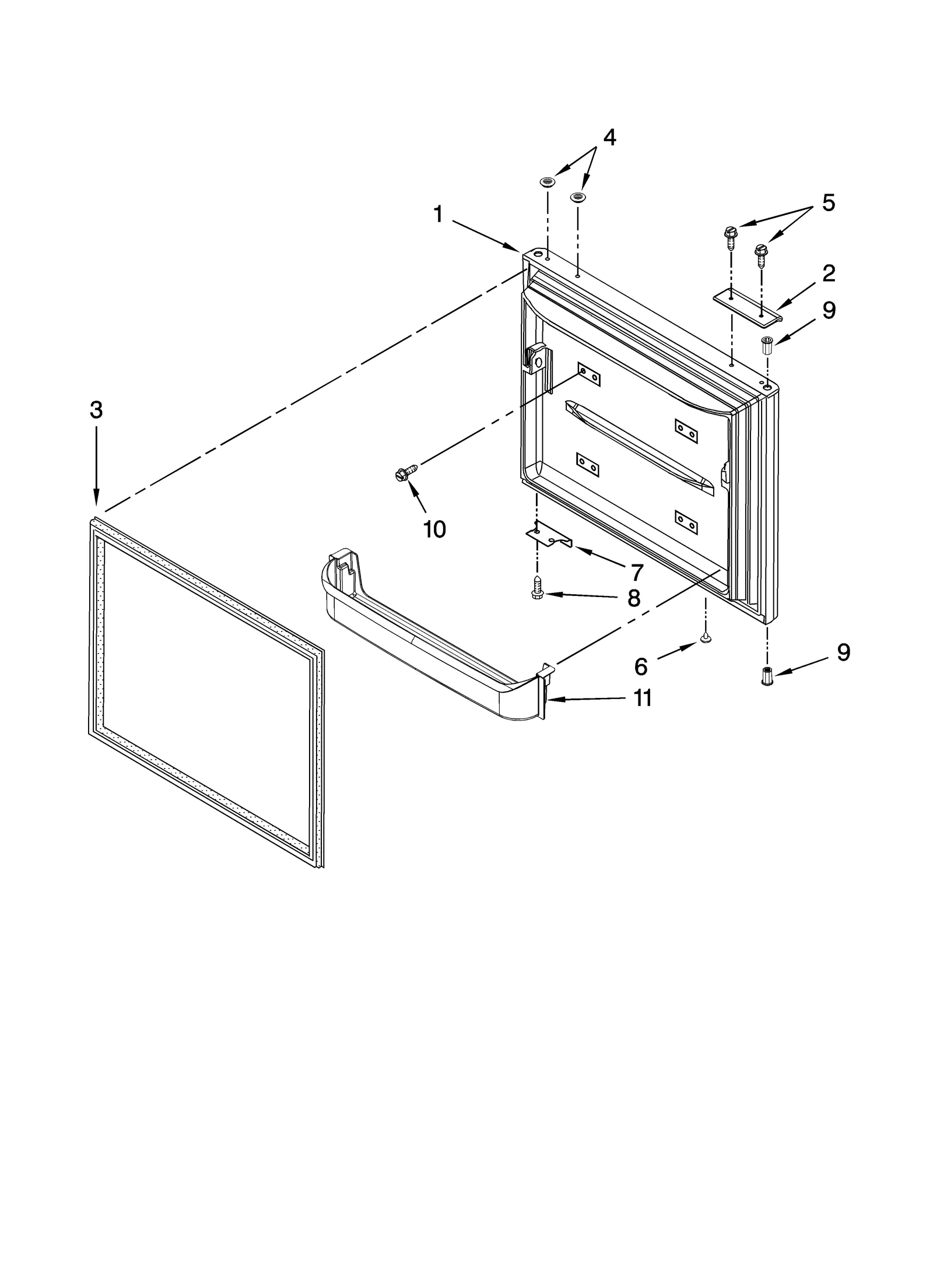

FREEZER DOOR (W/ INSULATION) (WHITE) WPL W10176974 Contact Us For Availability

1A

12658501BQ Whirlpool Refrigerator Foam In Pla Backorder WPL 12658501BQ $458.96

1A

FREEZER DOOR (W/ INSULATION) (BLACK) WPL W10176976 Contact Us For Availability

1B

REFRIGERATOR DOOR (W/LINER) (BISQUE) WPL 67001137 Contact Us For Availability

1B

FREEZER DOOR (W/ INSULATION) (BISQUE) WPL W10176975 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

2

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $129.31

2

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

2

Refrigerator Door Handle Screw WPL 67006682 Contact Us For Availability

2

BRACKET, CONTROL AND LIGHTS WPL Y67003896 Contact Us For Availability

2A

67005125 Whirlpool Refrigerator Door Handle ( In Stock WPL 67005125 $71.01

2B

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $102.12

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $143.88

3

Overlay Control WPL 67003902 Contact Us For Availability

3

Refrigerator Light Cover WPL 67003905 Contact Us For Availability

3A

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

4

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

4

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

4

WPW10464769 Whirlpool Refrigerator Housing In Stock WPL WPW10464769 $74.99

4

Freezer Glass Shelf WPL 67006231 Contact Us For Availability

5

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $70.72

5

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $152.45

5

Refrigerator Bucket WPL 67001140 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

6

PLUG BUTTON (2) (WHITE) WPL 10712401 Contact Us For Availability

6

Housing WPL 67001035 Contact Us For Availability

6A

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

6A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

7

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

7

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $162.93

7

HARNESS, EVAP HEATER WPL W10119856 Contact Us For Availability

7A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

7B

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

8

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

8A

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

9

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

9

Refrigerator Shelf WPL 67001151 Contact Us For Availability

9

Refrigerator Door Handle (White) WPL 67002896 Contact Us For Availability

9

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) WPL 6282280 Contact Us For Availability

9

HOUSING, LIGHTING WPL 67003906 Contact Us For Availability

9A

Refrigerator Door Handle WPL 67003002 Contact Us For Availability

9B

Refrigerator Door Handle WPL 67003003 Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

Tall Bucket WPL 67003889 Contact Us For Availability

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $75.05

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

Refrigerator Door Handle Screw WPL 12248201 Contact Us For Availability

12

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

12

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

12

Nameplate-ke WPL 13056602 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

Refrigerator Door Handle Trim, Upper (White) WPL 67005131 Contact Us For Availability

13A

Top Handle Trim WPL 67005132 Contact Us For Availability

13B

Top Handle Trim WPL 67005133 Contact Us For Availability

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

Backorder WPL W11750607 $32.09

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $48.68

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $102.24

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

16

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

16A

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17A

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

17B

COVER, CORNER (2) (BISQUE) WPL 67003486 Contact Us For Availability

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

Refrigerator Freezer Ice Bin WPL 10423131 Contact Us For Availability

19

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

19

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $4.99

19A

HINGE, BOTTOM (BLACK) WPL 67001068 Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.99

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

Refrigerator Tilt-Out Bin Bracket WPL 67004107 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

Cover Unit WPL 67006101 Contact Us For Availability

Bucket, Sm R WPL 67006991 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.77

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

Inglis Refrigerator Evaporator WPL 12002051 Contact Us For Availability

Refrigerator Toe Grille (White) WPL 67003849 Contact Us For Availability

Refrigerator Handle Trim (White) WPL 67005137 Contact Us For Availability

22A

Refrigerator Grille WPL 67003845 Contact Us For Availability

22A

Bottom Handle Trim WPL 67005138 Contact Us For Availability

22B

Refrigerator Toe Grille (Black) WPL 67003843 Contact Us For Availability

22B

Bottom Handle Trim WPL 67005139 Contact Us For Availability

23

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

23

Refrigerator Egg Bin Cover WPL 10436404 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

24

Refrigerator Drain Tube WPL 67001066 Contact Us For Availability

24

Refrigerator Egg Bin WPL 10436506 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

26

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

27

COVER, WATER VALVE WPL 67001173 Contact Us For Availability

28

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

30

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.82

32

Refrigerator Toe Grille Clip WPL 12627302 Contact Us For Availability

33

Lo Hnge Cov WPL 12561901W Contact Us For Availability

33A

Refrigerator Door Hinge Cover WPL 12561901B Contact Us For Availability

33B

Bisq Hng Cov WPL 12561901C Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.96

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Refrigerator Cleaner WPL 2217192 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability

HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES 1 WPL 67006095 Contact Us For Availability
