Model Whirlpool 596.68949802 Refrigerator (Kenmore 59668949802) – Common Parts &amp; Diagrams

1

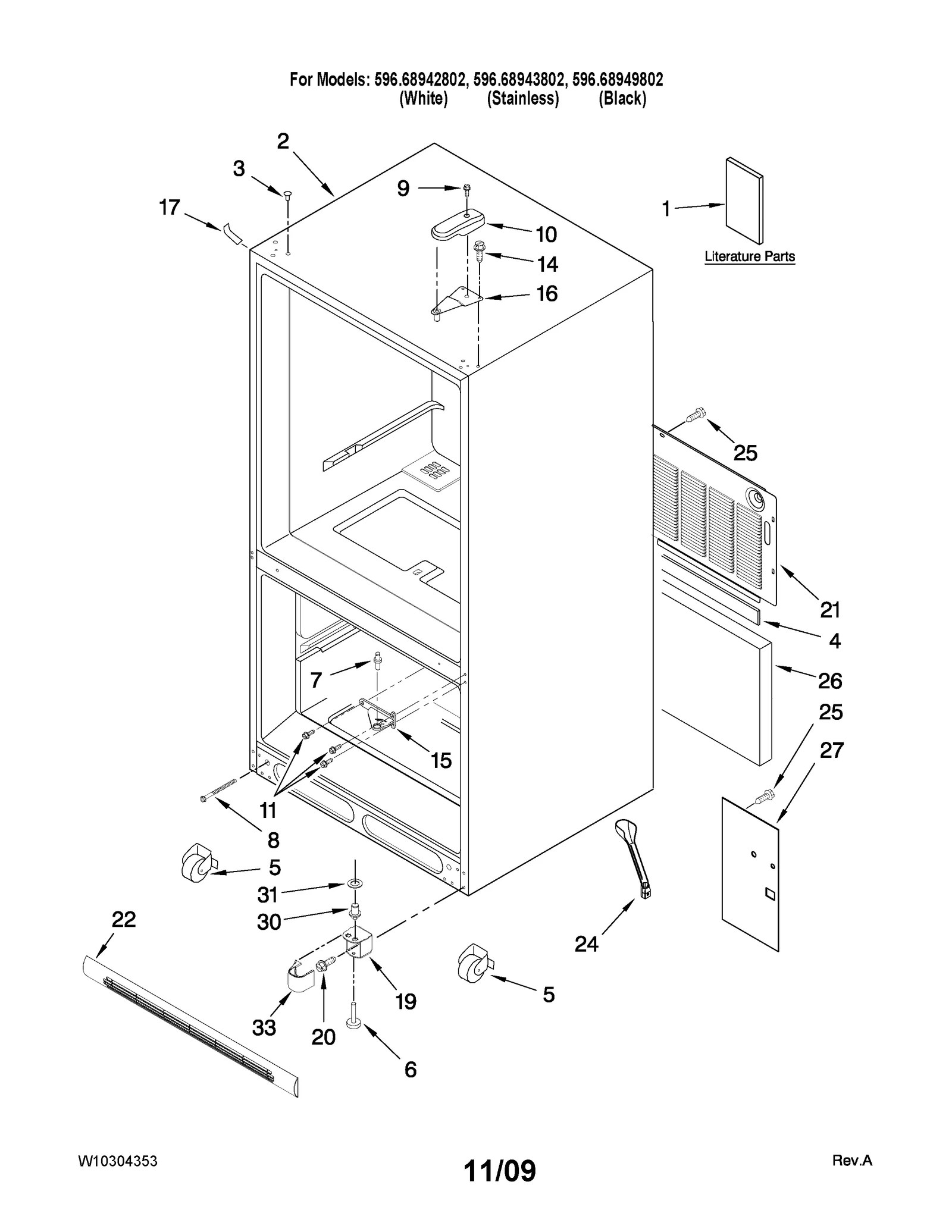

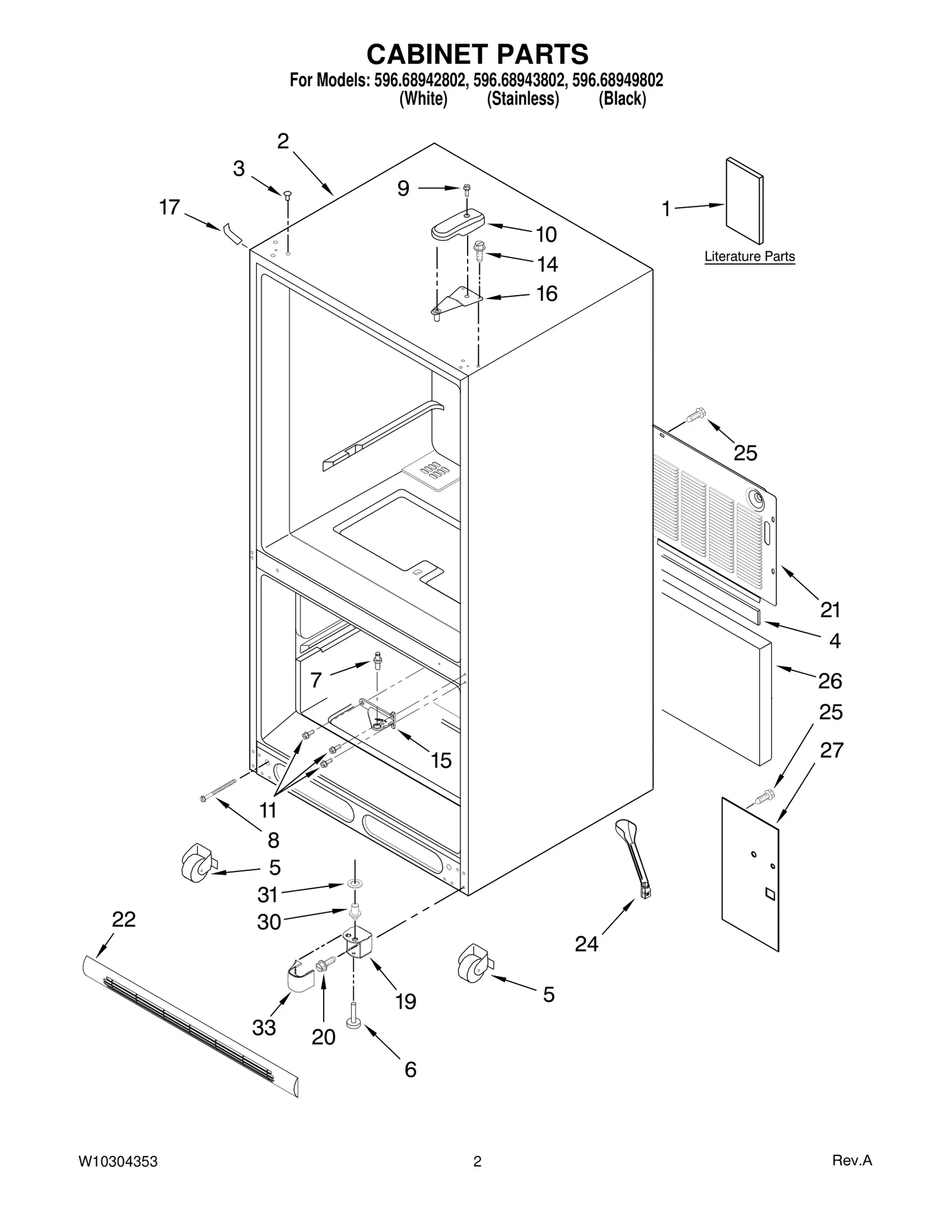

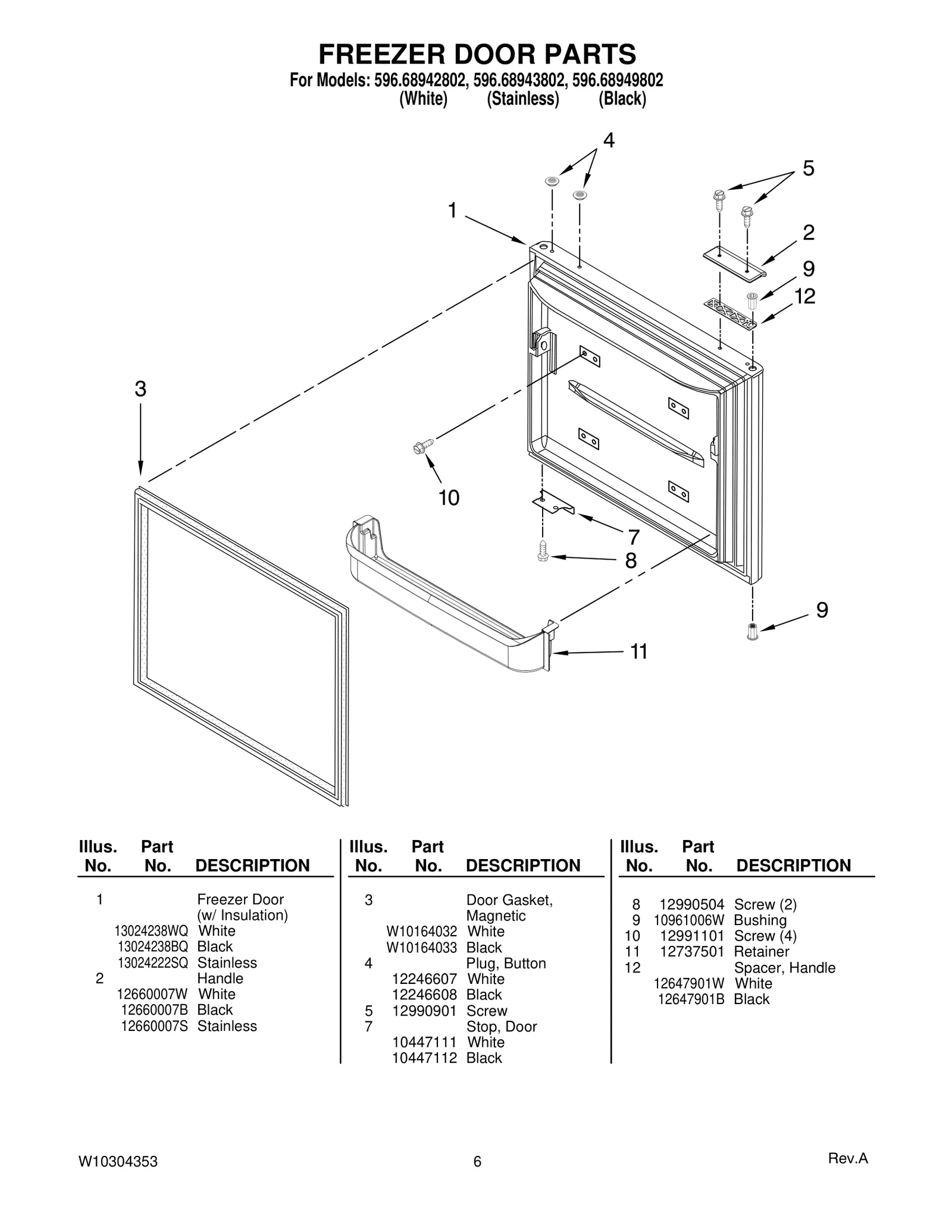

13024238WQ Whirlpool Refrigerator DOR-FIP Whi Backorder WPL 13024238WQ $458.96

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

1

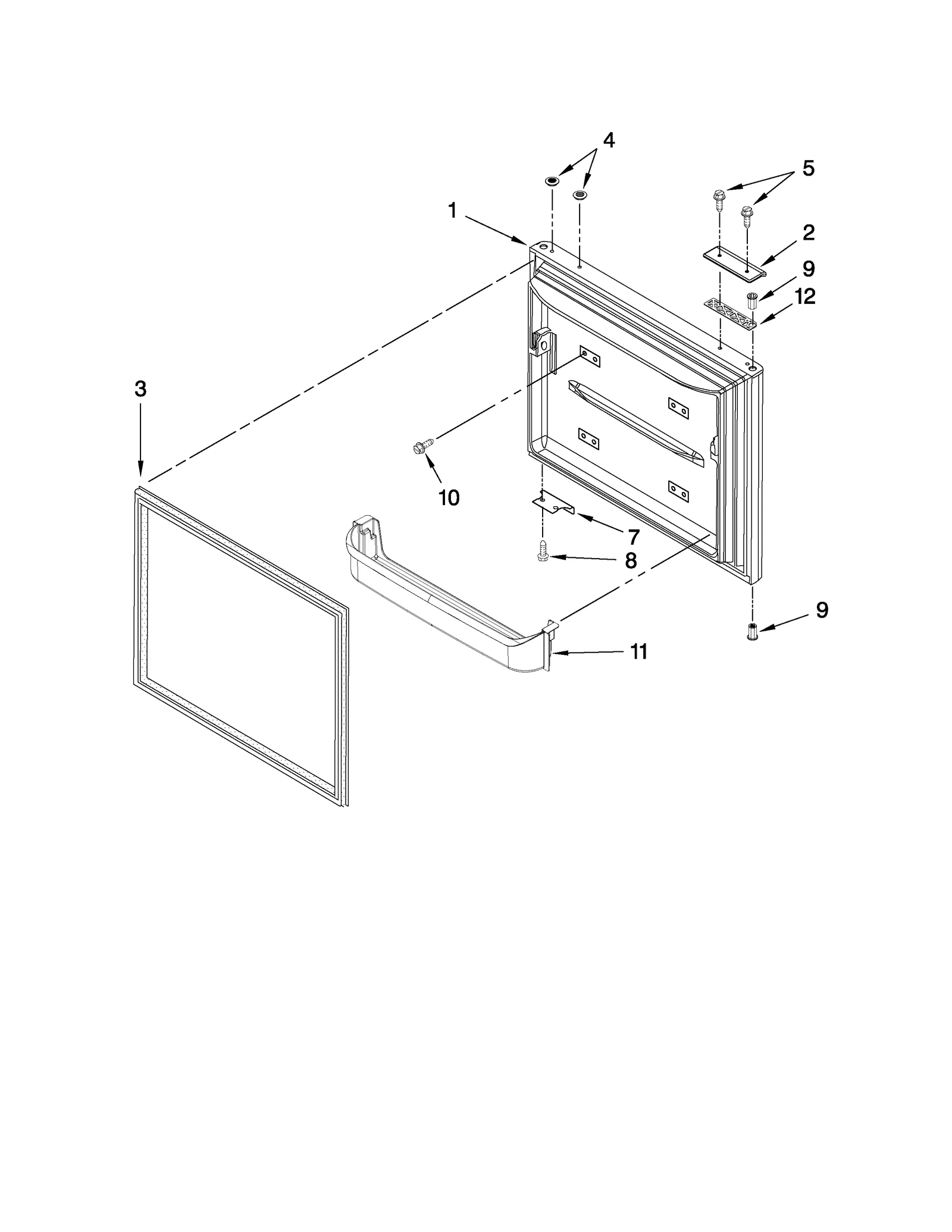

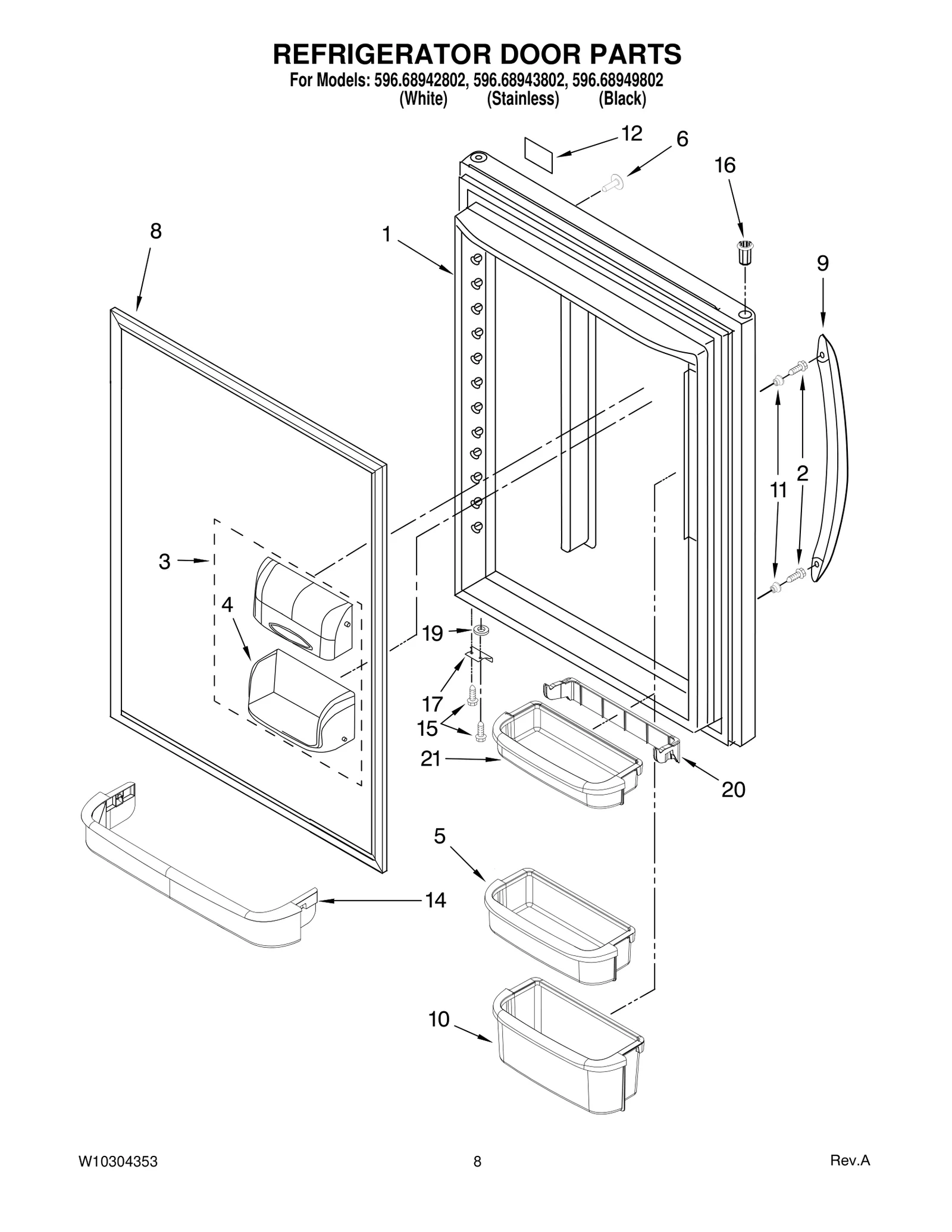

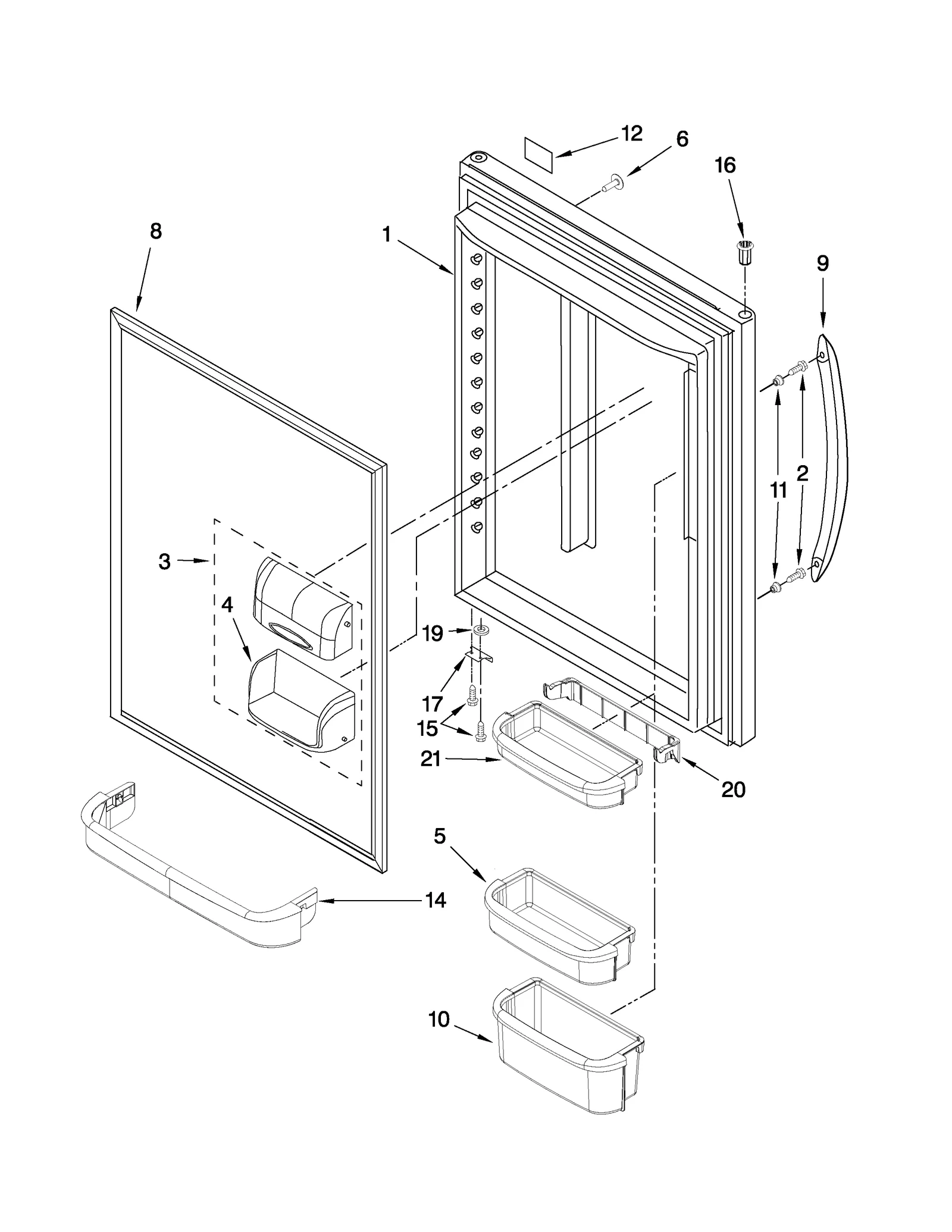

Refrigerator Door — White WPL 12658588WQ Contact Us For Availability

1

Refrigerator Door — Black WPL 12658588BQ Contact Us For Availability

1

Refrigerator Door — Stainless WPL 13023852SQ Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL N/S Contact Us For Availability

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2

67006901 Whirlpool Refrigerator Screw In Stock WPL 67006901 $4.82

2

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.44

2

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $82.58

2

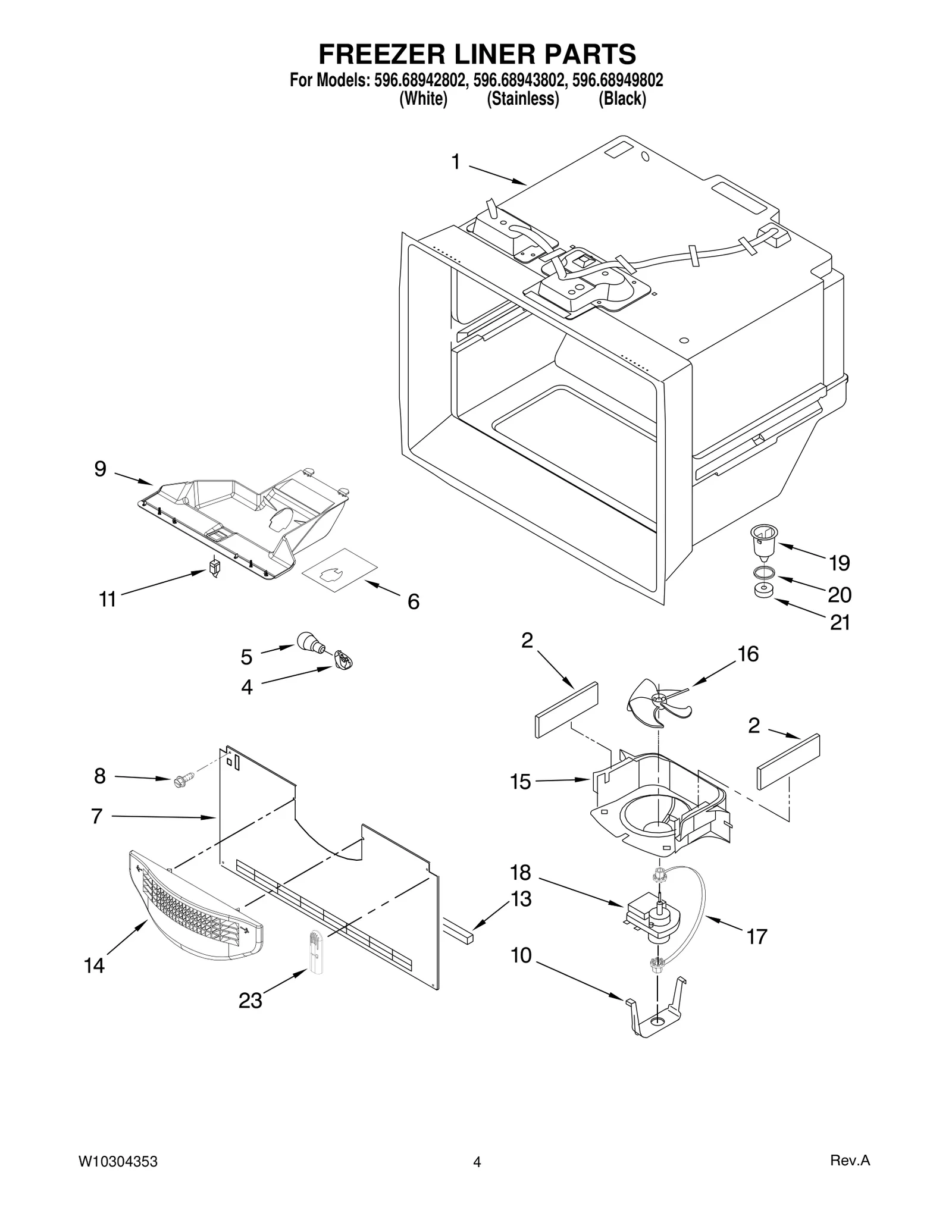

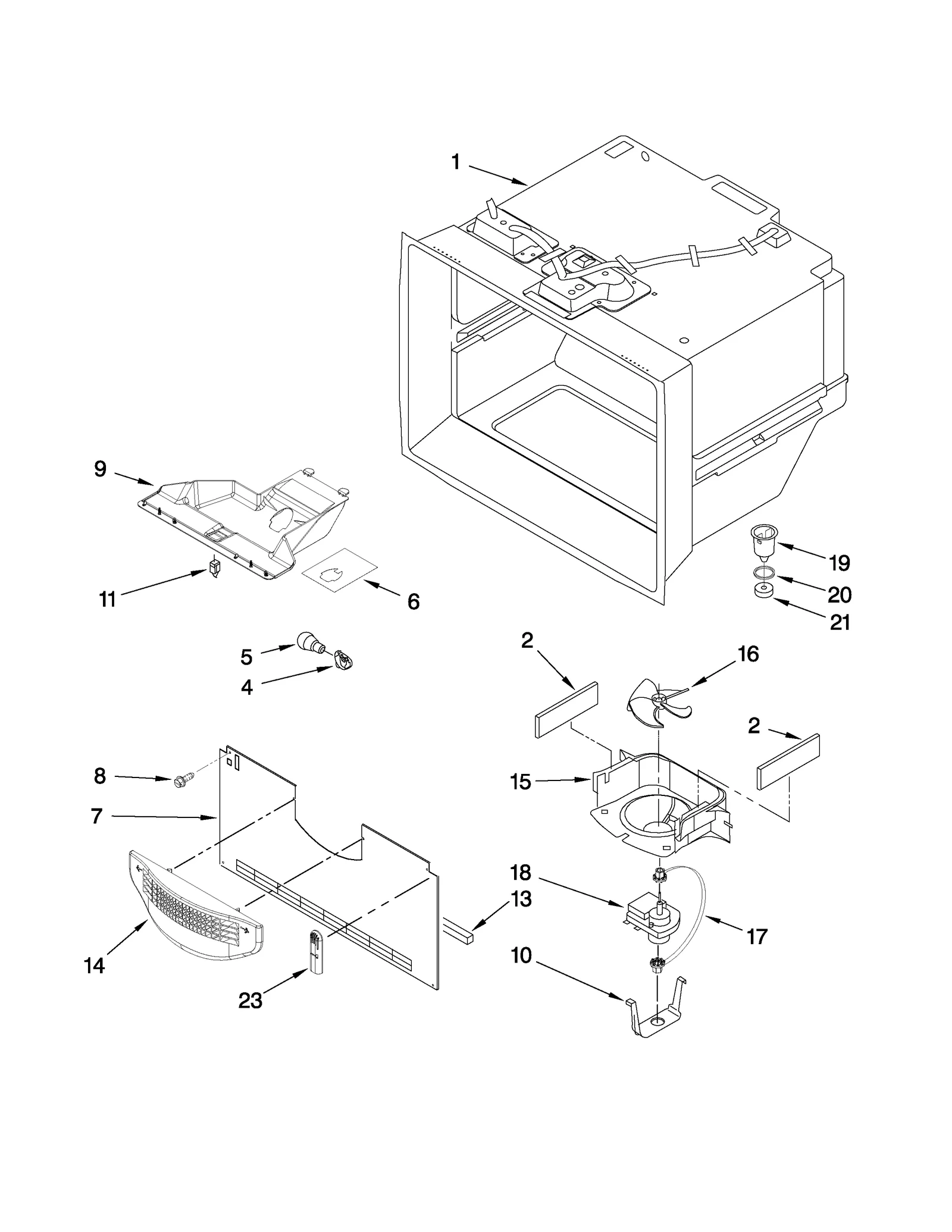

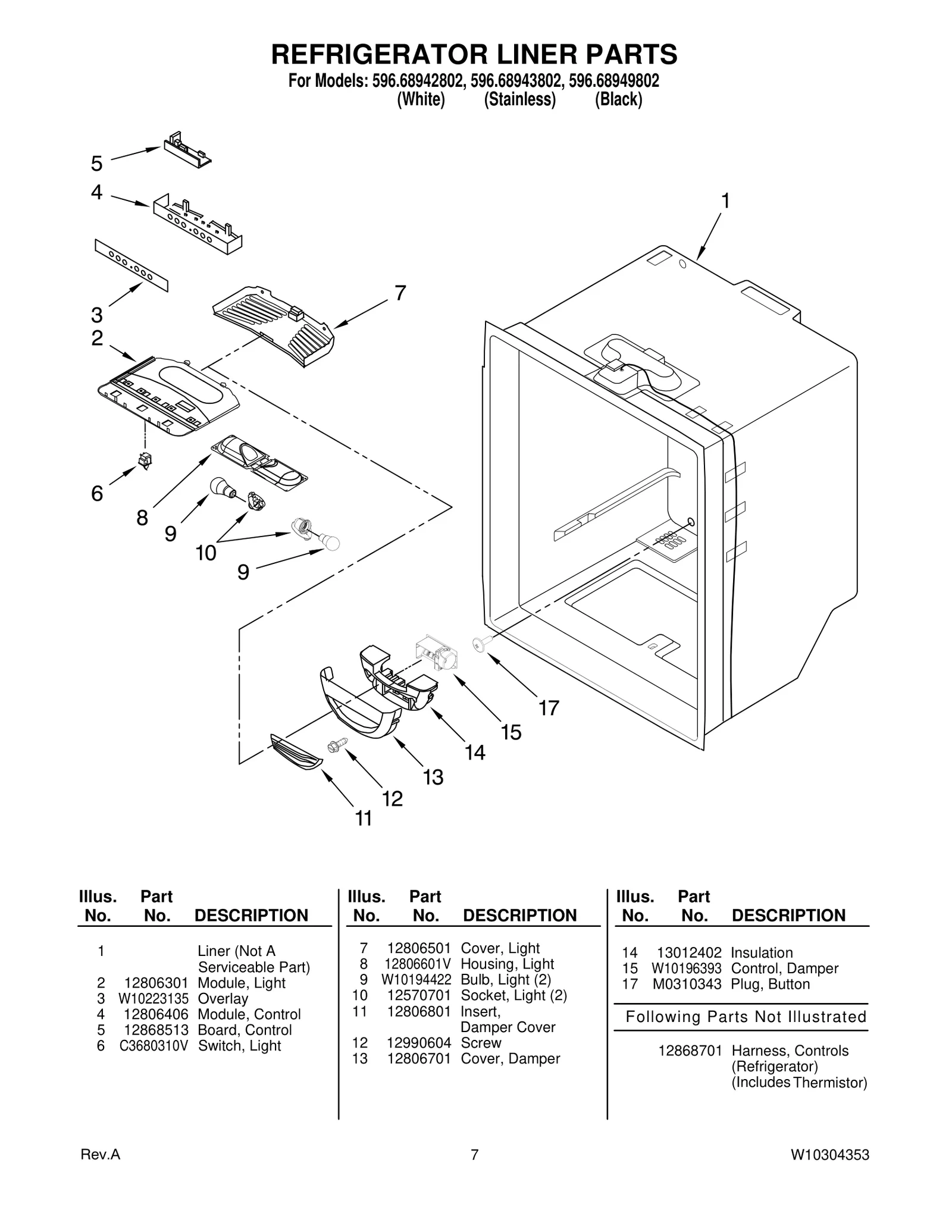

Module, Light WPL 12806301 Contact Us For Availability

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $99.74

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

3

Overlay WPL W10223135 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WPW10464769 Whirlpool Refrigerator Housing In Stock WPL WPW10464769 $74.99

4

Shelf, Freezer Glide WPL 12694606 Contact Us For Availability

5

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

5

W11240743 Whirlpool Refrigerator Screw Backorder WPL W11240743 $8.89

5

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $172.74

5

WPW10324005 Whirlpool Refrigerator Cantilever Backorder WPL WPW10324005 $50.24

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $152.45

5

Refrigerator Roller WPL 12580304 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

6

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

6

Tube, Discharge WPL W10217744 Contact Us For Availability

6

Screw WPL 12990601 Contact Us For Availability

6A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

W11260592 Whirlpool Refrigerator Wire Harness In Stock WPL W11260592 $49.06

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

7

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $162.93

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

8

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $60.16

8

Divider, Basket Top WPL 12693802 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $87.52

9

WPW10642944 Whirlpool Refrigerator Handle Backorder WPL WPW10642944 $166.53

9

WPW10642946 Whirlpool Refrigerator Handle Backorder WPL WPW10642946 $123.99

9

Door Handle — Black WPL W10169572 Contact Us For Availability

9

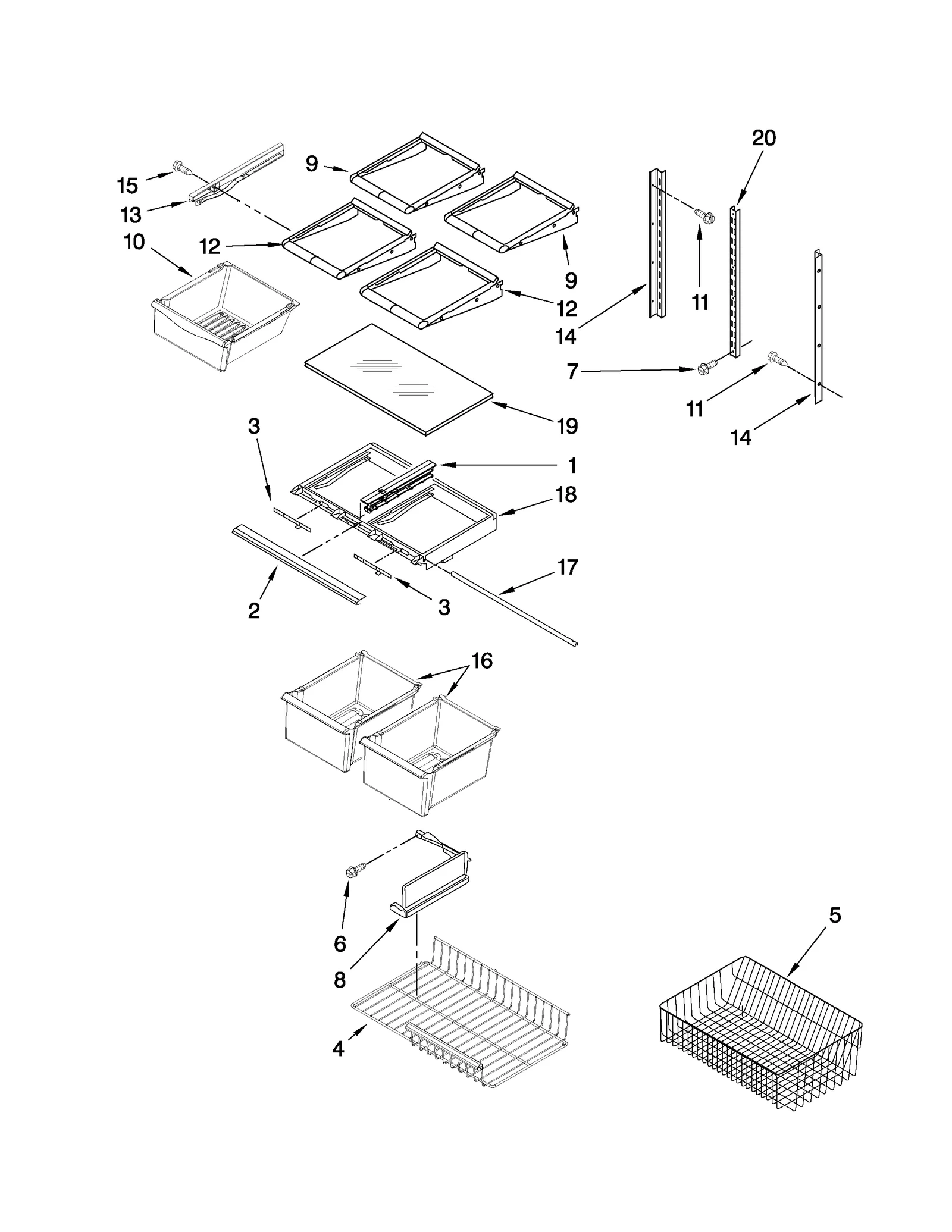

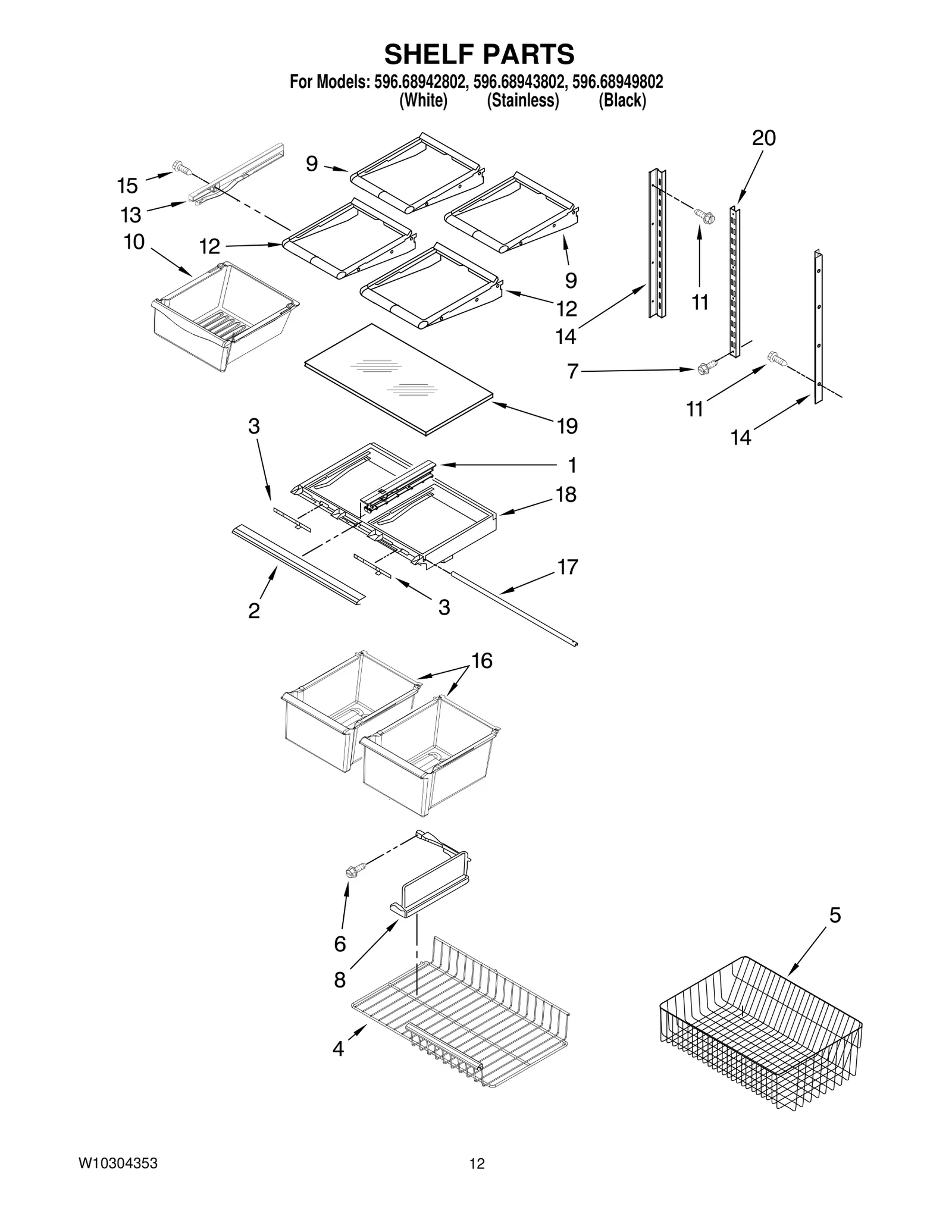

Shelf, Glide Out (2) WPL 12463404 Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

WP12729127 Whirlpool Refrigerator Heater Backorder WPL WP12729127 $126.57

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $107.16

Bucket, Tall WPL 12737801 Contact Us For Availability

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $75.05

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $7.27

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

12647901W Whirlpool Spacer Backorder WPL 12647901W $9.51

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $69.95

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $114.84

Nameplate WPL 2323099 Contact Us For Availability

Shelf, Sta (2) WPL 12463603 Contact Us For Availability

12A

12647901B Whirlpool Refrigerator Spacer Backorder WPL 12647901B $12.26

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.53

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $19.74

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $48.68

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPW10167023 Whirlpool Refrigerator Shroud In Stock WPL WPW10167023 $67.69

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $102.24

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $93.93

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

Screw WPL 12992101 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.96

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

18

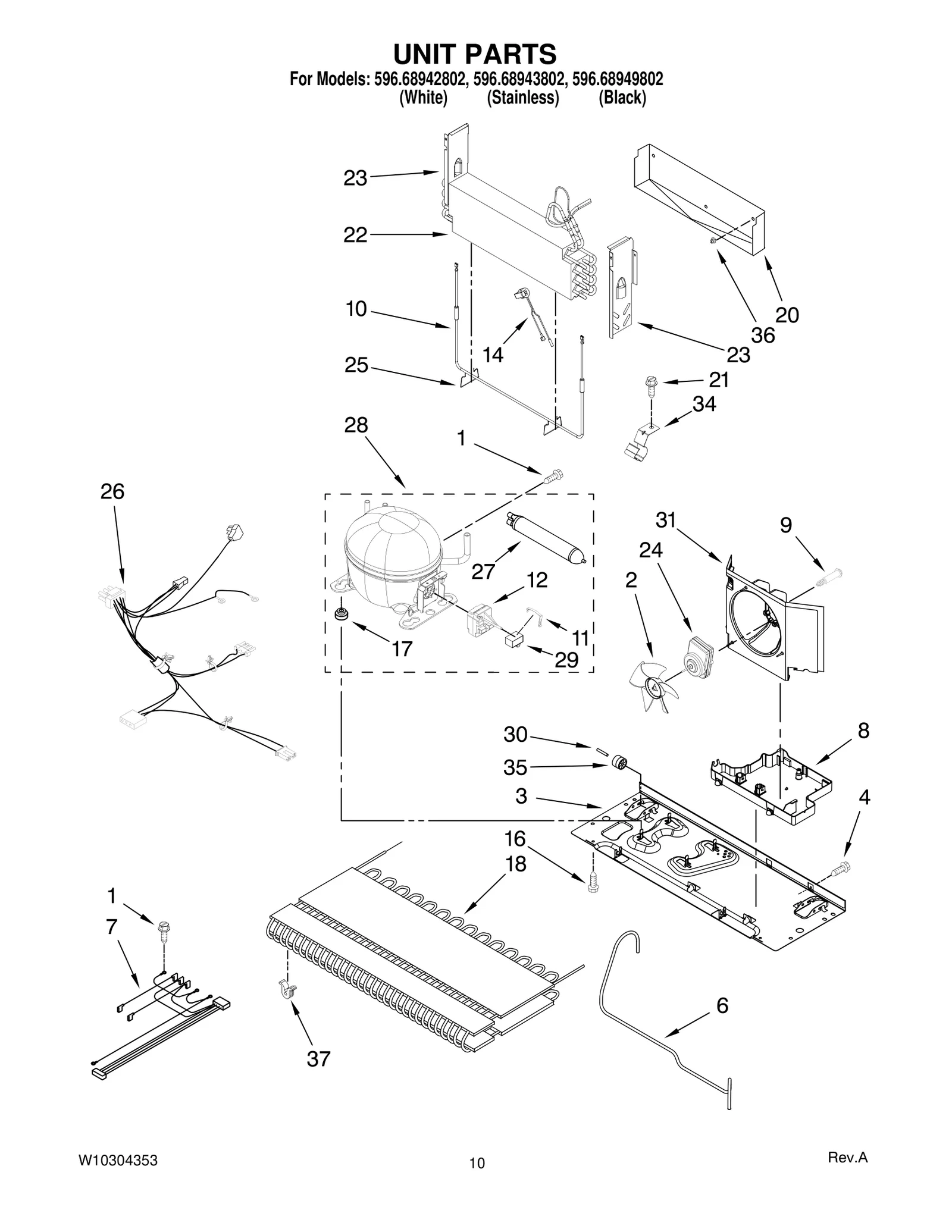

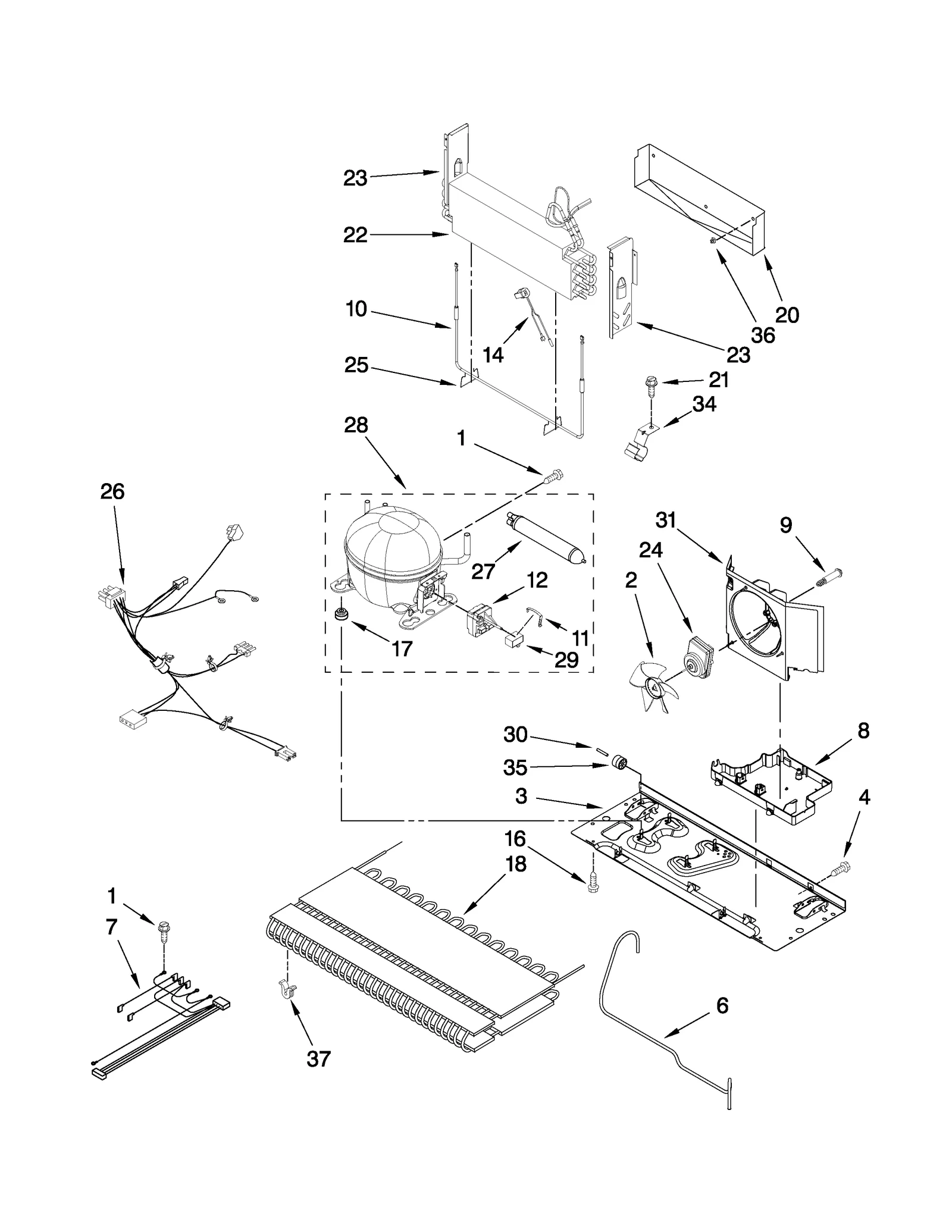

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

18

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

18

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $91.92

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $4.99

Refrigerator Hinge WPL 12465002WD Contact Us For Availability

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

Bracket, Tilt Out WPL 12737902V Contact Us For Availability

Tray, Drip WPL 12225401WD Contact Us For Availability

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $52.96

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $134.45

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

22

Evaporator WPL 12002051 Contact Us For Availability

23

Dam — Left Side WPL 12225602 Contact Us For Availability

23

Dam — Right Side WPL 12225702 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $60.95

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

28

Compressor WPL W10130129 Contact Us For Availability

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

37

Valve, Access WPL 978029 Contact Us For Availability

37

Valve, Access WPL 978028 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

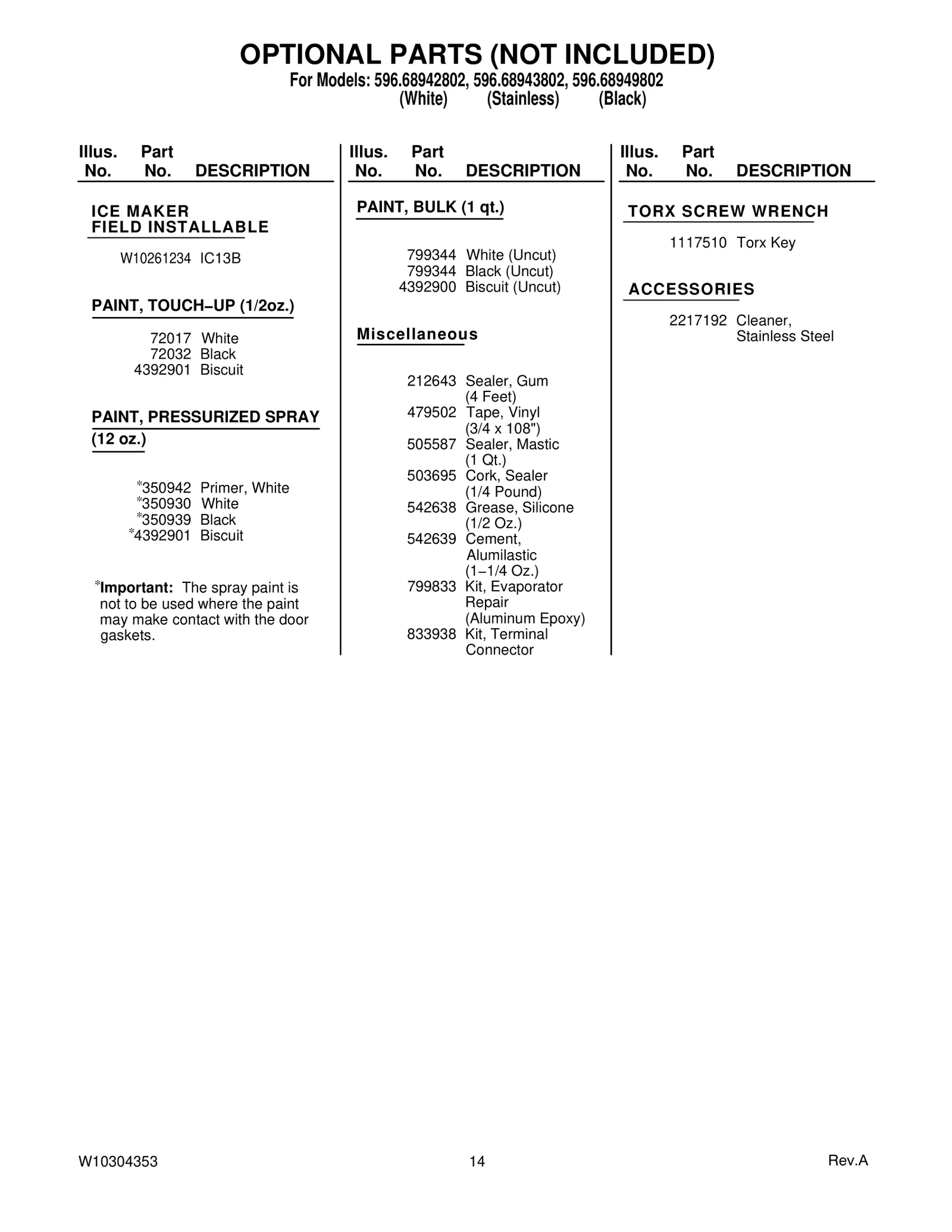

OPT-1

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $152.88

OPT-2

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-3

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-5

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-7

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-10

Black (Uncut) WPL 799344 Contact Us For Availability

OPT-11

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-12

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-13

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-16

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-17

Cement, WPL 542639 Contact Us For Availability

OPT-18

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-19

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-20

Torx Key WPL 1117510 Contact Us For Availability

OPT-21

Cleaner, WPL 2217192 Contact Us For Availability
