Model Whirlpool 596.66022700 Refrigerator (Kenmore 59666022700) – Common Parts &amp; Diagrams

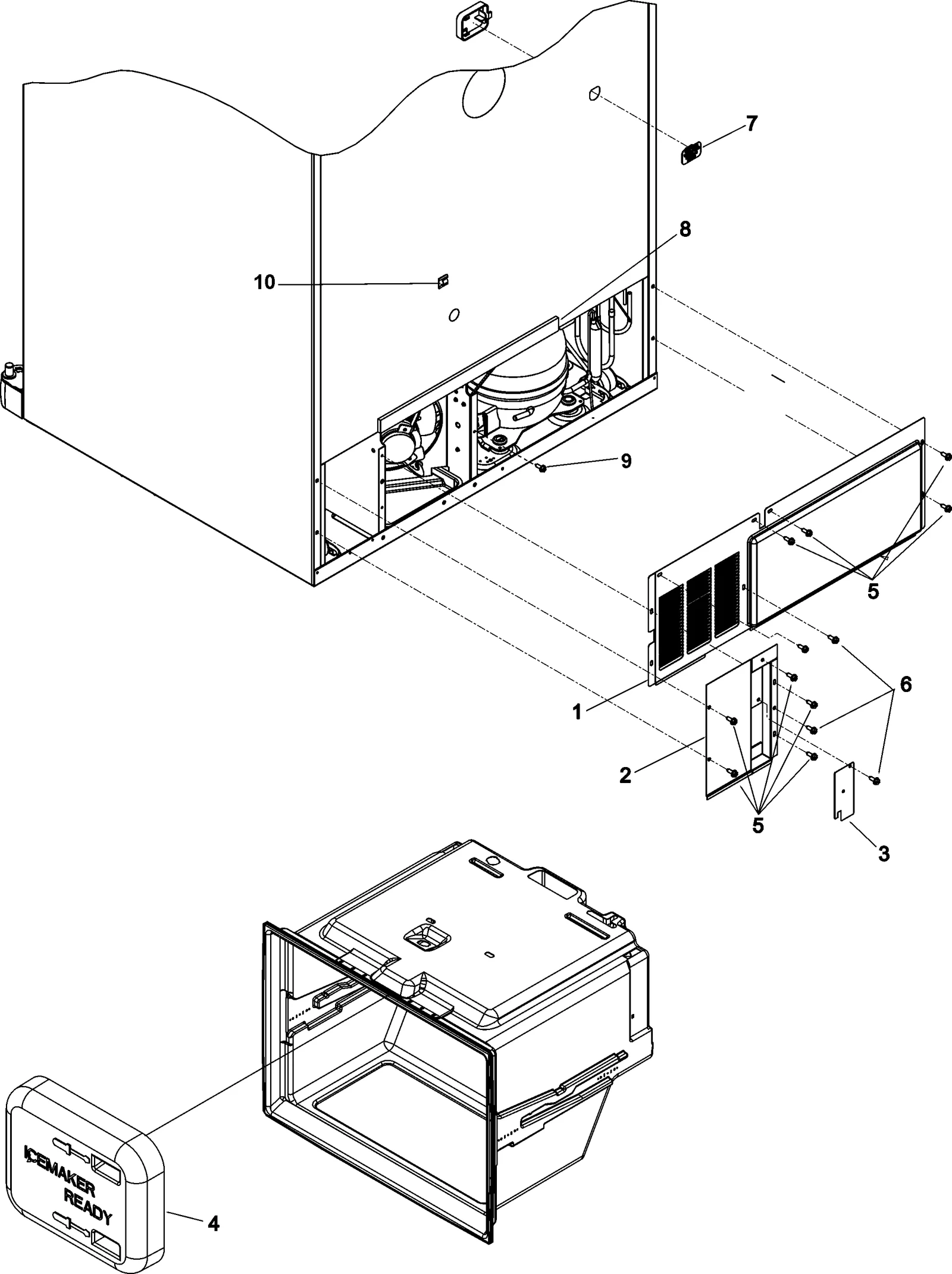

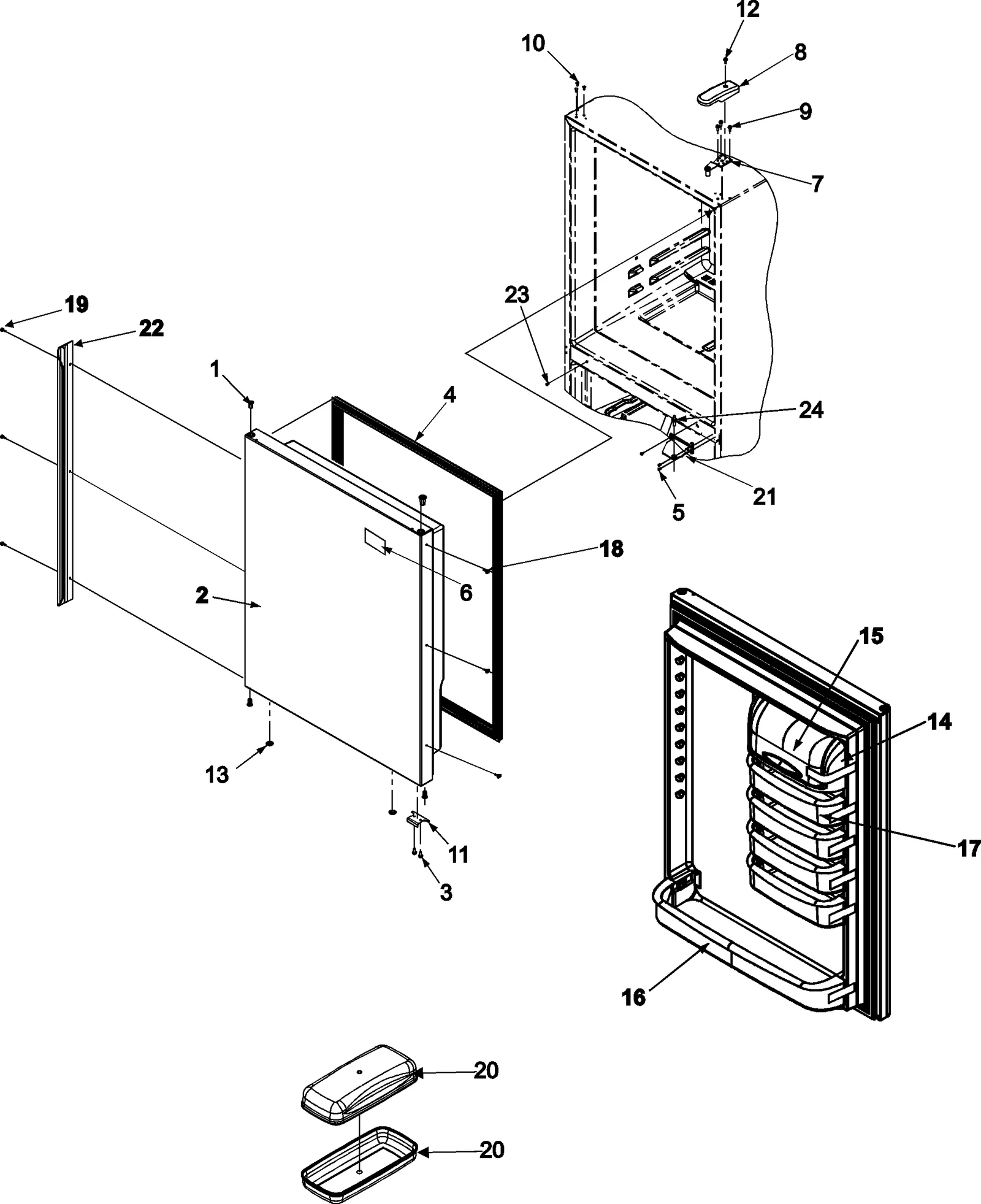

1

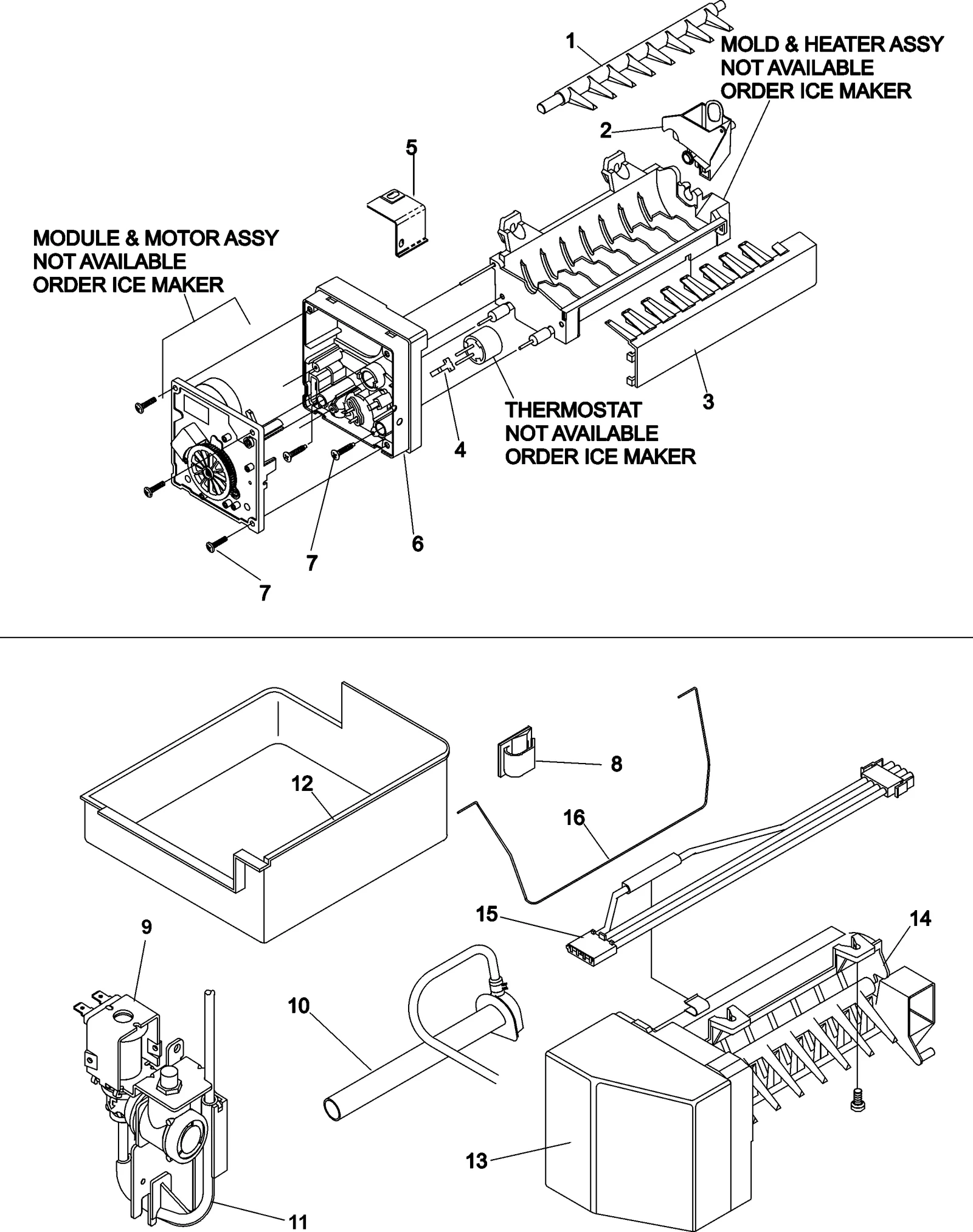

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

1

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

1

Refrigerator Machine Compartment Cover WPL 67006101 Contact Us For Availability

1

Assy, Full G WPL 67003619 Contact Us For Availability

1

Basepan WPL 67006914 Contact Us For Availability

1A

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

1A

Refrigerator Grease WPL 95099-1 Contact Us For Availability

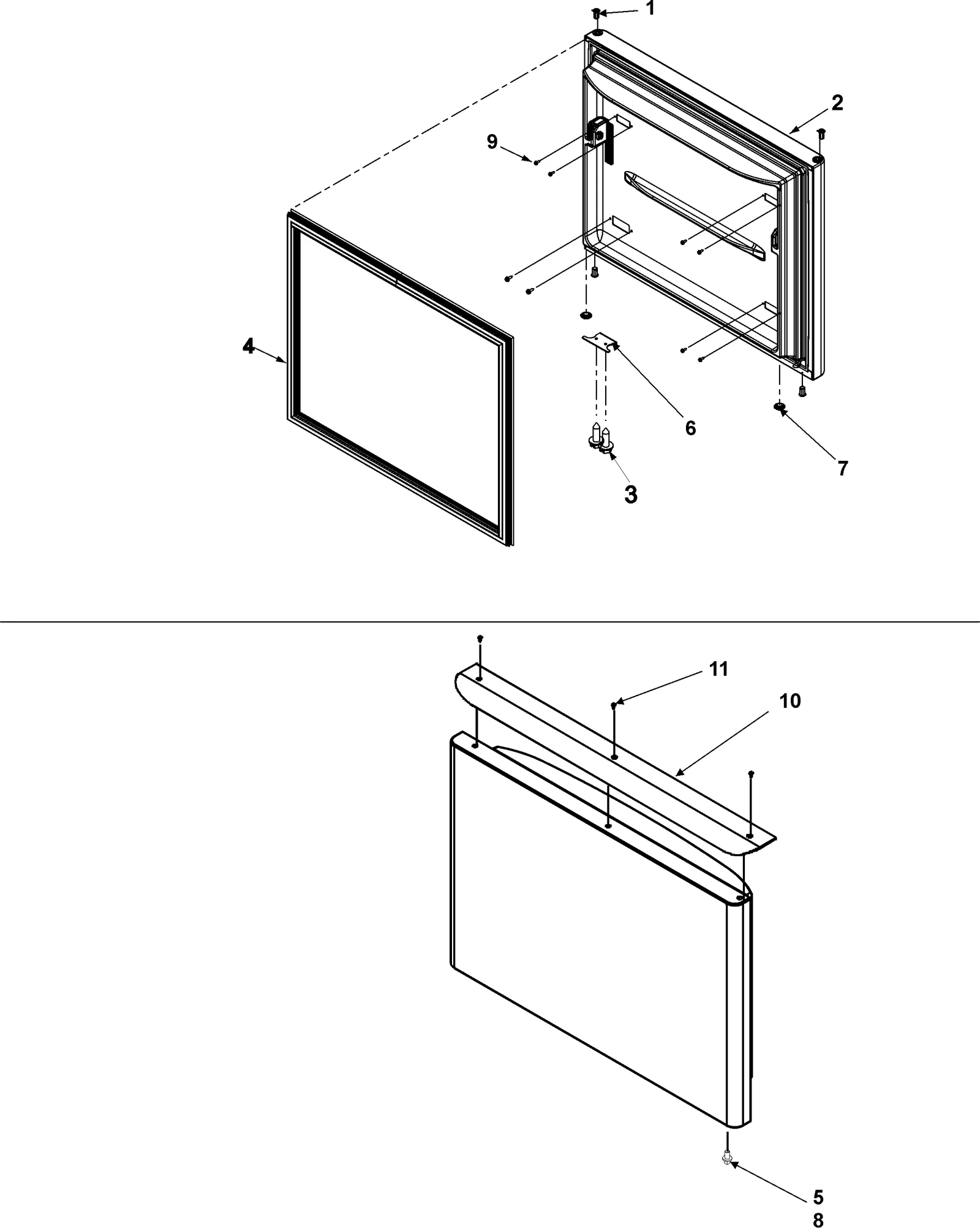

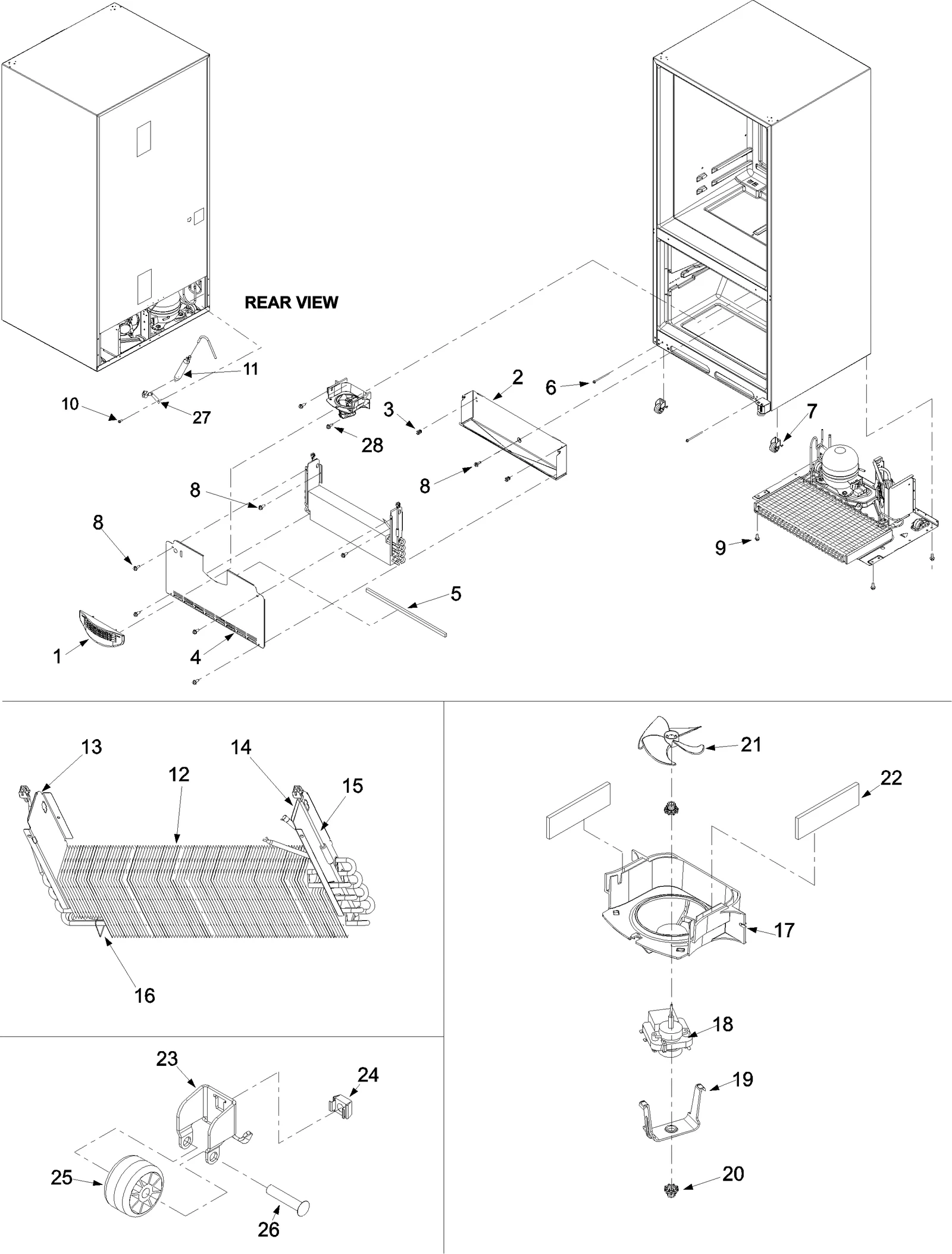

2

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

2

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

2

Refrigerator Water Cover WPL 67001173 Contact Us For Availability

2

Refrigerator Door Foam WPL 67001213 Contact Us For Availability

2

Freezer Door Foam WPL 67001229 Contact Us For Availability

2

SHEET, TECH DATA (Non-Illus) WPL 67006938 Contact Us For Availability

2

Light Module WPL 67003108 Contact Us For Availability

2

Assy., Full WPL 10480441 Contact Us For Availability

2

Refrigerator Shroud Condenser WPL 12575305 Contact Us For Availability

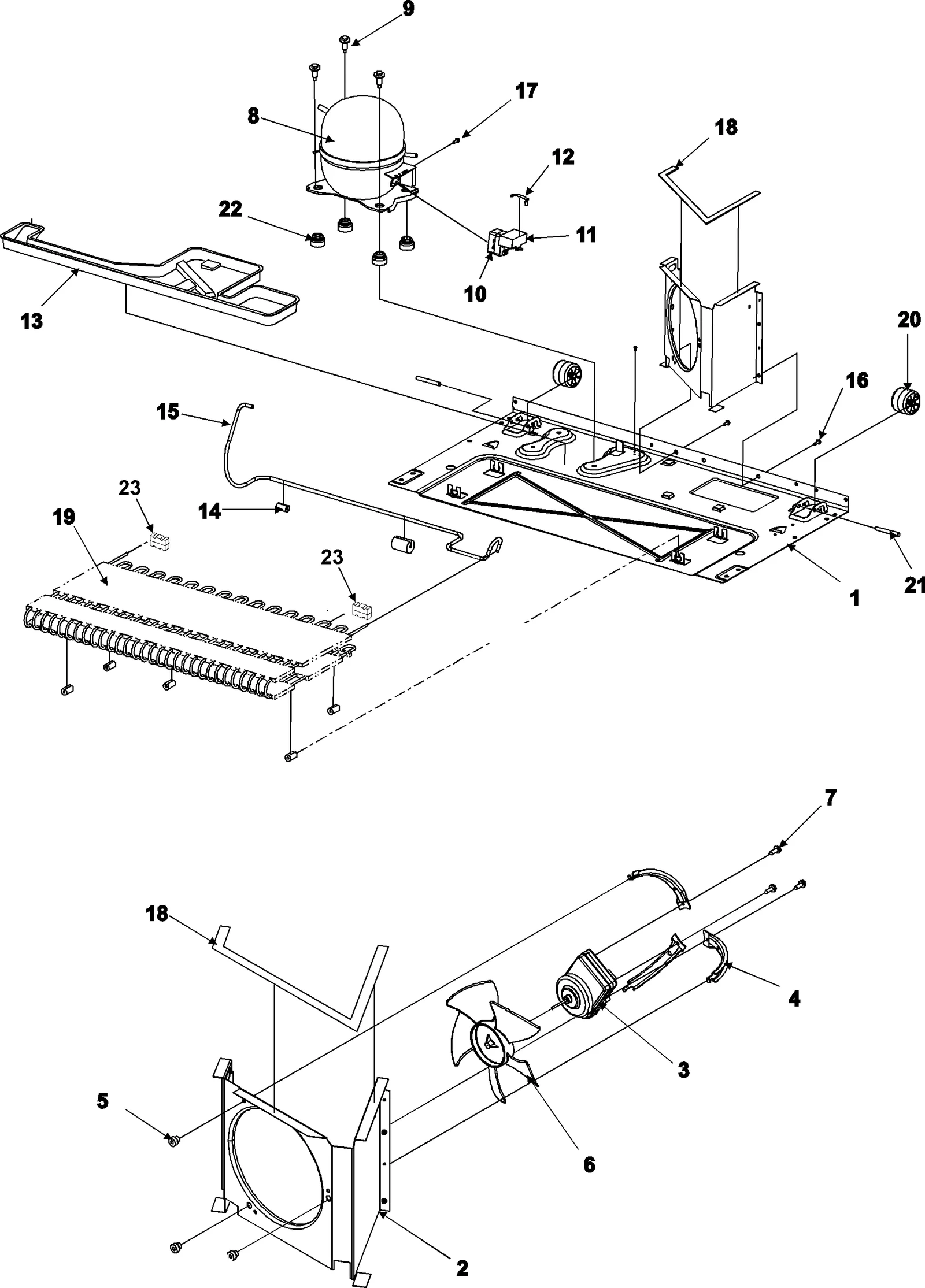

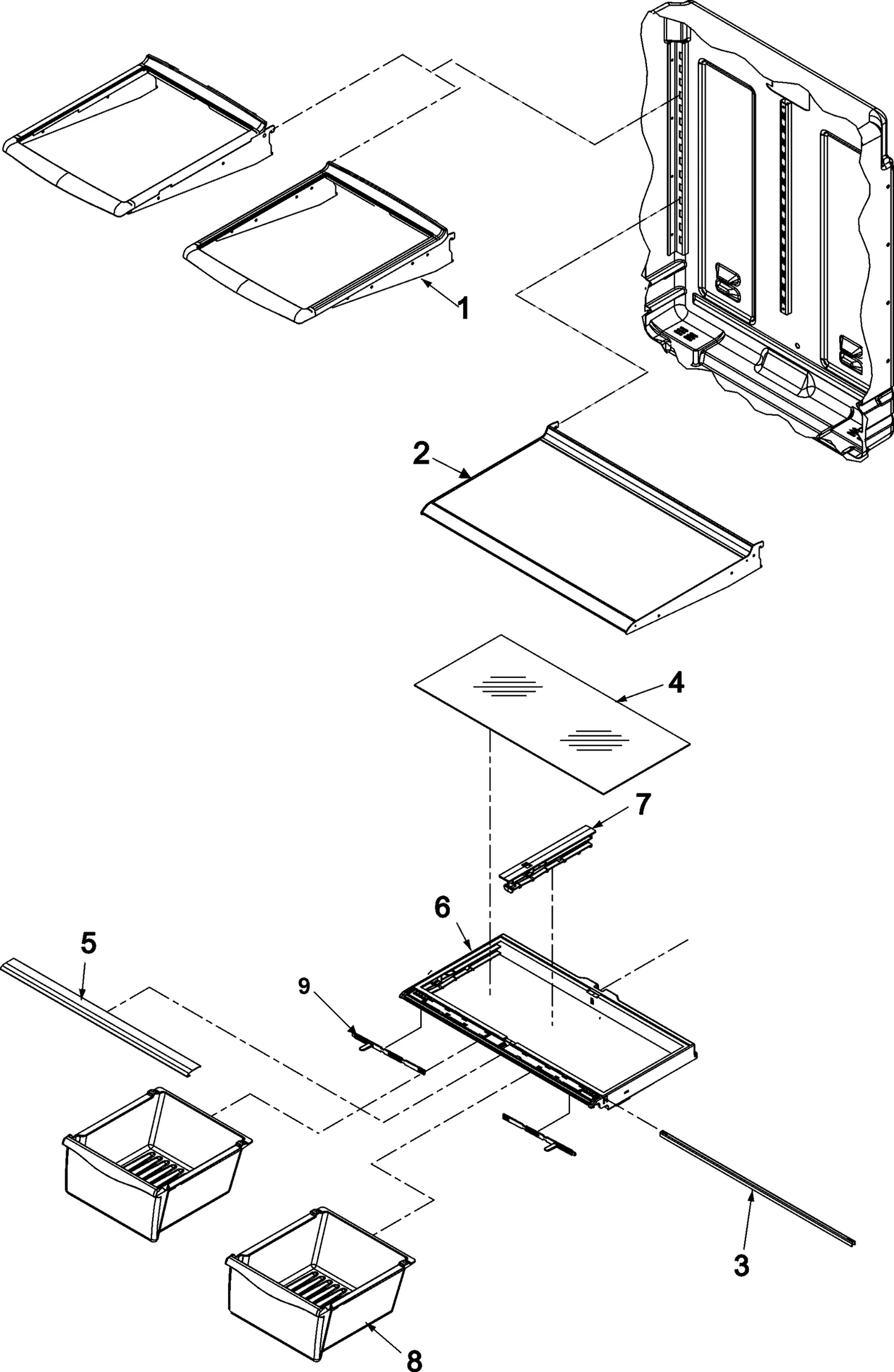

3

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

3

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

3

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

3

Refrigerator Cover Plate WPL 12479901 Contact Us For Availability

3

Refrigerator Clip WPL 10623002 Contact Us For Availability

3

Refrigerator Use and Care Manual WPL W10130112 Contact Us For Availability

3

Refrigerator Lamp Cover WPL 67002301 Contact Us For Availability

3

Refrigerator Condenser Fan Motor WPL 67004432 Contact Us For Availability

4

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

4

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $4.82

4

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

4

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

4

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $143.88

4

Refrigerator Evaporator Cover WPL 67005868 Contact Us For Availability

4

Refrigerator Energy Tag WPL W10130116 Contact Us For Availability

4

Light Logo WPL 67003105 Contact Us For Availability

5

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $16.73

5

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

5

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

5

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $4.99

5

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $82.58

5

Grommet Bracket WPL 61004743 Contact Us For Availability

6

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $47.66

6

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

6

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

6

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $91.92

6

Refrigerator Air Damper Control Knob WPL 67002512 Contact Us For Availability

7

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

7

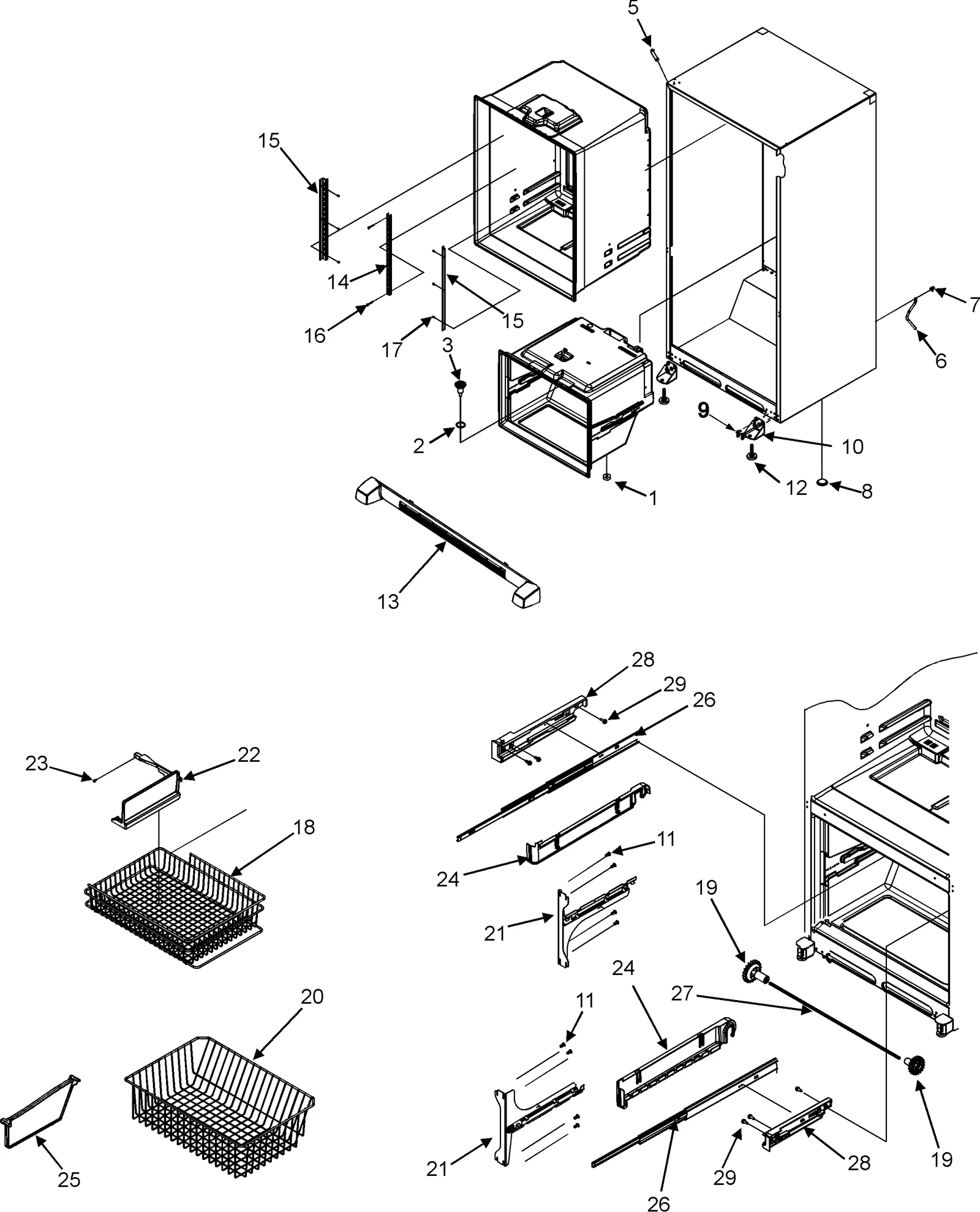

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

7

Inglis Refrigerator Gear Knob WPL 67001033 Contact Us For Availability

7

Fill Label WPL 67005064 Contact Us For Availability

7

Refrigerator Door Vent Plug (White) WPL 10712401 Contact Us For Availability

7

Refrigerator Screw WPL 95105-1 Contact Us For Availability

8

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

8

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $379.31

8

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $93.93

8

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

8

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

8

Inglis Refrigerator Air Damper Belt Tensioner WPL 67001034 Contact Us For Availability

8

Machine Compartment Back Gasket WPL B5759649 Contact Us For Availability

9

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

9

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

9

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.99

9

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

9

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

9

Refrigerator Screw WPL 67006573 Contact Us For Availability

9

Housing WPL 67001035 Contact Us For Availability

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $53.27

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

Wht Fz Hndle WPL 67001236 Contact Us For Availability

W11240743 Whirlpool Refrigerator Screw Backorder WPL W11240743 $8.89

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

Refrigerator Screw WPL 67006491 Contact Us For Availability

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $101.18

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

Inglis Refrigerator Evaporator WPL 12002051 Contact Us For Availability

Refrigerator Wire Harness WPL 67672-1 Contact Us For Availability

Refrigerator Capacitor Clip WPL 67007052 Contact Us For Availability

Double Bracket Damper Washer WPL 67001083 Contact Us For Availability

Refrigerator Ice Maker Shut-Off Arm WPL 68112-1 Contact Us For Availability

Refrigerator Screw WPL 12990514 Contact Us For Availability

Refrigerator Drain Pan WPL 67004713 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Dam, Right R WPL 67001084 Contact Us For Availability

Refrigerator Gear Damper WPL 67001037 Contact Us For Availability

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

Refrigerator Discharge Tube WPL 67004203 Contact Us For Availability

15A

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

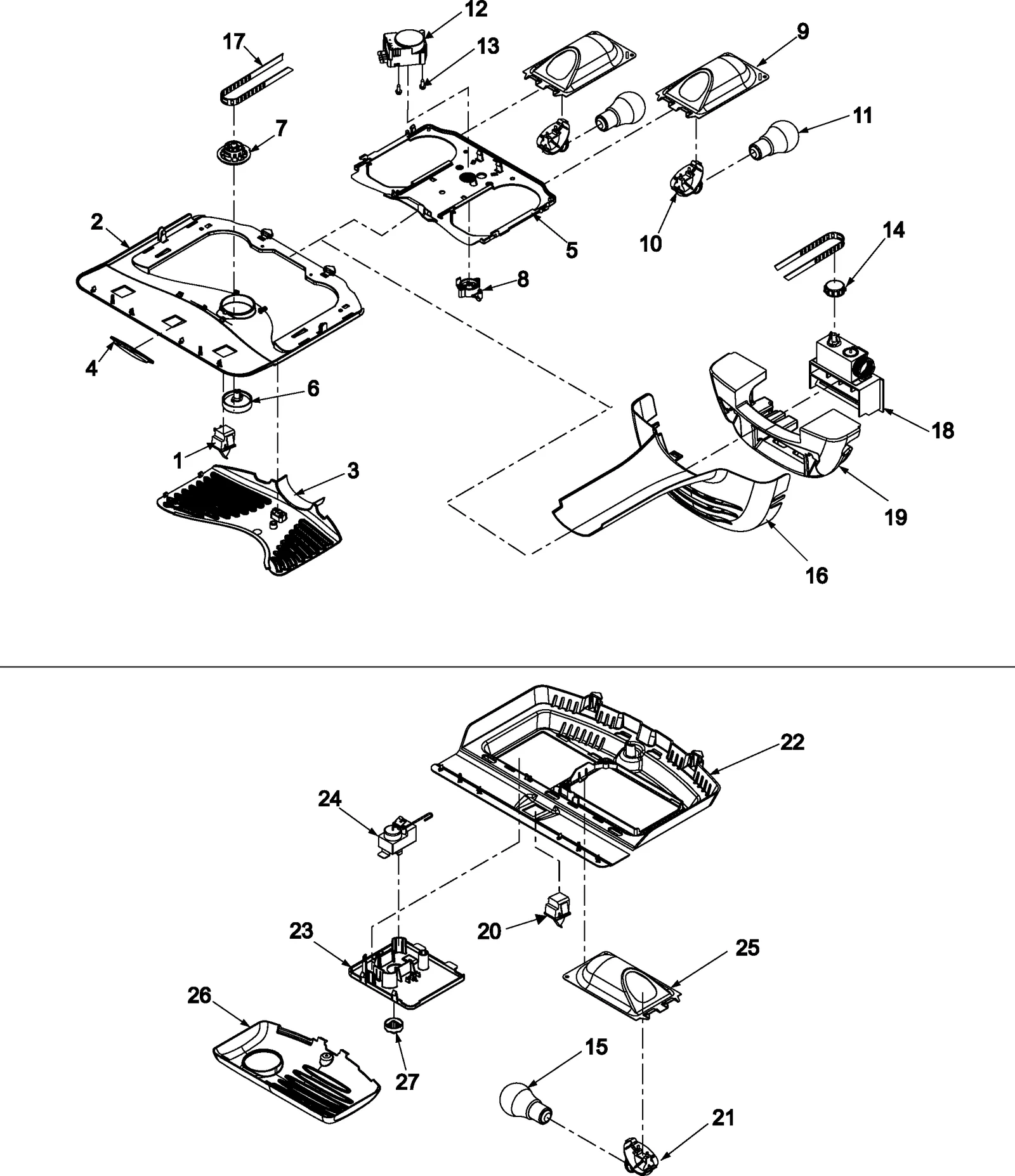

Refrigerator Damper Control WPL 67001039 Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

WP67001021 Whirlpool Refrigerator Bucket Backorder WPL WP67001021 $55.63

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

Refrigerator Evaporator Fan Shroud WPL 67002777 Contact Us For Availability

Refrigerator Damper Belt WPL 67001040 Contact Us For Availability

17A

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $52.96

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

Refrigerator Screw WPL 12991103 Contact Us For Availability

Control Double Bracket Damper Washer WPL 67001041 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

Refrigerator Insulation WPL 67003803 Contact Us For Availability

Refrigerator Condenser Coil WPL 67006133 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP245183 Whirlpool Nut Backorder WPL WP245183 $4.82

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

Refrigerator Butter Tray WPL 67006229 Contact Us For Availability

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

21A

PANEL, FRZ. DOOR (ALM) - Series 11 WPL NO LONGER AVAILABLE Contact Us For Availability

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

Wht Ff Hndle WPL 67001217 Contact Us For Availability

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

Refrigerator Air Duct WPL 68255-1 Contact Us For Availability

Refrigerator Freezer Temperature Control Cove WPL 67001045 Contact Us For Availability

Block, Eps C WPL 67005491 Contact Us For Availability

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $236.52

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $121.76

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

Refrigerator Fill Tube WPL 67666-3 Contact Us For Availability

24A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60

24A

Refrigerator Fill Tube WPL 68306-1 Contact Us For Availability

25

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.49

25

Refrigerator Divider Base WPL 67006644 Contact Us For Availability

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

Refrigerator Drawer Slide WPL 67006607 Contact Us For Availability

Refrigerator Rivet WPL M1205302 Contact Us For Availability

Refrigerator Freezer Light Cover WPL 67001285 Contact Us For Availability

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $77.39

Water Bracket WPL 69363-1 Contact Us For Availability

Inglis Refrigerator Freezer Control Knob WPL 67003420 Contact Us For Availability

28

Refrigerator Adapter WPL 67004864 Contact Us For Availability

28

Sleeve Sensor WPL 67556-1 Contact Us For Availability

28

Harness, Ff WPL 67001043 Contact Us For Availability

28A

Refrigerator Adapter WPL 67004865 Contact Us For Availability

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

29

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $44.41

29

Refrigerator Freezer Harness WPL W10130480 Contact Us For Availability

30

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $7.19

31

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55
