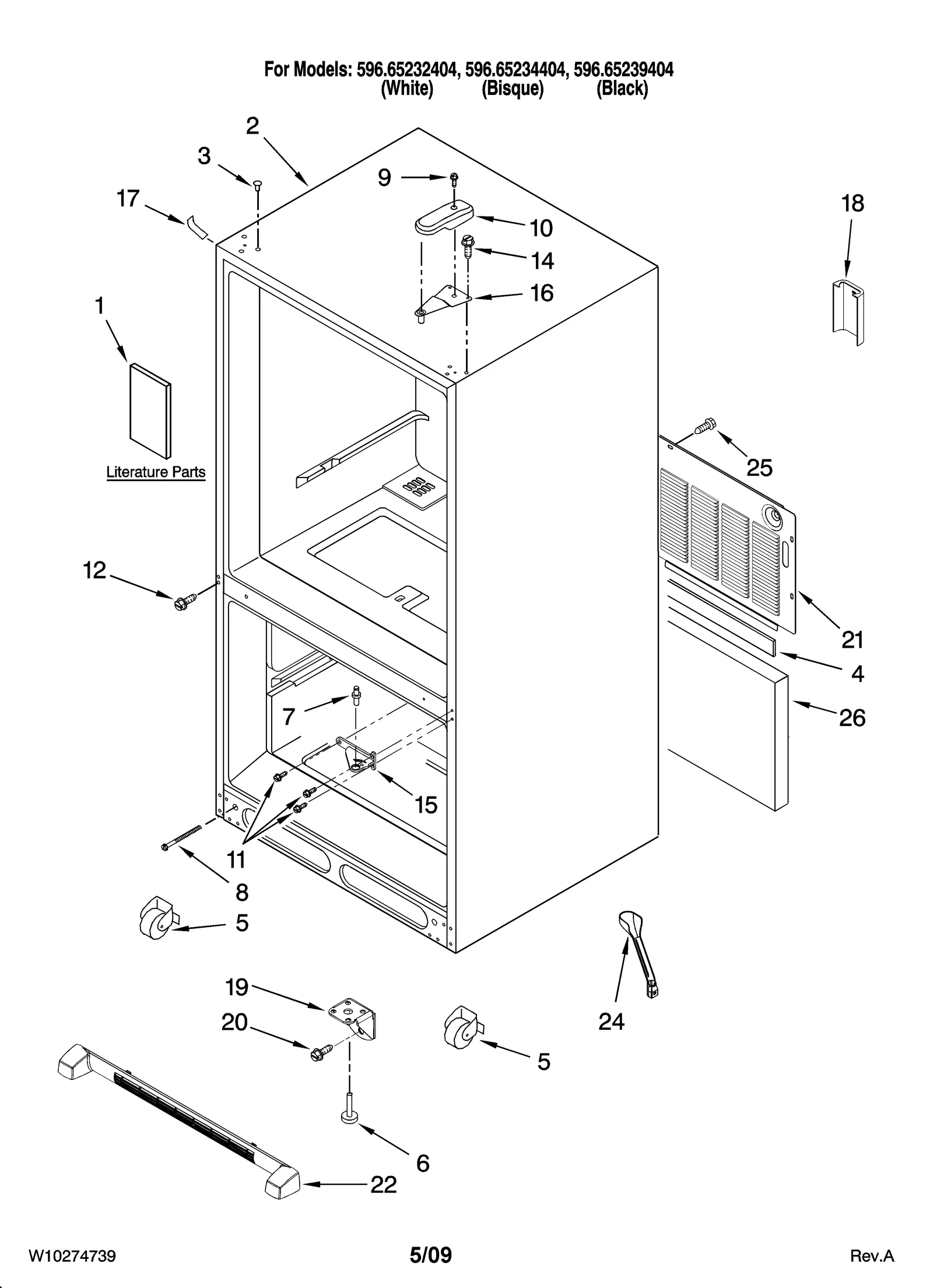

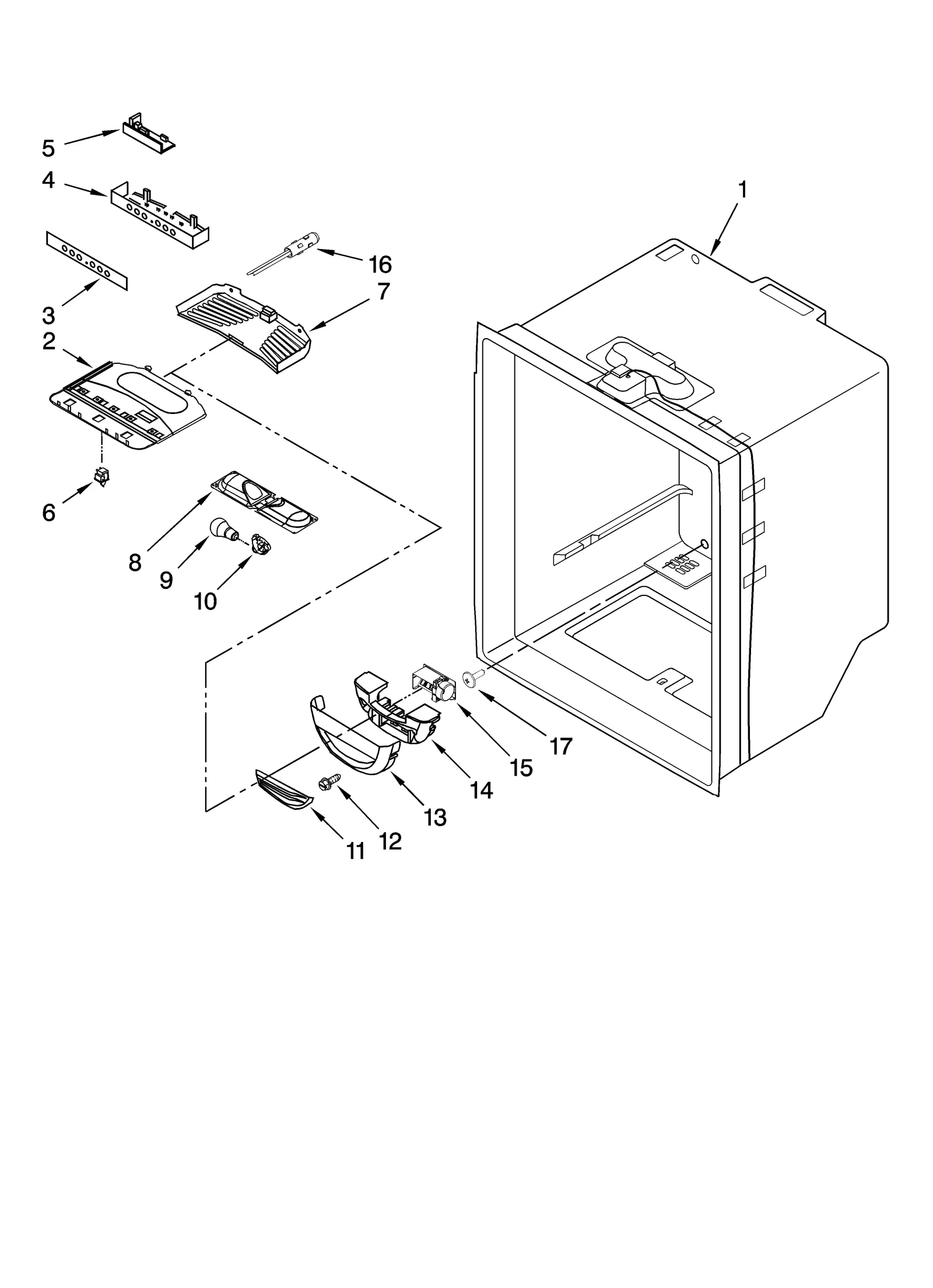

Model Whirlpool 596.65232404 Bottom-Mount Refrigerator (Kenmore 59665232404) – Common Parts &amp; Diagrams

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

1

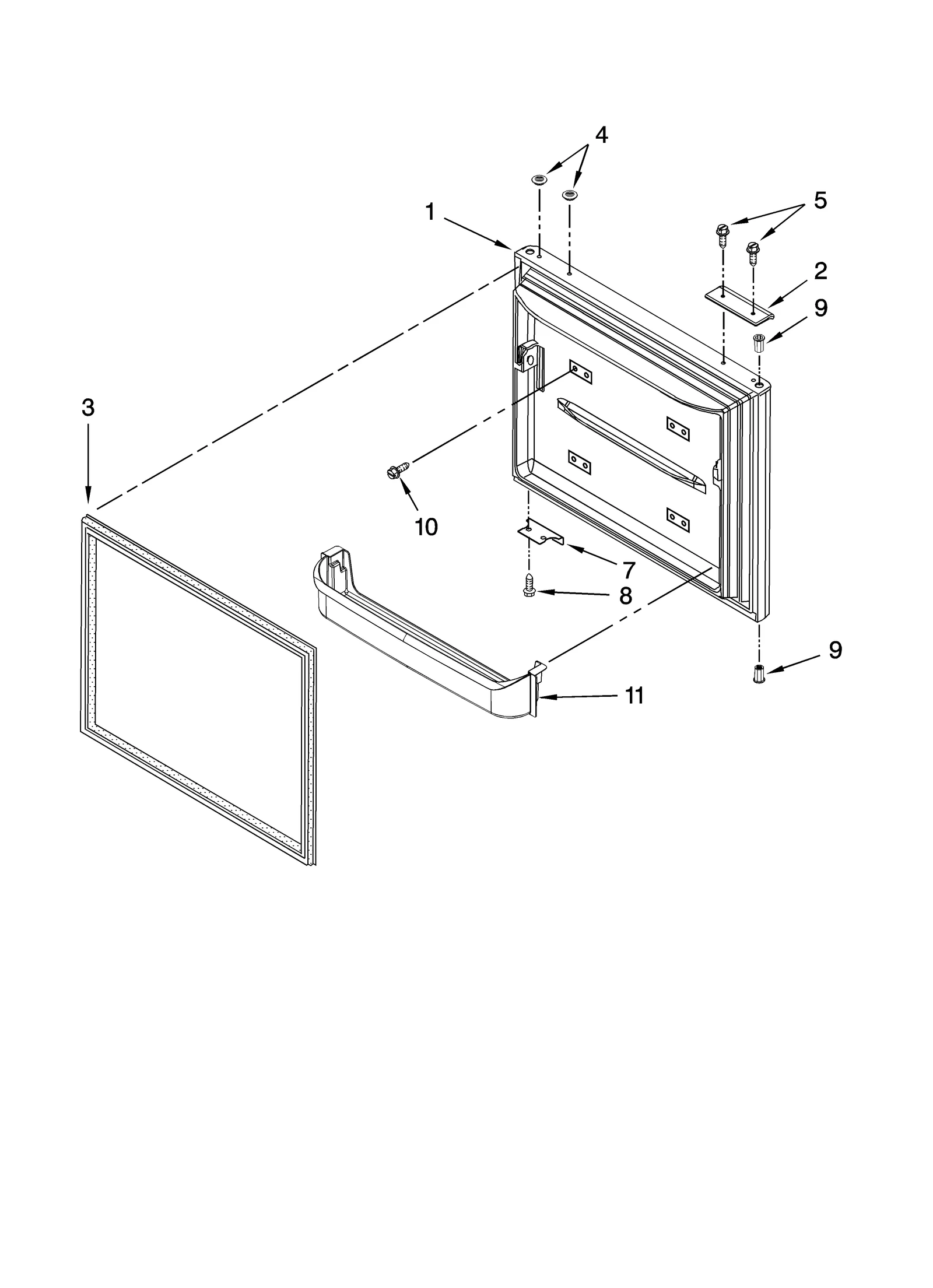

Freezer Door Assembly (White) WPL 13024225WQ Contact Us For Availability

1

Refrigerator Owner's Manual WPL W10224301 Contact Us For Availability

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1A

Freezer Door Assembly (Black) WPL 13024225BQ Contact Us For Availability

1A

Refrigerator Energy Guide WPL W10183271 Contact Us For Availability

1B

Freezer Door Assembly (Bisque) WPL 13024225QQ Contact Us For Availability

1B

Refrigerator Technical Sheet WPL W10238840 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.44

2

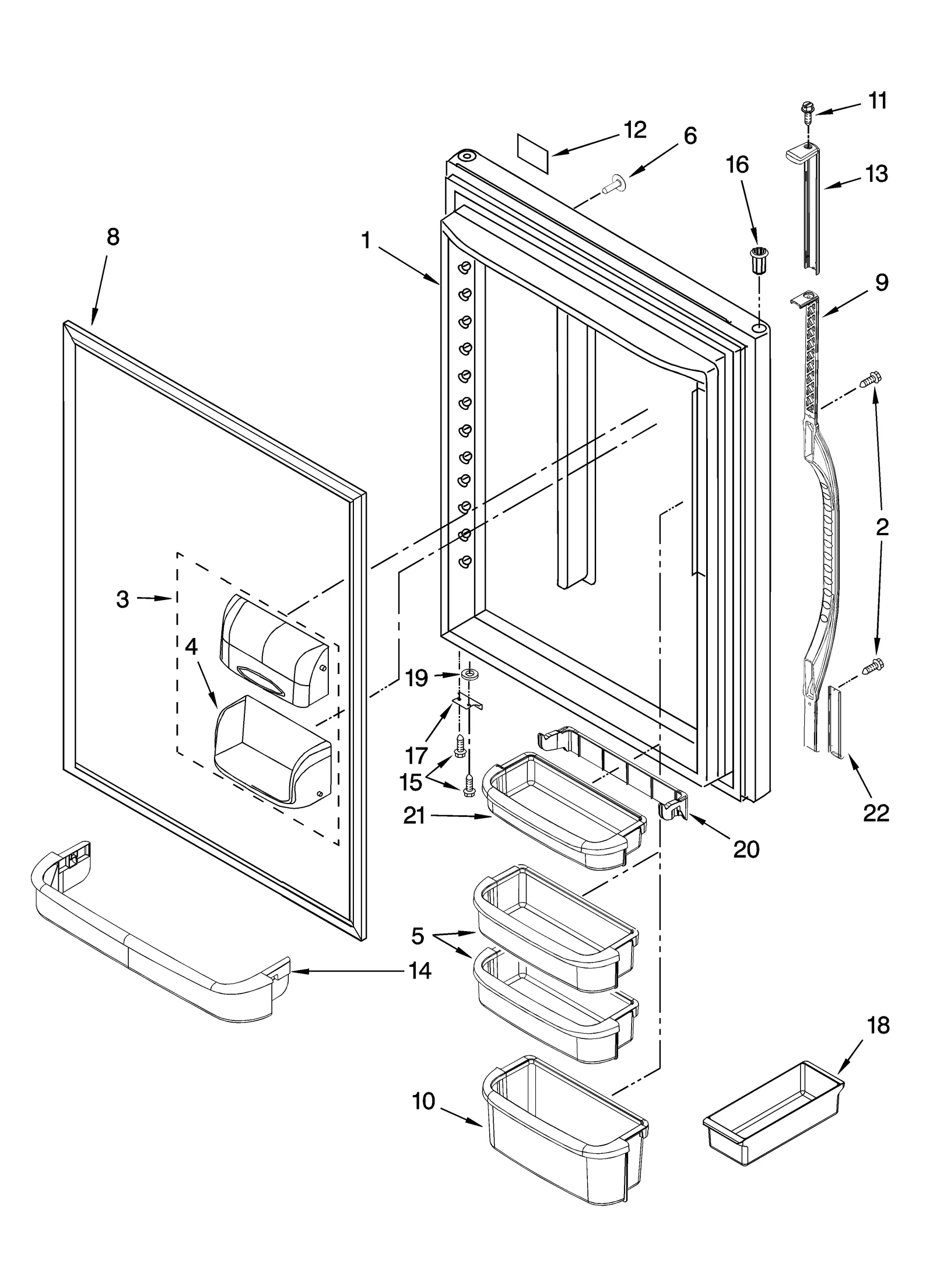

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $129.31

2

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $83.48

2A

67005125 Whirlpool Refrigerator Door Handle ( In Stock WPL 67005125 $71.01

2B

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $102.12

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $121.85

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

3A

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $133.30

3A

Refrigerator Door Hole Plug WPL M0310731 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

4

Refrigerator Light Cover WPL 12804901 Contact Us For Availability

4

BASKET, FREEZER (UPPER) WPL 12694605 Contact Us For Availability

4A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

5

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

5

Refrigerator Roller WPL 12580304 Contact Us For Availability

5

Refrigerator Lower Basket WPL 12754804 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.78

6

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

7

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

7

W10224241 Whirlpool Refrigerator Wire Harness Backorder WPL W10224241 $96.51

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

7A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

7B

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

8

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

9

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

W11702858 Whirlpool Housing Backorder WPL W11702858 $57.71

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $73.37

Divider- B WPL 12693802N Contact Us For Availability

10A

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

10B

Top Cover WPL 12477601C Contact Us For Availability

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $200.28

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $5.30

Refrigerator Retainer WPL 12737601 Contact Us For Availability

12

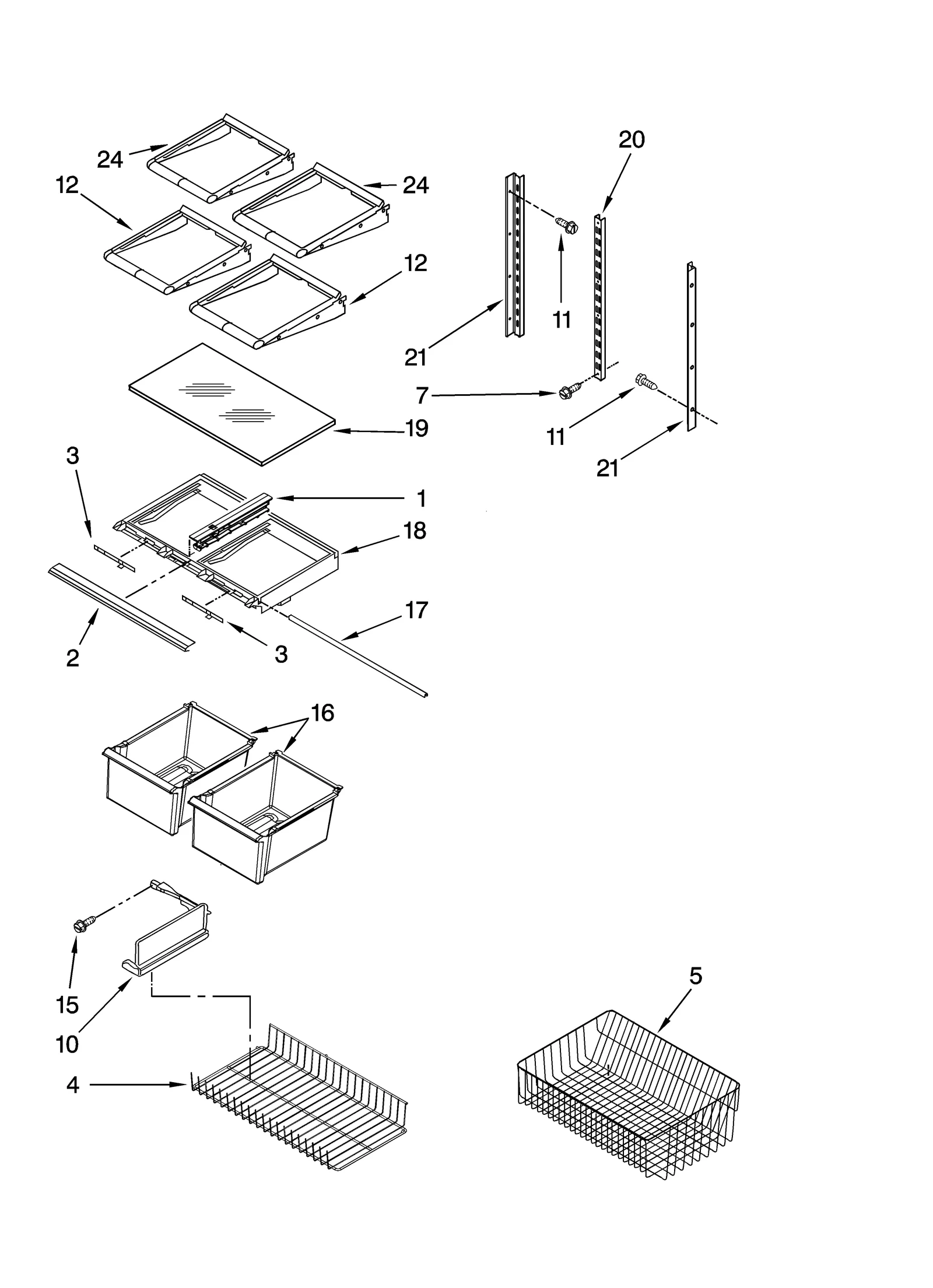

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $150.81

12

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

14

Backorder WPL W11750607 $32.09

14

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $48.68

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $102.24

Refrigerator Evaporator Fan Motor Clip WPL 13058002 Contact Us For Availability

Refrigerator Extension WPL W10206337 Contact Us For Availability

Refrigerator Screw WPL 12990601N Contact Us For Availability

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

16

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $99.60

17

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

17

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $71.65

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17A

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

17B

Corner Cover WPL 12587703C Contact Us For Availability

18

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $12.25

18

WPW10346420 Whirlpool Refrigerator Condenser Backorder WPL WPW10346420 $214.26

18

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $81.22

19

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

19

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

19

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $129.65

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.99

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $126.06

21

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

21

WPW10210979 Whirlpool Refrigerator Back Cover In Stock WPL WPW10210979 $135.58

21

LADDER, SIDE WPL 12710602 Contact Us For Availability

22

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $259.39

22

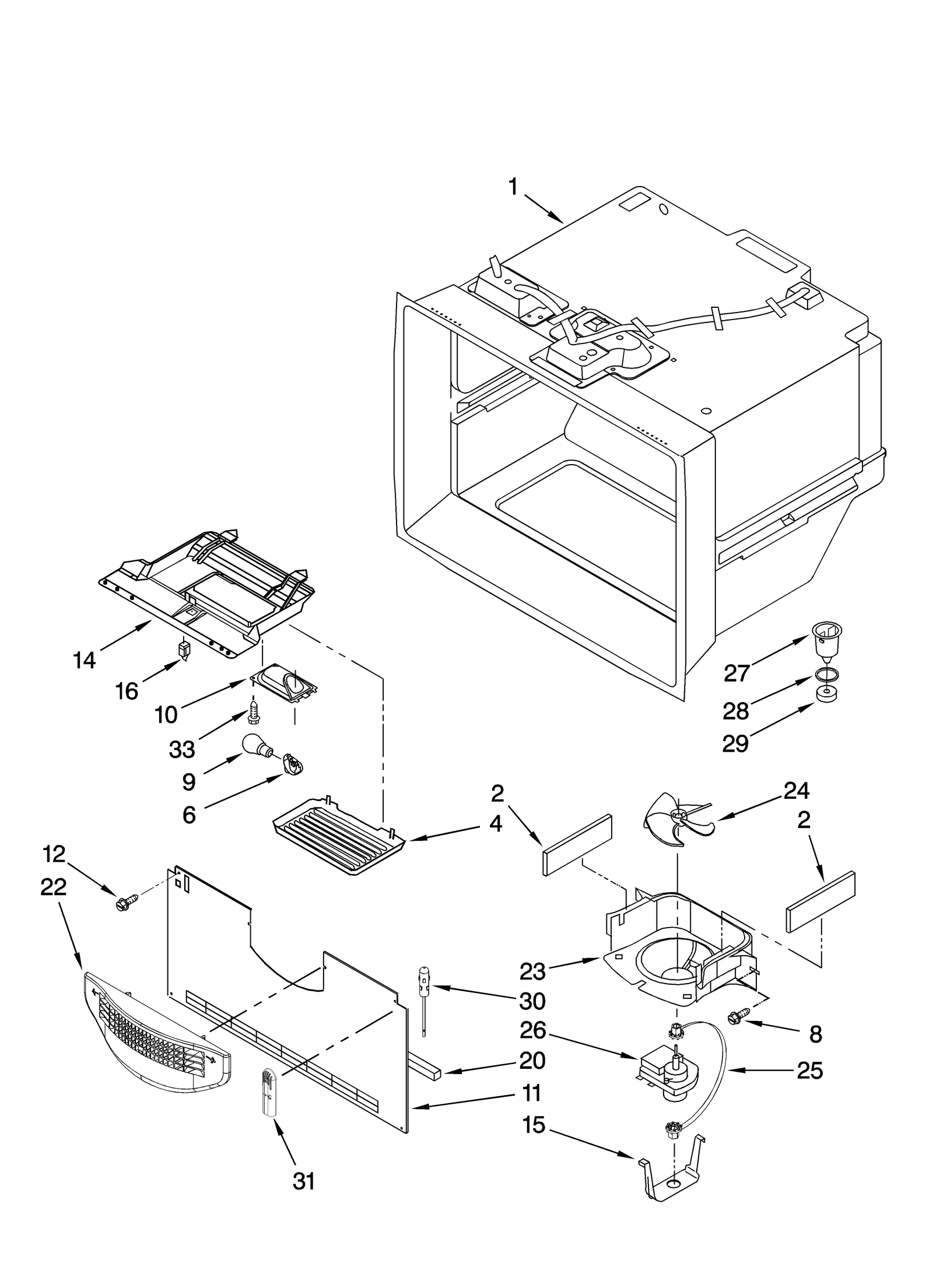

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

22

GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) WPL 12734401W Contact Us For Availability

22B

GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE) WPL 12734401C Contact Us For Availability

23

WPW10167023 Whirlpool Refrigerator Shroud In Stock WPL WPW10167023 $67.69

23

Refrigerator Support Evaporator WPL 12225702 Contact Us For Availability

23A

Refrigerator Support Evaporator WPL 12225602 Contact Us For Availability

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.99

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $60.95

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

SHELF, GLIDE (2) WPL W10245266 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

28

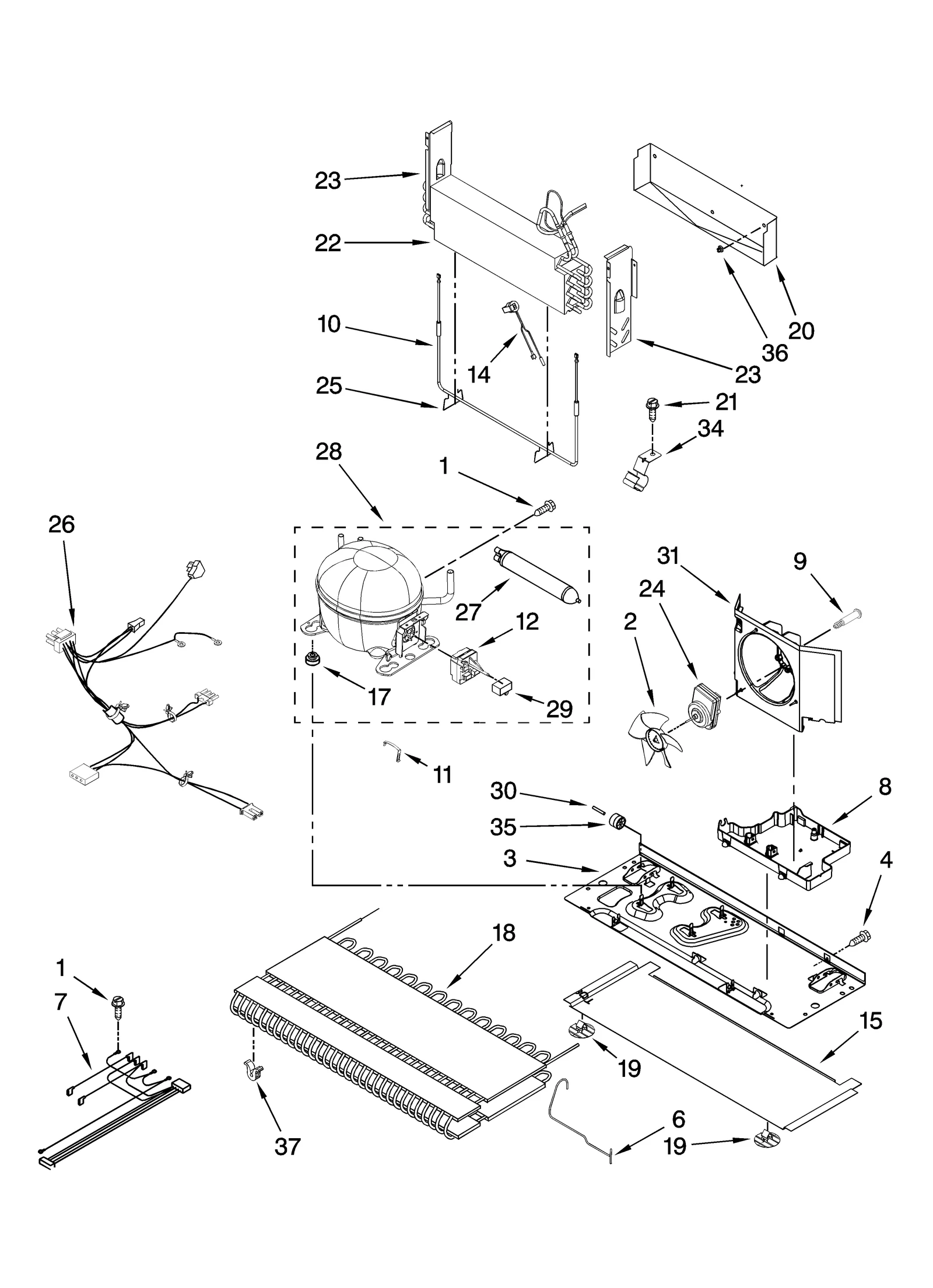

Refrigerator Compressor WPL W10130129 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.77

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $152.88

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability

HARNESS, FZ MODULE WPL 13014801 Contact Us For Availability

Cleaner WPL 31462 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability
