Model Whirlpool 596.62834200 Refrigerator (Kenmore 59662834200) – Common Parts &amp; Diagrams

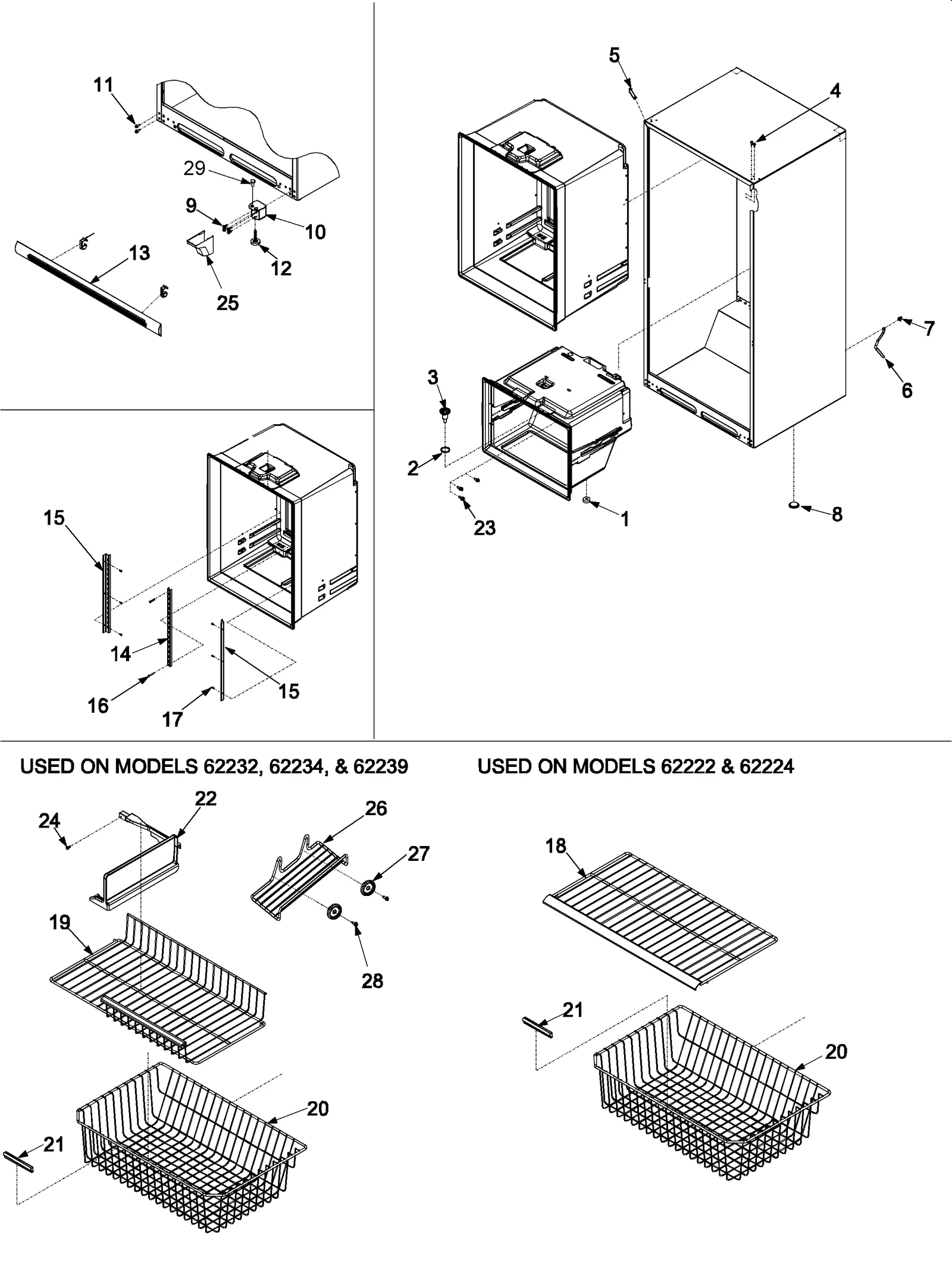

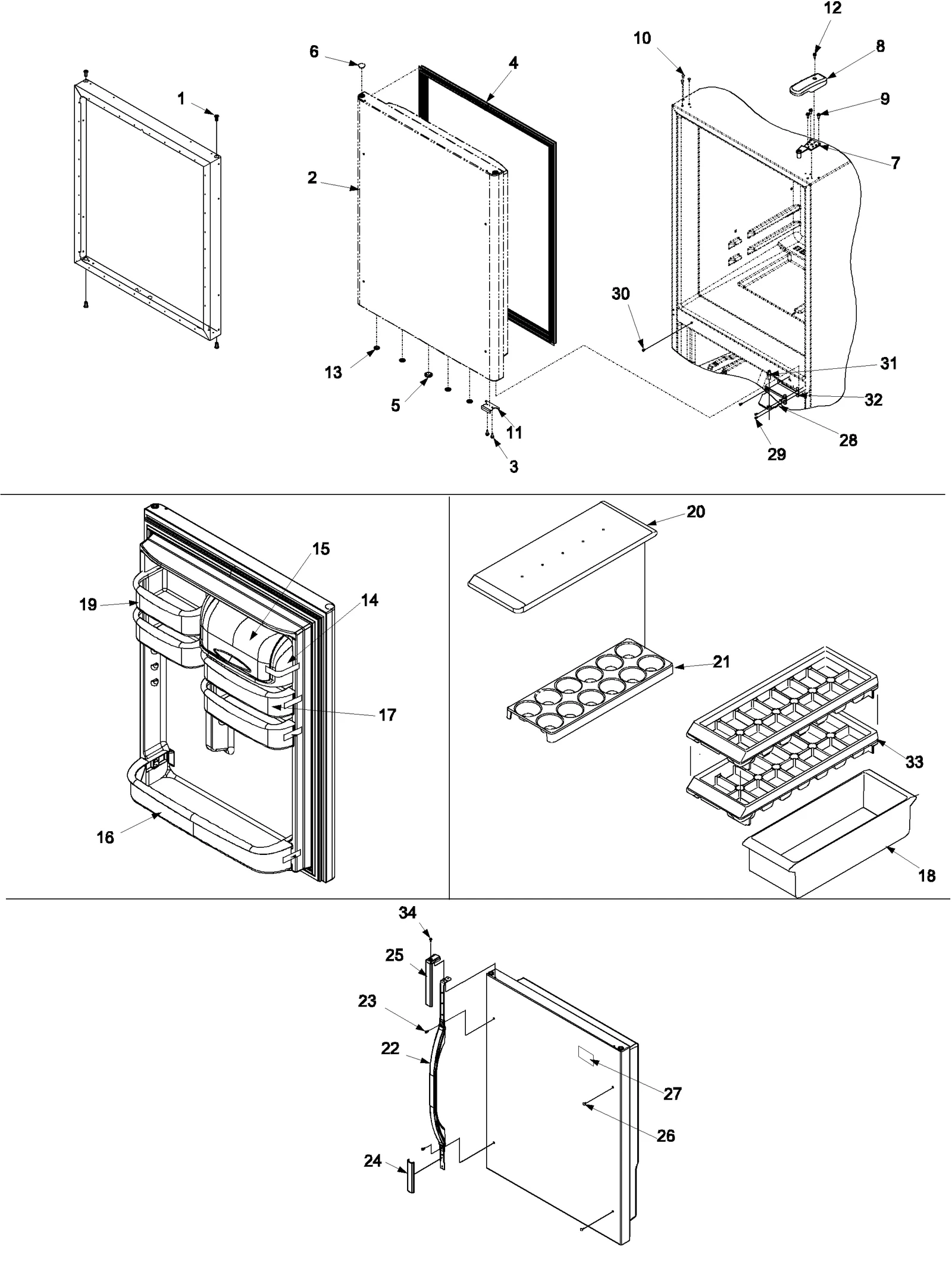

1

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

1

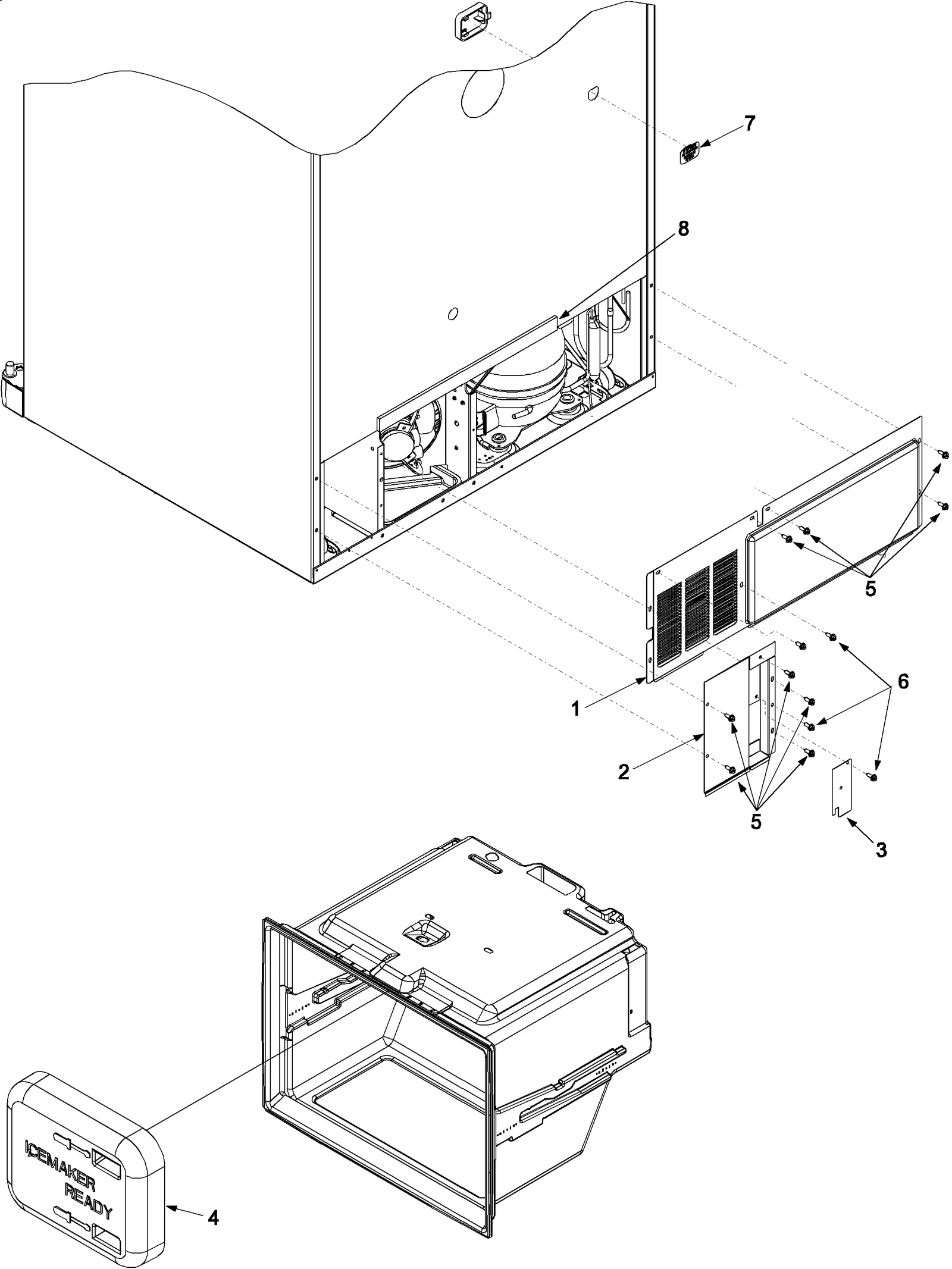

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

1

Toe Grille WPL 67003849 Contact Us For Availability

1

Basepan, Mac WPL 67001170 Contact Us For Availability

1

Refrigerator Door Bushing WPL 10961001 Contact Us For Availability

1A

Bushing Do WPL 10961002 Contact Us For Availability

2

12658501BQ Whirlpool Refrigerator Foam In Pla Backorder WPL 12658501BQ $458.96

2

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

2

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

2

Light Module WPL 67001028 Contact Us For Availability

2

Refrigerator Shroud Condenser WPL 67001090 Contact Us For Availability

2

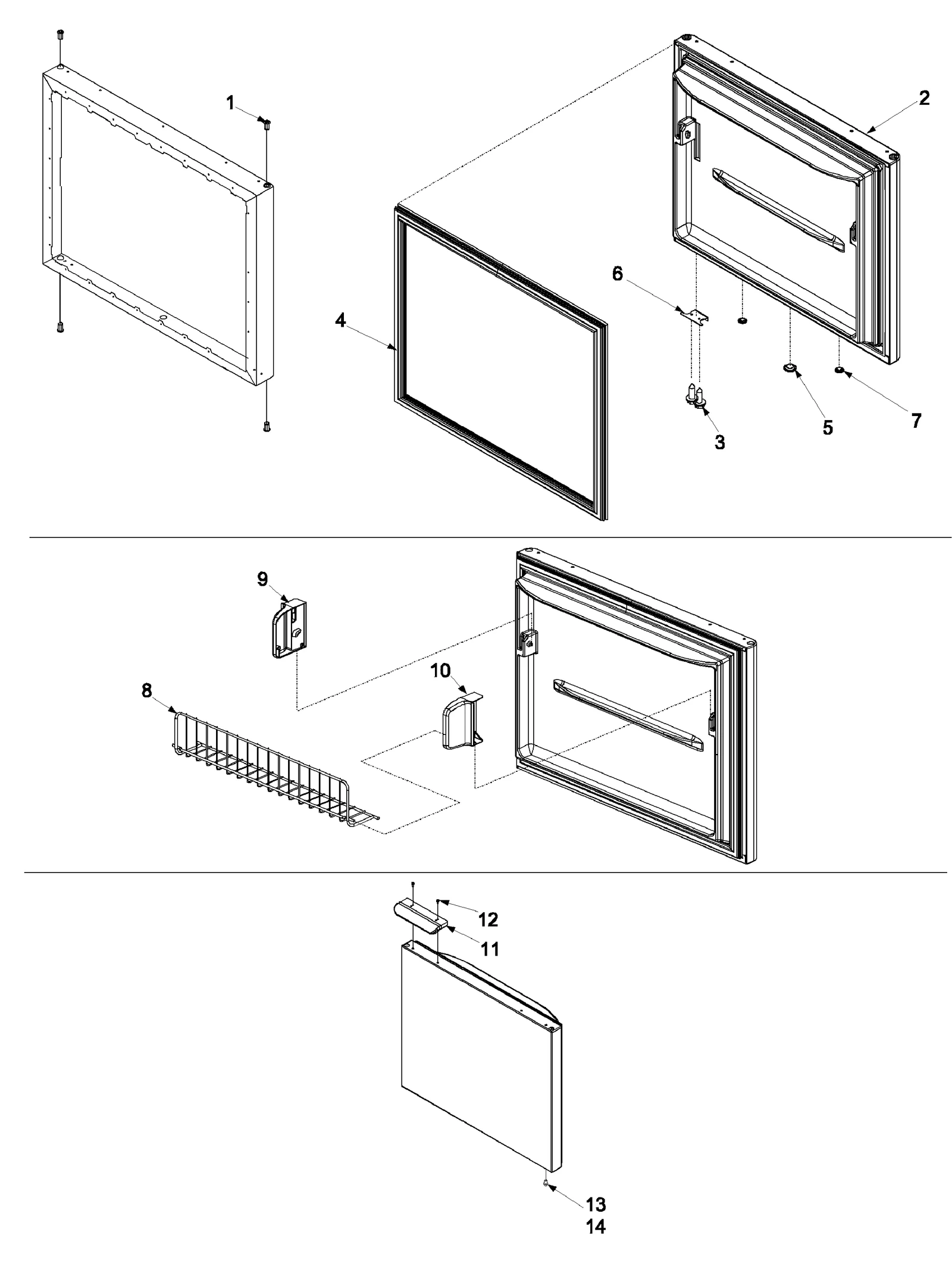

Freezer Door Foam WPL 67001145 Contact Us For Availability

2A

Refrigerator Door Foam WPL 67001137 Contact Us For Availability

2A

Freezer Door Foam WPL 67001146 Contact Us For Availability

2B

Refrigerator Door Foam WPL 67001138 Contact Us For Availability

2B

Freezer Door Foam WPL 67001147 Contact Us For Availability

3

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $55.94

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

3

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

3

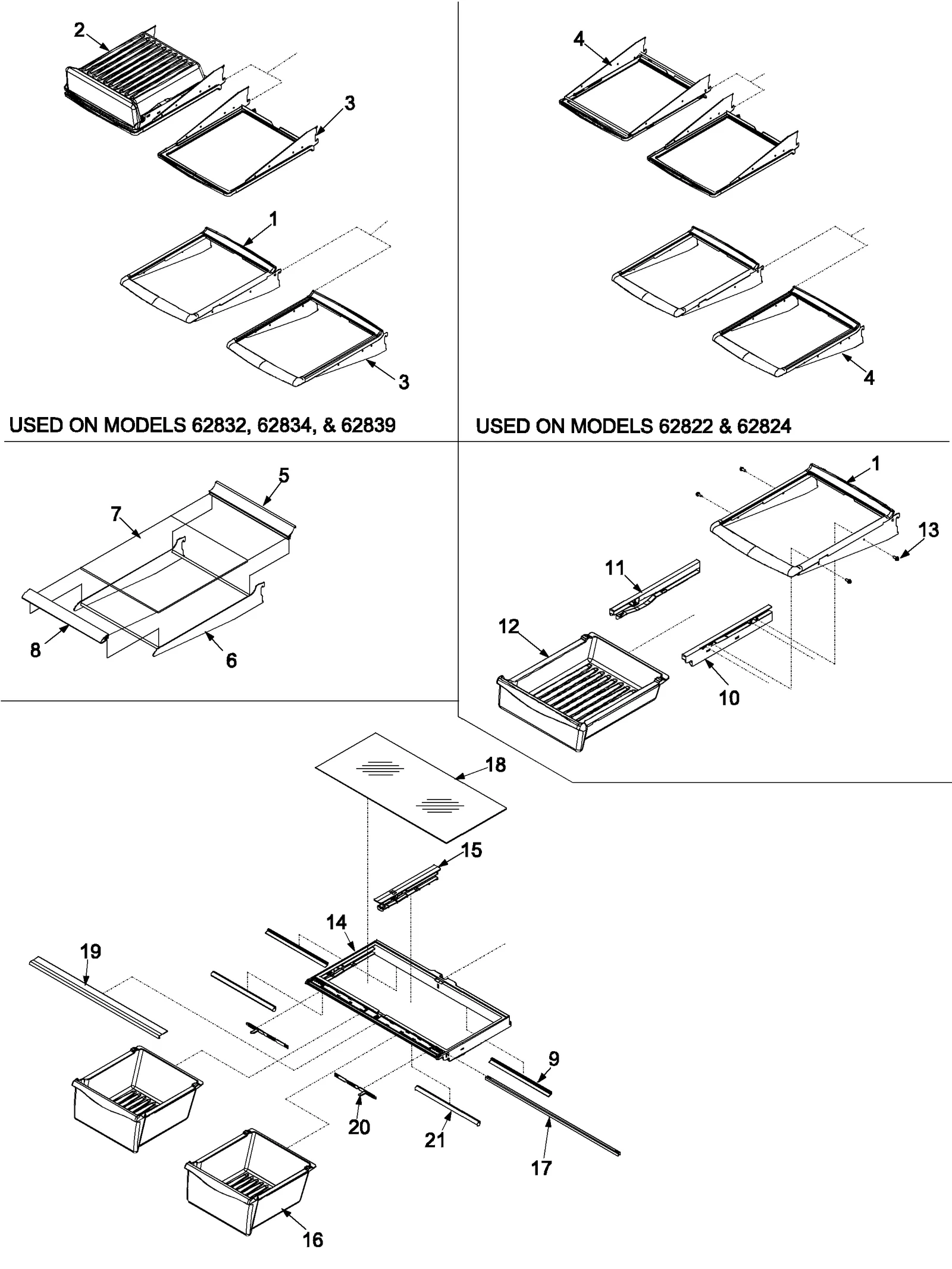

Refrigerator Shelf WPL 67001052 Contact Us For Availability

3

Cover, Ref L WPL 67001029 Contact Us For Availability

3

Refrigerator Clip WPL 10623002 Contact Us For Availability

4

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

4

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

4

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

4

Refrigerator Glass Shelf WPL 10480442 Contact Us For Availability

4

Light Logo WPL 67001030 Contact Us For Availability

4

Refrigerator Evaporator Cover WPL 67001134 Contact Us For Availability

4

Refrigerator Control Bracket WPL 12578801 Contact Us For Availability

4

Rivet-wht WPL B5642901 Contact Us For Availability

4A

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

4A

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $143.88

4A

AMANA REFRIGERATION (Non-Illus) WPL NLA Contact Us For Availability

4B

Rivet Pop WPL 67001065 Contact Us For Availability

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

5

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

5

Refrigerator Shelf WPL 10946012 Contact Us For Availability

5

Refrigerator Gasket WPL A3189320 Contact Us For Availability

5

Refrigerator Grommet Fan WPL 12578701 Contact Us For Availability

5

Button Plug WPL A3080001 Contact Us For Availability

5A

Refrigerator Door Liner Button Hole Plug (Whi WPL A3080002 Contact Us For Availability

5A

Corner Cover WPL 12587702C Contact Us For Availability

5B

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

6

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $89.06

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

6

Refrigerator Glass Shelf WPL 10460114 Contact Us For Availability

6

Refrigerator Knob WPL 67001032 Contact Us For Availability

6

Refrigerator Button Plug WPL M0310308 Contact Us For Availability

6

Refrigerator Drain Tube WPL 67001066 Contact Us For Availability

6A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

6A

Refrigerator Plug Button (Black) WPL M0310336 Contact Us For Availability

6B

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

7

Refrigerator Knob Gear WPL 67001033 Contact Us For Availability

7

Refrigerator Screw WPL M0223816 Contact Us For Availability

7

Refrigerator Shelf Frame WPL 12204808 Contact Us For Availability

7

Refrigerator Roller WPL 67001082 Contact Us For Availability

7A

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

8

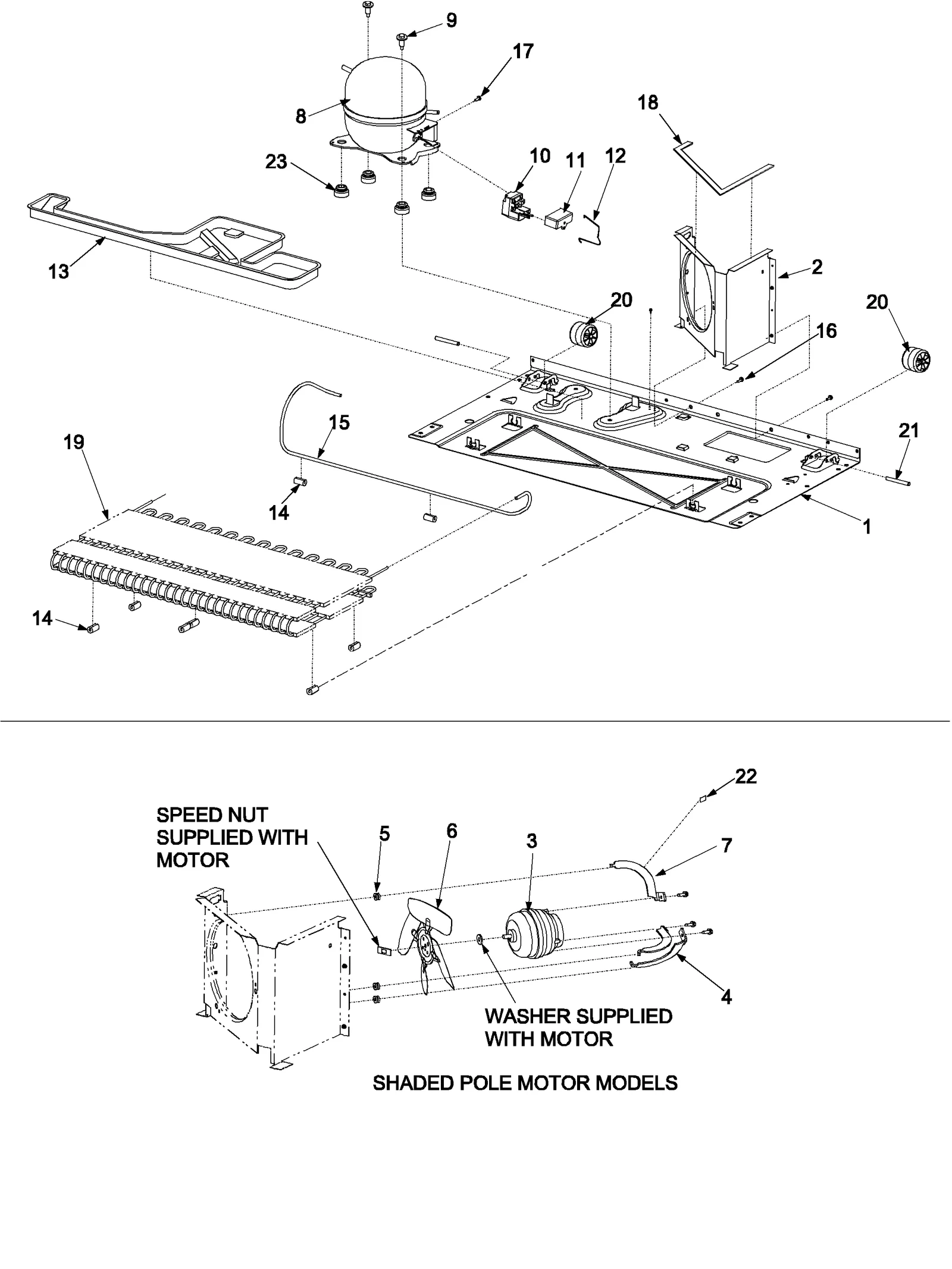

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $379.31

8

Tensioner, B WPL 67001034 Contact Us For Availability

8

Refrigerator Shelf WPL 10459930 Contact Us For Availability

8

Spring, An WPL A1055105 Contact Us For Availability

8

Basket, Fz F WPL 67001148 Contact Us For Availability

8A

Top Cover WPL 67001013 Contact Us For Availability

8B

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

9

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $70.72

9

Rear Seal WPL 67001159 Contact Us For Availability

9

Housing WPL 67001035 Contact Us For Availability

9

Refrigerator Screw WPL M0260242 Contact Us For Availability

9

Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability

9

Refrigerator Freezer End Cap WPL 67001026 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

WP12555902 Whirlpool Refrigerator Overload In Stock WPL WP12555902 $90.70

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.53

Refrigerator Stud WPL M0580205 Contact Us For Availability

Refrigerator Freezer End Cap WPL 67001027 Contact Us For Availability

Refrigerator Hinge WPL 67001068 Contact Us For Availability

10A

Refrigerator Plug WPL M0310731 Contact Us For Availability

10B

Refrigerator Button Plug WPL M0310738 Contact Us For Availability

67005125 Whirlpool Refrigerator Door Handle ( In Stock WPL 67005125 $71.01

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $44.02

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

11A

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $102.12

11B

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $129.31

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $259.39

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.78

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $101.18

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $107.16

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

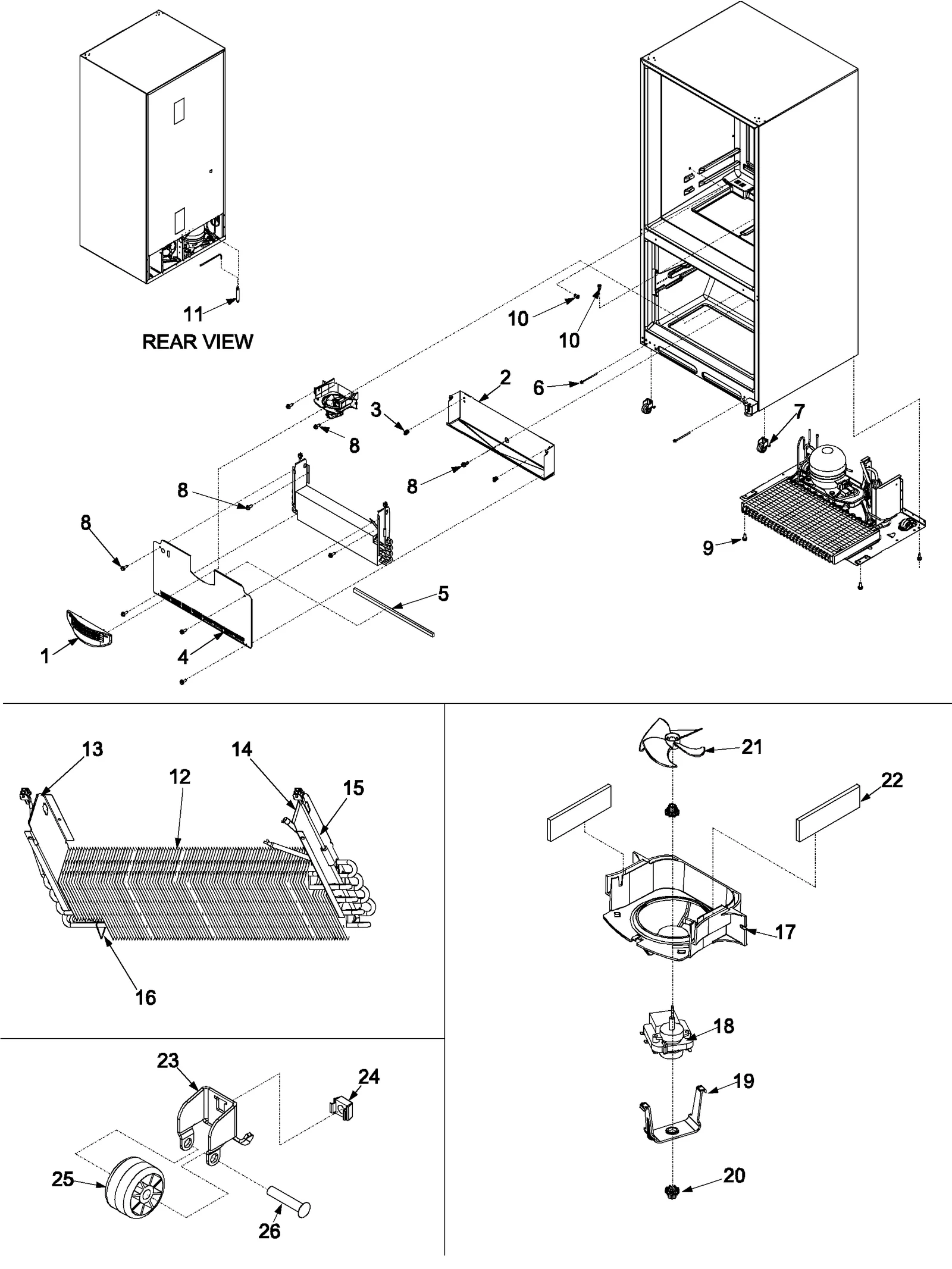

Refrigerator Evaporator WPL 67003718 Contact Us For Availability

Refrigerator Strap WPL 12576801 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.82

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Refrigerator Screw WPL M0216705 Contact Us For Availability

Double Bracket Damper Washer WPL 67001083 Contact Us For Availability

Refrigerator Drain Pan WPL 67001091 Contact Us For Availability

Toe Grille WPL 67001161 Contact Us For Availability

13A

Toe Grille WPL 67001162 Contact Us For Availability

13B

Toe Grille WPL 67001163 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $4.99

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $91.92

Refrigerator Gear Damper WPL 67001037 Contact Us For Availability

Dam, Right R WPL 67001084 Contact Us For Availability

14A

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $20.60

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

Gasket Damper WPL 67001038 Contact Us For Availability

Refrigerator Discharge Tube WPL 67001171 Contact Us For Availability

Refrigerator Ladder WPL 12614201 Contact Us For Availability

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $93.93

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

Refrigerator Damper Control WPL 67001039 Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

Refrigerator Belt Damper WPL 67001040 Contact Us For Availability

Refrigerator Shroud Evaporator WPL 67001086 Contact Us For Availability

Refrigerator Bucket WPL 67001020 Contact Us For Availability

17A

WP67001021 Whirlpool Refrigerator Bucket Backorder WPL WP67001021 $55.63

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

Control Double Bracket Damper Washer WPL 67001041 Contact Us For Availability

Eggbin WPL 10423131 Contact Us For Availability

Refrigerator Freezer Thermostat Shelf WPL 67001164 Contact Us For Availability

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $82.58

Refrigerator Insulation WPL 67001042 Contact Us For Availability

Refrigerator Motor Bracket WPL 12217805 Contact Us For Availability

Refrigerator Bucket WPL 67001140 Contact Us For Availability

Refrigerator Freezer Shelf Glide WPL 67001165 Contact Us For Availability

19A

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $52.96

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $172.74

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

Refrigerator Lid WPL 10436404 Contact Us For Availability

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Refrigerator Seal WPL 67001158 Contact Us For Availability

Refrigerator Freezer Light Cover WPL 67001048 Contact Us For Availability

Refrigerator Tray WPL 10436506 Contact Us For Availability

Refrigerator Basket Handle WPL 10508506 Contact Us For Availability

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

Retainer WPL 67001258 Contact Us For Availability

Gasket Protector WPL 67001096 Contact Us For Availability

Refrigerator Handle WPL 67001121 Contact Us For Availability

Refrigerator Divider Base WPL 67001078 Contact Us For Availability

22A

Refrigerator Handle WPL 67001122 Contact Us For Availability

22B

Ref Dr Handl WPL 67001124 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

Crisper Assembly WPL 67001196 Contact Us For Availability

Freezer Complete Panel WPL 67001045 Contact Us For Availability

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $4.99

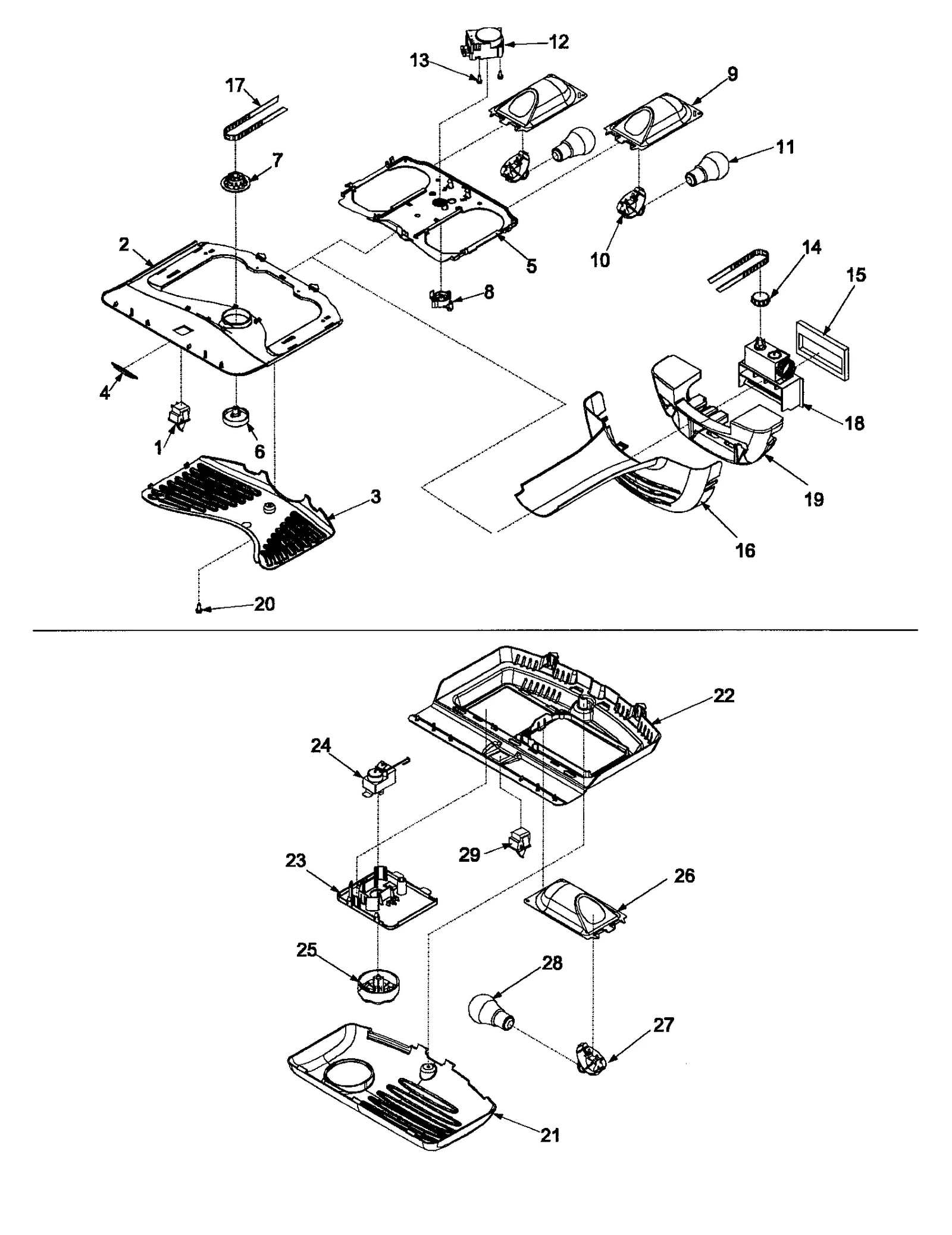

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $121.76

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

Refrigerator Handle Trim WPL 67001142 Contact Us For Availability

24A

Refrigerator Handle Trim WPL 67001143 Contact Us For Availability

24B

Refrigerator Handle Trim WPL 67001144 Contact Us For Availability

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.49

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

Refrigerator Freezer Control Knob WPL 67001047 Contact Us For Availability

Trim, Top Ha WPL 67001127 Contact Us For Availability

Refrigerator Hinge Cover (Black) WPL 12561901B Contact Us For Availability

25A

Refrigerator Handle Trim WPL 67001128 Contact Us For Availability

25A

Bisq Hng Cov WPL 12561901C Contact Us For Availability

25B

Trim, Top Ha WPL 67001129 Contact Us For Availability

25B

Lo Hnge Cov WPL 12561901W Contact Us For Availability

26

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

26

Refrigerator Rivet WPL M1205302 Contact Us For Availability

26

Ice Save Rck WPL 12646501 Contact Us For Availability

26A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

27

Refrigerator Clip WPL M0104102 Contact Us For Availability

27

Refrigerator Evaporator Harness WPL 67001135 Contact Us For Availability

27

Refrigerator Tag WPL 12329501 Contact Us For Availability

27A

Refrigerator Tag WPL 12329503 Contact Us For Availability

27B

Refrigerator Nameplate WPL 12329504 Contact Us For Availability

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $64.60

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $33.13

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $4.99

28A

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

29

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

29

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

29

Refrigerator Parts Manual WPL 67001200 Contact Us For Availability

30

Refrigerator Technical Sheet WPL 12642403 Contact Us For Availability

30

Harness, Ff WPL 67001043 Contact Us For Availability

31

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

31

Refrigerator Owner's Manual WPL 12642703 Contact Us For Availability

31

Refrigerator Freezer Harness WPL 67001049 Contact Us For Availability

32

Refrigerator Energy Tag WPL 67001203 Contact Us For Availability

32A

TAG, ENERGY (Non-Illus) WPL 67001204 Contact Us For Availability

33

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $26.05

34

Refrigerator Screw WPL 12248201 Contact Us For Availability
