Model Whirlpool 4KSRS27QFA00 REFRIGERATOR – Common Parts & Diagrams

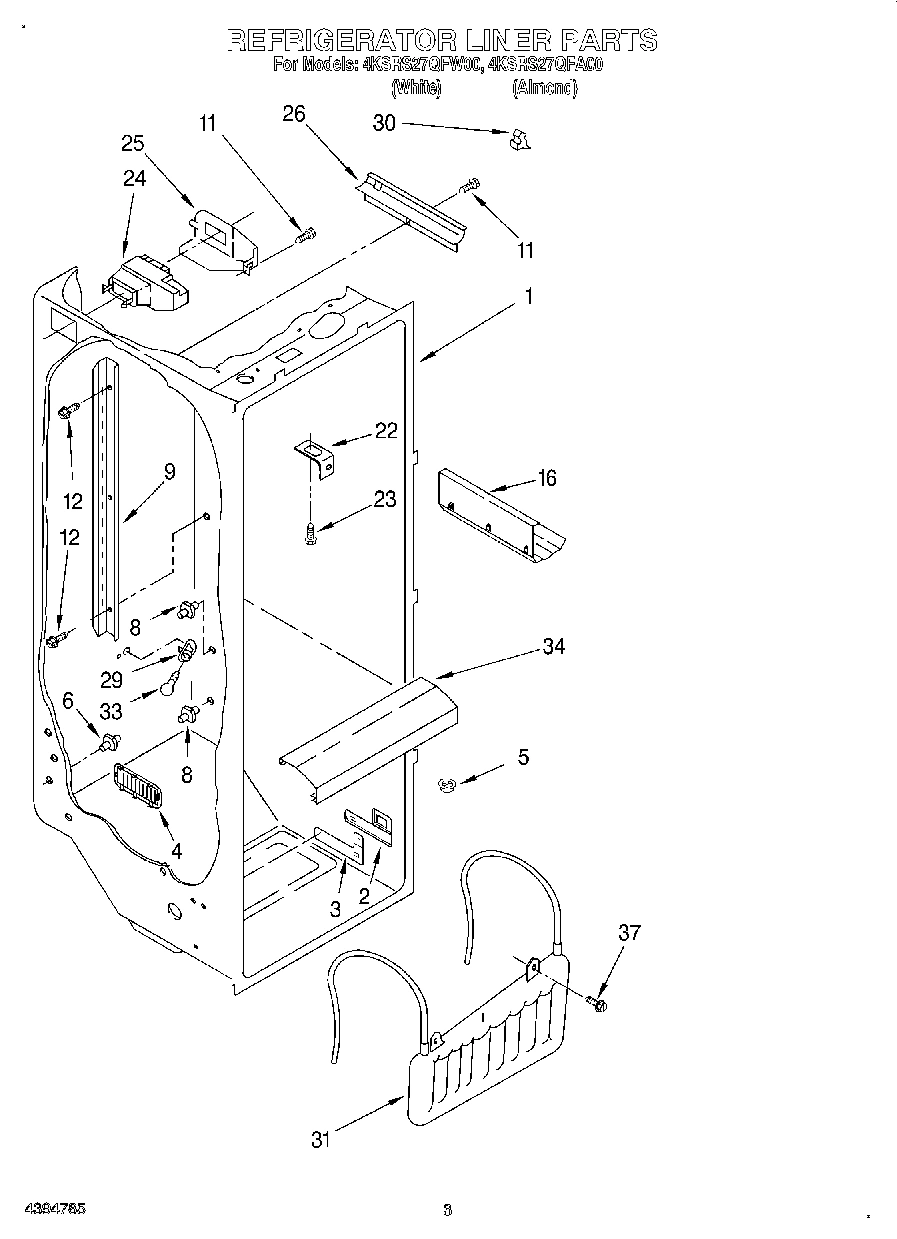

02 - REFRIGERATOR LINER

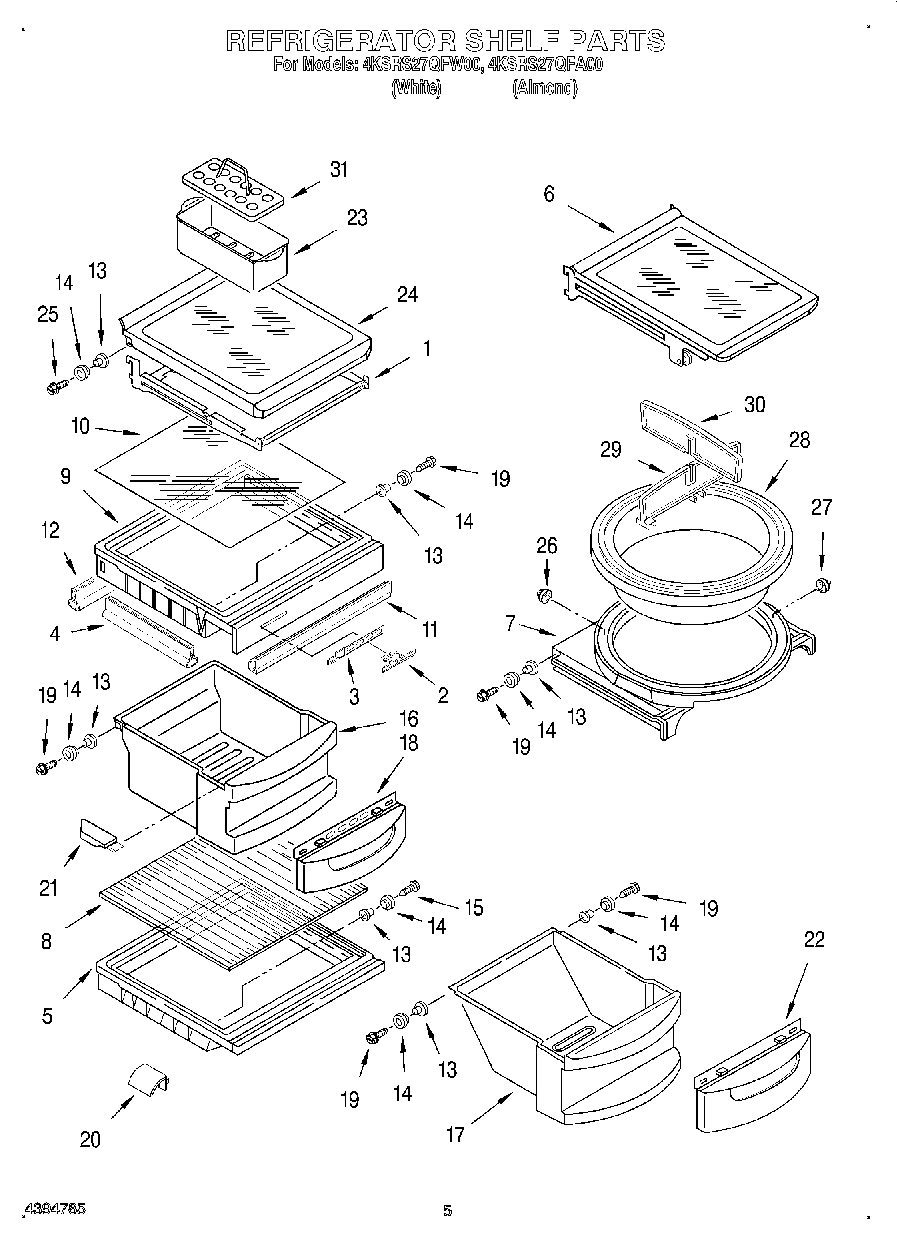

04 - REFRIGERATOR SHELF
05 - FREEZER LINER

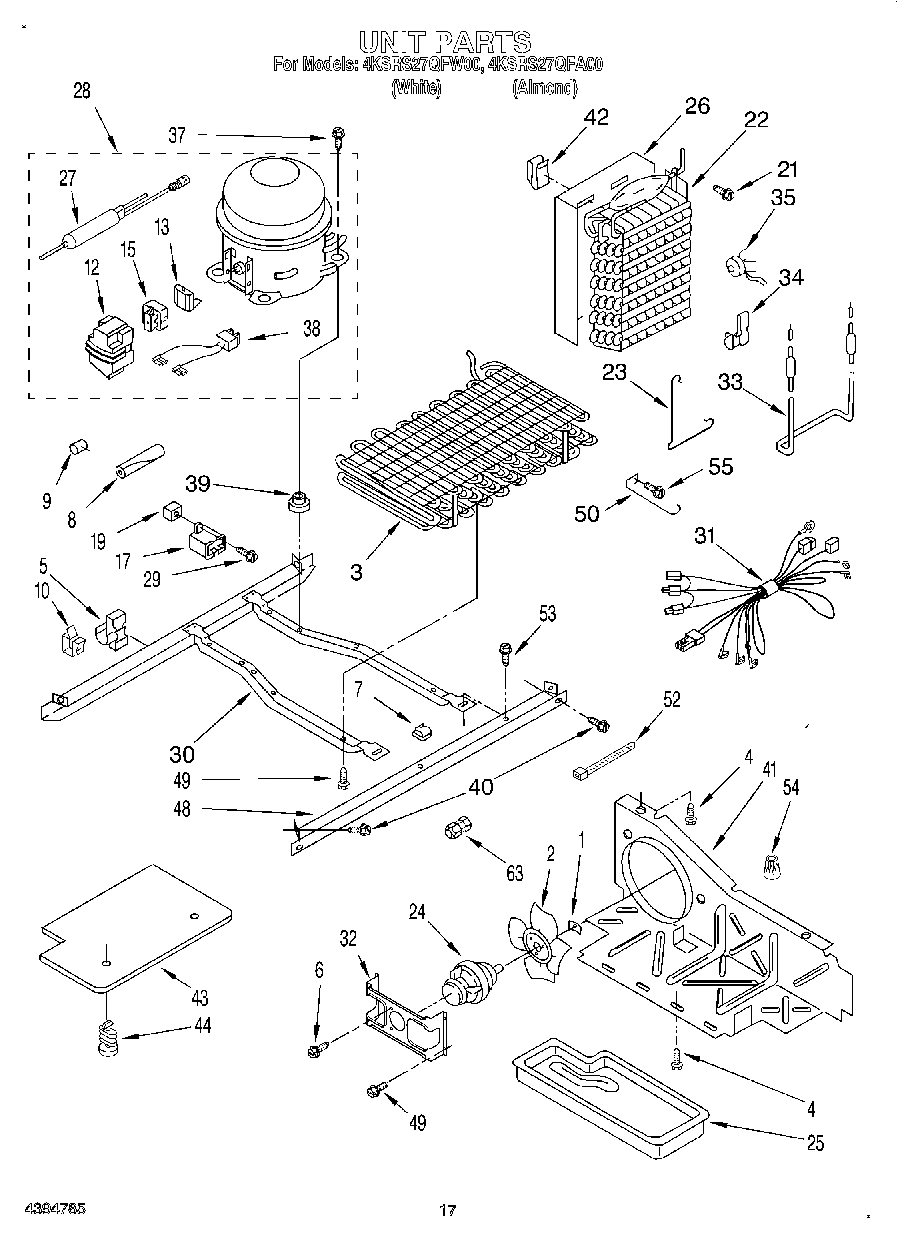

10 - UNIT

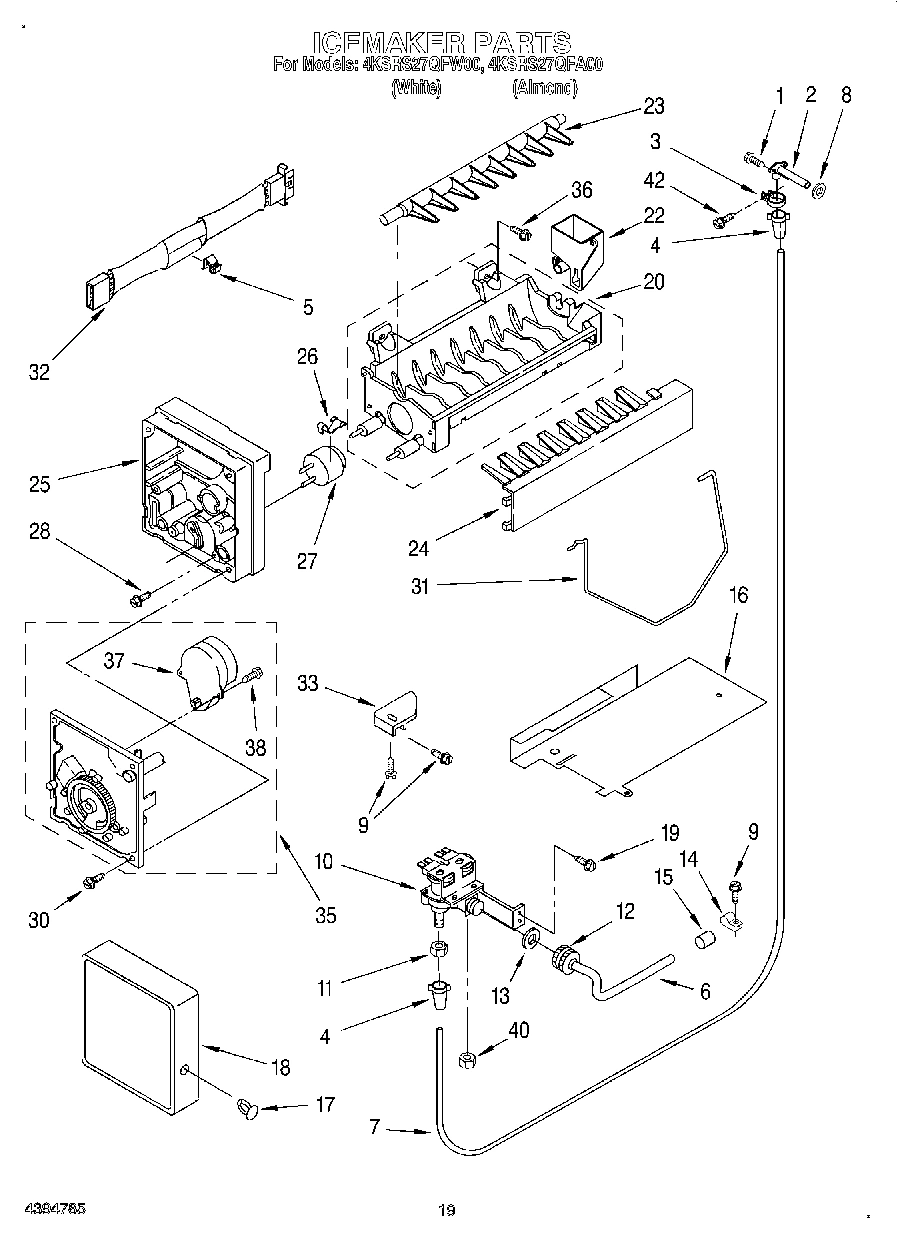

11 - ICE MAKER

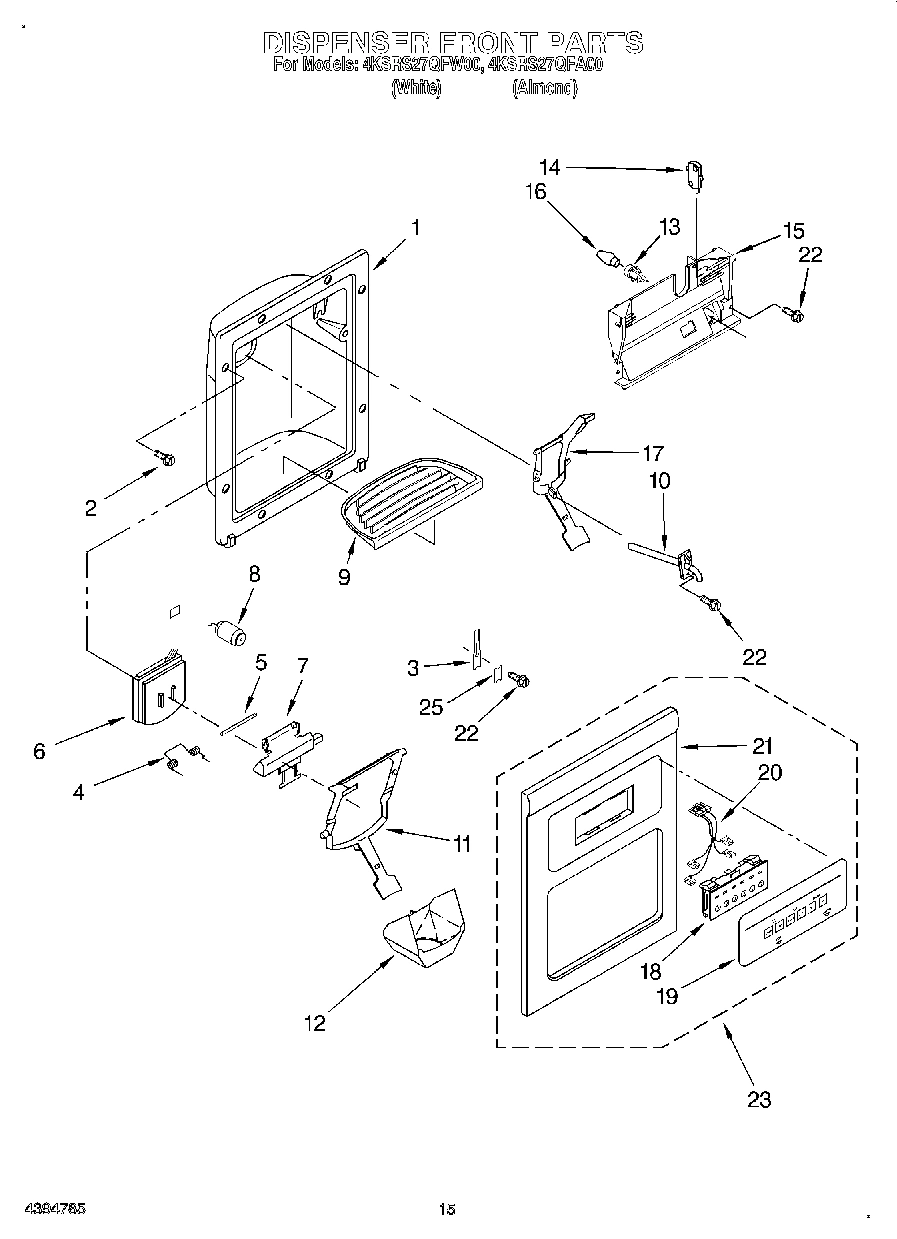

09 - DISPENSER FRONT

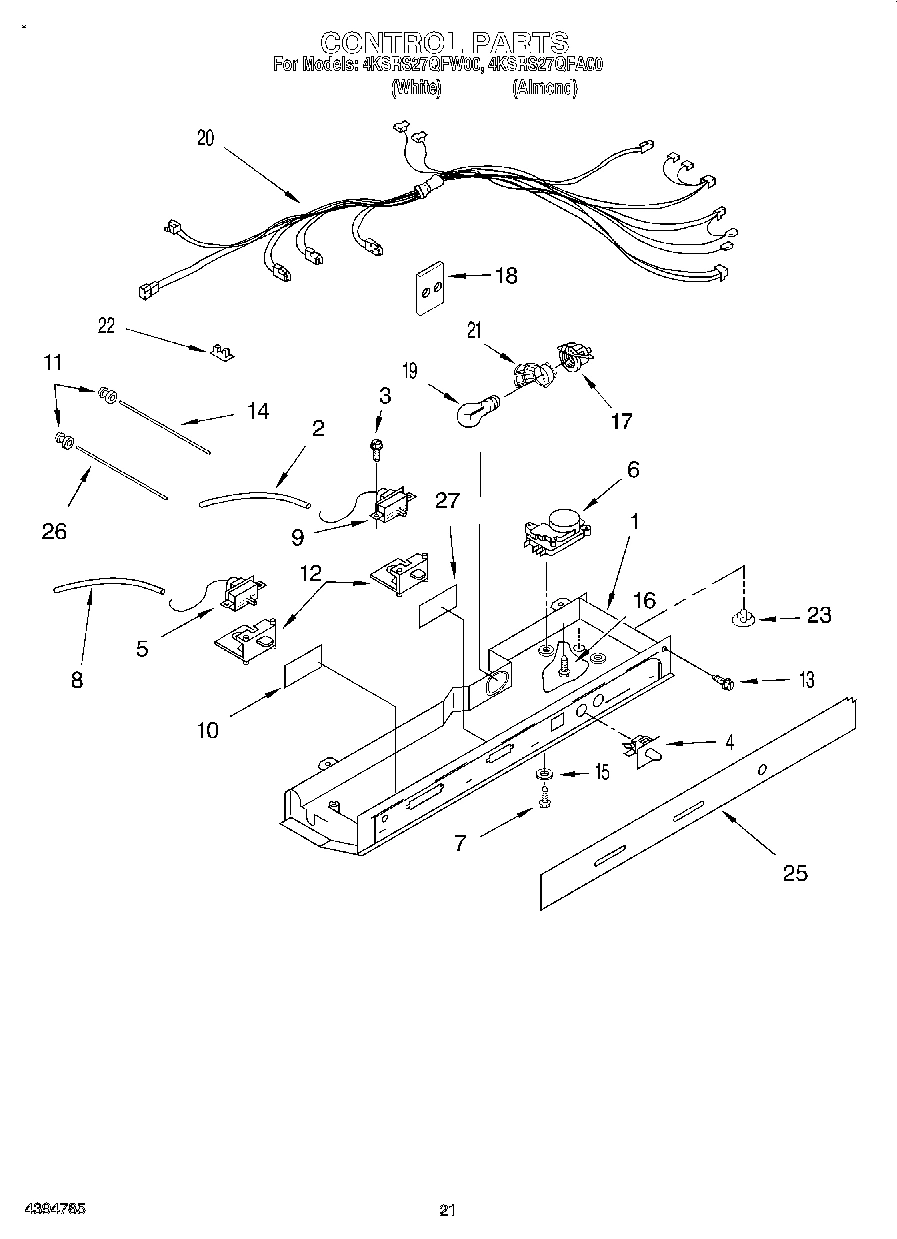

12 - CONTROL, LIT/OPTIONAL

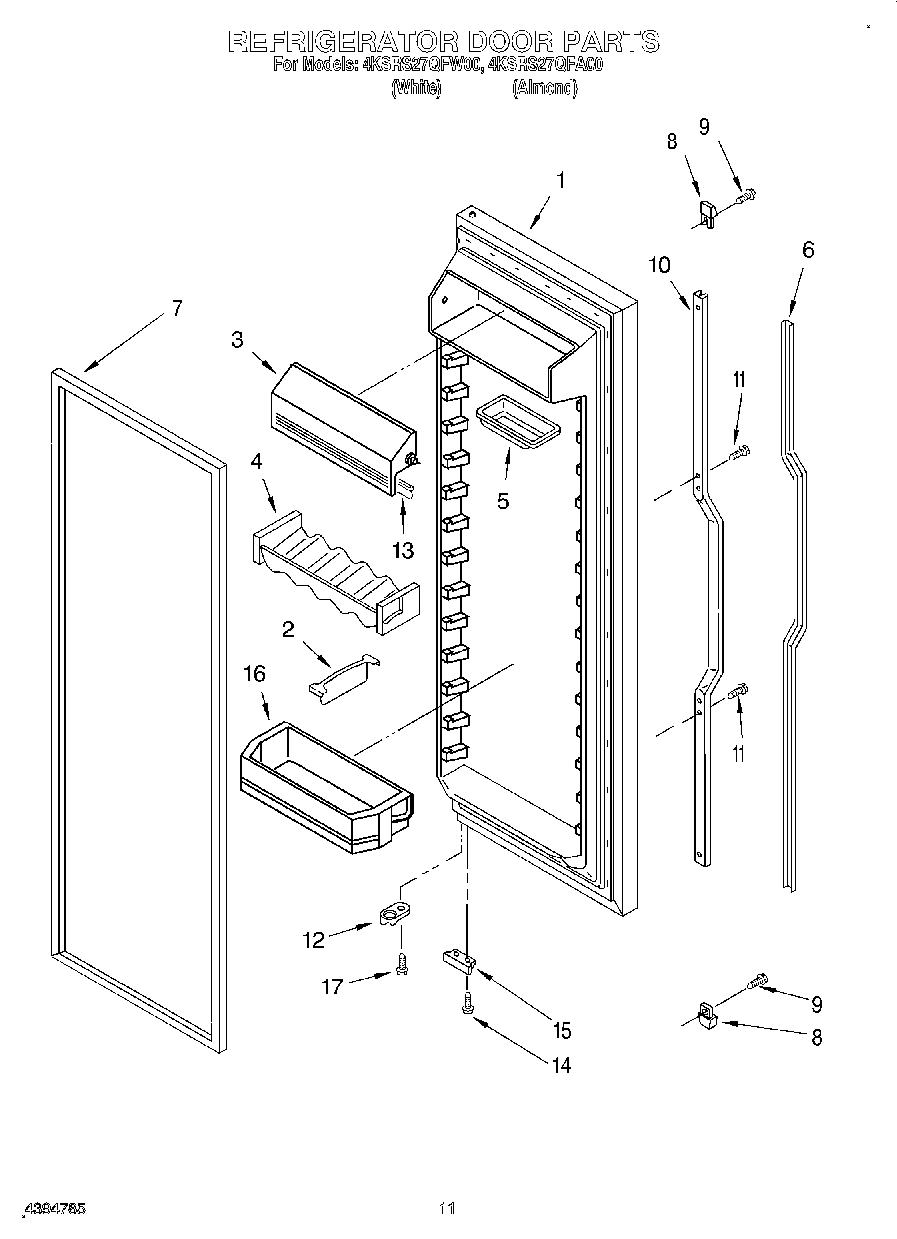

07 - REFRIGERATOR DOOR

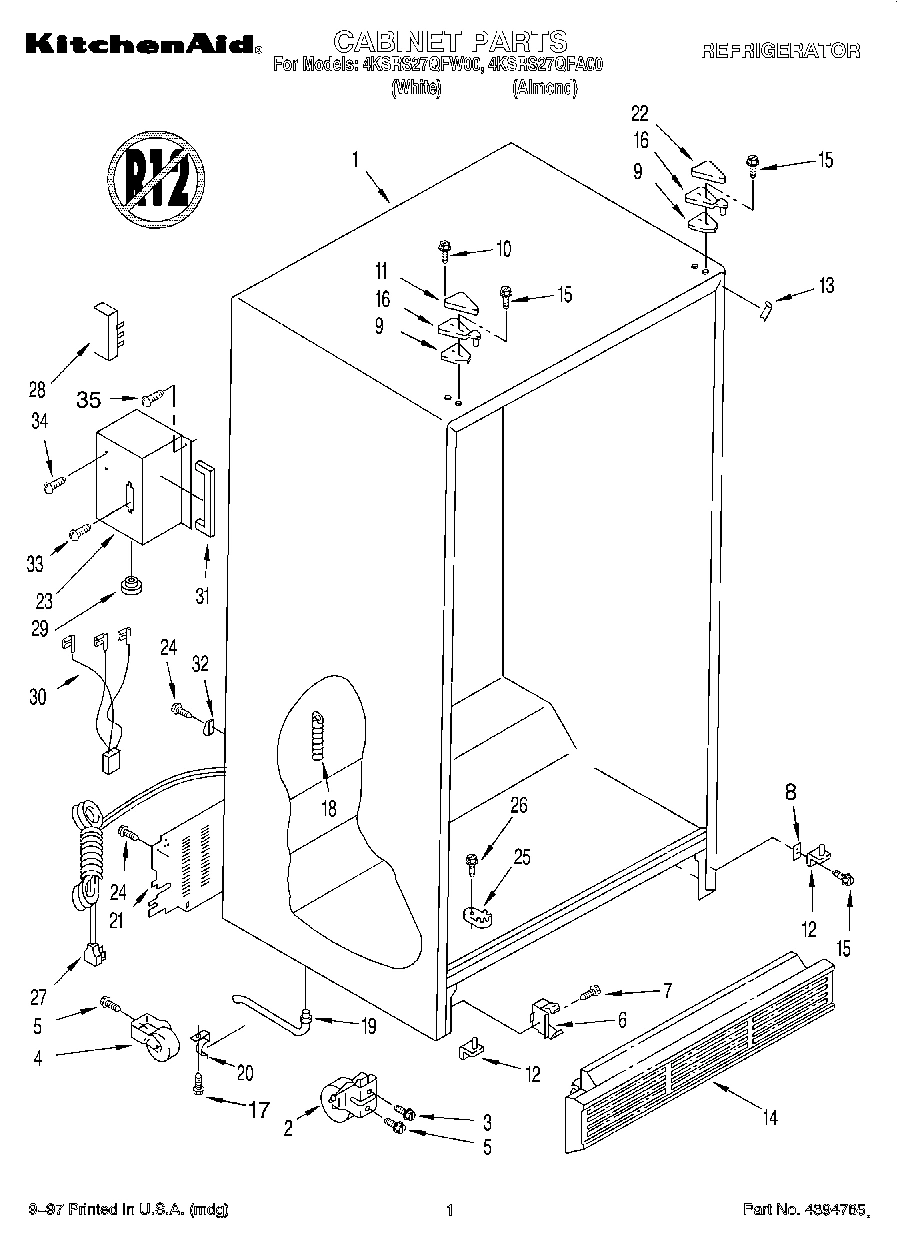

01 - CABINET

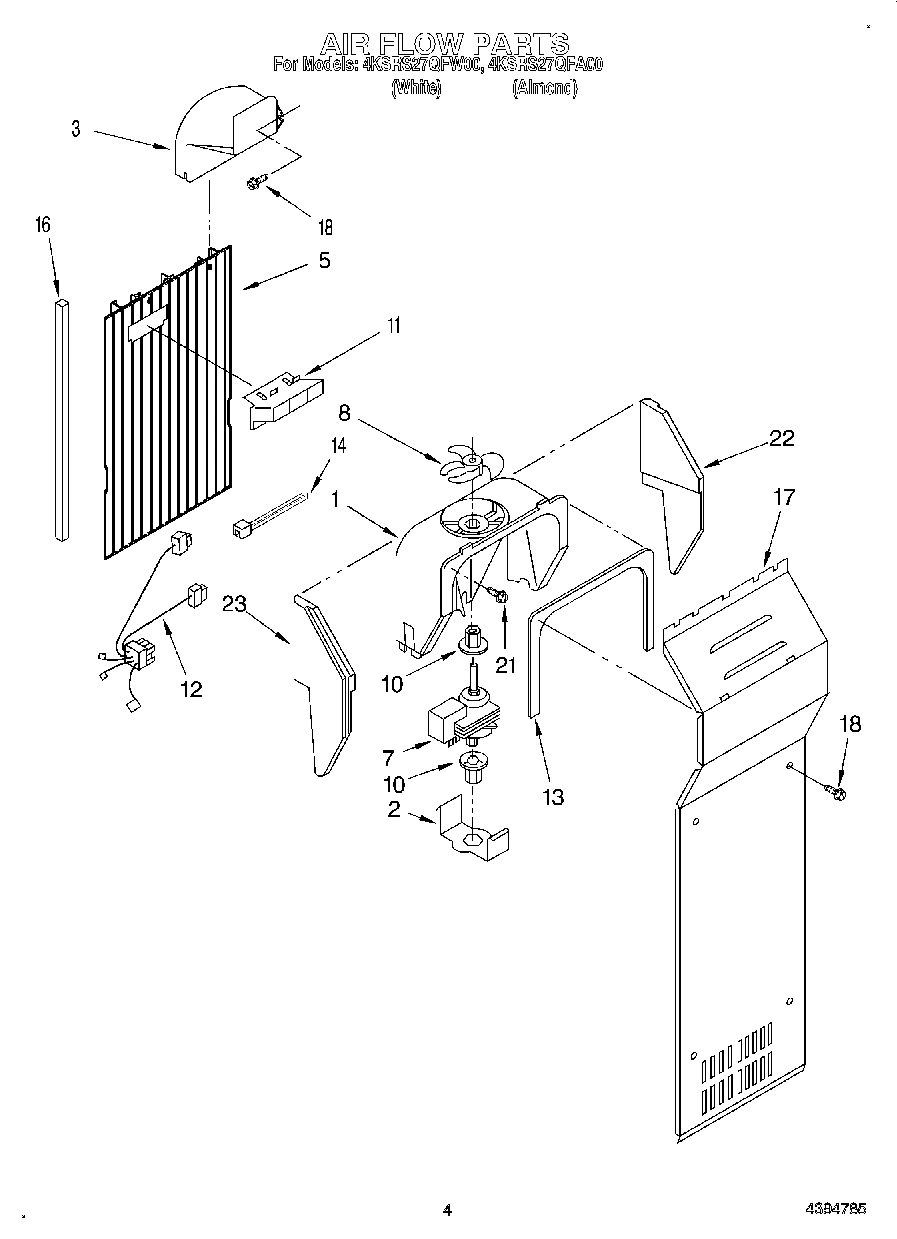

03 - AIR FLOW

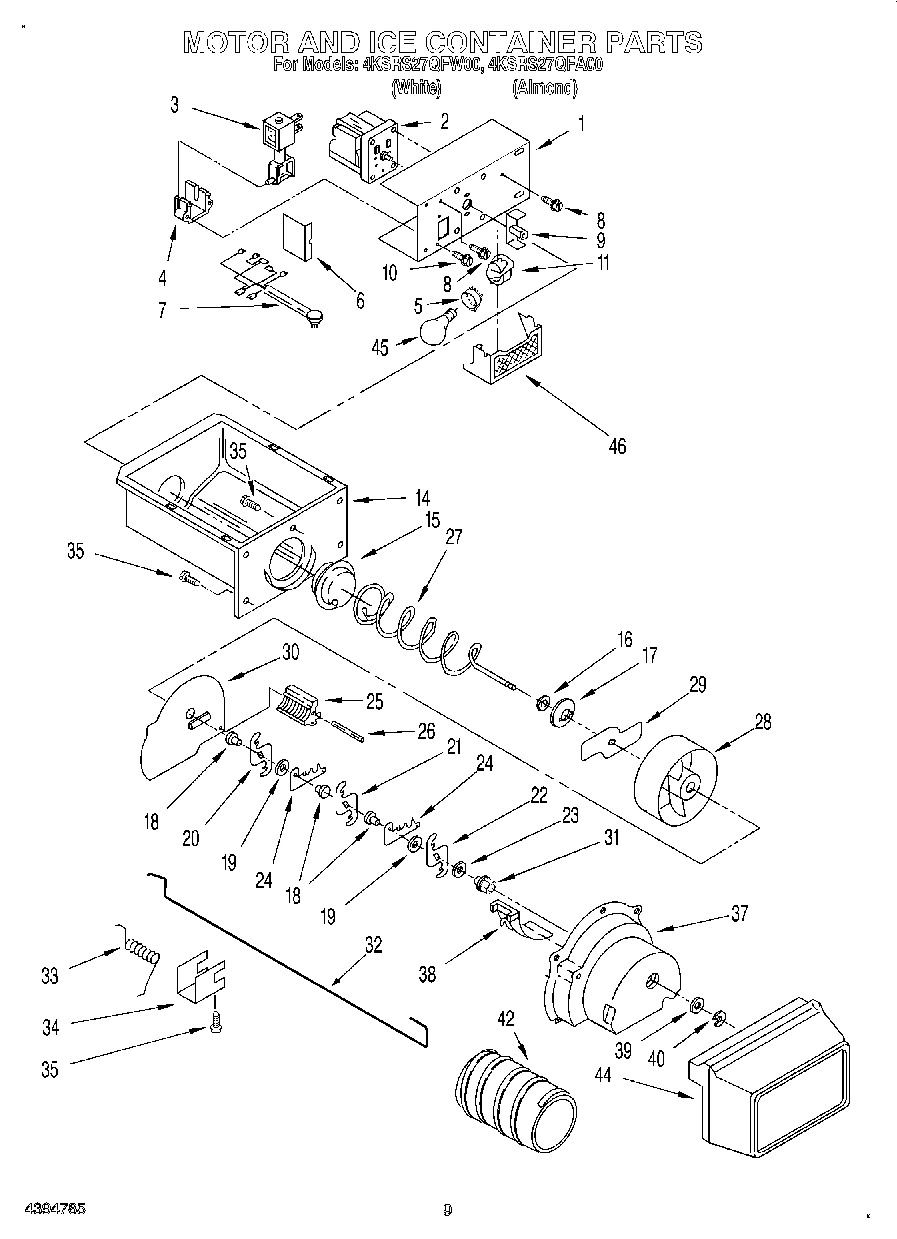

06 - MOTOR AND ICE CONTAINER

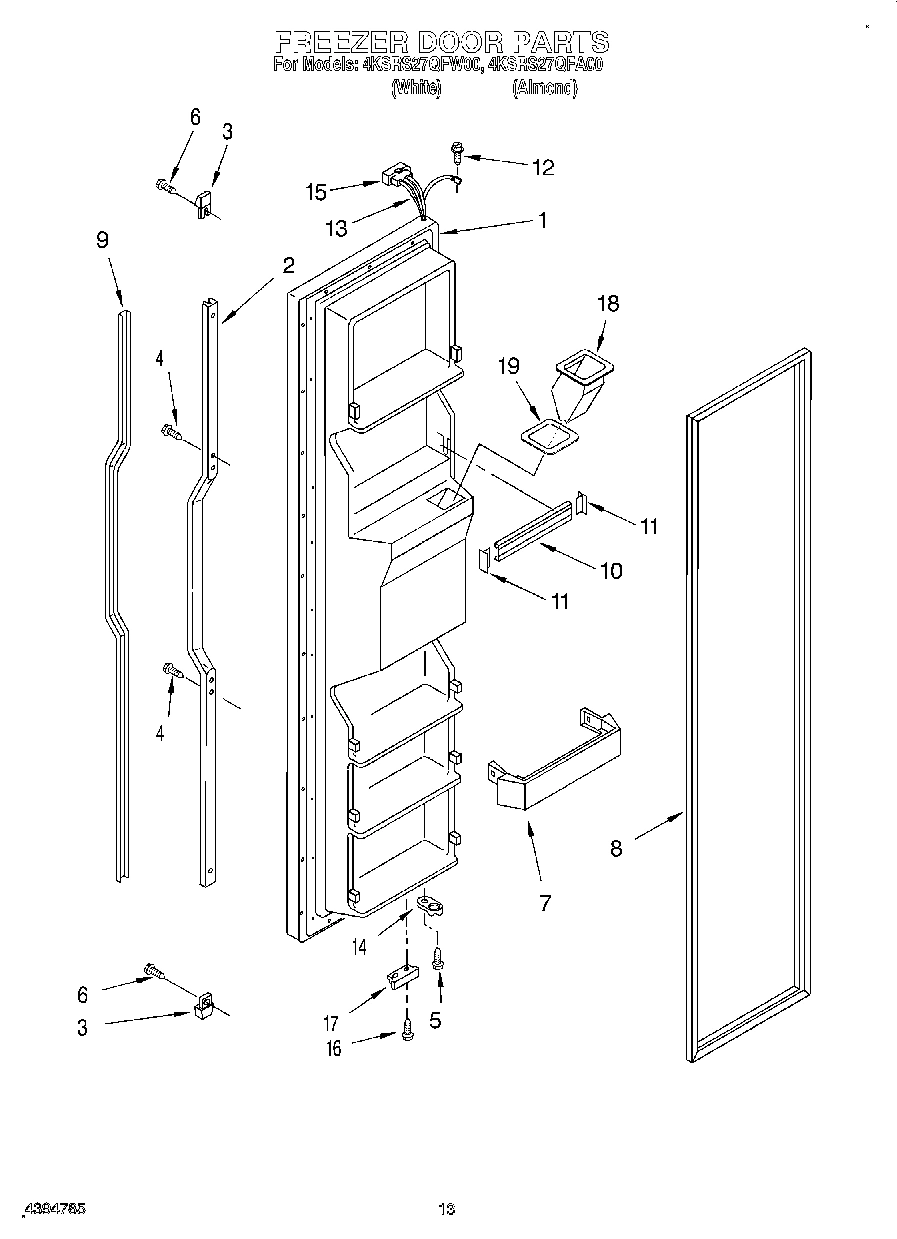

08 - FREEZER DOOR
Common parts from model Whirlpool 4KSRS27QFA00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195135 WPL LIT2195135 Contact Us For Availability
WPL LIT2198139 WPL LIT2198139 Contact Us For Availability
WPL LIT2198374 WPL LIT2198374 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194236N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194236W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14406A3 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195146N Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195146W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load, Lock (4) WPL 2195497 Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Chute, Ice WPL 2180255 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2195142N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2195142W Contact Us For Availability
19
Seal, Housing WPL 2198249 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI14410A5 Contact Us For Availability
21
Cover, Unit WPL 2189570 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195140N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195140W Contact Us For Availability
23
Hole Plug WPL 2166844 Contact Us For Availability
23
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Service Cord WPL 1129332 Contact Us For Availability
28
Terminal Block WPL 1129346 Contact Us For Availability
29
Bushing WPL 1129449 Contact Us For Availability
30
Wiring Assembly WPL 2165297 Contact Us For Availability
31
Gasket WPL 2167227 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
