Model Kenmore 417.98056701 DRYER – Common Parts & Diagrams
01 - COVER

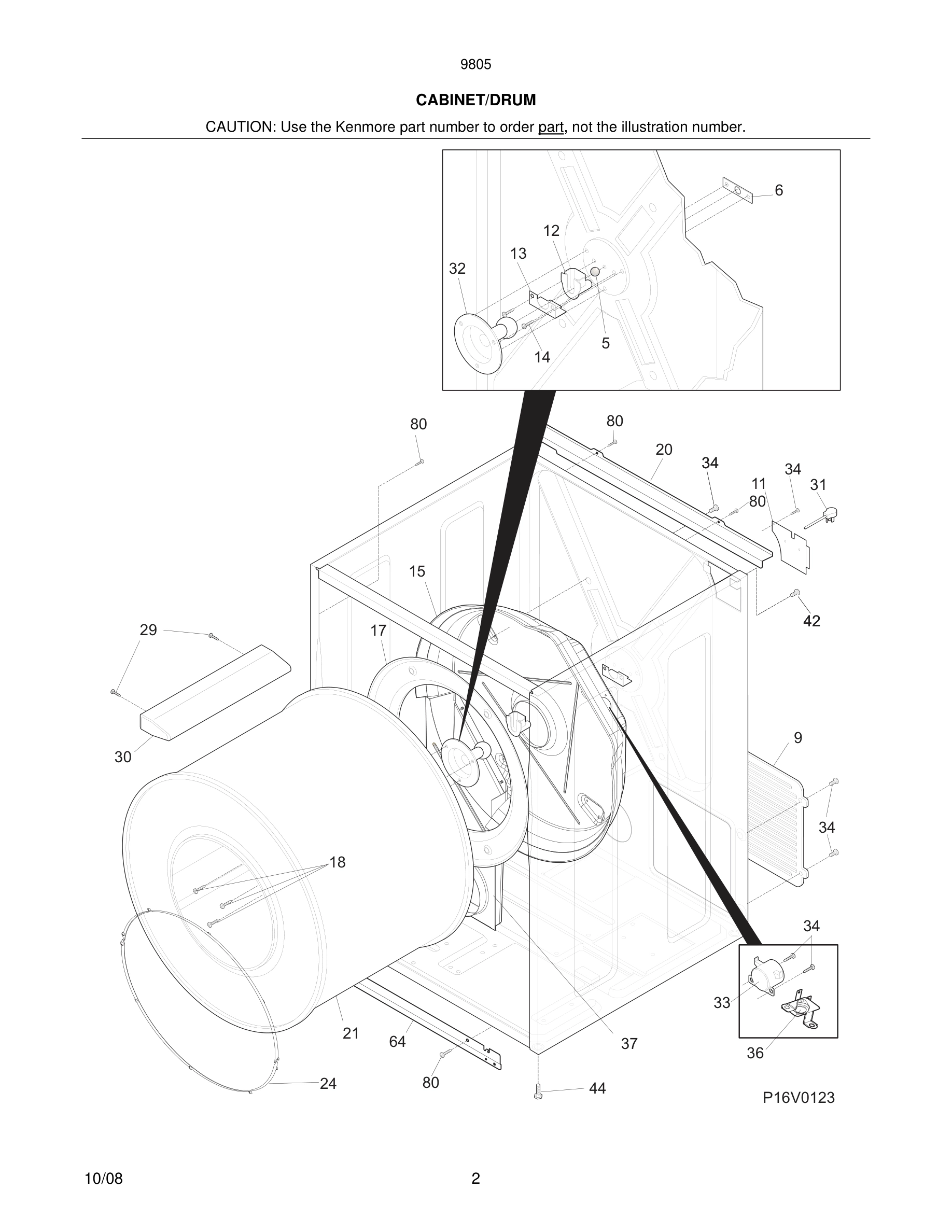

03 - CABINET/DRUM

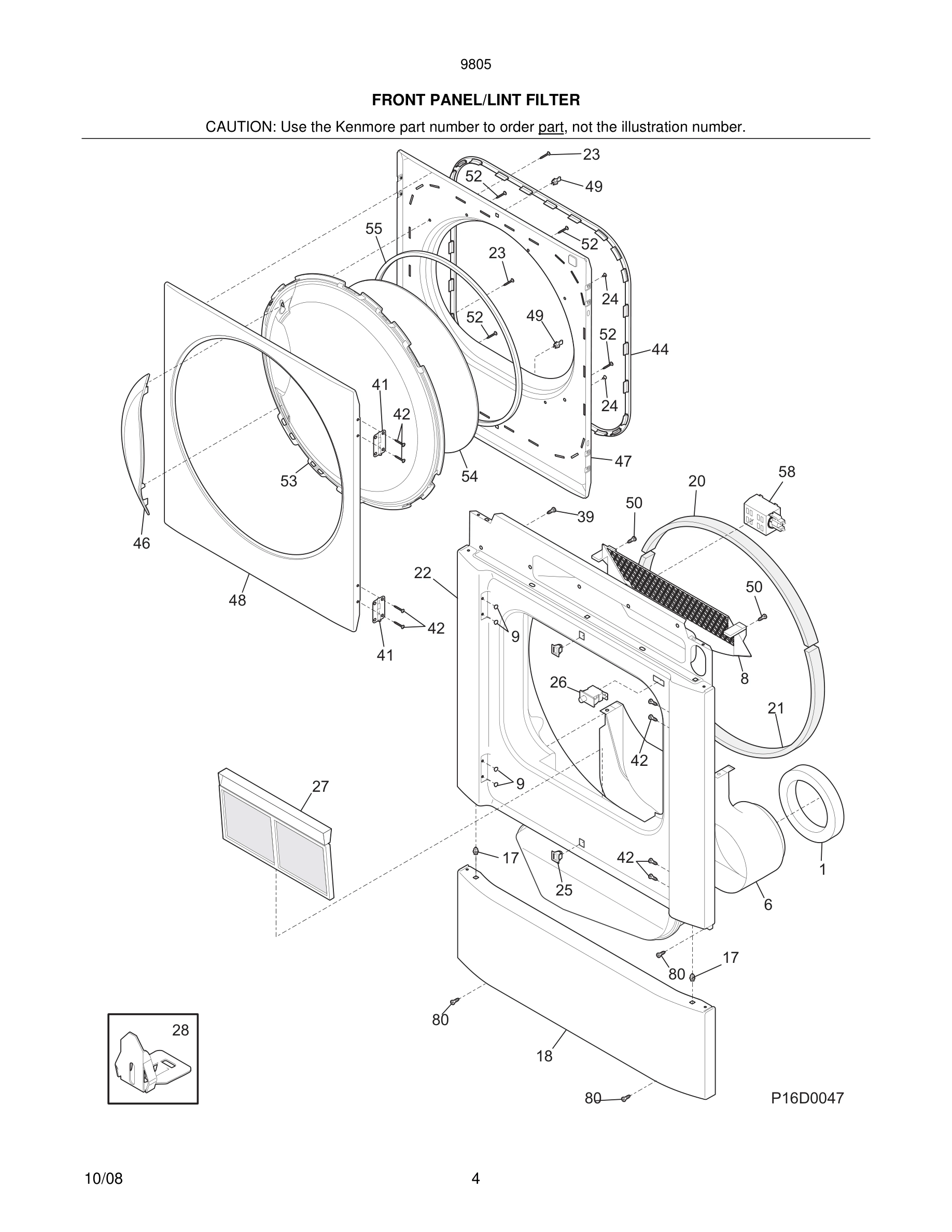

05 - FRONT PANEL/LINT FILTER

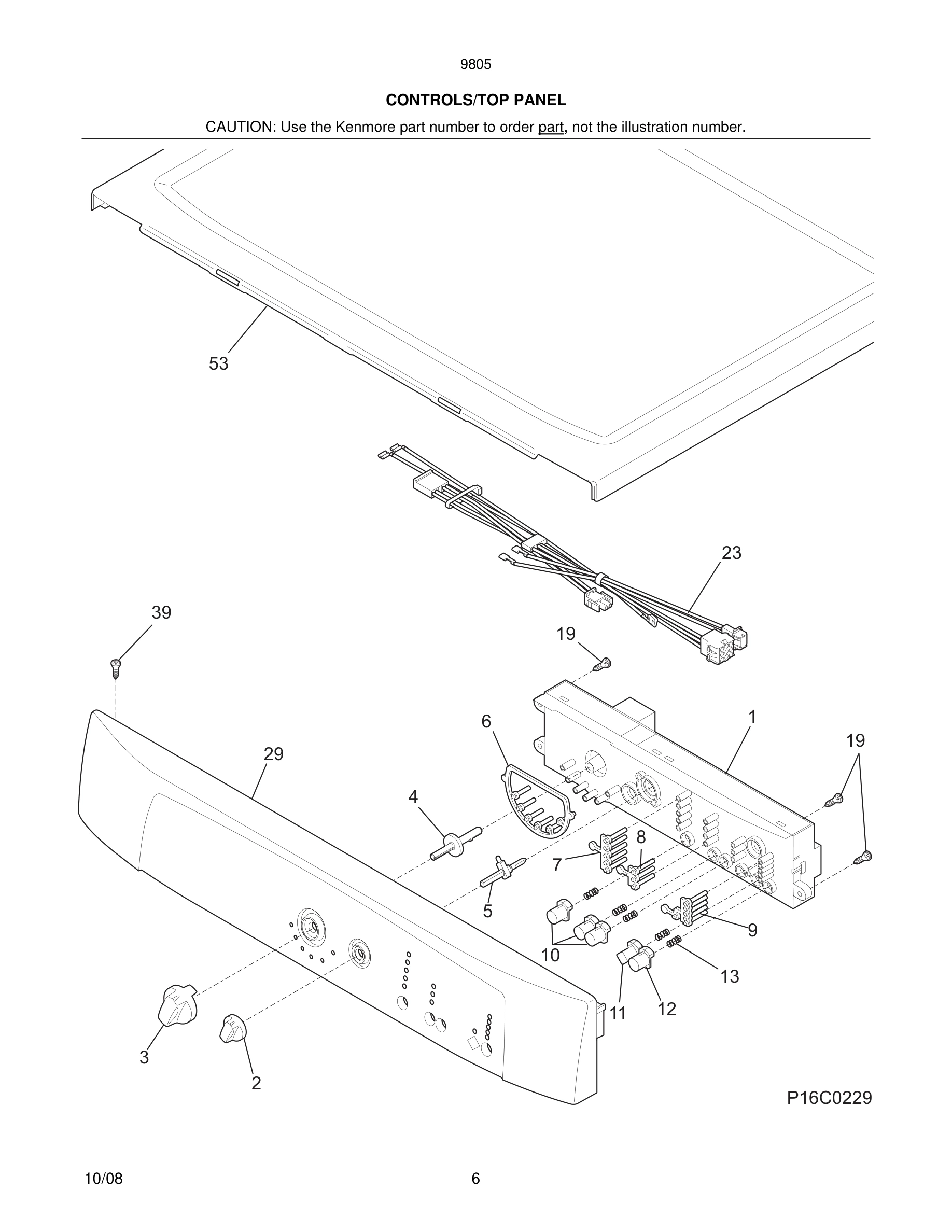

07 - CONTROLS/TOP PANEL

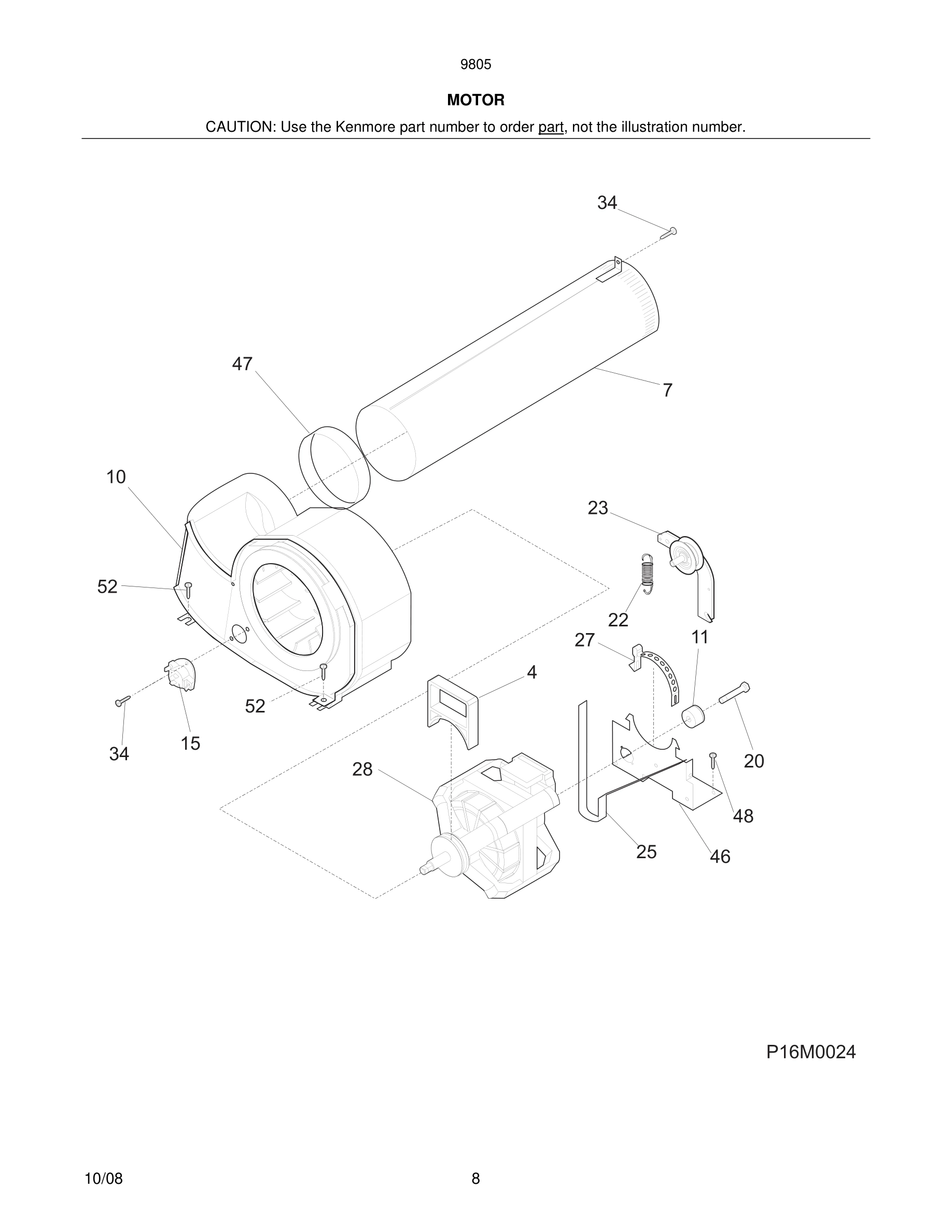

09 - MOTOR

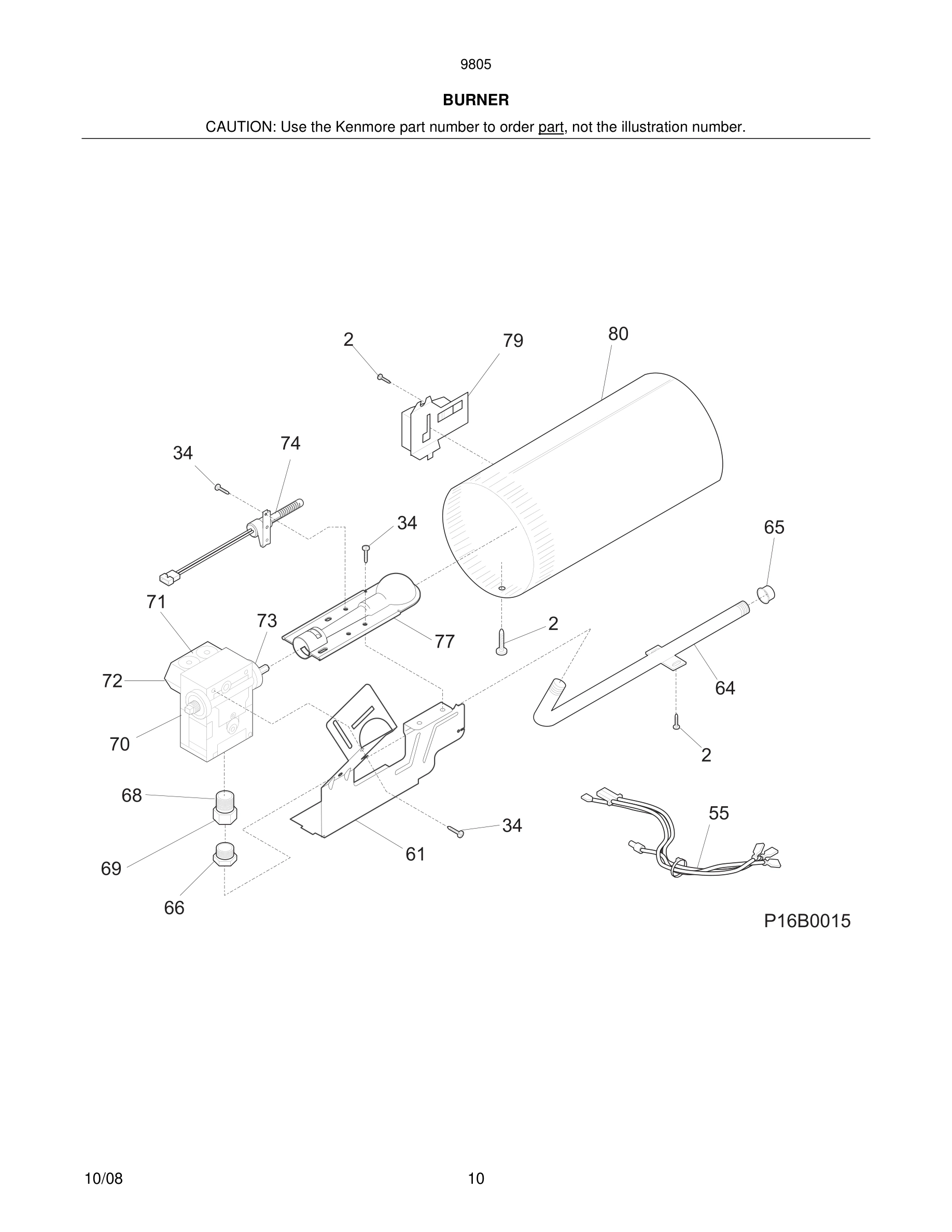

11 - BURNER

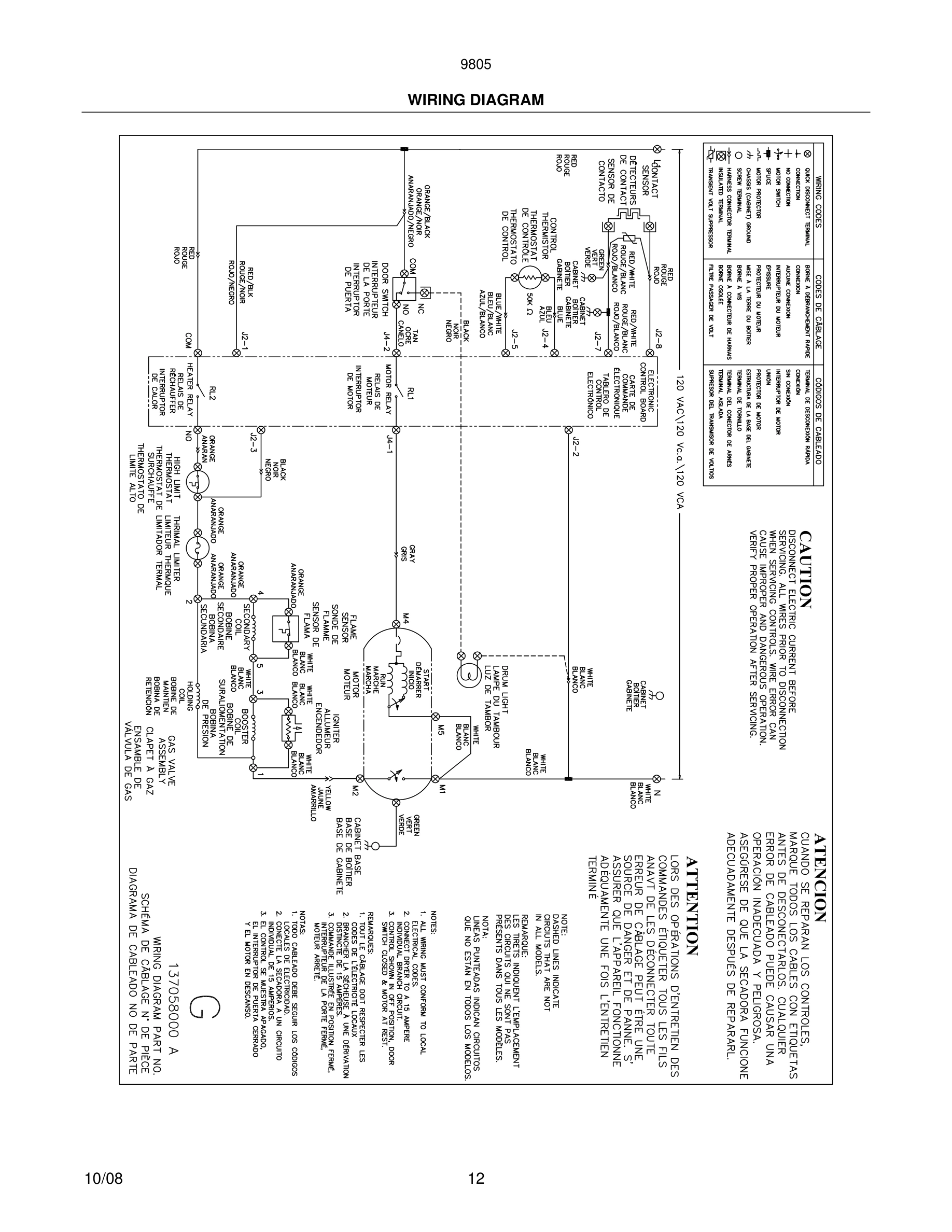

12 - WIRING DIAGRAM
Common parts from model Kenmore 417.98056701 DRYER
4
Pin, program knob WCI 134347700 Contact Us For Availability
6
Duct, air WCI 134382900 Contact Us For Availability
7
Tube, exhaust, rear, w/mtg bracket WCI 131451600 Contact Us For Availability
7*
Tube, exhaust, side/bottom, Optional Kit WCI 131456800 Contact Us For Availability
8#
Cover, lint housing, w/moist sensor WCI 131845845 Contact Us For Availability
9
Light Pipe, array, 4 start group WCI 134429400 Contact Us For Availability
13
Spring, push button WCI 134349400 No Longer Available
17
Clip, assembly WCI 134408700 Contact Us For Availability
20
Bracket, top panel mtg., rear WCI 134166500 Contact Us For Availability
22
Panel, front, black, w/lamp hole WCI 134915560 Contact Us For Availability
23#
Wiring Harness, controls WCI 134394400 Contact Us For Availability
26#
Switch, door, with drum light WCI 134813645 Contact Us For Availability
28#
Motor & Pulley Assy WCI 131560100 No Longer Available
31#
Power Cord, electric svce WCI 134501200 Contact Us For Availability
41
Hinge, door, black WCI 134412460 Contact Us For Availability
44
Leveling Leg, screw WCI 134344900 No Longer Available
44
Gasket, door seal, gray WCI 134413345 Contact Us For Availability
46
Bracket, motor mtg WCI 134203400 Contact Us For Availability
46
Handle, door, black WCI 134412660 Contact Us For Availability
47
Seal, exhaust tube WCI 131633300 Contact Us For Availability
48
Panel, outer door, black WCI 134913160 Contact Us For Availability
55#
Wiring Harness, gas valve WCI 134389600 Contact Us For Availability
× ![]()
