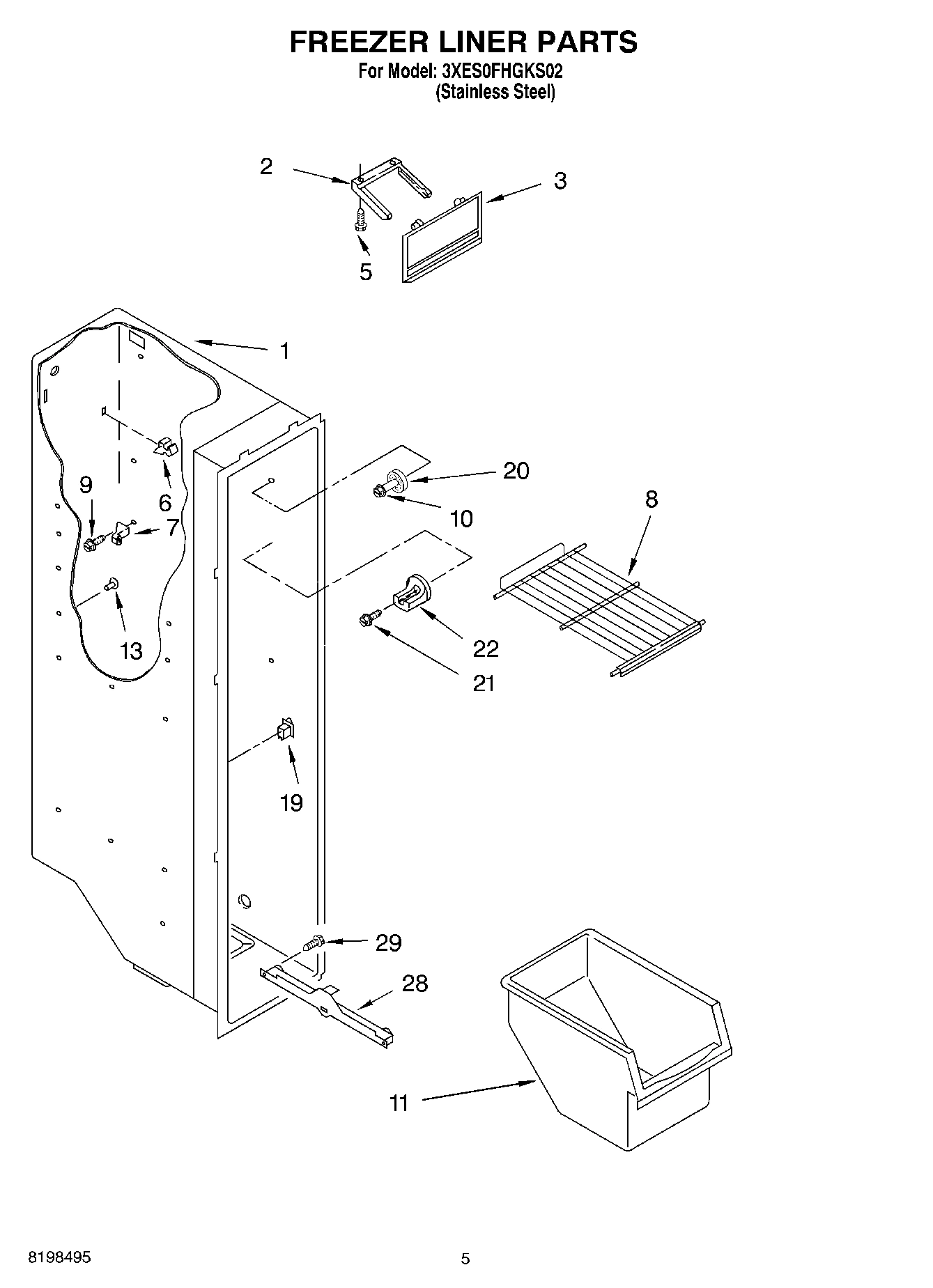

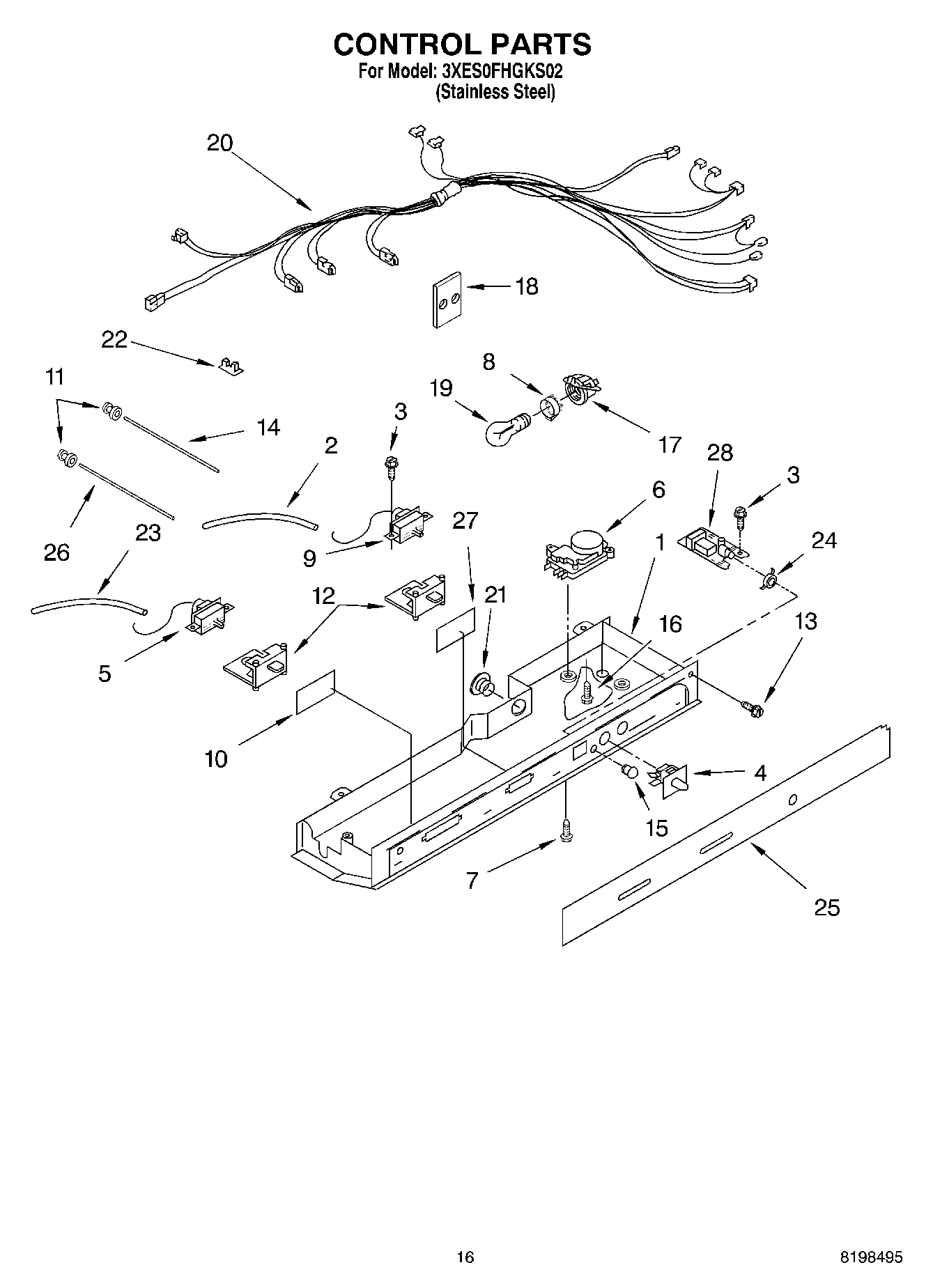

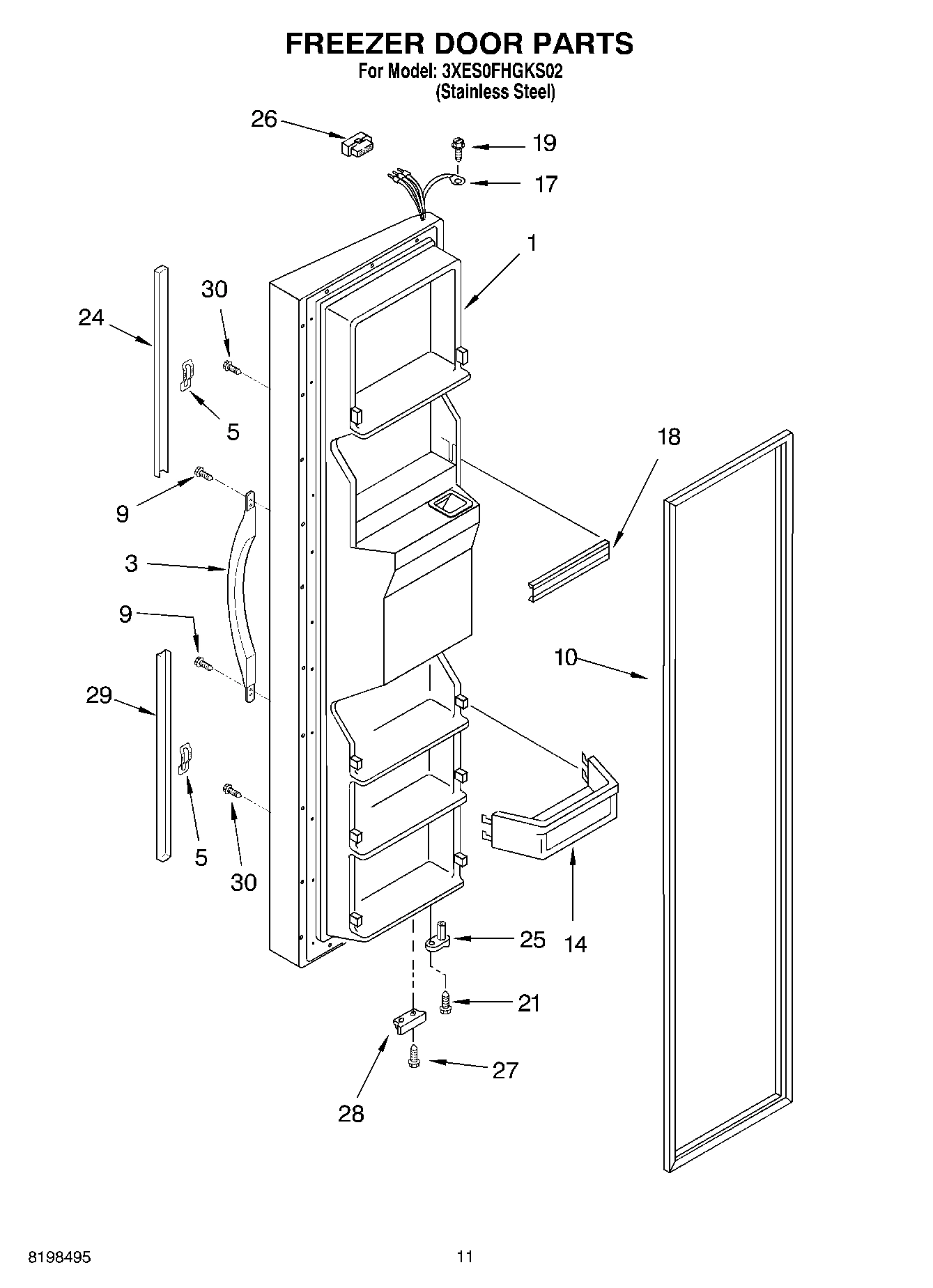

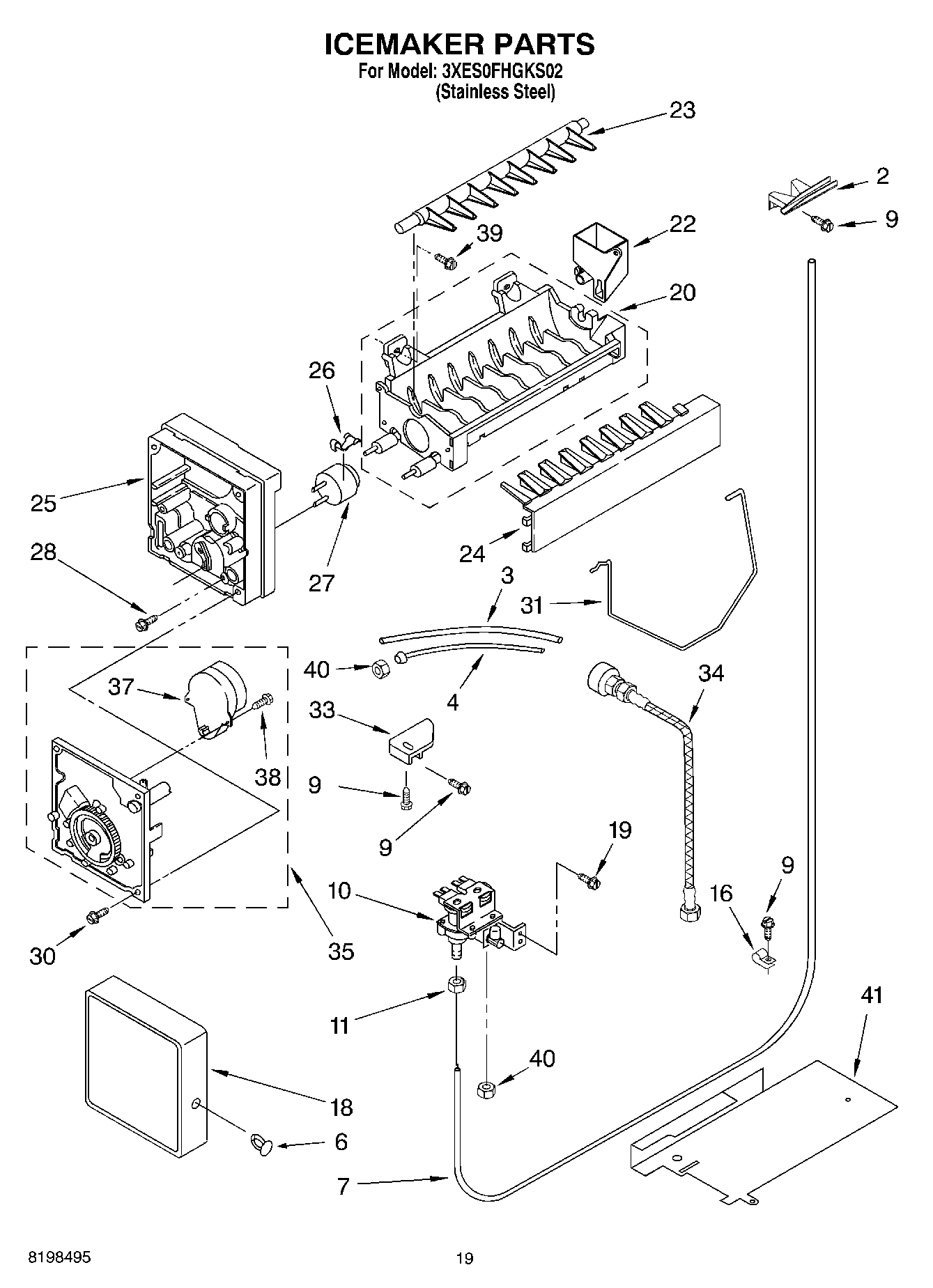

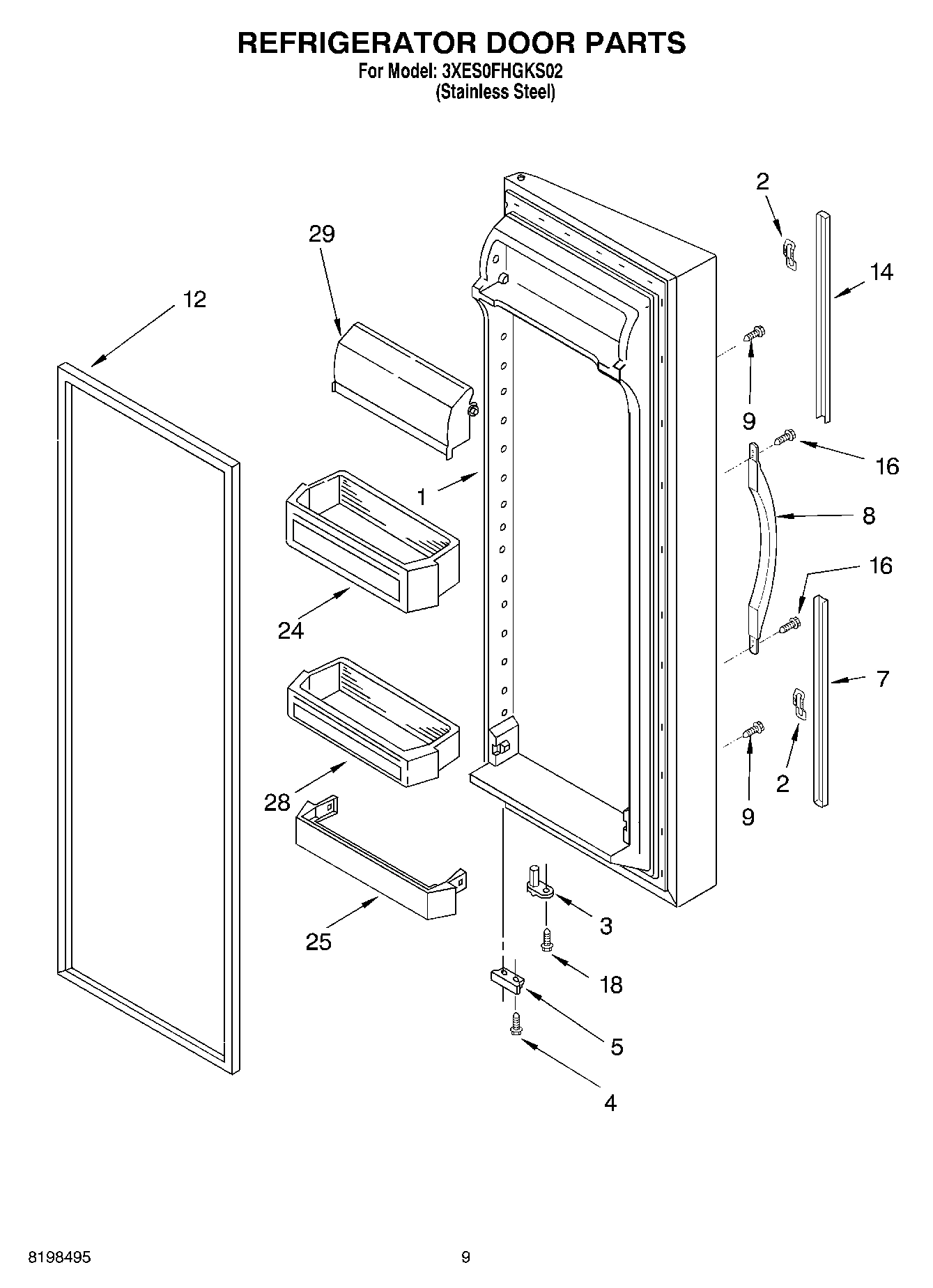

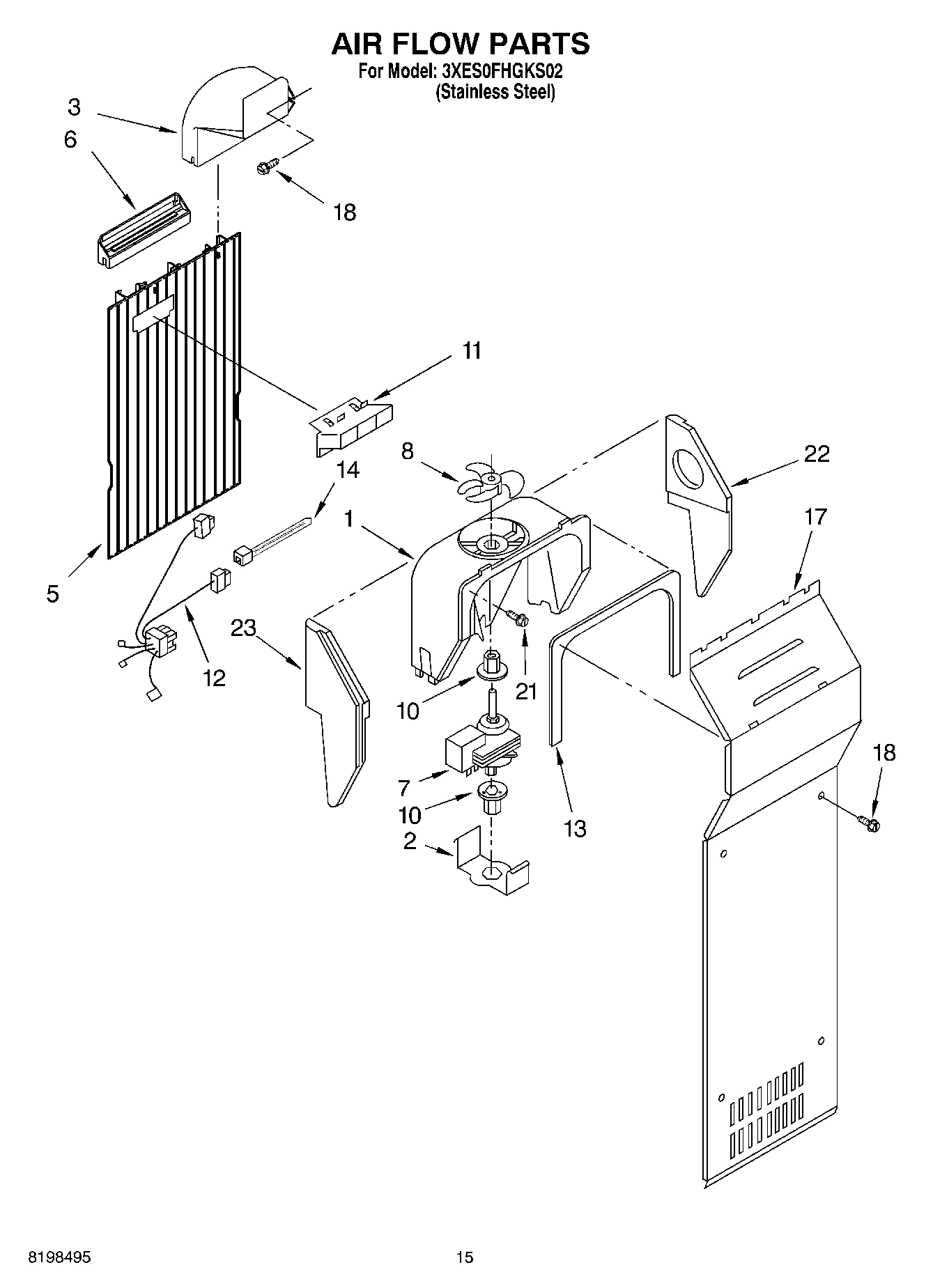

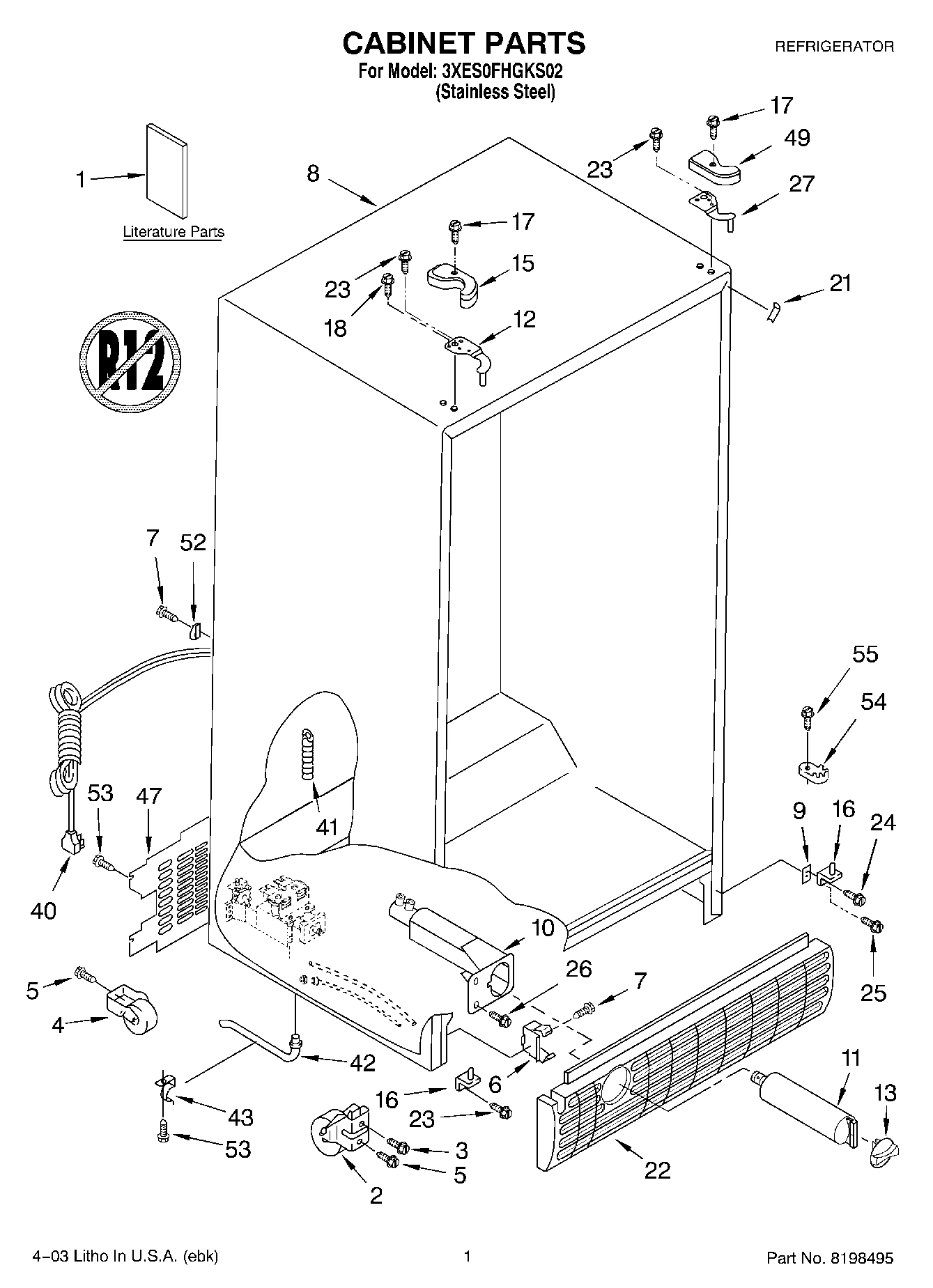

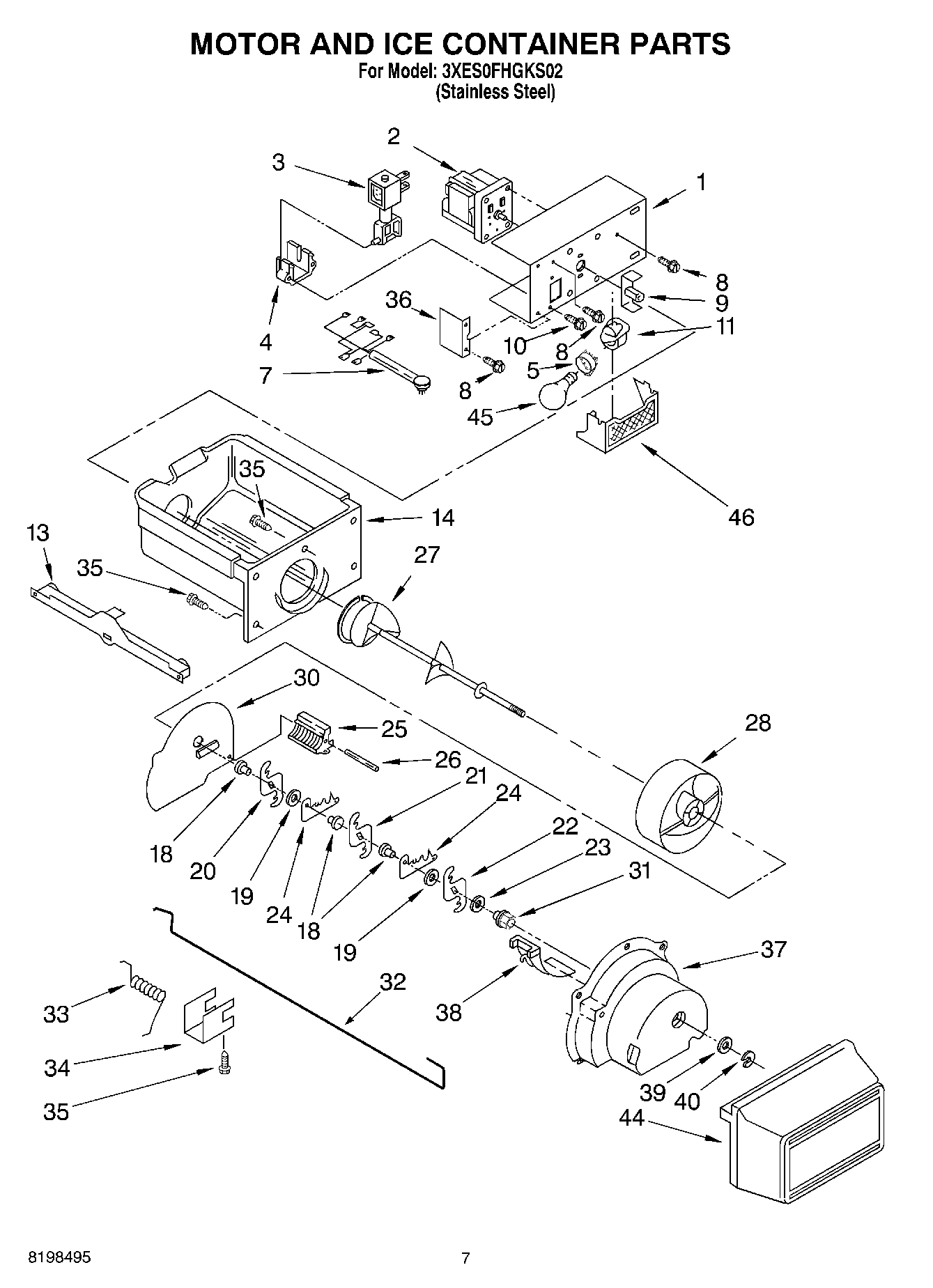

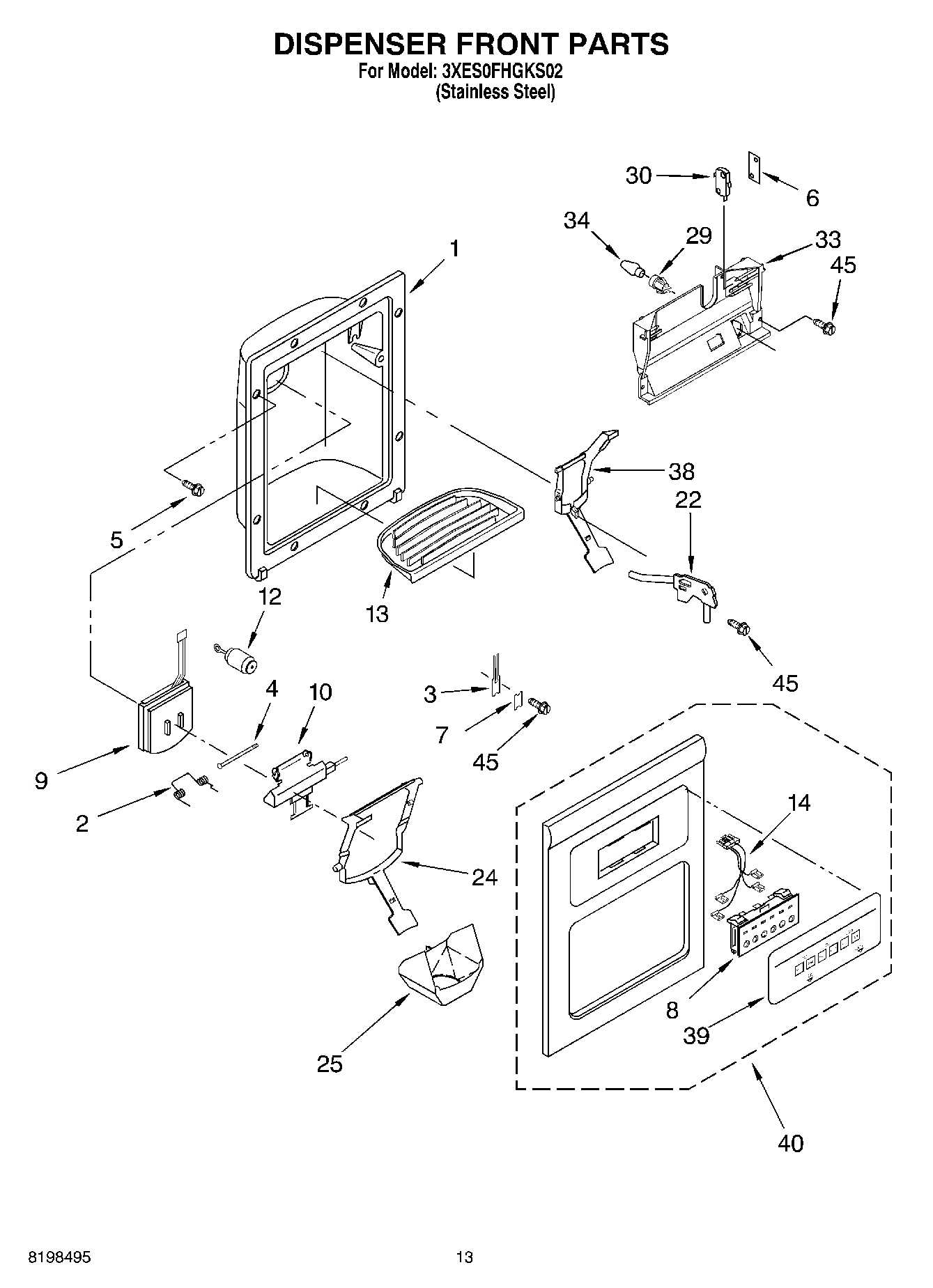

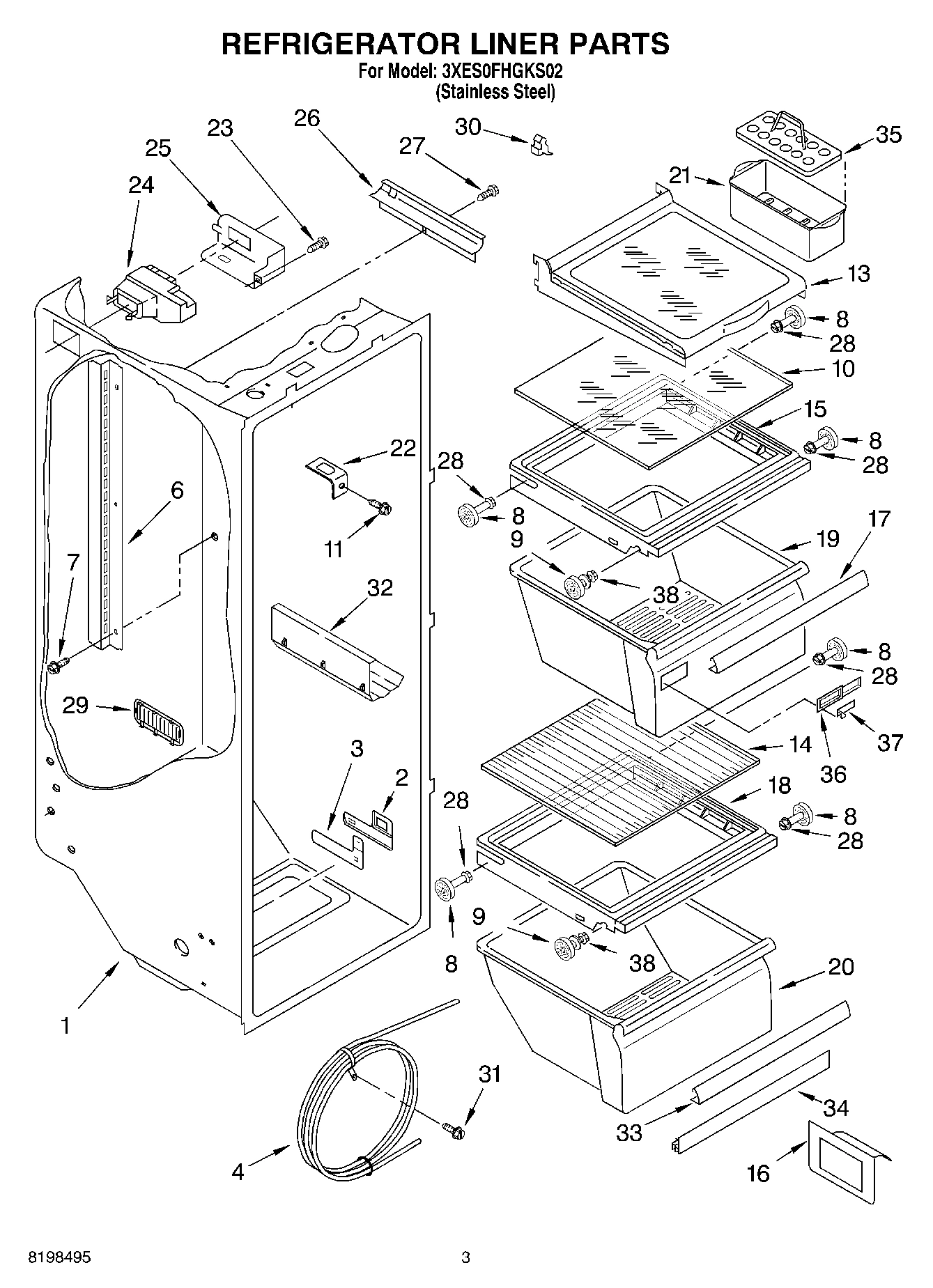

Model Whirlpool 3XES0FHGKS02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

Ice Container Assembly WPL 2209778 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Crusher Mechanism Assembly WPL 2169939 Contact Us For Availability

Cleaner, Stainless Steel WPL 2252676 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI13099A3 WPL ARI13099A3 Contact Us For Availability

WPL ARI13100A4 WPL ARI13100A4 Contact Us For Availability

WPL ARI13101A7 WPL ARI13101A7 Contact Us For Availability

WPL ARI13102A6 WPL ARI13102A6 Contact Us For Availability

WPL ARI13103A5 WPL ARI13103A5 Contact Us For Availability

1

2200135 Whirlpool Refrigerator Control Box Backorder WPL 2200135 $97.87

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $25.54

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $138.15

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

6

Spacer, Switch (2) WPL 625834 Contact Us For Availability

6

Shelf Ladder (2) WPL 2206270 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

9

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

Shim WPL 2209697 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

Valve, Solenoid WPL 2204400 Contact Us For Availability

11

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

11

Grommet, Light Bar WPL 2172906 Contact Us For Availability

12

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

12

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

Grommet (4) WPL 2176134 Contact Us For Availability

Grille, Overflow WPL 2207048B Contact Us For Availability

Shelf, Glass (3) WPL 2188698 Contact Us For Availability

14

WP2196090 Whirlpool Refrigerator Container Backorder WPL WP2196090 $125.90

14

Light Bar (RC) WPL 2179920 Contact Us For Availability

14

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

15

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

15

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

15

Lens, Indicator Light WPL 2200096 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

17

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Meat Pan Cover WPL 2217039 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

20

Control Box Harness WPL 2216918 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Stud, Rear WPL 2196207 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $74.59

WPW10129864 Whirlpool Refrigerator Diffuser Backorder WPL WPW10129864 $208.86

Lever Assembly, Ice Dispenser WPL 2203562B Contact Us For Availability

Retainer, Light Lens WPL 2200097 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

Escutcheon, Control Box WPL 2206075 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

Cover, Conduit WPL 2150330 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Window WPL 2172941 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

P.C. Board Filter Indicator WPL 2205787 Contact Us For Availability

29

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

29

Louver WPL 2182147 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

Screw WPL 488280 Contact Us For Availability

32

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Extension WPL 2209704 Contact Us For Availability

34

European Water Connection Tube WPL 2221332 Contact Us For Availability

35

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $10.72

36

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

37

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Lever Assembly, Water Dispenser WPL 2203561B Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $119.63

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
