Model Whirlpool 3842PRW ELECTRIC RANGE – Common Parts & Diagrams
06 - WIRING INFORMATION

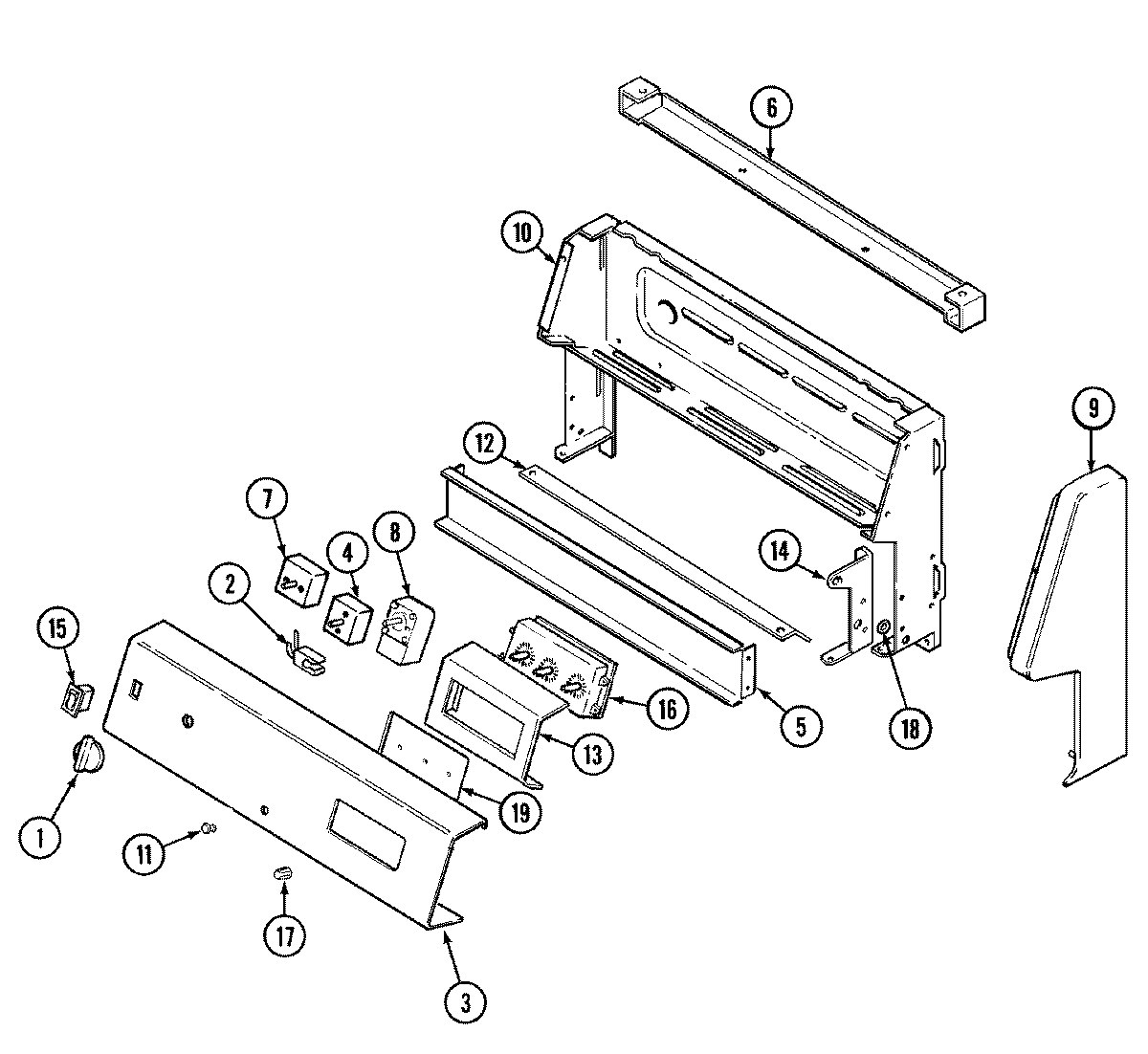

02 - CONTROL PANEL

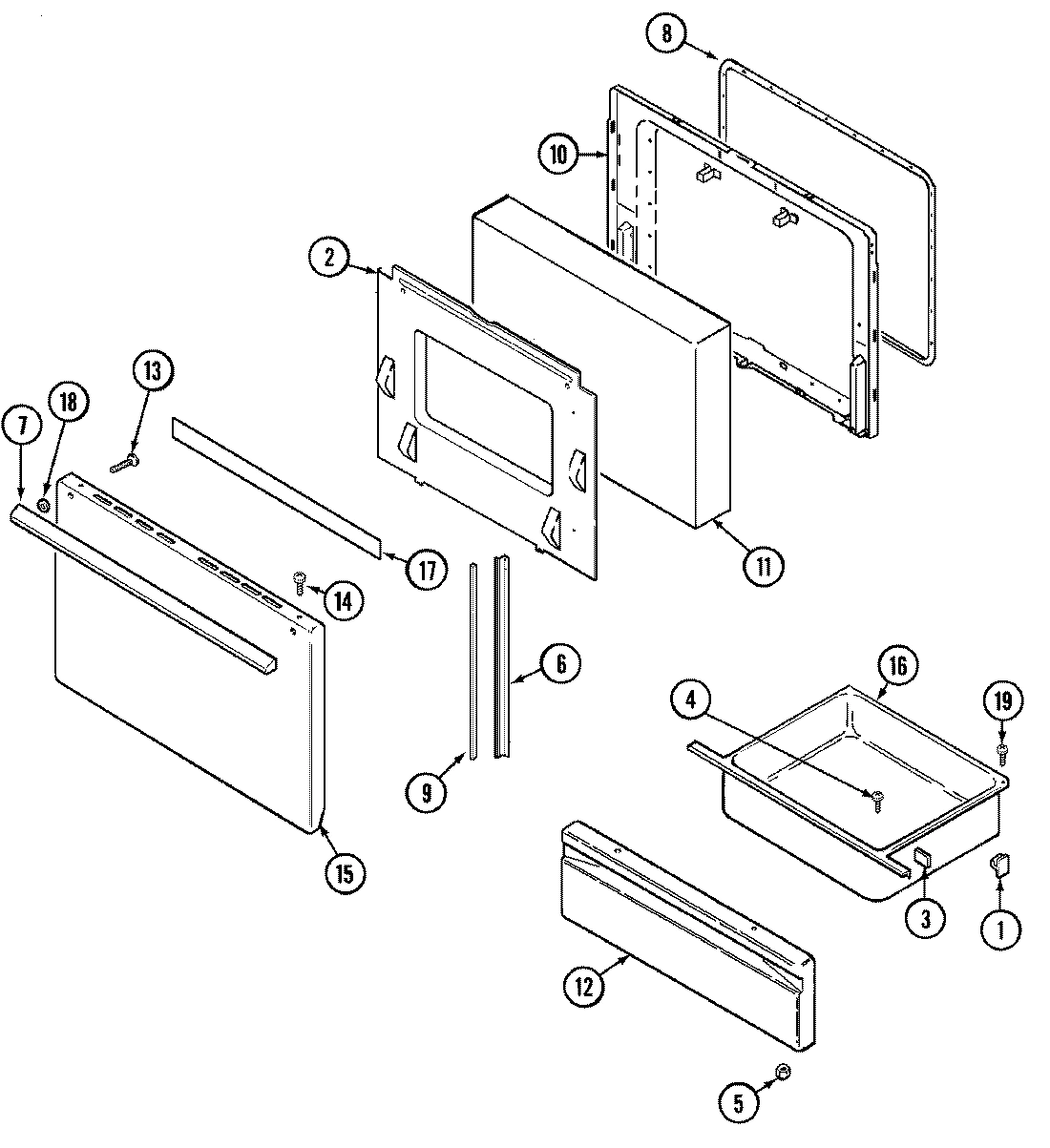

03 - DOOR/DRAWER

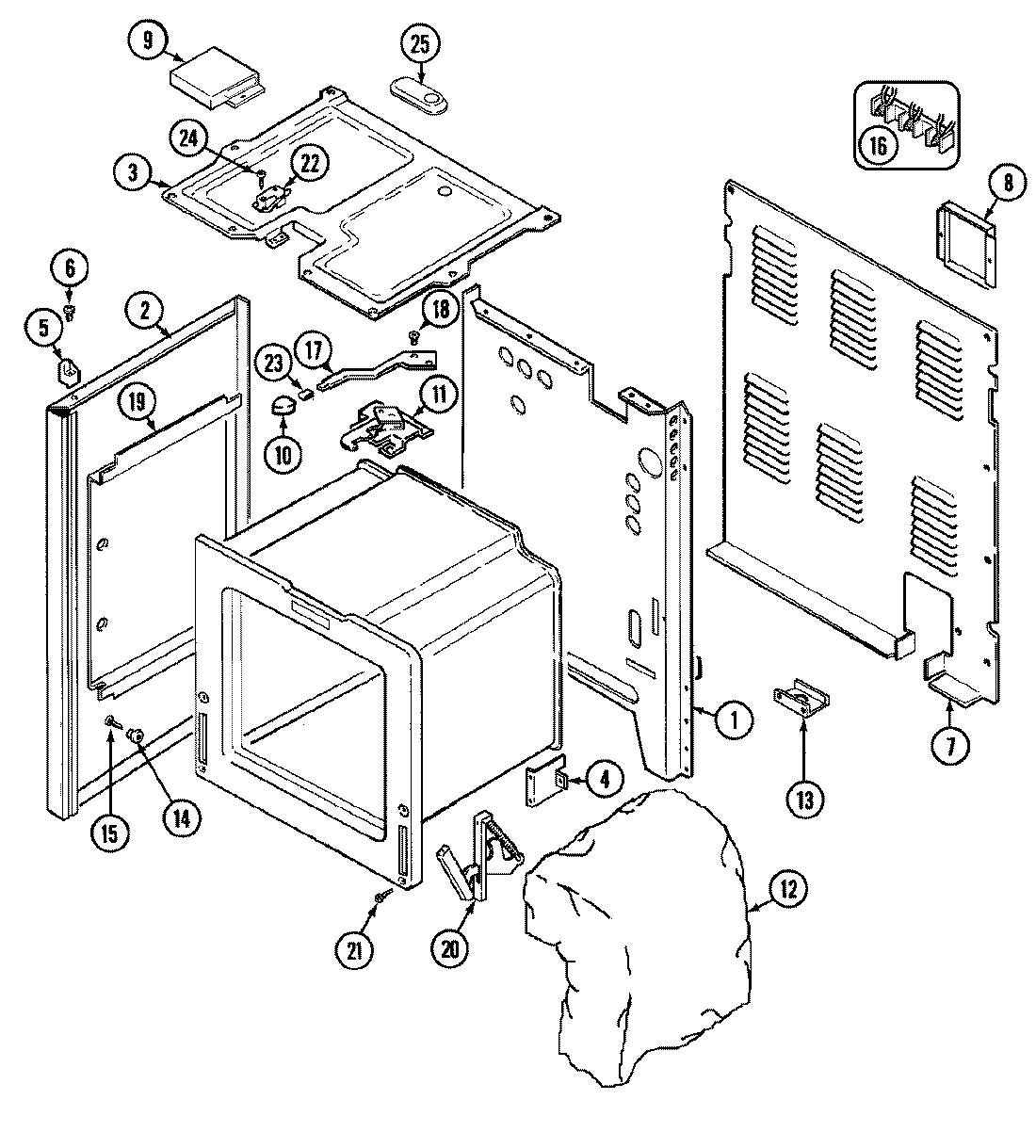

01 - BODY

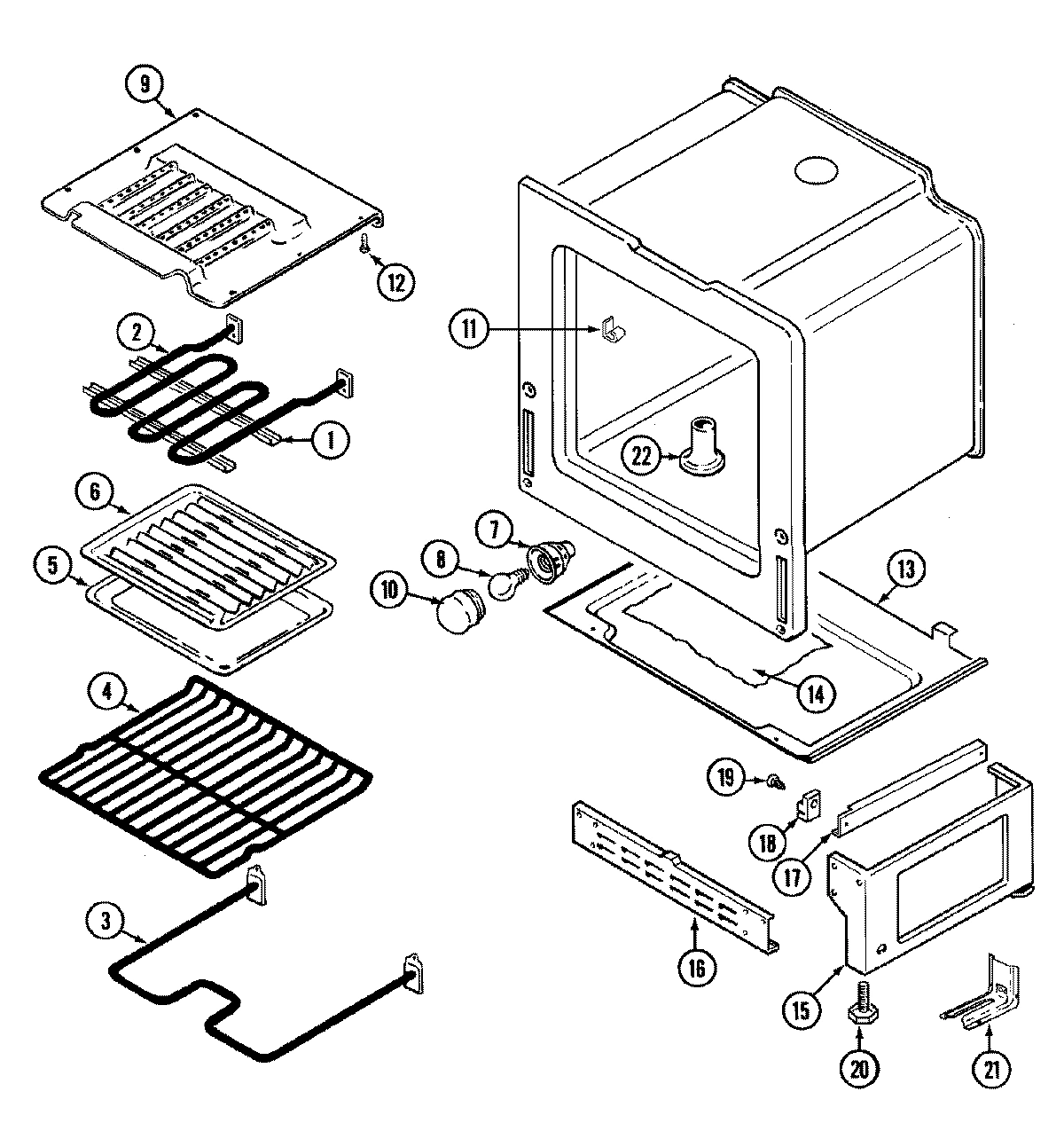

04 - OVEN/BASE

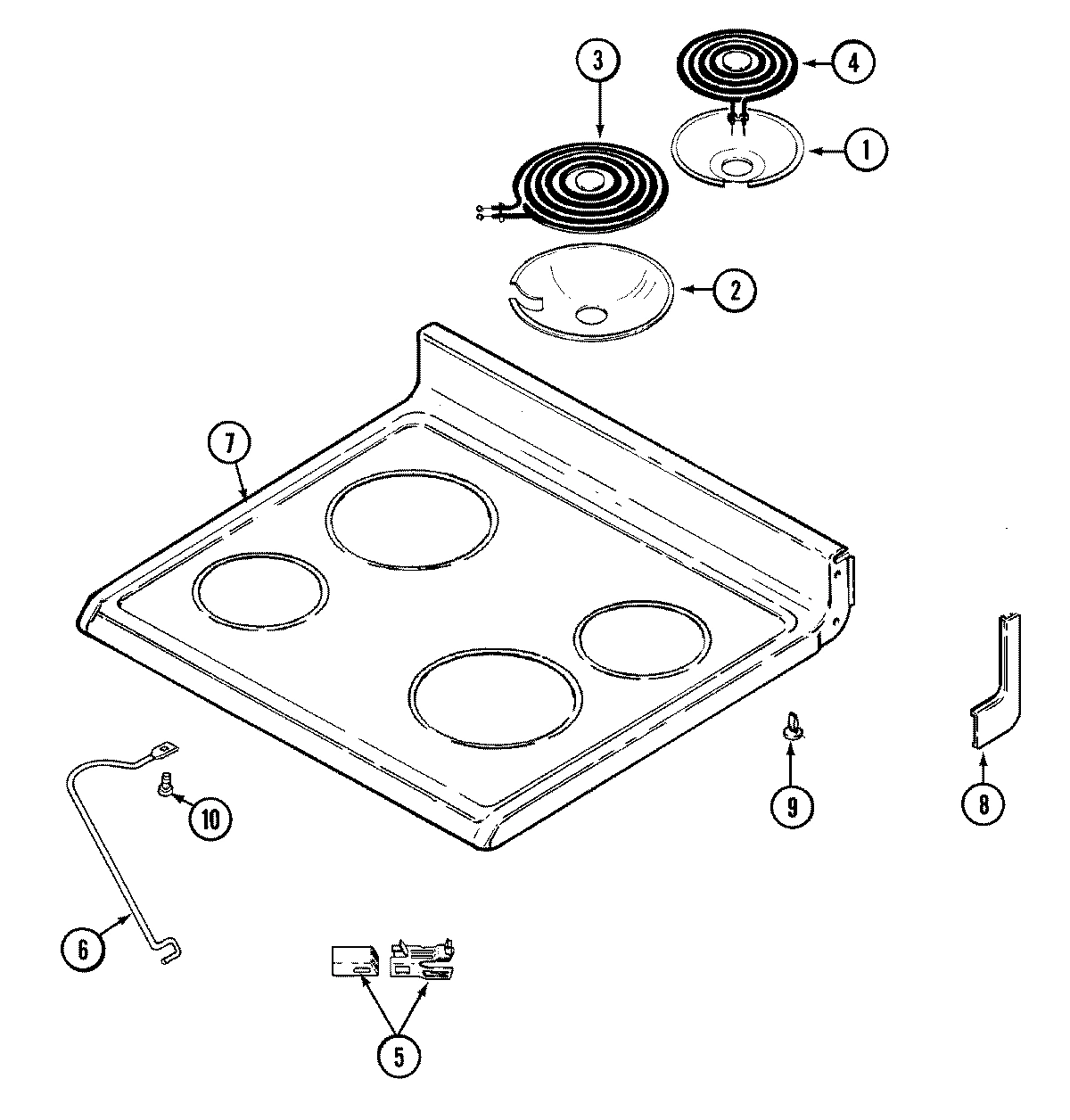

05 - TOP ASSEMBLY
Common parts from model Whirlpool 3842PRW ELECTRIC RANGE
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
2
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P26960 Contact Us For Availability
3
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
3
BOX, BURNER WPL 4011F24019 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
4
SCREW WPL 7101P07260 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
NUT, LOCK WPL 7103P13960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
6
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P10060 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
END CAP, PANEL (LT-BLK)----NA WPL 74001342 Contact Us For Availability
9
END CAP, PANEL (RT-BLK) WPL 74001343 Contact Us For Availability
9
SEAL WPL 7208P00260 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
10
LINING, DOOR WPL 2402W21019 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
12
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F31745 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
15
PANEL, DOOR (WHT) WPL 2401F09871 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
16
SCREW WPL 7118P01960 Contact Us For Availability
16
CLOCK WPL 7601P17060 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
19
GASKET WPL 7201P05660 Contact Us For Availability
19
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
WIRE HARNESS, CONTROL PANEL WPL 5170D18860 Contact Us For Availability
20
WIRE HARNESS, DOOR LATCH WPL 5195D09360 Contact Us For Availability
20
HARNESS, WIRE CONTROL/TOP WPL 74001586 Contact Us For Availability
20
HARNESS, WIRE LOOSE WPL 74001702 Contact Us For Availability
20
HINGE WPL 7106P05560 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P02160 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
22
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
SCREW WPL 7101P29060 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
25
COVER, VENT WPL 4005F43245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
