Model GE 362.73278691 Gas Range (Kenmore 36273278691) – Common Parts & Diagrams

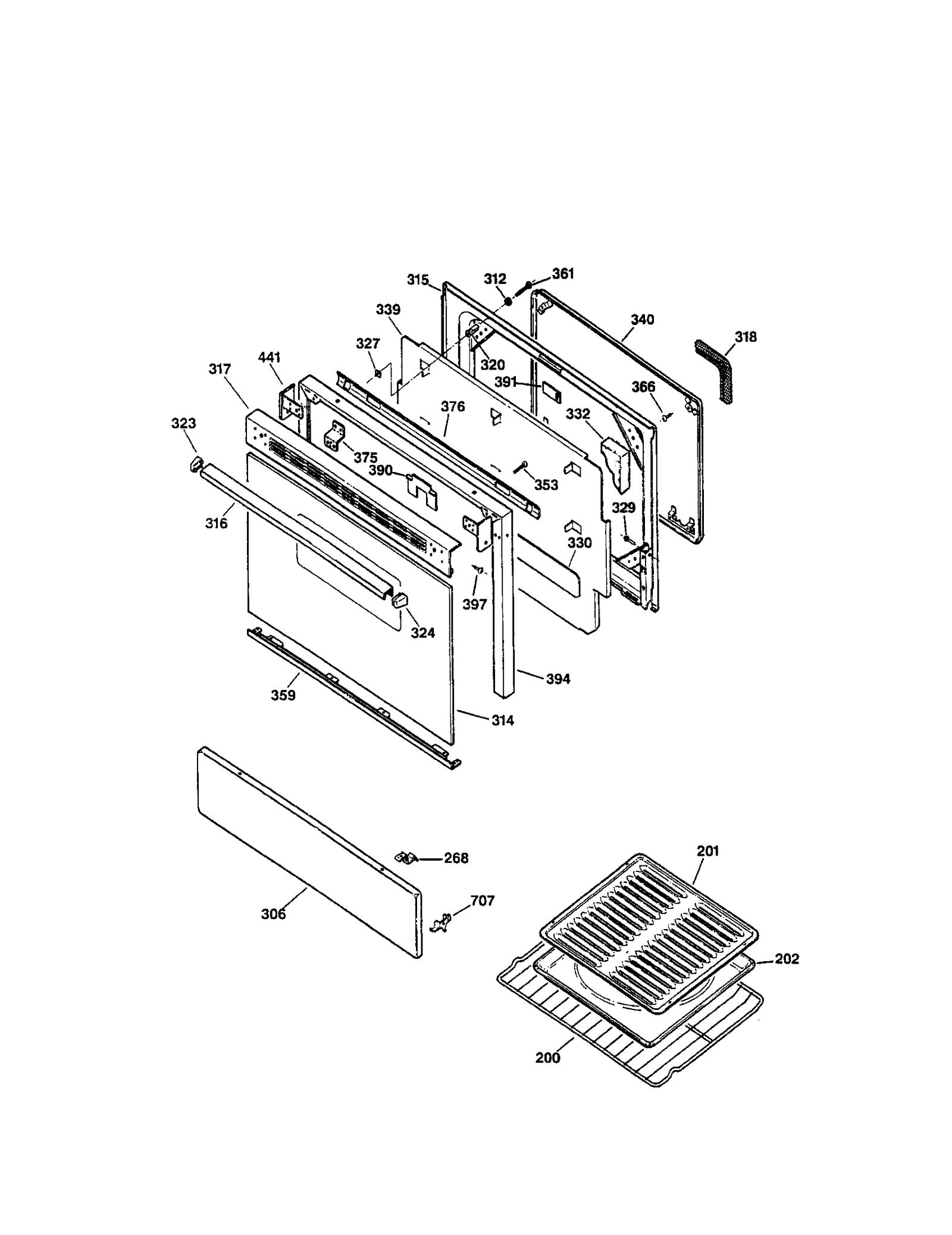

DOOR

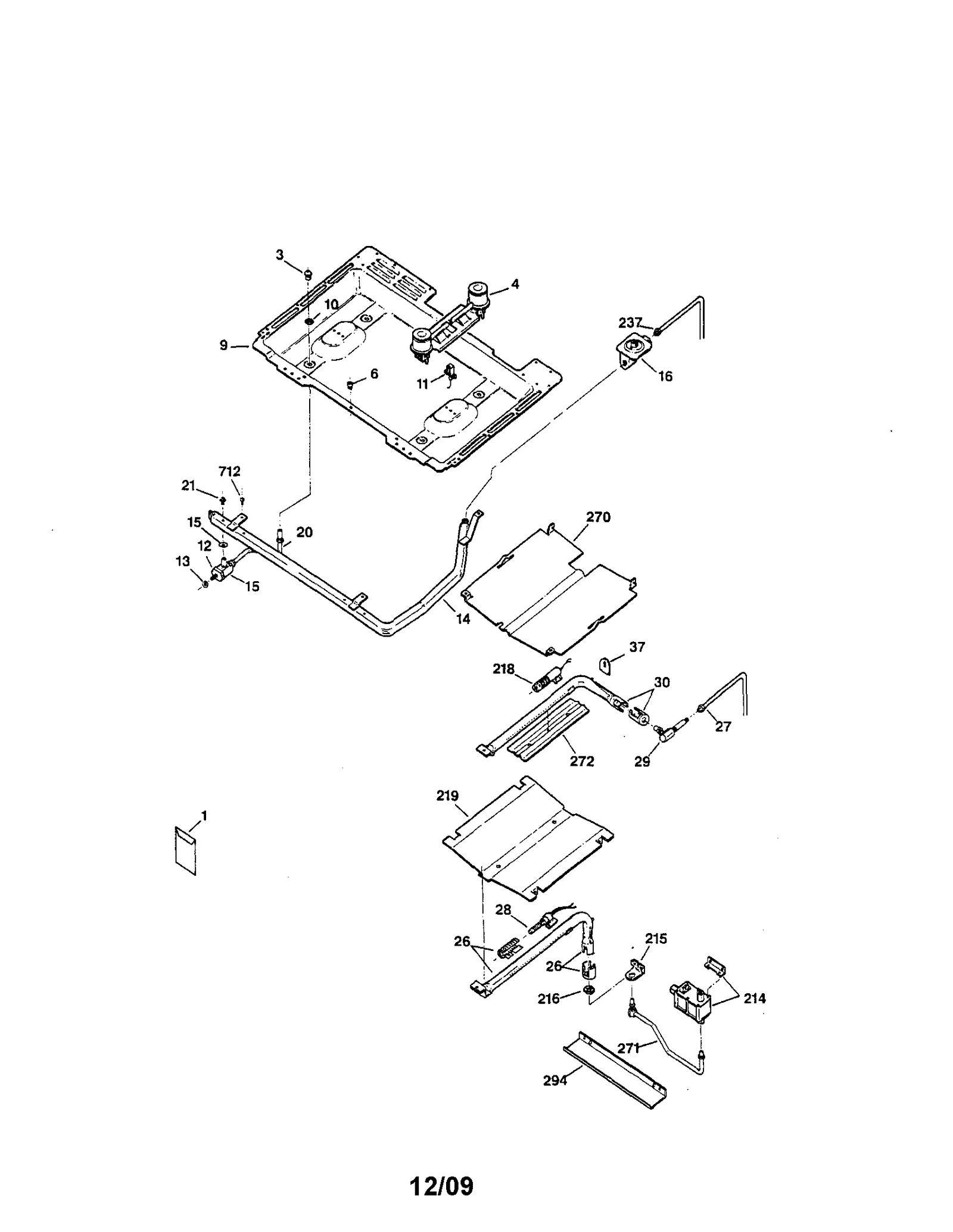

GAS & BURNER

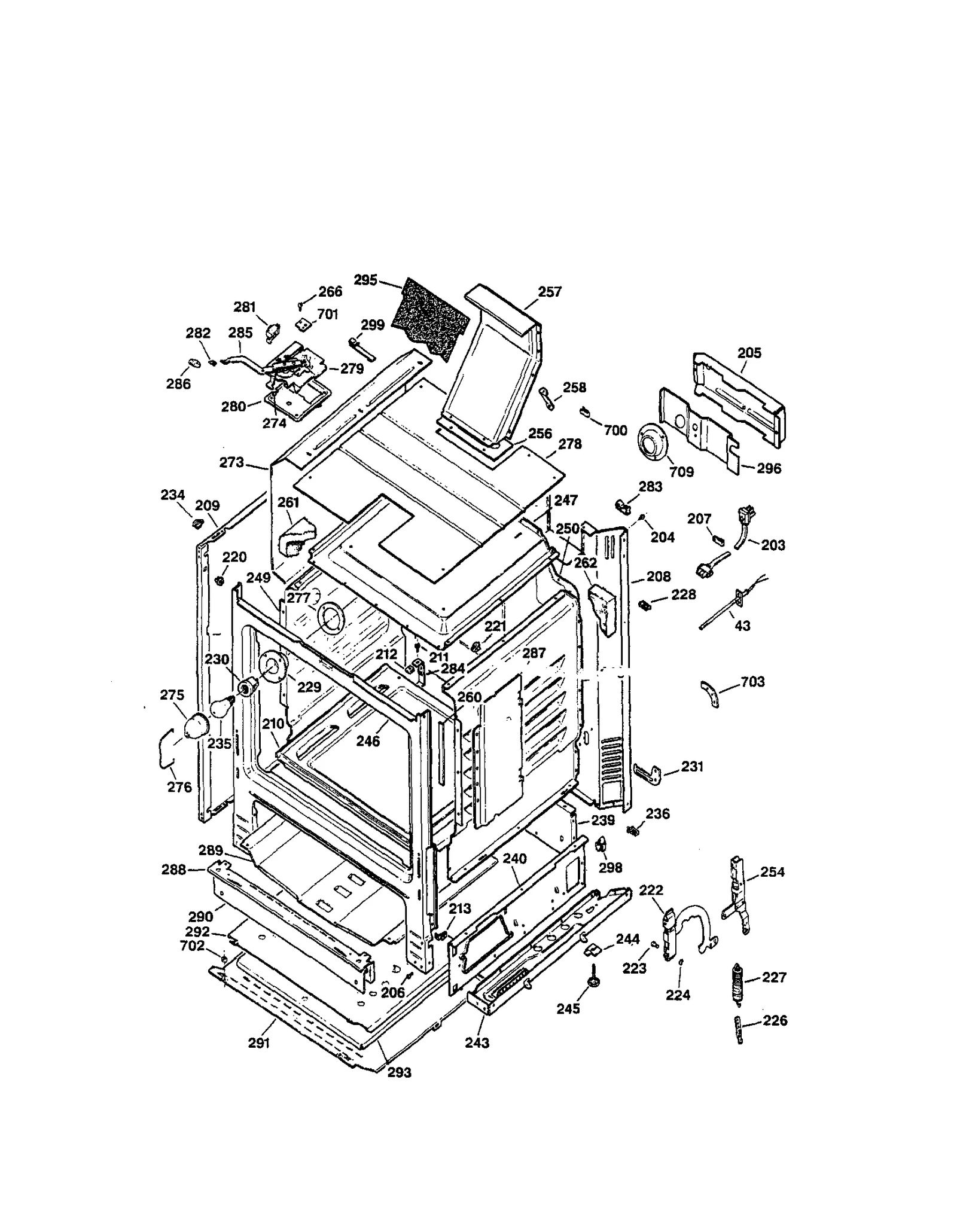

BODY

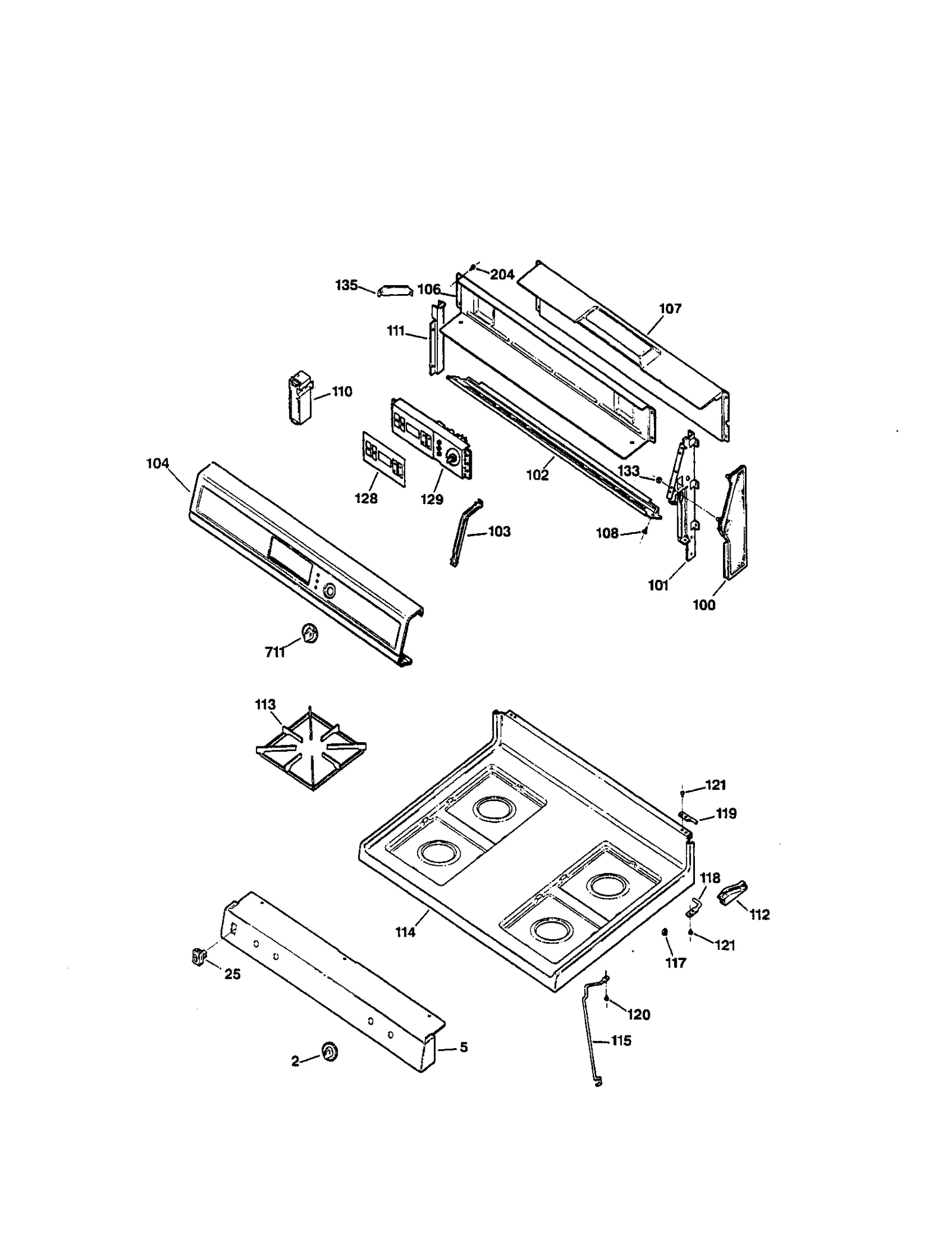

CONTROL PANEL & COOKTOP
Common parts from model GE 362.73278691 Gas Range (Kenmore 36273278691)
1
User Manuala GEN SR4235 Contact Us For Availability
1A
MINI-MANUAL/ELEC. DIAG GEN 31-20161 Contact Us For Availability
1B
Range Parts GEN SR4492 Contact Us For Availability
1C
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Mini Valve Knob (Black) GEN WB03K0168 Contact Us For Availability
3
Orifice Spud GEN WB28K0007 Contact Us For Availability
5
Manifold Panel GEN WB36K0047 Contact Us For Availability
6
Grommet GEN WB02K0009 Contact Us For Availability
9
Burner Box GEN WB64K0004 Contact Us For Availability
10
Nut GEN WB01K0004 Contact Us For Availability
12
Burner Valve Switch GEN WB24K0014 Contact Us For Availability
14
Manifold GEN WB28K0063 Contact Us For Availability
20
Foot Tube GEN WB28K0031 Contact Us For Availability
20A
Rr Tube Asm GEN WB28K0048 Contact Us For Availability
20B
Foot Tube GEN WB28K0032 Contact Us For Availability
20C
Rr Tube Asm GEN WB28K0047 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
26
Bake Burner GEN WB16K0026 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K0030 Contact Us For Availability
29A
Igniter Cage GEN WB34K0028 Contact Us For Availability
30
Broil Burner GEN WB16K0008 Contact Us For Availability
100
End Cover GEN WB07K0089 Contact Us For Availability
100A
End Cover GEN WB07K0090 Contact Us For Availability
101
End Plate GEN WB37K0011 Contact Us For Availability
101A
End Plate GEN WB37K0012 Contact Us For Availability
102
Lwr Frt Trim GEN WB07K0005 Contact Us For Availability
103
Timer Bracket GEN WB37K0009 Contact Us For Availability
104
Trim Ctl-blk GEN WB36K0160 Contact Us For Availability
106
Cover GEN WB36K0017 Contact Us For Availability
107
Lower Cover GEN WB36K0002 Contact Us For Availability
108A
Screw GEN WB01X5716 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
112
Gd Hldr Rgth GEN WB14K0001 Contact Us For Availability
113
Grate GEN WB31K0007 Contact Us For Availability
114
Rangetop Ad GEN WB62K0017 Contact Us For Availability
114A
Top White GEN WB62K0018 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
128
Overlay (bk) GEN WB11K0059 Contact Us For Availability
129
Clock Timer GEN WB11K0042 Contact Us For Availability
133
Palnut GEN WB01K0022 Contact Us For Availability
135
Brace Backguard GEN WB37K0010 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209A
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Tube Oven Support GEN WB28K0151 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240A
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oventop GEN WB53K0014 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
254A
Support Rivet GEN WB10K0013 Contact Us For Availability
254B
Hinge Screw GEN WB01K0053 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266
Screw GEN WB01K0012 Contact Us For Availability
266A
Screw GEN WZ05X0124 Contact Us For Availability
268
K Panel Clip GEN WB02K0025 Contact Us For Availability
270
Deflector GEN WB34K0033 Contact Us For Availability
271
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273A
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K0017 Contact Us For Availability
287A
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Reflector Vent GEN WB38K0005 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
306
Blk Drw Pnl GEN WB39K0036 Contact Us For Availability
314
Door (Black) GEN WB56K0031 Contact Us For Availability
315
Liner GEN WB55K0007 Contact Us For Availability
316
Handle (blk) GEN WB15K0023 Contact Us For Availability
317
Trim Top Dr GEN WB07K0239 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
330
Reflector GEN WB35K0021 Contact Us For Availability
330A
Reflector GEN WB35K0022 Contact Us For Availability
332
Door Insulation GEN WB35K0026 Contact Us For Availability
339
Guard Insulation GEN WB56K0007 Contact Us For Availability
340
Drive Liner GEN WB55K0022 Contact Us For Availability
375
Door Bracket GEN WB02K0067 Contact Us For Availability
390
Cover Drive Vent GEN WB34K0027 Contact Us For Availability
391
Door Latch Cover GEN WB34K0026 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
700
Clip Vent GEN WB02K0034 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
707
Brkt Kick Pn GEN WB02K0033 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Knob (Black) GEN WB03K0219 Contact Us For Availability
× ![]()
