Model GE 362.72751694 Gas Range (Kenmore 36272751694) – Common Parts & Diagrams
BODY

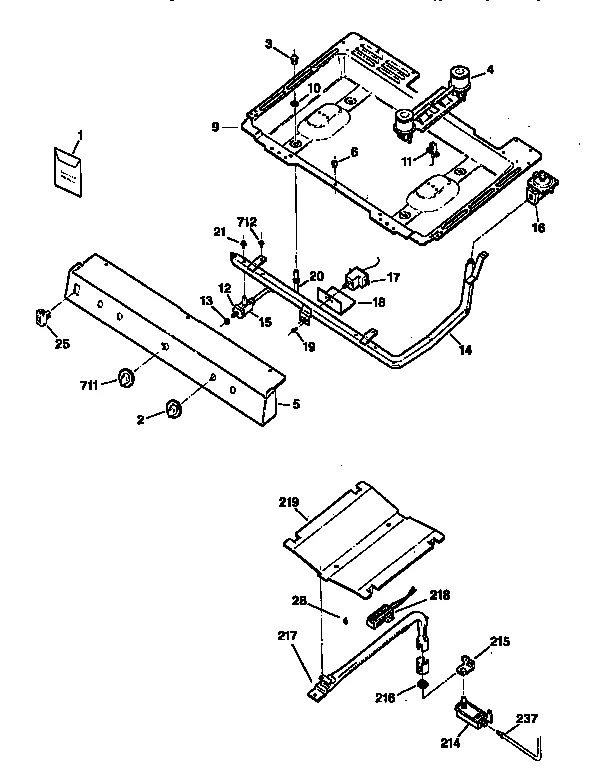

GAS AND BURNER

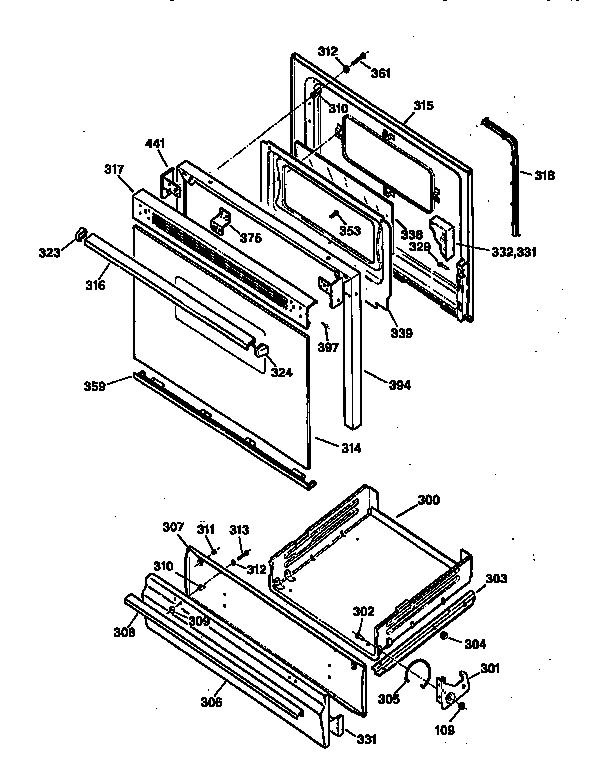

DOOR AND DRAWER

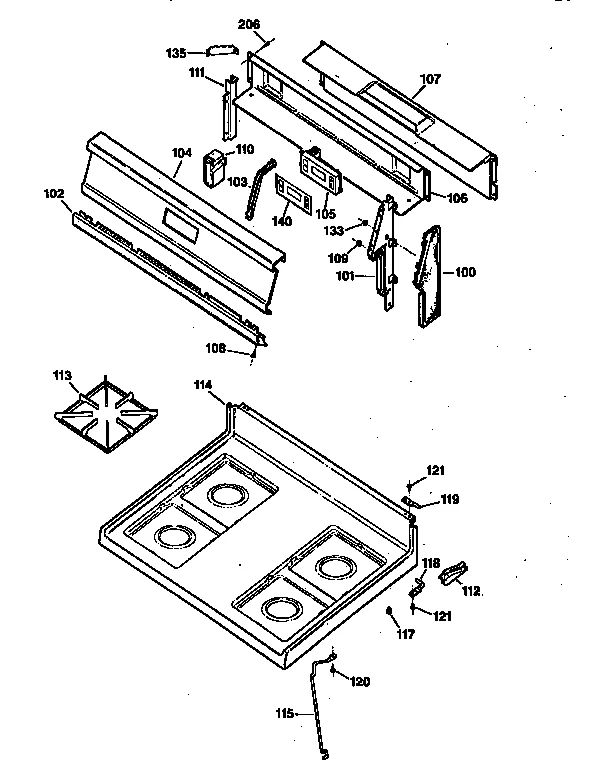

COOKTOP
Common parts from model GE 362.72751694 Gas Range (Kenmore 36272751694)
1
Range Parts GEN SR4489 Contact Us For Availability
1A
MINI-MANUAL/ELEC. DIAG GEN 31-20135 Contact Us For Availability
1B
User's Manual GEN SR4234 Contact Us For Availability
1C
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Mini Valve Knob (Black) GEN WB03K0168 Contact Us For Availability
2A
Surface Burner Knob GEN WB03K0186 Contact Us For Availability
3A
Orifice Spud GEN WB28K0007 Contact Us For Availability
5
Manifold Panel GEN WB36K0037 Contact Us For Availability
5A
Manifold Panel GEN WB36K0040 Contact Us For Availability
6
Grommet GEN WB02K0009 Contact Us For Availability
9
Burner Box GEN WB64K0004 Contact Us For Availability
10
Nut GEN WB01K0004 Contact Us For Availability
12
Burner Valve Switch GEN WB24K0014 Contact Us For Availability
14
Manifold GEN WB28K0062 Contact Us For Availability
18
Thermostat Cover GEN WB02K0006 Contact Us For Availability
20
Foot Tube GEN WB28K0031 Contact Us For Availability
20A
Rr Tube Asm GEN WB28K0048 Contact Us For Availability
20B
Foot Tube GEN WB28K0032 Contact Us For Availability
20C
Rr Tube Asm GEN WB28K0047 Contact Us For Availability
25A
Rocker Switch GEN WB24K0003 Contact Us For Availability
100
End Cover GEN WB07K0269 Contact Us For Availability
100A
End Cover GEN WB07K0090 Contact Us For Availability
100B
End Cover GEN WB07K0089 Contact Us For Availability
100C
End Cover GEN WB07K0270 Contact Us For Availability
101
End Plate GEN WB37K0011 Contact Us For Availability
101A
End Plate GEN WB37K0012 Contact Us For Availability
102
Lwr Frt Trim GEN WB07K0005 Contact Us For Availability
103
Timer Bracket GEN WB37K0009 Contact Us For Availability
104
Trim Ctl Blk GEN WB36K0041 Contact Us For Availability
104A
Control Trim GEN WB36K0042 Contact Us For Availability
106
Cover GEN WB36K0017 Contact Us For Availability
107
Lower Cover GEN WB36K0002 Contact Us For Availability
108
Screw GEN WB01X5754 Contact Us For Availability
108B
Screw End Cap GEN WB01X5874 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
112
Gd Hldr Rgth GEN WB14K0001 Contact Us For Availability
113
Grate GEN WB31K0011 Contact Us For Availability
113A
Grate GEN WB31K0007 Contact Us For Availability
114
Top White GEN WB62K0018 Contact Us For Availability
114A
Rangetop Ad GEN WB62K0017 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
133
Palnut GEN WB01K0022 Contact Us For Availability
135
Brace Backguard GEN WB37K0010 Contact Us For Availability
140
Overlay GEN WB11K0049 Contact Us For Availability
140A
Overlay GEN WB11K0047 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Bck Pnl GEN WB34K0021 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209A
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
221
CLIP CAPILLARY GEN WV02K0010 Contact Us For Availability
222
Hinge Asm Gd GEN WB10K0012 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
232
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
232A
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
247
Oven GEN WB53K0009 Contact Us For Availability
248
Oven GEN WB53K0007 Contact Us For Availability
249
Oven GEN WB53K0008 Contact Us For Availability
250
Ov Back 24" GEN WB53K0006 Contact Us For Availability
254A
Support Rivet GEN WB10K0014 Contact Us For Availability
254B
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0001 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259A
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
301
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303A
Slide Brlr P GEN WB39K0008 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305A
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Wh GEN WB39K0023 Contact Us For Availability
306A
Pnl Drwr Ad GEN WB39K0024 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0015 Contact Us For Availability
308A
Broiler Handle GEN WB15K0017 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314
Door (Black) GEN WB57K0002 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0006 Contact Us For Availability
316
Handle (wht) GEN WB15K0025 Contact Us For Availability
316A
Handle (blk) GEN WB15K0023 Contact Us For Availability
317
Door Trim GEN WB07K0406 Contact Us For Availability
317A
Trim Top Dr GEN WB07K0239 Contact Us For Availability
323
Handle Cap GEN WB07K5339 Contact Us For Availability
323A
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Handle Cap GEN WB07K5338 Contact Us For Availability
324A
Cap Handle R GEN WB07K0088 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
375
Door Bracket GEN WB02K0067 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394A
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
711
Thermostat Knob GEN WB03K0117 Contact Us For Availability
711A
Thermostat Knob GEN WB03K0119 Contact Us For Availability
× ![]()
