Model Whirlpool 15GK-10 ELECTRIC RANGE – Common Parts & Diagrams

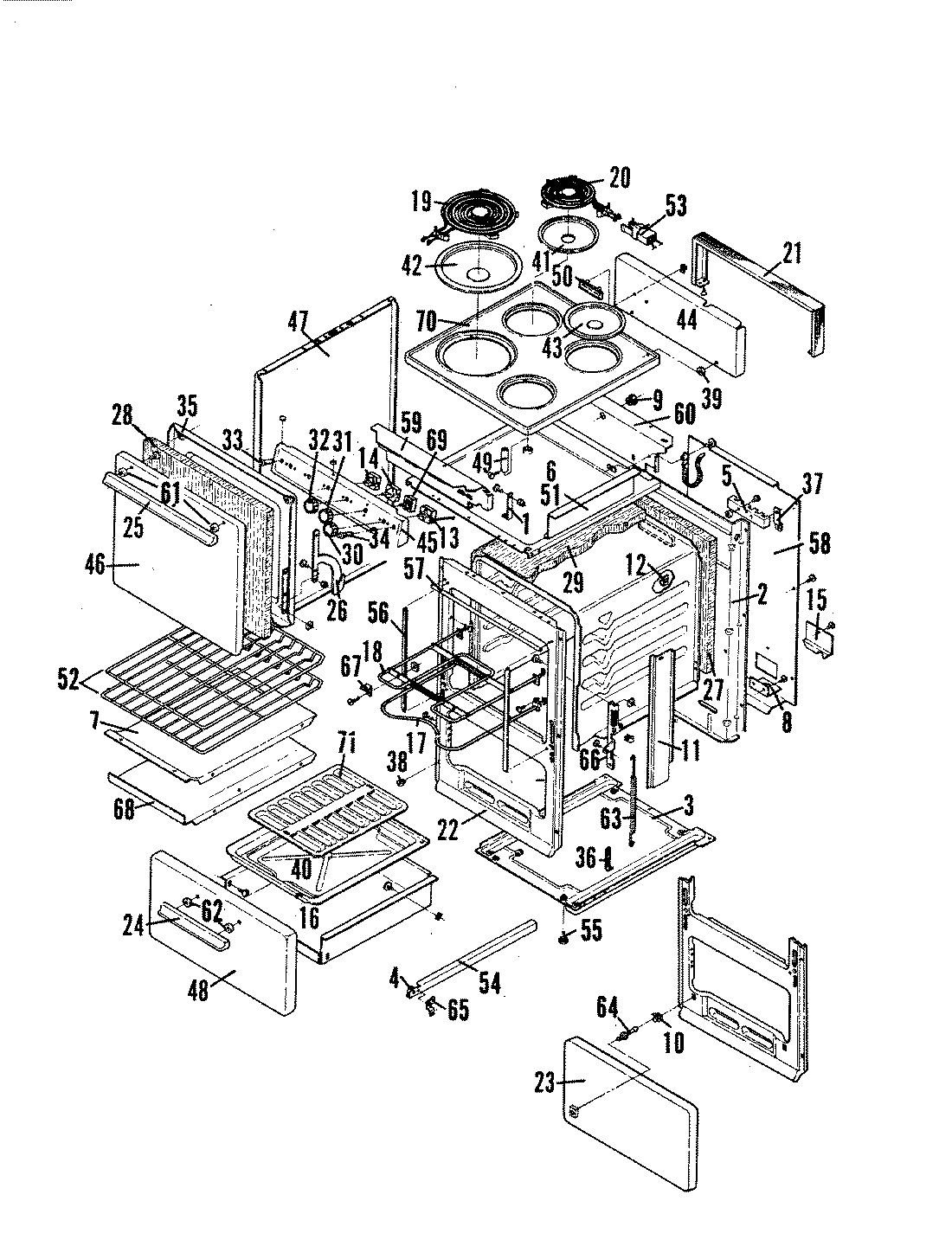

01 - CONTROL PANEL/TOP/BODY/DOOR
Common parts from model Whirlpool 15GK-10 ELECTRIC RANGE
1
ANCHOR, COOK TOP WPL 1E18200441 Contact Us For Availability
2
BACK, MAIN WPL 1E10007645 Contact Us For Availability
3
BASE MAIN WPL 1G10202545 Contact Us For Availability
4
BEARING, BROILER ROL WPL Y0B00401550 Contact Us For Availability
6
BOTTOM, SURFACE UNIT WPL 1E10102645 Contact Us For Availability
7
BOTTOM, OVEN WPL 1E07600553 Contact Us For Availability
8
BRACKET, DISCONNECT WPL 1E49700141 Contact Us For Availability
9
BUSHING SNAP WPL Y0B01000143 Contact Us For Availability
10
CATCH WPL Y0C04000126 Contact Us For Availability
11
CLAMP WIRE WPL 0C00851550 Contact Us For Availability
11
CHUTE AIR SIDE WPL 1E40900141 Contact Us For Availability
12
CLIP, O C CAP SET WPL Y0C00100199 Contact Us For Availability
13
CONTROL, OVEN WPL 0C01605099 Contact Us For Availability
14
CONTROL, INFINITE-24 WPL Y0C01503499 Contact Us For Availability
14
CONTROL, INFINITE-24 WPL Y0C01503599 Contact Us For Availability
15
COVER TERM BLOCK AC WPL 9E50500145 Contact Us For Availability
16
DRAWER UTILITY WPL 7E06800145 Contact Us For Availability
18
ELEMENT, BROIL WPL Y0E00216099 Contact Us For Availability
20
ELEMENT, SMALL SURFA WPL 0E00601199 Contact Us For Availability
21
FRAME, BACKGUARD WPL 1G05602024 Contact Us For Availability
22
FRONT, MAIN WPL 1E09107653 Contact Us For Availability
24
HANDLE DOOR WPL 0H03023611 Contact Us For Availability
25
HINGE, LEFT WPL 9E10707122 Contact Us For Availability
25
HANDLE DOOR WPL Y0H03023711 Contact Us For Availability
26
HINGE DR ASSBY RT WPL 9E10707222 Contact Us For Availability
27
INSULATION OVEN BACK WPL 0I10030132 Contact Us For Availability
28
INSULATION O DOOR WPL 0I00610124 Contact Us For Availability
29
INSULATOR, TERMINAL WPL 0I00400150 Contact Us For Availability
29
INSULATION O WRAP A WPL 0I09010132 Contact Us For Availability
30
KNOB, OVEN CONTROL WPL 0K00603243 Contact Us For Availability
31
KNOB, SELECTOR SWITC WPL 0K01105043 Contact Us For Availability
32
KNOB, INFINITE CONTR WPL Y0K00505643 Contact Us For Availability
33
LIGHT INDICATOR WPL 0L00602023 Contact Us For Availability
34
LIGHT, INDICATOR WPL 0L00604299 Contact Us For Availability
35
LINING OVEN DOOR WPL 1G01601753 Contact Us For Availability
36
LINK OVEN DOOR SPRI WPL 6E34800141 Contact Us For Availability
37
LUG GROUND WPL 0L02279399 Contact Us For Availability
38
NUT WPL Y0N10131550 Contact Us For Availability
39
NUT NYLON WPL 0N10000150 Contact Us For Availability
43
PAN, REFLECTOR (SMALL) WPL 0P00600111 Contact Us For Availability
49
PIPE, OVEN HEAT WPL 1E58700319 Contact Us For Availability
50
PLATE, NAME WPL 0P00203716 Contact Us For Availability
51
RACEWAY WIRE WPL 1E17700341 Contact Us For Availability
52
RACK OVEN WPL Y0R01001611 Contact Us For Availability
53
RUNNER, UTIL. DRAWER WPL 9E55100345 Contact Us For Availability
54
RUNNER, UTIL DRAWER- WPL 9E55100445 Contact Us For Availability
55
SCREW LEVELING WPL Y0S01500126 Contact Us For Availability
56
SEAL, OVEN DOOR WPL Y0S00643599 Contact Us For Availability
57
SEAL, OVEN DOOR (TOP) WPL 0S05143499 Contact Us For Availability
57
SHEET, TIP-IN WPL Y0S05101599 Contact Us For Availability
58
SHIELD, BACK WIRE WPL 1E17500445 Contact Us For Availability
59
SHIELD CONTROL WPL 1E17600641 Contact Us For Availability
60
SHIELD, BURNER BOX WIRE WPL 1E17401341 Contact Us For Availability
61
SPACER DOOR HANDLE WPL Y0S02100543 Contact Us For Availability
62
SPACER DOOR HANDLE WPL Y0S02100143 Contact Us For Availability
63
WPL 0S00102699 WPL 0S00102699 Contact Us For Availability
64
WPL Y0S02900126 WPL Y0S02900126 Contact Us For Availability
65
WPL 1E50400245 WPL 1E50400245 Contact Us For Availability
65
WPL 7E12706122 WPL 7E12706122 Contact Us For Availability
66
WPL 7E12706222 WPL 7E12706222 Contact Us For Availability
67
WPL 1E55400141 WPL 1E55400141 Contact Us For Availability
68
WPL 1E17800141 WPL 1E17800141 Contact Us For Availability
69
WPL 0T01200399 WPL 0T01200399 Contact Us For Availability
69
WPL Y0S03006499 WPL Y0S03006499 Contact Us For Availability
69
WPL Y0T01101226 WPL Y0T01101226 Contact Us For Availability
71
WPL 5G06700153 WPL 5G06700153 Contact Us For Availability
× ![]()
