Model Whirlpool 110.76445600 Electric Dryer (Kenmore 11076445600) – Common Parts & Diagrams
BULKHEAD ASSEMBLY

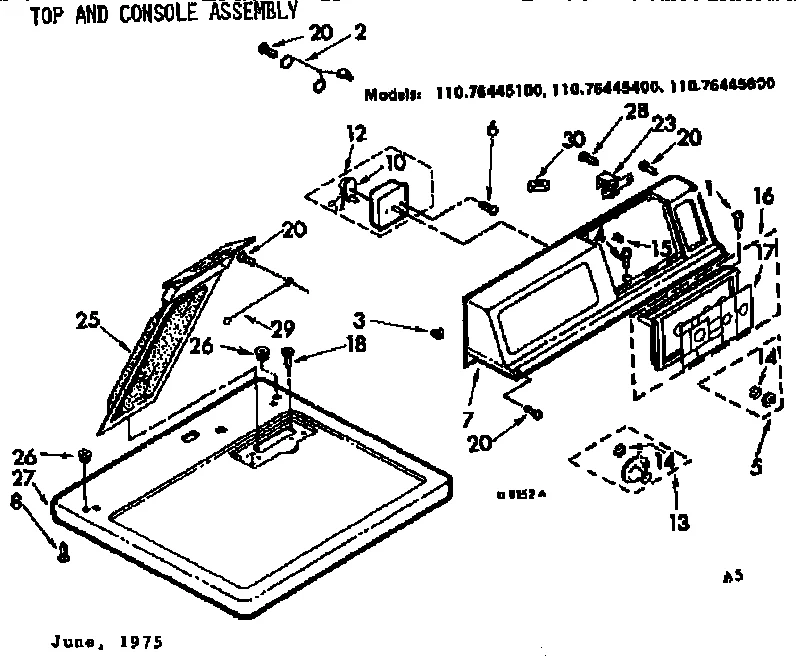

TOP AND CONSOLE ASSEMBLY

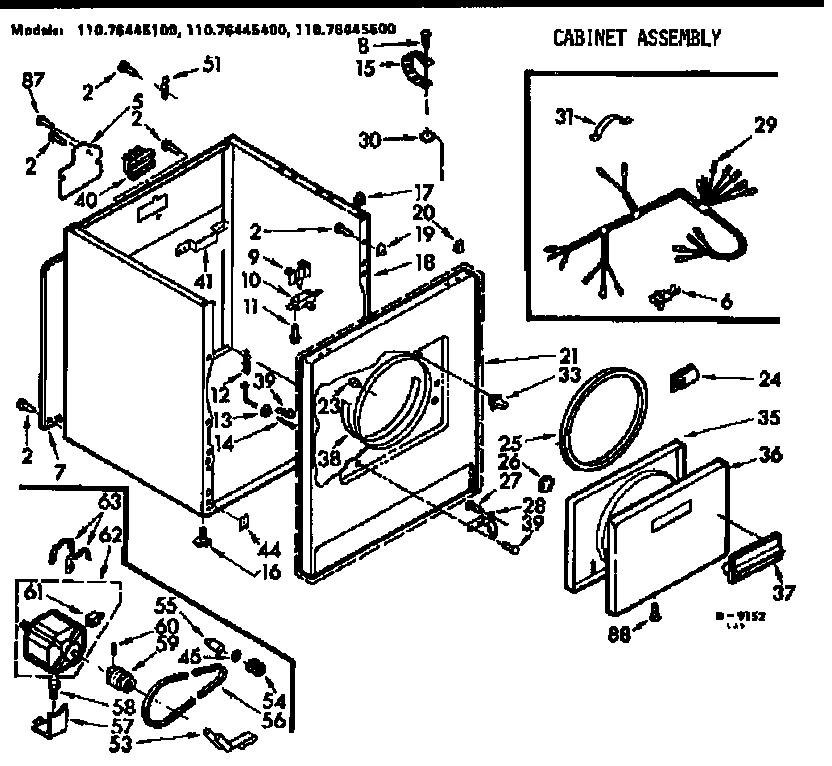

CABINET ASSEMBLY
All Parts
Common parts from model Whirlpool 110.76445600 Electric Dryer (Kenmore 11076445600)
2
Wire WPL 346569 Contact Us For Availability
5
Knob (White) WPL 686377 Contact Us For Availability
5
Cover WPL 343630 Contact Us For Availability
6
Screw WPL 347240 Contact Us For Availability
6
(338471) (ALT.) WPL N/P Contact Us For Availability
7
Panel WPL 346368 Contact Us For Availability
7A
Escutcheon (White) WPL 370477 Contact Us For Availability
7B
Escutcheon WPL 370479 Contact Us For Availability
7C
Escutcheon WPL 370480 Contact Us For Availability
8
Screw WPL 355326 Contact Us For Availability
8
Screw WPL 132848 Contact Us For Availability
10A
Timer Motor WPL 341517 Contact Us For Availability
10B
Motor WPL 343532 Contact Us For Availability
12A
Timer WPL 347230 Contact Us For Availability
12B
Timer WPL 347231 Contact Us For Availability
13
Knob WPL 686379 Contact Us For Availability
13A
Door Cable Guide WPL 337182 Contact Us For Availability
13B
Guide WPL 337183 Contact Us For Availability
14
Compression Ring WPL 90015 Contact Us For Availability
15
Clip WPL 98084 Contact Us For Availability
15
Ground Strap WPL 22965 Contact Us For Availability
16
Bezel WPL 686813 Contact Us For Availability
17
Insert WPL 686812 Contact Us For Availability
17
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
18
Screw WPL 128060 Contact Us For Availability
18B
Cabinet WPL 348636 Contact Us For Availability
18C
Cabinet (Gold) WPL 348637 Contact Us For Availability
21A
Panel (White) WPL 337464 Contact Us For Availability
21B
Panel WPL 686403 Contact Us For Availability
21C
Panel WPL 686404 Contact Us For Availability
23
Switch WPL 345775 Contact Us For Availability
25B
Screen (Almond) WPL 348856 Contact Us For Availability
27A
Top (White) WPL 685053 Contact Us For Availability
27B
Top WPL 685055 Contact Us For Availability
27C
Top WPL 685056 Contact Us For Availability
28
Screw WPL 346893 Contact Us For Availability
28B
Door Hinge WPL 238456 Contact Us For Availability
29
Ground Wire WPL 340025 Contact Us For Availability
29
Harness WPL 685467 Contact Us For Availability
30
Nut WPL 349947 Contact Us For Availability
30
Ground Wire WPL 364089 Contact Us For Availability
35A
Door (White) WPL 346395 Contact Us For Availability
35B
Door WPL 346397 Contact Us For Availability
35C
Door (Gold) WPL 346398 Contact Us For Availability
36A
Door (White) WPL 348737 Contact Us For Availability
36B
Door WPL 348738 Contact Us For Availability
36C
Door (Gold) WPL 348740 Contact Us For Availability
37C
Handle (Gold) WPL 348724 Contact Us For Availability
45
Washer WPL 345323 Contact Us For Availability
60A
Screw WPL 90193 Contact Us For Availability
60B
Set Screw WPL 98166 Contact Us For Availability
61B
Motor Switch WPL 298699 Contact Us For Availability
62B
Motor WPL 338742 Contact Us For Availability
74
Thermostat WPL 341900 Contact Us For Availability
88
Screw WPL 9425761 Contact Us For Availability
NI
Cabinet (White) WPL 348634 Contact Us For Availability
NI
Toe Panel (White) WPL 237035 Contact Us For Availability
NI
Panel (White) WPL 337470 Contact Us For Availability
NI
Clip WPL 342601 Contact Us For Availability
NI
Wiring Harness WPL 345449 Contact Us For Availability
NI
Wiring Diagram WPL LIT230083 Contact Us For Availability
NI
Instructions WPL LIT339896 Contact Us For Availability
NI
Installation Instructions WPL LIT340704 Contact Us For Availability
NI
Label WPL LIT345485 Contact Us For Availability
NI
Owner's Manual WPL LIT347149 Contact Us For Availability
NI
Label WPL LIT347233 Contact Us For Availability
NI
Instructions WPL LIT349664 Contact Us For Availability
NI
Operating Instructions WPL LIT685657 Contact Us For Availability
NI
Parts List WPL LIT686528 Contact Us For Availability
× ![]()
