Whirlpool 110.47512601 Automatic Washer Parts List

1

Valve, Inlet WPL WP8540751 No Longer Available

View on Model

1

WPW10204534 Whirlpool Wire Harness Backorder WPL WPW10204534 $130.56

View on Model

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $54.52

View on Model

2

8540033 Whirlpool Cap Backorder WPL 8540033 $11.90

View on Model

2

W10803052 Whirlpool Hose Backorder WPL W10803052 $7.68

View on Model

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $146.68

View on Model

2

WP8540108 Whirlpool Boot Spring Clamp In Stock WPL WP8540108 $14.04

View on Model

2

WP8565247 Whirlpool Knob Assembly Backorder WPL WP8565247 $44.98

View on Model

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

View on Model

3

WP8540101 Whirlpool Washer Drive Belt In Stock WPL WP8540101 $32.47

View on Model

3

WP8574969 Whirlpool Electronic Control Board Backorder WPL WP8574969 $236.88

View on Model

3

WPW10405608 Whirlpool Trap In Stock WPL WPW10405608 $4.82

View on Model

4

W10200297 Whirlpool Counterweight Backorder WPL W10200297 $241.52

View on Model

4

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $4.99

View on Model

4

Ball WPL 8540013 Contact Us For Availability

View on Model

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $136.74

View on Model

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

View on Model

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $69.02

View on Model

5

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $7.05

View on Model

5

Channel, Water WPL 8540722 Contact Us For Availability

View on Model

6

8540010 Whirlpool Clamp Backorder WPL 8540010 $7.30

View on Model

6

W11366249 Whirlpool Washer Tub to Pump Hose In Stock WPL W11366249 $31.18

View on Model

6

WP8540393 Whirlpool Cam Backorder WPL WP8540393 $4.82

View on Model

7

8540644 Whirlpool Bracket Backorder WPL 8540644 $59.91

View on Model

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $19.46

View on Model

7

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

View on Model

7

WP8540394 Whirlpool Lever In Stock WPL WP8540394 $5.99

View on Model

8

280253 Whirlpool Outer Tub In Stock WPL 280253 $237.10

View on Model

8

W10034820 Whirlpool Grommet Backorder WPL W10034820 $8.46

View on Model

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

View on Model

8

WPW10143586 Whirlpool Washer Switch Backorder WPL WPW10143586 $141.64

View on Model

8

Harness, Wiring WPL 8540882 Contact Us For Availability

View on Model

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $8.89

View on Model

9

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

View on Model

9

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $4.82

View on Model

9

Lens, Console WPL 8571909 Contact Us For Availability

View on Model

9

VS611 Washer WPL N/S Contact Us For Availability

View on Model

9

Counterweight, Rear WPL 8540604 Contact Us For Availability

View on Model

10

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $14.02

View on Model

10

W11665946 Whirlpool Clamp Backorder WPL W11665946 $13.15

View on Model

10

WPW10111158 Whirlpool Gasket Assembly In Stock WPL WPW10111158 $73.20

View on Model

10

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $96.74

View on Model

11

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

View on Model

11

WP8540395 Whirlpool Lever Assembly In Stock WPL WP8540395 $5.99

View on Model

11

Basket, Complete WPL 8540878 Contact Us For Availability

View on Model

11

Damper, Rubber WPL 8540031 Contact Us For Availability

View on Model

12

8533964 Whirlpool Screw Backorder WPL 8533964 $7.77

View on Model

12

WP8540456 Whirlpool Baffle Assembly In Stock WPL WP8540456 $52.60

View on Model

12

Dispenser WPL 8540058 Contact Us For Availability

View on Model

13

WP8540053 Whirlpool Nozzle Backorder WPL WP8540053 $73.65

View on Model

14

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $22.62

View on Model

14

WPW10138523 Whirlpool Frame Backorder WPL WPW10138523 $171.83

View on Model

14

Nut, Shock Absorber Mounting WPL 8534084 Contact Us For Availability

View on Model

15

WPW10140581 Whirlpool Drive Motor Backorder WPL WPW10140581 $287.02

View on Model

15

Handle, Drawer WPL 8571924 Contact Us For Availability

View on Model

15

Counterweight, Front Upper WPL 8540598 Contact Us For Availability

View on Model

16

280159 Whirlpool Spring Assembly Backorder WPL 280159 $81.60

View on Model

16

8540134 Whirlpool Screw Backorder WPL 8540134 $8.89

View on Model

16

WP8540402 Whirlpool Washer Detergent Dispense Backorder WPL WP8540402 $115.32

View on Model

17

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

View on Model

17

WP8540399 Whirlpool Cover Assembly In Stock WPL WP8540399 $55.27

View on Model

17

Bolt, Counterweight Mtg. WPL 8540292 Contact Us For Availability

View on Model

18

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.15

View on Model

18

WP8540429 Whirlpool Dispenser Assembly In Stock WPL WP8540429 $10.22

View on Model

19

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $24.54

View on Model

19

Retainer, Hose Outlet WPL 8540607 Contact Us For Availability

View on Model

19

Hook, Drawer WPL 8540400 Contact Us For Availability

View on Model

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

View on Model

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $4.82

View on Model

23

W10739670 Whirlpool Shock Absorber Package In Stock WPL W10739670 $228.67

View on Model

24

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $21.83

View on Model

24

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $28.17

View on Model

25

8540479 Whirlpool Screw Backorder WPL 8540479 $5.85

View on Model

25

W11590578 Whirlpool Seal Backorder WPL W11590578 $4.67

View on Model

26

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $4.82

View on Model

27

Crosspiece Assembly WPL 8540957 Contact Us For Availability

View on Model

28

Bracket, Shock Absorber Mounting WPL 8540940 Contact Us For Availability

View on Model

29

8540841 Whirlpool Bolt Backorder WPL 8540841 $8.19

View on Model

30

Nut, Shock Brkt. WPL 8540842 Contact Us For Availability

View on Model

36

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

View on Model

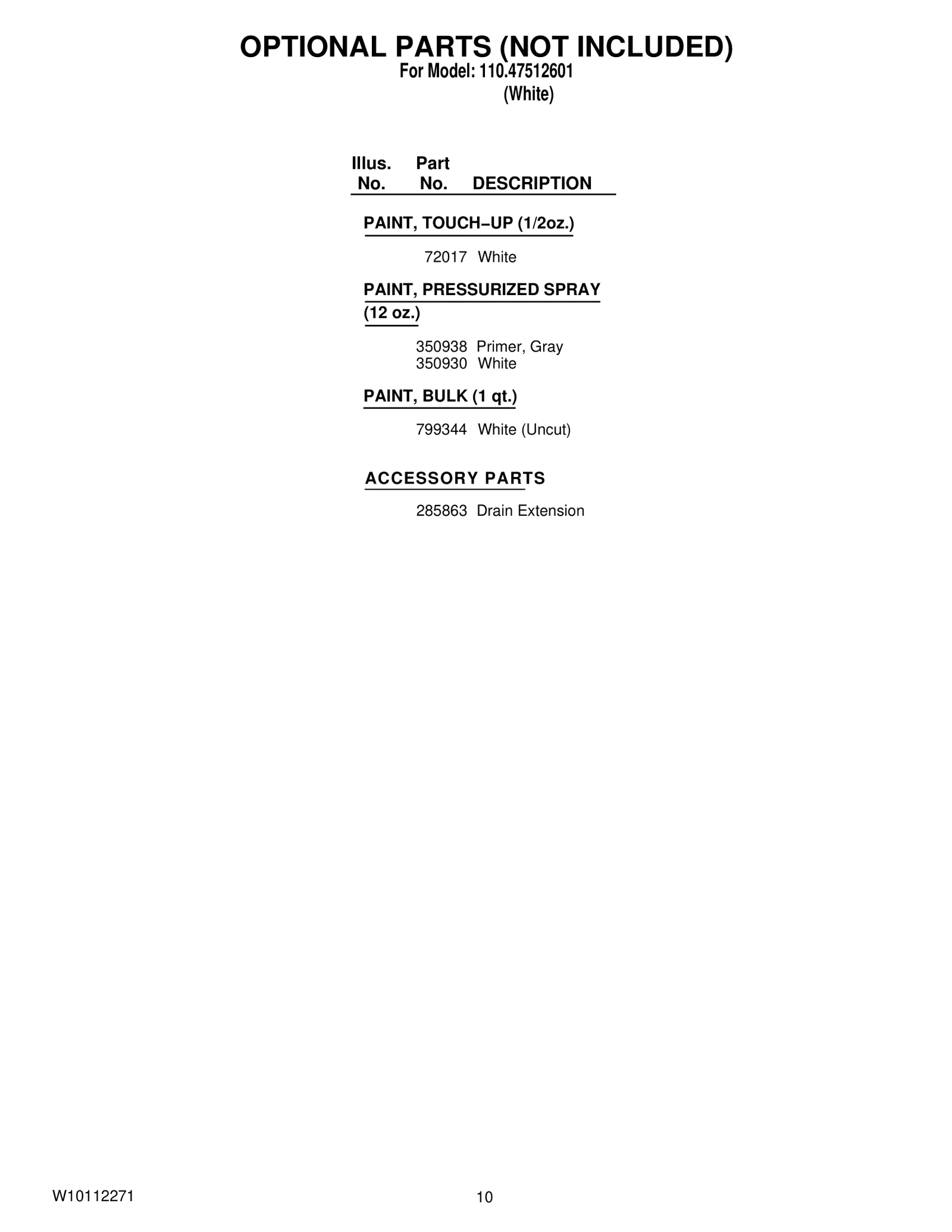

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

OPT-2

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

View on Model

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

OPT-4

White (Uncut) WPL 799344 Contact Us For Availability

View on Model

OPT-5

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96

View on Model
