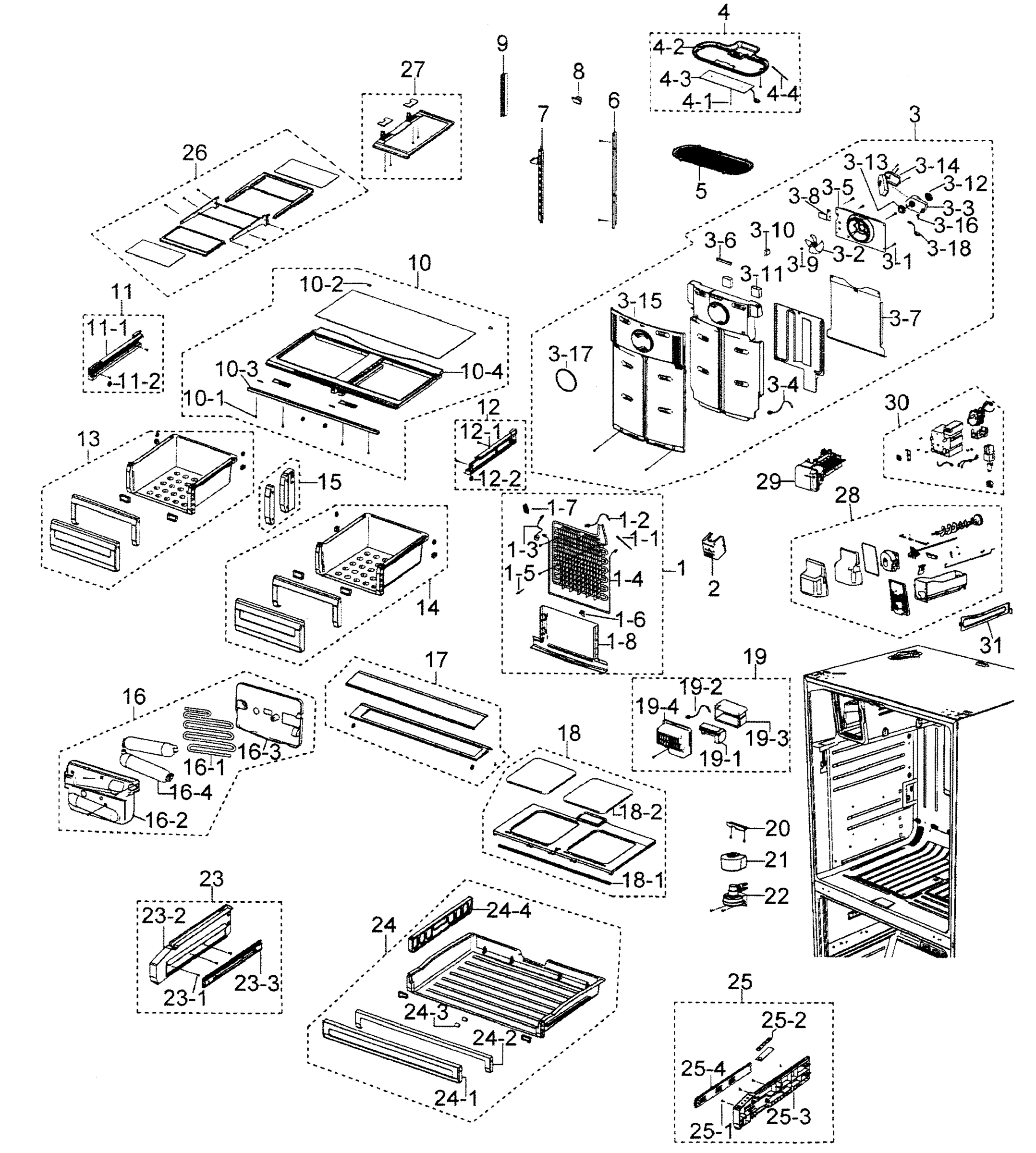

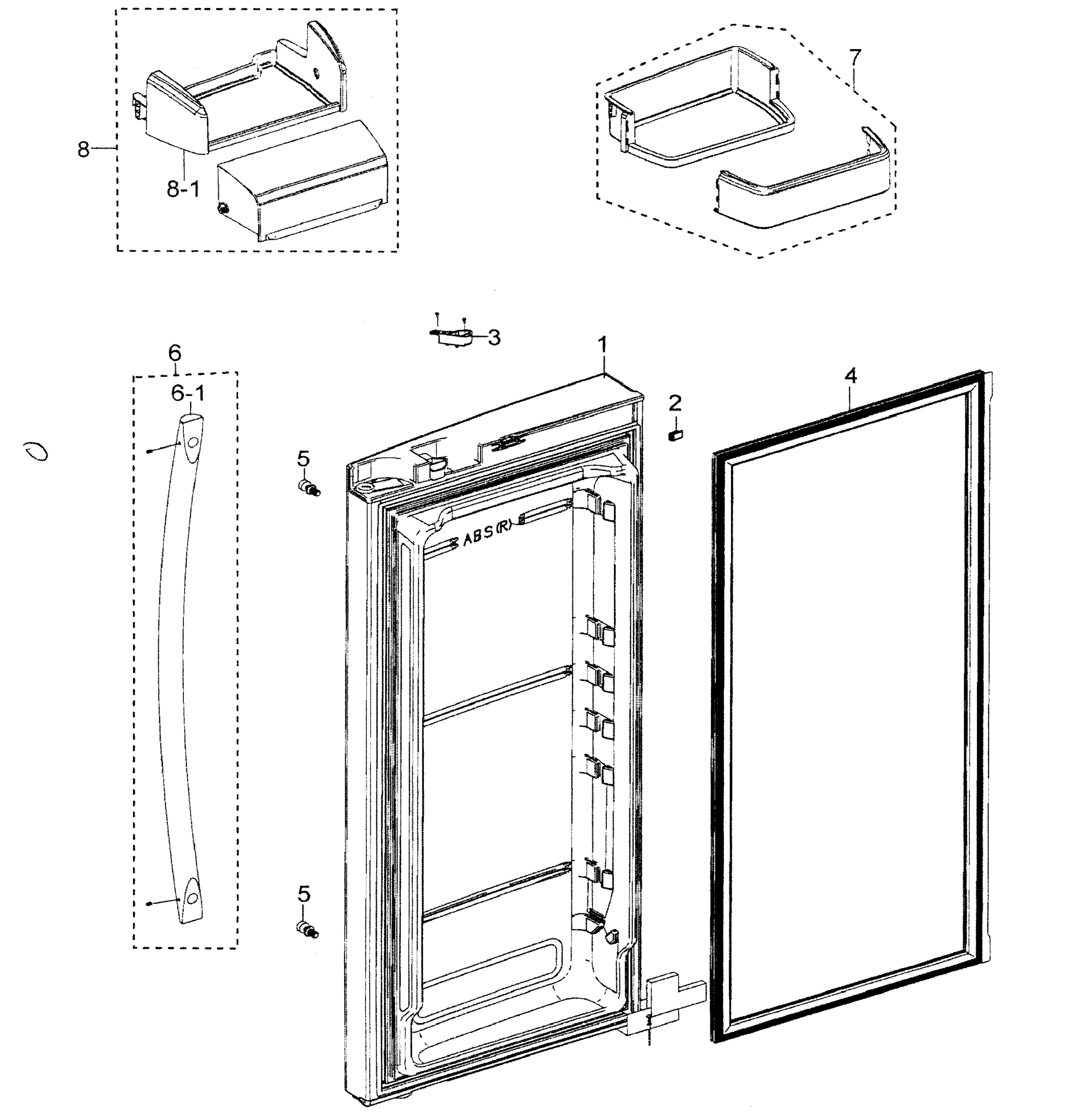

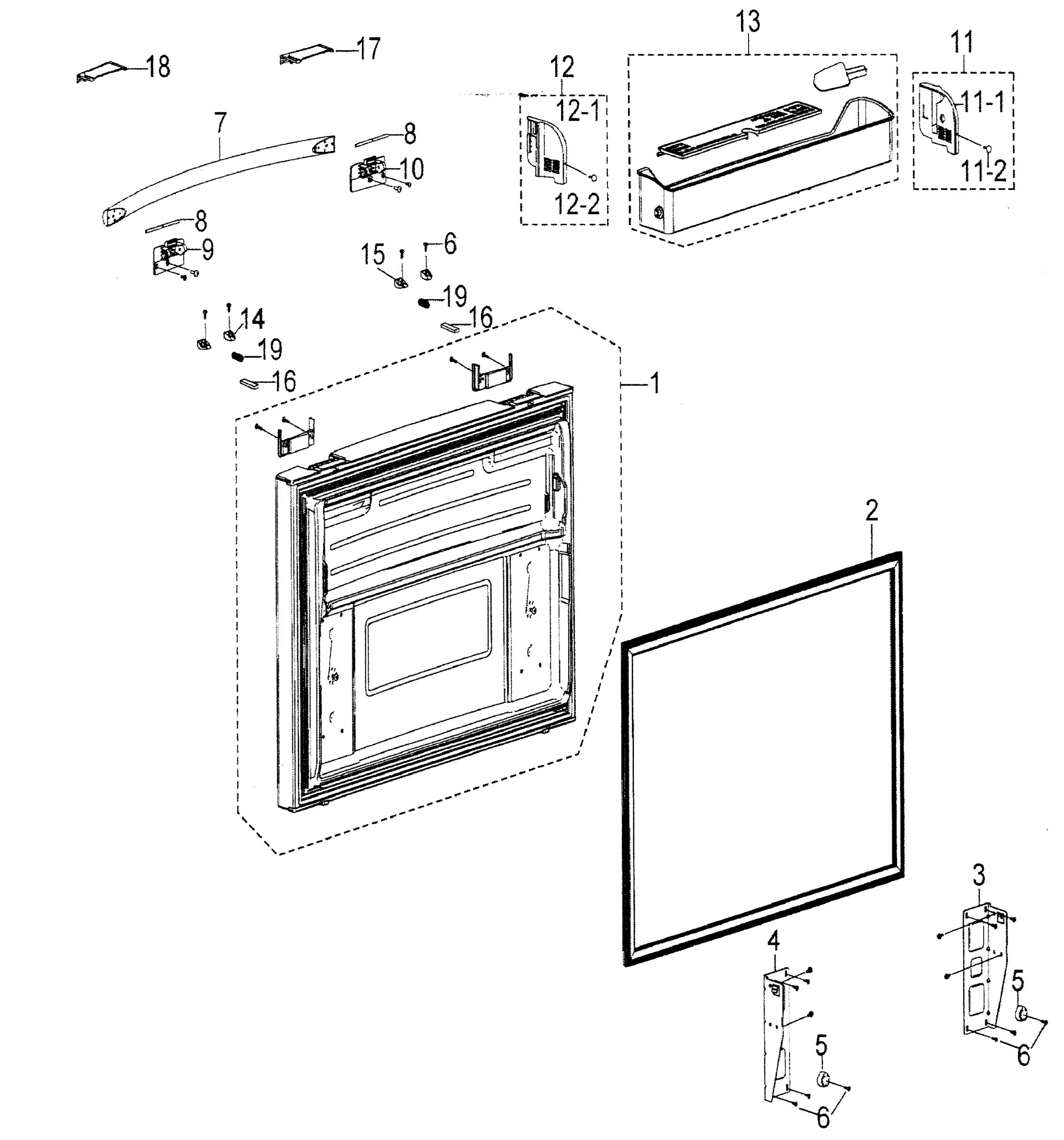

Model Samsung RFG298AAPN/XAA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

1-4

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $146.08

1-4

DA47-00424R Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424R $132.87

1-5

DA59-00361A Samsung Refrigerator Evaporator I Backorder SMG DA59-00361A $200.96

1-7

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.69

1-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

1-8

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

2

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $5.41

2

DA97-07656A Samsung Refrigerator Ice Evaporat Backorder SMG DA97-07656A $267.16

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $30.74

2-4

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

2-6

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $144.08

2-17

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

2-18

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $17.27

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $100.06

3

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.87

3-2

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

3-3

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $142.77

3-5

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.67

3-8

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $2.16

3-12

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

3-13

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

3-14

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.04

3-15

DA63-04218A Samsung Refrigerator Evaporator C Backorder SMG DA63-04218A $90.99

3-18

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $160.09

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $111.39

4

DA97-05253E Samsung Refrigerator Door Gasket In Stock SMG DA97-05253E $184.08

4

DA97-06409A Samsung Assembly Case LampAw2 Pjt Backorder SMG DA97-06409A $252.74

4

DA97-07822F Samsung Refrigerator Upper Hinge Backorder SMG DA97-07822F $109.09

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

5-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

5-4

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $74.51

5-5

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $5.93

5-8

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.44

6

DA97-11081C Samsung Refrigerator Handle Bar A In Stock SMG DA97-11081C $187.96

7

DA64-03945C Samsung Refrigerator Freezer Door In Stock SMG DA64-03945C $145.95

7

DA97-06372A Samsung Refrigerator Angle Shelf Backorder SMG DA97-06372A $88.67

7

DA97-06419C Samsung Refrigerator Door Shelf B In Stock SMG DA97-06419C $83.28

7

DA97-06420C Samsung Refrigerator Door Shelf B Backorder SMG DA97-06420C $98.54

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.68

8

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

8

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.69

8

DA97-06417Q Samsung Refrigerator French Door Backorder SMG DA97-06417Q $171.50

8

DA97-06426B Samsung Refrigerator Dairy Bin As Backorder SMG DA97-06426B $84.67

8-1

DA63-04319A Samsung Refrigerator Dairy Guard Backorder SMG DA63-04319A $59.94

8-3

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $6.87

8-4

DA61-04286A Samsung Refrigerator French Case In Stock SMG DA61-04286A $55.25

8-7

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

8-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

8-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

8-10

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.20

8-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

9

DA61-04977A Samsung Refrigerator Front Foot A Backorder SMG DA61-04977A $5.41

9

DA67-02056A Samsung Refrigerator Freezer Door In Stock SMG DA67-02056A $39.24

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.33

9-5

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.92

DA67-02057A Samsung Refrigerator Door Cap Han In Stock SMG DA67-02057A $42.17

DA97-06329A Samsung Refrigerator Glass Crispe Backorder SMG DA97-06329A $202.80

DA97-06425C Samsung Refrigerator Freezer Uppe Backorder SMG DA97-06425C $67.65

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-3

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

10-4

DA63-04281A Samsung Refrigerator Crisper Draw Backorder SMG DA63-04281A $202.80

11

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

11

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $29.30

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.01

12

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.61

12

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $55.67

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $28.61

12-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $59.94

12-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.55

12-4

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

13

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $55.74

13

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $147.84

13

DA97-08175B Samsung Refrigerator Guard Assemb Backorder SMG DA97-08175B $97.41

13-1

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.97

13-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

DA97-07361F Samsung Refrigerator Assembly Ice Backorder SMG DA97-07361F $205.15

DA97-07756F Samsung Refrigerator Water Drain Backorder SMG DA97-07756F $209.08

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

14-1

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.69

14-5

DA97-07754C Samsung Refrigerator Circuit Moto Backorder SMG DA97-07754C $172.89

15

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $26.93

15

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

15

DA63-03695B Samsung Refrigerator Dispenser Tr In Stock SMG DA63-03695B $22.35

16

DA97-07129C Samsung Refrigerator Water T/Cove Backorder SMG DA97-07129C $164.62

16-1

DA47-00295A Samsung Refrigerator Water Tank H Backorder SMG DA47-00295A $76.22

16-4

DA97-07150A Samsung Refrigerator Water Tank A Backorder SMG DA97-07150A $153.21

17

Refrigerator compressor SMG BK190CL2C/E02 Contact Us For Availability

17

Refrigerator drawer cover SMG DA97-06327A Contact Us For Availability

17

Refrigerator freezer handle cover, left SMG DA63-04247B Contact Us For Availability

18

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

18

DA97-06328A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-06328A $202.80

18

Refrigerator freezer handle cover, right SMG DA63-04248B Contact Us For Availability

18-2

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

18-2

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $49.01

19

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

19

Refrigerator damper motor assembly SMG DA97-06324B Contact Us For Availability

19-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

19-4

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $12.42

20

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $57.17

20

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

23

Refrigerator pantry drawer slide cover assemb SMG DA97-06399A Contact Us For Availability

24

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $63.50

24-1

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $61.23

24-2

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.72

24-4

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $136.59

25-2

DA41-00423C Samsung Refrigerator Printed Circ In Stock SMG DA41-00423C $37.96

25-4

DA97-06448B Samsung Refrigerator Assembly Sli Backorder SMG DA97-06448B $151.96

26

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

28

DA97-04957F Samsung Refrigerator Noise Filter Backorder SMG DA97-04957F $142.08

28

DA97-05239M Samsung Refrigerator Ice Tray Buc Backorder SMG DA97-05239M $282.03

28-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $112.89

28-4

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $79.51

30

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $266.38

31

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.88

34

Refrigerator electronic control board SMG DA92-00047A Contact Us For Availability

35

Refrigerator electronic control board SMG DA41-00620B Contact Us For Availability

36

DA97-05362C Samsung Refrigerator Water Pipe A Backorder SMG DA97-05362C $29.69

37

DA97-07695A Samsung Refrigerator Water Valve In Stock SMG DA97-07695A $232.26

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

6004-001082 Samsung Refrigerator Screw Set In Stock SMG 6004-001082 $4.04

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $20.52

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.16

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $25.38
