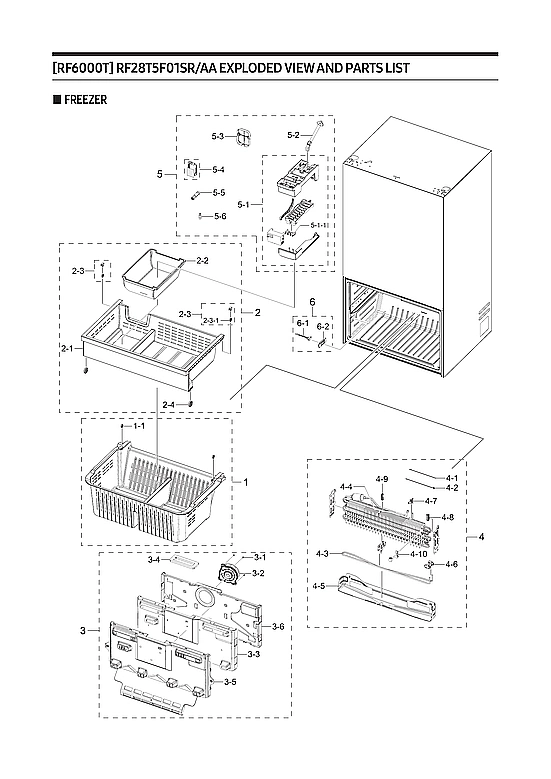

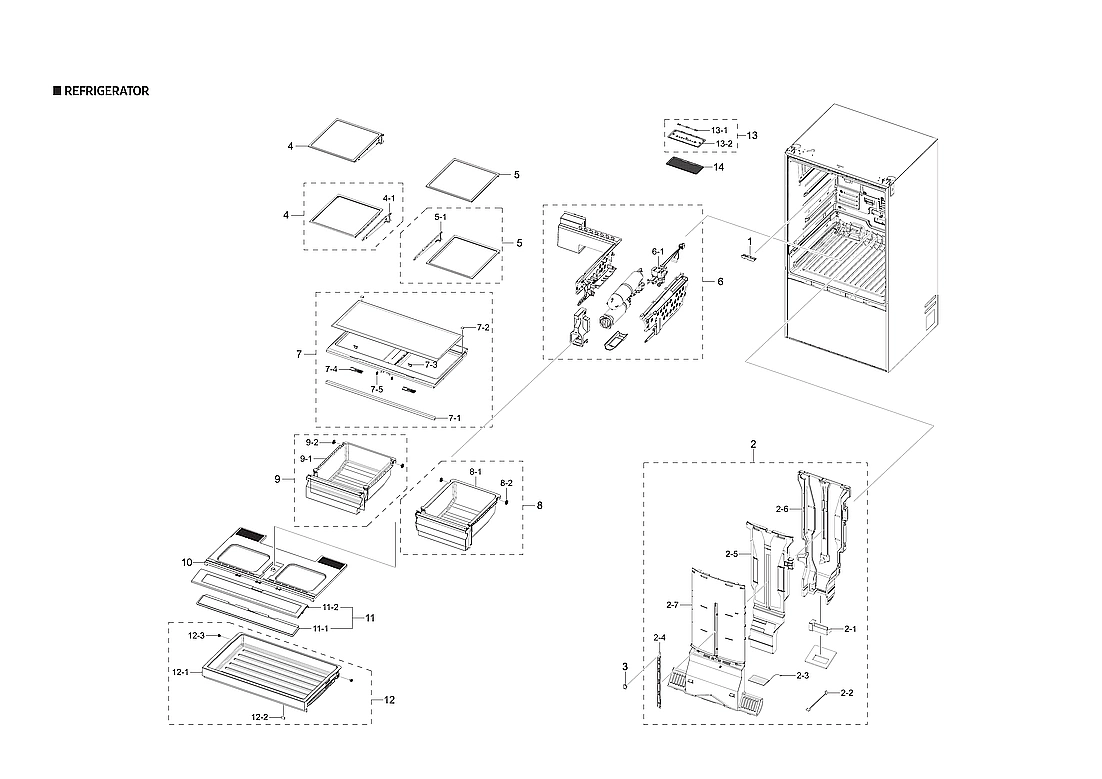

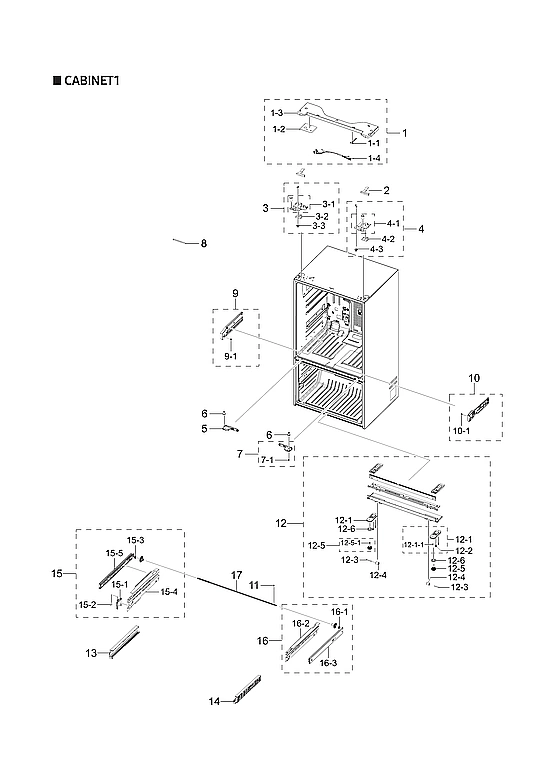

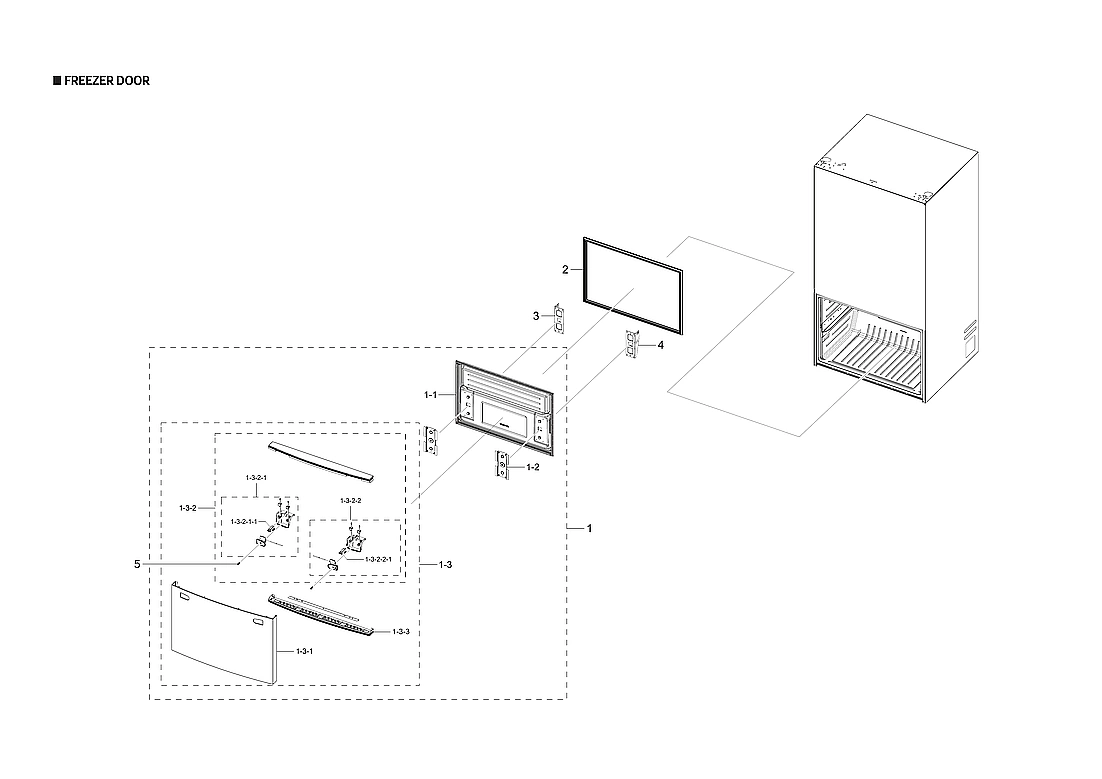

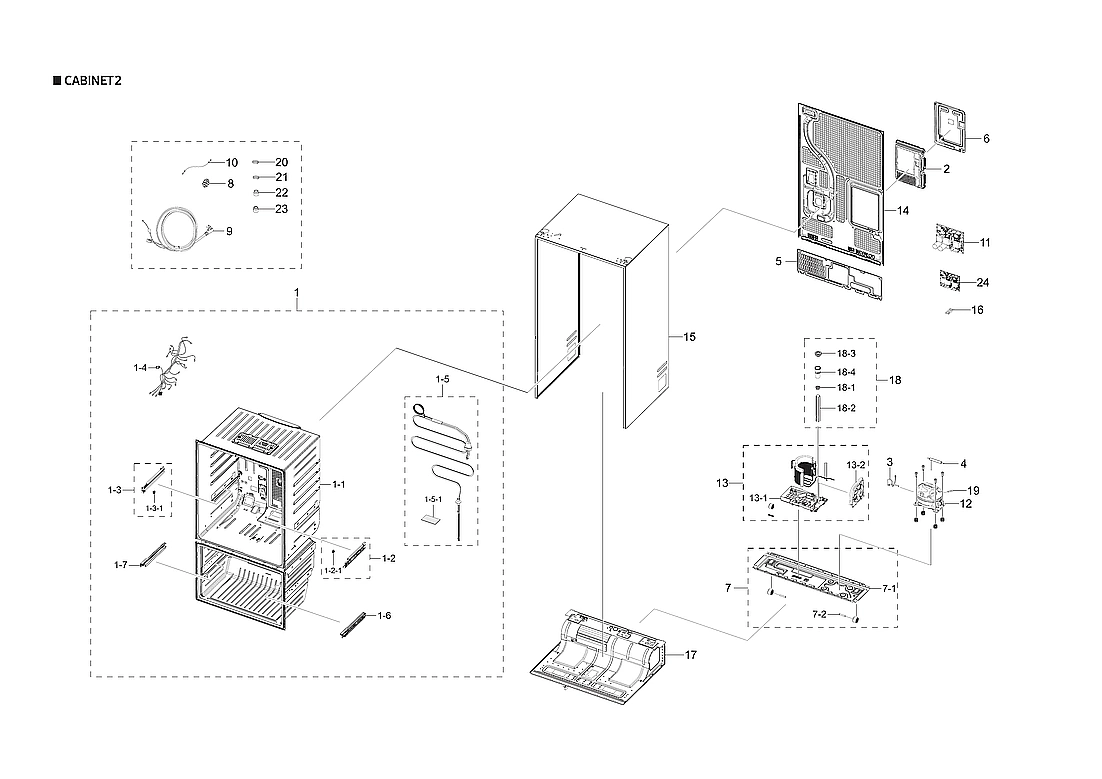

Model Samsung RF28T5F01SR/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

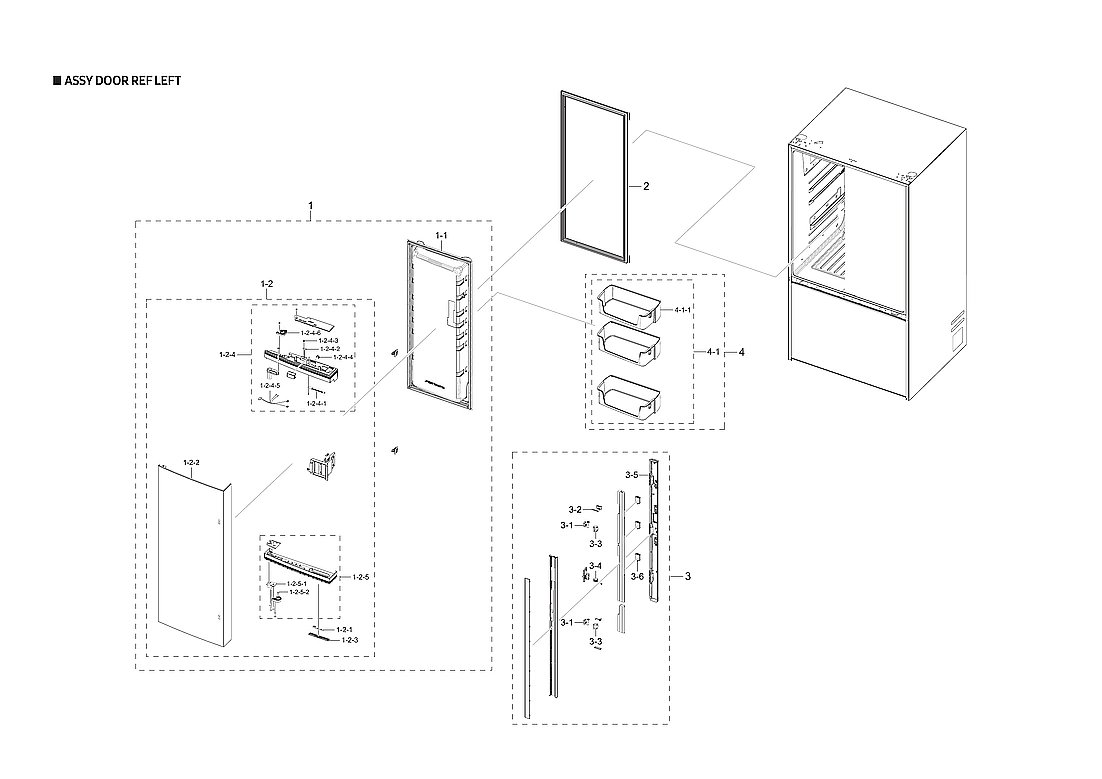

Assy door foam-ref left SMG DA91-05362A Contact Us For Availability

1

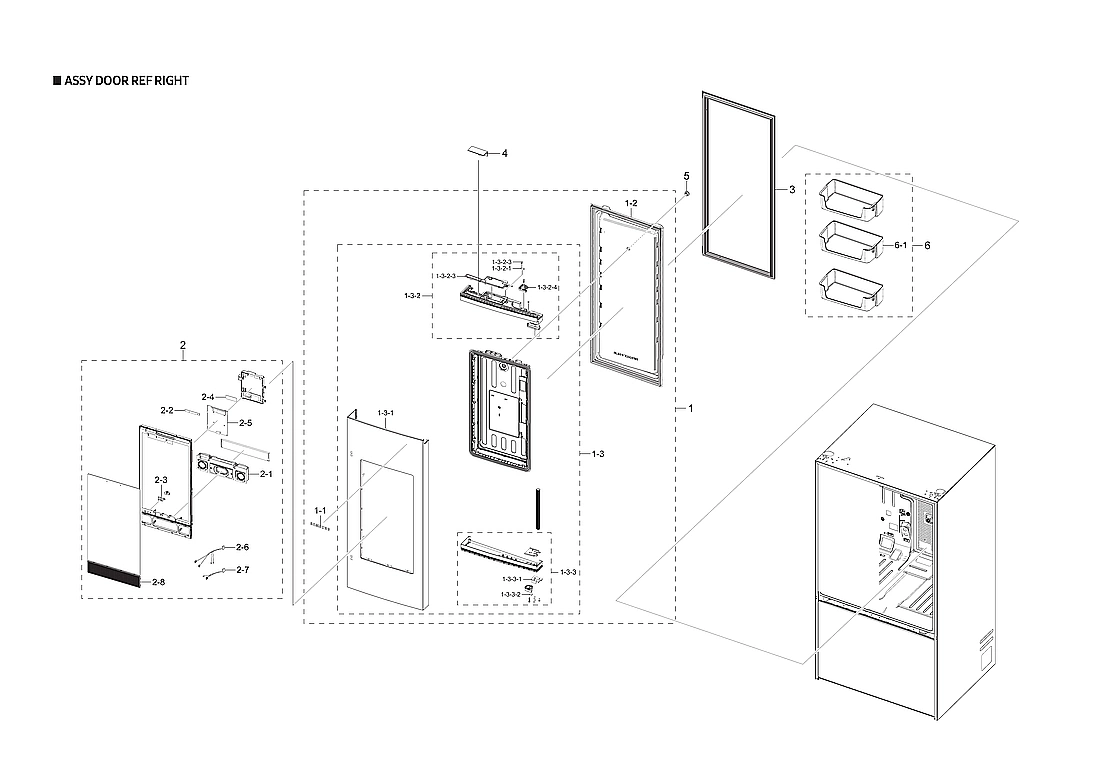

Assy door foam-ref right SMG DA91-05272F Contact Us For Availability

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $65.23

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

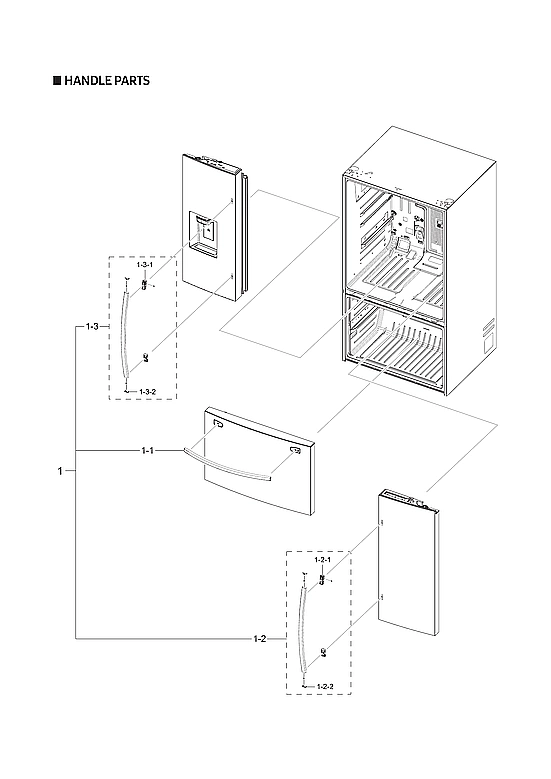

Refrigerator freezer door handle assembly SMG DA97-20017A Contact Us For Availability

Panel-ref left SMG DA64-06409A Contact Us For Availability

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $17.66

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $40.41

Refrigerator door handle, right SMG DA97-20019A Contact Us For Availability

Assy plate door-ref left SMG DA97-21374A Contact Us For Availability

Panel-ref right SMG DA64-06269A Contact Us For Availability

1-2-1

DA41-00676N Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676N $36.37

1-2-2

Plate door-ref left SMG DA61-13972F Contact Us For Availability

1-2-3

DA63-06131B Samsung Refrigerator LED Cap Cove Backorder SMG DA63-06131B $14.64

1-2-4

Assy cap door-ref up left SMG DA97-21010T Contact Us For Availability

1-2-4-1

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $52.83

1-2-4-4

DA67-03218D Samsung CAP-INTERLOCK SWITCH HOLE Backorder SMG DA67-03218D $2.01

1-2-4-5

Assy wire harness- door SMG DA96-01426C Contact Us For Availability

1-2-5

Assy cap door-ref low left SMG DA97-21011A Contact Us For Availability

1-2-5-1

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $28.26

1-3

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $81.00

1-3

DA97-20021A Samsung Refrigerator Left Handle Backorder SMG DA97-20021A $156.73

1-3

Assy plate door-ref right SMG DA97-21012F Contact Us For Availability

1-3-1

Plate door-ref right SMG DA61-13973F Contact Us For Availability

1-3-2

Assy cap door-ref up right SMG DA97-21013D Contact Us For Availability

1-3-2-1

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.52

1-3-2-2

DA63-08826A Samsung COVER CAP DOOR-REF UP;ABS Backorder SMG DA63-08826A $22.21

1-3-2-4

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $20.18

1-3-3

Assy cap door-ref low right SMG DA97-21014A Contact Us For Availability

1-3-3-1

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $29.19

1-3-3-2

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-6

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $182.34

1-7

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $187.51

2

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

2

DA97-20810D Samsung Refrigerator Display Cove Backorder SMG DA97-20810D $838.01

2

DA97-21004A Samsung Refrigerator Cover Assemb In Stock SMG DA97-21004A $183.77

2-1

3001-002858 Samsung Refrigerator Speaker Backorder SMG 3001-002858 $194.13

2-1

DA31-00043E Samsung Refrigerator DC Damper Mo In Stock SMG DA31-00043E $174.17

2-2

4709-002748 Samsung Air Conditioner Wi-Fi Mod Backorder SMG 4709-002748 $134.33

2-2

DA32-00006J Samsung Refrigerator Temperature Backorder SMG DA32-00006J $28.73

2-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $69.63

2-3

DA32-00080A Samsung Refrigerator PSD Sensor Backorder SMG DA32-00080A $112.94

2-3

Heater cord- drain SMG DA47-00248H Contact Us For Availability

2-4

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

2-4

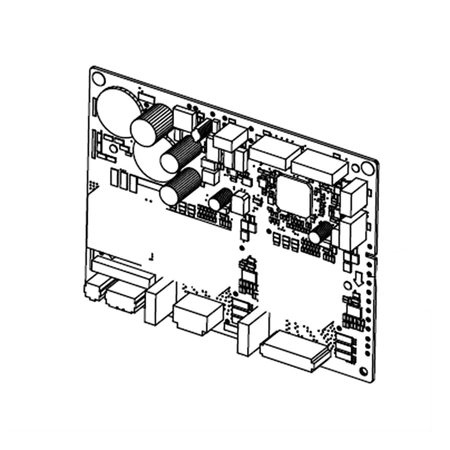

DA92-00789A Samsung Assembly Module Backorder SMG DA92-00789A $68.04

2-4

Non-serviceable part SMG N/P Contact Us For Availability

2-5

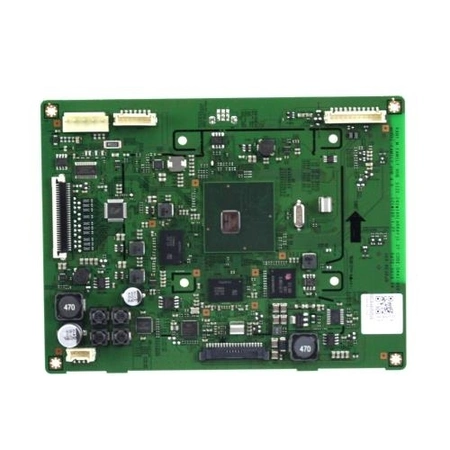

DA94-05450A Samsung Refrigerator Printed Circ Backorder SMG DA94-05450A $340.77

2-5

Insulation-multi ref a SMG DA62-05456A Contact Us For Availability

2-6

DA96-01253B Samsung Assembly Wire Harness Backorder SMG DA96-01253B $26.75

2-6

Insulation duct-b SMG DA62-05457A Contact Us For Availability

2-7

DA96-01368A Samsung Refrigerator Display Wire Backorder SMG DA96-01368A $48.05

2-7

Cover multi-ref SMG DA63-09784A Contact Us For Availability

2-8

DA97-19330C Samsung Assembly COVER FRONT;RF95 Backorder SMG DA97-19330C $176.05

3

DA67-03978B Samsung Refrigerator Evaporator C Backorder SMG DA67-03978B $55.23

3

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $74.63

3

DA97-13015J Samsung Refrigerator Door Gasket Backorder SMG DA97-13015J $107.96

3

DA97-20814B Samsung Refrigerator Pipe Connect Backorder SMG DA97-20814B $136.32

3

DA97-21008A Samsung Refrigerator Silver Frenc Backorder SMG DA97-21008A $384.02

3-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.05

3-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $60.43

3-2

DA31-00334C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00334C $158.22

3-2

DA63-06842B Samsung Refrigerator Low French G Backorder SMG DA63-06842B $6.56

3-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.54

3-3

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $9.09

3-4

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.54

3-5

DA61-13976A Samsung French Refrigerator Case Backorder SMG DA61-13976A $49.23

3-6

Camera module (3) SMG DA59-00617A Contact Us For Availability

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $76.13

4

DA62-04309F Samsung Refrigerator Single Dryer Backorder SMG DA62-04309F $37.26

4

DA63-08449A Samsung Refrigerator Lock Cover Backorder SMG DA63-08449A $11.61

4

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $68.26

4

DA97-20335A Samsung Refrigerator Shelf Module Backorder SMG DA97-20335A $162.51

4-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $25.23

4-1

DA97-14398A Samsung Refrigerator Right Hanger Backorder SMG DA97-14398A $53.88

4-1

DA97-20989A Samsung Refrigerator Left Door Bi Backorder SMG DA97-20989A $153.57

4-1-1

Guard-ref left SMG DA63-09780A Contact Us For Availability

4-2

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $28.44

4-3

DA47-00526B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00526B $143.06

4-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.05

4-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.09

4-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $9.58

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $5.05

5

DA67-30266K Samsung Refrigerator Cap Screw Backorder SMG DA67-30266K $1.69

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $174.80

5

DA97-20336A Samsung Refrigerator Right Fixed Backorder SMG DA97-20336A $164.61

5-1

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $210.59

5-1

DA97-15168A Samsung Refrigerator Left Hanger Backorder SMG DA97-15168A $136.01

5-1-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.52

5-2

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $98.10

5-4

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $21.19

5-5

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.08

5-6

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $22.21

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $2.01

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

6

DA97-21323A Samsung Refrigerator Water Filter Backorder SMG DA97-21323A $309.47

6

Assy guard SMG DA90-12108E Contact Us For Availability

6-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $23.73

6-1

DA97-20988A Samsung Refrigerator Right Door B Backorder SMG DA97-20988A $142.31

6-1

Valve water SMG DA62-03740C Contact Us For Availability

7

Refrigerator crisper drawer cover assembly SMG DA97-20333A Contact Us For Availability

7-1

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

7-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

7-3

DA64-00817B Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817B $9.09

7-4

DA66-00638A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00638A $4.04

7-5

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $16.65

8

DA97-08437H Samsung Refrigerator Right Vegeta Backorder SMG DA97-08437H $198.46

8-1

Case veg-right SMG DA61-13474B Contact Us For Availability

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $68.43

9

DA97-08438H Samsung Assembly Case Veg-Left Dr In Stock SMG DA97-08438H $189.69

9

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $56.43

9-1

Case veg-left SMG DA61-13473B Contact Us For Availability

10

DA97-20997A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20997A $134.05

11

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $34.58

11

DA97-21058A Samsung Refrigerator Slide Cover Backorder SMG DA97-21058A $85.13

11-1

Cover slide-a SMG DA63-09794A Contact Us For Availability

11-2

Cover slide-b SMG DA63-09795A Contact Us For Availability

12

DA97-20998A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-20998A $195.97

12

NF54M7151ANTT3 Samsung Refrigerator R600A Com Backorder SMG NF54M7151ANTT3 $363.84

12-1

Case pantry SMG DA61-13950A Contact Us For Availability

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.69

12-2

DA66-00637A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00637A $1.18

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $4.04

12-3

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $44.01

13

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $241.53

13-1

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $136.91

13-2

Refrigerator lamp case SMG DA61-08237A Contact Us For Availability

14

DA63-06921A Samsung Cover Lamp Backorder SMG DA63-06921A $27.39

18

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $29.19

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $24.62

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $3.03

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA97-19988A Samsung Refrigerator Roller Assem Backorder SMG DA97-19988A $94.57
