Model Samsung RF26HFENDSR/AA-02 Refrigerator – Common Parts & Diagrams

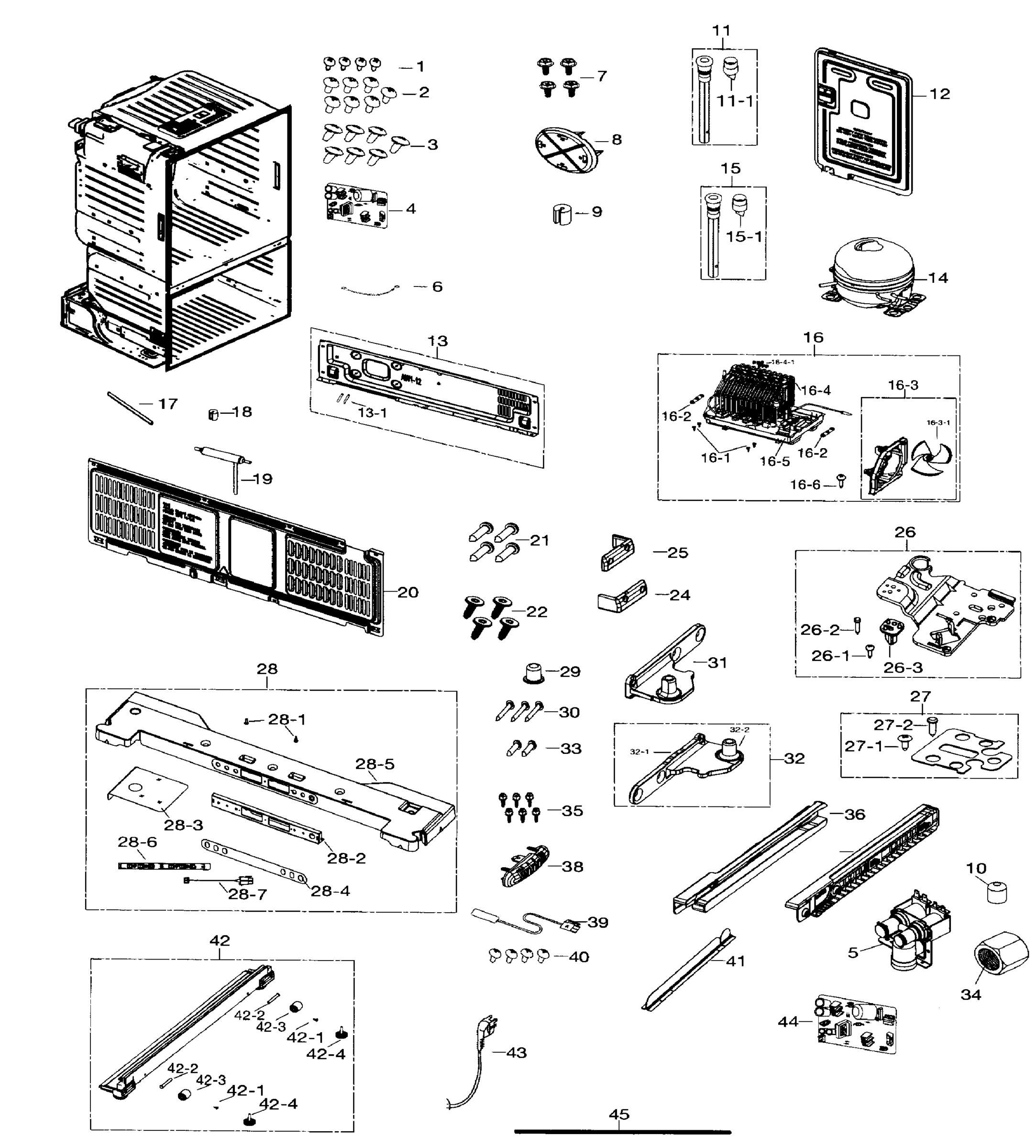

Cabinet

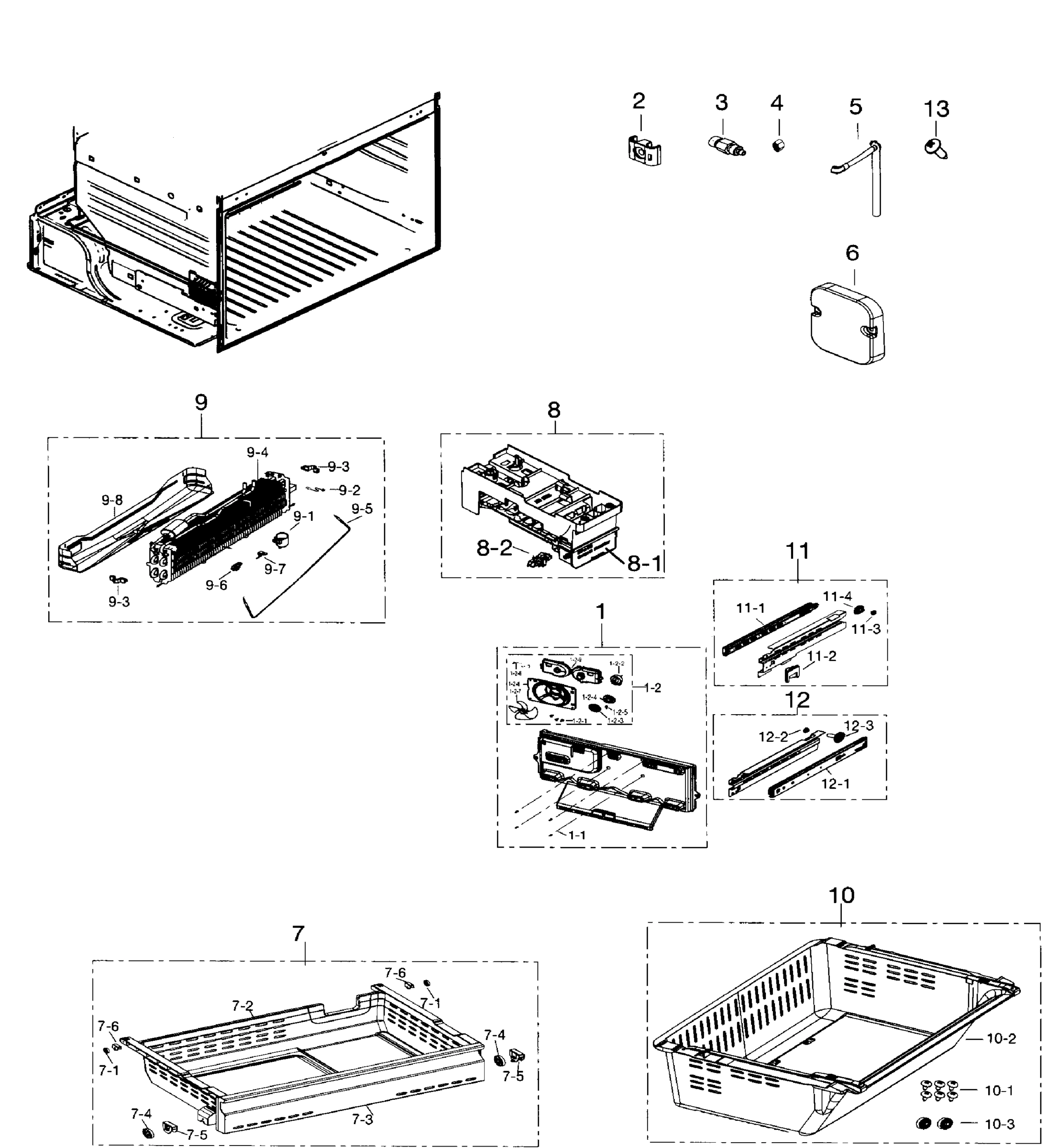

Freezer

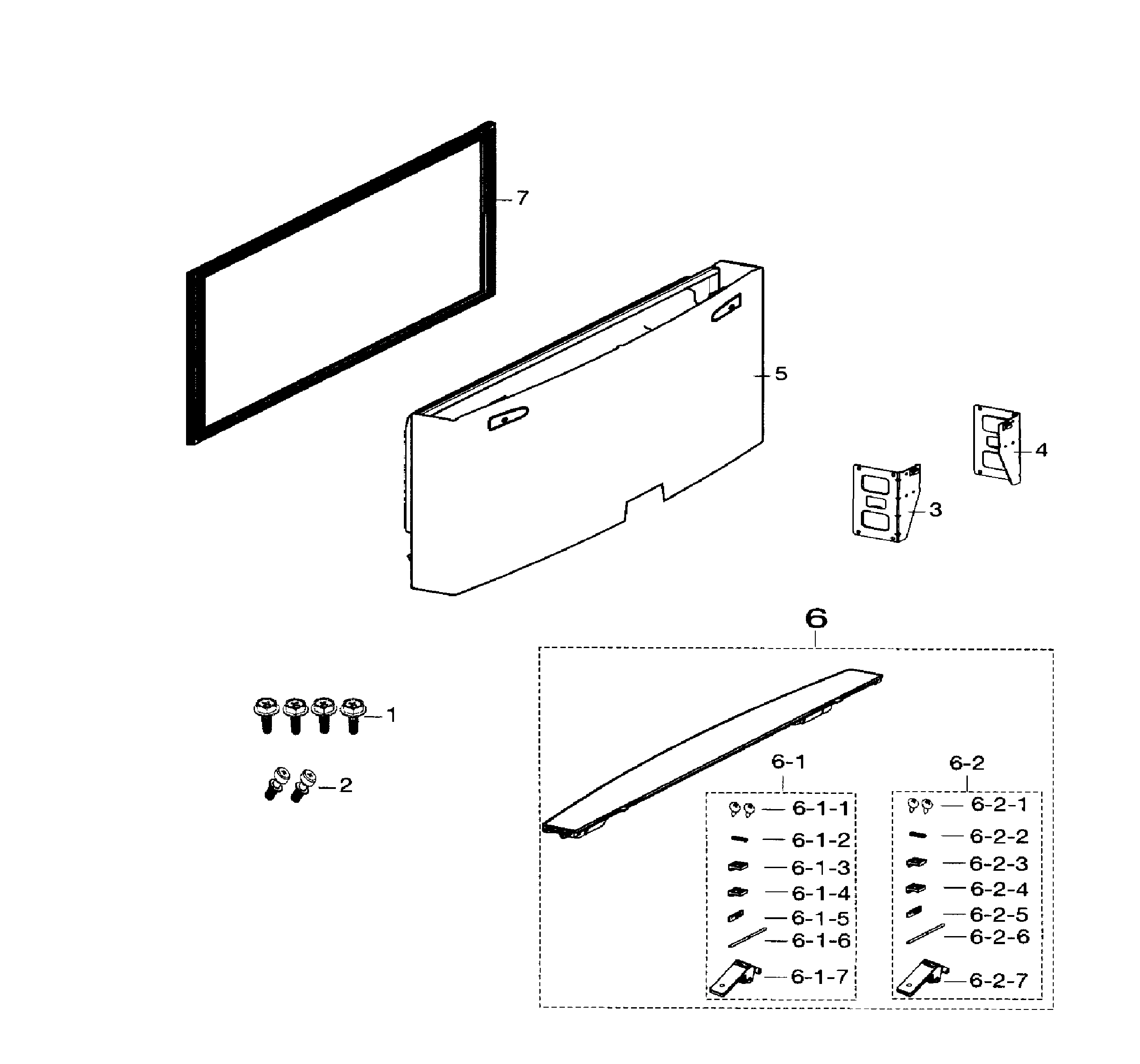

Freezer Door

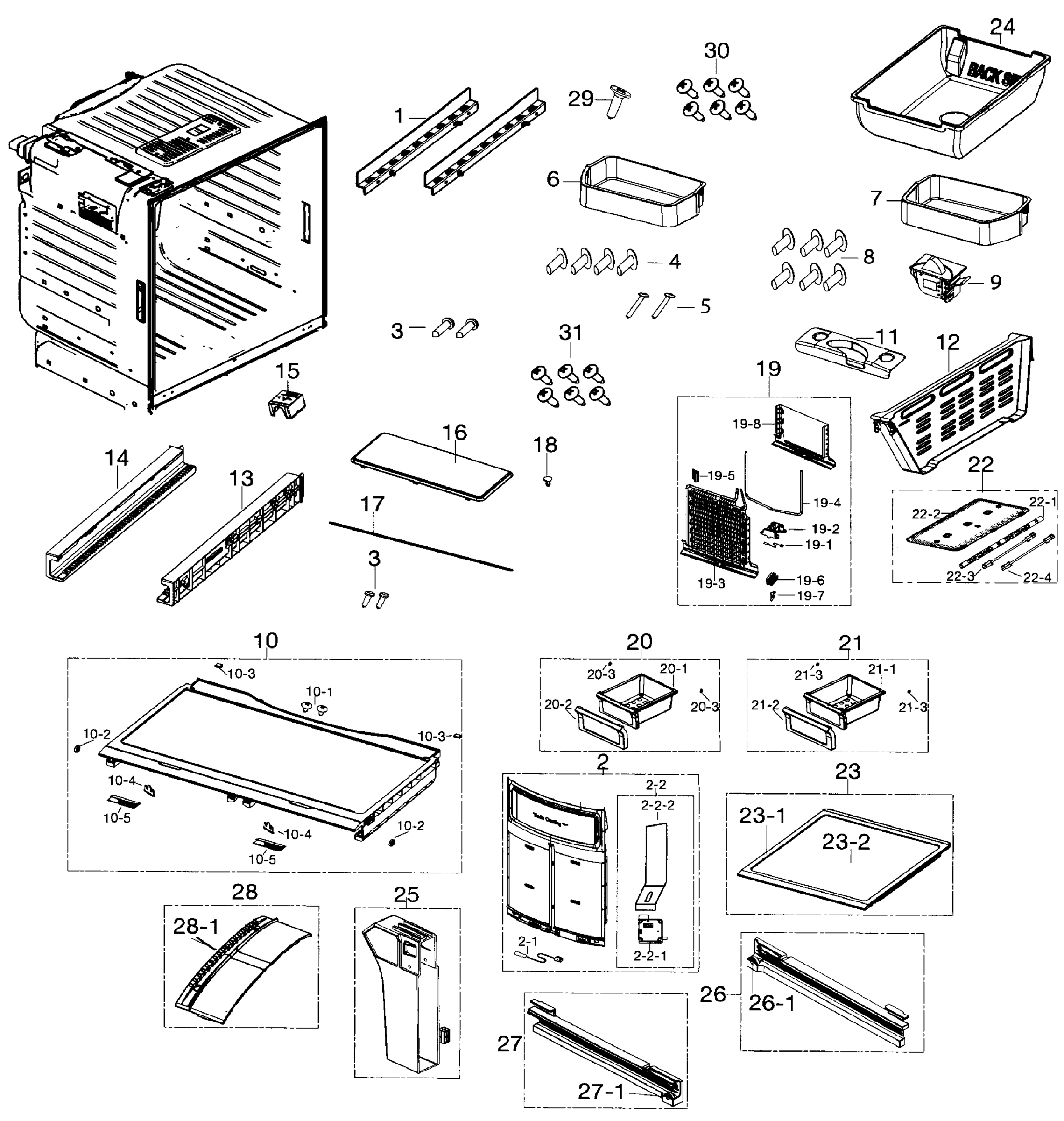

Fridge

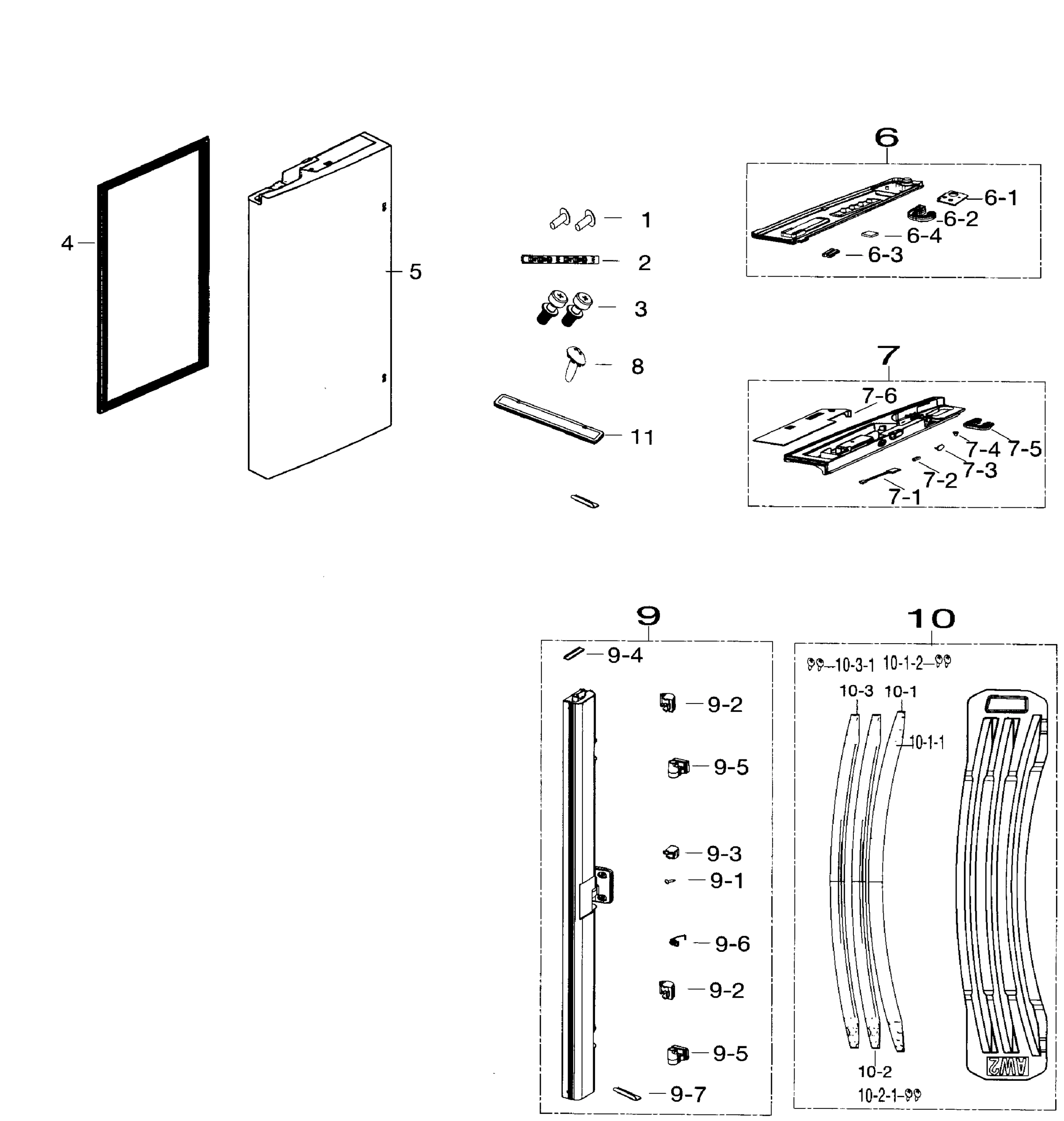

Left Door

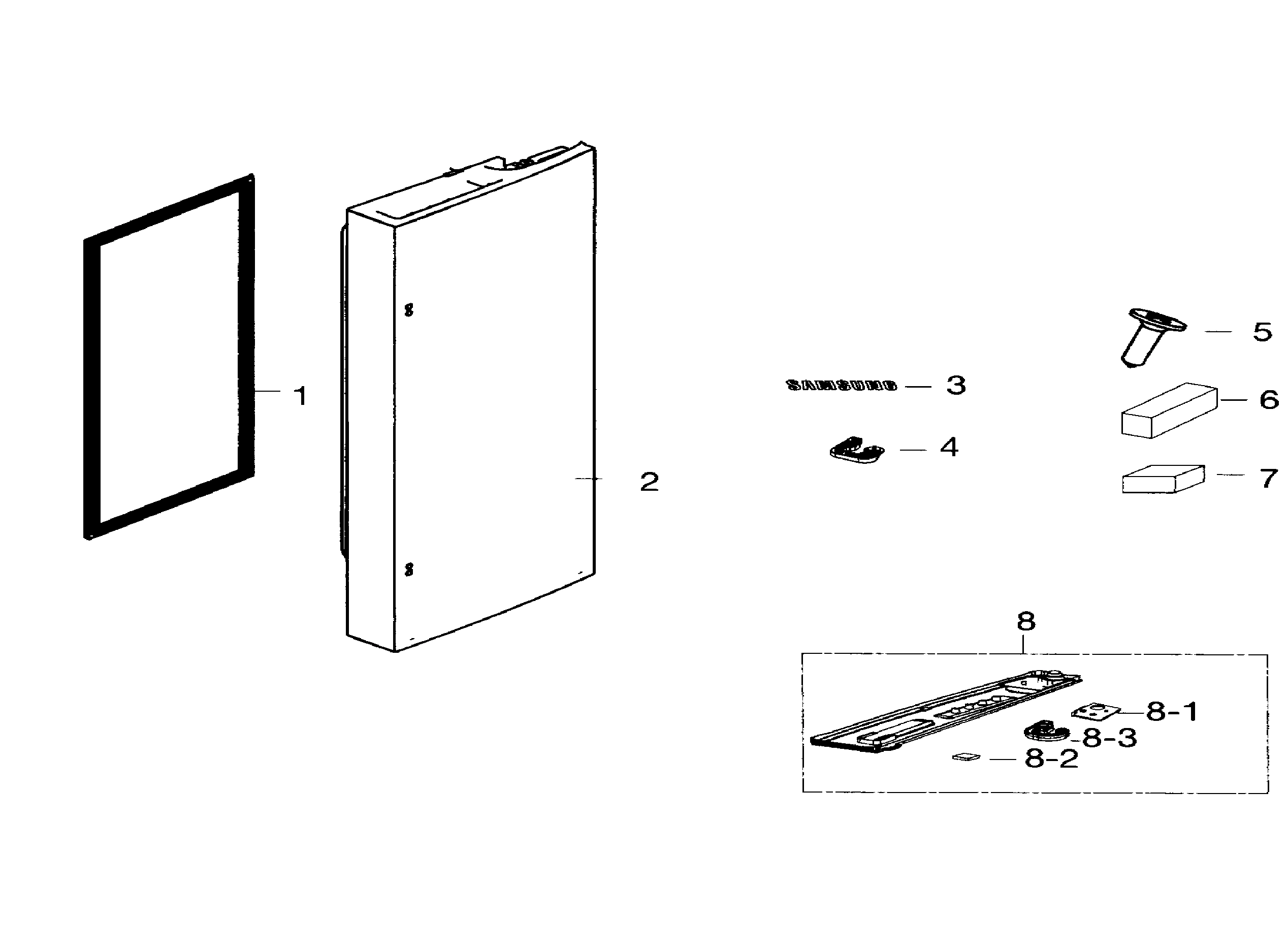

Right Door
Common parts from model Samsung RF26HFENDSR/AA-02 Refrigerator
1
Samsung refrigerator door gasket SMG DA63-06542A Contact Us For Availability
1
Refrigerator evaporator cover SMG DA97-12617A Contact Us For Availability
1
Refrigerator compressor access cover mounting SMG DA60-10123E Contact Us For Availability
1-2
Samsung refrigerator freezer evaporator fan m SMG DA96-00959D Contact Us For Availability
1-22
Refrigerator evaporator fan motor SMG DA31-00146H Contact Us For Availability
1-23
Viore refrigerator grommet motor SMG DA63-01146A Contact Us For Availability
1-24
Refrigerator fan motor grommet SMG DA63-01808A Contact Us For Availability
1-26
Refrigerator wire harness SMG DA96-00042D Contact Us For Availability
1-27
Refrigerator fan SMG DA31-00230A Contact Us For Availability
1-28
Refrigerator motor case SMG DA61-04850B Contact Us For Availability
2
Refrigerator fresh food evaporator cover and SMG DA97-12609B Contact Us For Availability
2
Refrigerator door handle mounting stud SMG DA61-03734A Contact Us For Availability
2
Refrigerator door assembly, right SMG DA91-03909A Contact Us For Availability
2
Refrigerator fixer hose SMG DA61-04712C Contact Us For Availability
2-1
refrigerator temperature sensor SMG DA32-10105X Contact Us For Availability
2-21
Brushless dc motor SMG DA31-00287A Contact Us For Availability
3
Refrigerator nameplate SMG DA64-04021A Contact Us For Availability
3
Refrigerator water supply coupling kit SMG DA62-00305A Contact Us For Availability
3
Screw-assy t SMG 6006-001170 Contact Us For Availability
4
Refrigerator water tube nut SMG DA74-00070B Contact Us For Availability
4
Refrigerator noise filter SMG DA27-00019H Contact Us For Availability
4
Refrigerator freezer door bracket, right SMG DA61-04841A Contact Us For Availability
5
Refrigerator water inlet valve SMG DA62-01477A Contact Us For Availability
5
Refrigerator ice maker water tubing SMG DA97-00209T Contact Us For Availability
5
Refrigerator door assembly, left SMG DA91-03924A Contact Us For Availability
5
Refrigerator screw, 4-mm SMG 6002-001432 Contact Us For Availability
5
Refrigerator screw SMG 6002-001122 Contact Us For Availability
5
Refrigerator freezer door assembly SMG DA91-03910L Contact Us For Availability
6
Refrigerator door reed switch magnet SMG DA61-03769A Contact Us For Availability
6
Refrigerator door bin SMG DA97-15316A Contact Us For Availability
6-1
Refrigerator door stop, left SMG DA61-03211A Contact Us For Availability
6-3
Refrigerator door switch grommet SMG DA63-04825A Contact Us For Availability
7
Refrigerator freezer door gasket SMG DA63-06541D Contact Us For Availability
7
Refrigerator door bin SMG DA97-15317A Contact Us For Availability
7-1
Refrigerator humidity sensor SMG DA32-00034B Contact Us For Availability
7-4
Refrigerator roller SMG DA66-00639A Contact Us For Availability
7-5
Refrigerator fixer roll SMG DA61-04813A Contact Us For Availability
8
Samsung refrigerator ice maker assembly SMG DA97-07603B Contact Us For Availability
8-1
Refrigerator ice maker module SMG DA59-00294B Contact Us For Availability
8-1
Refrigerator door stop, right SMG DA61-03212A Contact Us For Availability
8-2
Refrigerator ice maker thermostat cover SMG DA63-02183A Contact Us For Availability
8-3
Refrigerator support SMG DA61-05001C Contact Us For Availability
9
Samsung refrigerator flipper assembly SMG DA97-12683A Contact Us For Availability
9
Refrigerator door switch SMG DA34-10120E Contact Us For Availability
9
Refrigerator evaporator SMG DA96-00460L Contact Us For Availability
9-2
Refrigerator door mullion flap retainer SMG DA67-02146A Contact Us For Availability
9-3
Fixer heater SMG DA61-05689A Contact Us For Availability
9-3
Refrigerator door mullion flap retainer SMG DA67-02154A Contact Us For Availability
9-4
Refrigerator flipper seal, upper SMG DA63-06959A Contact Us For Availability
9-5
Refrigerator door hinge SMG DA61-08305A Contact Us For Availability
9-5
Refrigerator defrost heater SMG DA47-00424M Contact Us For Availability
9-6
Refrigerator temperature sensor clip SMG DA61-06182A Contact Us For Availability
10
Refrigerator drawer cover SMG DA97-07019A Contact Us For Availability
10
Refrigerator cap SMG DA73-00211A Contact Us For Availability
10
Refrigerator door handle set SMG DA99-03914C Contact Us For Availability
10
Refrigerator freezer basket SMG DA97-07024C Contact Us For Availability
10-1
Refrigerator freezer door handle SMG DA97-12712C Contact Us For Availability
10-1
Refrigerator screw SMG 6002-000213 Contact Us For Availability
10-2
Refrigerator door handle SMG DA97-12714C Contact Us For Availability
10-3
Refrigerator door handle SMG DA97-12715C Contact Us For Availability
10-3
Refrigerator shelf support end cap SMG DA61-04809A Contact Us For Availability
11
Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability
11
Assy cap-drain SMG DA97-04049Q Contact Us For Availability
11
Refrigerator guide SMG DA61-04795A Contact Us For Availability
11-1
Refrigerator drain tube grommet SMG DA63-00951C Contact Us For Availability
11-1
Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability
11-4
Refrigerator freezer drawer gear SMG DA66-00771A Contact Us For Availability
12
Refrigerator guide SMG DA61-04796A Contact Us For Availability
12
Refrigerator electronic control board cover SMG DA97-08442A Contact Us For Availability
12-1
Refrigerator freezer drawer slide rail SMG DA61-09088A Contact Us For Availability
12-3
Refrigerator freezer drawer gear SMG DA66-00767A Contact Us For Availability
13
Refrigerator freezer drawer slide rail adapte SMG DA63-04604A Contact Us For Availability
13-1
Refrigerator roller wheel axle pin SMG DA66-00649B Contact Us For Availability
14
Refrigerator compressor SMG MSV172AL2J/SM1 Contact Us For Availability
14
Refrigerator freezer drawer slide rail cover, SMG DA63-04605A Contact Us For Availability
16
Refrigerator condenser coil and fan motor ass SMG DA97-05043L Contact Us For Availability
16-3
Refrigerator condenser fan motor assembly SMG DA97-15765A Contact Us For Availability
18
Refrigerator hinge cap SMG DA67-02138A Contact Us For Availability
19
Refrigerator evaporator assembly SMG DA96-00660J Contact Us For Availability
19-1
Refrigerator temperature sensor SMG DA32-10104N Contact Us For Availability
19-2
Refrigerator defrost heater bracket SMG DA61-05835B Contact Us For Availability
19-4
Refrigerator defrost heater SMG DA47-00244U Contact Us For Availability
19-5
Refrigerator temperature sensor clip SMG DA61-05160A Contact Us For Availability
19-7
Refrigerator defrost heater bracket SMG DA61-03644A Contact Us For Availability
20
Refrigerator crisper drawer SMG DA97-07038A Contact Us For Availability
20
Refrigerator compressor access cover SMG DA97-15162B Contact Us For Availability
21
Refrigerator crisper drawer assembly SMG DA97-07037A Contact Us For Availability
22
Refrigerator screw SMG 6003-001727 Contact Us For Availability
22
Refrigerator led light assembly SMG DA97-12607A Contact Us For Availability
22-1
Refrigerator led light SMG DA41-00676G Contact Us For Availability
24
Refrigerator ice bin SMG DA61-05358A Contact Us For Availability
24
Refrigerator leveling leg cover, left SMG DA63-06389E Contact Us For Availability
25
Refrigerator leveling leg cover, right SMG DA63-06405D Contact Us For Availability
26
Refrigerator door hinge SMG DA97-12573A Contact Us For Availability
26
Refrigerator crisper drawer slide rail, left SMG DA97-07006A Contact Us For Availability
26-3
Refrigerator door closer cam SMG DA66-00950A Contact Us For Availability
27
Refrigerator crisper drawer slide rail, right SMG DA97-07007A Contact Us For Availability
27
Refrigerator door hinge, upper SMG DA97-12574A Contact Us For Availability
28
Refrigerator user interface and top cover ass SMG DA97-12706D Contact Us For Availability
28-3
Refrigerator door hinge cover SMG DA61-08227A Contact Us For Availability
28-6
Refrigerator led display board SMG DA92-00152A Contact Us For Availability
28-7
Refrigerator wire harness SMG DA96-00962A Contact Us For Availability
29
Refrigerator door hinge bushing SMG DA63-06410A Contact Us For Availability
36
Refrigerator freezer drawer slide rail, right SMG DA61-07328A Contact Us For Availability
37
Refrigerator freezer drawer slide rail, right SMG DA61-07329A Contact Us For Availability
38
Refrigerator freezer temperature sensor cover SMG DA63-05470B Contact Us For Availability
39
Refrigerator freezer temperature sensor SMG DA32-00029U Contact Us For Availability
42-2
Refrigerator roller wheel axle pin SMG DA61-01920A Contact Us For Availability
42-3
Refrigerator roller SMG DA61-04702A Contact Us For Availability
42-4
Refrigerator leveling leg SMG DA61-04721D Contact Us For Availability
44
Refrigerator inverter SMG DA92-00215R Contact Us For Availability
4243
Refrigerator condenser fan blade SMG DA31-00320A Contact Us For Availability
4246
Refrigerator screw, m4 x 0.8 SMG 6002-000239 Contact Us For Availability
NI
Refrigerator freezer door handle reinforcemen SMG DA61-06658A Contact Us For Availability
NI
Refrigerator spring SMG DA61-04335B Contact Us For Availability
NI
Refrigerator door handle mounting grommet, le SMG DA61-05930A Contact Us For Availability
NI
Refrigerator freezer door handle mounting cap SMG DA61-05899A Contact Us For Availability
NI
Refrigerator flexzone door handle shaft SMG DA66-00579B Contact Us For Availability
NI
Refrigerator freezer door handle latch SMG DA61-06014A Contact Us For Availability
NI
Refrigerator door hinge grommet SMG DA63-40294A Contact Us For Availability
NI
Tap screw SMG 6002-001306 Contact Us For Availability
NI
Refrigerator drawer shelf roller wheel SMG DA61-04804A Contact Us For Availability
NI
refrigerator tapping screw SMG 6002-000217 Contact Us For Availability
× ![]()
