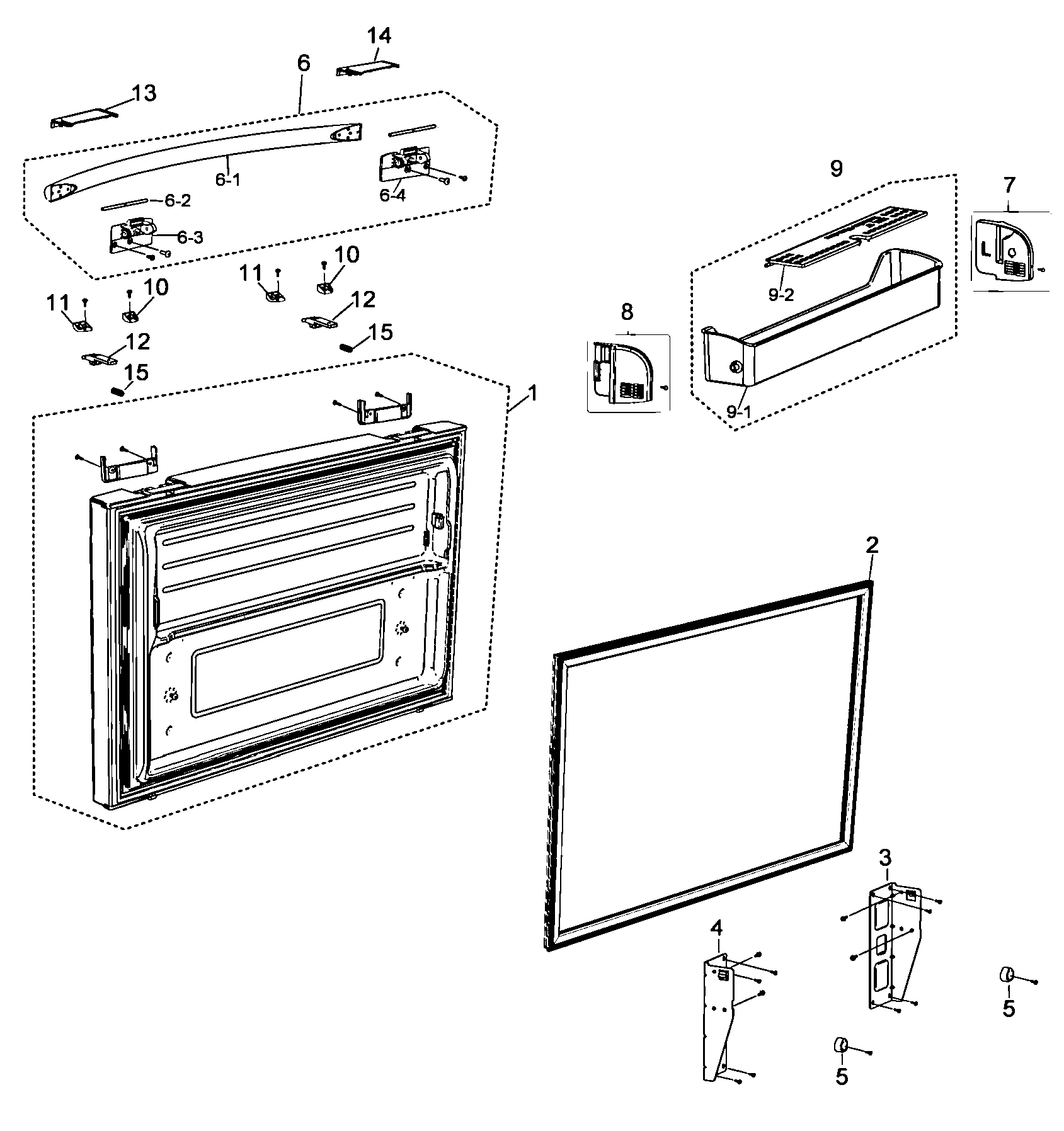

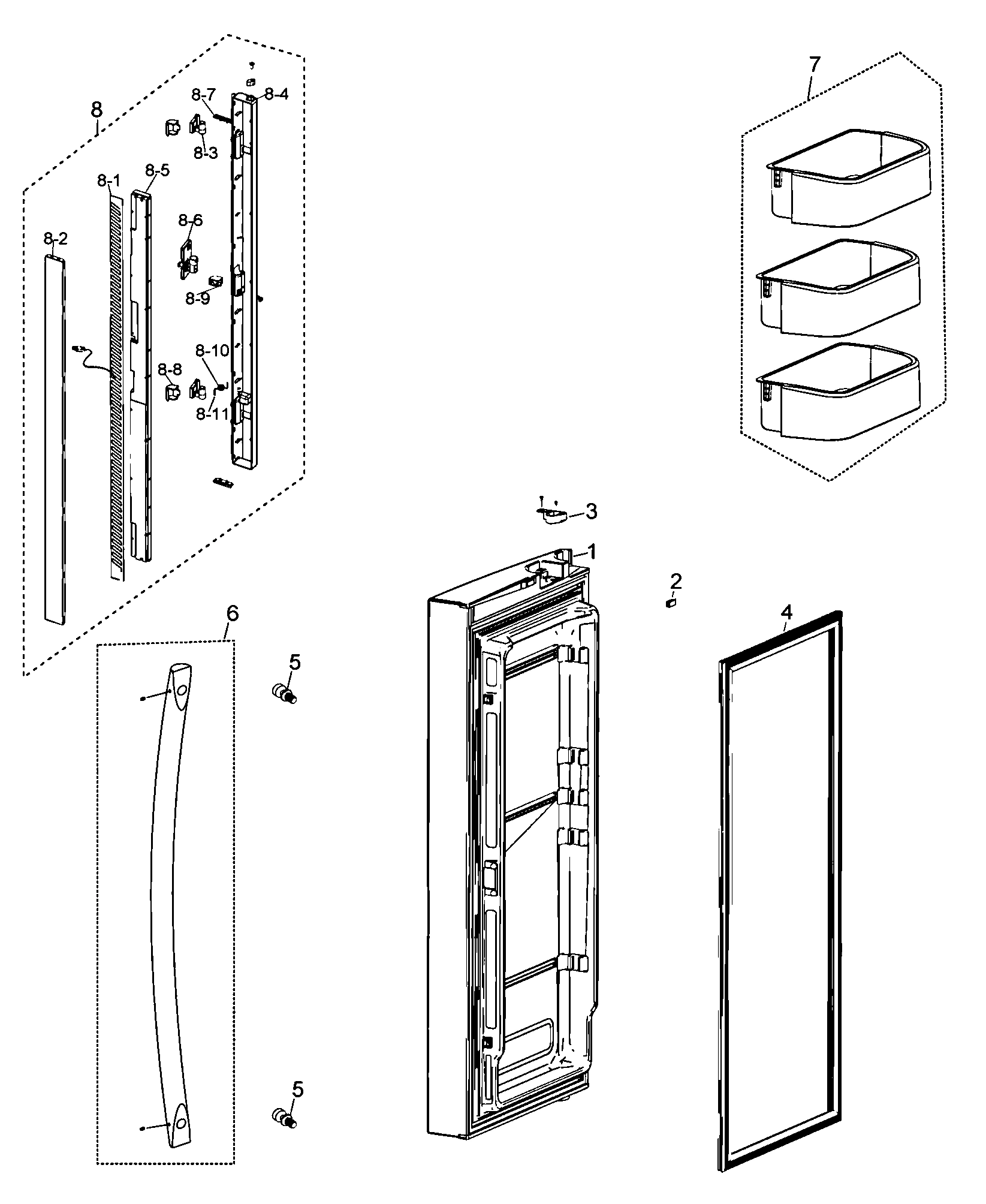

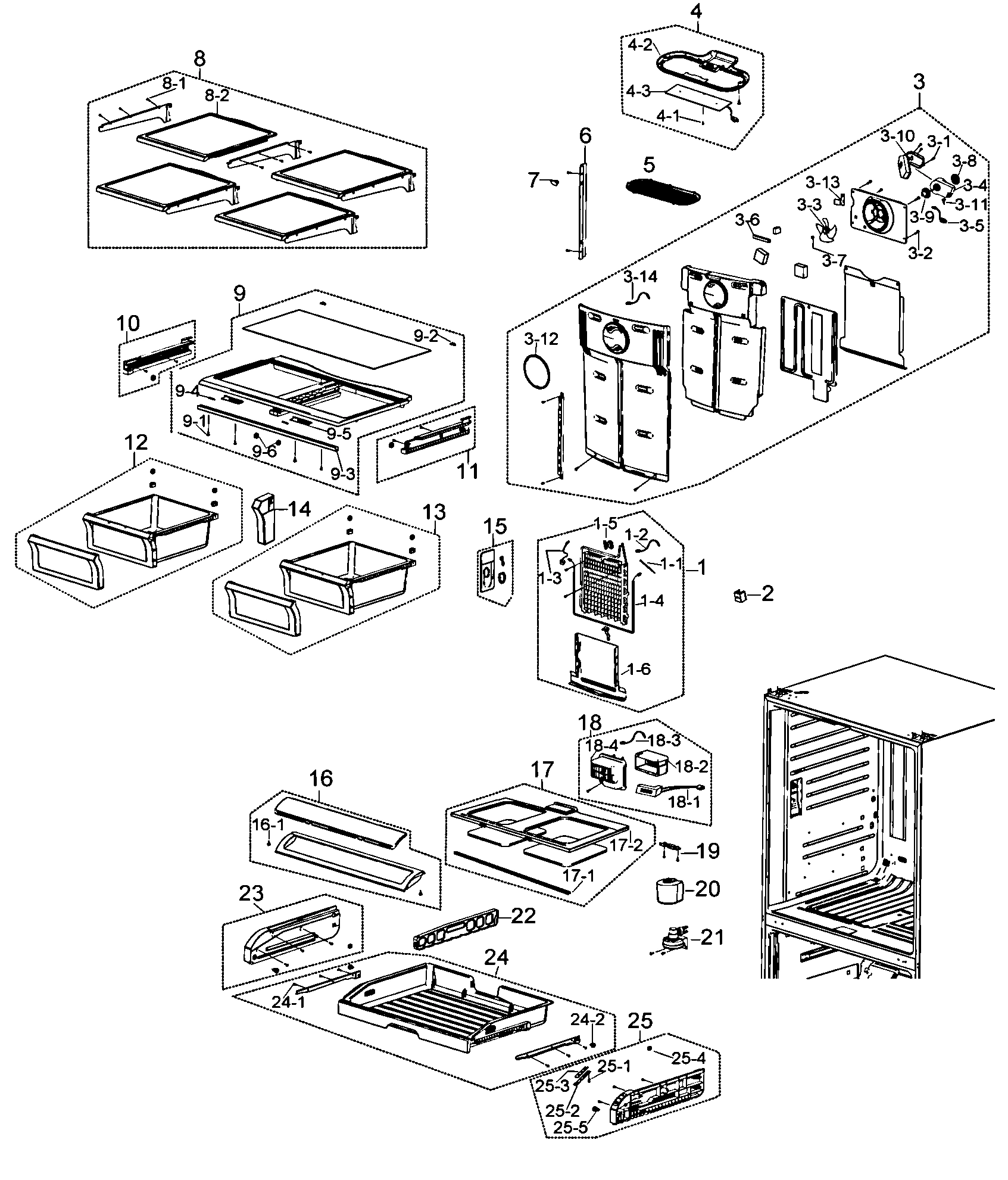

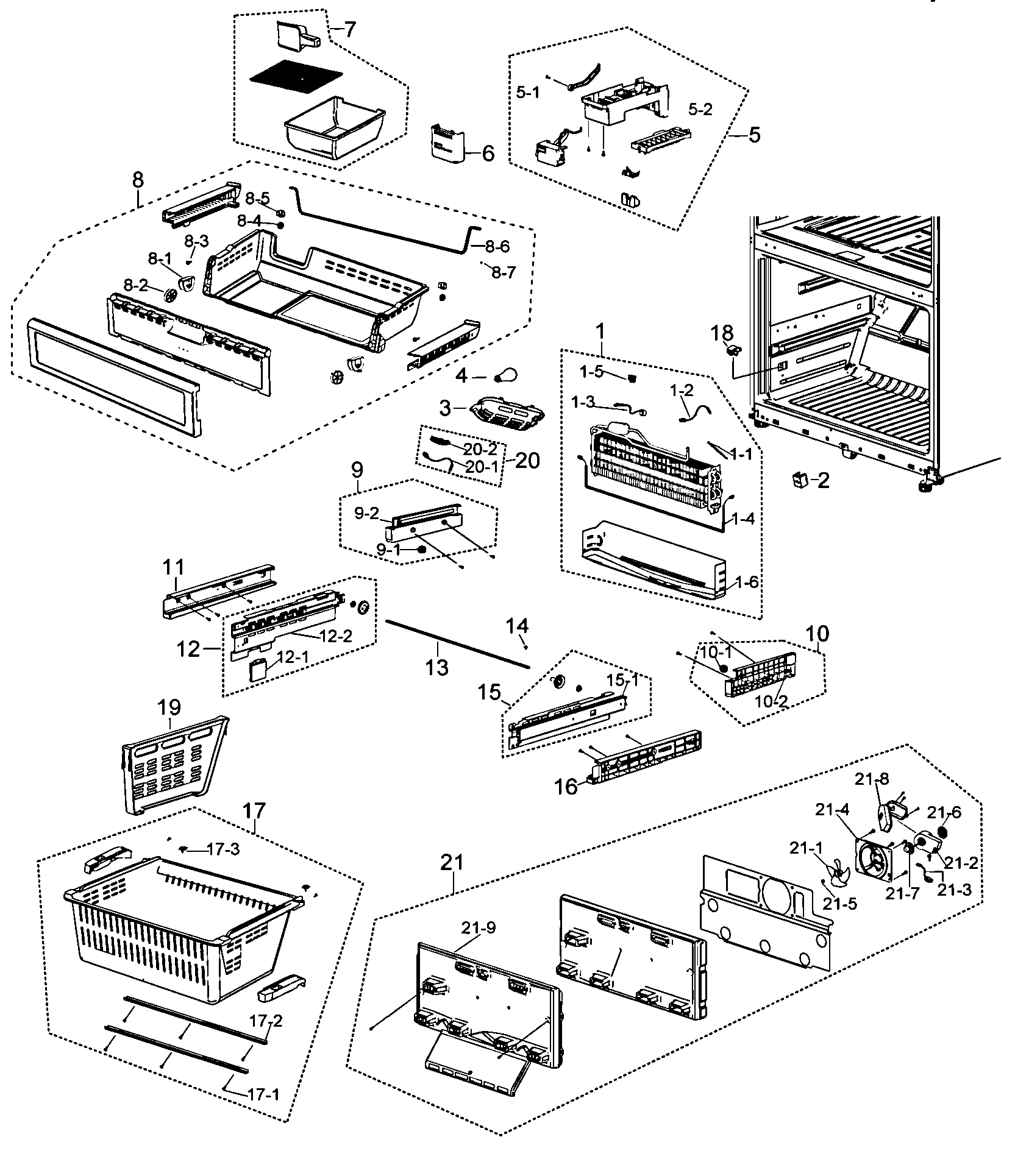

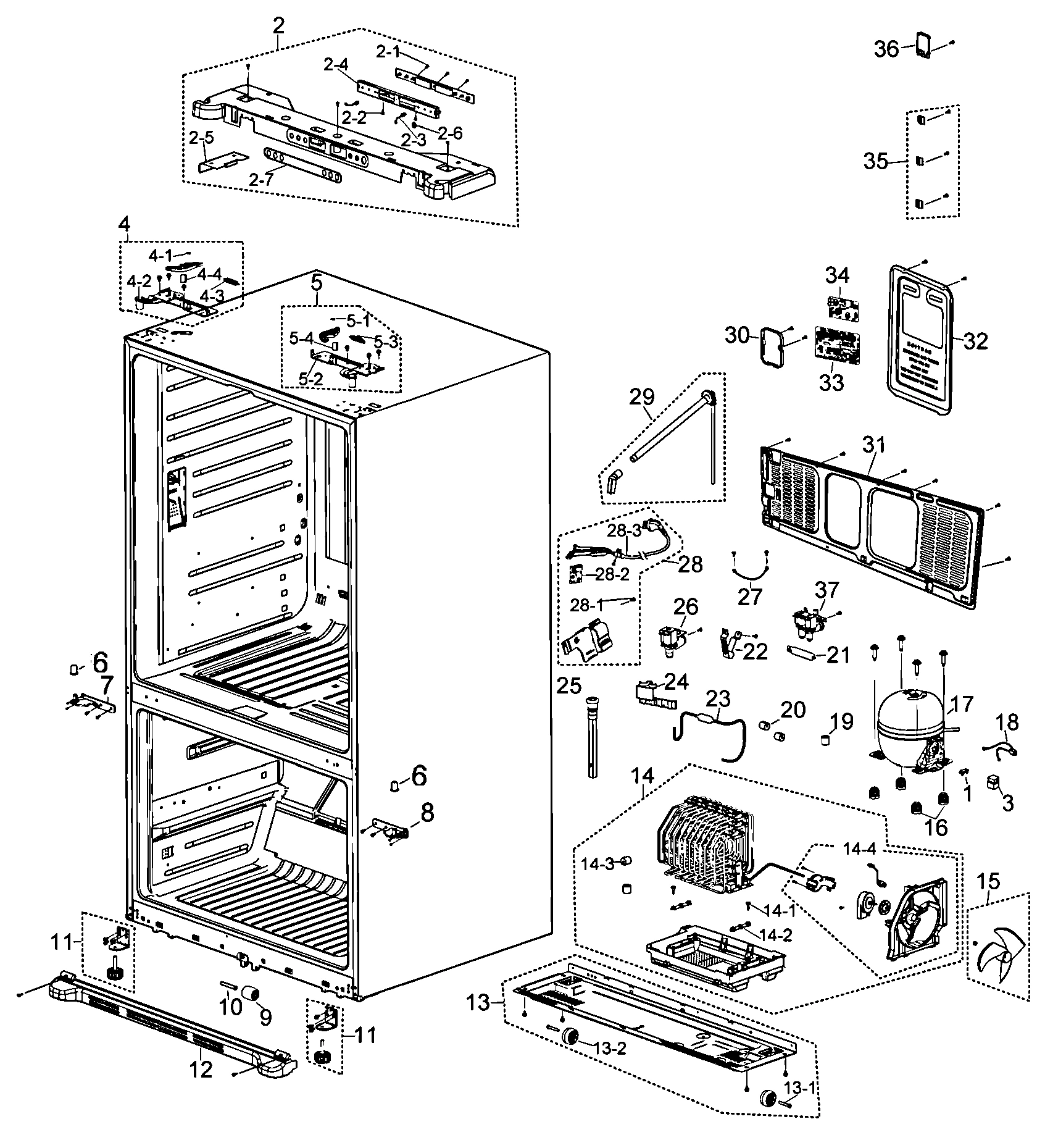

Model Samsung RF263AEBP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

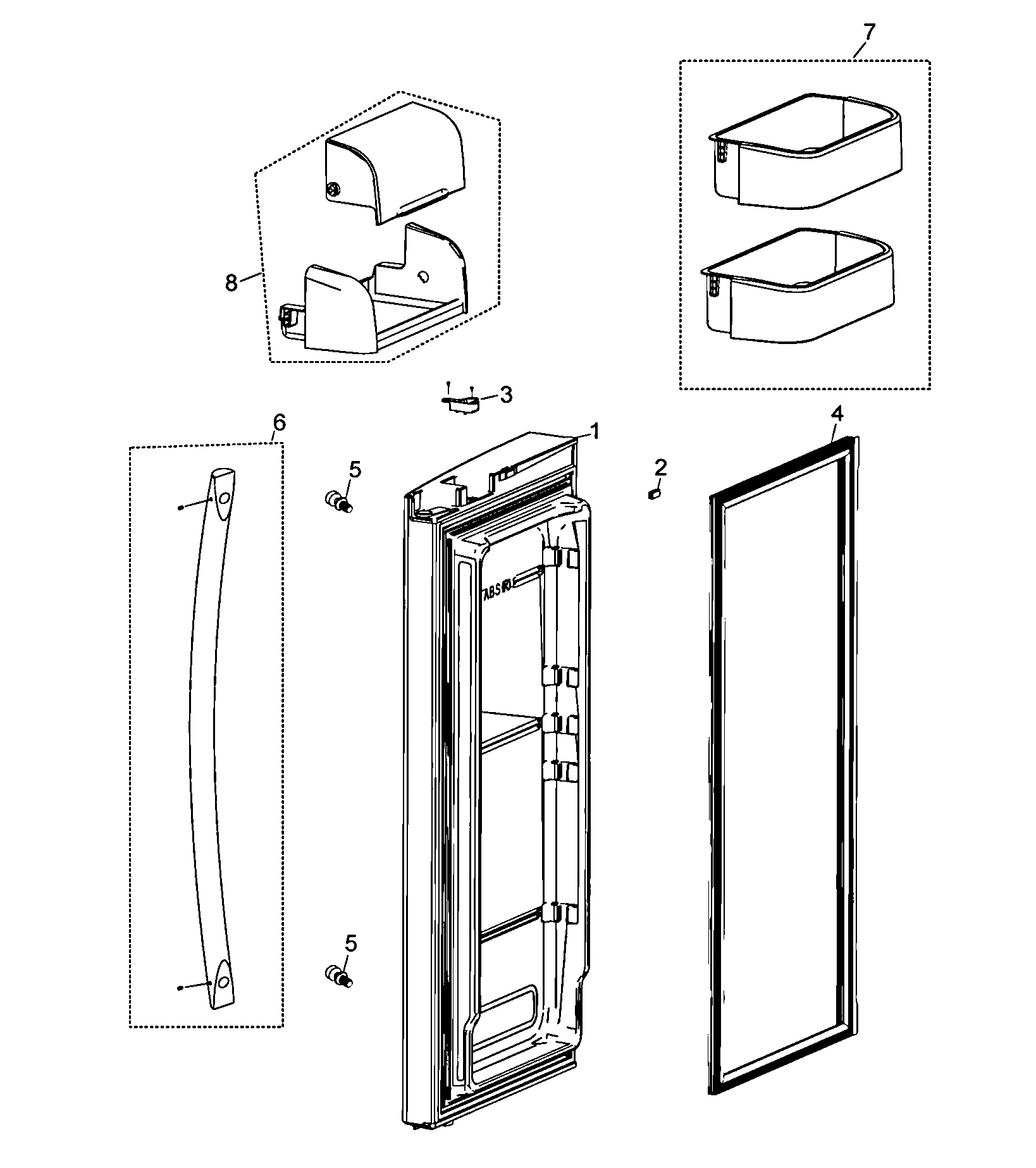

Refrigerator door assembly, right SMG DA91-02945C Contact Us For Availability

1-2

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $27.01

1-2

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $38.21

1-4

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $146.08

1-4

DA47-00244B Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244B $92.56

1-5

DA61-04799A Samsung Refrigerator Evaporator S Backorder SMG DA61-04799A $1.69

1-5

DA61-04800A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-04800A $4.87

1-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

2

DA61-02738E Samsung Refrigerator Assembly Mag Backorder SMG DA61-02738E $4.33

2

DA97-07049P Samsung Refrigerator Top Table As Backorder SMG DA97-07049P $265.64

2-2

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

2-3

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $30.74

2-7

Inlay dsp. SMG DA64-02076D Contact Us For Availability

3

DA63-04553A Samsung Refrigerator Cover Relay Backorder SMG DA63-04553A $43.72

3

DA66-00640B Samsung Refrigerator Auto Close C Backorder SMG DA66-00640B $5.97

3-3

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $78.65

3-4

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

3-5

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $160.09

3-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

3-14

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $25.48

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $81.46

4

DA97-07191B Samsung Refrigerator Gasket Door Backorder SMG DA97-07191B $103.40

4-3

DA96-00398B Samsung Refrigerator Lamp Assembl Backorder SMG DA96-00398B $225.04

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

5

Refrigerator ice maker SMG DA97-07603A Contact Us For Availability

5-1

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $9.31

5-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

6

DA63-04599A Samsung Refrigerator Hinge Mid Gr Backorder SMG DA63-04599A $4.87

6

DA97-06628A Samsung Refrigerator Handle Bar A Backorder SMG DA97-06628A $178.34

6-1

DA64-02552A Samsung Refrigerator Handle Bar A Backorder SMG DA64-02552A $188.85

6-2

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

7

DA63-04621A Samsung Refrigerator Guard Backorder SMG DA63-04621A $70.99

7

DA67-02130A Samsung Refrigerator Angle Cap As Backorder SMG DA67-02130A $1.69

8

Refrigerator freezer door bin support, left SMG DA97-07035A Contact Us For Availability

8

Refrigerator guard assembly SMG DA97-07032A Contact Us For Availability

8-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $3.89

8-2

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

8-3

DA61-04866A Samsung Refrigerator French Door Backorder SMG DA61-04866A $5.03

8-4

Refrigerator door french seal housing SMG DA61-04848A Contact Us For Availability

8-5

DA61-04805A Samsung Refrigerator Natural Proj Backorder SMG DA61-04805A $38.92

8-6

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $16.21

8-8

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $9.72

8-9

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.93

8-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

9

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

9

DA97-07019A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-07019A $184.08

9

DA97-07022A Samsung Refrigerator Upper Slide Backorder SMG DA97-07022A $115.76

9-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

DA61-04837A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04837A $2.70

DA97-07006A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07006A $144.90

DA97-07023A Samsung Refrigerator Upper Slide Backorder SMG DA97-07023A $48.25

11

DA61-04838A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04838A $3.79

11

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $151.09

11

DA97-07007A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07007A $138.46

13

DA63-04641B Samsung Refrigerator Handle Cover Backorder SMG DA63-04641B $8.10

13

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $42.76

13-1

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.97

13-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.82

14

DA63-04640B Samsung Refrigerator Handle Cover Backorder SMG DA63-04640B $13.50

15

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

15

Refrigerator display cover SMG DA97-06995A Contact Us For Availability

15

Refrigerator condenser fan blade SMG DA96-00504A Contact Us For Availability

16

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $93.64

16

Refrigerator cover assembly SMG DA97-07020A Contact Us For Availability

17

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $244.04

17

Refrigerator compressor SMG BK190CL2C/E02 Contact Us For Availability

17-1

DA61-04822A Samsung Refrigerator Reinforcemen Backorder SMG DA61-04822A $42.28

17-2

Refrigerator shelf SMG DA67-02139A Contact Us For Availability

18

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

18

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $57.17

18

DA97-07189A Samsung Refrigerator Motor Damper Backorder SMG DA97-07189A $154.00

18-1

DA31-00071C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071C $134.90

18-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

18-3

Refrigerator insulation SMG DA62-02057A Contact Us For Availability

18-4

DA63-04655A Samsung Refrigerator Motor Dampen Backorder SMG DA63-04655A $16.43

19

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $11.88

19

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $53.34

20

DA63-04150B Samsung Refrigerator Filter Cover Backorder SMG DA63-04150B $20.40

20

DA97-02019B Samsung Refrigerator Temperature Backorder SMG DA97-02019B $39.39

20-2

DA32-00011U Samsung Refrigerator Temperature Backorder SMG DA32-00011U $55.25

21

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $115.21

21

DA97-07186B Samsung Refrigerator Freon Evapor Backorder SMG DA97-07186B $300.28

21-3

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

21-5

DA61-20128C Samsung Refrigerator Fan Spring A Backorder SMG DA61-20128C $1.69

22

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $34.10

23

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $146.37

24

DA97-07011A Samsung Refrigerator Pantry Case Backorder SMG DA97-07011A $244.61

24-2

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

25

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $21.66

25

DA97-07017A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07017A $100.79

25-2

DA41-00423C Samsung Refrigerator Printed Circ In Stock SMG DA41-00423C $37.96

25-3

DA64-02246C Samsung Refrigerator Control Pane Backorder SMG DA64-02246C $21.06

25-4

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.69

25-5

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

26

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $100.07

28-1

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.69

28-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $112.89

28-3

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $79.51

29

DA97-00209T Samsung Refrigerator Water Pipe A Backorder SMG DA97-00209T $120.50

32

DA97-07852A Samsung Refrigerator Assembly Cov Backorder SMG DA97-07852A $56.21

34

Refrigerator power control board SMG DA41-00404E Contact Us For Availability

37

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $149.54

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.55

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $24.62

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.69

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.69
