Model Samsung RF23R6201SR/AA-52 Refrigerator – Common Parts &amp; Diagrams

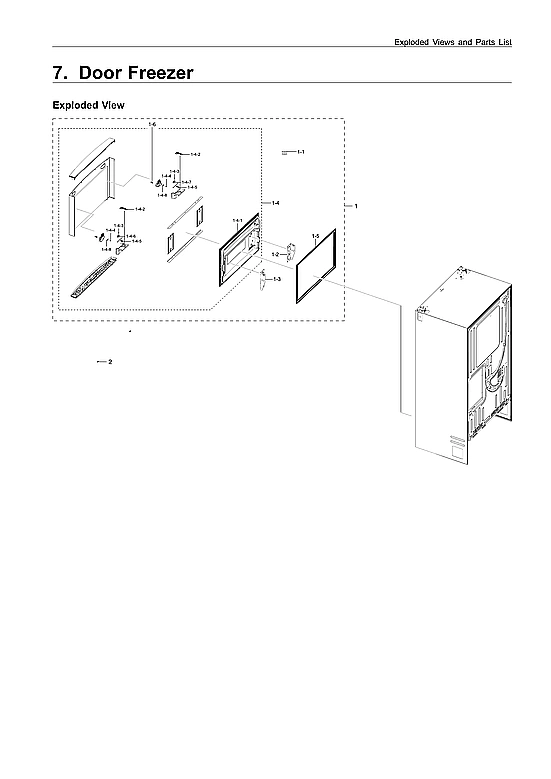

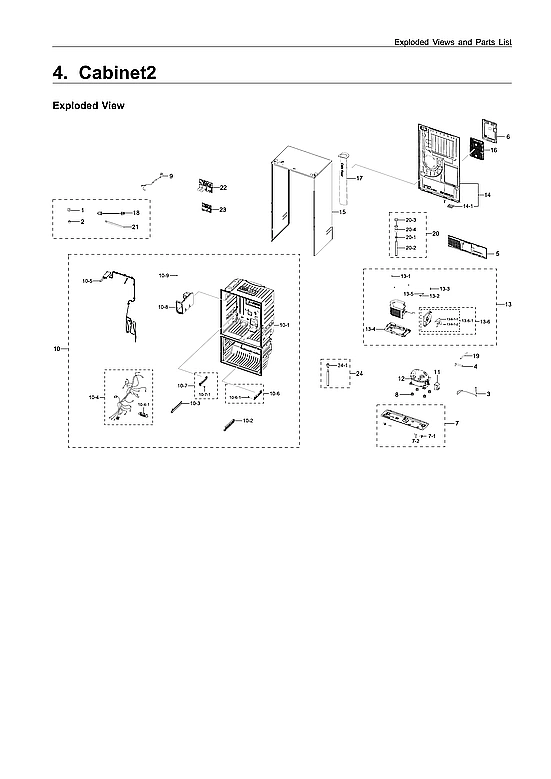

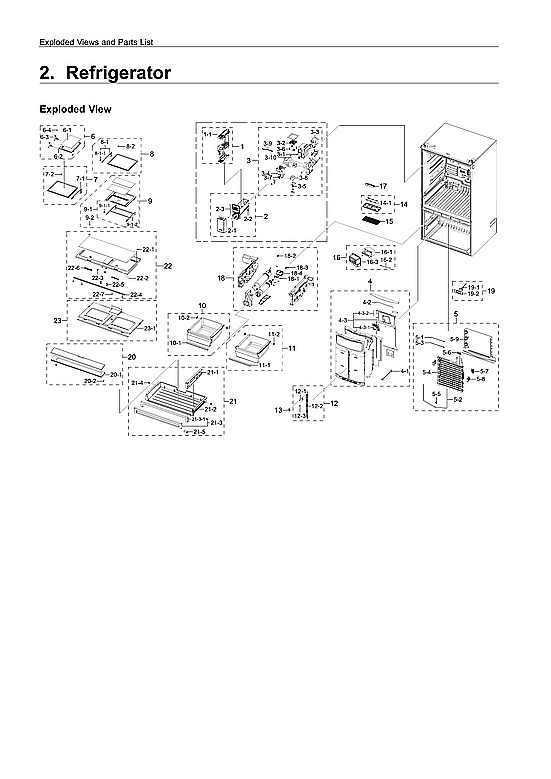

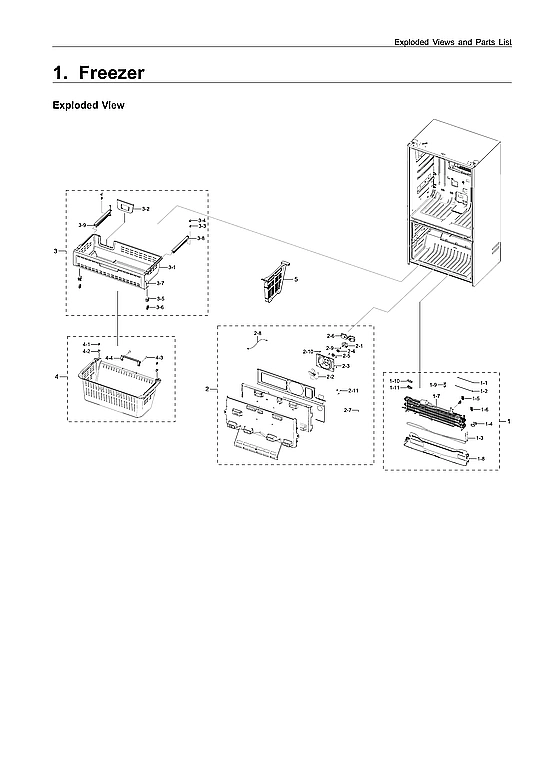

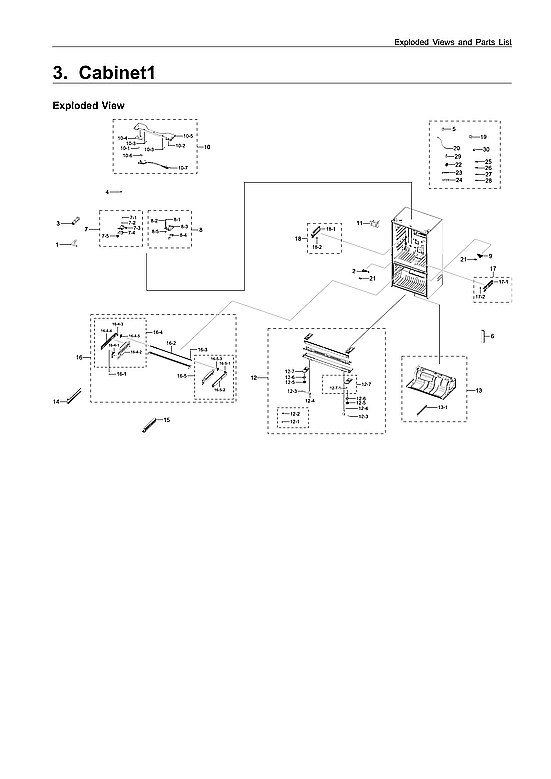

1

DA61-04932B Samsung Refrigerator Hinge Fixer Backorder SMG DA61-04932B $15.65

1

Refrigerator Ice Maker Assembly SMG DA97-18859A No Longer Available

1

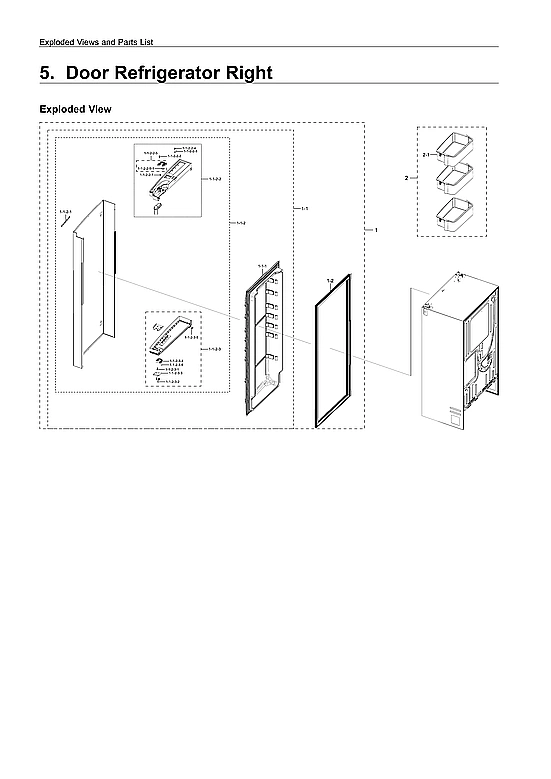

Assy door sub-ref right SMG DA93-00787A Contact Us For Availability

1-1

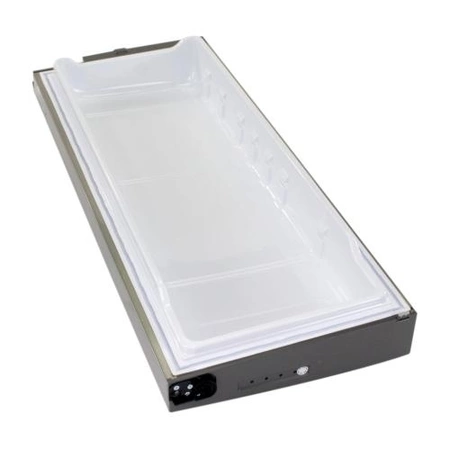

DA91-05220A Samsung Refrigerator Right Door F Backorder SMG DA91-05220A $262.99

1-1

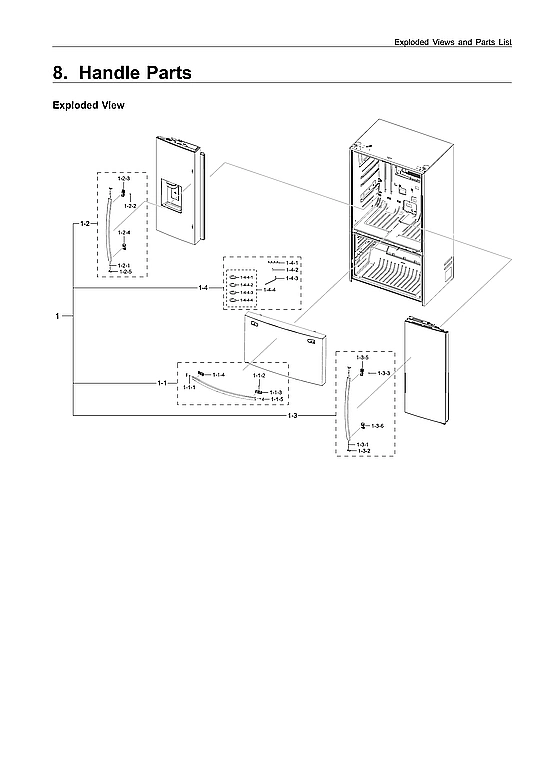

Refrigerator Freezer Door Handle Assembly SMG DA97-20017A No Longer Available

1-1-1

Panel door-ref r SMG DA64-04142A Contact Us For Availability

1-1-2

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

1-1-2

Assy plate door-ref right SMG DA97-20821A Contact Us For Availability

1-1-2-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-1-2-2

Assy cap door-ref up right SMG DA97-13867K Contact Us For Availability

1-1-2-3

Non-serviceable part SMG N/P Contact Us For Availability

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $29.65

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

DA97-13015J Samsung Refrigerator Door Gasket Backorder SMG DA97-13015J $114.75

DA97-20021A Samsung Refrigerator Left Handle Backorder SMG DA97-20021A $167.70

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $160.31

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

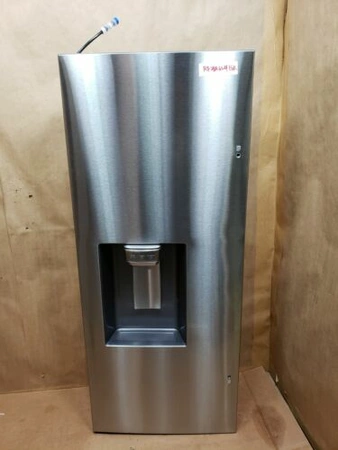

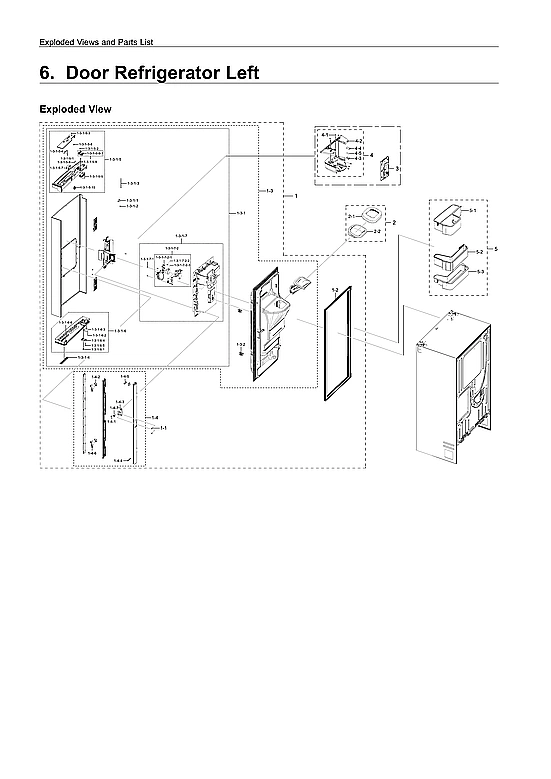

DA91-05224A Samsung Refrigerator Left Door Fo Backorder SMG DA91-05224A $373.56

Refrigerator Door Handle, Right SMG DA97-20019A Contact Us For Availability

1-3-1-1

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

1-3-1-2

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

1-3-1-3

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

1-3-1-4

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

1-4

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

1-4

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $154.39

1-4-2

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.79

1-4-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

1-4-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

1-4-4

DA99-04158A Samsung Refrigerator Accessory Ad In Stock SMG DA99-04158A $82.29

1-4-4-1

DA60-00314A Samsung Refrigerator Hinge Fasten Backorder SMG DA60-00314A $1.69

1-4-5

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-4-5

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

1-4-6

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

1-4-6

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

1-4-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

1-4-7

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

1-4-8

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

1-5

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

1-6

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

2

DA61-10859A Samsung Refrigerator Left Middle Backorder SMG DA61-10859A $85.14

2

DA97-08541A Samsung Refrigerator Evaporator C Backorder SMG DA97-08541A $342.37

2

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

2

DA97-20157B Samsung Ice Tray Assembly Backorder SMG DA97-20157B $287.65

2

Assy guard packing SMG DA97-20815A Contact Us For Availability

2-1

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

2-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $37.30

2-1

DA97-14314B Samsung Refrigerator Right Guard Backorder SMG DA97-14314B $127.66

2-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

2-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

2-2

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-3

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

2-4

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-5

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

2-8

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

3

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

3

DA97-12540K Samsung Refrigerator Auger Motor In Stock SMG DA97-12540K $282.93

3

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $114.50

3-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

3-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

3-4

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

3-5

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

3-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

3-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

3-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.18

3-10

DA97-19898A Samsung Refrigerator Lower Drain In Stock SMG DA97-19898A $16.37

4

DA62-04309F Samsung Refrigerator Single Dryer Backorder SMG DA62-04309F $37.26

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

4

DA97-07533B Samsung Refrigerator Drawer Tray Backorder SMG DA97-07533B $157.85

4

DA97-12608A Samsung Refrigerator Evaporator C In Stock SMG DA97-12608A $180.35

4

DA97-17299E Samsung Refrigerator Assembly Dis Backorder SMG DA97-17299E $229.03

4-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

4-1

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

4-3

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $136.56

4-3-1

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

4-5

DA41-00217F Samsung Refrigerator LED Dispense Backorder SMG DA41-00217F $42.77

5-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

5-2

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.72

5-3

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $25.76

5-5

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

5-6

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

5-7

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

5-8

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

5-9

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

7

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

7-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

7-3

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

7-4

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

7-5

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

8

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $88.64

8-5

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

10-4

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

10-4-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

10-5

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $78.89

10-6

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.31

10-6

DA97-13837A Samsung Refrigerator Right Vegeta Backorder SMG DA97-13837A $35.30

10-7

DA97-13838A Samsung Refrigerator Left Vegetab Backorder SMG DA97-13838A $34.81

12

DA97-20342A Samsung Refrigerator Middle Shelf Backorder SMG DA97-20342A $75.44

12-1

DA61-04321A Samsung Refrigerator Hanger Suppo Backorder SMG DA61-04321A $33.63

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $2.23

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

13-6

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

13-6-1-1

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

14

DA97-12606C Samsung Refrigerator Lamp Case Backorder SMG DA97-12606C $120.14

14-1

DA41-00676M Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676M $65.64

15

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

16

DA97-06324D Samsung Motor Cover Assembly Backorder SMG DA97-06324D $128.85

16

DA97-14385A Samsung Refrigerator Low Hanger A In Stock SMG DA97-14385A $260.26

16-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

16-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

16-3

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

16-3

COVER MOTOR-FRONT SMG DA63-04274C Contact Us For Availability

16-4-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

16-4-3

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

16-4-4

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $198.91

16-5-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $170.37

17

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

18

DA97-14528M Samsung Refrigerator Filter Case Backorder SMG DA97-14528M $272.67

18-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

18-3

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

18-4

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

19

DA97-13783A Samsung Refrigerator Assembly Cov Backorder SMG DA97-13783A $29.07

19-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

19-2

DA63-07513A Samsung Refrigerator Reed Switch Backorder SMG DA63-07513A $6.39

20

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

20

DA97-20367A Samsung Refrigerator Slide Cover Backorder SMG DA97-20367A $113.46

20-1

DA63-04934A Samsung Refrigerator Slide Cover Backorder SMG DA63-04934A $55.88

20-2

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $6.71

21

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.23

21

DA97-20834A Samsung Pantry Drawer Module Case Backorder SMG DA97-20834A $216.05

21-1

DA61-05181B Samsung Refrigerator Pantry Guide Backorder SMG DA61-05181B $15.98

21-2

DA61-05179B Samsung Refrigerator Case Pantry Backorder SMG DA61-05179B $143.00

21-3-1

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.10

21-4

DA97-19988B Samsung Refrigerator Roller Assem Backorder SMG DA97-19988B $46.41

21-5

DA66-00580A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00580A $2.23

22

DA97-14303A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-14303A $243.31

22-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

22-2

DA64-03209B Samsung Refrigerator Humidity Kno Backorder SMG DA64-03209B $1.69

22-3

DA97-15997A Samsung Refrigerator Roller Assem Backorder SMG DA97-15997A $17.58

22-4

DA61-05222B Samsung Reinforcement Cover Veg Backorder SMG DA61-05222B $43.10

22-5

DA61-10523A Samsung Refrigerator Case Lock As Backorder SMG DA61-10523A $1.60

22-6

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

23

DA92-00945F Samsung Refrigerator Fuse Block P Backorder SMG DA92-00945F $63.81

23

DA97-20833A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-20833A $126.94

24-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $8.38

29

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

30

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

11221

6002-000613 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000613 $1.76

11231

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $1.18

11232

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $1.18

11233

DA61-08817A Samsung Refrigerator Door Stopper Backorder SMG DA61-08817A $22.35

11234

DA61-10855B Samsung Right Door Cap Support Re Backorder SMG DA61-10855B $12.30

13153

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

13154

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

13156

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

13157

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

13159

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

13163

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $38.82

13164

DA61-10856B Samsung Refrigerator Left Door Su Backorder SMG DA61-10856B $7.82

13165

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

13166

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

13172

Refrigerator Dispenser Ice Chute Door and Mot SMG DA97-17296A Contact Us For Availability

131510

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $24.11

131591

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

131723

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

NI

Samsung Refrigerator Water Filter SMG HAF-QIN Contact Us For Availability
