Model Samsung RF18A5101WW/AA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

1

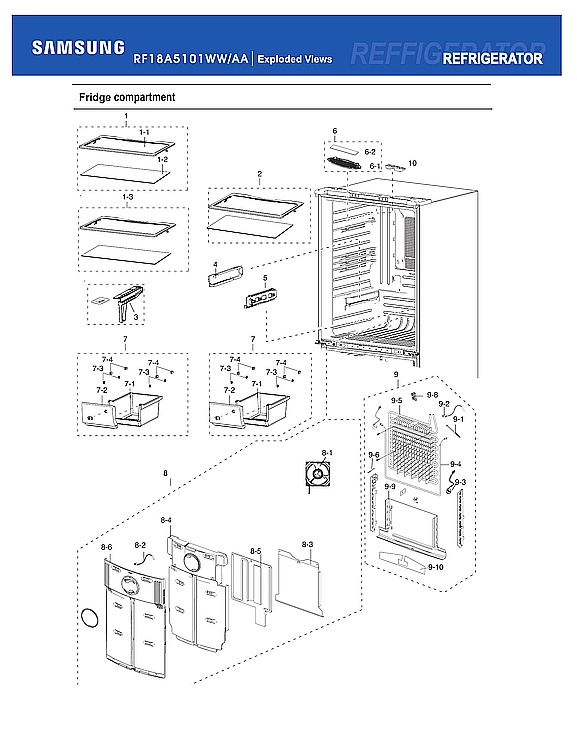

DA97-21587A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-21587A $151.29

1

SMG PART SMG DA97-21598A Contact Us For Availability

1

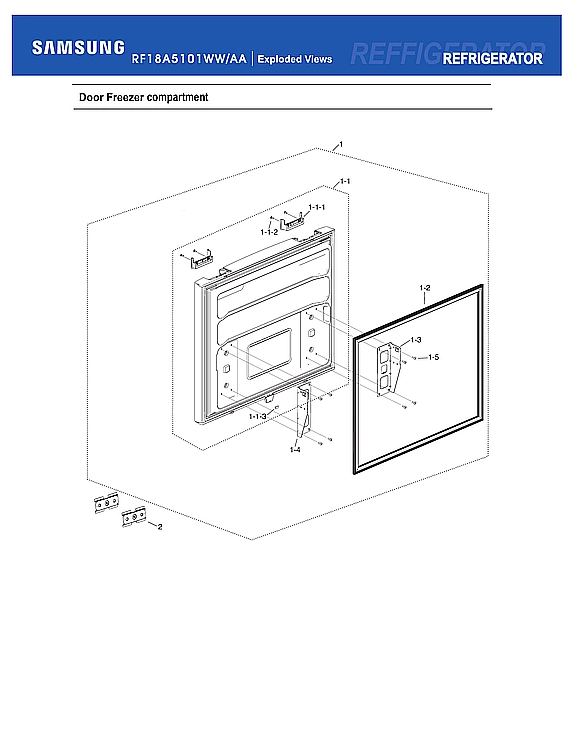

ASSY DOOR FRE SMG DA90-12676F Contact Us For Availability

DA61-03949A Samsung Refrigerator Ferrite Magn Backorder SMG DA61-03949A $3.90

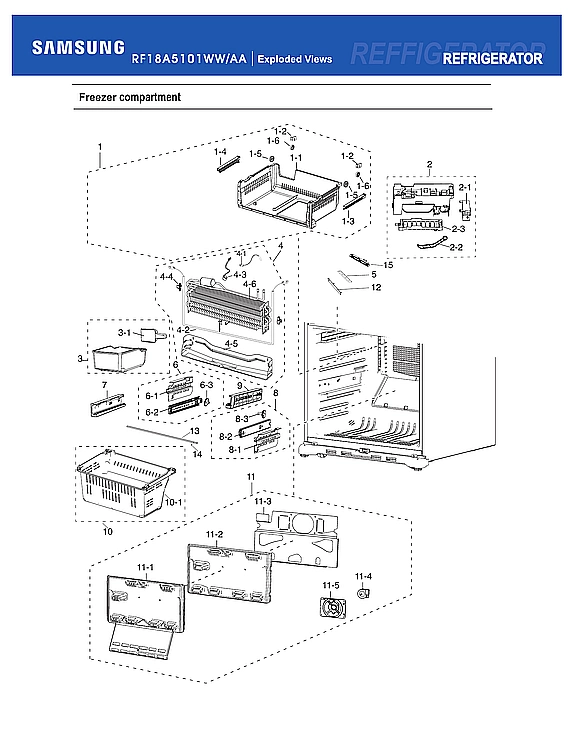

DA63-09994A Samsung Refrigerator Upper Tray A Backorder SMG DA63-09994A $171.23

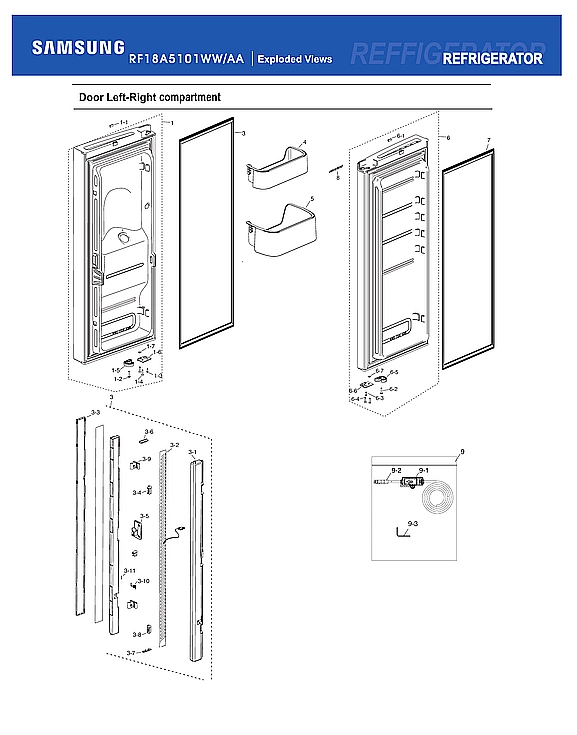

DA91-05435E Samsung Door Foam Assembly Backorder SMG DA91-05435E $320.52

TRIM SHELF-REF FRONT (2) SMG DA64-04280F Contact Us For Availability

1-1-1

CAP DOOR-FRE UP SMG DA67-05121C Contact Us For Availability

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

DA32-00088A Samsung Sensor Humidity Backorder SMG DA32-00088A $78.50

DA97-16990A Samsung Refrigerator Freezer Door In Stock SMG DA97-16990A $114.32

RAIL-FRE UPP L SMG DA61-05830A Contact Us For Availability

GLASS-SHELF REF UP (2) SMG DA64-06437A Contact Us For Availability

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

DA61-07460A Samsung Refrigerator Front Left H Backorder SMG DA61-07460A $64.55

DA97-21590A Samsung Refrigerator Low Shelf As Backorder SMG DA97-21590A $122.14

RAIL-FRE UPP R SMG DA61-05831A Contact Us For Availability

1-4

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

1-4

DA61-07461A Samsung Refrigerator Front Hanger Backorder SMG DA61-07461A $62.86

1-5

DA61-07443B Samsung Refrigerator Door Close S Backorder SMG DA61-07443B $8.38

1-5

DA66-00854A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00854A $7.45

1-5

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.31

1-6

Refrigerator Door Stopper SMG DA61-07462A Contact Us For Availability

1-7

DA63-06439A Samsung Refrigerator Black Stoppe Backorder SMG DA63-06439A $1.18

2

DA63-07733A Samsung Refrigerator Door Gasket In Stock SMG DA63-07733A $91.48

2

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $197.34

2

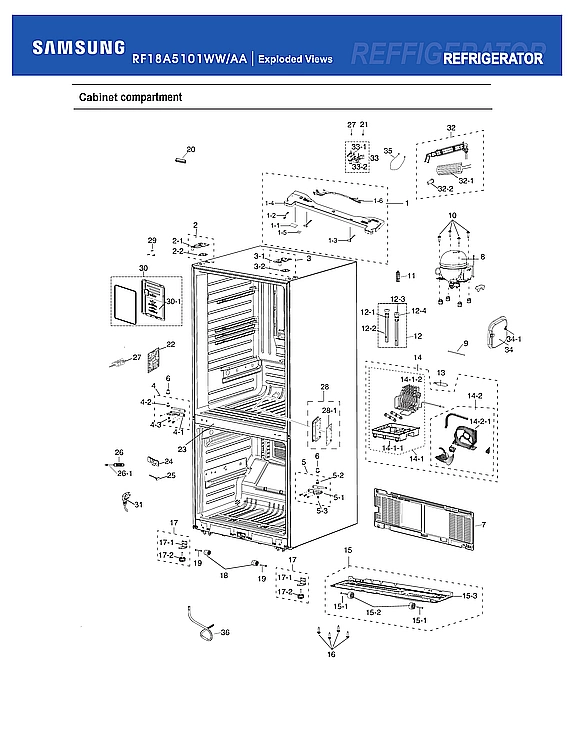

DA97-11774A Samsung Assy Reinf-Hanger Backorder SMG DA97-11774A $32.20

2

COVER VEG-REF (2) SMG DA63-09992A Contact Us For Availability

2-1

ASSY ICE MAKER SMG DA90-12672A Contact Us For Availability

2-2

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.79

2-3

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $30.17

3

DA61-00761B Samsung Refrigerator Rail-Veg Mid Backorder SMG DA61-00761B $70.05

3

DA61-07401A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-07401A $62.50

3

DA97-07661V Samsung Refrigerator French Assem Backorder SMG DA97-07661V $156.97

3-1

Refrigerator Flipper Housing SMG DA61-05315A Contact Us For Availability

3-2

HEATER CORD-FRENCH SMG DA47-00439C Contact Us For Availability

3-3

Refrigerator Plate SMG DA61-05291B Contact Us For Availability

3-4

Refrigerator Insulation SMG DA62-03229A Contact Us For Availability

3-5

Refrigerator Cover SMG DA63-06427A Contact Us For Availability

3-6

CAP-GUIDE FRENCH UPP SMG DA61-07456A Contact Us For Availability

3-7

GASKET-FRENCH-LOW SMG DA63-06850B Contact Us For Availability

3-8

Cap Freezer Case SMG DA61-07465A Contact Us For Availability

3-9

CAP-HINGE LOW SMG DA67-02914A Contact Us For Availability

3-10

DA61-08314B Samsung Refrigerator French Sprin Backorder SMG DA61-08314B $7.27

3-11

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

4

DA61-60126E Samsung Left Rail Backorder SMG DA61-60126E $39.29

4

DA63-09997A Samsung Refrigerator Guard Assemb Backorder SMG DA63-09997A $35.30

4

DA96-01446A Samsung Refrigerator Evaporator A Backorder SMG DA96-01446A $282.62

4-3

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

4-4

DA61-07410A Samsung Refrigerator Heater Fixer Backorder SMG DA61-07410A $3.20

4-5

PLATE HEATER SMG DA61-13961A Contact Us For Availability

5

DA61-60127E Samsung Refrigerator Vegetable Ra Backorder SMG DA61-60127E $31.87

5

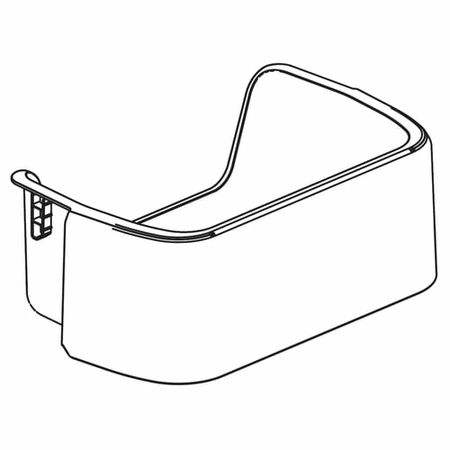

DA63-11175A Samsung Refrigerator Low Guard RF Backorder SMG DA63-11175A $42.27

6

DA91-05437E Samsung Door Foam-REF RIGHT Backorder SMG DA91-05437E $246.30

6

DA97-12024A Samsung Refrigerator Lower Left S Backorder SMG DA97-12024A $157.31

6

DA97-21569B Samsung Assembly Lamp Cover Backorder SMG DA97-21569B $74.90

6-1

Hanger Rail SMG DA61-07827A Contact Us For Availability

6-1

c SMG DA63-11178A Contact Us For Availability

6-2

DA41-00519R Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00519R $12.98

6-2

Refrigerator Slide Rail SMG DA61-07853A Contact Us For Availability

6-3

Refrigerator Gear Rail SMG DA66-00857A Contact Us For Availability

6-6

DA61-07463A Samsung Door Stopper Backorder SMG DA61-07463A $12.93

7

DA61-04508A Samsung Refrigerator Low Support Backorder SMG DA61-04508A $56.19

7

DA97-21585A Samsung Refrigerator Case Vegetab Backorder SMG DA97-21585A $147.54

7-1

Refrigerator FlexZone Door LED Light Board SMG DA61-14374A Contact Us For Availability

7-3

DA66-00856A Samsung Refrigerator Freezer Roll Backorder SMG DA66-00856A $1.69

7-4

DA61-07403A Samsung Refrigerator Roller Fixer Backorder SMG DA61-07403A $7.99

8

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

8

DA97-12026A Samsung Refrigerator Lower Right In Stock SMG DA97-12026A $157.36

8

DA97-21595A Samsung Refrigerator Evaporator C Backorder SMG DA97-21595A $219.58

8-1

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

8-1

Hanger Rail SMG DA61-07826A Contact Us For Availability

8-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

8-2

Refrigerator Slide Rail SMG DA61-07851A Contact Us For Availability

8-3

Refrigerator Gear Rail SMG DA66-00855A Contact Us For Availability

8-3

Brushless DC Motor SMG DA61-04701D Contact Us For Availability

8-4

Refrigerator Temperature Sensor SMG DA62-05557A Contact Us For Availability

8-5

PLATE INS-REF SMG DA62-05556A Contact Us For Availability

8-6

INSULATION COVER EVAP-REF SMG DA63-09993A Contact Us For Availability

9

DA61-04509A Samsung Refrigerator Low Support Backorder SMG DA61-04509A $56.68

9

DA96-00845G Samsung Refrigerator Assembly EVA Backorder SMG DA96-00845G $243.11

9-1

COVER EVAP-REF SMG 6501-001001 Contact Us For Availability

9-2

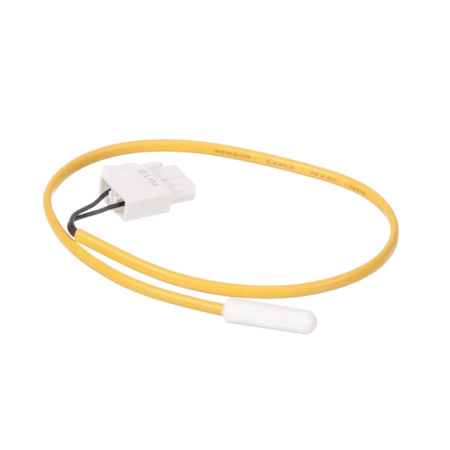

DA32-00029X Samsung Refrigerator Temperature Backorder SMG DA32-00029X $59.83

9-3

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $25.76

9-4

DA47-00534A Samsung Heater Metal Sheath Refri Backorder SMG DA47-00534A $200.54

9-5

Refrigerator Defrost Thermal Fuse SMG DA59-00621A Contact Us For Availability

9-6

HEATER METAL SHEATH SMG DA61-07437A Contact Us For Availability

9-7

EVAPORATOR-REF SMG DA61-07438A Contact Us For Availability

9-8

DA61-07452A Samsung Refrigerator Drain Plate Backorder SMG DA61-07452A $56.82

9-9

PLATE-EVAP REF R SMG DA62-01921P Contact Us For Availability

10

DA61-05292A Samsung Refrigerator French Door Backorder SMG DA61-05292A $35.30

10

DA97-11598D Samsung Assy Tray Drawer Backorder SMG DA97-11598D $153.93

10-1

TRAY DRAWER-BOX SMG DA63-05362B Contact Us For Availability

11

DA97-11824B Samsung Refrigerator Evaporator C In Stock SMG DA97-11824B $175.55

11-1

DA63-04444A Samsung Refrigerator Evaporator C Backorder SMG DA63-04444A $110.97

11-2

Insulation Evaporator SMG DA62-03227A Contact Us For Availability

11-3

DA61-04461A Samsung Refrigerator Insulation E Backorder SMG DA61-04461A $54.30

11-5

CASE MOTOR-FRE SMG DA61-13186A Contact Us For Availability

12

DA63-09898A Samsung Lamp Cover Backorder SMG DA63-09898A $7.45

12

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $25.82

13

DA62-04309F Samsung Refrigerator Single Dryer Backorder SMG DA62-04309F $37.26

13

DA66-00605A Samsung Refrigerator Shaft-Gear Backorder SMG DA66-00605A $44.98

14

DA67-03067A Samsung Cap Shaft Hole Backorder SMG DA67-03067A $1.69

15

DA61-14156A Samsung Case Lamp RB7300T Hips T2 Backorder SMG DA61-14156A $8.51

17-2

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

19

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

21

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

22

DA92-01364A Samsung Refrigerator Main Printed Backorder SMG DA92-01364A $282.32

31

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

33

DA97-06707D Samsung Refrigerator Water Valve Backorder SMG DA97-06707D $173.83

33-1

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

33-2

Refrigerator Water Tube Nut SMG DA97-08252B Contact Us For Availability

33-2-1

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $84.98

34

DA97-11611B Samsung Water Pipe Cover Assembly Backorder SMG DA97-11611B $12.78

34-1

DA63-06416B Samsung Filter Cover Backorder SMG DA63-06416B $7.99

35

DA39-20389A Samsung Refrigerator Earth Wire H Backorder SMG DA39-20389A $6.71

36

DA62-05564A Samsung Pipe Connect - Suction Backorder SMG DA62-05564A $55.39
