Samsung MC17J8000CS/AA-00 Parts List

1

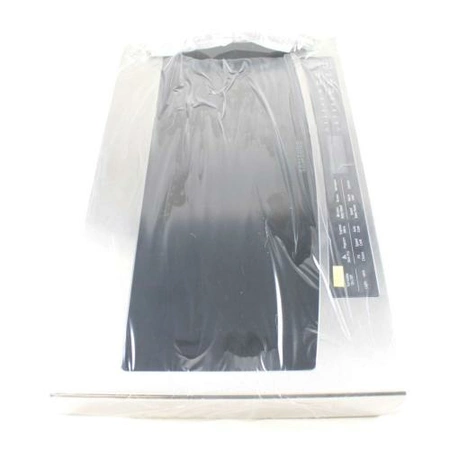

DE94-03533B Samsung Door Assembly Backorder SMG DE94-03533B $338.26

View on Model

1

Control Box SMG DE94-03531A Contact Us For Availability

View on Model

1-1

DE94-03532A Samsung MC17J8100 Control Panel A Backorder SMG DE94-03532A $180.76

View on Model

1-1

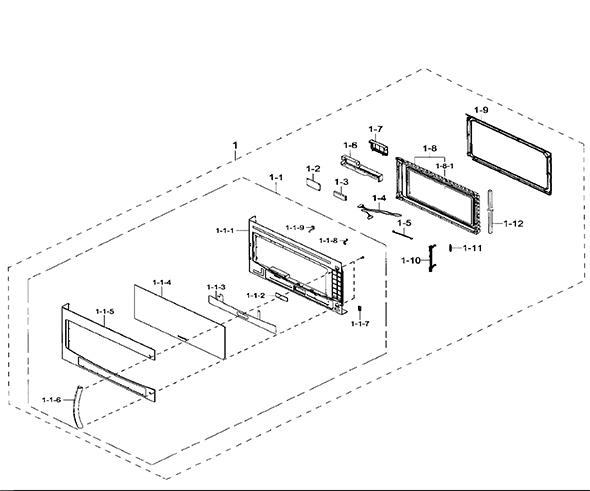

Door SMG DE94-03530B Contact Us For Availability

View on Model

1-2

DE92-03699B Samsung Assembly Module Backorder SMG DE92-03699B $123.54

View on Model

1-2

DE92-03928A Samsung Assembly Printed Circuit Backorder SMG DE92-03928A $234.32

View on Model

1-3

DE07-00132A Samsung LED Display Backorder SMG DE07-00132A $129.18

View on Model

1-3

DE39-40673A Samsung Assembly Wire Harness - E Backorder SMG DE39-40673A $17.88

View on Model

1-4

DE96-00947C Samsung Wire Harness Assembly Backorder SMG DE96-00947C $32.20

View on Model

1-5

DE96-01047A Samsung Display Wire Harness Asse Backorder SMG DE96-01047A $31.94

View on Model

1-6

Cover SMG DE63-00824A Contact Us For Availability

View on Model

1-7

Cover SMG DE63-00825A Contact Us For Availability

View on Model

1-8

DE94-00952C Samsung Assembly Door E ME179KFET Backorder SMG DE94-00952C $267.63

View on Model

1-9

DE64-02634A Samsung Door Assembly-C Backorder SMG DE64-02634A $80.16

View on Model

1-10

Door Key SMG DE64-02670A Contact Us For Availability

View on Model

1-11

Spring SMG 6107-001175 Contact Us For Availability

View on Model

1-12

DE63-90004B Samsung Cushion Sponge Backorder SMG DE63-90004B $14.53

View on Model

8

DE96-00912C Samsung Thermostat Assembly GE614 Backorder SMG DE96-00912C $15.09

View on Model

8-2

DE47-20009A Samsung Thermostat Backorder SMG DE47-20009A $16.76

View on Model

9-2

DE31-00045B Samsung Microwave Fan Motor Backorder SMG DE31-00045B $97.70

View on Model

10-4

DE31-10095B Samsung Dishwasher Turntable Driv Backorder SMG DE31-10095B $73.57

View on Model

10-6

3405-001034 Samsung Microwave Oven Range Micr In Stock SMG 3405-001034 $16.96

View on Model

11-2

DE47-20059B Samsung Microwave Oven Thermal Fu In Stock SMG DE47-20059B $19.05

View on Model

11-3

DE47-20034A Samsung Microwave Thermostat Asse In Stock SMG DE47-20034A $19.67

View on Model

12

DE96-00082E Samsung Body Latch Backorder SMG DE96-00082E $76.83

View on Model

12-1

DE66-00084B Samsung Latch Body Backorder SMG DE66-00084B $45.92

View on Model

12-2

DE66-90106B Samsung Washer Ball Bearing Lower Backorder SMG DE66-90106B $1.76

View on Model

12-4

3405-001033 Samsung Whirlpool Microwave Oven In Stock SMG 3405-001033 $17.19

View on Model

13-7

DE47-20029A Samsung Microwave Thermostat Magn Backorder SMG DE47-20029A $15.09

View on Model

14-2

DE47-20007B Samsung Microwave Oven Thermostat In Stock SMG DE47-20007B $6.41

View on Model

16-2

DE96-01064A Samsung Assembly Wire Harness - S In Stock SMG DE96-01064A $152.47

View on Model

16-3

DE61-00486A Samsung Oven Bracket Assembly Backorder SMG DE61-00486A $17.66

View on Model

16-4

Lamp Socket SMG DE47-00032C Contact Us For Availability

View on Model

16-5

Upper Duct SMG DE97-00422A Contact Us For Availability

View on Model

17

DG63-00303A Samsung Thermal Actuator Cover Backorder SMG DG63-00303A $6.56

View on Model

18

Cushion SMG DE98-01486B Contact Us For Availability

View on Model

18-1

Cushion SMG DE69-00420B Contact Us For Availability

View on Model

18-2

Microwave Convection Cooking Tray SMG DE63-00234A Contact Us For Availability

View on Model

18-3

DE97-00368D Samsung Assembly Roller Guide ME1 Backorder SMG DE97-00368D $44.21

View on Model

18-4

DE97-00456C Samsung Low Wire Rack Assembly Backorder SMG DE97-00456C $56.68

View on Model

18-5

DE97-00456A Samsung Assembly High Rack Wire Backorder SMG DE97-00456A $76.42

View on Model

19

DE92-90505P Samsung Microwave Mounting Hardwa In Stock SMG DE92-90505P $31.04

View on Model

19-1

DE60-30022A Samsung Toggle Nut Backorder SMG DE60-30022A $16.50

View on Model

19-2

DE60-20022A Samsung Microwave Mounting Toggle Backorder SMG DE60-20022A $1.76

View on Model

19-3

DE60-10111A Samsung Screw LAG Backorder SMG DE60-10111A $23.43

View on Model

19-4

DE60-20066A Samsung Microwave Mounting Flat B In Stock SMG DE60-20066A $22.75

View on Model

20

DE47-00024E Samsung Grill Quartz Heater Backorder SMG DE47-00024E $58.23

View on Model

21

Heat Bracket SMG DE61-01439A Contact Us For Availability

View on Model

22

DE64-01088A Samsung Oven Lamp Glass Backorder SMG DE64-01088A $14.90

View on Model

23

High-Voltage Capacitor Bracket SMG DE61-01486A Contact Us For Availability

View on Model

24

2501-001035 Samsung Microwave High Voltage Ca Backorder SMG 2501-001035 $71.79

View on Model

25

Cover SMG DE63-00207B Contact Us For Availability

View on Model

26

DE59-50002A Samsung Microwave Motor Capacitor Backorder SMG DE59-50002A $29.07

View on Model

27

DE94-02950A Samsung Assembly Rear Bracket Backorder SMG DE94-02950A $87.98

View on Model

28

Microwave Magnetron SMG OM75P10ESGN Contact Us For Availability

View on Model

29

DE63-00175B Samsung Stirrer Cover Backorder SMG DE63-00175B $52.22

View on Model

30

DE67-00272A Samsung Coupler Backorder SMG DE67-00272A $3.58

View on Model

31

DE94-02951A Samsung Heater Protector Cover As Backorder SMG DE94-02951A $77.81

View on Model

32

Microwave Fan Belt SMG DE69-00361A Contact Us For Availability

View on Model

33

Duct Bracket SMG DE61-00493A Contact Us For Availability

View on Model

34

4713-001165 Samsung Halogen Light Bulb 20W 12 In Stock SMG 4713-001165 $42.12

View on Model

35

DE96-00400C Samsung Noise Filter Backorder SMG DE96-00400C $78.45

View on Model

36

DE31-00028W Samsung AC Ventilation Motor Backorder SMG DE31-00028W $228.13

View on Model

37

DE64-01144A Samsung Panel Outside Backorder SMG DE64-01144A $209.90

View on Model

38

DE92-90508A Samsung Microwave Mounting Nut Ho In Stock SMG DE92-90508A $17.32

View on Model

39

Microwave Damper Assembly SMG DE92-90242D Contact Us For Availability

View on Model

39-1

DE71-60051B Samsung Microwave Vent Cover Damp Backorder SMG DE71-60051B $3.58

View on Model

39-2

DE72-40022A Samsung Microwave Main Vent Dampe In Stock SMG DE72-40022A $17.32

View on Model

40

DE70-00561A Samsung Microwave Mounting Plate In Stock SMG DE70-00561A $35.66

View on Model

41

DE96-00218C Samsung CBF Power Cord Backorder SMG DE96-00218C $87.22

View on Model

42

DE32-10013A Samsung Microwave Temperature Sen Backorder SMG DE32-10013A $46.75

View on Model

43

DE26-00126A Samsung Transformer In Stock SMG DE26-00126A $172.38

View on Model

44

DE31-10172C Samsung Microwave Synchronous Tur Backorder SMG DE31-10172C $69.37

View on Model

45

DE61-00502A Samsung Air Guide - Bottom Backorder SMG DE61-00502A $28.29

View on Model

46

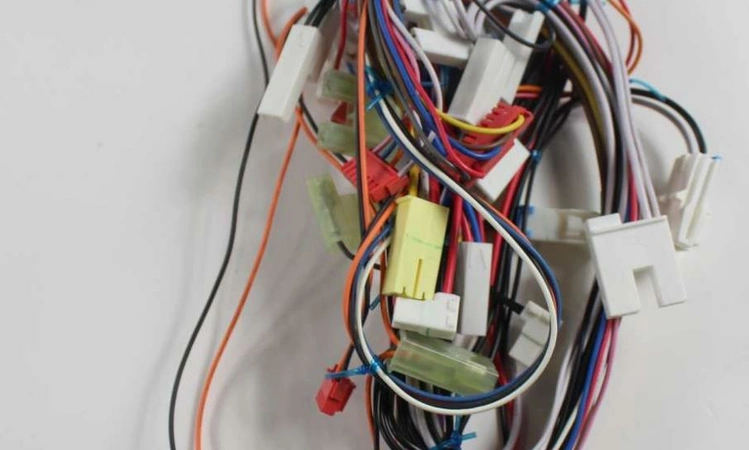

DE96-01063A Samsung Assembly MAIN Wire Harnes Backorder SMG DE96-01063A $166.50

View on Model

47

DE91-70063D Samsung Microwave High Voltage Di In Stock SMG DE91-70063D $18.44

View on Model

47-1

DE59-00002A Samsung Microwave High Voltage Di In Stock SMG DE59-00002A $17.32

View on Model

48

DE74-20016A Samsung Microwave Oven Glass Cook Backorder SMG DE74-20016A $58.95

View on Model

49

DE63-30016G Samsung Microwave Charcoal Filter Backorder SMG DE63-30016G $59.97

View on Model

50

Base SMG DE94-02365S Contact Us For Availability

View on Model

50-1

DE99-00359B Samsung Cooktop Outer Lamp Cover Backorder SMG DE99-00359B $22.92

View on Model

50-2

DE61-01302E Samsung Bottom Base Backorder SMG DE61-01302E $65.85

View on Model

50-3

DE47-00006A Samsung Microwave Lamp Socket Hol Backorder SMG DE47-00006A $17.88

View on Model

50-4

4713-001013 Samsung Microwave Incandescent La In Stock SMG 4713-001013 $18.21

View on Model

50-5

DE61-00319A Samsung Bottom Lamp Bracket Backorder SMG DE61-00319A $12.86

View on Model

50-6

6502-001056 Samsung Cable Clamp Dual NC ID 18 Backorder SMG 6502-001056 $17.04

View on Model

51

DE63-00666A Samsung Aluminum Air Grease Filte In Stock SMG DE63-00666A $22.14

View on Model

52

DE60-30016A Samsung Microwave/Range Flange Nu Backorder SMG DE60-30016A $19.18

View on Model

55

DE60-30015A Samsung Flange Nut Backorder SMG DE60-30015A $1.18

View on Model

111

Door SMG DE64-02899A Contact Us For Availability

View on Model

111

Control Panel SMG DE94-03534A Contact Us For Availability

View on Model

112

Window SMG DE64-02901A Contact Us For Availability

View on Model

112

Bracket SMG DE94-03158C Contact Us For Availability

View on Model

113

Switch SMG DE34-00395D Contact Us For Availability

View on Model

114

Screen SMG DE64-02577B Contact Us For Availability

View on Model

115

Inlay-fim SMG DE64-02556A Contact Us For Availability

View on Model

116

DE94-02933A Samsung Microwave Oven Door Handl In Stock SMG DE94-02933A $144.79

View on Model

117

Holder SMG DE61-01583A Contact Us For Availability

View on Model

118

Earth Door SMG DE63-00622A Contact Us For Availability

View on Model

119

DE63-00600A Samsung Door Earth Backorder SMG DE63-00600A $10.60

View on Model

181

DE64-00925A Samsung Screen Door Glass-A SMV91 Backorder SMG DE64-00925A $44.51

View on Model

1111

Control Panel SMG DE64-02898A Contact Us For Availability

View on Model

1112

Inlay Control SMG DE64-02557A Contact Us For Availability

View on Model

1310

Bracket SMG DE61-00718B Contact Us For Availability

View on Model

1311

DE61-00550A Samsung Air Guide Bracket Backorder SMG DE61-00550A $4.25

View on Model

1312

DE61-00690A Samsung Bracket Guide Assembly Backorder SMG DE61-00690A $12.78

View on Model

1313

DE61-00602A Samsung Heater Holder Backorder SMG DE61-00602A $35.39

View on Model

1314

Heater Control SMG DE47-00031A Contact Us For Availability

View on Model

1315

DE47-00030A Samsung Heater Assembly Backorder SMG DE47-00030A $88.85

View on Model

1316

Washer-doo SMG DE60-40019A Contact Us For Availability

View on Model

1317

DE67-00205A Samsung Fan Convection 1.5 Assemb Backorder SMG DE67-00205A $29.63

View on Model

1318

Cushion SMG DE63-00748A Contact Us For Availability

View on Model

1651

Duct-upper SMG DE67-00177A Contact Us For Availability

View on Model

1652

DE60-30063A Samsung Mounting Nut Assembly Backorder SMG DE60-30063A $7.99

View on Model

1851

DE60-00034A Samsung Rack Wire Spacer Backorder SMG DE60-00034A $13.30

View on Model

5011

Cook Cover SMG DE63-00100B Contact Us For Availability

View on Model

5012

DE67-40063A Samsung Microwave Oven Cooktop Li In Stock SMG DE67-40063A $17.83

View on Model

NI

Owner's Manual SMG DC68-04224C Contact Us For Availability

View on Model

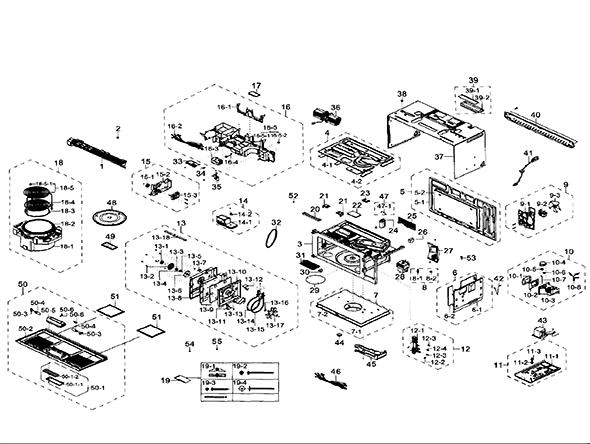

Model Samsung MC17J8000CS/AA-00 – Common Parts & Diagrams
