Model Whirlpool YMERH770WB1 ELECTRIC RANGE – Common Parts & Diagrams

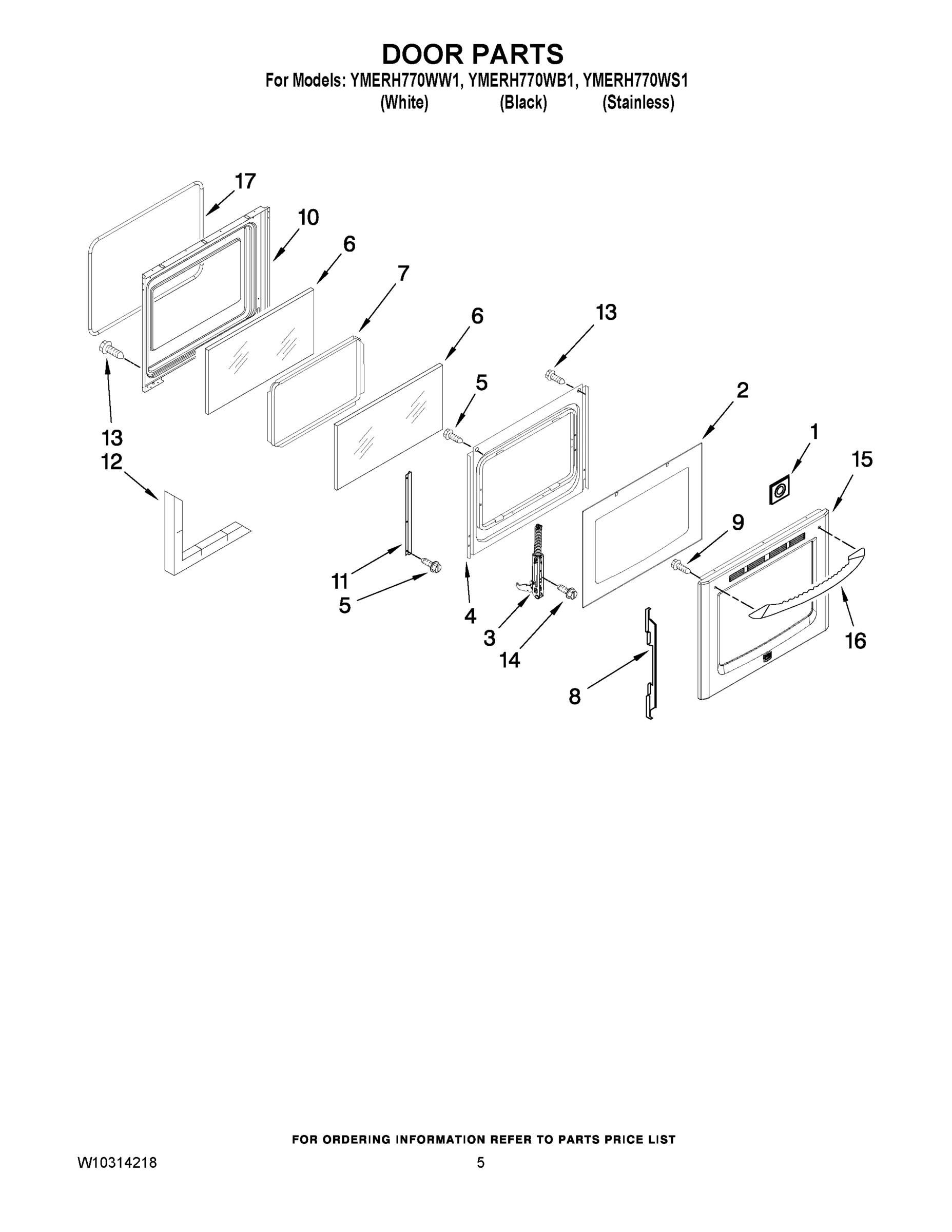

04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

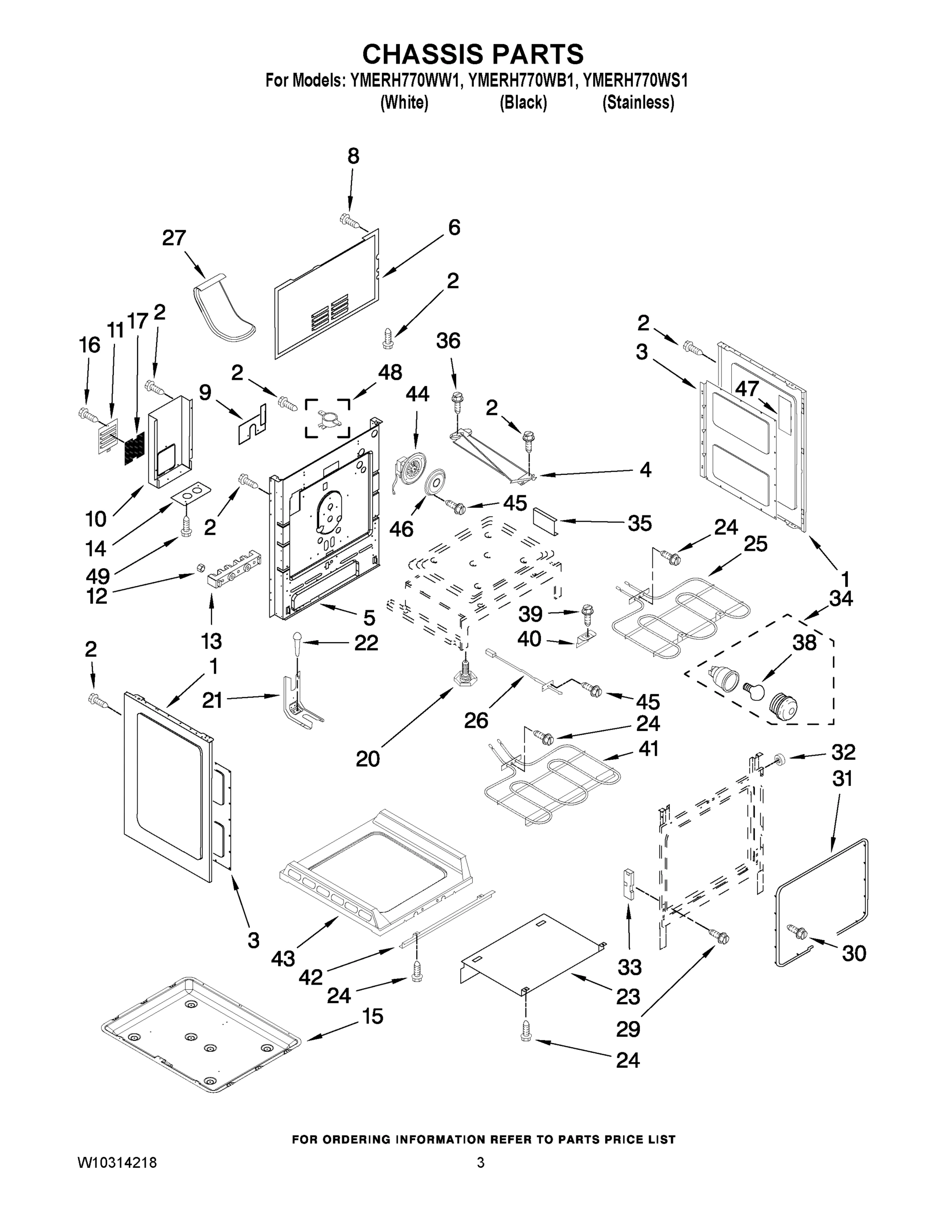

03 - CHASSIS PARTS

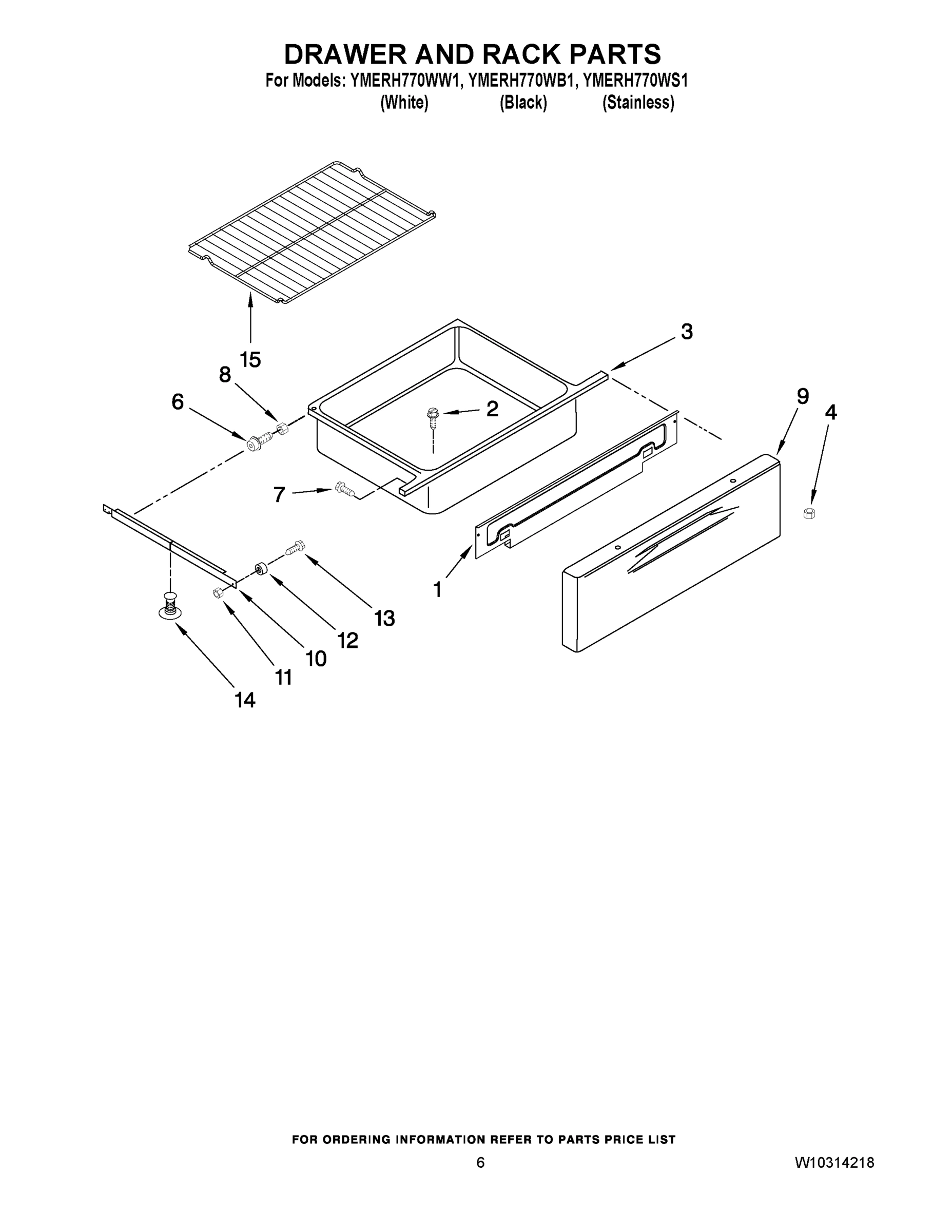

05 - DRAWER AND RACK PARTS

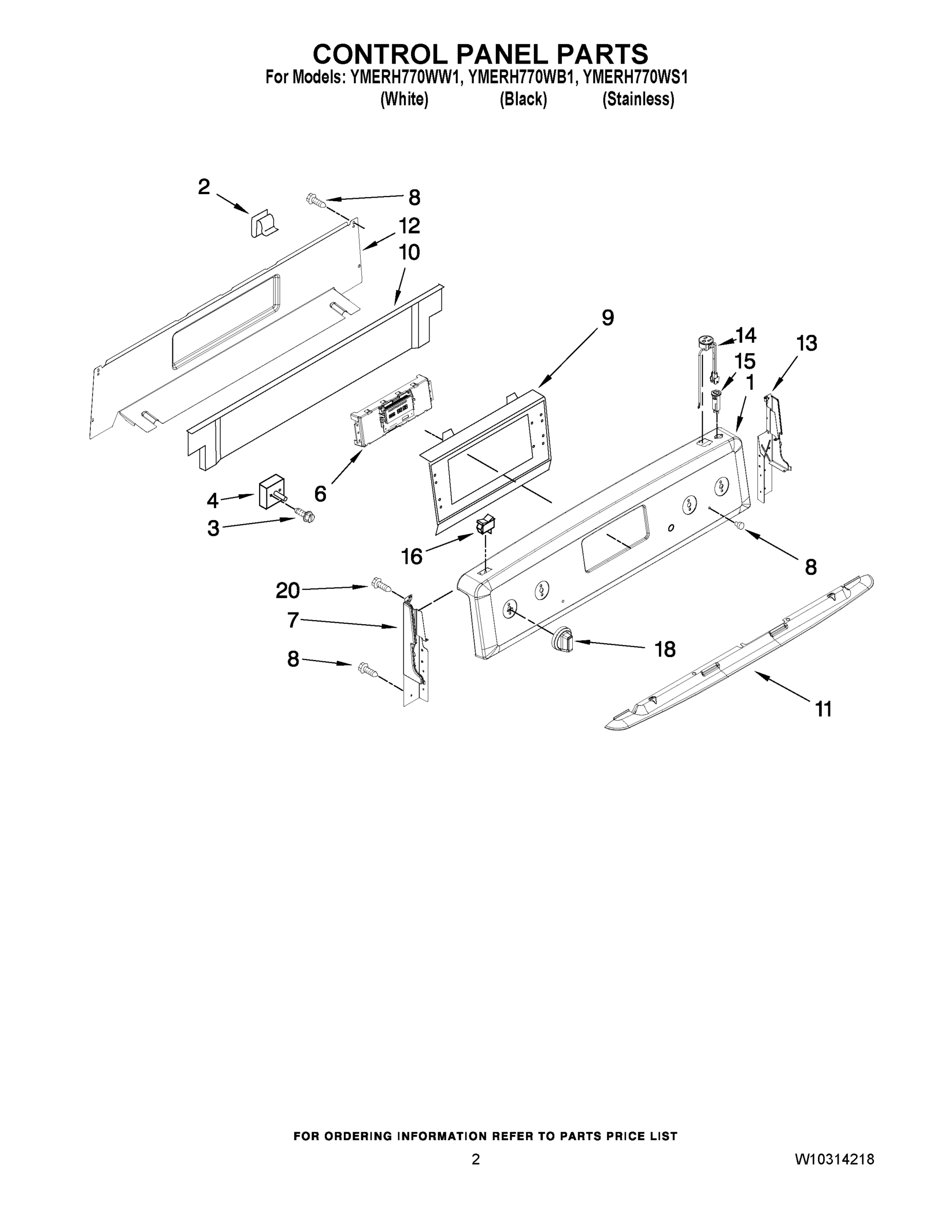

02 - CONTROL PANEL PARTS

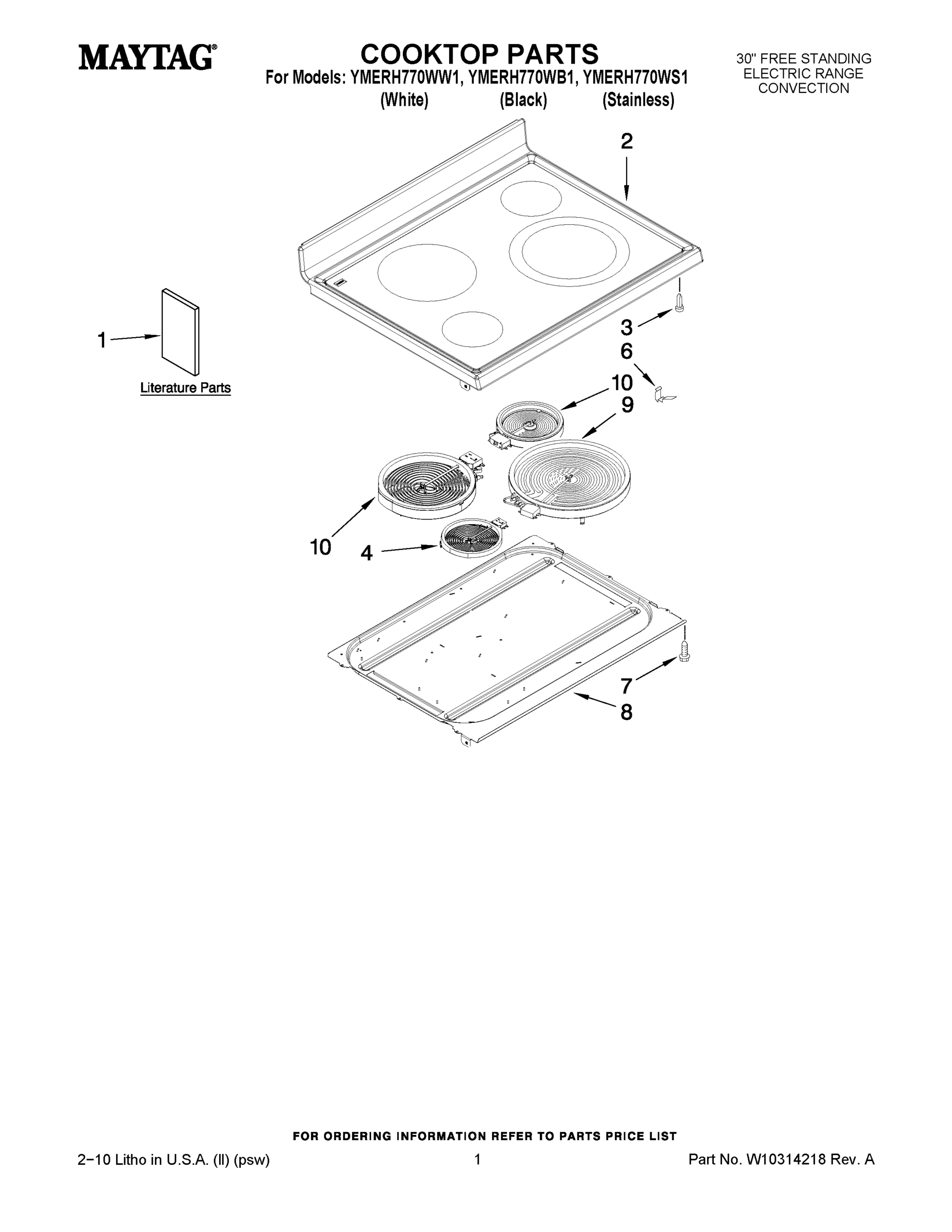

01 - COOKTOP PARTS
Common parts from model Whirlpool YMERH770WB1 ELECTRIC RANGE
1
PLATE, PANEL MTG. WPL 3605P33751 Contact Us For Availability
1
PANEL, BACKGUARD (WHITE) WPL W10225549 Contact Us For Availability
1
PANEL, BACKGUARD (BLACK) WPL W10225550 Contact Us For Availability
1
PANEL, BACKGUARD (STAINLESS STEEL) WPL W10225552 Contact Us For Availability
1
Brochure, Safe Tip (ENGLISH) WPL 9762761 Contact Us For Availability
1
Brochure, Safe Tip (FRENCH) WPL W10065852 Contact Us For Availability
1
USE & CARE GUIDE WPL W10239460 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL W10239466 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL W10239467 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10245713 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10225473 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10225474 Contact Us For Availability
3
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
3
Spacer Snap-In (4) WPL 8010P14960 Contact Us For Availability
6
CONTROL WPL W10157248 Contact Us For Availability
6
WHITE WPL W10236258 Contact Us For Availability
6
BLACK WPL W10236259 Contact Us For Availability
6
STAINLESS WPL W10236261 Contact Us For Availability
6
Spring, Element WPL 7803P08760 Contact Us For Availability
7
END CAP, LEFT (WHITE) WPL W10163967 Contact Us For Availability
7
END CAP, LEFT (BLACK) WPL W10163969 Contact Us For Availability
8
NUT WPL 7103P08260 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL W10170717 Contact Us For Availability
9
SCREW, MOUNTING WPL W10241367 Contact Us For Availability
9
PANEL, DRAWER (WHITE) WPL W10181695 Contact Us For Availability
9
PANEL, DRAWER (BLACK) WPL W10181696 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS STEEL) WPL W10181698 Contact Us For Availability
10
COVER, WIRE (LWR) WPL W10243045 Contact Us For Availability
10
Runner, Drawer WPL 3406P03451 Contact Us For Availability
10
Shield, Vent WPL 3604F38119 Contact Us For Availability
11
Panel, Access WPL 4005P70451 Contact Us For Availability
11
Nut, Lock WPL 7103P19060 Contact Us For Availability
11
SHIELD, HEAT WPL 3604F38281 Contact Us For Availability
12
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
12
COVER, REAR WIRE WPL W10243038 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
13
Shaft, Roller WPL 7118P03260 Contact Us For Availability
13
END CAP, RIGHT (WHITE) WPL W10163968 Contact Us For Availability
13
END CAP, RIGHT (BLACK) WPL W10163970 Contact Us For Availability
14
PLATE, CONDUIT WPL 3605P14651 Contact Us For Availability
14
Stop, Drawer WPL 8038P03760 Contact Us For Availability
15
PAN, BAKE WPL 3401F08445 Contact Us For Availability
16
SWITCH, ROCKER (WHITE) WPL 3149360 Contact Us For Availability
17
GASKET, DOOR WPL W10306689 Contact Us For Availability
17
SCREEN, ACCESS WPL W10260573 Contact Us For Availability
18
KNOB (4) (STAINLESS STEEL) WPL W10211374 Contact Us For Availability
20
Leg, Leveling WPL 7101P50760 Contact Us For Availability
20
Screw (2) (Black) WPL 7101P63360 Contact Us For Availability
20
Screw (2) (White) WPL 7101P66360 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
22
SCREW, ANTI TIP WPL 7101P48560 Contact Us For Availability
23
Shield, Heat WPL 3604F37151 Contact Us For Availability
25
Element, Broil WPL 7406P49360 Contact Us For Availability
27
Vent, Oven WPL 8026P08160 Contact Us For Availability
29
Screw (4) WPL 7101P28260 Contact Us For Availability
32
Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability
33
Receiver, Hinge WPL 7106P12560 Contact Us For Availability
35
Bracket, Oven WPL 3801P79851 Contact Us For Availability
36
Screw (Black) (2) WPL 7101P37560 Contact Us For Availability
39
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
40
Support, Ov BTM WPL 3801P82245 Contact Us For Availability
41
Element, Bake WPL 7406P45160 Contact Us For Availability
42
Support, Oven WPL 3807P68045 Contact Us For Availability
44
Fan Assy, Convect WPL 7427P09960 Contact Us For Availability
46
Plate, Convection WPL 3605F30519 Contact Us For Availability
47
INSULATION WPL 3804F30051 Contact Us For Availability
48
Switch, Thermal WPL 7403P85760 Contact Us For Availability
49
Screw (2) WPL 7101P33660 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
STRAP, INSULATION WPL 4820F01459 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
Insulation, Side WPL W10182346 Contact Us For Availability
NI
INSULATION, BACK WPL W10243056 Contact Us For Availability
× ![]()
