Model Maytag YMER8775AS0 ELECTRIC RANGE – Common Parts & Diagrams

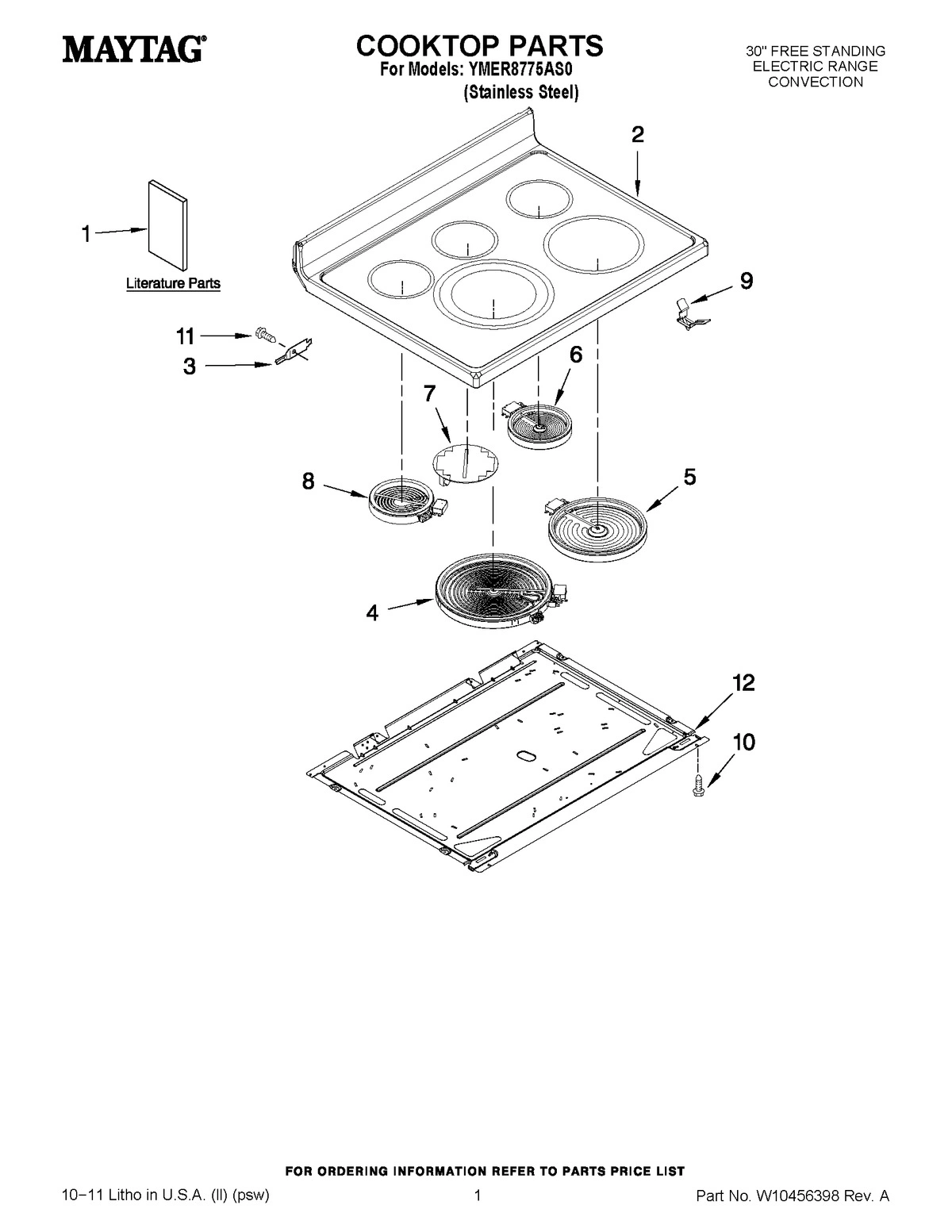

01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

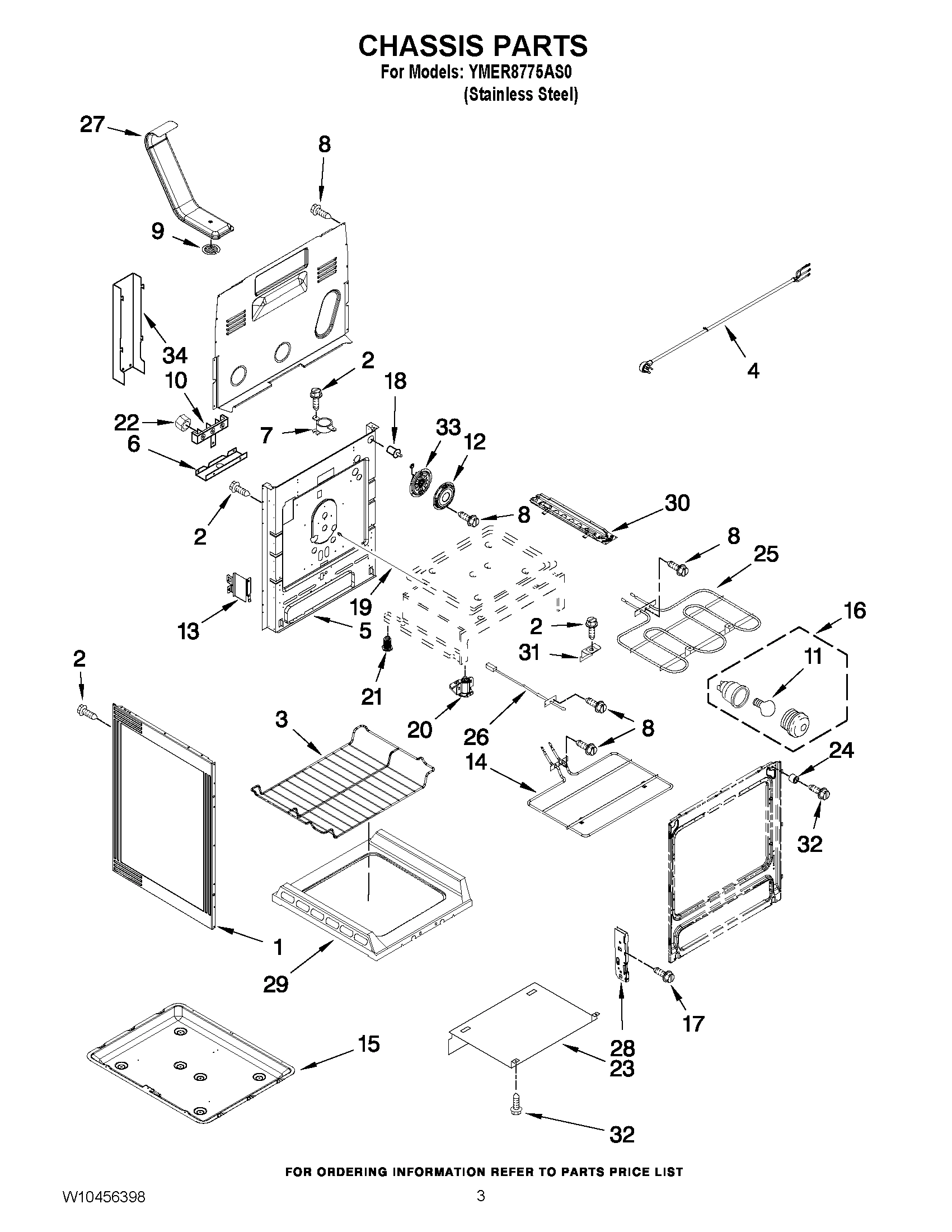

03 - CHASSIS PARTS

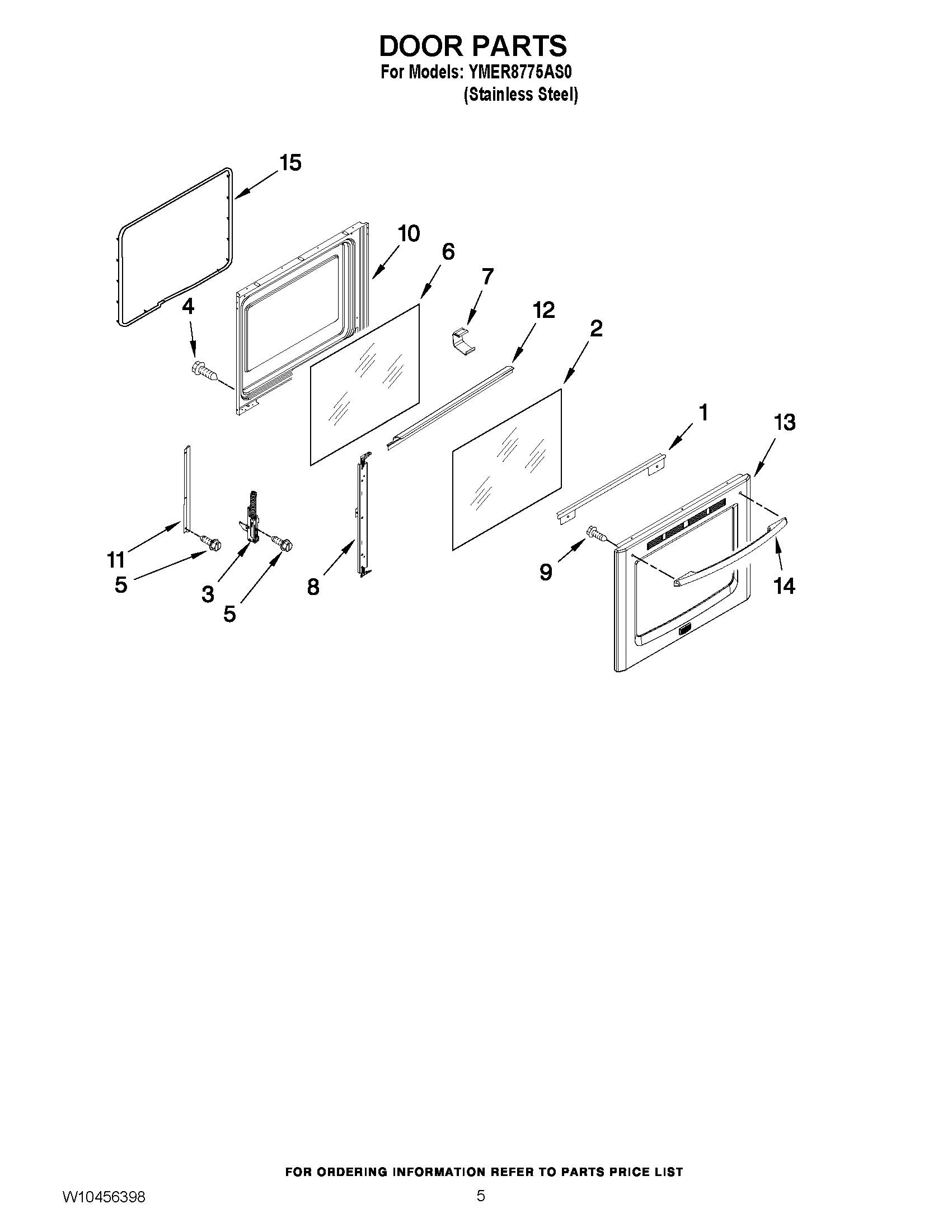

04 - DOOR PARTS

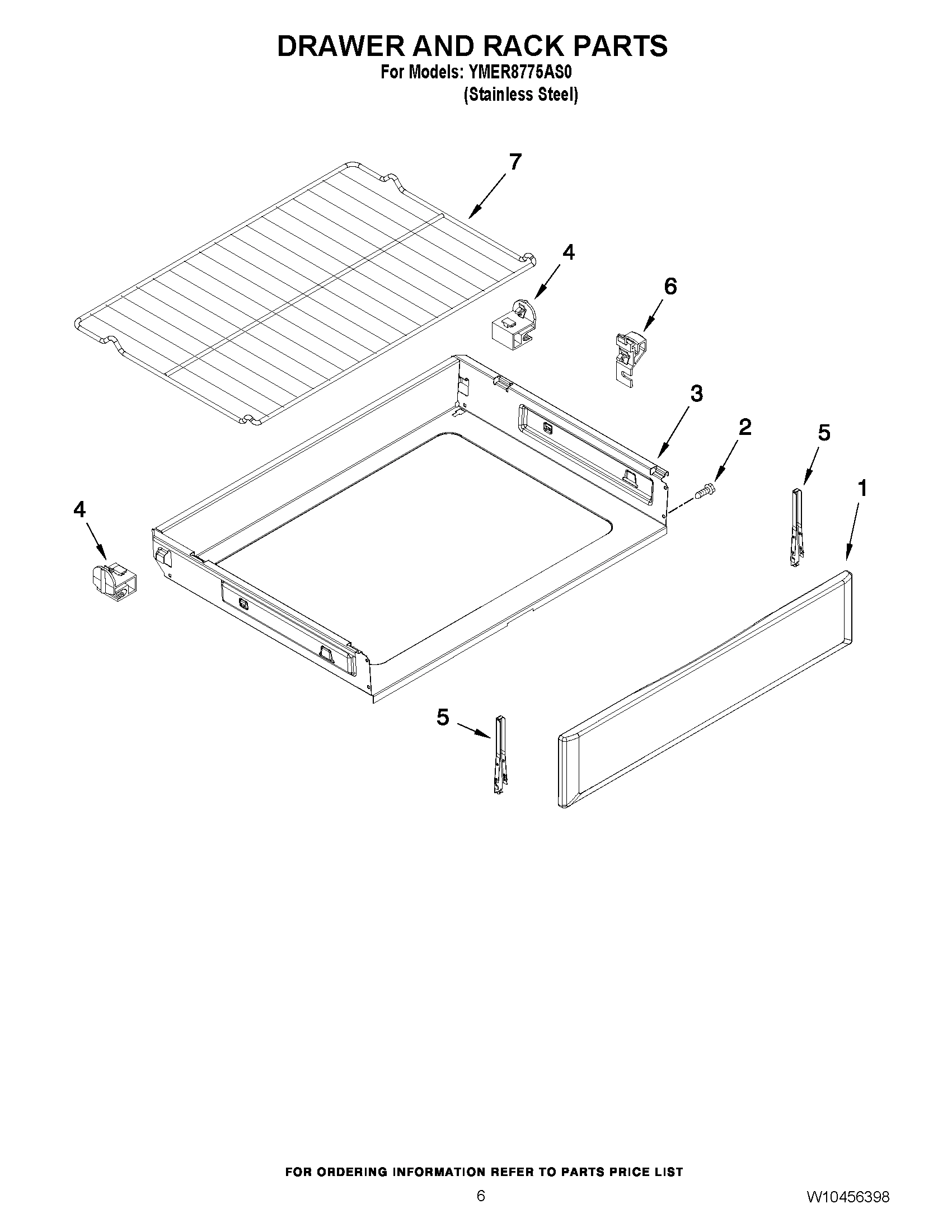

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER8775AS0 ELECTRIC RANGE
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10392922 MAY W10392922 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) MAY W10392951 Contact Us For Availability
1
MAY W10400064 MAY W10400064 Contact Us For Availability
1
MAY W10400065 MAY W10400065 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10403812 Contact Us For Availability
1
MAY W10432692 MAY W10432692 Contact Us For Availability
1
MAY W10339453 MAY W10339453 Contact Us For Availability
1
MAY W10322770 MAY W10322770 Contact Us For Availability
1
TRIM, VENT (BLACK/SS) MAY W10339814 Contact Us For Availability
1
MAY W10289104 MAY W10289104 Contact Us For Availability
2
MAY W10380671 MAY W10380671 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
2
MAY 3196172 MAY 3196172 Contact Us For Availability
2
BUTTON, KEEP WARM (STAINLESS) MAY W10315961 Contact Us For Availability
2
MAY W10316819 MAY W10316819 Contact Us For Availability
3
PIN, HINGE MAY 3195060 Contact Us For Availability
3
SCREW, SWITCH MAY 3400882 Contact Us For Availability
3
HINGE, ACTIVE DOOR MAY W10388635 Contact Us For Availability
3
MAY W10300032 MAY W10300032 Contact Us For Availability
4
ELEMENT (LF) 3000/2200/1100W MAY W10297138 Contact Us For Availability
4
SWITCH, INFINTE (LR & LR) MAY 3148951 Contact Us For Availability
4
MAY W10391743 MAY W10391743 Contact Us For Availability
4
SWITCH, INFINTE (RF) MAY W10411934 Contact Us For Availability
4
CORD, POWER MAY W10233363 Contact Us For Availability
4
MAY W10031790 MAY W10031790 Contact Us For Availability
4
GLIDE, DRAWER MAY W10317899 Contact Us For Availability
5
ELEMENT (RF), 3200W MAY W10251108 Contact Us For Availability
5
BEZEL, KEEP WARM (STAINLESS) MAY W10315960 Contact Us For Availability
5
MAIN BACK MAY W10273169 Contact Us For Availability
5
MAY W10318027 MAY W10318027 Contact Us For Availability
6
ELEMENT (RR), (1200W) MAY 8273994 Contact Us For Availability
6
MAY W10348719 MAY W10348719 Contact Us For Availability
6
MAY 3186034 MAY 3186034 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
GLIDE, FRONT MAY W10317898 Contact Us For Availability
7
ELEMENT (CR), WARM ZONE MAY W10388247 Contact Us For Availability
7
END CAP, LEFT (BLACK) MAY W10184437 Contact Us For Availability
7
MAY 3196548 MAY 3196548 Contact Us For Availability
7
CLIP, GLASS MAY W10137382 Contact Us For Availability
7
Rack, Oven MAY W10179196 Contact Us For Availability
8
ELEMENT (LR), (1300W DUAL) MAY W10342780 Contact Us For Availability
8
LENS, RED MAY 3196068 Contact Us For Availability
8
MAY W10294851 MAY W10294851 Contact Us For Availability
9
MAY W10225448 MAY W10225448 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
9
SCREW MAY W10317886 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
MAY W10246624 MAY W10246624 Contact Us For Availability
10
LINING, DOOR MAY W10297318 Contact Us For Availability
11
MAY W10134247 MAY W10134247 Contact Us For Availability
11
BULB, OVEN MAY 311255 Contact Us For Availability
11
MAY W10294852 MAY W10294852 Contact Us For Availability
12
MAY W10106409 MAY W10106409 Contact Us For Availability
12
END CAP, RIGHT (BLACK) MAY W10184438 Contact Us For Availability
12
MAY W10346154 MAY W10346154 Contact Us For Availability
12
MAY W10294853 MAY W10294853 Contact Us For Availability
13
MAY W10370186 MAY W10370186 Contact Us For Availability
13
BRACKET, SUPPORT MAY W10273002 Contact Us For Availability
13
MAY W10325668 MAY W10325668 Contact Us For Availability
14
ELEMENT, BAKE 3600W MAY W10289097 Contact Us For Availability
14
MAY W10161708 MAY W10161708 Contact Us For Availability
15
MAY W10346147 MAY W10346147 Contact Us For Availability
15
MAY W10162385 MAY W10162385 Contact Us For Availability
16
BRACKET CONSOLE MOUNTING MAY W10182322 Contact Us For Availability
16
ASSEMBLY, LIGHT MAY 3196701 Contact Us For Availability
17
MAY 3196200 MAY 3196200 Contact Us For Availability
17
MAY W10031780 MAY W10031780 Contact Us For Availability
18
BREAKER, CIRCUIT MAY 9757602 Contact Us For Availability
18
MAY 9757262 MAY 9757262 Contact Us For Availability
19
RECEPTACLE MAY W10203475 Contact Us For Availability
19
ROD, REAR DOOR MAY W10273192 Contact Us For Availability
20
Light, Indicator MAY 8523265 Contact Us For Availability
20
ASSEMBLY, FOOT MAY W10341186 Contact Us For Availability
21
FOOT, REAR MAY W10058460 Contact Us For Availability
23
SHIELD, HEAT MAY W10289099 Contact Us For Availability
24
Spacer, Door MAY 9758701 Contact Us For Availability
25
MAY W10211455 MAY W10211455 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
VENT, OVEN MAY W10134285 Contact Us For Availability
28
MAY W10289077 MAY W10289077 Contact Us For Availability
29
MAY W10289079 MAY W10289079 Contact Us For Availability
30
RAIL, BASE (LEFT HAND) MAY W10390007 Contact Us For Availability
30
RAIL, BASE (RIGHT HAND) MAY W10390008 Contact Us For Availability
31
MAY W10035900 MAY W10035900 Contact Us For Availability
33
MAY W10389555 MAY W10389555 Contact Us For Availability
34
COVER, TERMINAL MAY 9758283 Contact Us For Availability
NI
SCREW, GROUND MAY W10362924 Contact Us For Availability
NI
RECESSED OVEN RACK MAY W10289145 Contact Us For Availability
NI
ADAPTER KIT STRAP, INSULATION MAY 4820F015-59 Contact Us For Availability
NI
MAY W10194393 MAY W10194393 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10225523 Contact Us For Availability
NI
MAY W10225524 MAY W10225524 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
COOKTOP PROTECTANT MAY 31463A Contact Us For Availability
NI
COOKTOP CARE KIT MAY 31605 Contact Us For Availability
NI
CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
GOURMET GRIDDLE MAY 4396096RB Contact Us For Availability
NI
BROIL PAN & GRID, PORCELAIN MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE (2 OZ.)) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (WHITE) (UNCUT) MAY 799344 Contact Us For Availability
NI
HARNESS, SENSOR MAY W10083650 Contact Us For Availability
NI
BROILER PAN KIT (PREMIUM) MAY W10123240 Contact Us For Availability
NI
SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
MAY W10275756 MAY W10275756 Contact Us For Availability
NI
HARNESS, WIRE (CERAN) MAY W10278580 Contact Us For Availability
NI
MAY W10349654 MAY W10349654 Contact Us For Availability
NI
MAY W10349669 MAY W10349669 Contact Us For Availability
NI
MAY W10349676 MAY W10349676 Contact Us For Availability
NI
APPLIANCE CLEANER (AFFRESH) MAY W10355010 Contact Us For Availability
NI
SS CLEANER (AFFRESH) MAY W10355016 Contact Us For Availability
NI
SS CLEANING WIPES (AFFRESH) MAY W10355049 Contact Us For Availability
NI
COOKTOP CLEANER (AFFRESH) MAY W10355051 Contact Us For Availability
NI
OVEN CLEANER (AQUALIFT TECH) MAY W10423113RP Contact Us For Availability
NI
ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
COOKTOP SCRAPER MAY WA906B Contact Us For Availability
× ![]()
