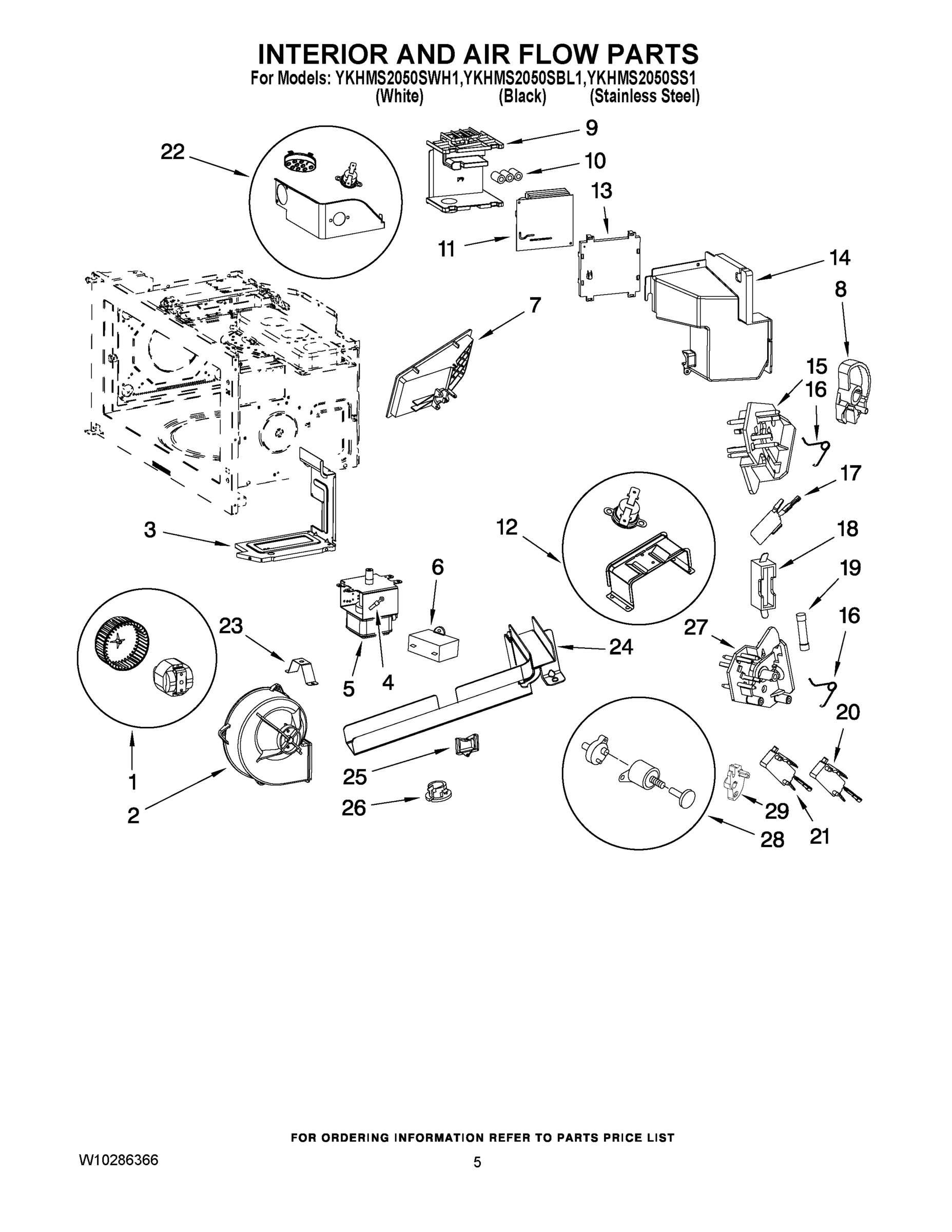

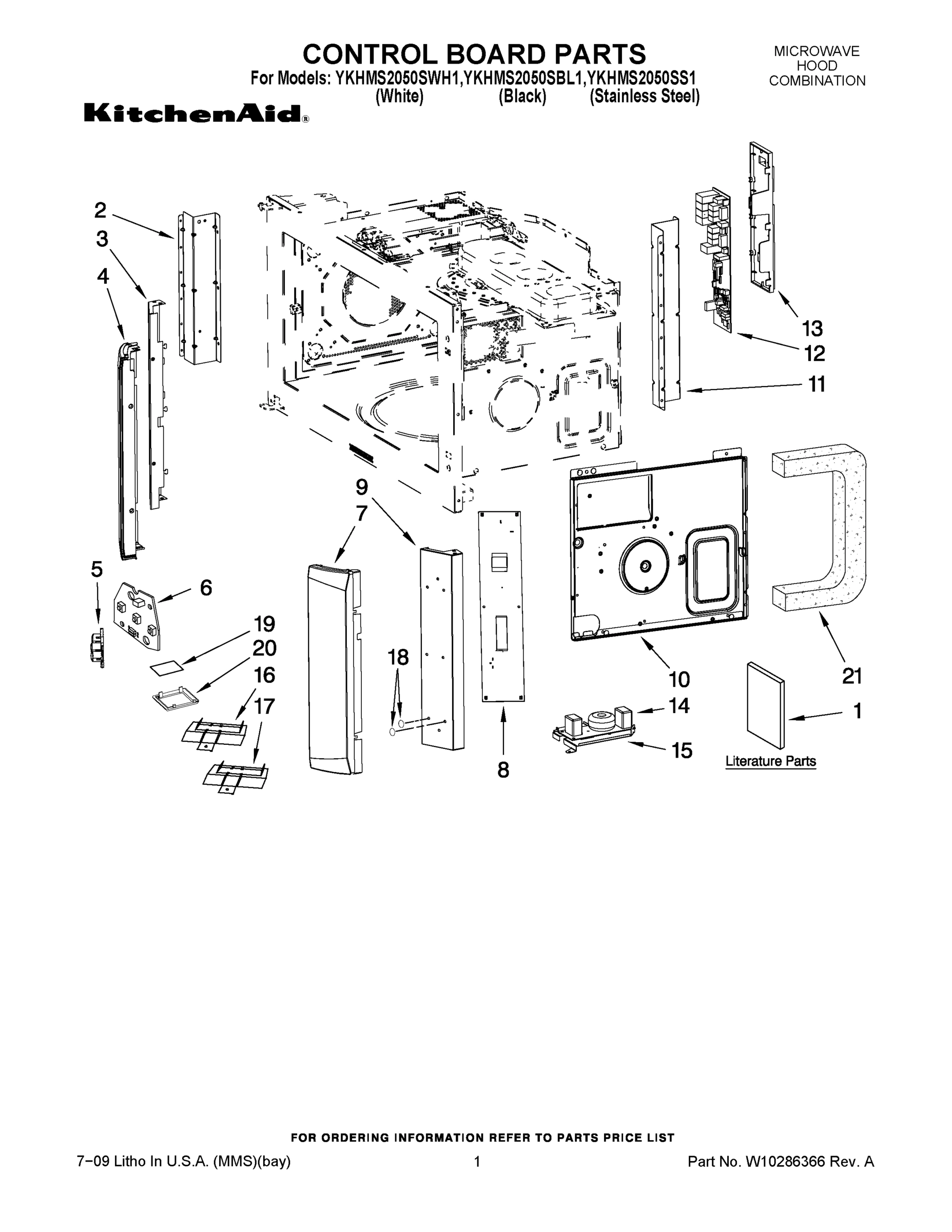

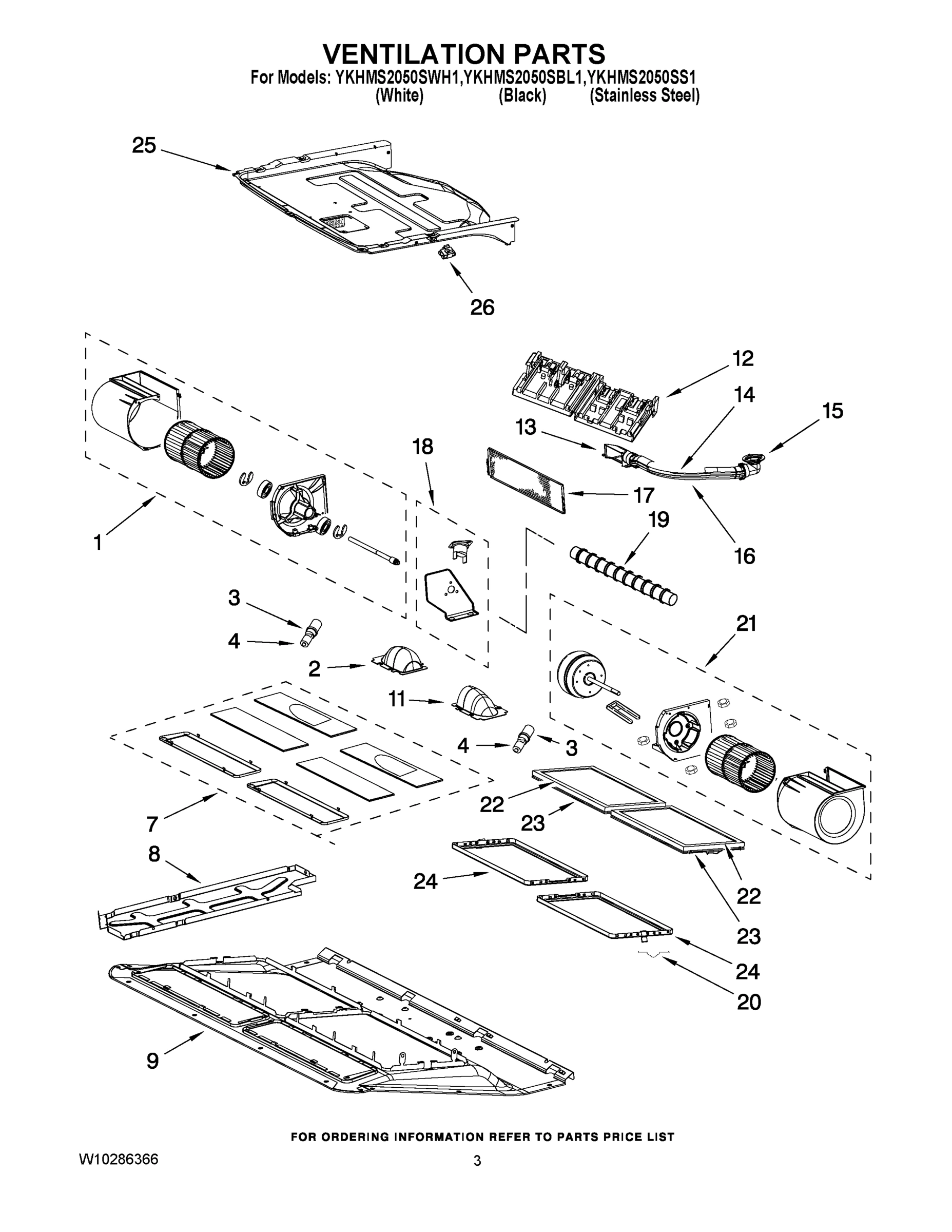

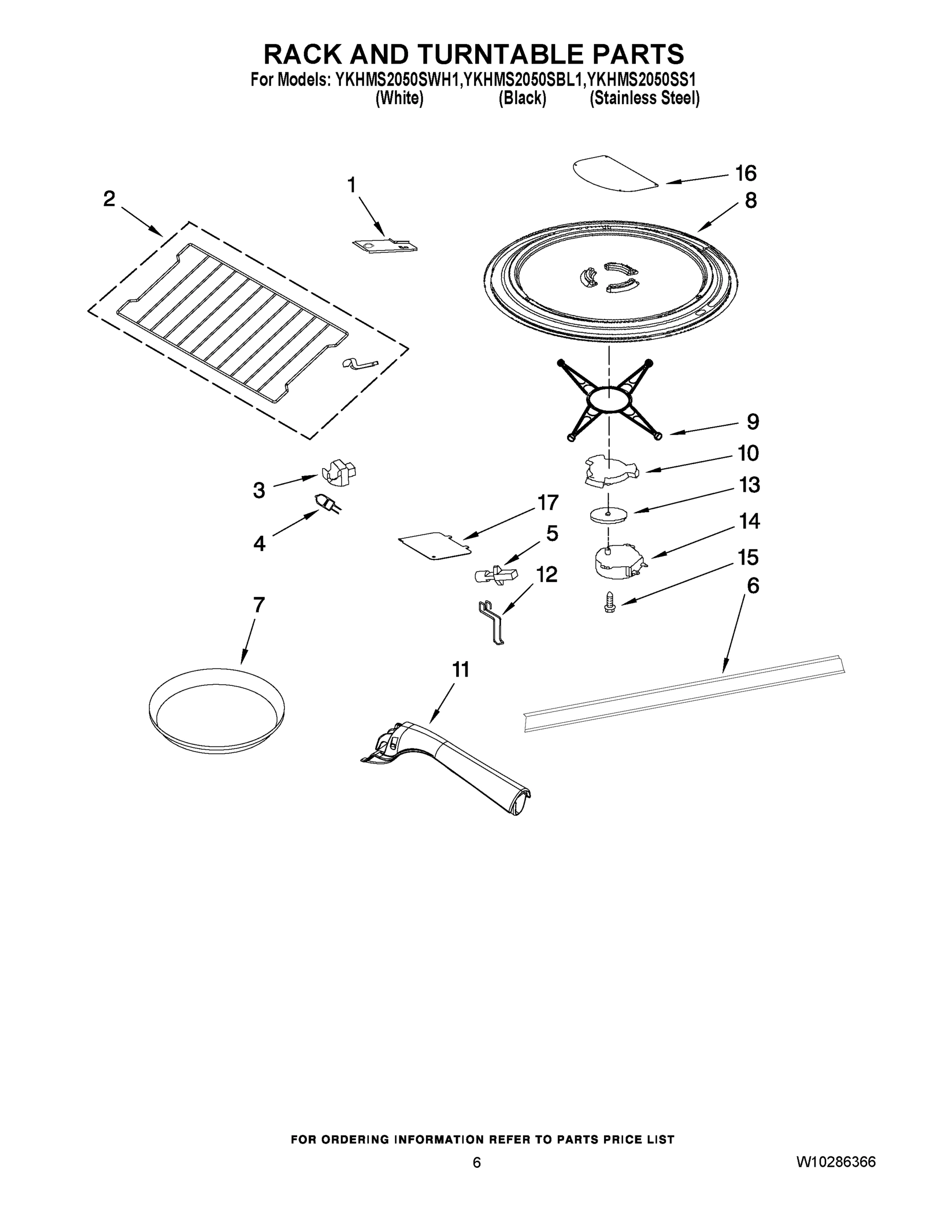

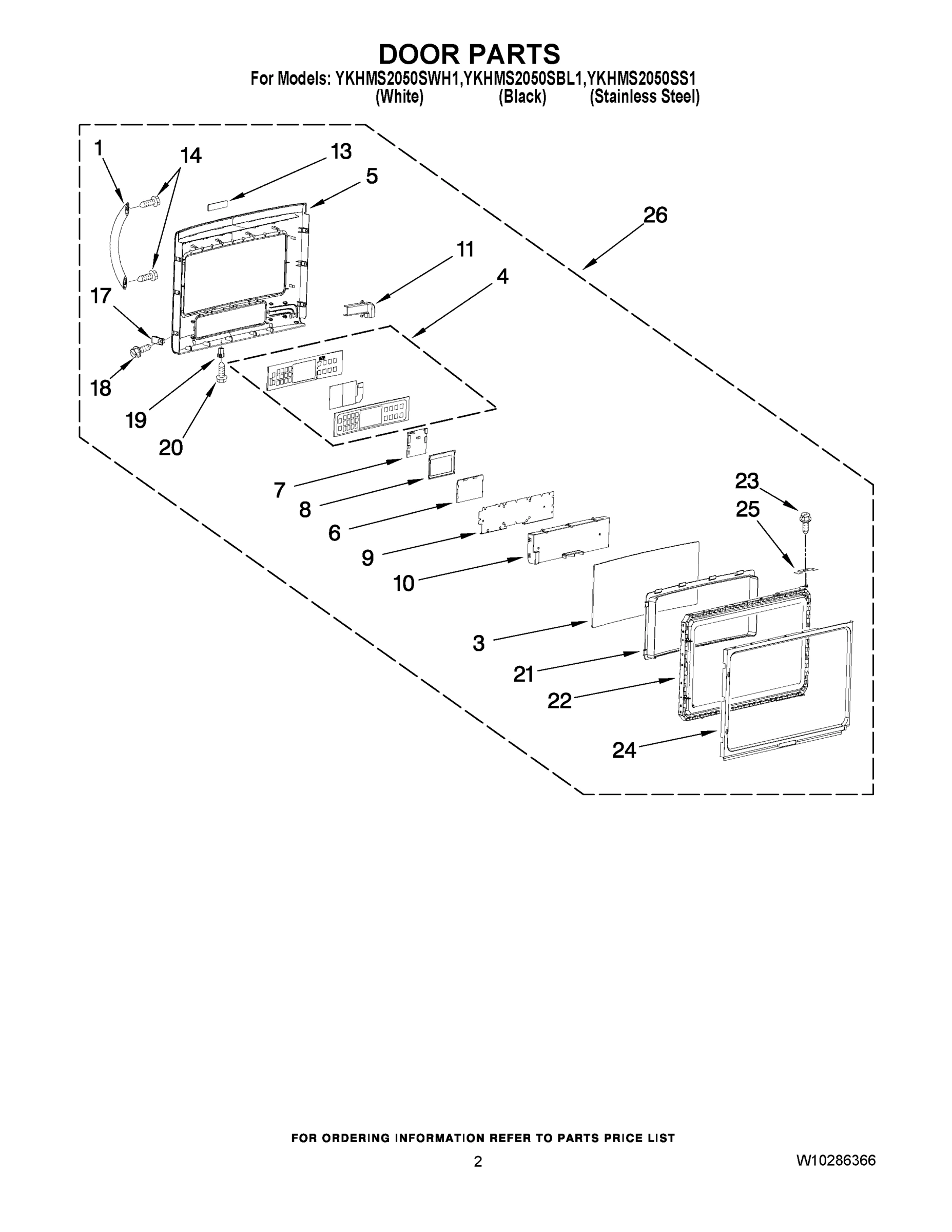

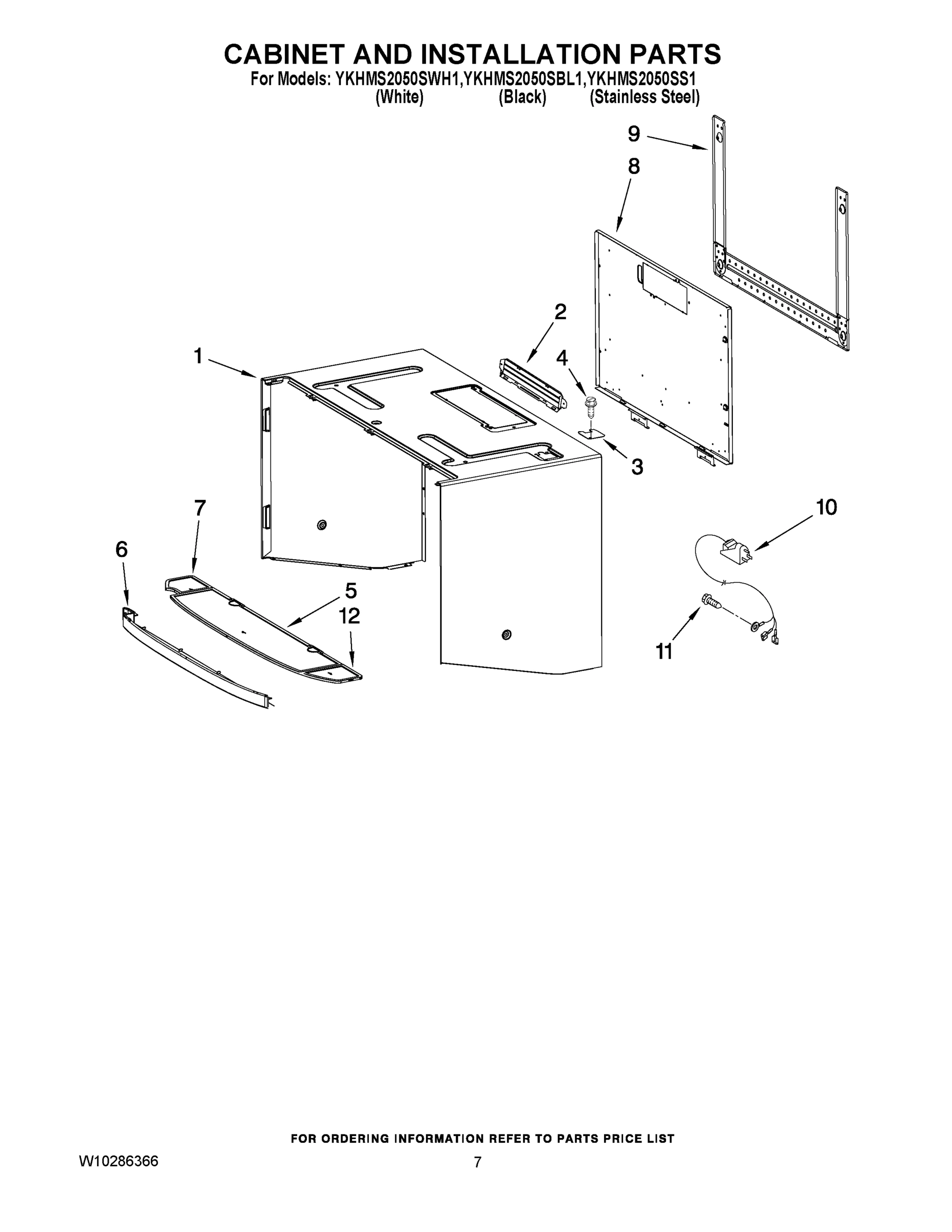

Model Whirlpool YKHMS2050SWH1 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

Handle (Stainless Steel) WPL 8206504 Contact Us For Availability

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (White) WPL 8206501 Contact Us For Availability

1

Handle (Biscuit) WPL 8206503 Contact Us For Availability

1

Fan Motor Assy WPL W10174526 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $64.58

2

Housing, Fan WPL 8206076 Contact Us For Availability

3

WP8206528 Whirlpool Microwave Door Glass Backorder WPL WP8206528 $131.63

3

Plate, Divider WPL 8206077 Contact Us For Availability

4

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $11.86

4

W10115577 Whirlpool Microwave Sensor Backorder WPL W10115577 $104.63

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $9.49

4

Control Panel WPL 8206635 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron In Stock WPL 8206079 $238.00

5

Button (Stainless Steel) WPL 8206485 Contact Us For Availability

5

Outer Door Frame (White) WPL 8206518 Contact Us For Availability

5

Button (Biscuit) WPL 8206484 Contact Us For Availability

5

Holder, Lamp WPL W10113781 Contact Us For Availability

5

Outer Door Frame (Black) WPL 8206519 Contact Us For Availability

5

Outer Door Frame (Biscuit) WPL 8206520 Contact Us For Availability

5

Outer Door Frame (Stainless Steel) WPL 8206521 Contact Us For Availability

6

Motor, Capacitor WPL 8206080 Contact Us For Availability

6

Deflector, Air WPL 8205980 Contact Us For Availability

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

LCD Frame WPL W10116269 Contact Us For Availability

6

Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability

7

W10748097 Whirlpool Microwave Crisp Pan In Stock WPL W10748097 $48.93

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

7

Board, User (Interface) WPL W10174527 Contact Us For Availability

7

Housing, Valve WPL W10244757 Contact Us For Availability

8

8205992 Whirlpool Microwave Cook Tray Backorder WPL 8205992 $72.54

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

LCD Module WPL W10143962 Contact Us For Availability

9

Ring, Turntable WPL 8206222 Contact Us For Availability

9

Plate, Bottom WPL W10222517 Contact Us For Availability

9

Cntrl Panel Plate WPL 8206511 Contact Us For Availability

9

COVER, INVERTER WPL W10282795 Contact Us For Availability

10

8205994 Whirlpool Microwave Support In Stock WPL 8205994 $21.63

10

Cntrl Panel Cover WPL 8206512 Contact Us For Availability

10

Ferrite Ring WPL 8206086 Contact Us For Availability

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $6.22

W10217711 Whirlpool Microwave Inverter Backorder WPL W10217711 $243.30

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $17.57

Cable Cover, Door WPL 8206527 Contact Us For Availability

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $67.57

WP8206493 Whirlpool Microwave Electronic Cont In Stock WPL WP8206493 $185.05

Vent Screen (Right) WPL 8206206 Contact Us For Availability

Clip, Cavity Lamp WPL 8206034 Contact Us For Availability

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $5.76

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $54.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $58.45

Logo (Biscuit) WPL 8206516 Contact Us For Availability

Logo (Stainless Steel) WPL 8206517 Contact Us For Availability

HOLDER, INVERTER WPL W10282808 Contact Us For Availability

14

W10815455 Whirlpool Screw Backorder WPL W10815455 $4.77

14

Motor, Turntable WPL W10143959 Contact Us For Availability

14

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

15

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $14.93

15

W10143956 Whirlpool Microwave Interlock Backorder WPL W10143956 $5.76

15

Holder, Filter WPL 8206060 Contact Us For Availability

16

PLATE, MICA WPL W10282660 Contact Us For Availability

16

Spring, Interlock WPL 8206091 Contact Us For Availability

16

Resistor (50W) WPL W10113782 Contact Us For Availability

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $4.77

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $70.77

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $48.27

Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability

Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability

Lid, Lamp WPL 8206476 Contact Us For Availability

Spacer, Side (6) (Biscuit) WPL 8206524 Contact Us For Availability

18

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

18

Holder, Fuse WPL W10117908 Contact Us For Availability

19

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.48

19

Connector Shaft WPL 8206263 Contact Us For Availability

19

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

8206179 Whirlpool Microwave Screw Backorder WPL 8206179 $7.18

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $19.42

SPRING WPL 8206499 Contact Us For Availability

Frame, Glass WPL 8169646 Contact Us For Availability

21

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $28.87

21

VALENCE, DOOR WPL W10282799 No Longer Available

21

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

22

Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available

22

Door Plate Assy WPL W10112215 Contact Us For Availability

23

W10565483 Whirlpool Microwave Screw Backorder WPL W10565483 $14.93

23

Support, Air Guide WPL 8206031 Contact Us For Availability

24

Spring, Hook WPL W10113792 Contact Us For Availability

24

Dr Innr Frm Assy WPL W10143964 Contact Us For Availability

24

Protector, Wire WPL 8206477 Contact Us For Availability

25

CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability

25

Clip, Saddle WPL 8206037 Contact Us For Availability

8206038 Whirlpool Clip Assembly Backorder WPL 8206038 $11.04

DOOR, COMPLETE (STAINLESS) WPL W10282802 Contact Us For Availability

DOOR, COMPLETE (WHITE) WPL W10282800 Contact Us For Availability

DOOR, COMPLETE (BLACK) WPL W10282801 Contact Us For Availability

DOOR, COMPLETE (BISCUIT) WPL W10286018 Contact Us For Availability

27

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $5.76

28

Piston Assembly WPL 8206210 Contact Us For Availability

29

CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
