Model Maytag XRBR206BW REFRIGERATOR – Common Parts & Diagrams

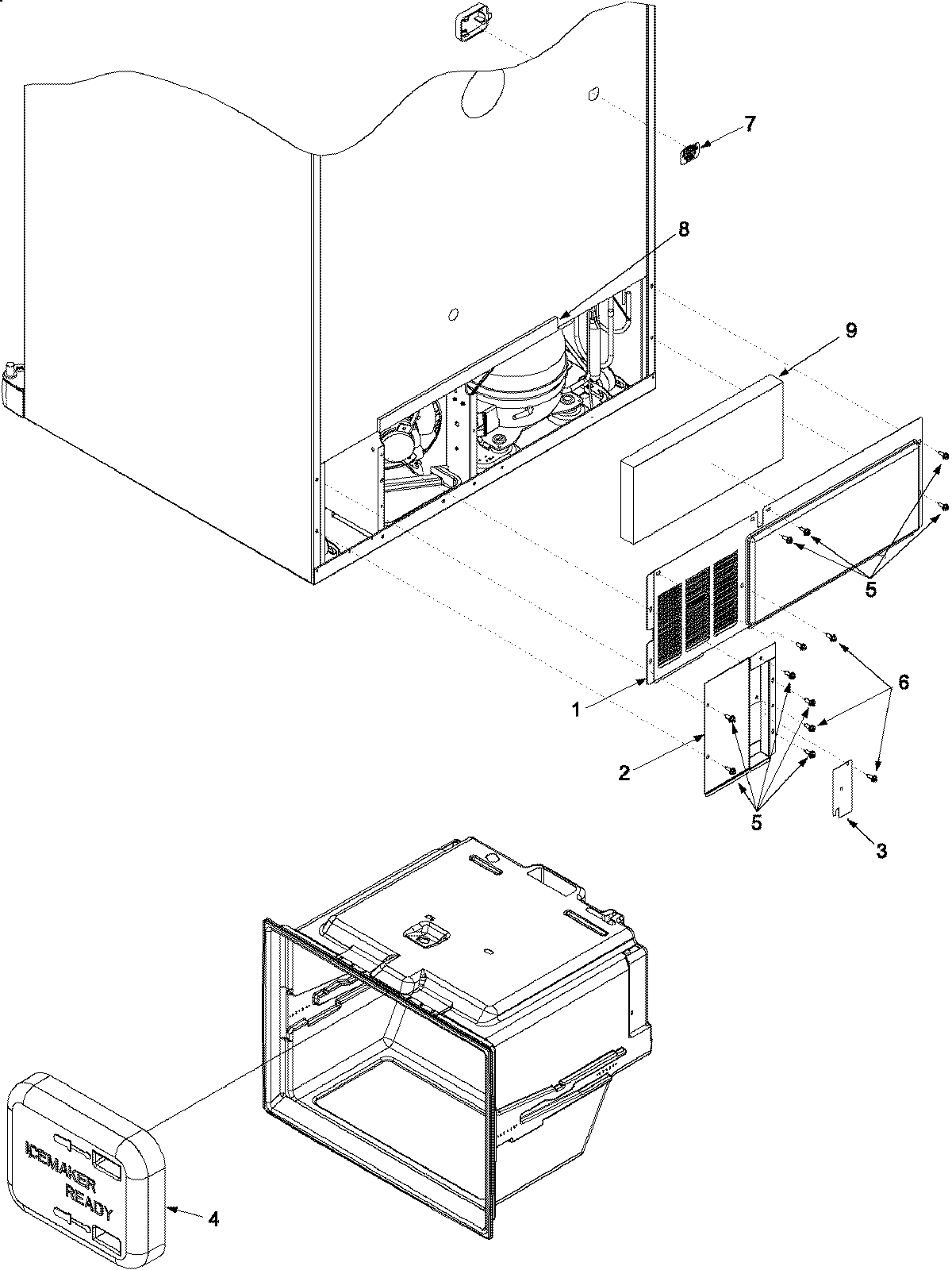

01 - CABINET BACK

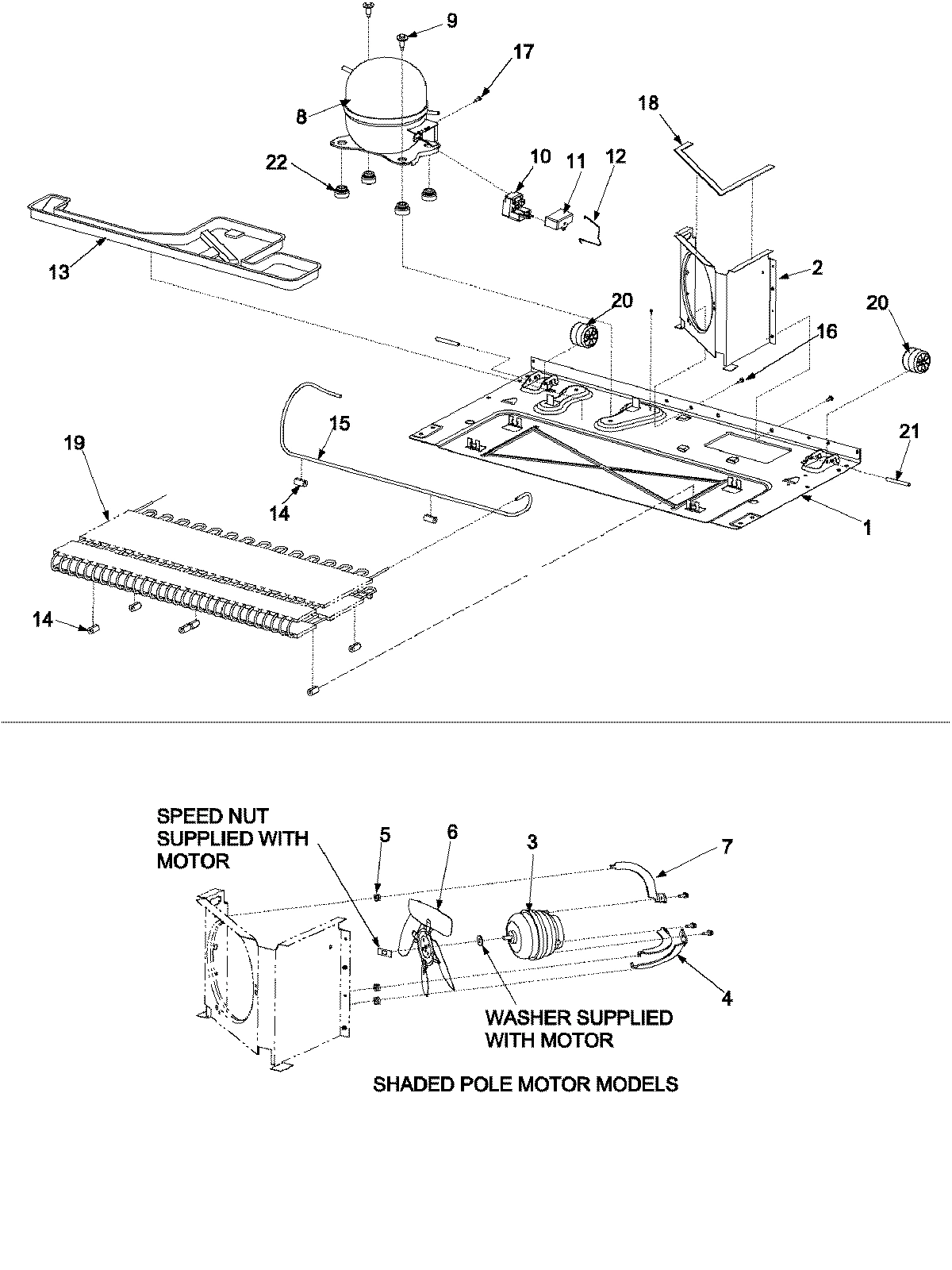

02 - COMPRESSOR

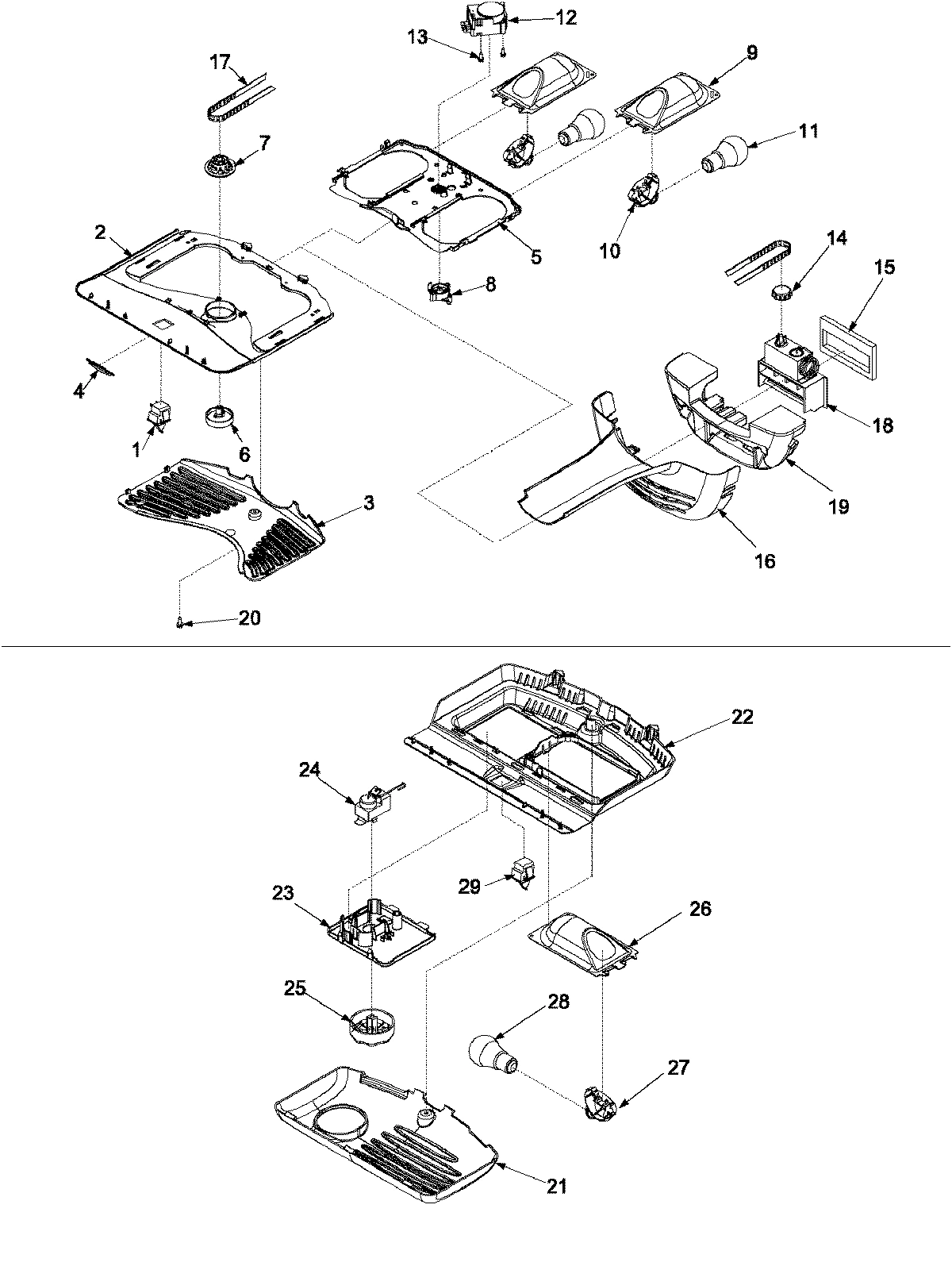

03 - CONTROLS

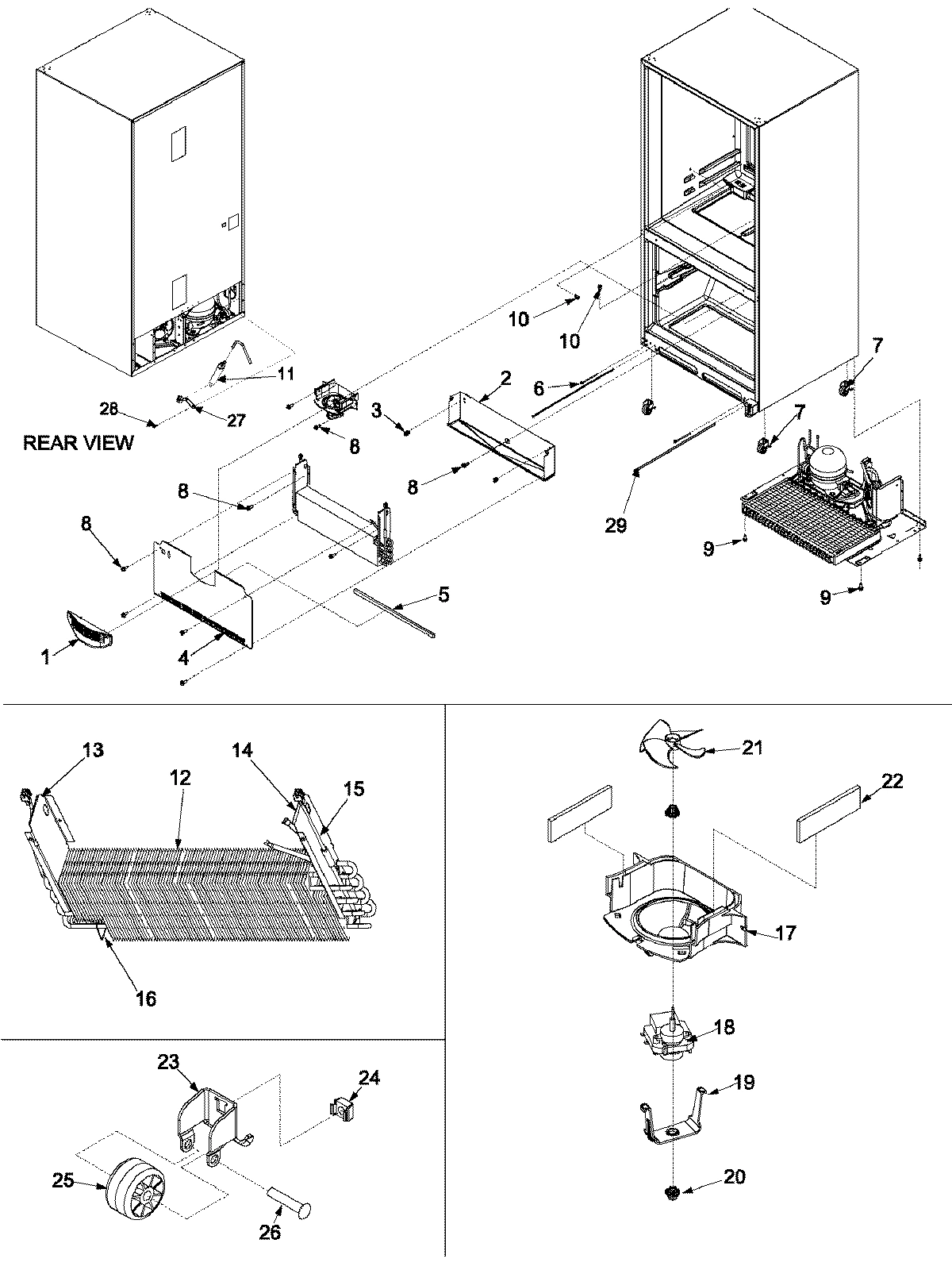

04 - EVAPORATOR AREA & ROLLERS

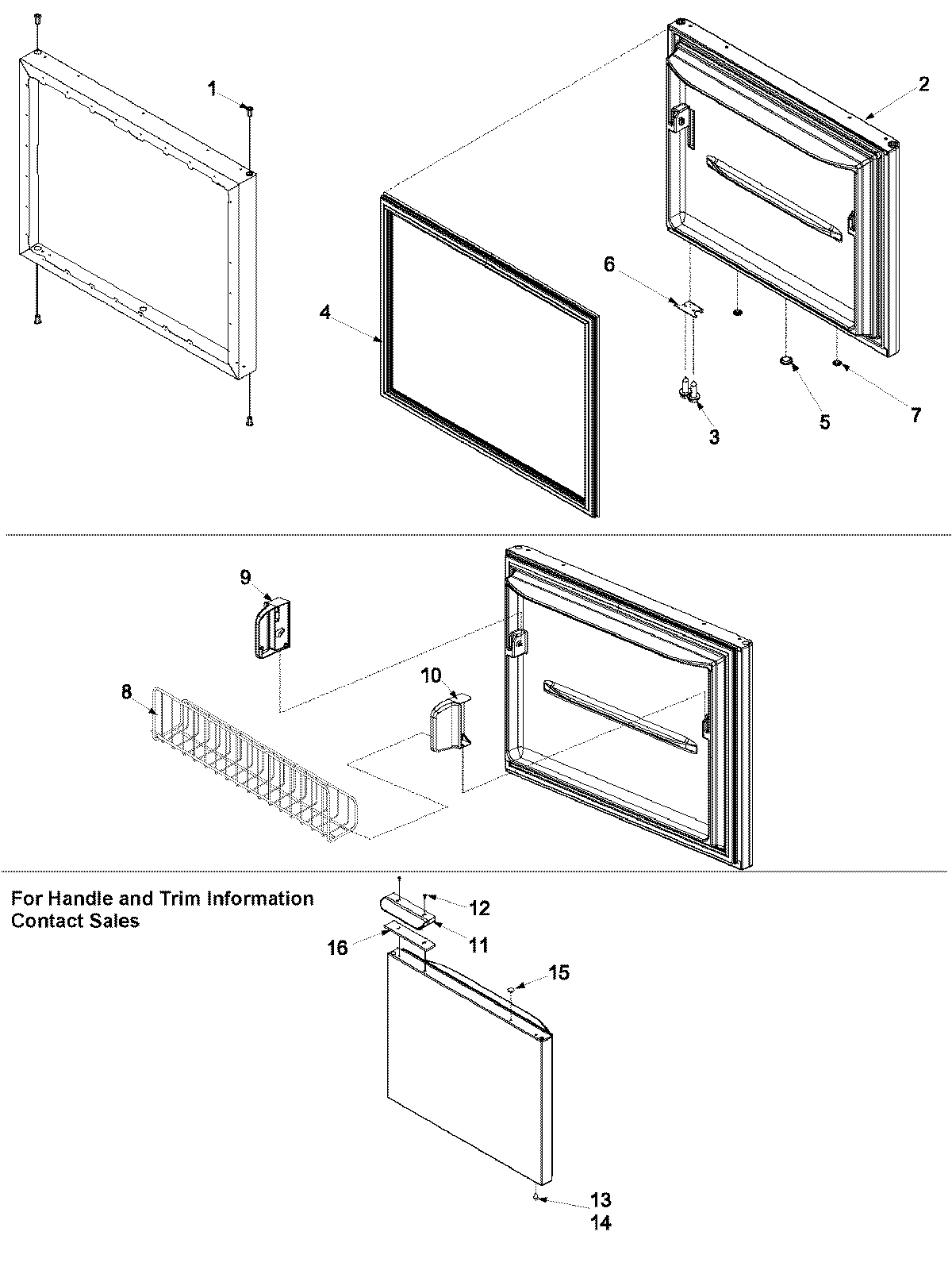

05 - FREEZER DOOR

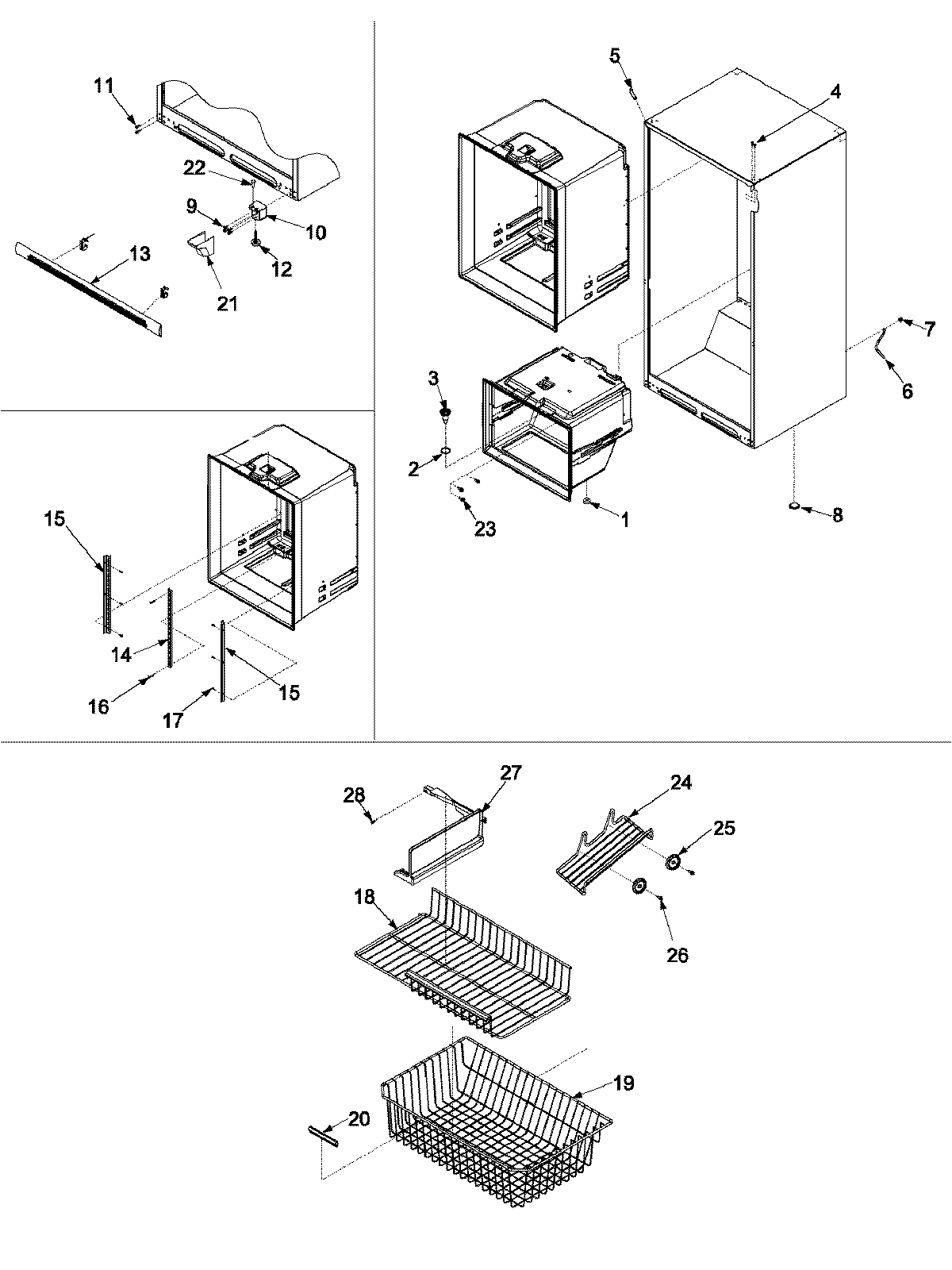

06 - INTERIOR CABINET & FREEZER SHELVING

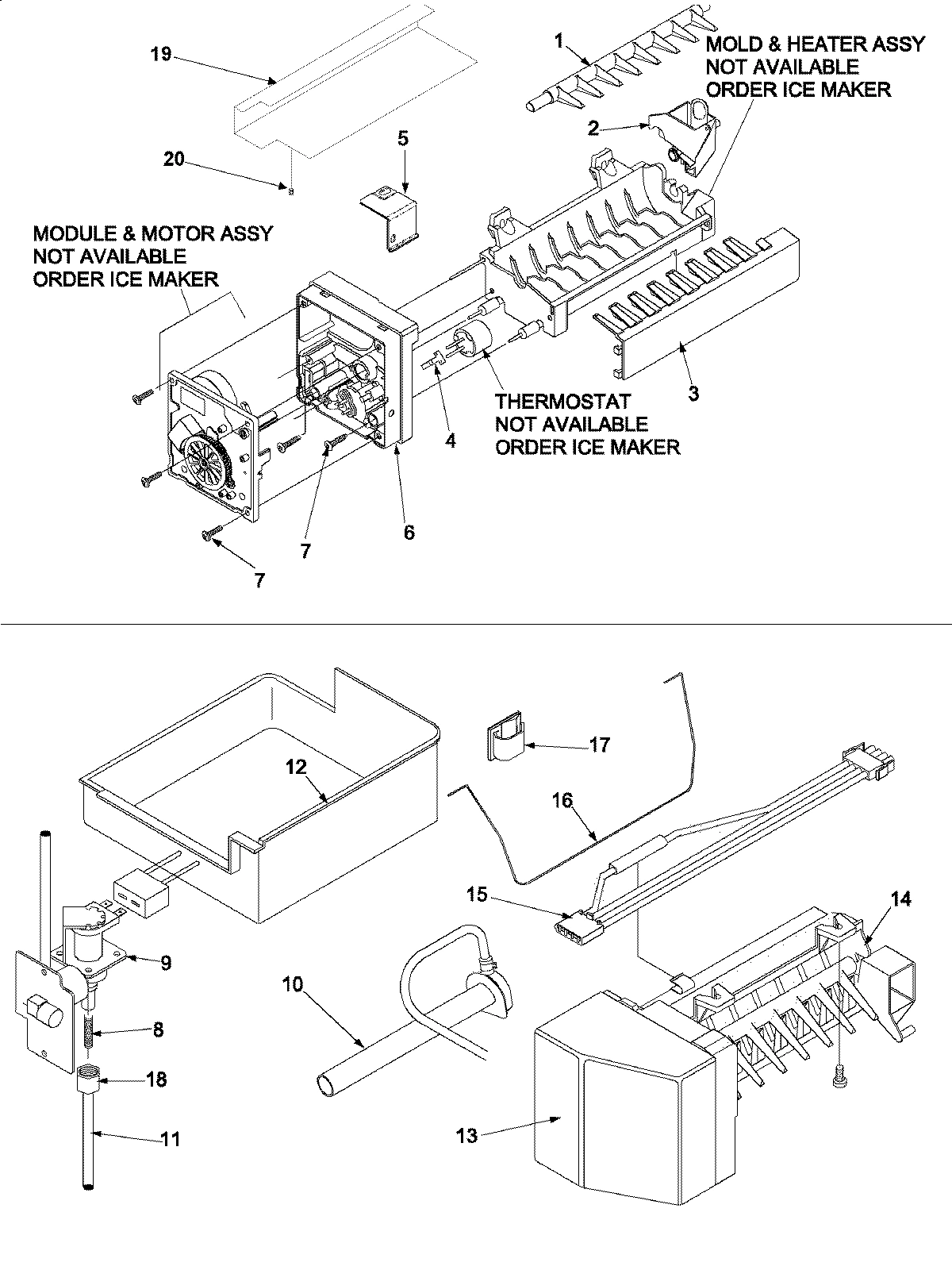

07 - OPTIONAL ICE MAKER KIT IC11B P1328003W

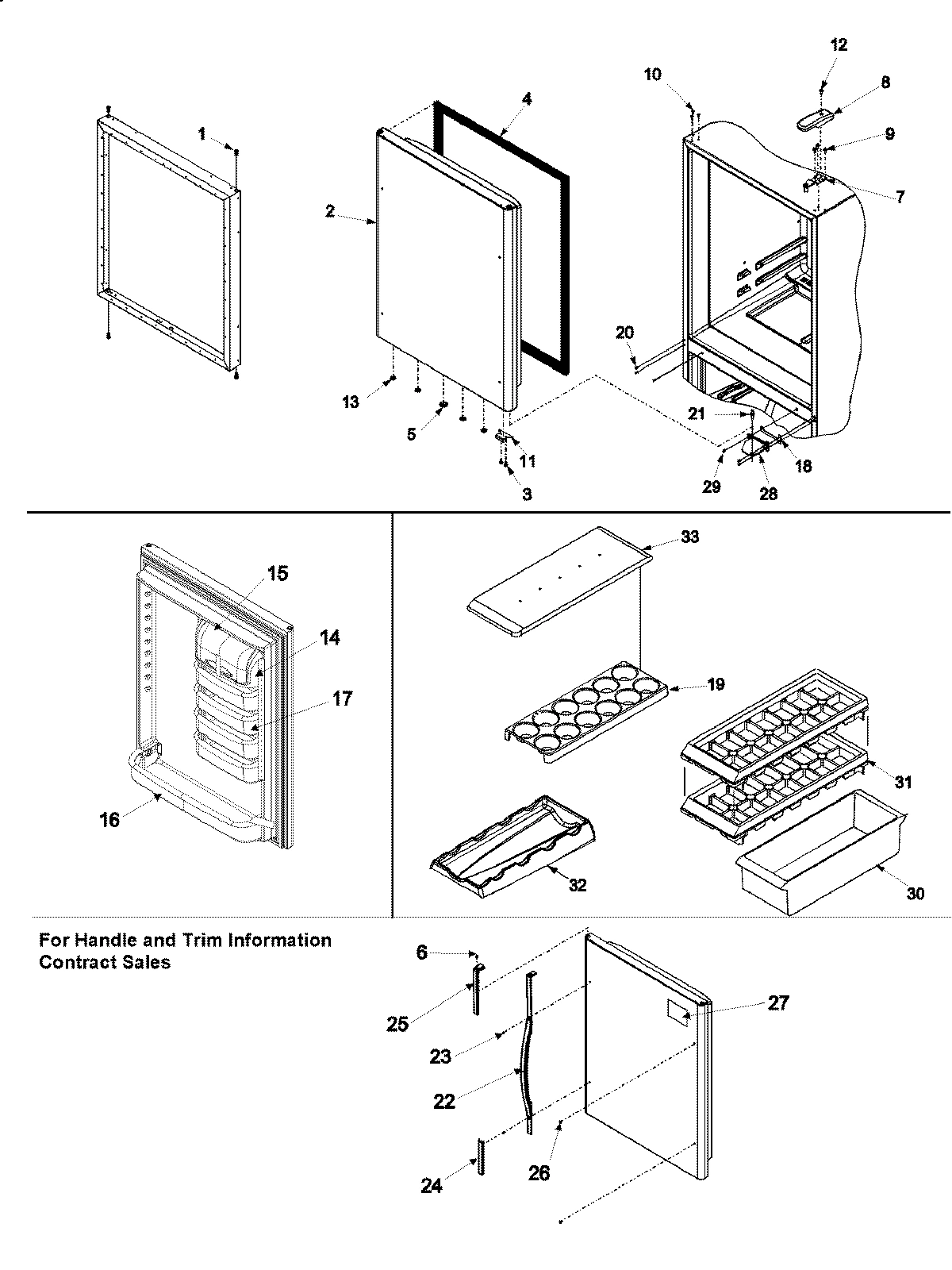

08 - REFRIGERATOR DOOR

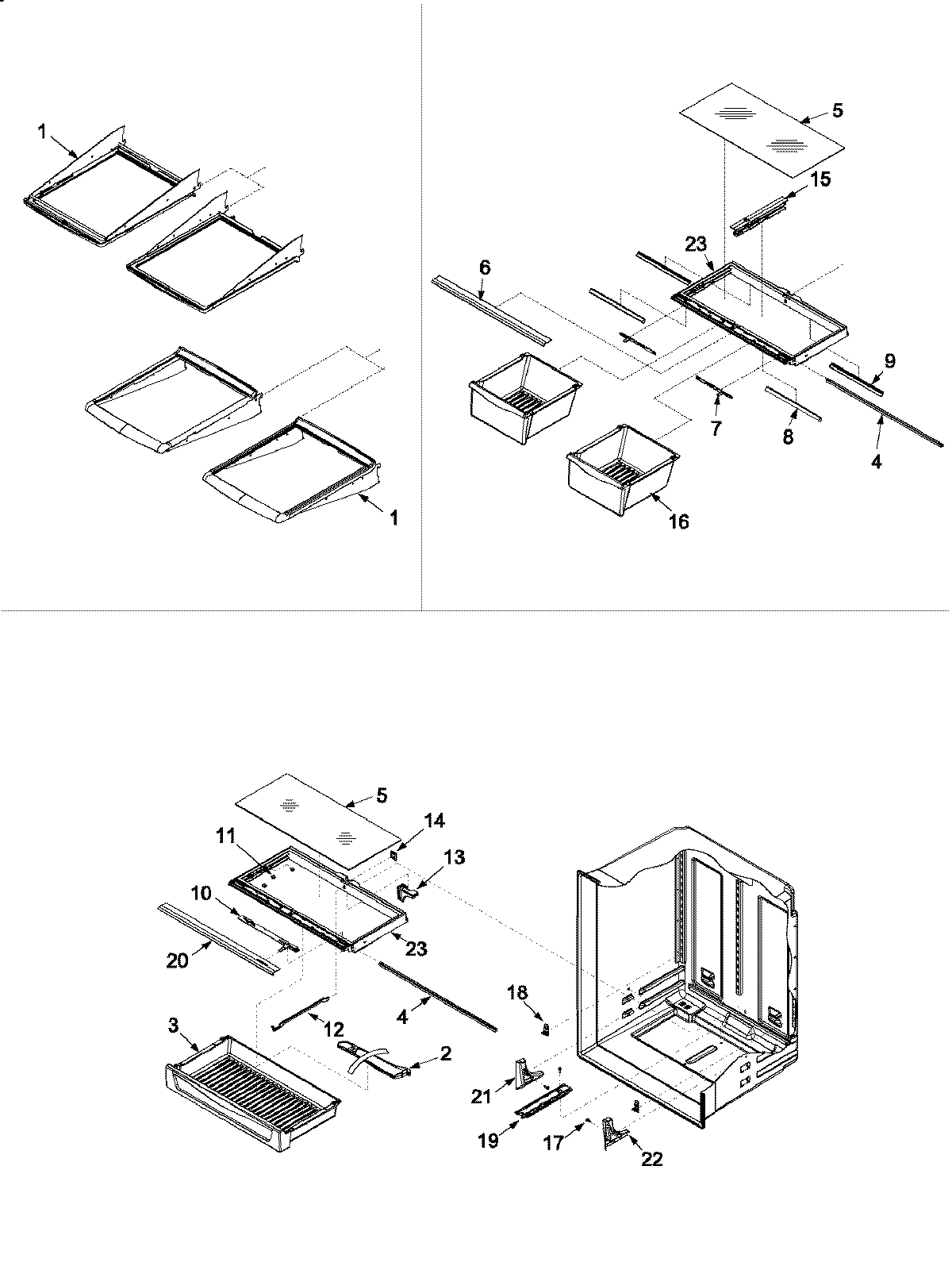

09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION

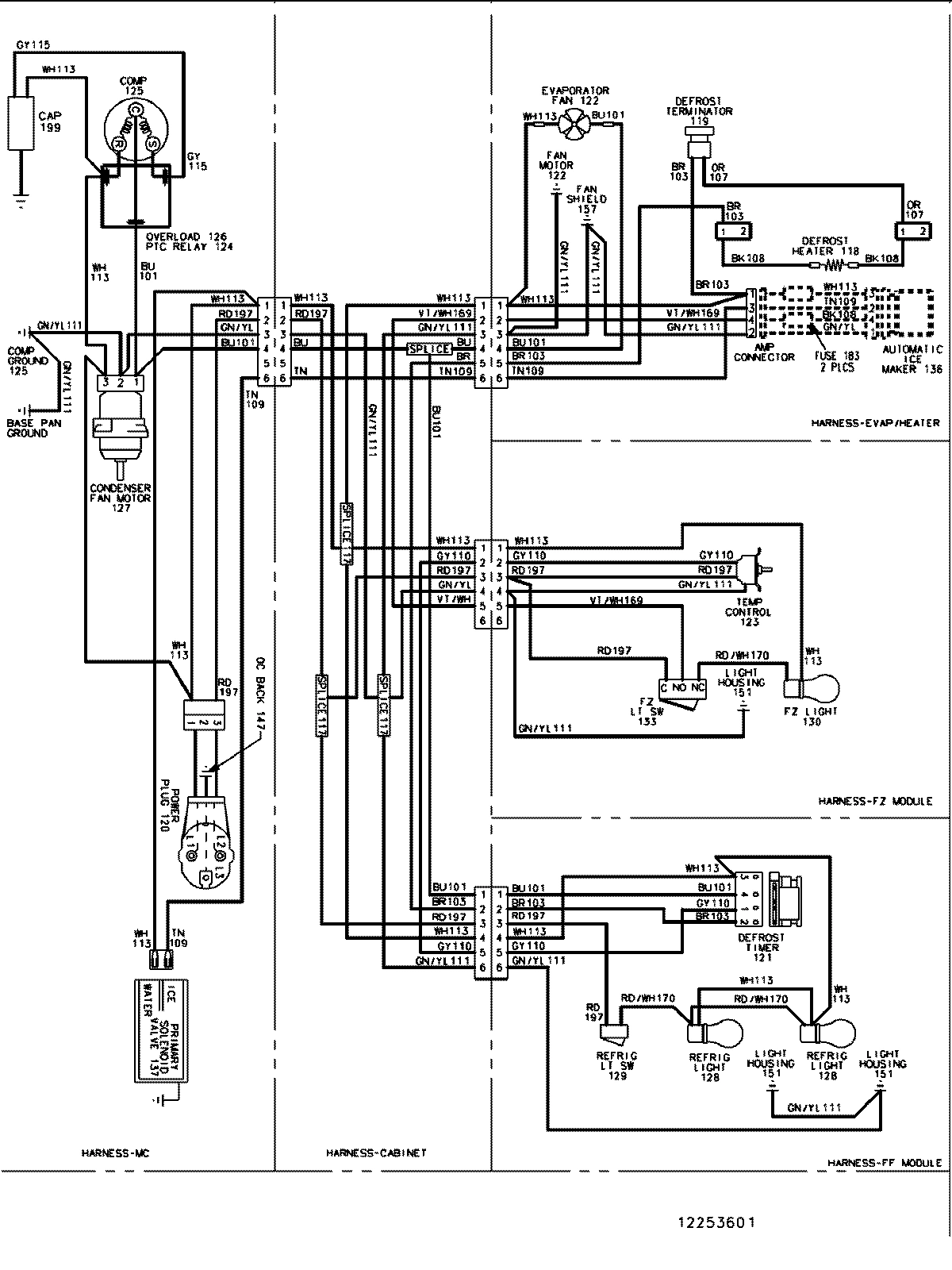

11 - WIRING INFORMATION
Common parts from model Maytag XRBR206BW REFRIGERATOR
1
MAY 10961001 MAY 10961001 Contact Us For Availability
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 67002555 MAY 67002555 Contact Us For Availability
1
MAY 67002560 MAY 67002560 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67002590 MAY 67002590 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
MAY 67002588 MAY 67002588 Contact Us For Availability
2
MAY 67001923 MAY 67001923 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
4
MAY 67001999 MAY 67001999 Contact Us For Availability
4
MAY 67001081 MAY 67001081 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 12683803W MAY 12683803W Contact Us For Availability
4
MAY 67002591 MAY 67002591 Contact Us For Availability
5
PAN, TIMER/LIGHT HOUSING MAY 67002085 Contact Us For Availability
5
MAY 67002529 MAY 67002529 Contact Us For Availability
5
MAY A3080002 MAY A3080002 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
6
SCREW, HNDL CONE MAY 12248201 Contact Us For Availability
6
MAY 67001737 MAY 67001737 Contact Us For Availability
7
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
MAY 67002051 MAY 67002051 Contact Us For Availability
8
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
8
MAY 67001063 MAY 67001063 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
END CAP, FZ DR BSKT MAY 67001026 Contact Us For Availability
9
MAY M0241508 MAY M0241508 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
END CAP, FZ DR BSKT MAY 67001027 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY 10447108 MAY 10447108 Contact Us For Availability
11
MAY M0233847 MAY M0233847 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
11
MAY 67001177 MAY 67001177 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 67002167 MAY 67002167 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
13
TOE GRILLE ASSY (WHT) MAY 67002223 Contact Us For Availability
13
MAY M0216705 MAY M0216705 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 10200801 MAY 10200801 Contact Us For Availability
14
MAY 67001037 MAY 67001037 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY 67002005 MAY 67002005 Contact Us For Availability
15
MAY 67001038 MAY 67001038 Contact Us For Availability
15
MAY 67002558 MAY 67002558 Contact Us For Availability
15
LADDER, SIDES MAY 67001317 Contact Us For Availability
16
MAY 67002000 MAY 67002000 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
16
RETAINER, DOOR MAY 67001748 Contact Us For Availability
17
MAY 67001040 MAY 67001040 Contact Us For Availability
17
MAY M0238616 MAY M0238616 Contact Us For Availability
17
SHROUD, EVAP FAN MAY 67001086 Contact Us For Availability
17
MAY 67001962 MAY 67001962 Contact Us For Availability
18
MAY 67001041 MAY 67001041 Contact Us For Availability
18
MAY 10449509 MAY 10449509 Contact Us For Availability
18
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
18
MAY 67001076 MAY 67001076 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
19
MAY 67001042 MAY 67001042 Contact Us For Availability
19
MAY 12217805 MAY 12217805 Contact Us For Availability
19
MAY 67001077 MAY 67001077 Contact Us For Availability
19
SHIELD, ICE MAKER MAY D7846203 Contact Us For Availability
19
MAY 10436506 MAY 10436506 Contact Us For Availability
20
MAY 12619301 MAY 12619301 Contact Us For Availability
20
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
20
MAY M0211016 MAY M0211016 Contact Us For Availability
21
COVER, LWR HINGE (WHT) MAY 12561901W Contact Us For Availability
21
COVER, FZ LIGHT MAY 67001285 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
MAY 10351001 MAY 10351001 Contact Us For Availability
22
MODULE, FZ CONTROL MAY 67001286 Contact Us For Availability
22
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
22
MAY 95108-1 MAY 95108-1 Contact Us For Availability
22
MAY 67001912 MAY 67001912 Contact Us For Availability
23
PANEL, FZ CONTROL MOUNTING MAY 67001045 Contact Us For Availability
23
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
23
MAY M0223230 MAY M0223230 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 12646501 MAY 12646501 Contact Us For Availability
24
MAY M0114003 MAY M0114003 Contact Us For Availability
24
MAY 67001126 MAY 67001126 Contact Us For Availability
25
MAY 67002553 MAY 67002553 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY 10972101 MAY 10972101 Contact Us For Availability
25
MAY 10244904 MAY 10244904 Contact Us For Availability
25
MAY 67001129 MAY 67001129 Contact Us For Availability
26
MAY 67001035 MAY 67001035 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
PLUG, HANDLE HOLE (WHT) MAY 12246601 Contact Us For Availability
26
MAY M0230919 MAY M0230919 Contact Us For Availability
27
MAY M0211018 MAY M0211018 Contact Us For Availability
27
MAY 67002551 MAY 67002551 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY 67001723 MAY 67001723 Contact Us For Availability
28
MAY 67002525 MAY 67002525 Contact Us For Availability
28
MAY 67001310 MAY 67001310 Contact Us For Availability
28
MAY 67001264 MAY 67001264 Contact Us For Availability
29
MAY 12466101 MAY 12466101 Contact Us For Availability
29
MAY 67002559 MAY 67002559 Contact Us For Availability
29
MAY B5720302 MAY B5720302 Contact Us For Availability
29
MAY M0226233 MAY M0226233 Contact Us For Availability
30
MAY 67002532 MAY 67002532 Contact Us For Availability
30
SCREW, SM MAY M0238642 Contact Us For Availability
30
MAY 10423131 MAY 10423131 Contact Us For Availability
31
MAY 67002554 MAY 67002554 Contact Us For Availability
31
MAY 67001205 MAY 67001205 Contact Us For Availability
33
MAY 10436404 MAY 10436404 Contact Us For Availability
NI
MAY 15003060 MAY 15003060 Contact Us For Availability
× ![]()
