Model Whirlpool WW30430B ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

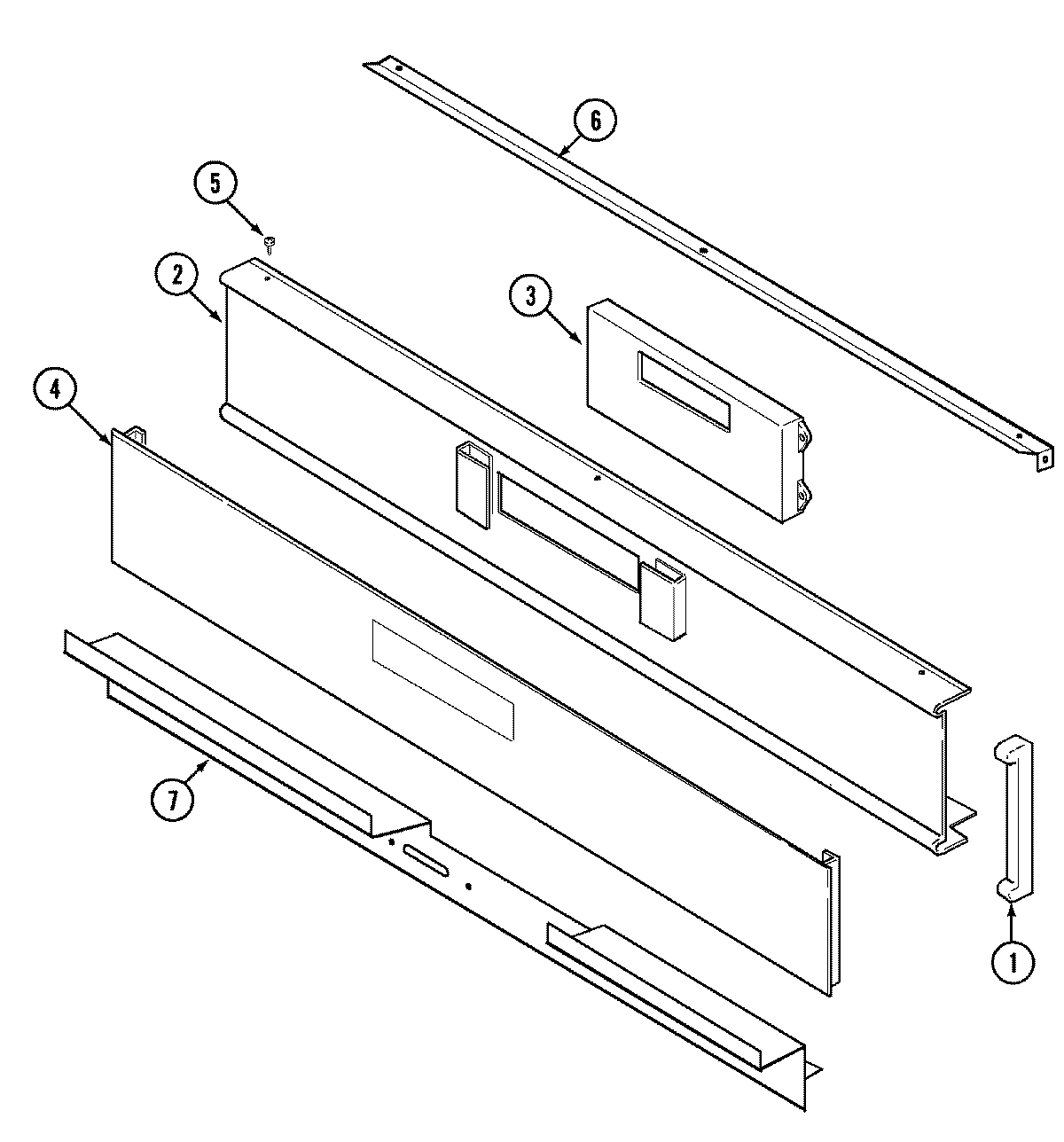

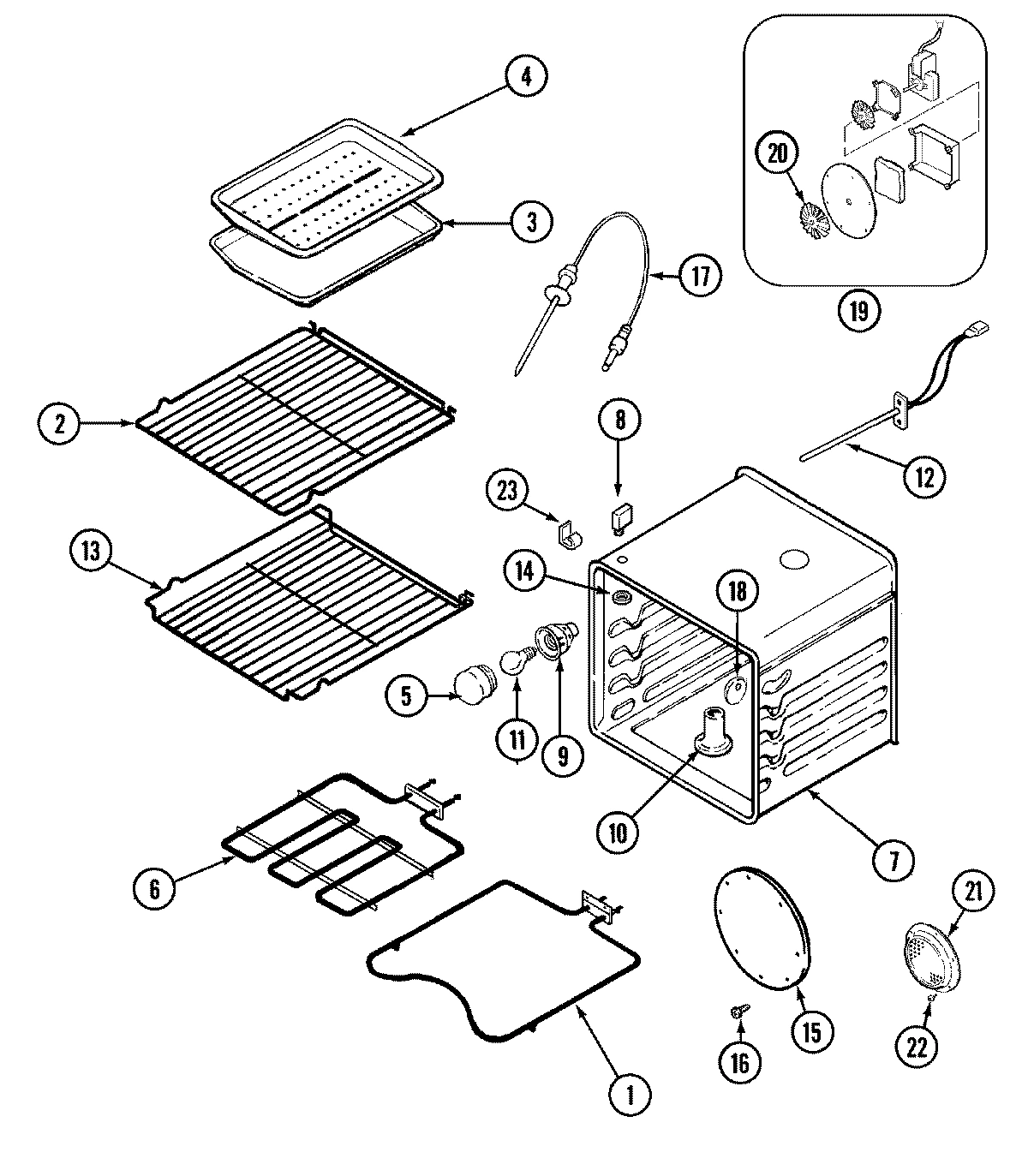

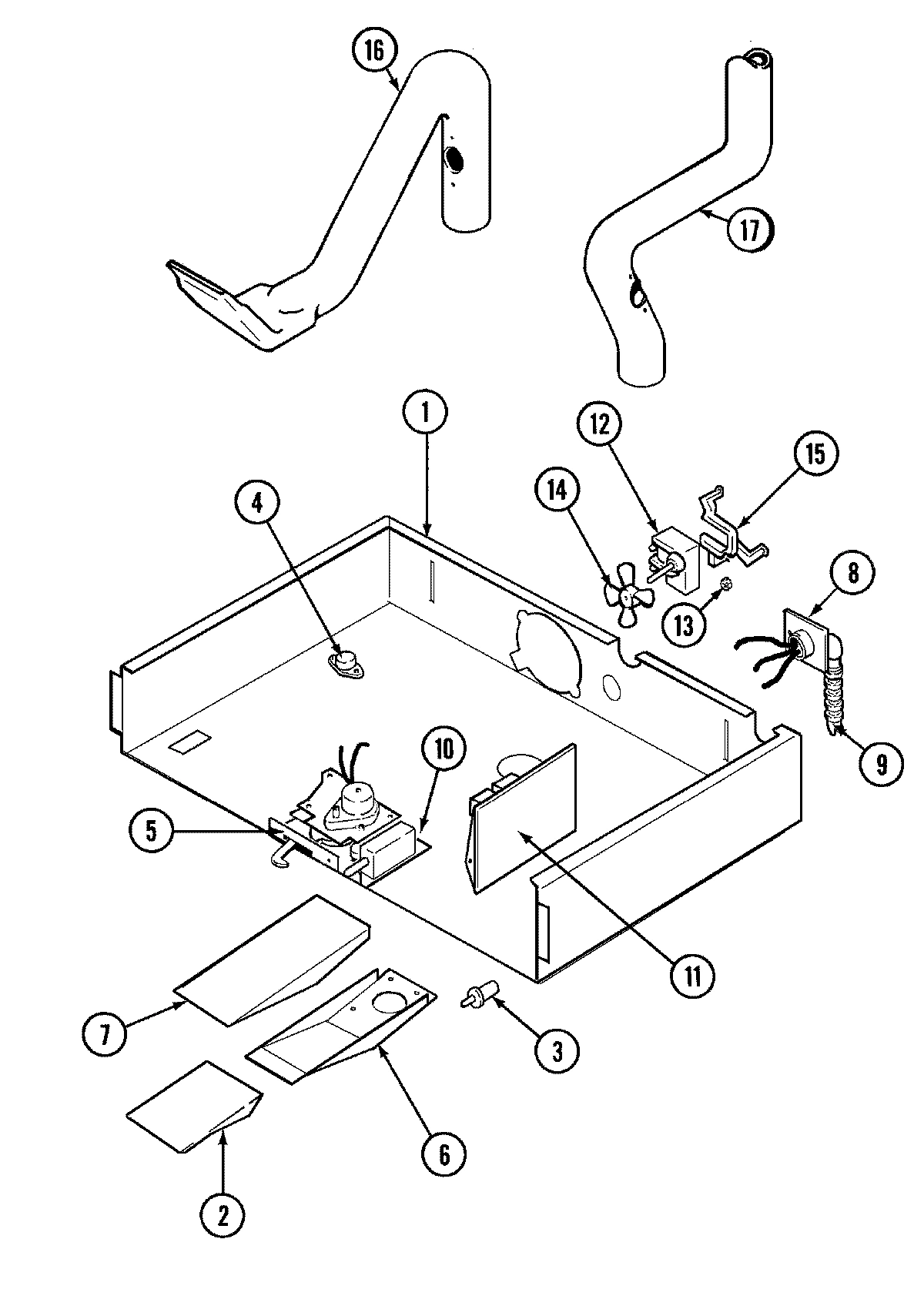

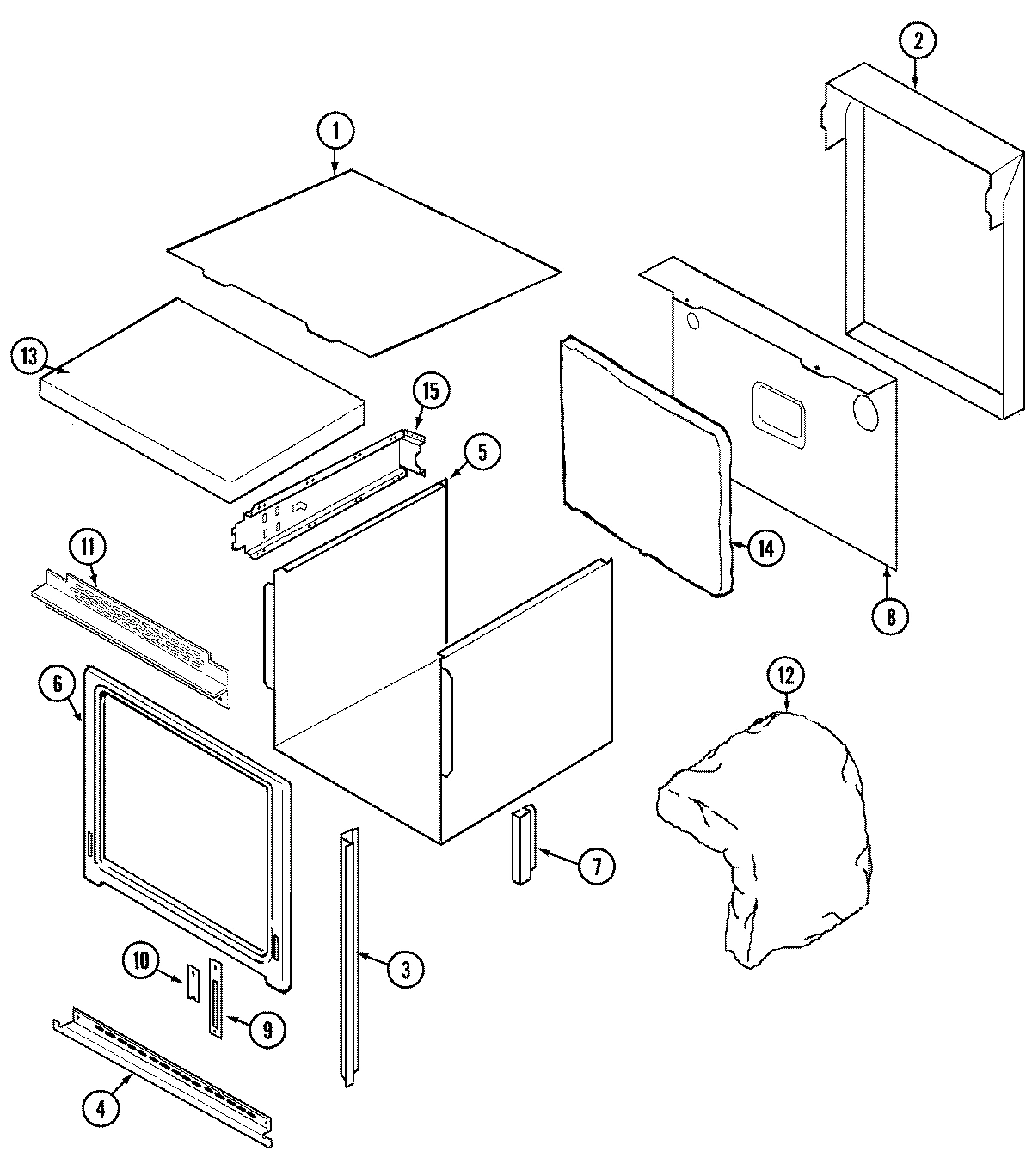

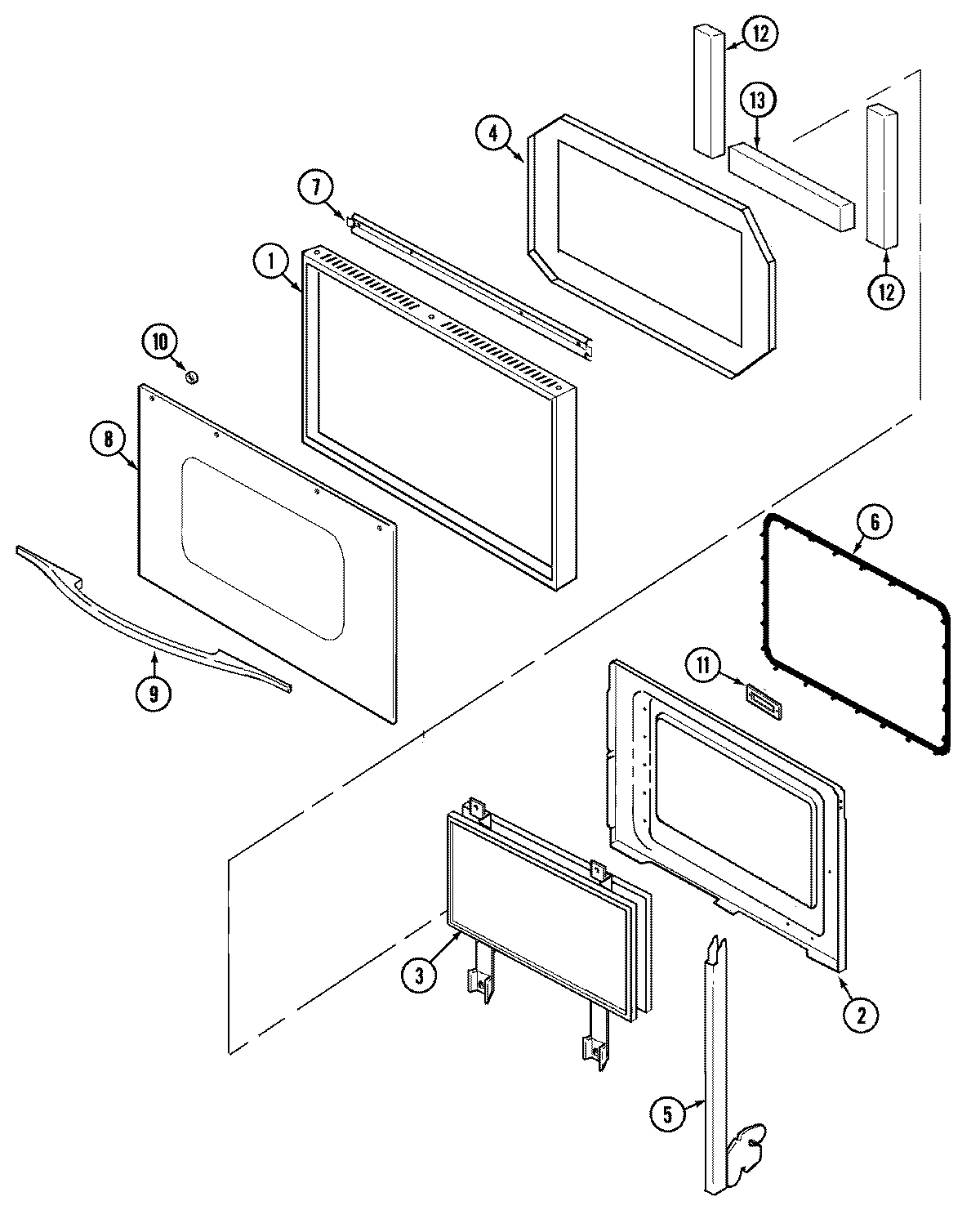

1

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $138.66

1

PANEL, INNER TOP WPL 71001842 Contact Us For Availability

1

FRAME, DOOR (BLK) WPL 71001829 Contact Us For Availability

1

TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability

1

PANEL, TOP (INR-CTR) WPL 71001885 Contact Us For Availability

1

END CAP, PANEL (BLK) WPL 71001794 Contact Us For Availability

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $118.37

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

LINER, OVEN DOOR (30`` W.O.) WPL 71001190 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71002967 Contact Us For Availability

2

BACK, OUTER (UPR) WPL 71001878 Contact Us For Availability

2

BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability

2

PANEL, CONTROL (BLK) WPL 71001796 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

74009648 Whirlpool Glass Inner Door Backorder WPL 74009648 $121.96

3

WP71001872-includeCORE Whirlpool WP71001872 W Backorder WPL WP71001872-includeCORE $343.64

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

TRIM, SIDE (LT-BLK) WPL 71001879 Contact Us For Availability

3

TRIM, SIDE (RT-BLK) WPL 71001880 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

THERMOSTAT, FIXED WPL 71001887 Contact Us For Availability

4

RETAINER, INSULATION WPL 71001840 Contact Us For Availability

4

TRIM, OVEN (LWR-BLK) WPL 71001822 Contact Us For Availability

4

SWITCH, MEMBRANE ASY. WPL 71001873 Contact Us For Availability

5

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability

6

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $123.53

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

FRAME, OVEN WPL 71001189 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

SUPPORT, CONTROL PANEL WPL 71001803 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

HOOD, VENT WPL 71001891 Contact Us For Availability

7

GUSSET WPL 71001837 Contact Us For Availability

7

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71001165 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

8

CLAMP, CONDUIT WPL 701692 Contact Us For Availability

8

GLASS, DOOR (BLK) WPL 71001833 Contact Us For Availability

8

BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability

8

RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability

8

PLATE, PROBE RECEPTACLE WPL Y04100596 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001888 Contact Us For Availability

9

HANDLE, DOOR (BLK) WPL 71001835 Contact Us For Availability

9

TAPE, DBL. SIDED (BLK) WPL 71002091 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

TUBE, VENT WPL 71001864 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

BOARD, RELAY WPL 71001850 Contact Us For Availability

BOARD, RELAY (LWR) WPL 71001893 Contact Us For Availability

PLATE, LATCH WPL 71001831 Contact Us For Availability

EXTRUSION (CTR) WPL 71001884 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

13

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

13

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

13

INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability

14

BLADE, FAN WPL 71001852 Contact Us For Availability

14

INSULATION (BCK) WPL 71001819 Contact Us For Availability

14

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

BRACKET, FAN WPL 71001853 Contact Us For Availability

SUPPORT (CTR) WPL Y04100669 Contact Us For Availability

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

16

TUBE, VENT (UPR) WPL 71001889 Contact Us For Availability

17

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

17

TUBE, VENT (LWR) WPL 71001890 Contact Us For Availability

18

BUTTON, PLUG WPL 702929 Contact Us For Availability

19

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

20

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

21

PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability

22

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

22

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

23

CLIP, OVEN WPL 71001170 Contact Us For Availability

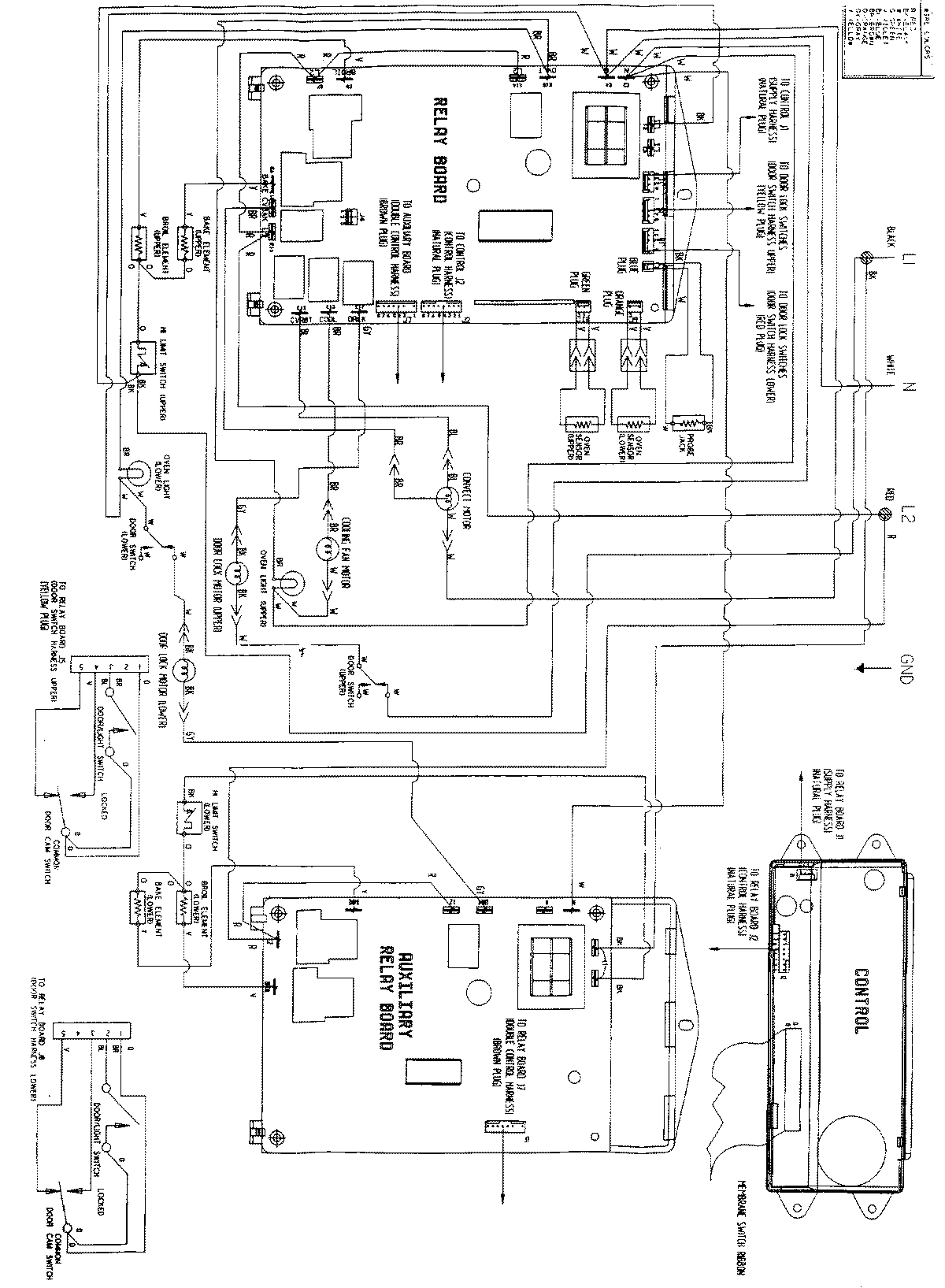

WIRING INFORMATION WPL 15001719 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability

HARNESS, CONTROL (J10-UPR) WPL 71001806 Contact Us For Availability

HARNESS, SUPPLY (J1) WPL 71001807 Contact Us For Availability

MANUAL, USE & CARE WPL 71001810 Contact Us For Availability

HARNESS, CONVECT WPL 71001861 Contact Us For Availability

HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability

HARNESS, CONTROL (J9-LWR) WPL 71001875 Contact Us For Availability

HARNESS, DOOR SWITCH (LWR) WPL 71001876 Contact Us For Availability

HARNESS, DOOR LOCK (LWR) WPL 71001877 Contact Us For Availability

HARNESS, RELAY BOARD (J7) WPL 71001892 Contact Us For Availability

WIRE, GROUND WPL 71001869 Contact Us For Availability
