Model Whirlpool WW30110W ELECTRIC WALL OVEN – Common Parts & Diagrams

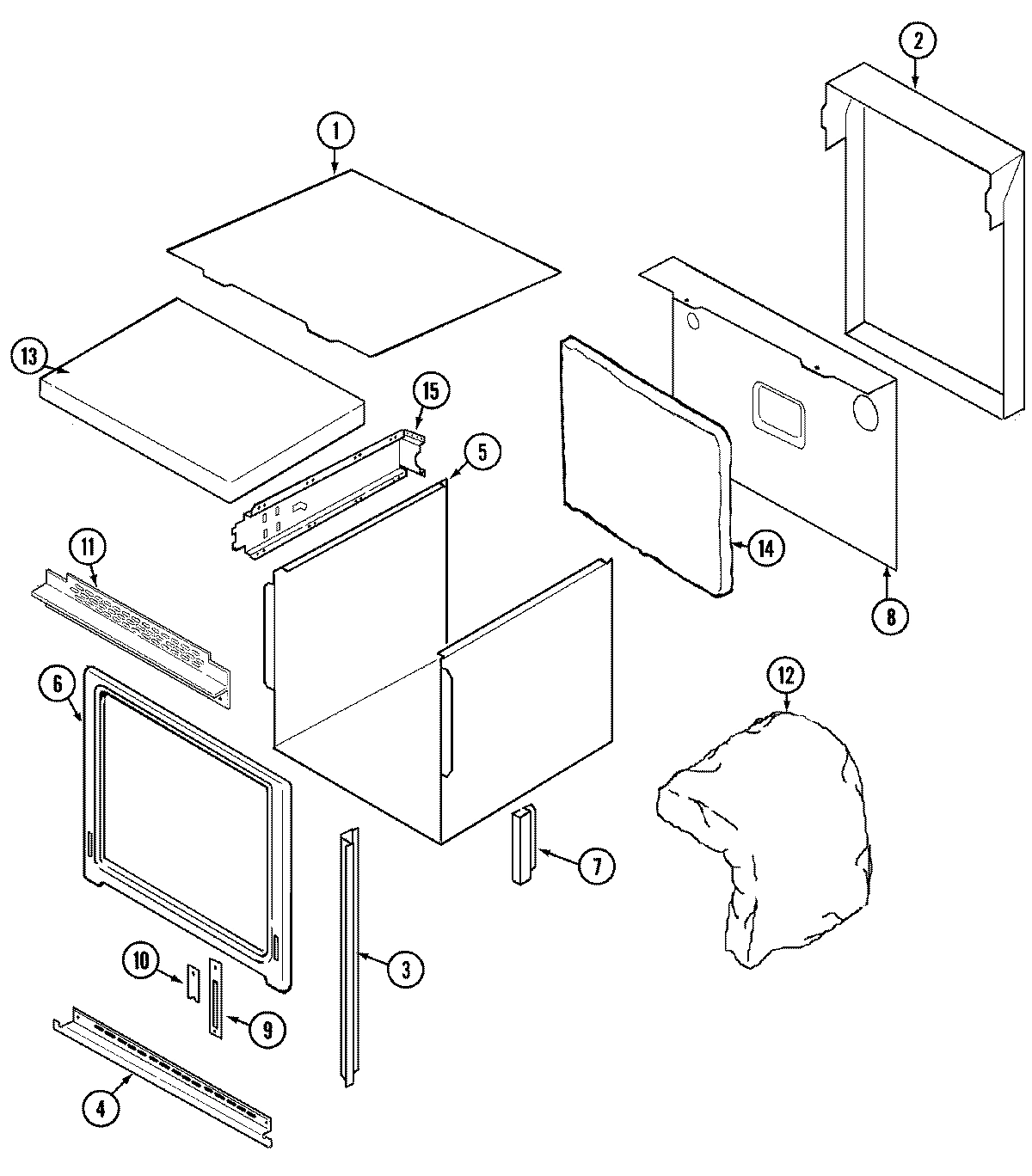

01 - BODY

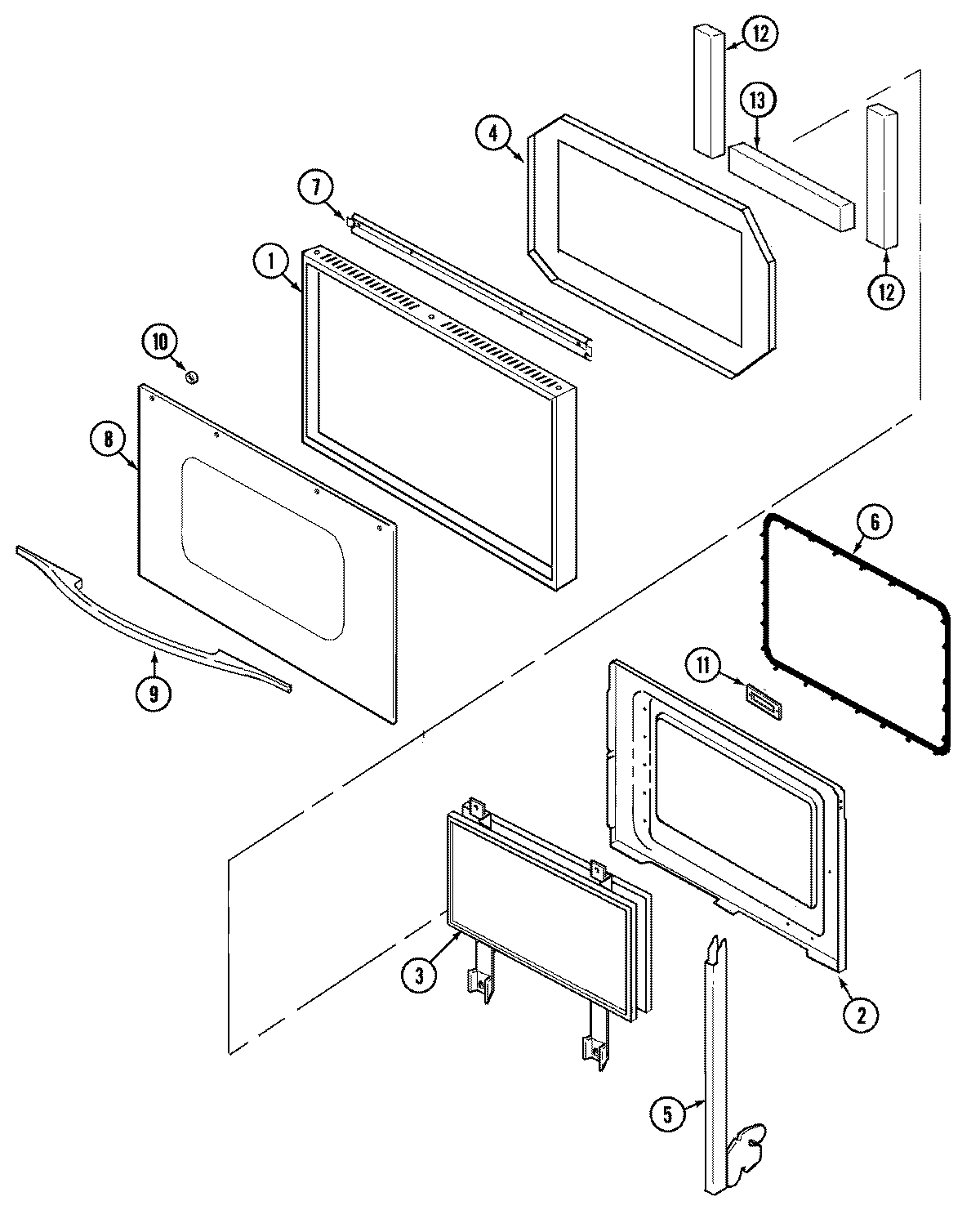

03 - DOOR

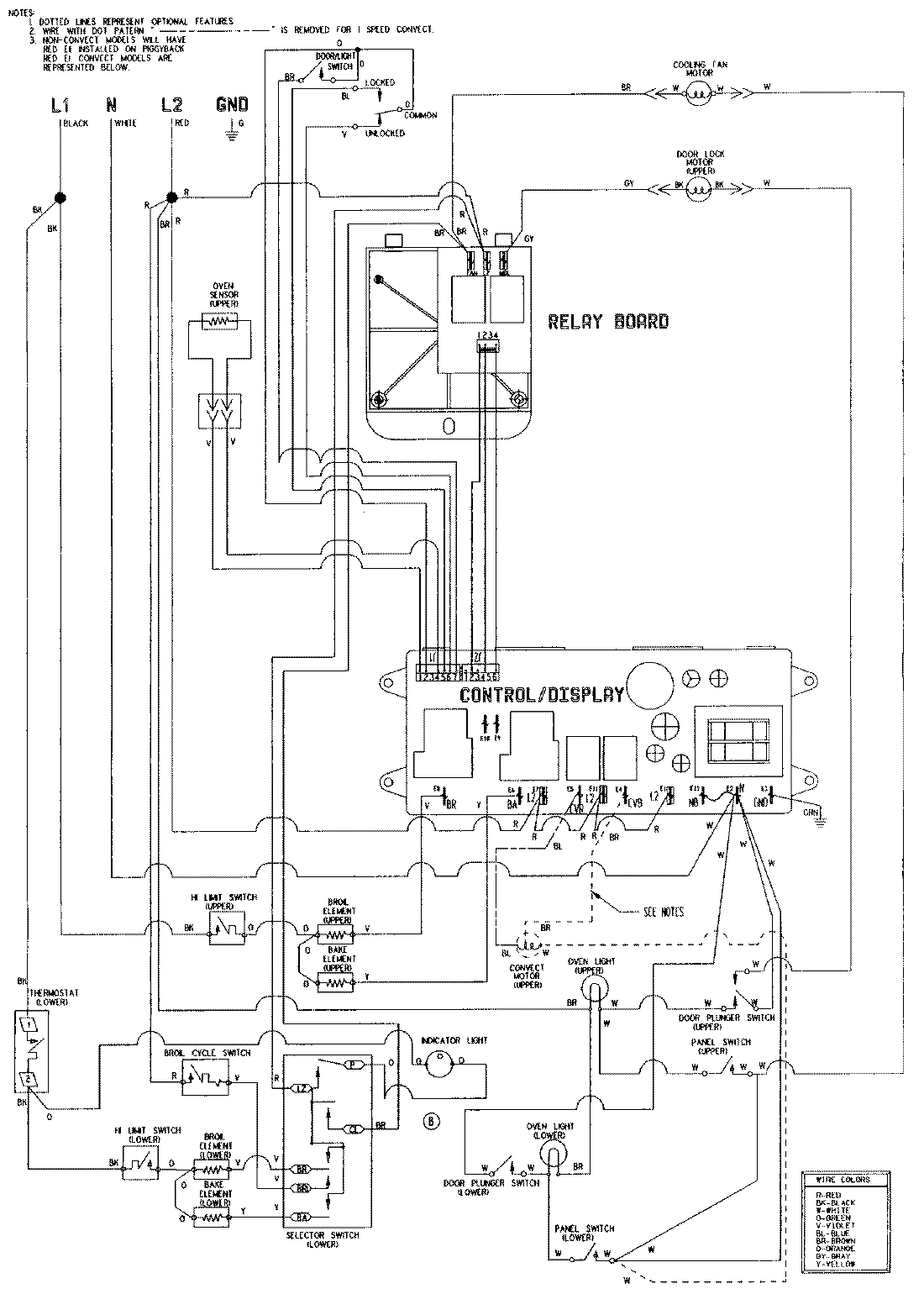

06 - WIRING INFORMATION

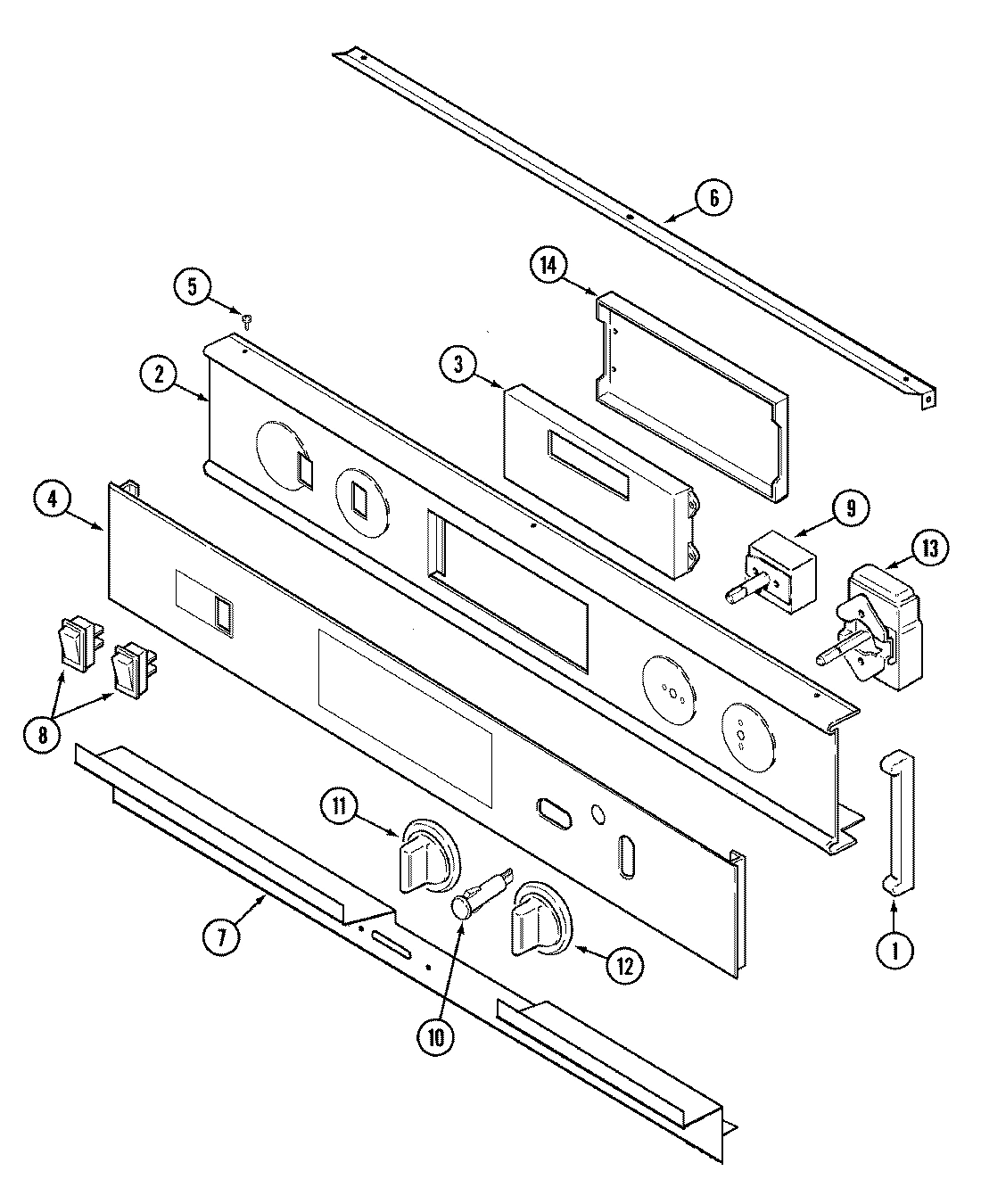

02 - CONTROL PANEL

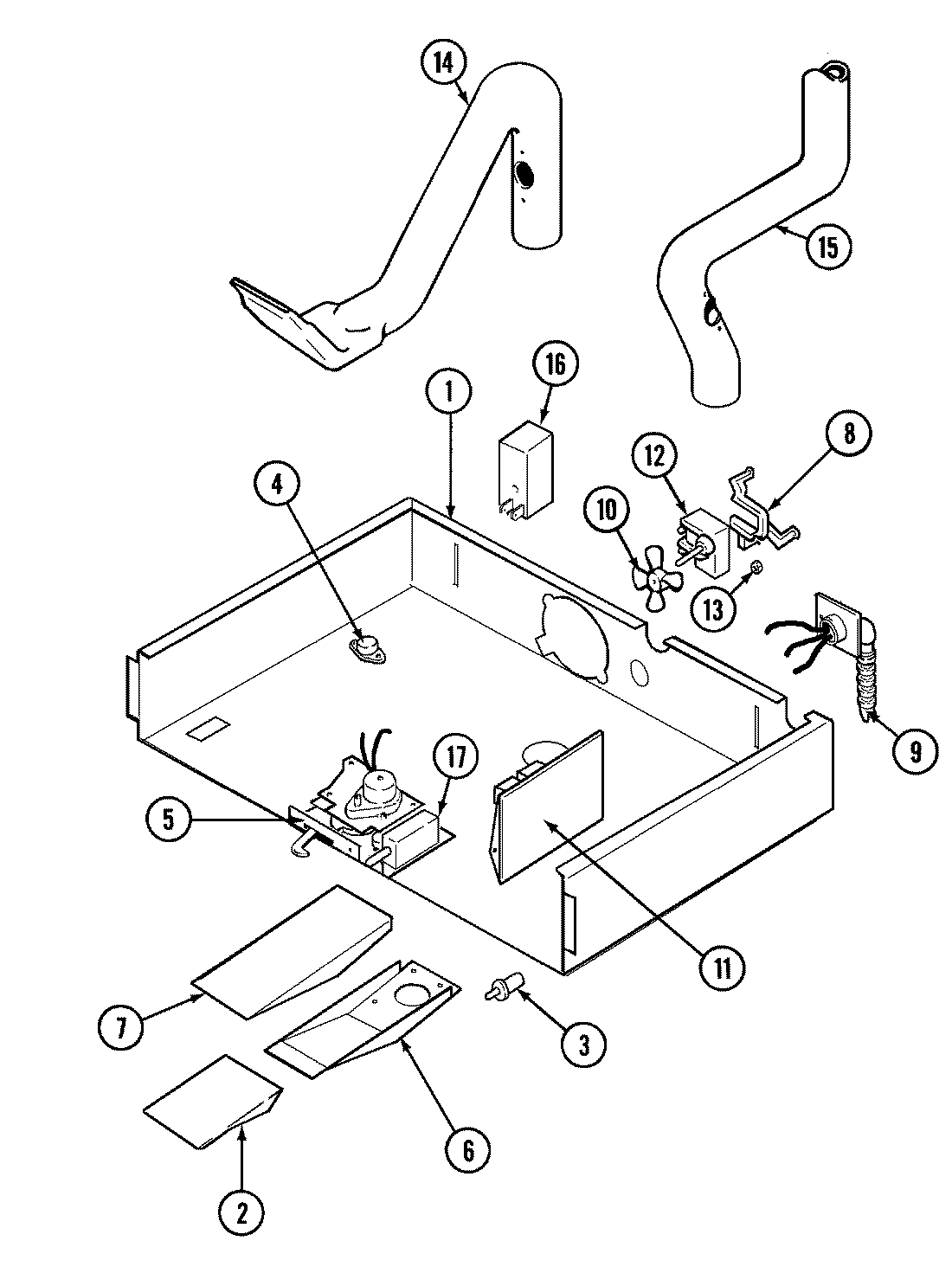

04 - INTERNAL CONTROLS

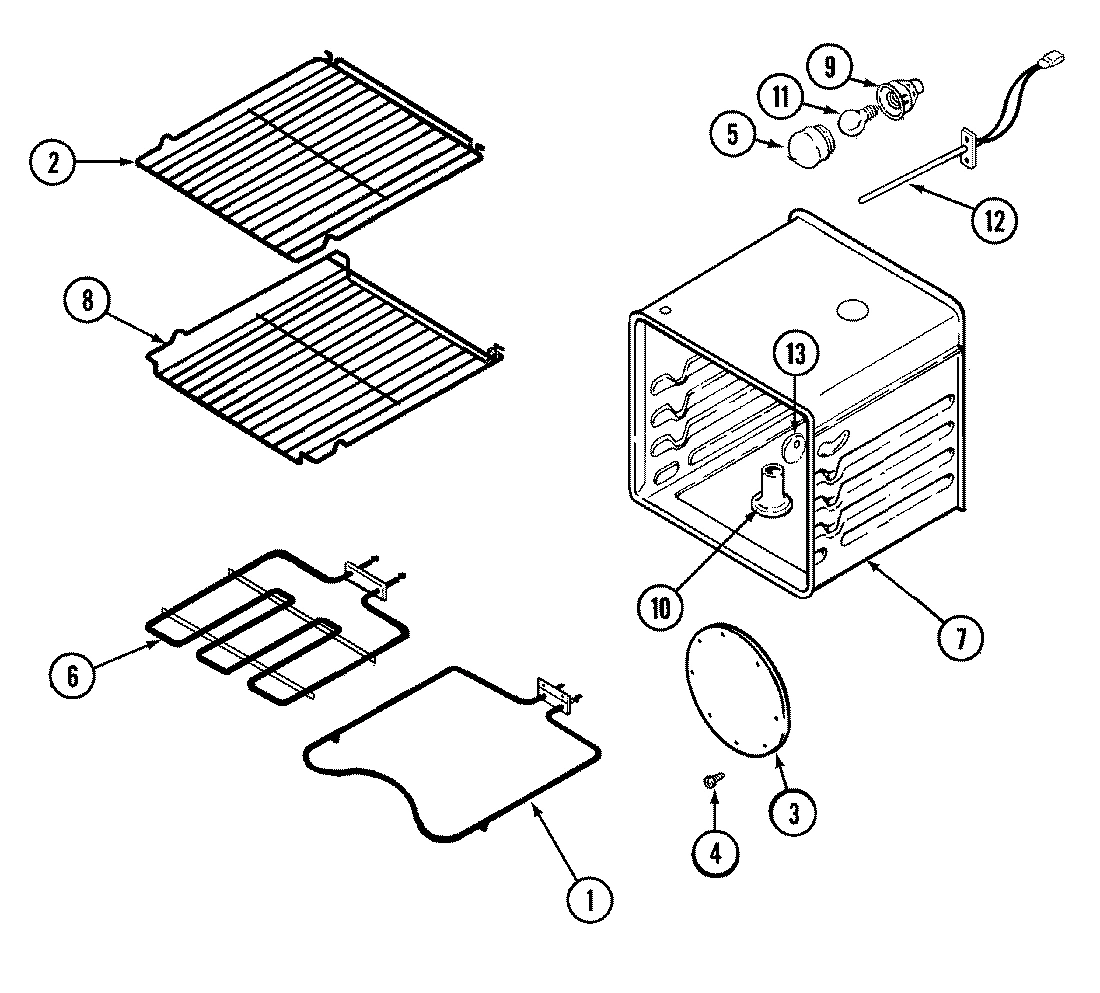

05 - OVEN
Common parts from model Whirlpool WW30110W ELECTRIC WALL OVEN
1
TOP, OVEN (OUTER) WPL 71001811 Contact Us For Availability
1
SCREW WPL 71001827 Contact Us For Availability
1
FRAME, DOOR (WHT) WPL 71001830 Contact Us For Availability
1
END CAP, PANEL (WHT) WPL 71001795 Contact Us For Availability
1
PANEL, INNER TOP WPL 71001842 Contact Us For Availability
2
BACK, OUTER (UPR) WPL 71001878 Contact Us For Availability
2
BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability
2
LINER, OVEN DOOR (30`` W.O.) WPL 71001190 Contact Us For Availability
2
LINER, OVEN DOOR WPL 71002967 Contact Us For Availability
2
LINER, OVEN DOOR WPL 74005642 Contact Us For Availability
2
PANEL, CONTROL (WHT) WPL 71002162 Contact Us For Availability
2
PANEL, CONTROL (WHT) WPL 74004694 Contact Us For Availability
2
EXTENSION, VENT WPL 71001843 Contact Us For Availability
3
TRIM, SIDE (LT-WHT) WPL 71001881 Contact Us For Availability
3
TRIM, SIDE (RT-WHT) WPL 71001882 Contact Us For Availability
3
WINDOW ASSY. WPL 71002928 Contact Us For Availability
3
WINDOW ASSEMBLY WPL 74005641 Contact Us For Availability
3
CLOCK WPL 71002163 Contact Us For Availability
3
CLOCK WPL 74004718 Contact Us For Availability
3
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
3
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
3
PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability
4
TRIM, OVEN (LWR-WHT) WPL 71001821 Contact Us For Availability
4
TRIM, OVEN (LWR-WHT) WPL 74005644 Contact Us For Availability
4
RETAINER, INSULATION WPL 71001840 Contact Us For Availability
4
TAPE SUPT (CONTROL PANEL) KIT WPL 12001405 Contact Us For Availability
4
SWITCH, MEMBRANE (WHT) WPL 71002165 Contact Us For Availability
4
SWITCH, MEMBRANE (WHT) WPL 71003581 Contact Us For Availability
4
THERMOSTAT, FIXED WPL 71001887 Contact Us For Availability
5
PANEL, OVEN (SIDE/BTM/SIDE) WPL 71001814 Contact Us For Availability
5
SCREW (WHT) WPL Y04100724 Contact Us For Availability
5
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
6
FRAME, OVEN WPL 71001189 Contact Us For Availability
6
FRAME, OVEN WPL 71003185 Contact Us For Availability
6
SUPPORT, CONTROL PANEL WPL 71001803 Contact Us For Availability
6
VENT (BTM) WPL 71001846 Contact Us For Availability
7
GUSSET WPL 71001837 Contact Us For Availability
7
TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability
7
VENT (TOP) WPL 71001847 Contact Us For Availability
7
HOOD, VENT WPL 71001891 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001165 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71003005 Contact Us For Availability
8
BACK, OVEN (INNER) WPL 71001816 Contact Us For Availability
8
GLASS, DOOR (WHT) WPL 71001834 Contact Us For Availability
8
GLASS, DOOR (WHT) WPL 71003636 Contact Us For Availability
8
SWITCH, OVEN LIGHT (WHT) WPL 71002137 Contact Us For Availability
8
BRACKET, FAN WPL 71001853 Contact Us For Availability
9
PLATE, HINGE COVER WPL 71001815 Contact Us For Availability
9
HANDLE, DOOR (WHT) WPL 71001836 Contact Us For Availability
9
SWITCH, SELECTOR----NA WPL 71001127 Contact Us For Availability
9
WIRE CABLE ASSY. (CONDUIT) WPL 71002174 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
9
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
10
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
10
LIGHT, INDICATOR WPL 71002141 Contact Us For Availability
10
BLADE, FAN WPL 71001852 Contact Us For Availability
10
TUBE, VENT WPL 71001864 Contact Us For Availability
11
EXTRUSION, CENTER WPL 71002167 Contact Us For Availability
11
PLATE, LATCH WPL 71001831 Contact Us For Availability
11
KNOB, SELECTOR (WHT) WPL 71002133 Contact Us For Availability
11
BOARD, RELAY (LWR) WPL 71002144 Contact Us For Availability
11
CLIP, OVEN WPL 71001170 Contact Us For Availability
12
INSULATION (WRAP) WPL 71001817 Contact Us For Availability
12
INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability
12
KNOB, THERMOSTAT (WHT) WPL 71002135 Contact Us For Availability
12
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
13
INSULATION (TOP-BTM) WPL 71001820 Contact Us For Availability
13
INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability
13
THERMOSTAT WPL 71002138 Contact Us For Availability
13
BUTTON, PLUG WPL 702929 Contact Us For Availability
13
WIRE, GROUND WPL 71001869 Contact Us For Availability
14
INSULATION (BCK) WPL 71001819 Contact Us For Availability
14
BRACKET, CLOCK WPL 71002139 Contact Us For Availability
14
INSULATOR WPL 71002140 Contact Us For Availability
14
INSULATOR WPL Y705143 Contact Us For Availability
14
TUBE, VENT (UPR) WPL 71001889 Contact Us For Availability
15
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
15
TUBE, VENT (LWR) WPL 71001890 Contact Us For Availability
16
SWITCH, CYCLE WPL 71002145 Contact Us For Availability
17
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001766 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002629 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
HARNESS, MAIN CONTROL WPL 71002126 Contact Us For Availability
NI
HARNESS, MAIN CONTROL (DBL) WPL 71002127 Contact Us For Availability
NI
HARNESS, DOOR LOCK (DBL) WPL 71002129 Contact Us For Availability
NI
HARNESS, RELAY BOARD WPL 71002130 Contact Us For Availability
NI
HARNESS, OVEN LIGHT WPL 71002131 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002166 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71003574 Contact Us For Availability
NI
HARNESS, SENOR/LOCK WPL 74004701 Contact Us For Availability
× ![]()
