Model Whirlpool WW27210W ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

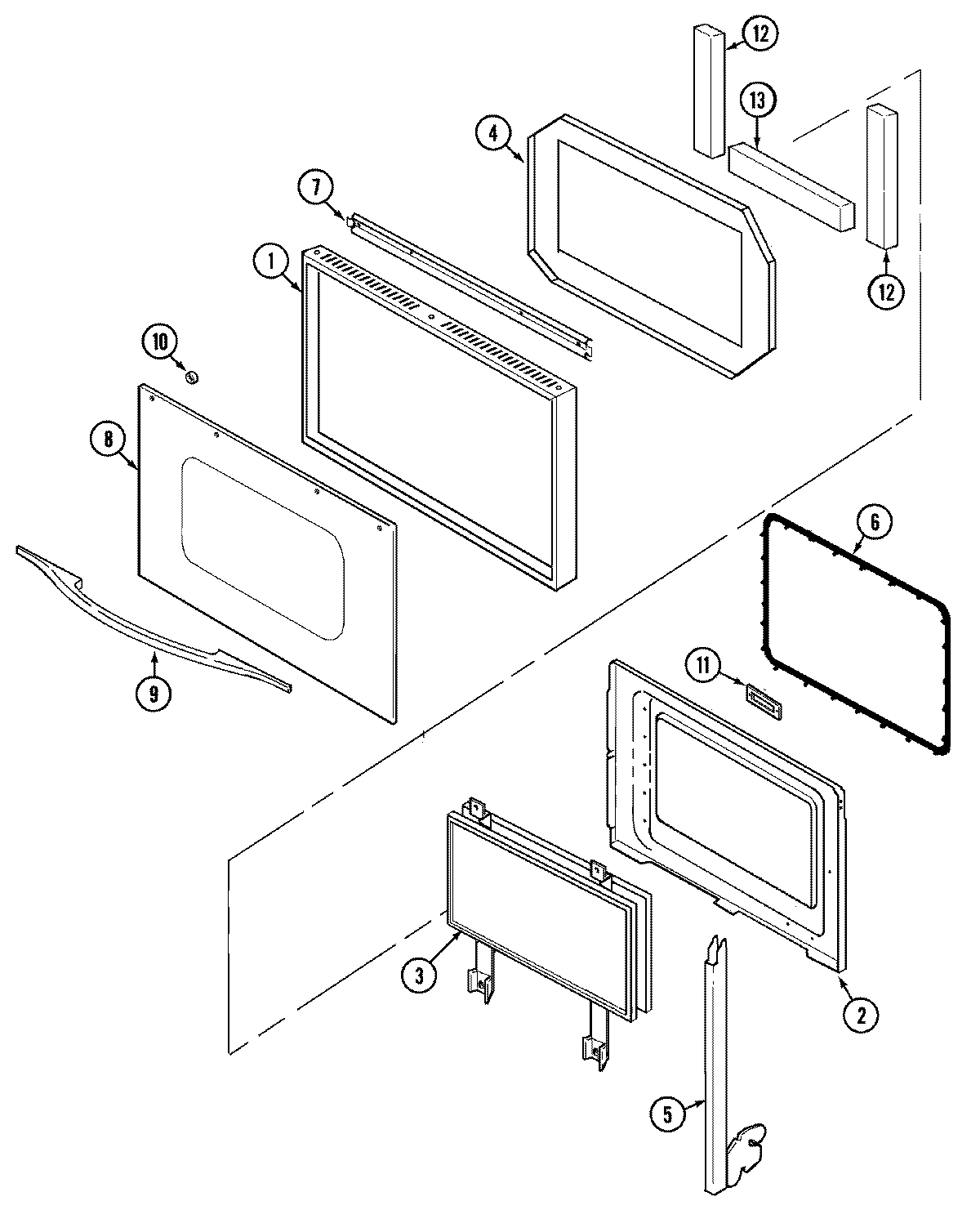

03 - DOOR

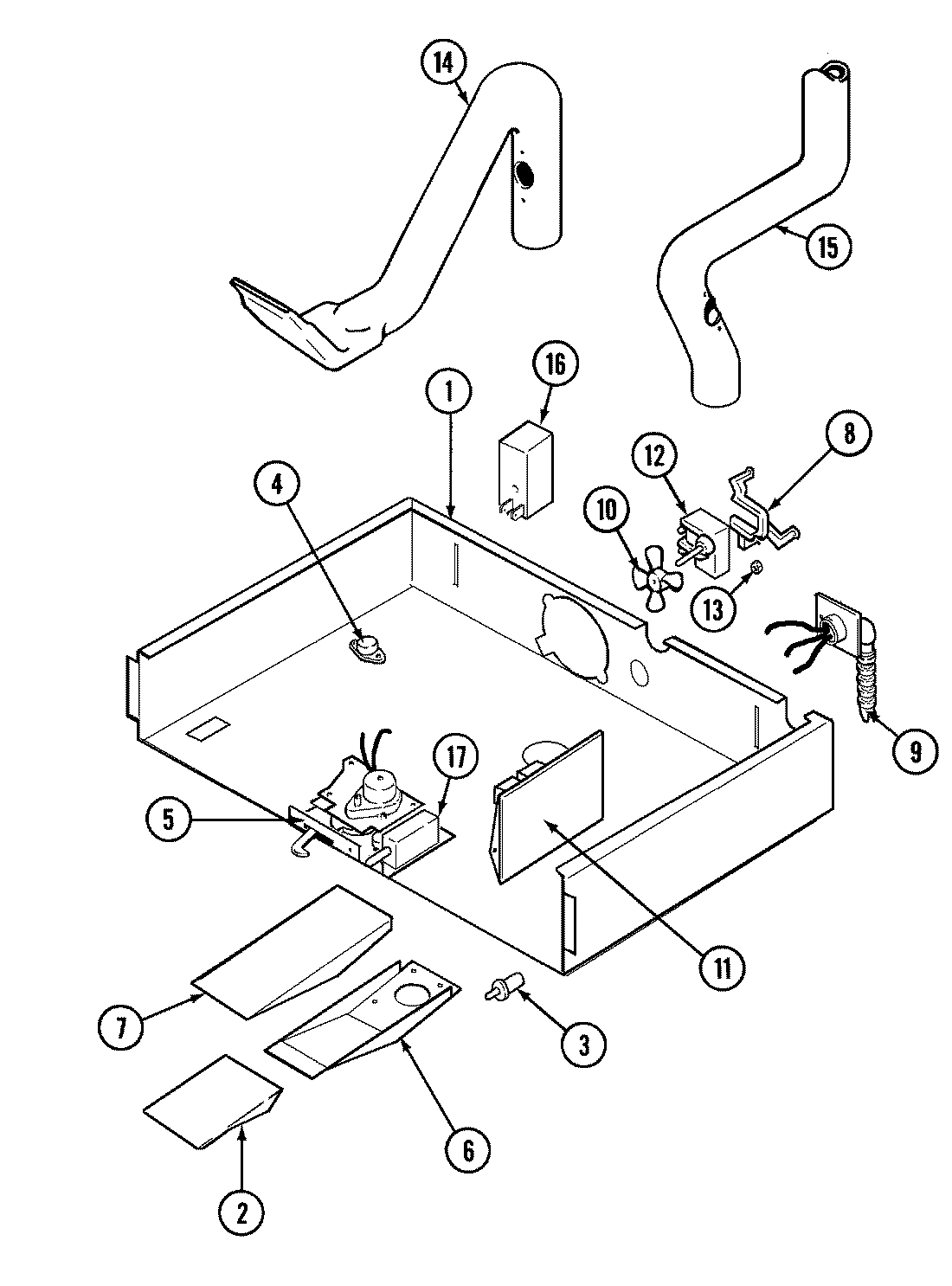

04 - INTERNAL CONTROLS

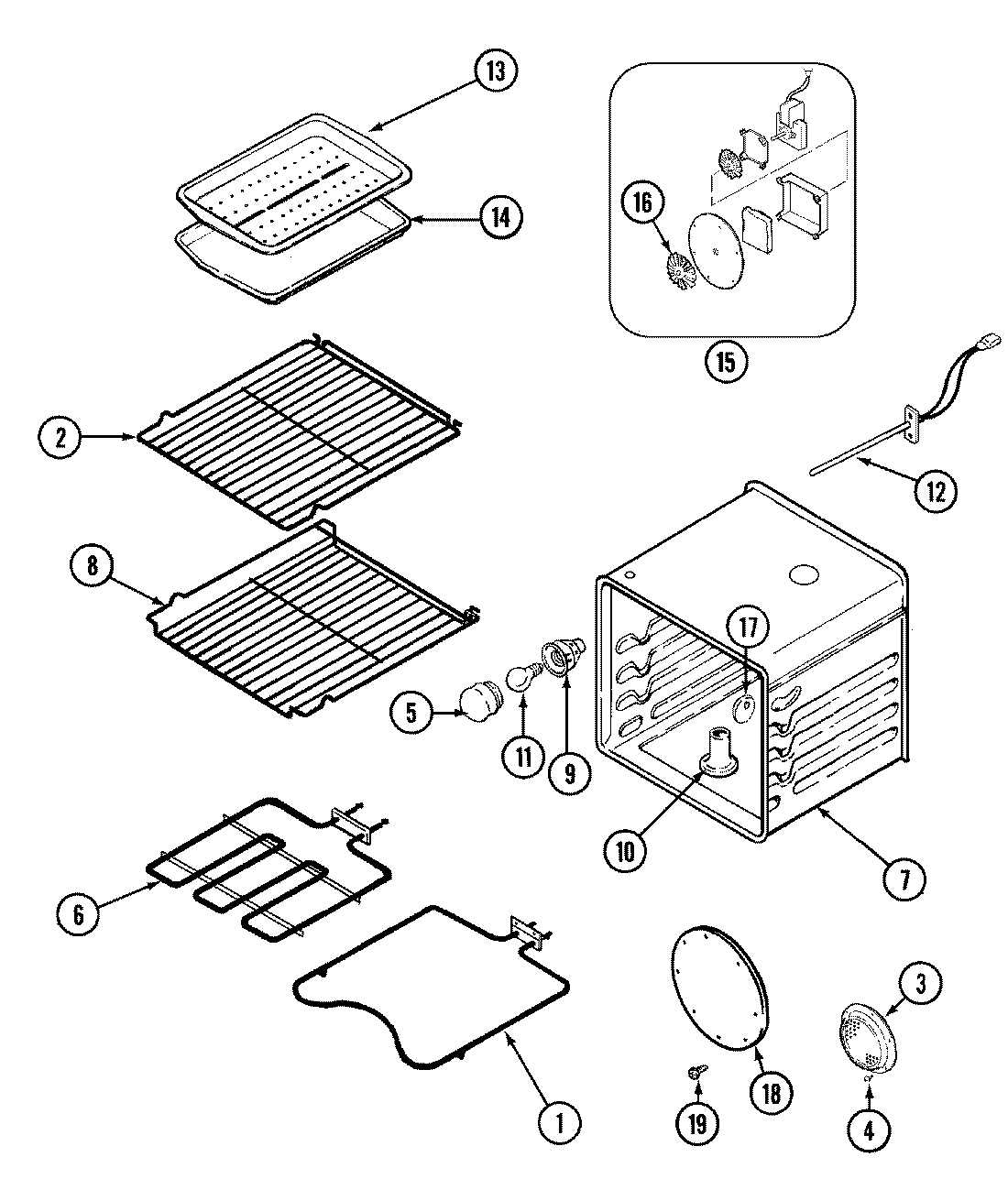

05 - OVEN
Common parts from model Whirlpool WW27210W ELECTRIC WALL OVEN
1
TOP (OUTER) WPL 71001950 Contact Us For Availability
1
SCREW WPL 71001827 Contact Us For Availability
1
END CAP, PANEL (WHT) WPL 71001795 Contact Us For Availability
1
FRAME, DOOR (WHT) WPL 71001965 Contact Us For Availability
1
PANEL, INNER TOP (OVEN) WPL 71001976 Contact Us For Availability
1
TOP, INNER OVEN (CTR) WPL 71001990 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
BACK, OUTER (UPR) WPL 71001878 Contact Us For Availability
2
BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability
2
PANEL, CONTROL (WHT) WPL 71002122 Contact Us For Availability
2
LINER, OVEN DOOR WPL 71001966 Contact Us For Availability
2
LINER, OVEN DOOR WPL 71002968 Contact Us For Availability
2
EXTENSION, VENT WPL 71001843 Contact Us For Availability
3
TRIM, SIDE (LT/WHT) WPL 71001987 Contact Us For Availability
3
TRIM, SIDE (RT/WHT) WPL 71001988 Contact Us For Availability
3
CLOCK WPL 71002215 Contact Us For Availability
3
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
3
PLATE, CONVECTION (FRT) WPL 71001947 Contact Us For Availability
4
TRIM, OVEN (LWR-WHT) WPL 71001955 Contact Us For Availability
4
SWITCH, MEMBRANE (WHT) WPL 71002262 Contact Us For Availability
4
RETAINER, INSULATION WPL 71001968 Contact Us For Availability
4
THERMOSTAT, HI-LIMIT (LWR) WPL 71002118 Contact Us For Availability
5
PANEL (SIDE-BTM-SIDE) WPL 71001957 Contact Us For Availability
5
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
6
FRAME, OVEN WPL 71001958 Contact Us For Availability
6
FRAME, OVEN WPL 71003185 Contact Us For Availability
6
SUPPORT, CONTROL PANEL WPL 71001945 Contact Us For Availability
6
VENT (BTM) WPL 71001846 Contact Us For Availability
7
TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability
7
GUSSET WPL 71001971 Contact Us For Availability
7
VENT (TOP) WPL 71001847 Contact Us For Availability
7
HOOD, VENT WPL 71001891 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001978 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71003006 Contact Us For Availability
8
BACK, MAIN (INNER) WPL 71001959 Contact Us For Availability
8
SWITCH, OVEN LIGHT (WHT) WPL 71002137 Contact Us For Availability
8
GLASS, DOOR (WHT) WPL 71001973 Contact Us For Availability
8
BRACKET, FAN WPL 71001853 Contact Us For Availability
8
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
9
PLATE, HINGE COVER WPL 71001815 Contact Us For Availability
9
SWITCH, SELECTOR----NA WPL 71001127 Contact Us For Availability
9
HANDLE, DOOR (WHT) WPL 71001975 Contact Us For Availability
9
WIRE CABLE ASSY. WPL 71002143 Contact Us For Availability
9
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
10
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
10
LIGHT, INDICATOR WPL 71002141 Contact Us For Availability
10
BLADE, FAN WPL 71001852 Contact Us For Availability
10
TUBE, VENT WPL 71001864 Contact Us For Availability
11
EXTRUSION, CENTER WPL 71002142 Contact Us For Availability
11
KNOB, SELECTOR (WHT) WPL 71002133 Contact Us For Availability
11
PLATE, LATCH WPL 71001831 Contact Us For Availability
11
BOARD, RELAY (LWR) WPL 71002144 Contact Us For Availability
11
CLIP, OVEN WPL 71001170 Contact Us For Availability
12
INSULATION (WRAP) WPL 71001960 Contact Us For Availability
12
KNOB, THERMOSTAT (WHT) WPL 71002135 Contact Us For Availability
12
INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability
12
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
13
INSULATION (BTM) WPL 71001963 Contact Us For Availability
13
THERMOSTAT WPL 71002138 Contact Us For Availability
13
INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability
14
INSULATION (BACK) WPL 71001962 Contact Us For Availability
14
BRACKET, CLOCK WPL 71002139 Contact Us For Availability
14
TUBE, VENT (UPR) WPL 71001889 Contact Us For Availability
15
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
15
TUBE, VENT (LWR) WPL 71001890 Contact Us For Availability
15
CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability
16
SWITCH, CYCLE WPL 71002145 Contact Us For Availability
16
WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability
17
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
17
BUTTON, PLUG WPL 702929 Contact Us For Availability
18
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
18
PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
HARNESS, CONVECT WPL 71001861 Contact Us For Availability
NI
HARNESS, MAIN CONTROL WPL 71002126 Contact Us For Availability
NI
HARNESS, MAIN CONTROL (DBL) WPL 71002127 Contact Us For Availability
NI
HARNESS, DOOR SWITCH (DBL) WPL 71002128 Contact Us For Availability
NI
HARNESS, DOOR LOCK (DBL) WPL 71002129 Contact Us For Availability
NI
HARNESS, RELAY BOARD WPL 71002130 Contact Us For Availability
NI
HARNESS, OVEN LIGHT WPL 71002131 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002216 Contact Us For Availability
NI
WIRE, GROUND WPL 71001869 Contact Us For Availability
× ![]()
