Model Whirlpool WRFC7036RZ00 Refrigerator – Common Parts & Diagrams

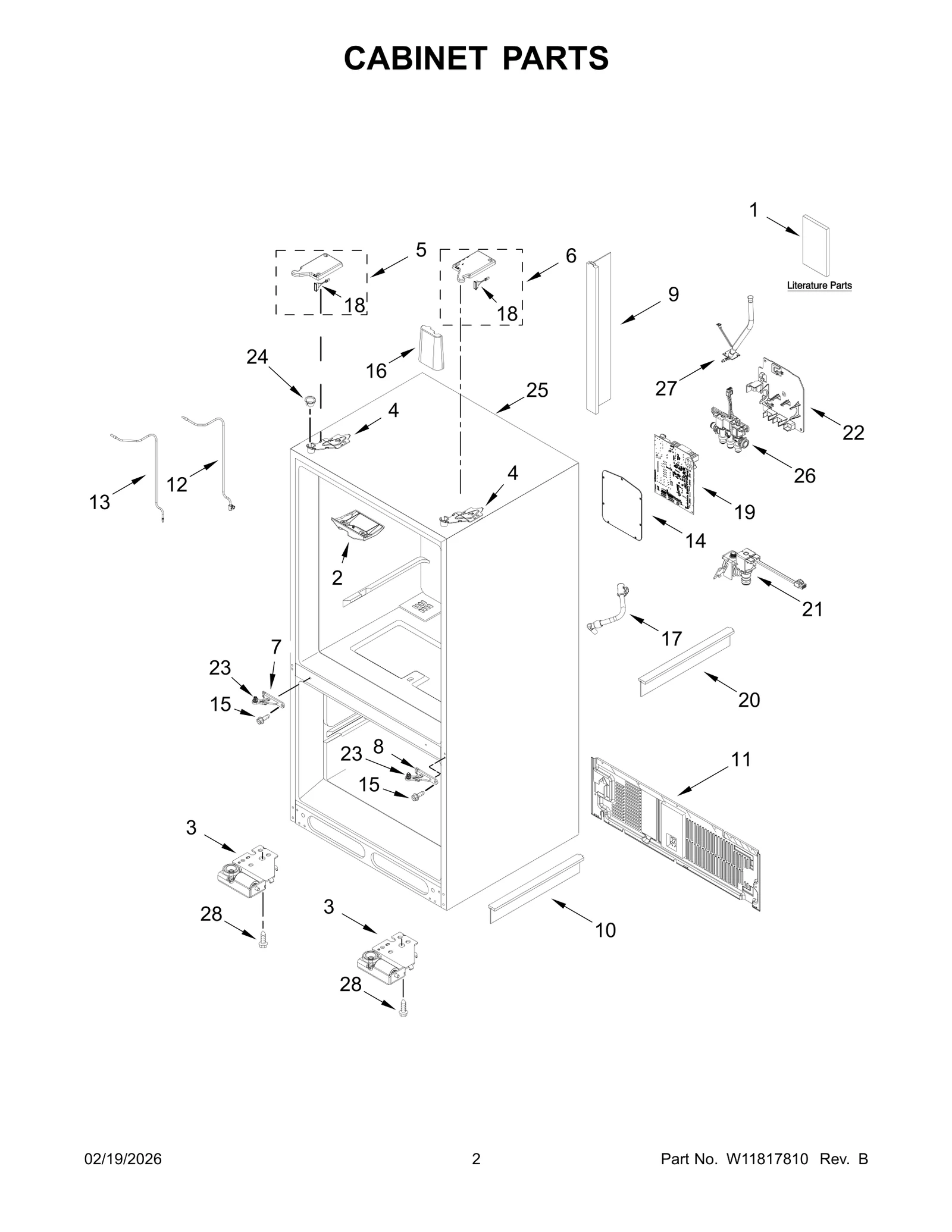

CABINET PARTS
REFRIGERATOR LINER PARTS
FREEZER LINER PARTS
REFRIGERATOR DOOR PARTS
FREEZER DOOR PARTS
UNIT PARTS
SHELF PARTS
DISPENSER FRONT PARTS
ICEMAKER AND ICE CONTAINER PARTS
OPTIONAL PARTS
Common parts from model Whirlpool WRFC7036RZ00 Refrigerator
1
Housing, Dispenser WPL N/S Contact Us For Availability
1
Water Reservoir WPL W11556227 Contact Us For Availability
1
Left Door Assembly WPL W11672037 Contact Us For Availability
1
Freezer Door Assembly (Stainless) WPL W11679880 Contact Us For Availability
1
Compressor Baseplate WPL W11543386 Contact Us For Availability
1
Shelf Assembly, Stationary WPL W11611160 Contact Us For Availability
1
Ice Maker Air Duct Assembly WPL W11644790 Contact Us For Availability
2
Screw WPL W10142287 Contact Us For Availability
2
Filter Housing Assembly WPL W11611400 Contact Us For Availability
2
Evaporator Assembly WPL W11646272 Contact Us For Availability
2
Right Door Assembly WPL W11672796 Contact Us For Availability
2
UI Assembly WPL W11559100 Contact Us For Availability
2
Pantry Crisper Assembly WPL W11753408 Contact Us For Availability
2
Ice Chute Assembly WPL W11603209 Contact Us For Availability
3
Tower Cover WPL W11589849 Contact Us For Availability
3
Reed Switch Holder WPL W11658592 Contact Us For Availability
3
Ice Door Assembly WPL W11567178 Contact Us For Availability
3
Water Tray WPL W11678106 Contact Us For Availability
3
Glass Crisper Cover WPL W11664743 Contact Us For Availability
3
False Wall WPL W11576742 Contact Us For Availability
4
Evaporator Cover Assembly WPL W11608168 Contact Us For Availability
4
Door Stopper Spring WPL W11681260 Contact Us For Availability
4
Basket Bottom Assembly WPL W11534704 Contact Us For Availability
4
Pan Assembly, Crisper WPL W11606493 Contact Us For Availability
4
Dispenser Water Pad WPL W11595618 Contact Us For Availability
4
Ice Bin Assembly WPL W11620276 Contact Us For Availability
5
Damper Assembly WPL W11509880 Contact Us For Availability
5
Evaporator Wire Assembly WPL W11559733 Contact Us For Availability
5
Mullion Flipper Assembly WPL W11555781 Contact Us For Availability
5
Freezer Door Gasket WPL W11586644 Contact Us For Availability
5
Condenser Assembly WPL W11668494 Contact Us For Availability
5
Pantry Lid Cover WPL W11753454 Contact Us For Availability
5
Dispenser Separator WPL W11579850 Contact Us For Availability
6
Water Filter Housing Plug WPL W11669931 Contact Us For Availability
6
Icebox Fan Assembly WPL W11620573 Contact Us For Availability
6
Door Duct Retainer WPL W11685003 Contact Us For Availability
6
Adapter Clip WPL W11578447 Contact Us For Availability
6
Tube Assembly WPL W11614556 Contact Us For Availability
6
Pan, Storage (Tall) WPL W11606496 Contact Us For Availability
6
Drip Tray (Stainless) WPL W11599250 Contact Us For Availability
6
Dispenser Motor WPL W11722714 Contact Us For Availability
7
Pantry Jumper Assembly WPL W11717382 Contact Us For Availability
7
Wire Jumper Assembly WPL W11627842 Contact Us For Availability
7
Dispenser Water Tube WPL W11576674 Contact Us For Availability
7
Adapter Assembly WPL W11578796 Contact Us For Availability
7
Adapter Assembly WPL W11578810 Contact Us For Availability
7
Compressor WPL W11754926 Contact Us For Availability
7
Pan Divider (Storage) WPL W11606499 Contact Us For Availability
7
Ice Dispenser Pad WPL W11595615 Contact Us For Availability
8
EPS Holder WPL W11733721 Contact Us For Availability
8
Defrost Heater WPL W11560604 Contact Us For Availability
8
Bottom Basket Divider WPL W11727685 Contact Us For Availability
8
Condenser Fan Assembly WPL W11613932 Contact Us For Availability
8
Pantry Cover Adapter WPL W11666149 Contact Us For Availability
8
Pantry Cover Adapter WPL W11666170 Contact Us For Availability
8
Microswitch Tray WPL W11577793 Contact Us For Availability
8
Icemaker Assembly WPL W11621160 Contact Us For Availability
9
Air Return Duct Grille WPL W11608374 Contact Us For Availability
9
Defrost Heater Clip WPL W11365795 Contact Us For Availability
9
Refrigerator Door Gasket (Grey) WPL W11586645 Contact Us For Availability
9
Slider Basket WPL W11632631 Contact Us For Availability
9
Precooler Assembly WPL W11610529 Contact Us For Availability
9
Cover Assembly, Crisper WPL W11675968 Contact Us For Availability
9
Dispenser Tray WPL W11592235 Contact Us For Availability
10
Air Return Grille WPL W11615361 Contact Us For Availability
10
Air Dam (Left Hand) WPL W11563438 Contact Us For Availability
10
Air Dam (Right Hand) WPL W11563437 Contact Us For Availability
10
Bin, Gallon WPL W11579028 Contact Us For Availability
10
Shaft Rack Assembly WPL W11611561 Contact Us For Availability
10
EMI Filter WPL W11670949 Contact Us For Availability
10
Shelf Ladder (Right Hand) WPL W11611177 Contact Us For Availability
10
Paddle Wire Assembly WPL W11577046 Contact Us For Availability
11
Torsion Spring WPL W10672578 Contact Us For Availability
11
Wire Jumper Assembly WPL W11669736 Contact Us For Availability
11
Reed Switch WPL W11548358 Contact Us For Availability
11
Bin, Bottom (Right Hand) WPL W11579044 Contact Us For Availability
11
Top Basket Assembly WPL W11629546 Contact Us For Availability
11
Drain Tube Extension WPL W11559668 Contact Us For Availability
11
Shelf Ladder (Left Hand) WPL W11611176 Contact Us For Availability
12
False Wall WPL W11608354 Contact Us For Availability
12
Heat Shield Assembly WPL W11520308 Contact Us For Availability
12
Bin, Dispenser (Left Hand) WPL W11579041 Contact Us For Availability
12
Shelf Ladder (Center) WPL W11611181 Contact Us For Availability
13
LED Light Module WPL W11598835 Contact Us For Availability
13
Bin, Bottom (Left Hand) WPL W11579046 Contact Us For Availability
13
Crisper Roller Assembly WPL W11606482 Contact Us For Availability
13
Foam Gasket WPL W11745627 Contact Us For Availability
14
Dispenser Seal WPL W11728424 Contact Us For Availability
14
Bin, Trivet (Ice Door) WPL W11579655 Contact Us For Availability
14
Ice Bucket WPL W11611610 Contact Us For Availability
14
Front Shroud WPL W11613272 Contact Us For Availability
14
Side Support Knob WPL W11607351 Contact Us For Availability
14
Bracket Assembly WPL W11578036 Contact Us For Availability
15
Tube, Water WPL W11576708 Contact Us For Availability
15
Door Supply Duct Assembly WPL W11740632 Contact Us For Availability
15
Icemaker Assembly WPL W11608631 Contact Us For Availability
15
Inverter Connector Cover WPL W11682571 Contact Us For Availability
15
Pantry Adapter Assembly (Left Hand) WPL W11753417 Contact Us For Availability
15
Sound Insulation WPL W11743056 Contact Us For Availability
16
Port Lid Assembly WPL W11724694 Contact Us For Availability
16
Return Duct Assembly WPL W11740633 Contact Us For Availability
16
Pan Support WPL W11612780 Contact Us For Availability
16
Baseplate Gasket WPL W11642492 Contact Us For Availability
16
Pantry Adapter Assembly (Right Hand) WPL W11753418 Contact Us For Availability
17
Lower False Wall WPL W11608360 Contact Us For Availability
17
Pan Support WPL W11604038 Contact Us For Availability
17
Roller Cover WPL W11613273 Contact Us For Availability
17
Pantry Base (Includes Thermistor Assembly) WPL W11724879 Contact Us For Availability
18
Water Filter Housing Cover (Lower) WPL W11611401 Contact Us For Availability
18
Screw WPL W11113841 Contact Us For Availability
18
Wire Assembly WPL W11595064 Contact Us For Availability
18
Center Support Assembly WPL W11606478 Contact Us For Availability
19
Screw WPL W10141645 Contact Us For Availability
19
Rear Shroud WPL W11611636 Contact Us For Availability
19
Crisper Adapter (Left Hand) WPL W11606483 Contact Us For Availability
20
Air Bottom Separator WPL W11676389 Contact Us For Availability
20
Retainer Plug WPL W11719970 Contact Us For Availability
20
Clip WPL 2223913 Contact Us For Availability
20
Crisper Adapter (Right Hand) WPL W11606485 Contact Us For Availability
21
Single Water Valve WPL W11454773 Contact Us For Availability
21
Retainer Bracket WPL W11684787 Contact Us For Availability
21
Inverter Box Assembly WPL W11754928 Contact Us For Availability
21
Falls Wall WPL W11606492 Contact Us For Availability
22
Triple Valve Bracket WPL W11541794 Contact Us For Availability
22
Supply Gasket WPL W11611713 Contact Us For Availability
22
Side Support Flange WPL W10840918 Contact Us For Availability
23
Door Coupler WPL W10505294 Contact Us For Availability
23
Shelf, Prep and Store Bins WPL W11699006 Contact Us For Availability
23
Shelf Assembly, Tuck WPL W11677370 Contact Us For Availability
24
Bins, Prep and Store WPL W11675428 Contact Us For Availability
25
Reed Switch WPL W11553901 Contact Us For Availability
26
Water Valve, Triple WPL W11454786 Contact Us For Availability
27
Fill Tube Assembly WPL W11607255 Contact Us For Availability
× ![]()
