LG WM2497HWM DRUM(DD) WM Parts List

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $35.99

View on Model

A104

SHIPPING BOLT ASSEMBLY LGE 4011FR3159E Contact Us For Availability

View on Model

A105

SHIPPING BOLT ASSEMBLY LGE 4011FR3159D Contact Us For Availability

View on Model

A111

4810ER3021A LG Washer Hinge Bracket Backorder LGE 4810ER3021A $6.61

View on Model

A130

Cover,Cabinet LGE 3550ER0045A Contact Us For Availability

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 $6.61

View on Model

A133

2W20017E LG Washer Clamp Assembly - Front Boo In Stock LGE 2W20017E $11.59

View on Model

A140

HINGE ASSEMBLY LGE 4775ER2002A Contact Us For Availability

View on Model

A141

AEJ33026401 LG Holder Assembly In Stock LGE AEJ33026401 $6.61

View on Model

A152

3212ER1016A LG Washer Front Load Door Inner F Backorder LGE 3212ER1016A $10.54

View on Model

A155

3650FA3488M LG Handle Backorder LGE 3650FA3488M $6.61

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $5.81

View on Model

A410

6601ER1006E LG Washer Water Level Pressure Se In Stock LGE 6601ER1006E $52.74

View on Model

A430

6411ER1006V LG Power Cord Assembly Backorder LGE 6411ER1006V $57.28

View on Model

A440

EBF49827801 LG Washer Door Lock and Switch As In Stock LGE EBF49827801 $62.84

View on Model

A455

3550ER1032A LG Protective Cover Backorder LGE 3550ER1032A $28.05

View on Model

F140

6877ER1016F LG Washer Drive Motor Wire Harnes In Stock LGE 6877ER1016F $40.38

View on Model

F145

6877ER3003B LG Harness Assembly Backorder LGE 6877ER3003B $21.74

View on Model

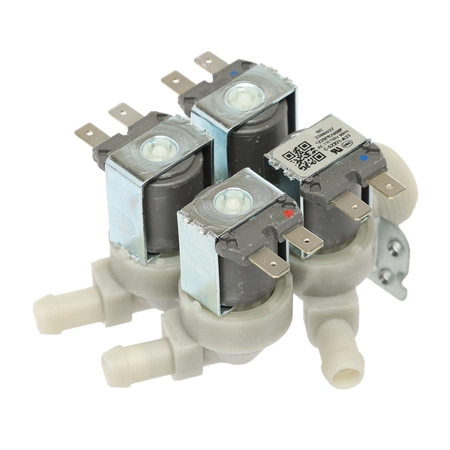

F160

5220FR2008F LG Washer Water Inlet Valve In Stock LGE 5220FR2008F $119.59

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H $20.88

View on Model

F215

KNOB ASSEMBLY LGE 4941ER3002A Contact Us For Availability

View on Model

F225

CAP,SOFTENER LGE 5006ER3014B Contact Us For Availability

View on Model

F226

5006ER3022A LG Siphon Cap Backorder LGE 5006ER3022A $15.80

View on Model

F227

3891ER2003A LG Washer Liquid Detergent Box As In Stock LGE 3891ER2003A $13.53

View on Model

F300

4925ER1015B LG Washer Detergent Dispenser Ass In Stock LGE 4925ER1015B $41.33

View on Model

F310

4738ER1004B LG Washer Fill Hose Bellows In Stock LGE 4738ER1004B $27.66

View on Model

F315

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A $30.86

View on Model

F321

5214ER4001R LG Hose Inlet Backorder LGE 5214ER4001R $21.74

View on Model

F322

5214ER4001J LG Washer Inlet Dispenser Hose In Stock LGE 5214ER4001J $21.74

View on Model

F323

HOSE,INLET LGE 5214ER4002F Contact Us For Availability

View on Model

F327

5214FR4006F LG Hose Connector Backorder LGE 5214FR4006F $28.05

View on Model

F328

5214FR4006R LG Hose Connector Backorder LGE 5214FR4006R $28.05

View on Model

F430

5215ER2002G LG Washer Water Drain Hose In Stock LGE 5215ER2002G $23.70

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.61

View on Model

F435

HOSE,DRAIN LGE 5214FD3663E Contact Us For Availability

View on Model

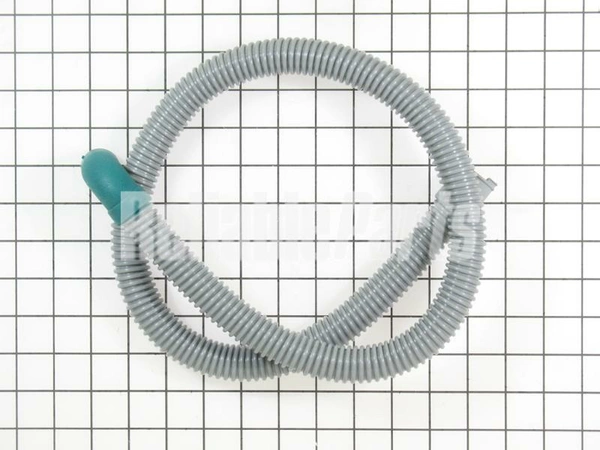

F440

5214FR3188K LG Washer Drain Pump Water Hose Backorder LGE 5214FR3188K $28.05

View on Model

F441

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.61

View on Model

F466

4861FR3068M LG Clamp Backorder LGE 4861FR3068M $6.61

View on Model

F467

4860FR3092C LG Clamp Backorder LGE 4860FR3092C $10.54

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $10.54

View on Model

K105

AJQ73413811 LG Outer Tub Assembly In Stock LGE AJQ73413811 $320.84

View on Model

K110

3045ER1017L LG Washer Inner Tub Drum Assembly Backorder LGE 3045ER1017L $408.73

View on Model

K111

AFH72909001 LG Washer Lifter Assembly In Stock LGE AFH72909001 $67.56

View on Model

K115

4434ER0002D LG Washer Rear Spider Drum Suppor Backorder LGE 4434ER0002D $145.55

View on Model

K121

4280FR4048N LG Washer Tub Ball Bearing Set In Stock LGE 4280FR4048N $57.81

View on Model

K123

4040FR4051C LG Washer Bolt Assembly In Stock LGE 4040FR4051C $11.59

View on Model

K125

4036ER2004A LG Washer Spin Bearing Seal Inner In Stock LGE 4036ER2004A $13.53

View on Model

K130

4866ER0007A LG Washer Balance Weight Backorder LGE 4866ER0007A $89.32

View on Model

K131

1SZZER4002A LG Customized Screw In Stock LGE 1SZZER4002A $7.03

View on Model

K135

4866ER0004A LG Washer Balance Counterweight Backorder LGE 4866ER0004A $95.16

View on Model

K141

4036ER4001B LG Washer Tub Gasket Seal In Stock LGE 4036ER4001B $13.53

View on Model

K143

4011FA4353B LG Washer Bolt In Stock LGE 4011FA4353B $7.27

View on Model

K310

6322FR2046C LG Washer Dryer Thermistor In Stock LGE 6322FR2046C $13.53

View on Model

K311

4036FR4050A LG Washer Gasket Seal Backorder LGE 4036FR4050A $6.61

View on Model

K342

5214FR4006G LG Washer Water Clean Out Drain H In Stock LGE 5214FR4006G $7.27

View on Model

K344

3108ER1001A LG Washer Pump Casing Housing Backorder LGE 3108ER1001A $23.91

View on Model

K346

383EER2001A LG Washer Drain Filter and Cap As In Stock LGE 383EER2001A $13.53

View on Model

K350

4417EA1002H LG Washer Stator Assembly In Stock LGE 4417EA1002H $286.95

View on Model

K351

6501KW2002B LG Washer Sensor Assembly In Stock LGE 6501KW2002B $48.45

View on Model

K360

4413ER1003A LG Washer Rotor Assembly In Stock LGE 4413ER1003A $174.53

View on Model

K410

4970FR2084P LG Washer Door Hinge Spring In Stock LGE 4970FR2084P $30.86

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $7.27

View on Model

K510

4986ER0004G LG Washer Door Boot Gasket Seal w In Stock LGE 4986ER0004G $94.57

View on Model

K512

4932ER3007A LG Washer Nozzle Connector Backorder LGE 4932ER3007A $6.61

View on Model

K513

6913ER4001A LG Lamp Assembly Backorder LGE 6913ER4001A $78.30

View on Model

K520

4738ER1002A LG Washer Drain Hose Bellows In Stock LGE 4738ER1002A $41.85

View on Model

K530

4861ER2001D LG Washer Boot Spring Clamp Assem In Stock LGE 4861ER2001D $15.80

View on Model

K540

3504ER3002A LG Washer Pressure Switch Air Cha Backorder LGE 3504ER3002A $11.59

View on Model

K550

5214FR4125N LG Inlet Hose Backorder LGE 5214FR4125N $21.74

View on Model

K570

5214FR4058Y LG Washer Tub to Pump Hose In Stock LGE 5214FR4058Y $11.59

View on Model

K571

4932ER4007B LG Washer Drain Pump Hose Connect In Stock LGE 4932ER4007B $6.61

View on Model

K572

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.61

View on Model

K610

383EER3001J LG Washer Shock Absorber Damper A In Stock LGE 383EER3001J $27.66

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $10.54

View on Model

M400

CASE ASSEMBLY LGE 3111ER1001D Contact Us For Availability

View on Model
