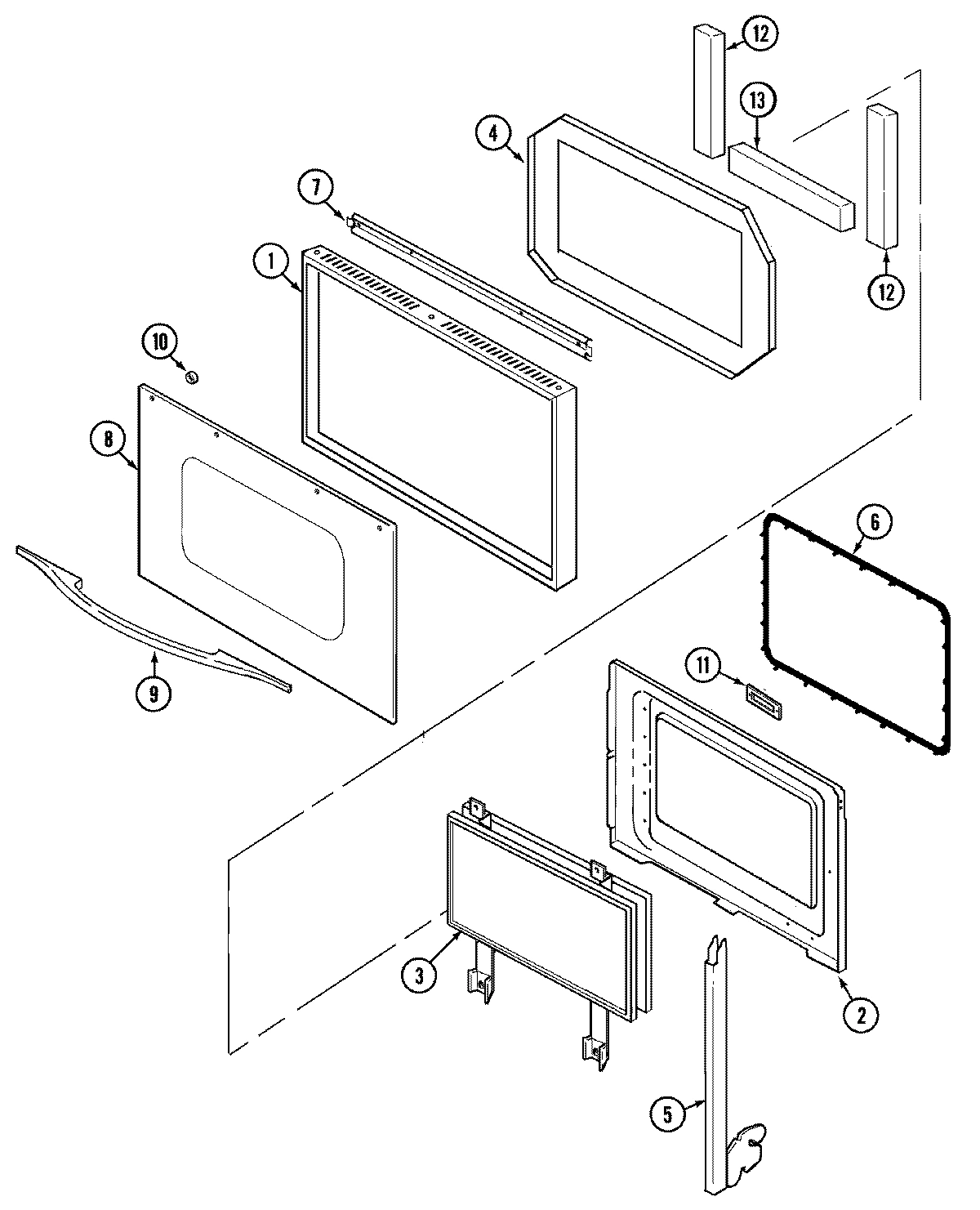

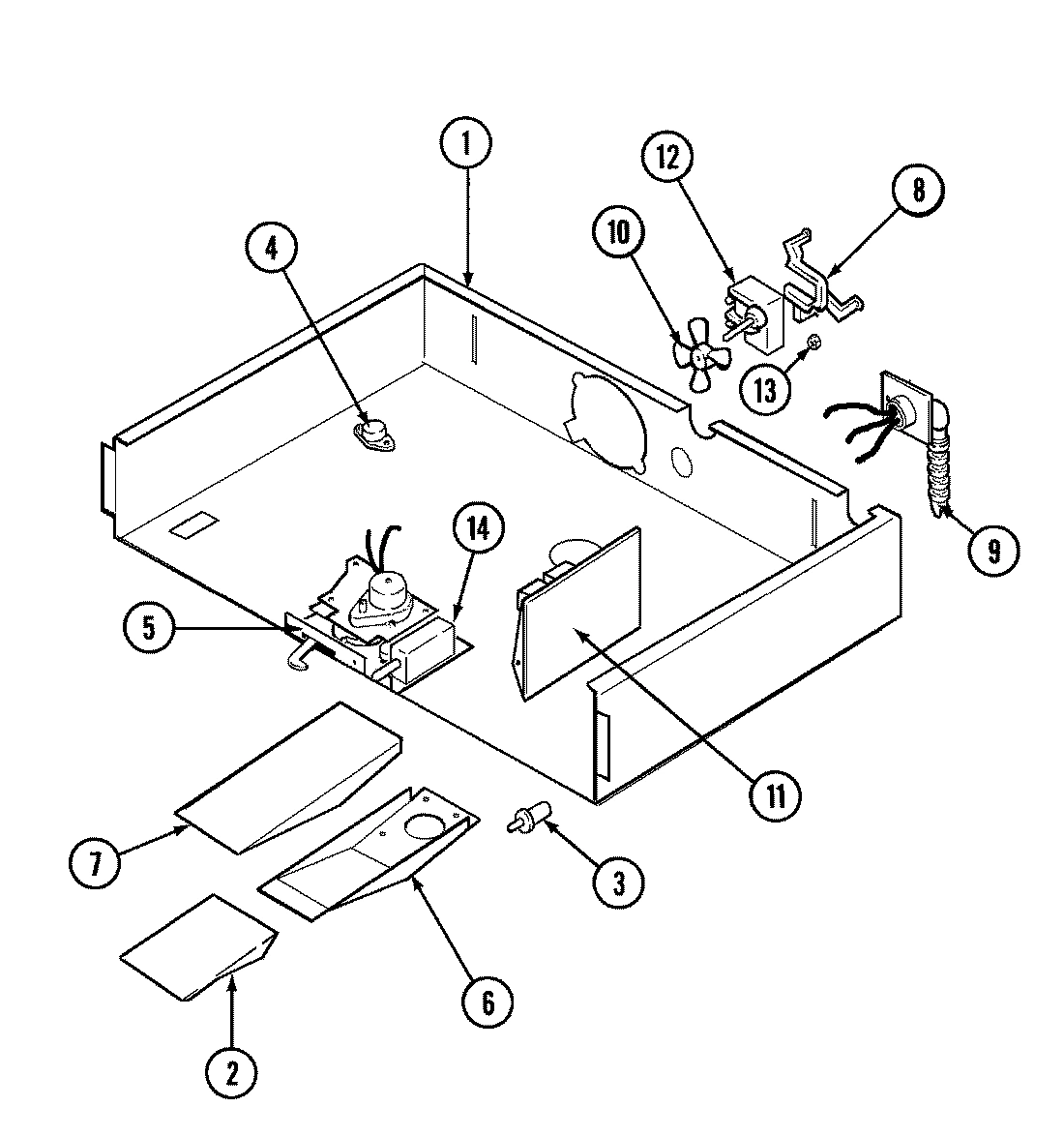

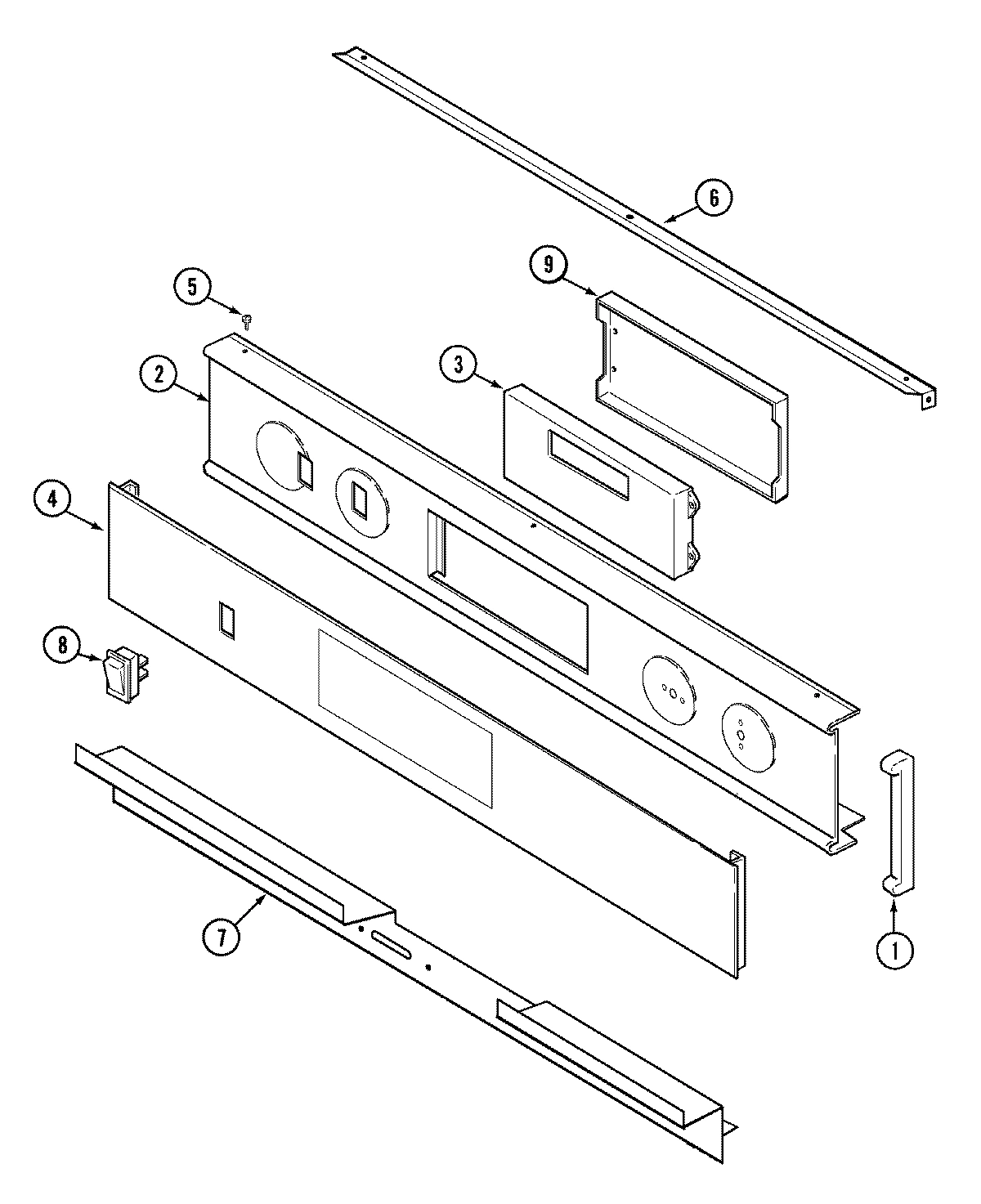

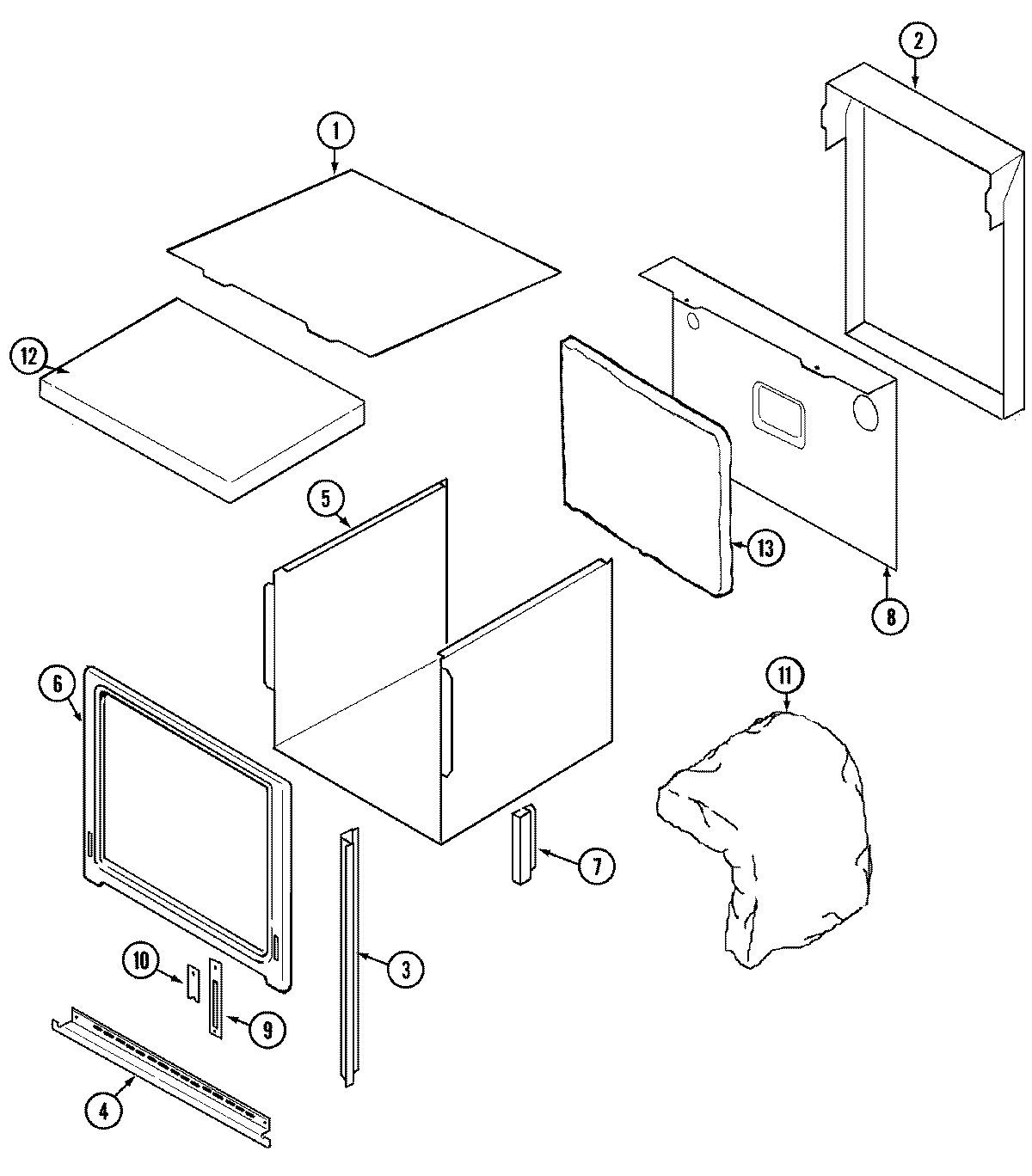

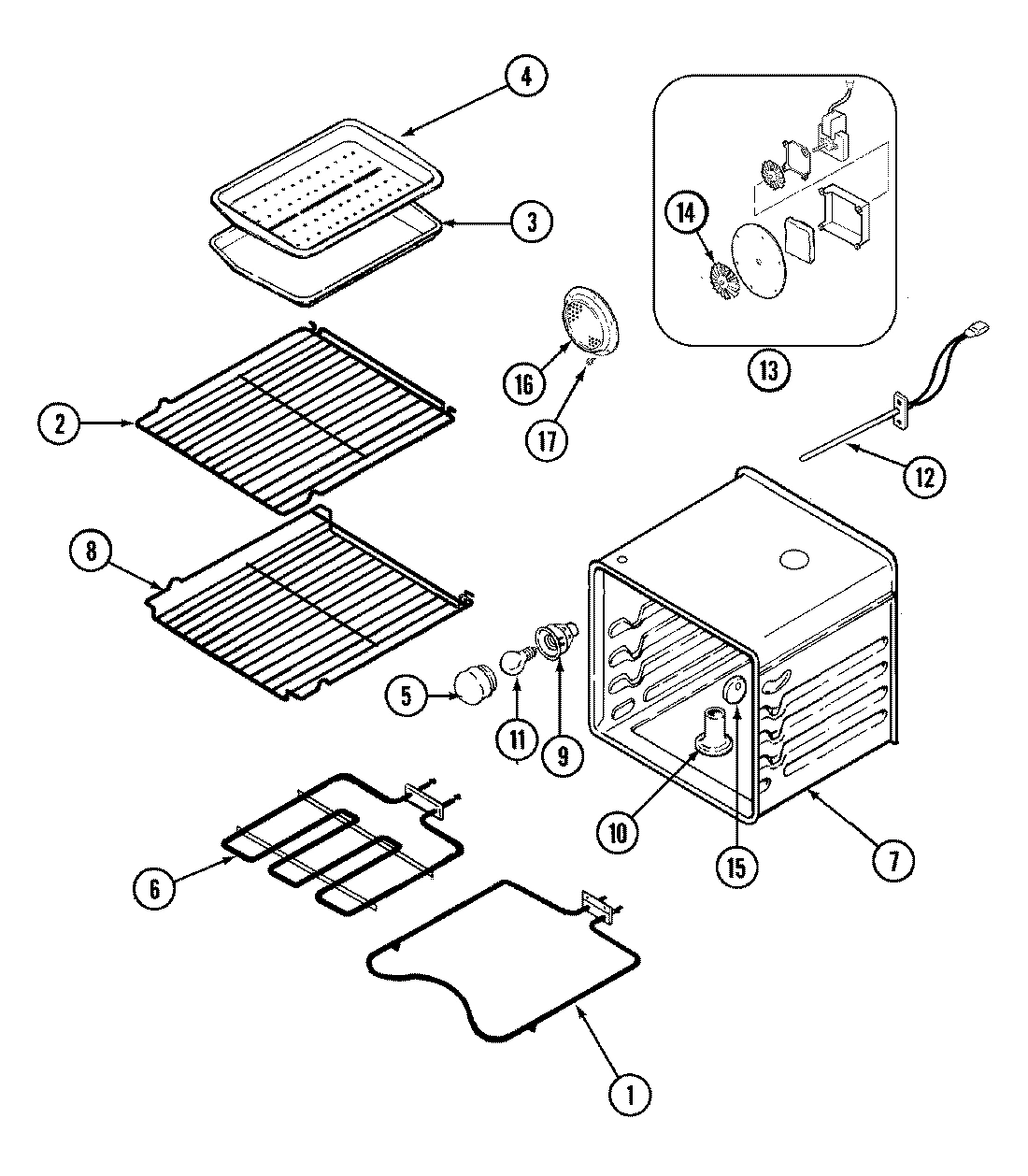

Model Whirlpool W27200B ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

1

FRAME, DOOR (BLK) WPL 71001964 Contact Us For Availability

1

PANEL, INNER TOP (OVEN) WPL 71001976 Contact Us For Availability

1

TOP (OUTER) WPL 71001950 Contact Us For Availability

1

END CAP, PANEL (BLK) WPL 71001794 Contact Us For Availability

2

RACK, OVEN WPL Y704660 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71001966 Contact Us For Availability

2

LINER, OVEN DOOR WPL 71002968 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

PANEL, CONTROL (BLK) WPL 71002121 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

WP7902P444-60 Whirlpool Door Glass Backorder WPL WP7902P444-60 $113.25

3

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

TRIM, SIDE (LT/BLK) WPL 71001951 Contact Us For Availability

3

TRIM, SIDE (RT/BLK) WPL 71001952 Contact Us For Availability

3

CLOCK WPL 71002215 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

RETAINER, INSULATION WPL 71001968 Contact Us For Availability

4

TRIM, OVEN (LWR-BLK) WPL 71001956 Contact Us For Availability

4

SWITCH, MEMBRANE (BLK) WPL 71002228 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

5

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

PANEL (SIDE-BTM-SIDE) WPL 71001957 Contact Us For Availability

6

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

FRAME, OVEN WPL 71001958 Contact Us For Availability

6

FRAME, OVEN WPL 71003185 Contact Us For Availability

6

SUPPORT, CONTROL PANEL WPL 71001945 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

GUSSET WPL 71001971 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71001978 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003006 Contact Us For Availability

8

7403P067-60 Whirlpool Light Switch Backorder WPL 7403P067-60 $70.94

8

GLASS, DOOR (BLK) WPL 71001972 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

BACK, MAIN (INNER) WPL 71001959 Contact Us For Availability

8

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

9

HANDLE, DOOR (BLK) WPL 71001974 Contact Us For Availability

9

WIRE CABLE ASSY. (CONDUIT) WPL 71002177 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

BRACKET, CLOCK WPL 71002139 Contact Us For Availability

9

INSULATOR WPL Y705143 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

BLADE, FAN WPL 71001852 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

HARNESS, RELAY BOARD WPL 71002130 Contact Us For Availability

TUBE, VENT WPL 71001864 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

PLATE, LATCH WPL 71001831 Contact Us For Availability

BOARD, RELAY (LWR) WPL 71002144 Contact Us For Availability

INSULATION (WRAP) WPL 71001960 Contact Us For Availability

MANUAL, USE & CARE WPL 71002216 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

INSULATION (BTM) WPL 71001963 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

INSULATION (BACK) WPL 71001962 Contact Us For Availability

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

14

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

14

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

15

BUTTON, PLUG WPL 702929 Contact Us For Availability

16

PLATE, CONVECTION (FRT) WPL 71001947 Contact Us For Availability

17

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

NI

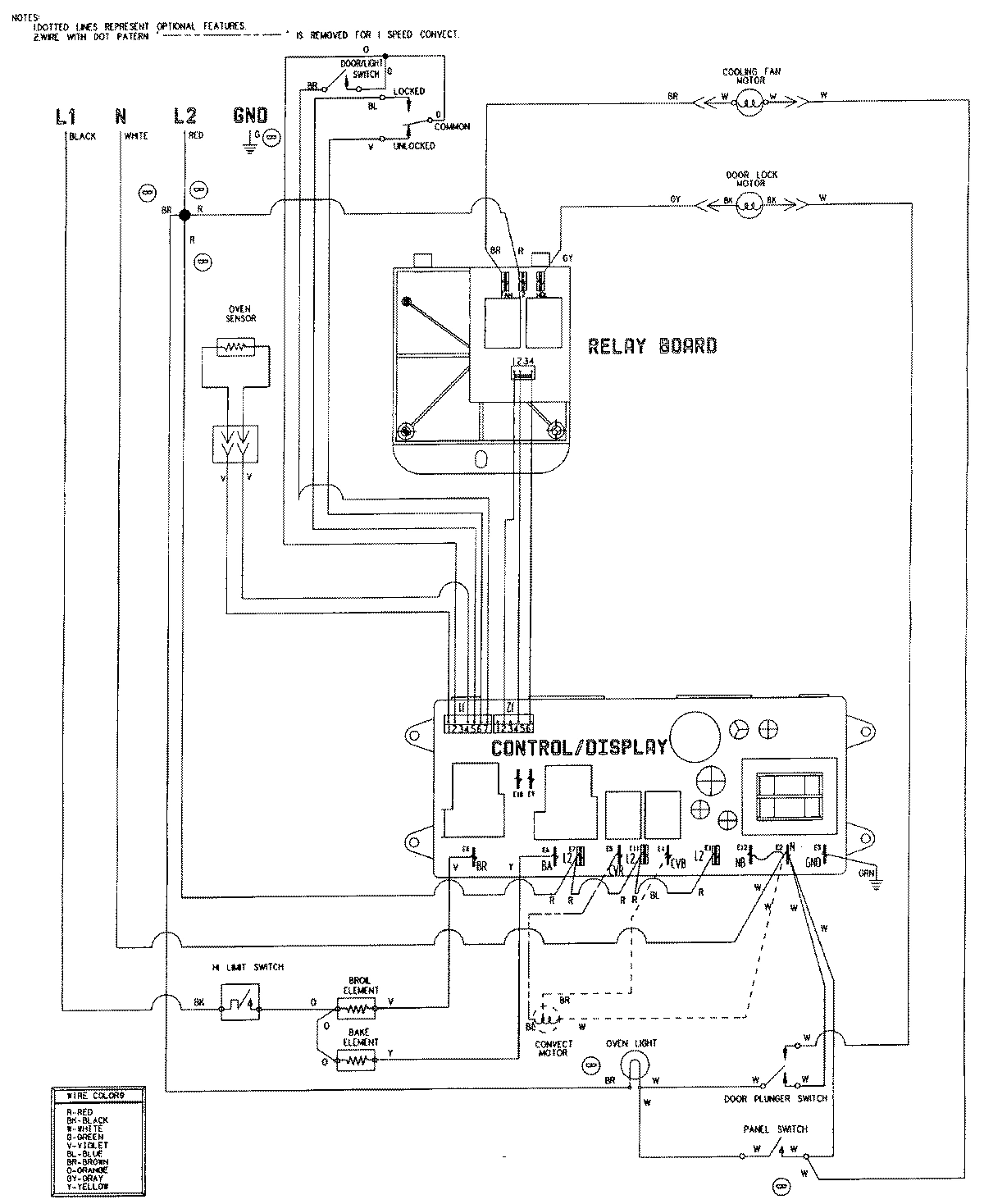

WIRING INFORMATION WPL 15001755 Contact Us For Availability
