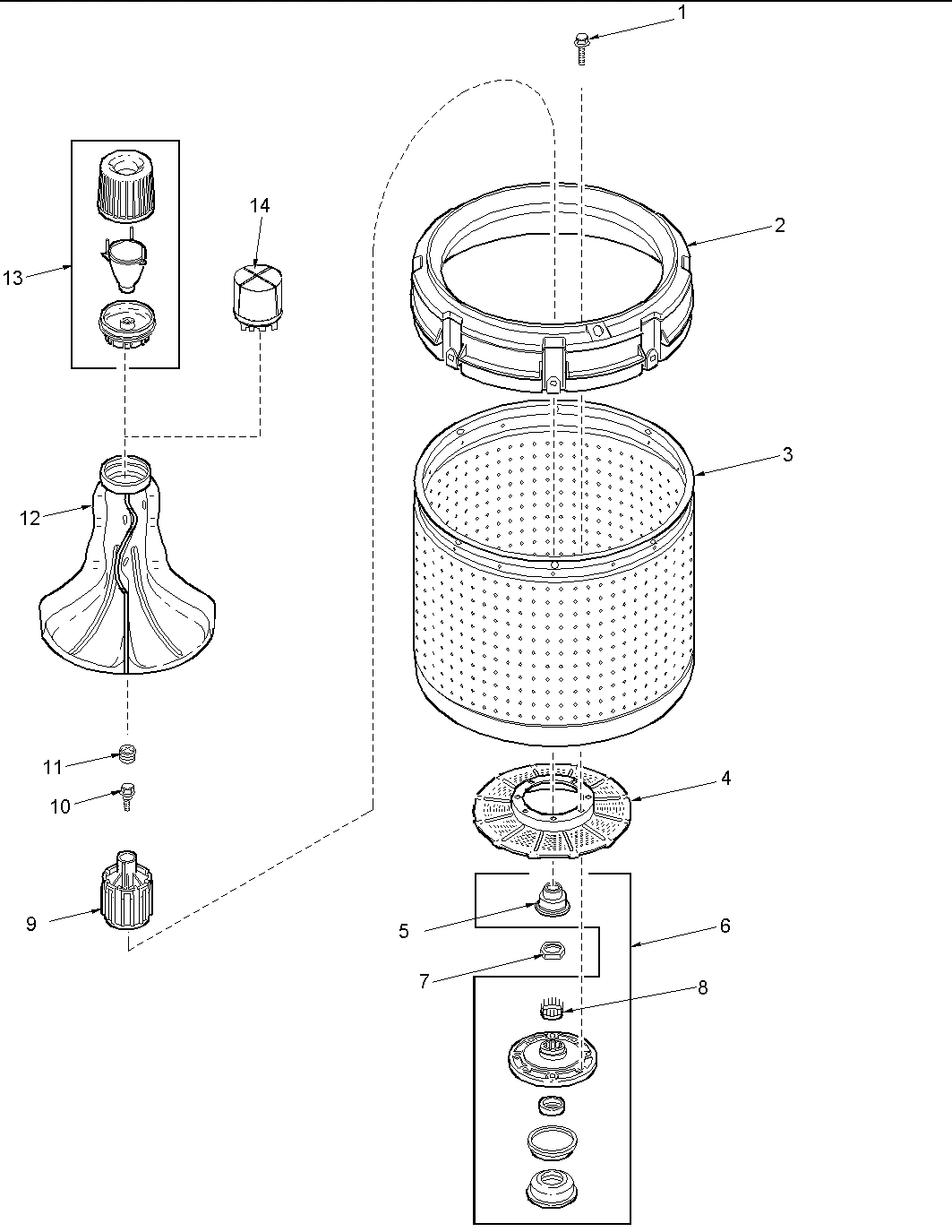

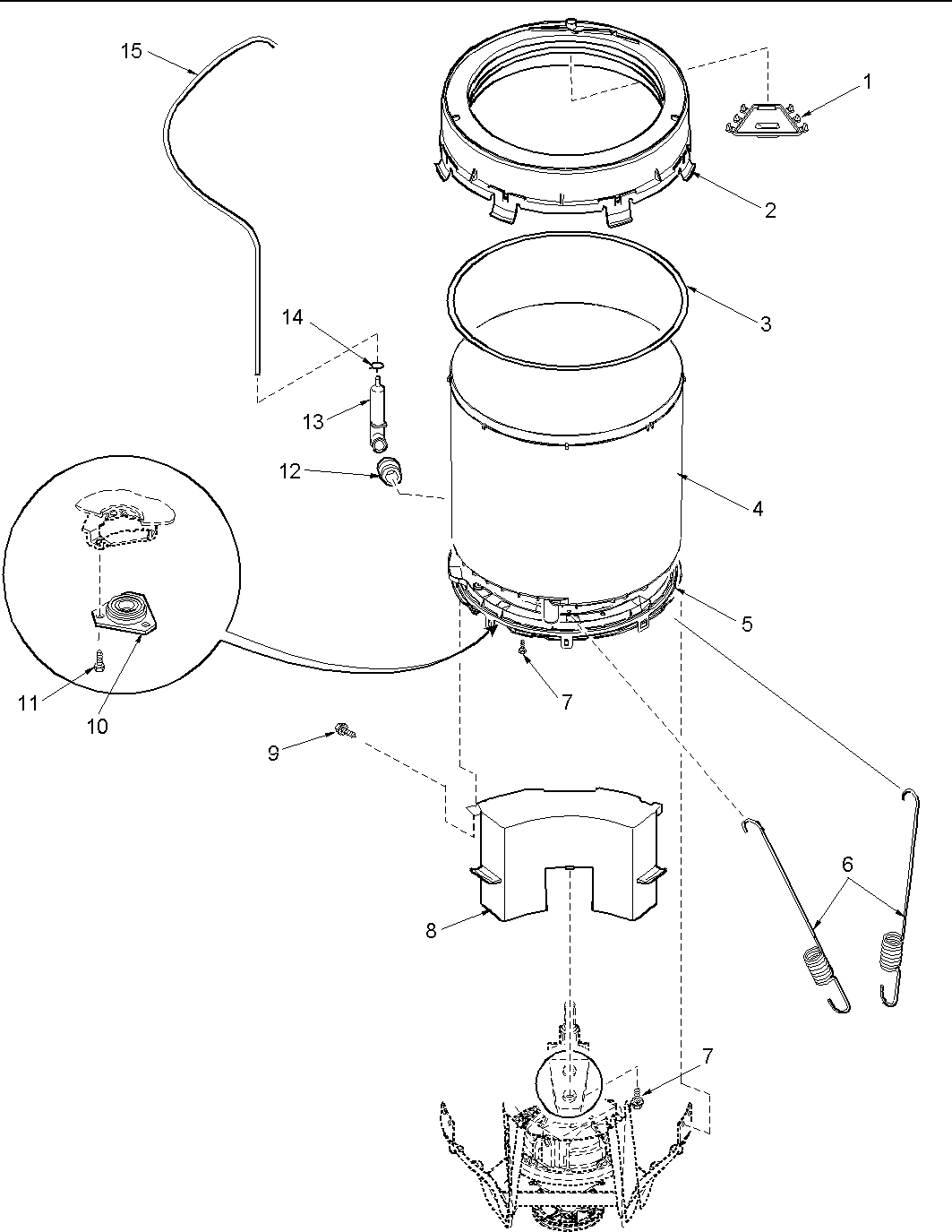

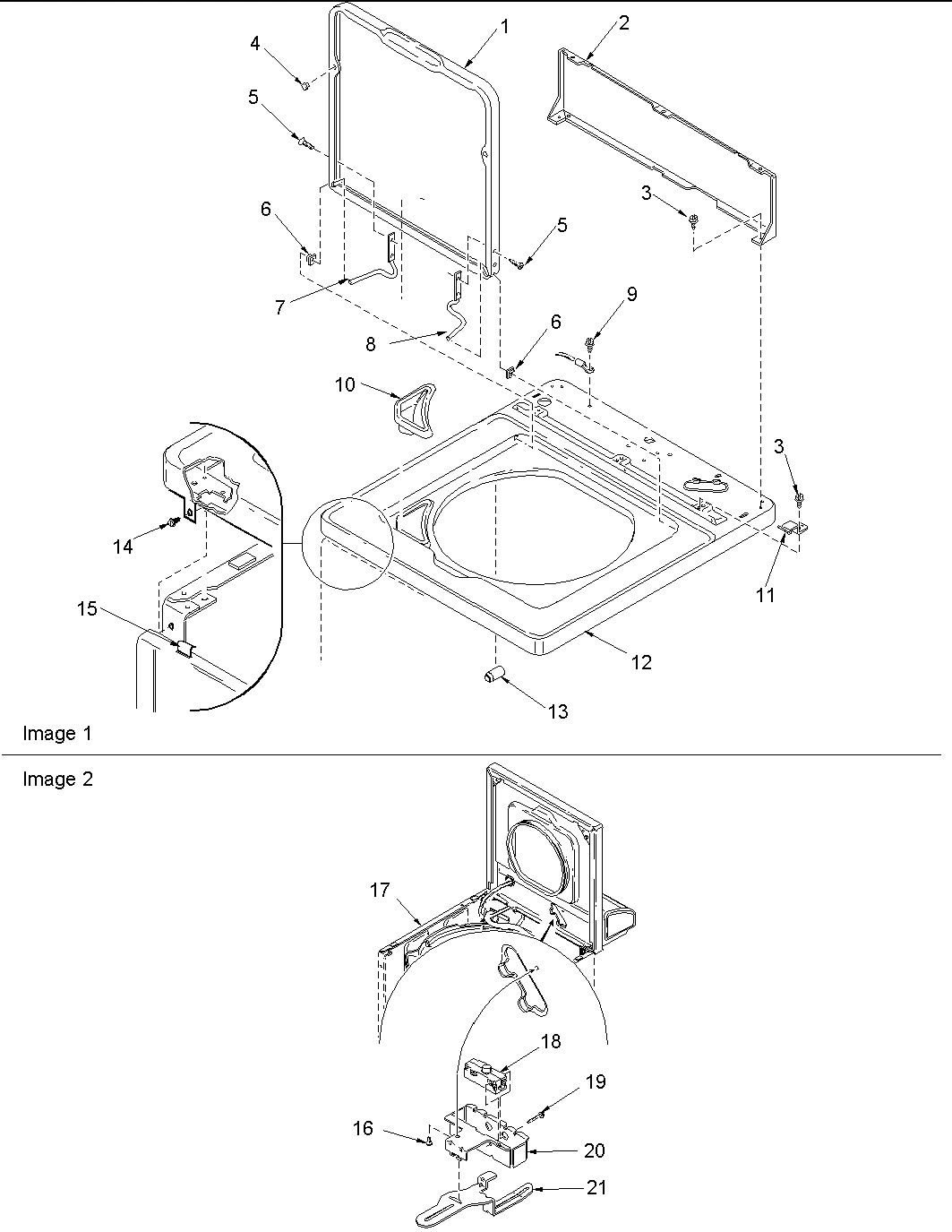

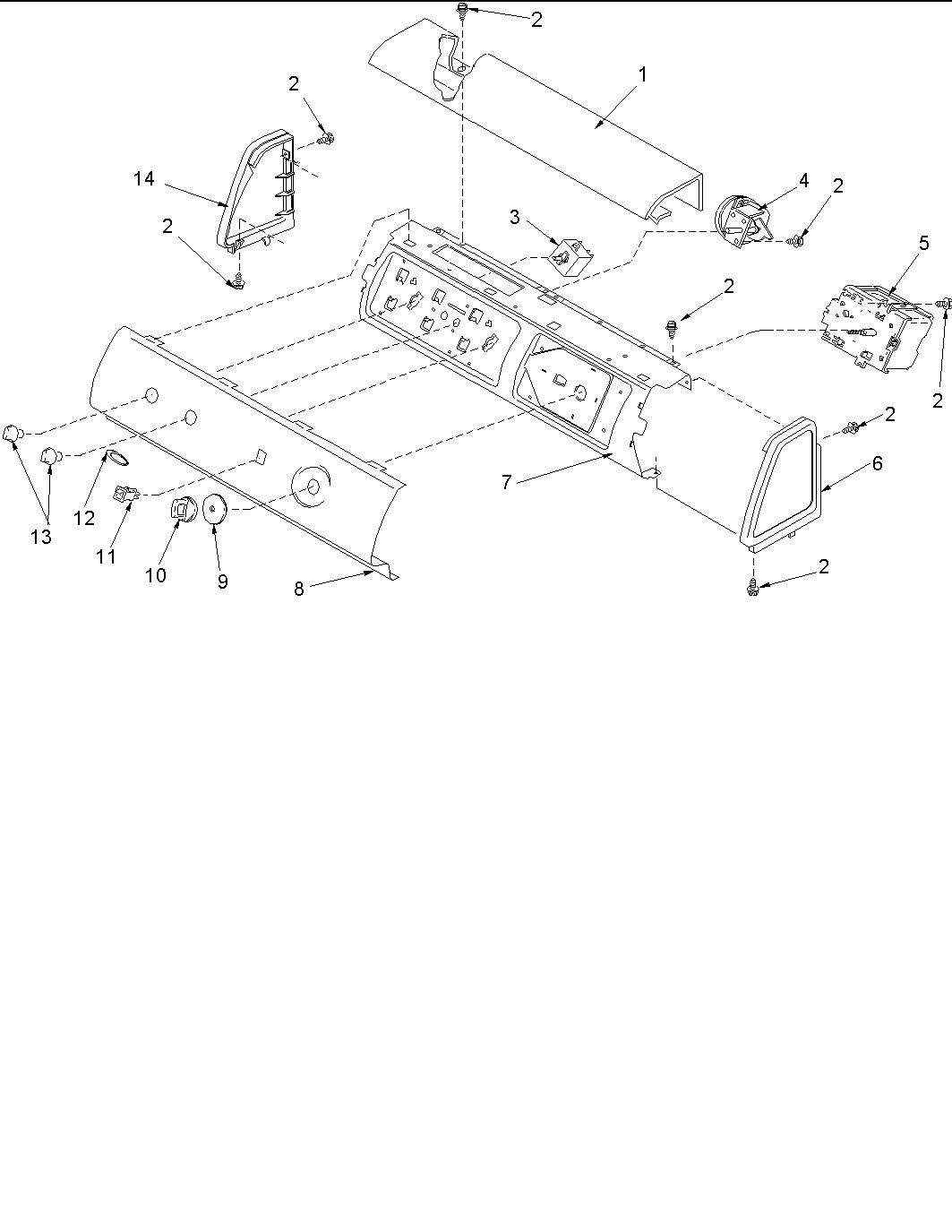

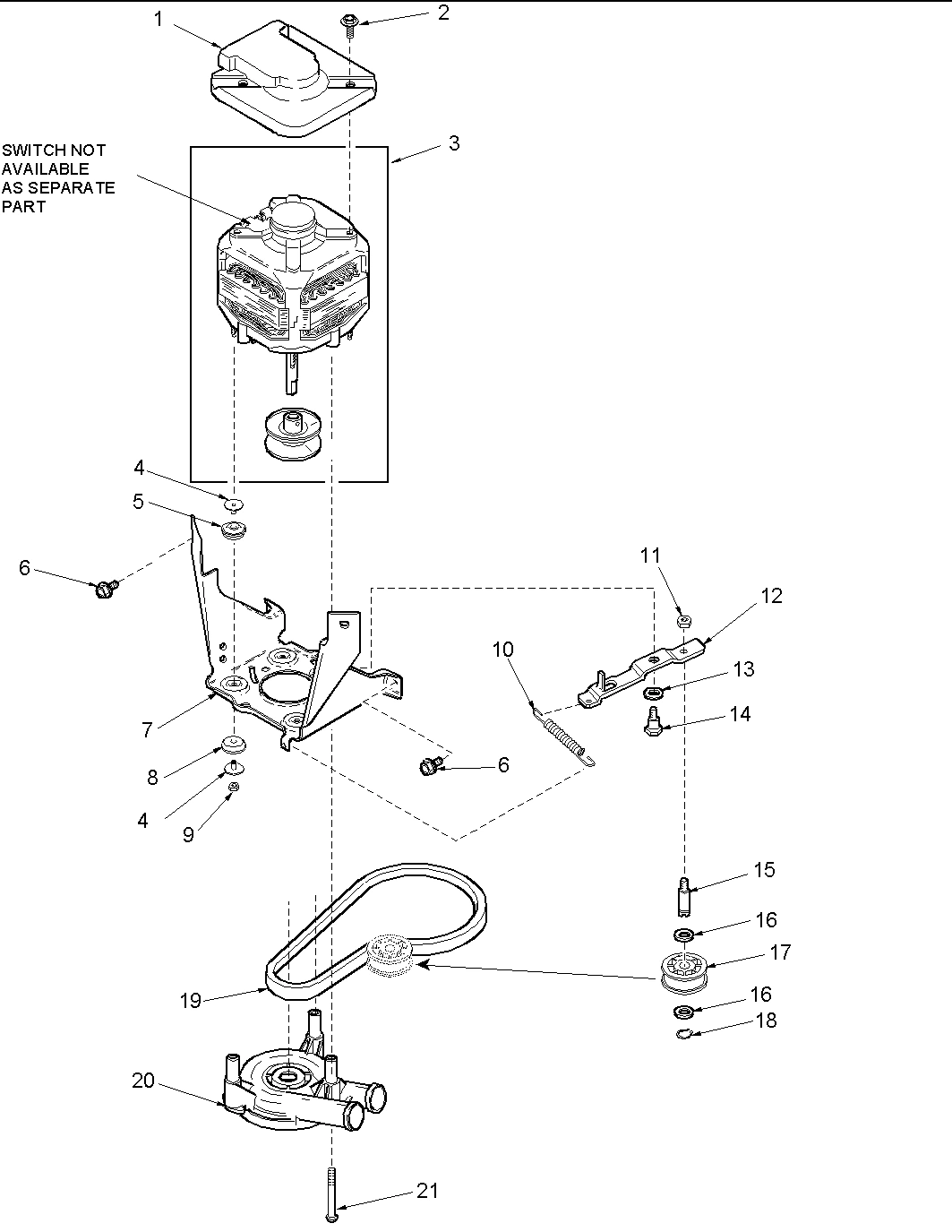

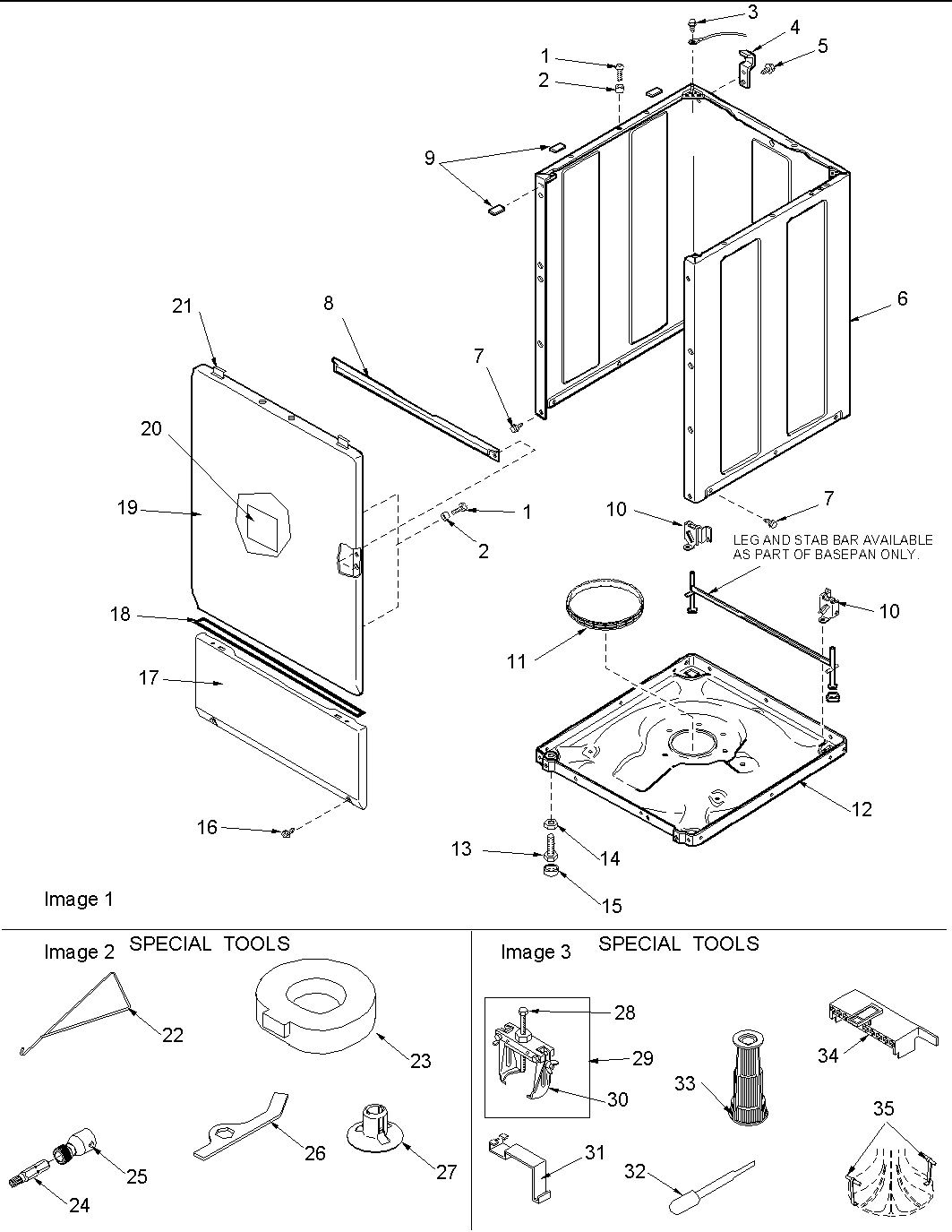

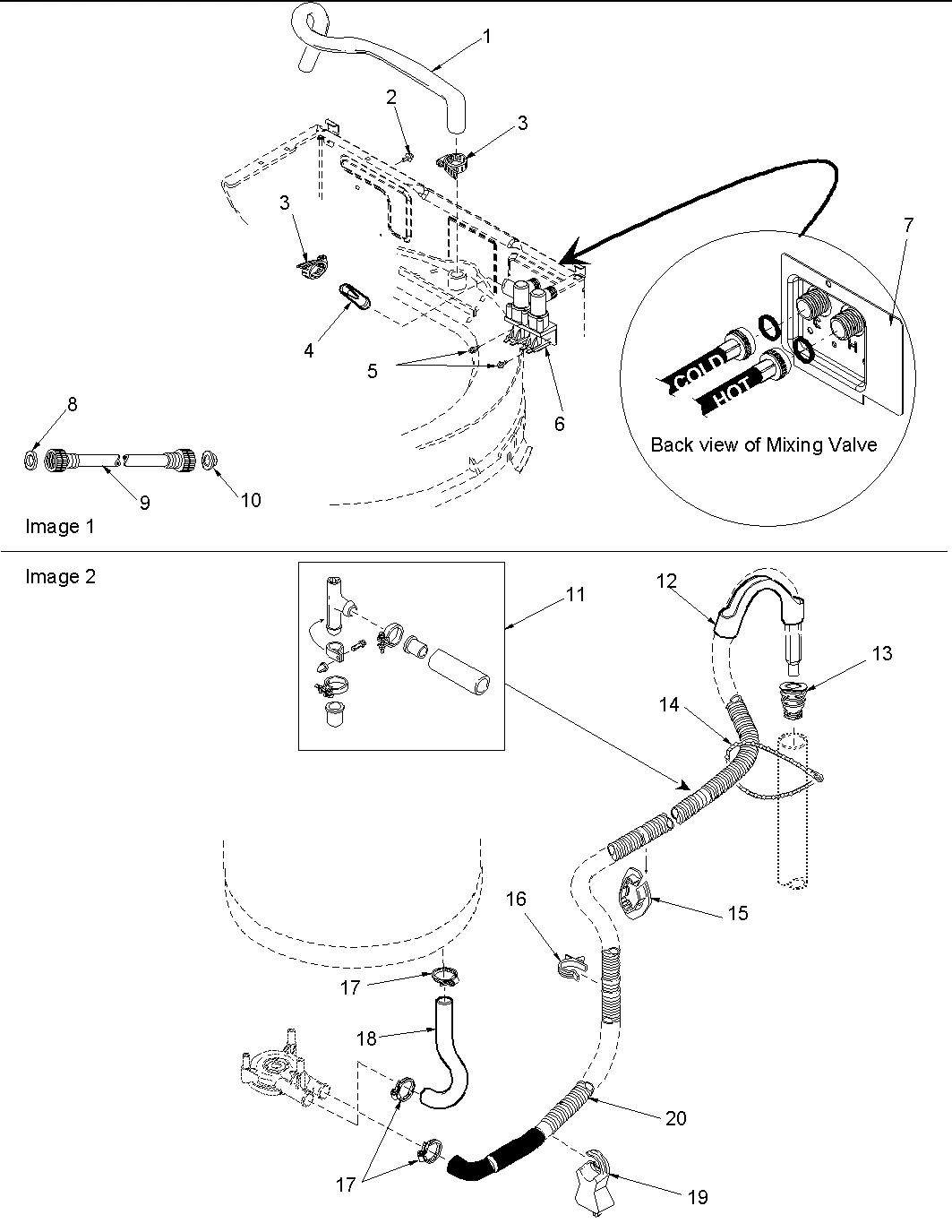

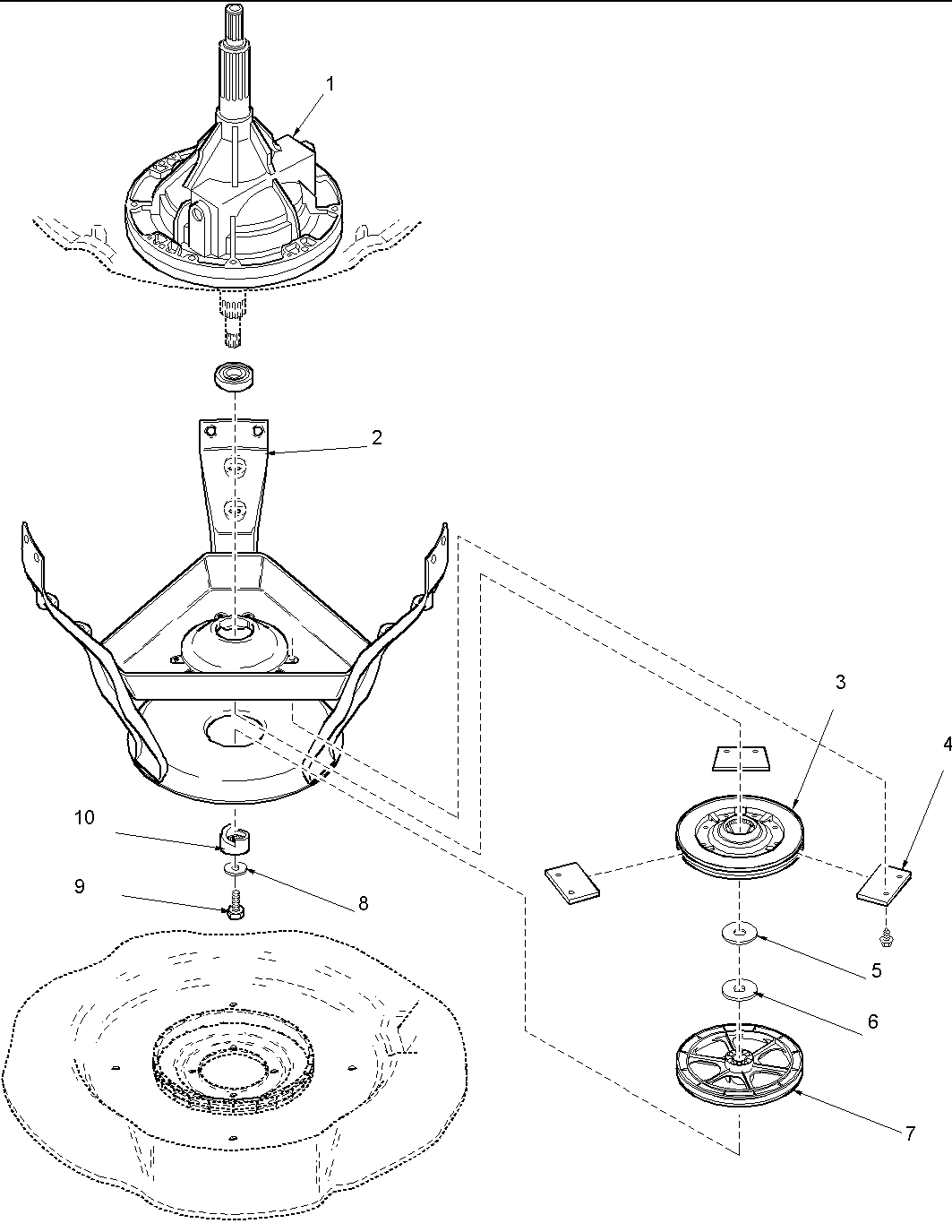

Model Whirlpool SLW330RAW WASHER – Common Parts &amp; Diagrams

1

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

1

HOSE, MIXING VALVE TO TUB WPL 40098901 Contact Us For Availability

1

CHANNEL, WATER INLET WPL 40001901 Contact Us For Availability

1

COVER, TOP (WHT) WPL 503674W Contact Us For Availability

1

SHIELD, MOTOR WPL 40112301 Contact Us For Availability

1

ASSEMBLY, TRANSMISSION (640) WPL 40065301 Contact Us For Availability

2

WP4312464 Whirlpool Refrigerator Screw Backorder WPL WP4312464 $4.82

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

2

ASSEMBLY, BALANCE RING WPL 40002901 Contact Us For Availability

2

COVER, OUTER TUB WPL 40111101 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

2

ASSEMBLY, MILK STOOL WPL 40070002 Contact Us For Availability

3

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

ASSEMBLY, WASH TUB WPL 40000802P Contact Us For Availability

3

GASKET, TUB COVER WPL 40076601 Contact Us For Availability

3

SWITCH, TEMPERATURE SELECT WPL 40077101 Contact Us For Availability

3

ASSY,MOTOR 120V/60HZ WPL 40095001 Contact Us For Availability

3

BRAKE ASSEMBLY WPL 40003103 Contact Us For Availability

4

KIT, BRAKE PAD WPL R0000014 No Longer Available

4

HINGE, TOP WPL 500003 Contact Us For Availability

4

PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability

4

FILTER, LINT WPL 40008001 Contact Us For Availability

4

TUB, PLASTIC OUTER WPL 40111001 Contact Us For Availability

4

SWITCH, PRESSURE (3 POS) WPL 40077201 Contact Us For Availability

4

POST, ISOLATOR WPL 40053701 Contact Us For Availability

5

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

5

SEAL, BELL DRIVE WPL 40016101 Contact Us For Availability

5

BOTTOM, OUTER TUB WPL 40001102 Contact Us For Availability

5

TIMER,7 CYCLE(MALLORY) WPL 40058801 Contact Us For Availability

5

MOUNT, MOTOR UPPER WPL 40053801 Contact Us For Availability

5

WASHER, 2 ODX.63 ID WPL 40065701 Contact Us For Availability

6

CABINET, WASHER (WHT) WPL 40076401WP Contact Us For Availability

6

VALVE, MIXING E1 WPL 40097701 Contact Us For Availability

6

KIT, HUB AND SEAL WPL R9900457 Contact Us For Availability

6

SPRING, TALL TUB WPL 40045202 Contact Us For Availability

6

SCREW, 5/6-18 X 1/2 WPL 40105601 Contact Us For Availability

6

ENDCAP (RT-WHT) WPL 40012701W Contact Us For Availability

6

WASHER, FLAT WPL 40063201 Contact Us For Availability

7

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

7

PLATE, MIXING VALUE WPL 40098801 Contact Us For Availability

7

NUT, LOCK WPL 40016301 Contact Us For Availability

7

SCREW, 1/4-15X3/4 HEX WPL 40064301 Contact Us For Availability

7

SUPPORT, CONTROL PANEL WPL 40039601 Contact Us For Availability

7

BRACKET,MOTOR MOUNT WPL 40015501 Contact Us For Availability

7

PULLEY,SPIN 640 RPM WPL 40047201 Contact Us For Availability

8

INSERT, SPLINE WPL WP40008301 No Longer Available

8

HINGE, LID RIGHT PASS WPL 40094101 Contact Us For Availability

8

WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability

8

ASSEMBLY COUNTER WEIGHT WPL 40015901 Contact Us For Availability

8

BRACE, TOP WPL 56486 Contact Us For Availability

8

PANEL,GRAPHIC(WHITE) WPL 40073302W Contact Us For Availability

8

MOUNT, MOTOR LOWER WPL 40054301 Contact Us For Availability

8

WASHER WPL 40041501 Contact Us For Availability

9

W11629055 Whirlpool Fill Hose In Stock WPL W11629055 $25.99

9

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

9

KIT, DRIVE BELL AND SEAL WPL R9900189 Contact Us For Availability

9

SCREW, 1/4-20X7/8 HEX WPL 40070401 Contact Us For Availability

9

PAD, BUMPER WPL Y56128 Contact Us For Availability

9

DIAL, TIMER KNOB (WHT) WPL 40013701W Contact Us For Availability

9

SCREW, 1/4-20X5/8 HEX WPL 40063401 Contact Us For Availability

WP40004201P Whirlpool Main Bearing In Stock WPL WP40004201P $76.02

DISPENSER, BLEACH WPL 40093901 Contact Us For Availability

SCREW, SHOULDER 1/4 WPL 40065102 Contact Us For Availability

BRACKET, SELF LEVELING WPL 40031501 Contact Us For Availability

KNOB, TIMER WPL 40069101W Contact Us For Availability

SPRING, IDLER LEVER WPL 40061401 Contact Us For Availability

HELIX, PLASTIC WPL 40047401 Contact Us For Availability

76660 Whirlpool Syphon Break with Clamps Backorder WPL 76660 $95.17

RING, FRICTION WPL 40037401 Contact Us For Availability

CLIP, HOLD DOWN WPL 40063901 Contact Us For Availability

PLUG, BELL WPL 40008401 Contact Us For Availability

JAMNUT, 3/8-16 WPL 40038801 Contact Us For Availability

PANEL, TOP (WHT) WPL 40000202W Contact Us For Availability

SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability

AGITATOR,FLEX VANE(GRAY) WPL 40000501G Contact Us For Availability

GROMMET WPL 40037801 Contact Us For Availability

ASSY, BASE & LEVEL DOME WPL 40031201P Contact Us For Availability

LEVER, IDLER WPL 40041001 Contact Us For Availability

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $8.94

WP36701W Whirlpool White Knob Backorder WPL WP36701W $36.36

CAP, HINGE WPL 40102101 Contact Us For Availability

ASSY,FABRIC SOFT(GRAY) WPL 40002101G Contact Us For Availability

ASSEMBLY, PRESSURE BULB WPL 40008501 Contact Us For Availability

WASHER WPL 40054701 Contact Us For Availability

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $4.82

STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability

ENDCAP (LT-WHT) WPL 40012702W Contact Us For Availability

SCREW, 1/4-20 WPL 40038901 Contact Us For Availability

15

WP56461 Whirlpool Shaft Backorder WPL WP56461 $62.85

15

RELIEF, STRAIN DRAIN WPL 40058501 Contact Us For Availability

15

FOOT, RUBBER WPL 40016001 Contact Us For Availability

16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

16

CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability

16

SCREW, No.12BX1/2 WPL 40034101 Contact Us For Availability

17

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

17

WP40045001 Whirlpool Idler Pulley In Stock WPL WP40045001 $41.98

17

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

SWITCH, SPST WPL 40035001 Contact Us For Availability

18

TAPE, FOAM WPL 40083101 Contact Us For Availability

WP27001007 Whirlpool Spin Belt In Stock WPL WP27001007 $39.50

SCREW, TAPPING No.6B-20 WPL 40040701 Contact Us For Availability

STAND, HOSE WPL 40044901 Contact Us For Availability

PANEL, FRONT (WHT) WPL 40035401WP Contact Us For Availability

20

WP40053901 Whirlpool Hose Drain In Stock WPL WP40053901 $37.04

20

HOLDER, LID SWITCH WPL 40009801 Contact Us For Availability

20

ASSEMBLY, PUMP COMPLETE WPL 40040301 Contact Us For Availability

21

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

21

ARM, LID SWITCH WPL 40009701 Contact Us For Availability

21

SCREW, 10-16X1.75 WPL 40063701 Contact Us For Availability

22

HOOK, SPRING WPL 289P4 Contact Us For Availability

23

SHIPPING BRACE ASSEMBLY WPL 40068201 Contact Us For Availability

24

T25 TAMPER RESISTANT BIT WPL 282P4 Contact Us For Availability

25

TORX BIT HOLDER WPL 24161 Contact Us For Availability

26

HEX WRENCH WPL 306P4 Contact Us For Availability

27

SHIPPING PLUG WPL 40047301 Contact Us For Availability

28

DRIVE BELL BOLT WPL 294P4B Contact Us For Availability

29

BELL TOOL WPL 294P4 Contact Us For Availability

30

DRIVE BELL ARMS WPL 294P5A Contact Us For Availability

31

TUB COVER GASKET TOOL WPL 273P4 Contact Us For Availability

32

TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability

33

SEAL TOOL WPL 293P4 Contact Us For Availability

34

10 CIRCUIT PLUG WPL 34677 Contact Us For Availability

35

AGITATOR HOOKS WPL 254P4P Contact Us For Availability

WP26594P Whirlpool Grease Filter Backorder WPL WP26594P $58.59

HARNESS, BASE WIRE WPL 40100001 Contact Us For Availability

ASSY,WIRE HARNESS HOOD WPL 40100302 Contact Us For Availability

MOTOR MOUNT UPPER ASSEMBLY WPL 40069401 Contact Us For Availability

MOTOR MOUNT LOWER ASSEMBLY WPL 40069501 Contact Us For Availability
