Model Whirlpool SAE26TC ELECTRIC RANGE – Common Parts &amp; Diagrams

1

HANDLE, OVEN DOOR WPL 68150 Contact Us For Availability

1

BRACKET ASSEMBLY WPL 0091517 Contact Us For Availability

1

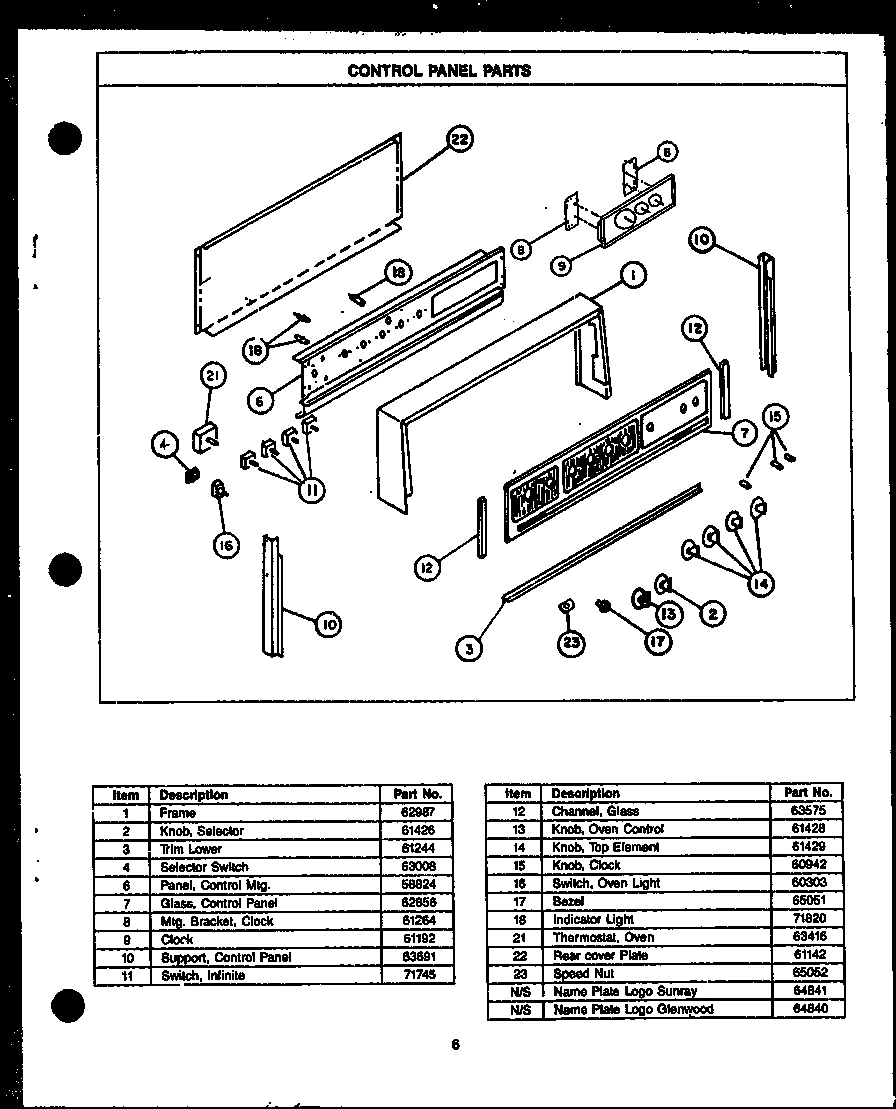

FRAME WPL Y62987 Contact Us For Availability

1

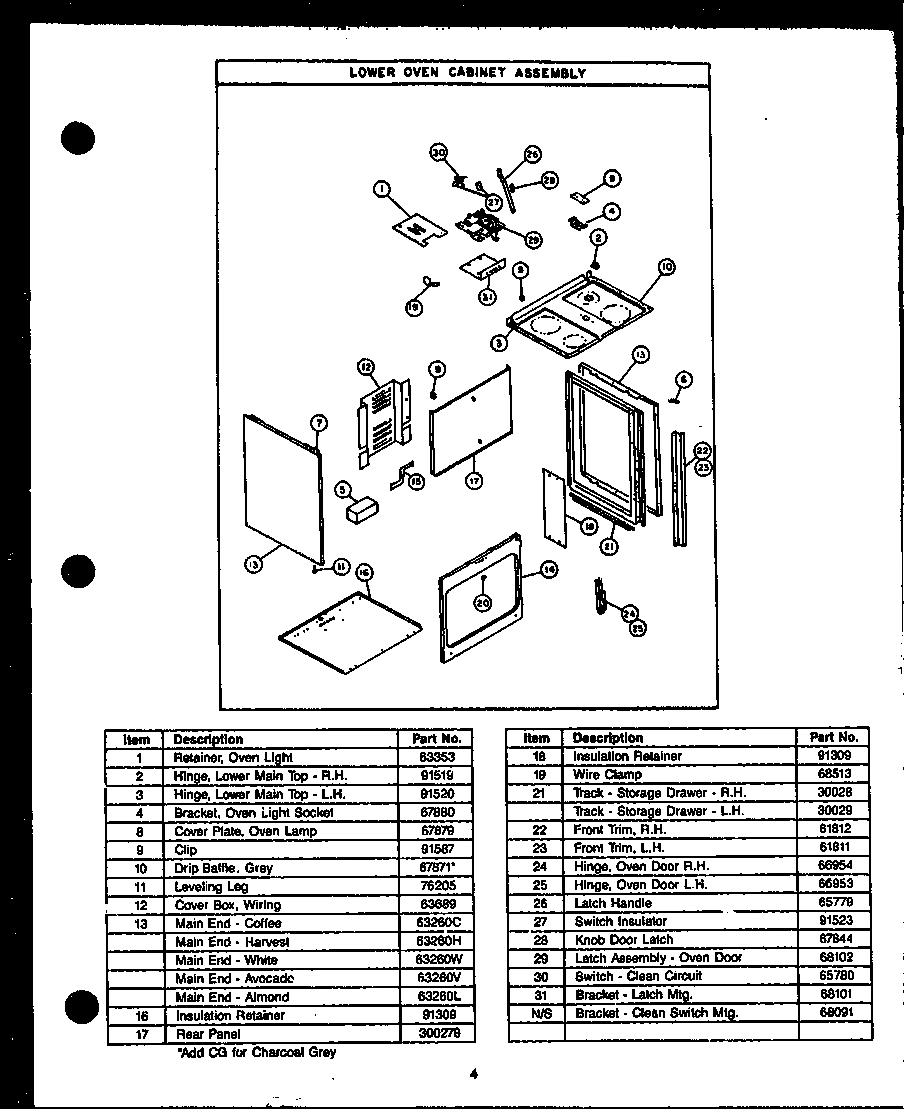

RETAINER, OVEN LIGHT WPL Y63353 Contact Us For Availability

1

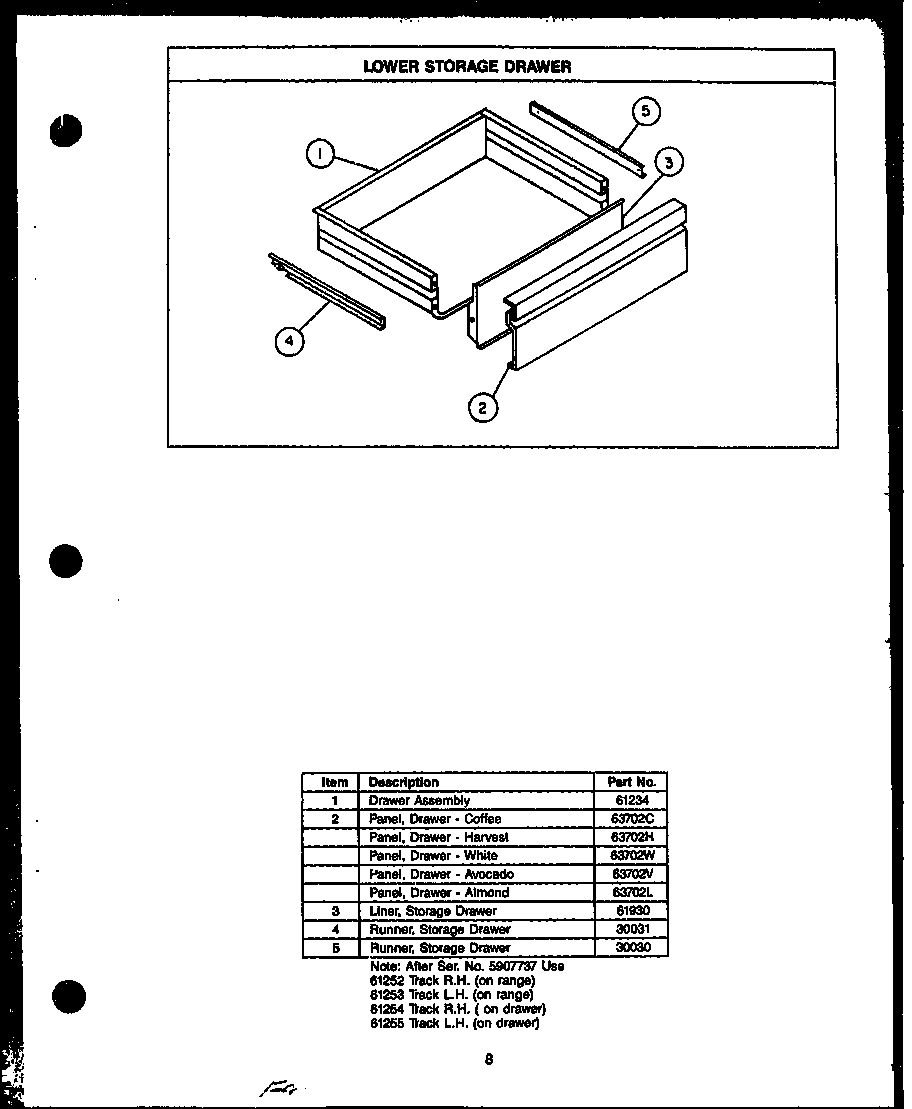

WRAPPER, STORAGE DRAWER WPL Y61234 Contact Us For Availability

2

SPACER WPL 79978 Contact Us For Availability

2

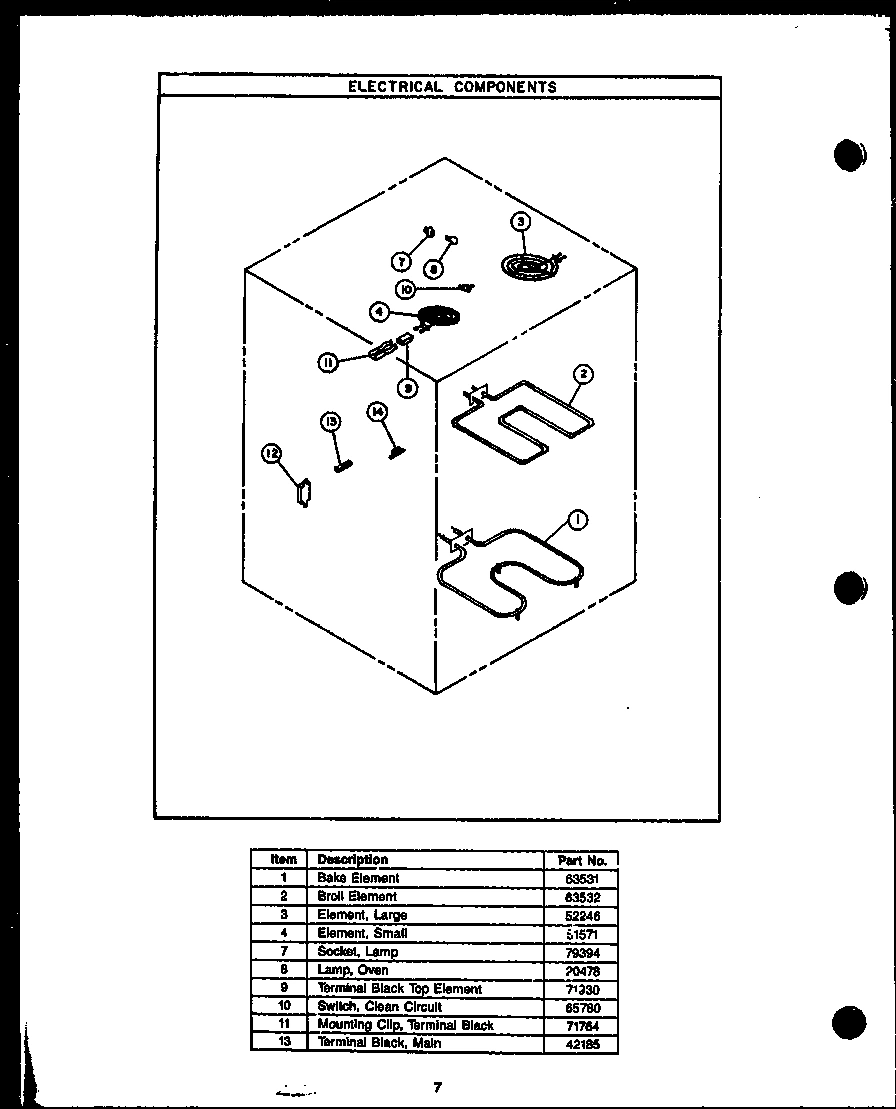

BROIL ELEMENT WPL Y63532 Contact Us For Availability

2

BRACKET ASSEMBLY WPL 0091518 Contact Us For Availability

2

KNOB, SELECTOR WPL 61426 Contact Us For Availability

2

BRACKET WPL Y0091519 Contact Us For Availability

2

PANEL, DRAWER - COFFEE WPL 63702C Contact Us For Availability

2

PANEL DRAWER - HARVEST WPL 63702H Contact Us For Availability

2

PANEL, DRAWER - ALMOND WPL 63702L Contact Us For Availability

2

PANEL, DRAWER - AVOCADO WPL 63702V Contact Us For Availability

2

PANEL, DRAWER - WHITE WPL 63702W Contact Us For Availability

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

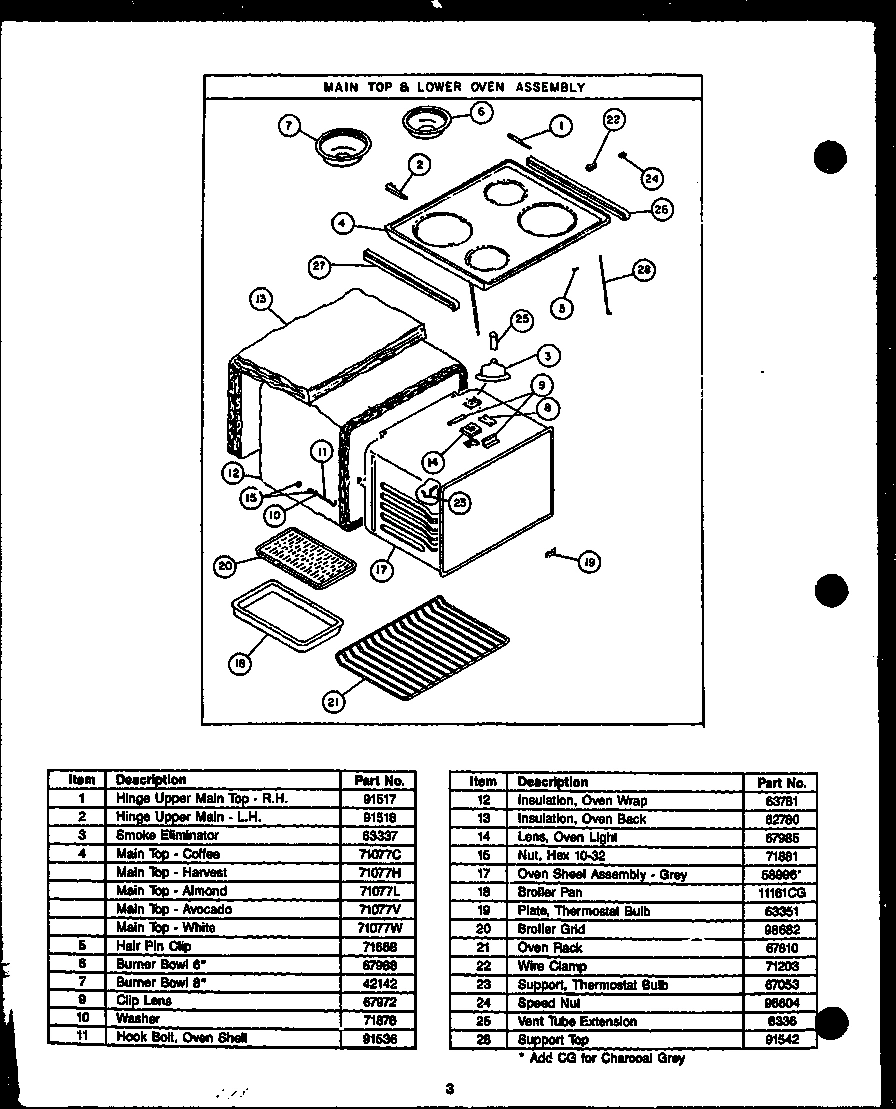

SMOKE ELIMINATOR WPL Y63337 Contact Us For Availability

3

TRIM LOWER WPL 61244 Contact Us For Availability

3

BRACKET WPL Y0091520 Contact Us For Availability

3

ASSY,HEATER KIT 240/4. WPL 61930 Contact Us For Availability

4

WP3191454 Whirlpool Surface Element Backorder WPL WP3191454 $134.26

4

MAIN TOP - COFFEE WPL 71077C Contact Us For Availability

4

MAIN TOP - HARVEST WPL 71077H Contact Us For Availability

4

MAIN TOP - ALMOND WPL 71077L Contact Us For Availability

4

MAIN TOP - AVOCADO WPL 71077V Contact Us For Availability

4

MAIN TOP - WHITE WPL 71077W Contact Us For Availability

4

SELECTOR SWITCH WPL 63008 Contact Us For Availability

4

HOUSING, OVEN LAMP WPL 67880 Contact Us For Availability

4

MOTOR WPL 30031 Contact Us For Availability

5

HAIR PIN CLIP WPL Y71668 Contact Us For Availability

5

MOTOR WPL 30030 Contact Us For Availability

6

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

6

FRAME, OVEN DOOR WPL Y63703 Contact Us For Availability

6

CONTROL PNL, BACKGUARD WPL 0058824 Contact Us For Availability

7

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

7

BLACK GLASS PANEL WPL Y63653 Contact Us For Availability

7

SOCKET, LAMP WPL 79394 Contact Us For Availability

7

GLASS, CONTROL PANEL WPL Y62856 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

8

MOUNTING PLATE, CLOCK WPL Y61264 Contact Us For Availability

8

COVER PLATE, OVEN LAMP WPL Y67879 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

9

AIR BAFFLE WPL Y63193 Contact Us For Availability

9

CLIP, LENS WPL 67972 Contact Us For Availability

9

CLOCK WPL 61192 Contact Us For Availability

9

CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability

10

WASHER WPL Y71876 Contact Us For Availability

10

SUPPORT, CONTROL PANEL WPL Y63691 Contact Us For Availability

10

DRIP BAFFLE WPL 67871CG Contact Us For Availability

RUBBER BUMPER WPL Y63661 Contact Us For Availability

MOUNTING CLIP, TERMINAL BLOCK WPL Y71764 Contact Us For Availability

HOOK BOLT WPL Y0091536 Contact Us For Availability

SWITCH, INFINITE WPL 71745 Contact Us For Availability

LEVELING LEG WPL 76205 Contact Us For Availability

SUPPORT BRACKET WPL Y63196 Contact Us For Availability

INSULATION, OVEN WRAP WPL Y63781 Contact Us For Availability

CHANNEL, GLASS WPL Y63575 Contact Us For Availability

COVER BOX, WIRING WPL Y63689 Contact Us For Availability

GLASS SUPPORT BRACKET WPL Y62439 Contact Us For Availability

TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability

INSULATION, OVEN BACK WPL Y62780 Contact Us For Availability

PANEL,GRAPHIC-KLEENMAI WPL 61428 Contact Us For Availability

MAIN END - COFFEE WPL 63260C Contact Us For Availability

MAIN END - HARVEST WPL 63260H Contact Us For Availability

MAIN END - ALMOND WPL 63260L Contact Us For Availability

MAIN END - AVOCADO WPL 63260V Contact Us For Availability

MAIN END - WHITE WPL 63260W Contact Us For Availability

14

INSULATION RETAINER WPL Y63657 Contact Us For Availability

14

LENS, OVEN LIGHT WPL 67985 Contact Us For Availability

14

KNOB, TOP ELEMENT WPL 61429 Contact Us For Availability

15

INSULATION WPL Y63663 Contact Us For Availability

15

NUT, HEX 10-32 WPL Y71881 Contact Us For Availability

15

KNOB, CLOCK WPL 60942 Contact Us For Availability

16

SWITCH, OVEN LIGHT WPL 60303 Contact Us For Availability

17

OVEN SHELL WPL 58996CG Contact Us For Availability

17

BEZEL, SWITCHES WPL 65051 Contact Us For Availability

17

REAR PANEL WPL 300279 Contact Us For Availability

18

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

18

INDICATOR LIGHT WPL Y71820 Contact Us For Availability

18

INSULATION RETAINER WPL 91309 Contact Us For Availability

19

BACKER, OVEN DOOR WPL 63578CG Contact Us For Availability

19

CAPILLARY HOLE COVER WPL Y63351 Contact Us For Availability

20

RIVET WPL 0091632 Contact Us For Availability

WP314763J Whirlpool Oven Rack Backorder WPL WP314763J $55.64

GASKET ASSEMBLY WPL 71637 Contact Us For Availability

THERMOSTAT, OVEN WPL Y63416 Contact Us For Availability

CLAMP, POWER CORD WPL 68513 Contact Us For Availability

TRACK - STORAGE DRAWER - L.H. WPL 30029 Contact Us For Availability

SPEED CLIP WPL Y68429 Contact Us For Availability

WIRE CLAMP WPL 71203 Contact Us For Availability

REAR COVER PLATE WPL 61142 Contact Us For Availability

ASSY,WIRING HARNESS-UP WPL Y61812 Contact Us For Availability

SUB 52039, LATCH PLATE WPL Y0040748 Contact Us For Availability

CLIP, THERMOSTAT BULB WPL 67053 Contact Us For Availability

SPEED NUT WPL 65052 Contact Us For Availability

FRONT TRIM, L.H. WPL 61811 Contact Us For Availability

24

NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability

24

OVEN DOOR HINGE - R.H. WPL Y66954 Contact Us For Availability

25

VENT TUBE EXTENSION WPL 6336 Contact Us For Availability

25

OVEN DOOR HINGE - L.H. WPL Y66953 Contact Us For Availability

26

LATCH HANDLE WPL Y65779 Contact Us For Availability

27

INSULATION, ESM WPL Y0091523 Contact Us For Availability

28

SUPPORT, MAINTOP WPL Y0091542 Contact Us For Availability

28

KNOB, DOOR LATCH WPL 67844 Contact Us For Availability

29

LATCH ASSEMBLY - OVEN DOOR WPL Y68102 Contact Us For Availability

30

SWITCH, OVEN DOOR LATCH WPL 65780 Contact Us For Availability

31

BRACKET, SWITCH WPL 68101 Contact Us For Availability

NI

NAME PLATE LOGO GLENWOOD WPL 64840 Contact Us For Availability

NI

NAME PLATE LOGO SUNRAY WPL 64841 Contact Us For Availability

NI

BRACKET - CLEAN SWITCH MFG. WPL Y68091 Contact Us For Availability
