Model Whirlpool S166B-C ELECTRIC RANGE – Common Parts & Diagrams
03 - OVEN

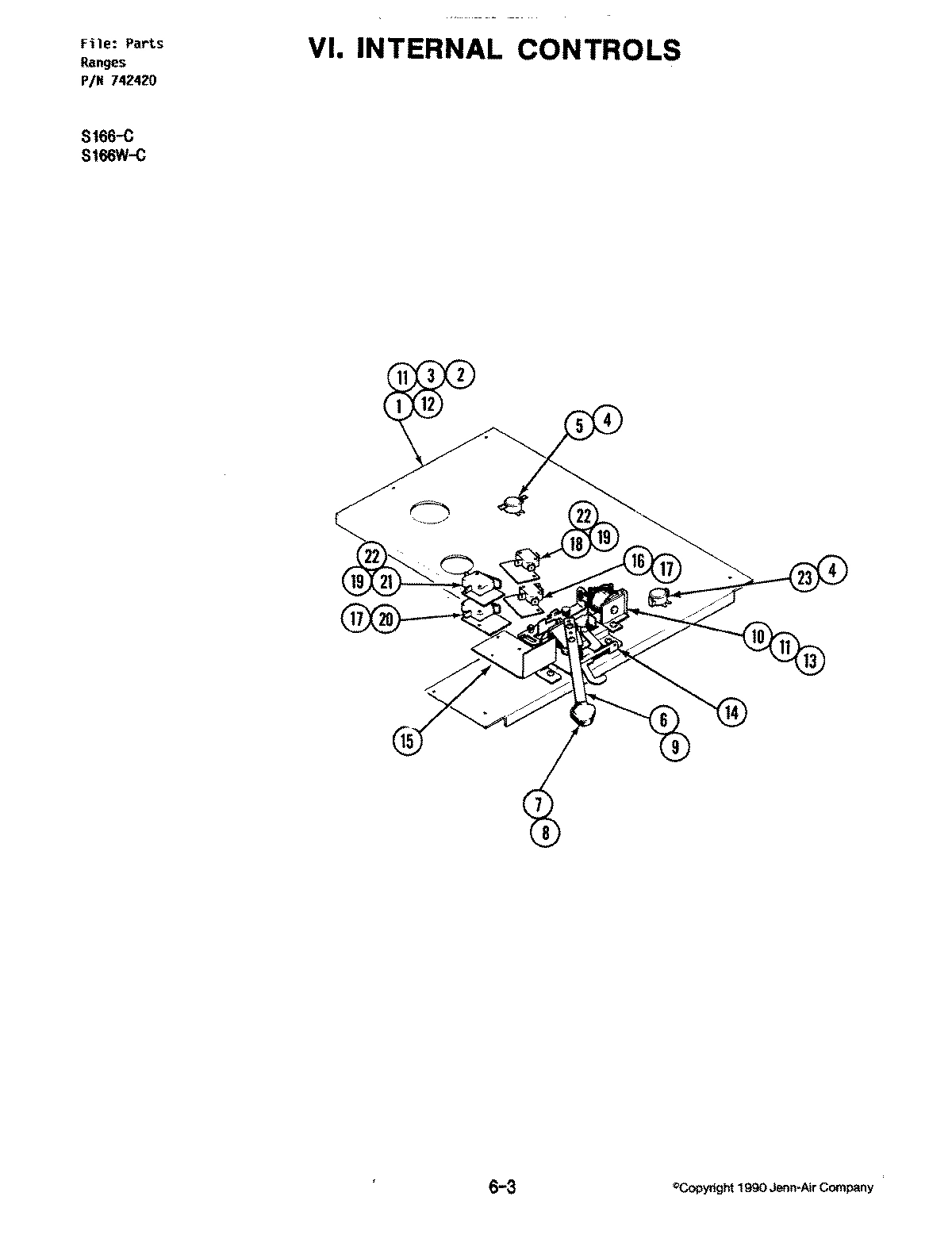

02 - INTERNAL CONTROLS

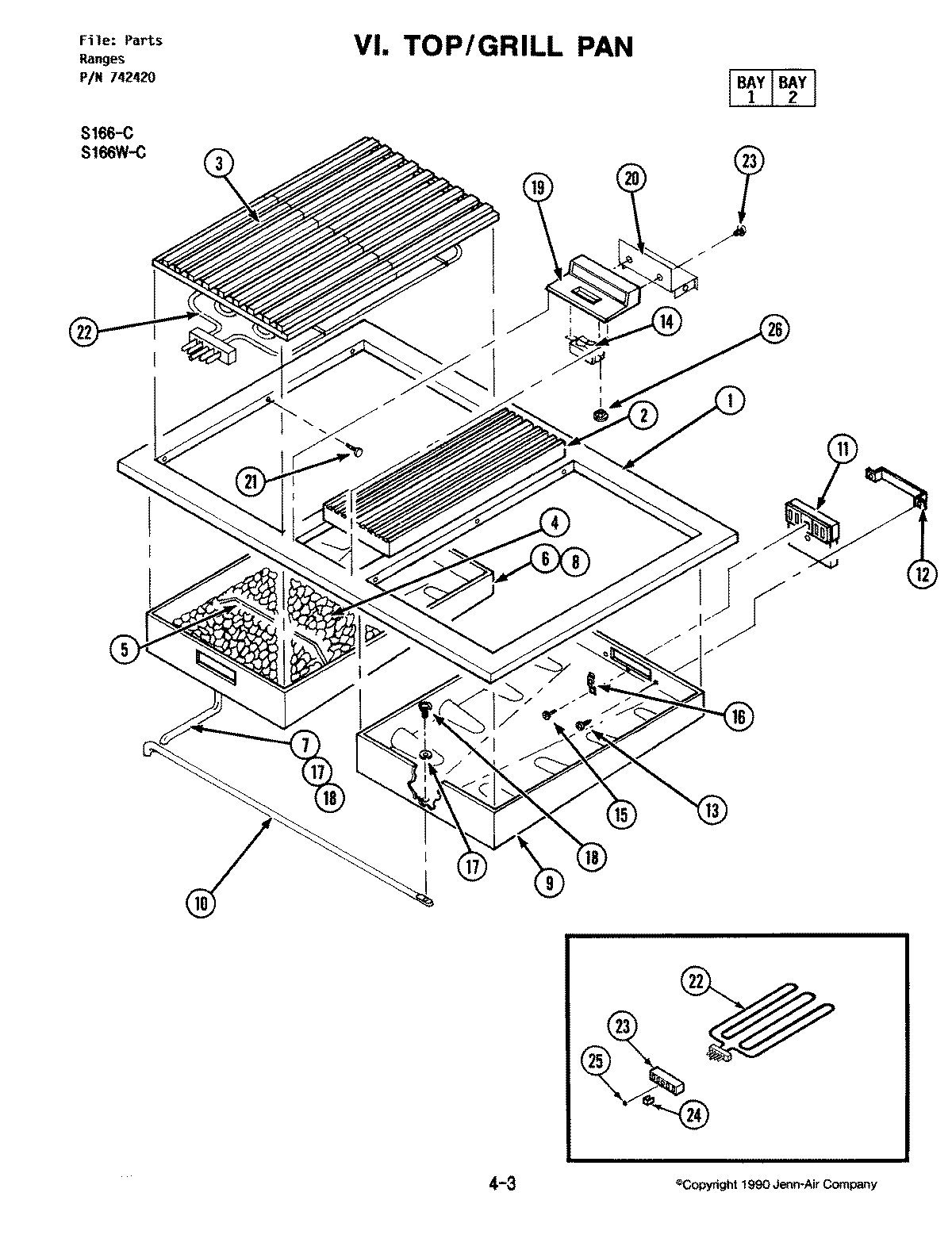

04 - TOP

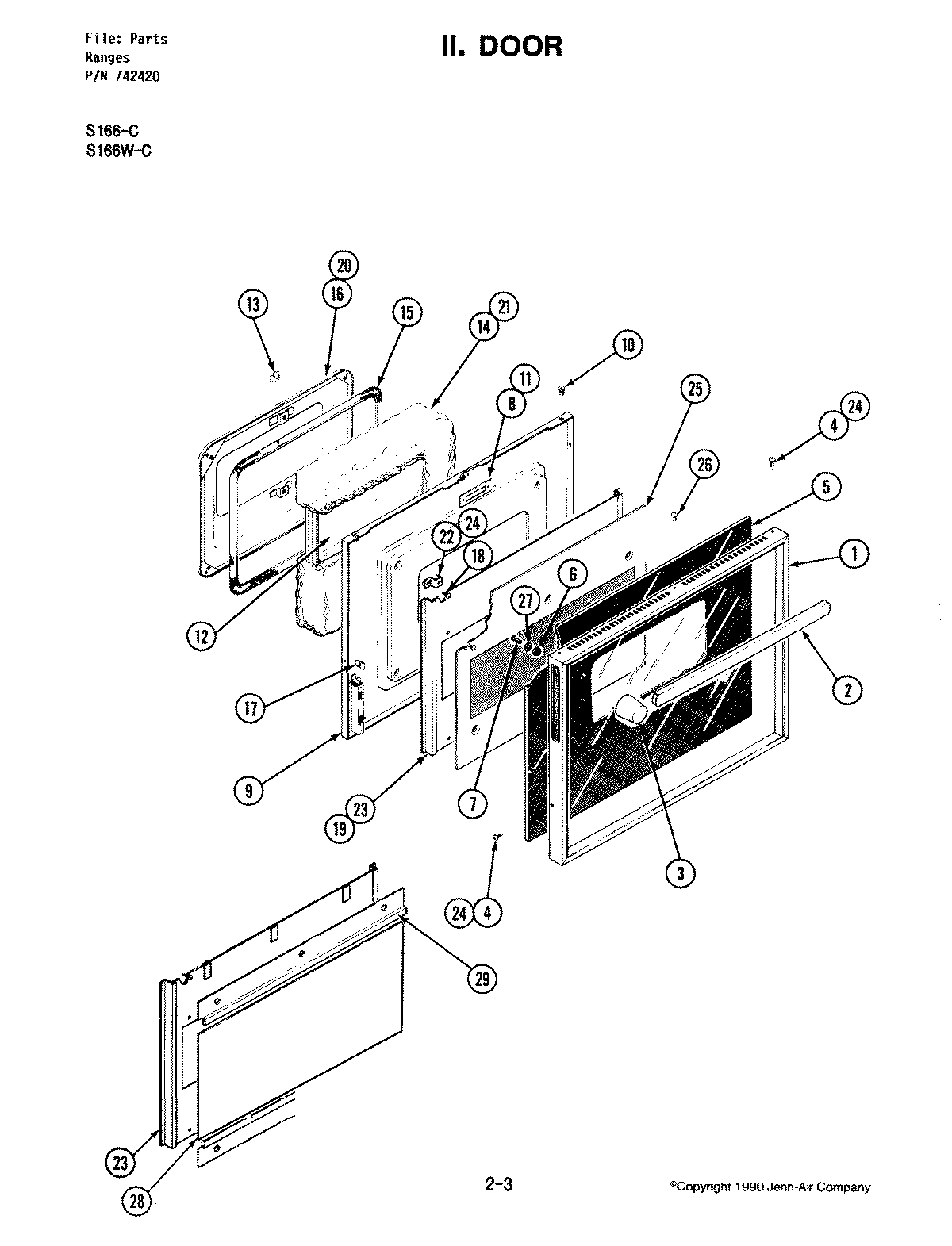

01 - DOOR
Common parts from model Whirlpool S166B-C ELECTRIC RANGE
1
PANEL, TOP WPL 704669 Contact Us For Availability
1
TOP WPL 701853 Contact Us For Availability
1
FRAME, (BLK) WPL 704229 Contact Us For Availability
2
LEVER, LATCH (WHT) WPL Y712547 Contact Us For Availability
3
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
3
GRATE, GRILL WPL 703905 Contact Us For Availability
4
ELEMENT, BROIL 208V WPL 712125 Contact Us For Availability
4
PLATE, ROCK WPL 708929 Contact Us For Availability
5
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
5
WIRE, GROUND WPL 702643 Contact Us For Availability
6
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
6
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
6
KIT, WIRE WPL 712228 Contact Us For Availability
6
WIRE, BROWN WPL Y712197 Contact Us For Availability
6
WIRE, YELLOW WPL Y712200 Contact Us For Availability
6
WIRE, VIOLET WPL Y712203 Contact Us For Availability
6
WASHER WPL Y704230 Contact Us For Availability
7
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
7
TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability
7
SCREW WPL Y704231 Contact Us For Availability
8
LENS, LIGHT WPL Y704143 Contact Us For Availability
8
SPRING, KNOB WPL 701671 Contact Us For Availability
8
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
WIRE, BLUE WPL Y712227 Contact Us For Availability
9
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
9
WIRE, BROWN WPL Y712199 Contact Us For Availability
9
KIT, WIRE WPL Y712229 Contact Us For Availability
9
LINER, OVEN DOOR WELD WPL 712189 Contact Us For Availability
9
LINER WPL 712567 Contact Us For Availability
10
TUBE, VENT WPL 702290 Contact Us For Availability
10
TUBE, VENT WPL 702730 Contact Us For Availability
10
SOLENOID WPL Y702526 Contact Us For Availability
10
TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability
10
NUT, PUSH-IN WPL 702657 Contact Us For Availability
11
RETAINER, LENS WPL Y704144 Contact Us For Availability
12
BRACKET,STIFFENER WPL 702697 Contact Us For Availability
12
BRACKET WPL Y702698 Contact Us For Availability
13
TUBE, VENT WPL 701738 Contact Us For Availability
13
PIN, COTTER WPL Y701686 Contact Us For Availability
13
CLIP, RETAINER WPL Y700503 Contact Us For Availability
14
SHIELD, VENT WPL Y702632 Contact Us For Availability
14
LATCH ASSY. WPL Y703357 Contact Us For Availability
14
INSULATION WPL 702293 Contact Us For Availability
15
SHIELD, SWITCH WPL 701706 Contact Us For Availability
16
SUPPORT, RACK WPL 702701 Contact Us For Availability
16
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
16
PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability
17
RACK, OVEN WPL Y704660 Contact Us For Availability
17
RACK, OVEN WPL Y702339 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
17
WASHER, TEFLON WPL 702747 Contact Us For Availability
17
CLIP WPL Y700834 Contact Us For Availability
18
SWITCH, LATCH WPL Y703732 Contact Us For Availability
18
NUT, DRAIN TUBE WPL 702748 Contact Us For Availability
18
SCREW WPL 703958 Contact Us For Availability
19
INSULATOR WPL 703264 Contact Us For Availability
19
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
20
SCREW WPL 701744 Contact Us For Availability
20
SCREW WPL 705341 Contact Us For Availability
20
SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability
20
BRACKET, FILLER WPL Y704233 Contact Us For Availability
20
INSULATION, TOP WPL 701660 Contact Us For Availability
21
CLIP, BULB WPL Y701541 Contact Us For Availability
21
SWITCH, DOOR WPL 702806 Contact Us For Availability
21
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
22
SPACER, OVEN WPL 701741 Contact Us For Availability
22
SCREW WPL 702807 Contact Us For Availability
22
WIRE, GREY WPL 703750 Contact Us For Availability
22
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
23
NUT, TEE WPL 715294 Contact Us For Availability
23
LIMIT, FAN WPL Y702750 Contact Us For Availability
23
BAFFLE WPL 703782 Contact Us For Availability
24
WASHER WPL 701736 Contact Us For Availability
24
CLIP, SHUNT WPL Y700450 Contact Us For Availability
25
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
26
LIMIT, OVEN WPL Y702107 Contact Us For Availability
27
WASHER WPL Y700446 Contact Us For Availability
28
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
29
TERMINAL WPL Y702711 Contact Us For Availability
29
RETAINER, GLASS WPL Y704819 Contact Us For Availability
× ![]()
