Model Whirlpool S136-C ELECTRIC RANGE – Common Parts &amp; Diagrams

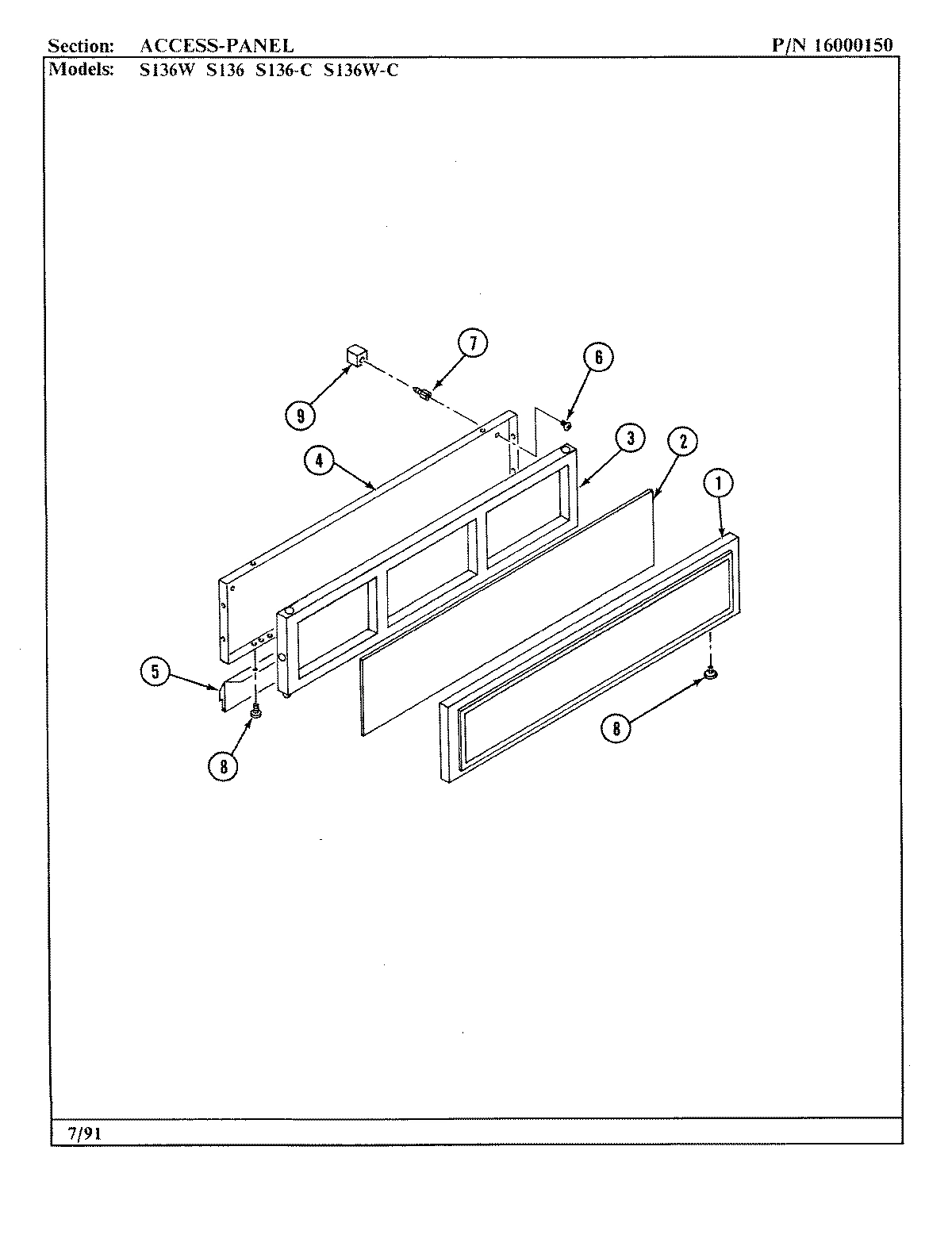

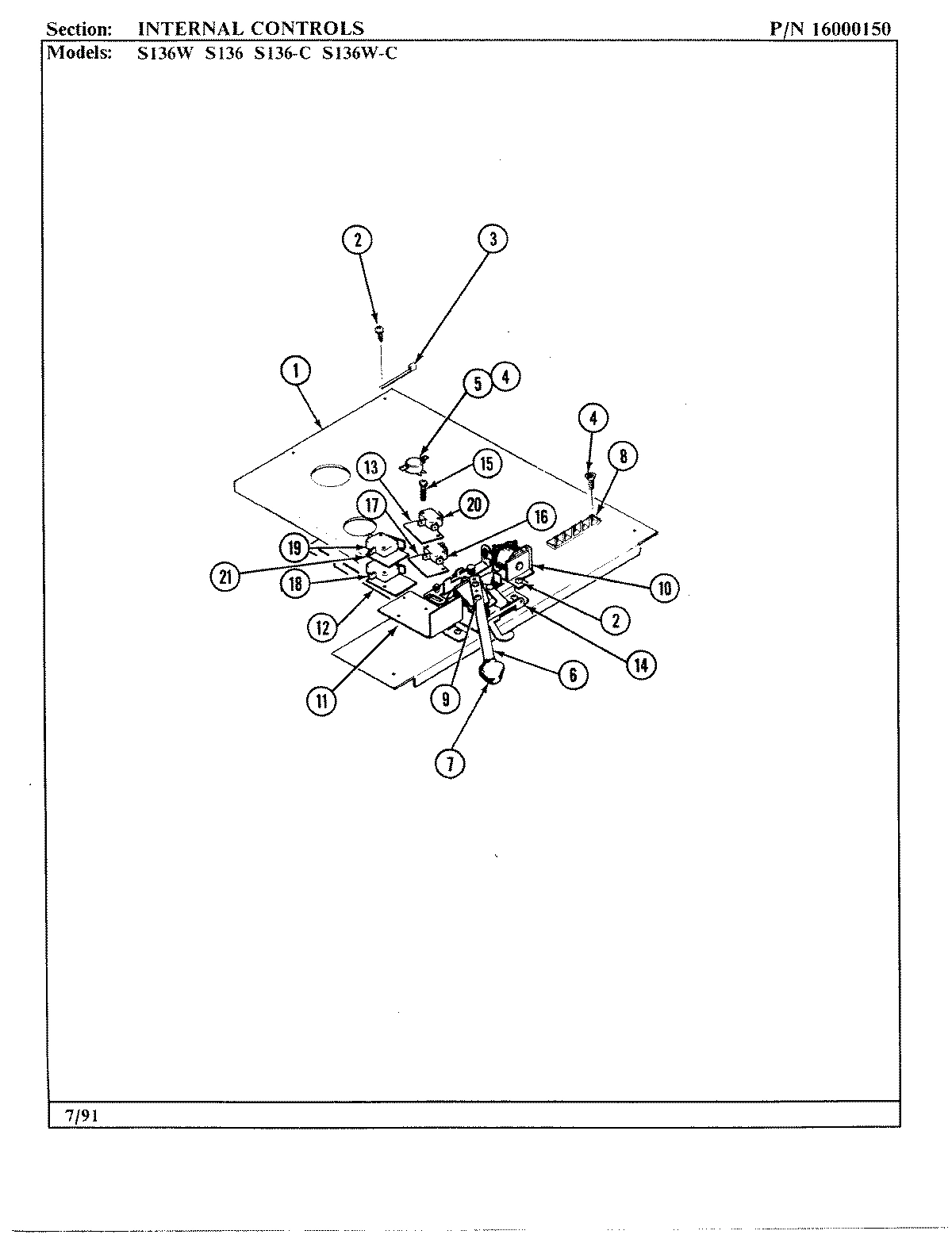

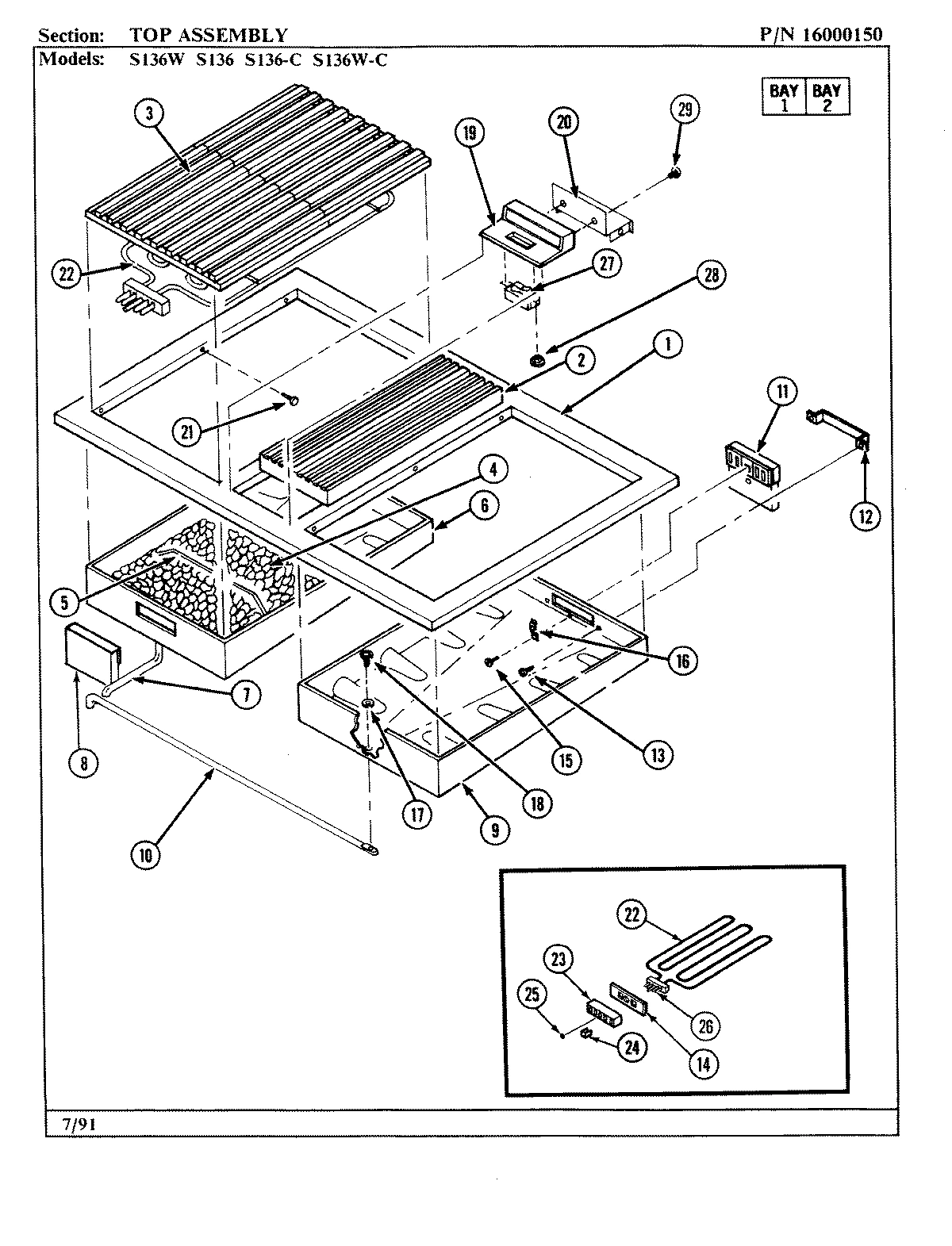

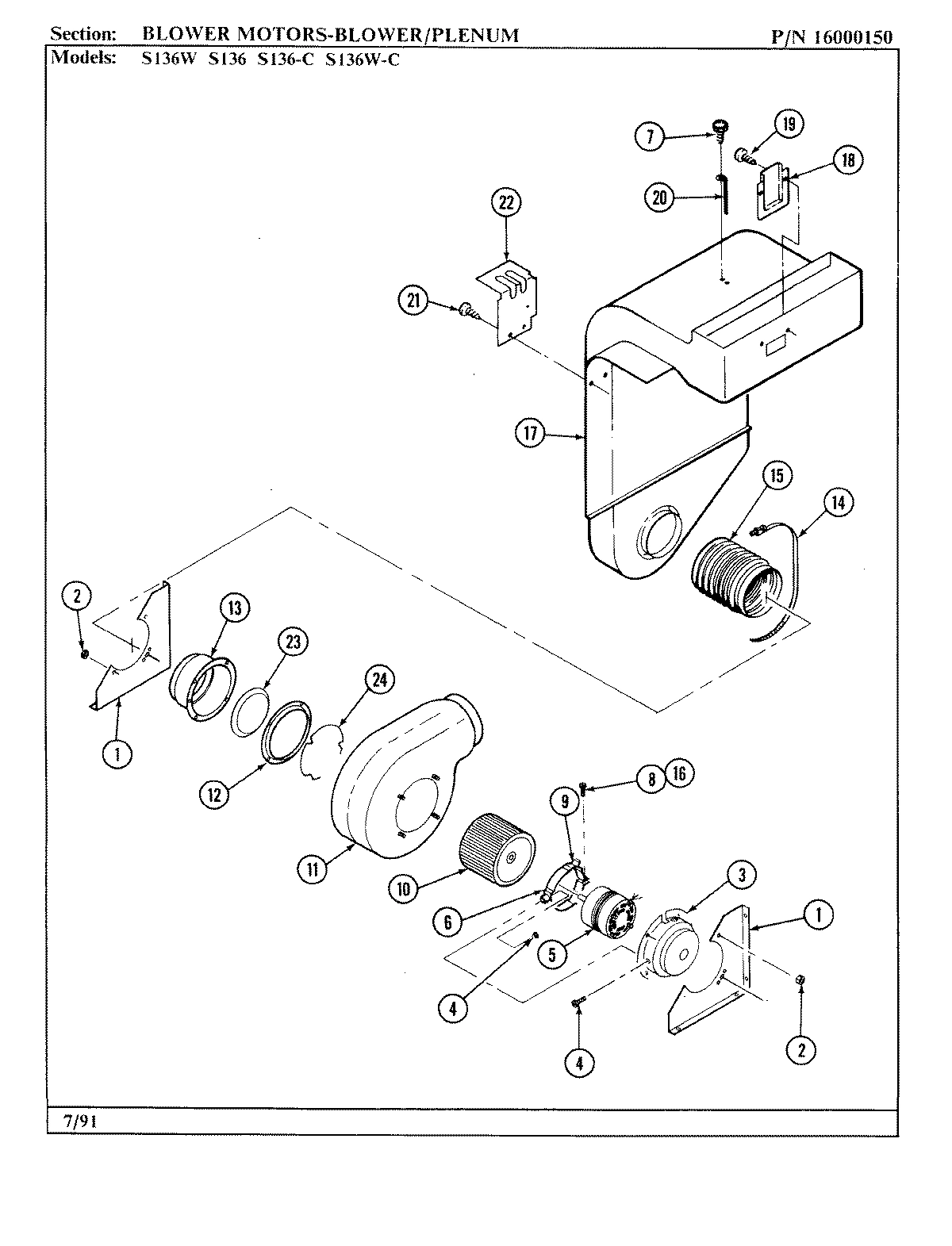

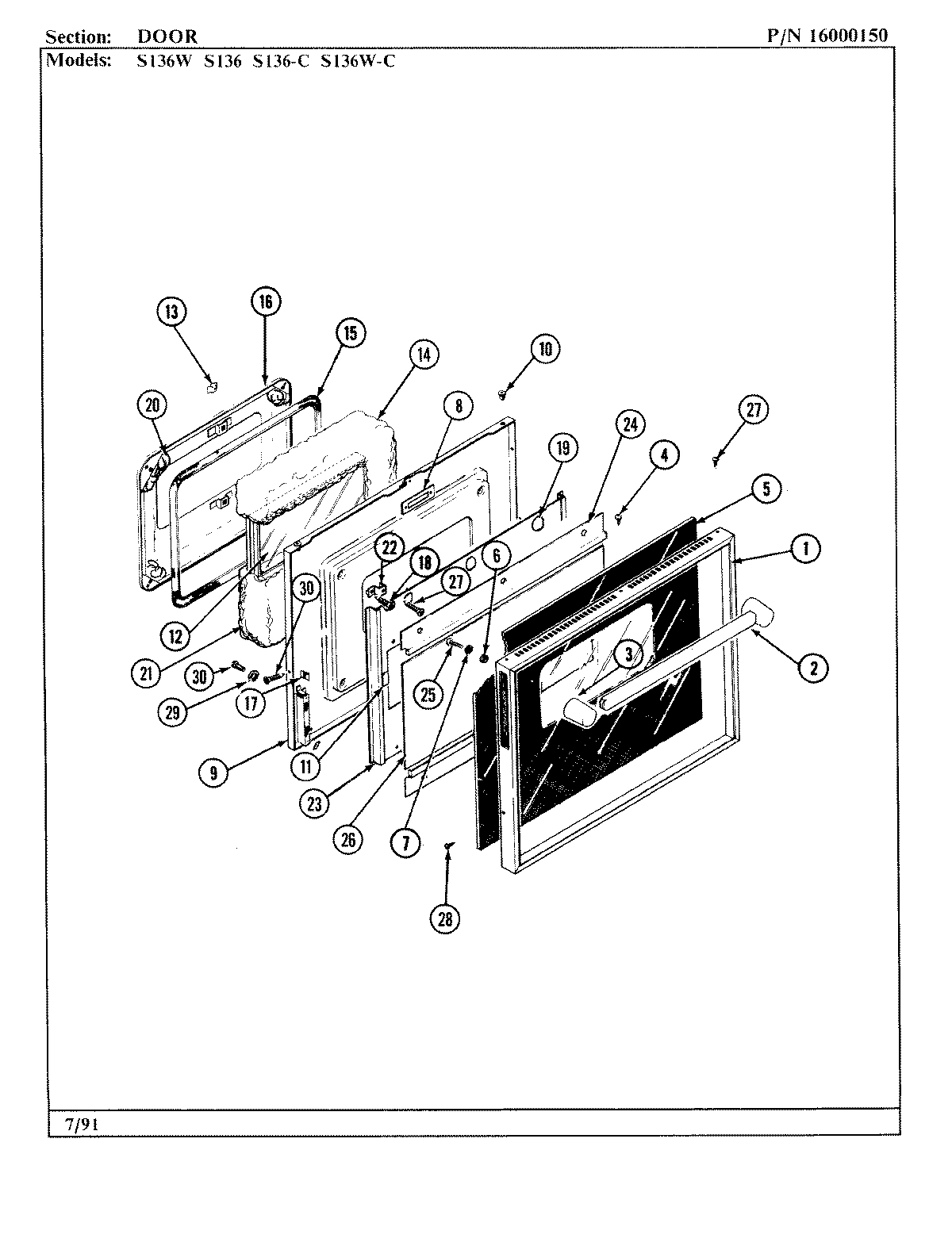

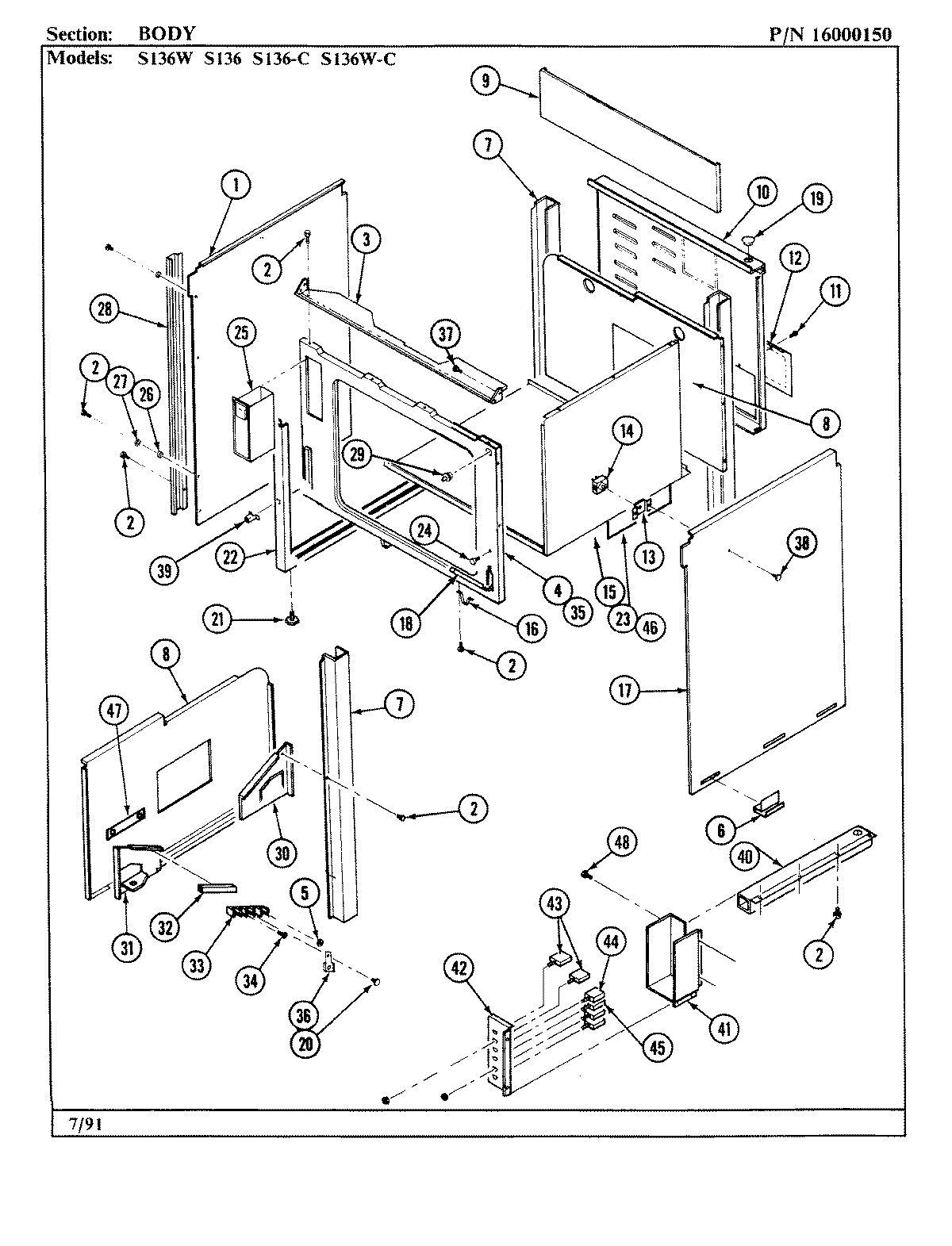

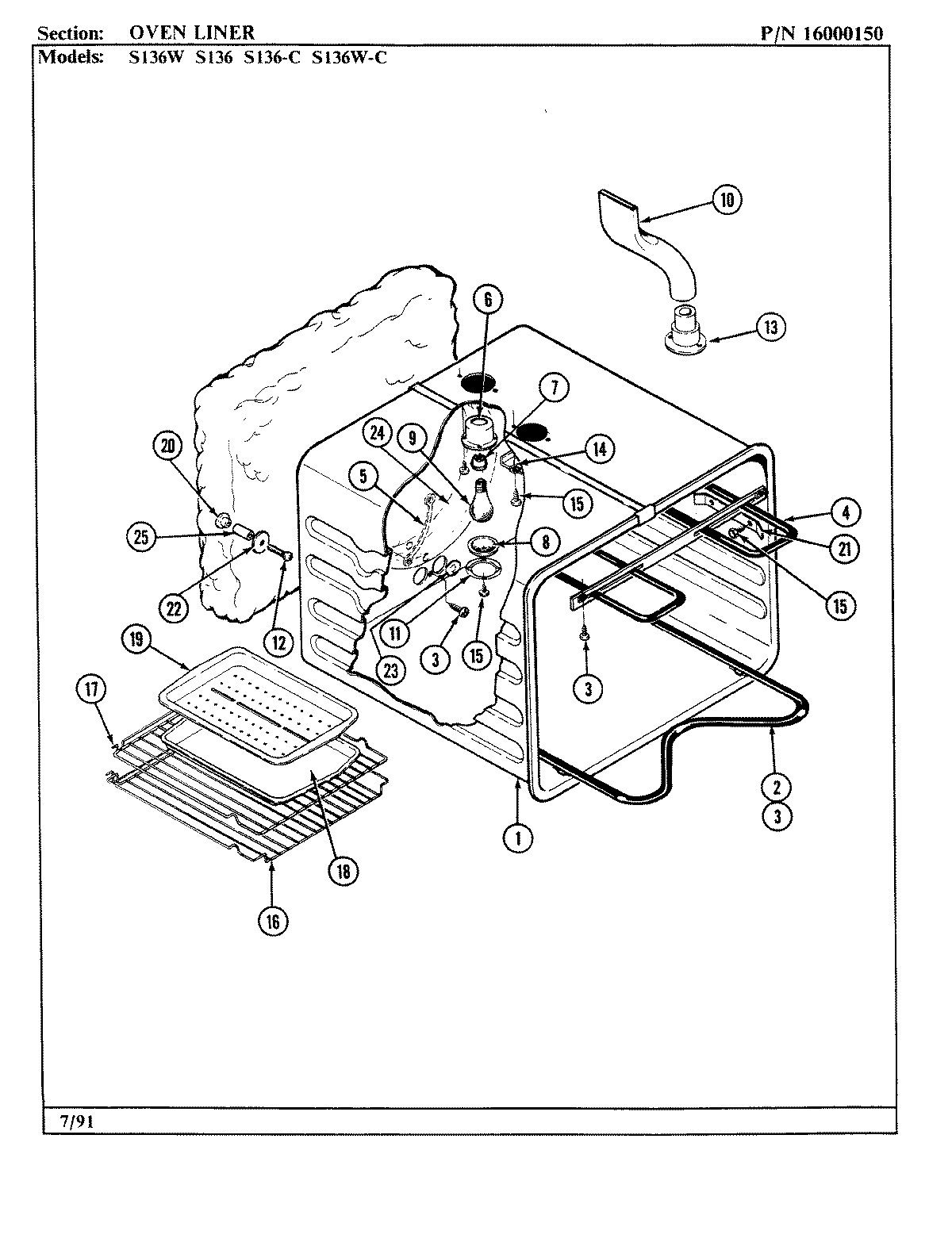

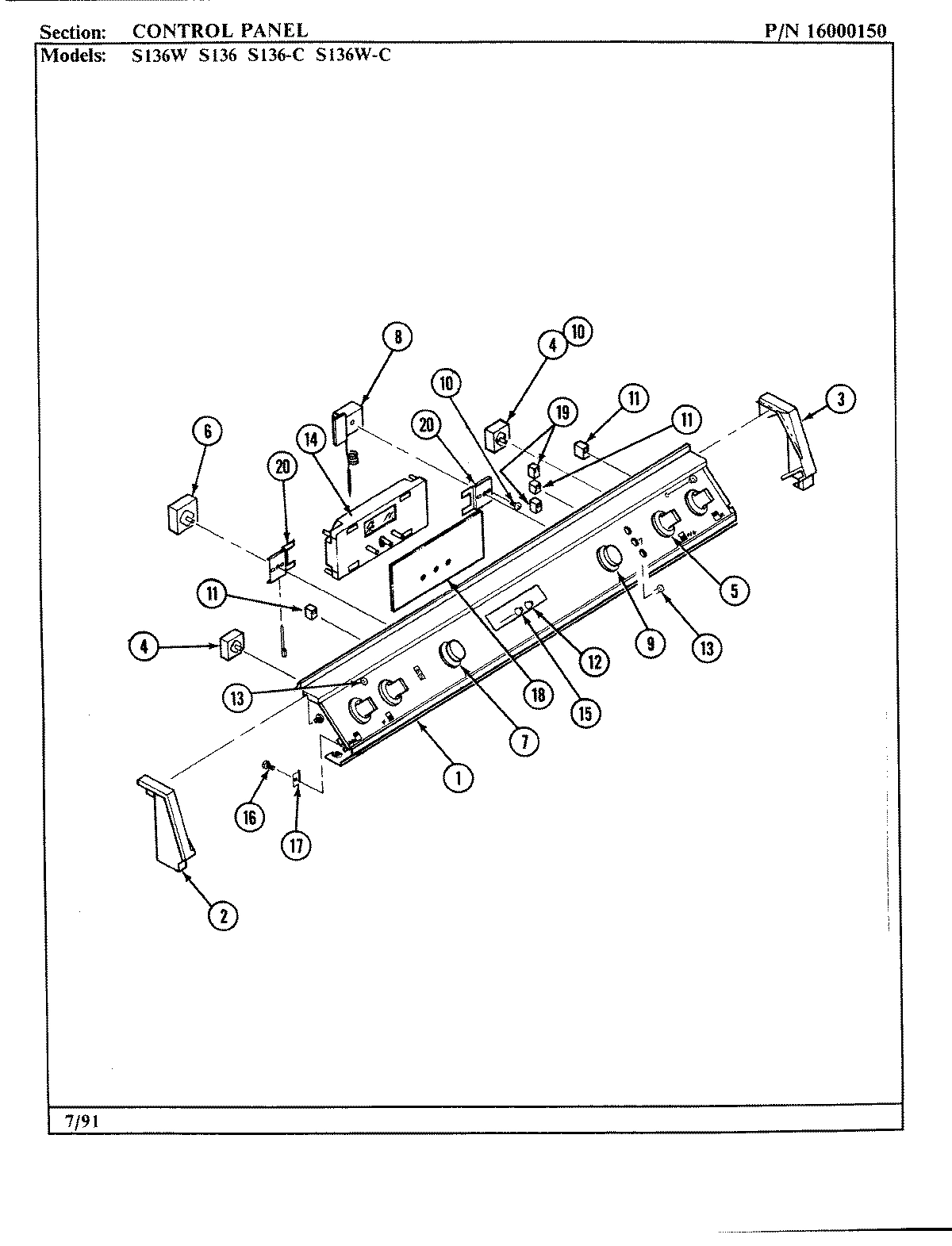

1

TOP WPL 701853 Contact Us For Availability

1

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

1

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

1

FRAME, OVEN DOOR (BLK) WPL 705003 Contact Us For Availability

1

WASHER, ALUM WPL 71001403 Contact Us For Availability

1

OVEN WELD ASSY. WPL 71001490 Contact Us For Availability

1

LINER WPL 712584 Contact Us For Availability

1

FRAME (BLK) WPL 704248 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 703961 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 704476 Contact Us For Availability

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

2

WPY04100021 Whirlpool Bake Element Backorder WPL WPY04100021 $152.70

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

2

GRILL, AIR (BLK) WPL Y04100630 Contact Us For Availability

2

GRILL, AIR BLK WPL Y704228 Contact Us For Availability

2

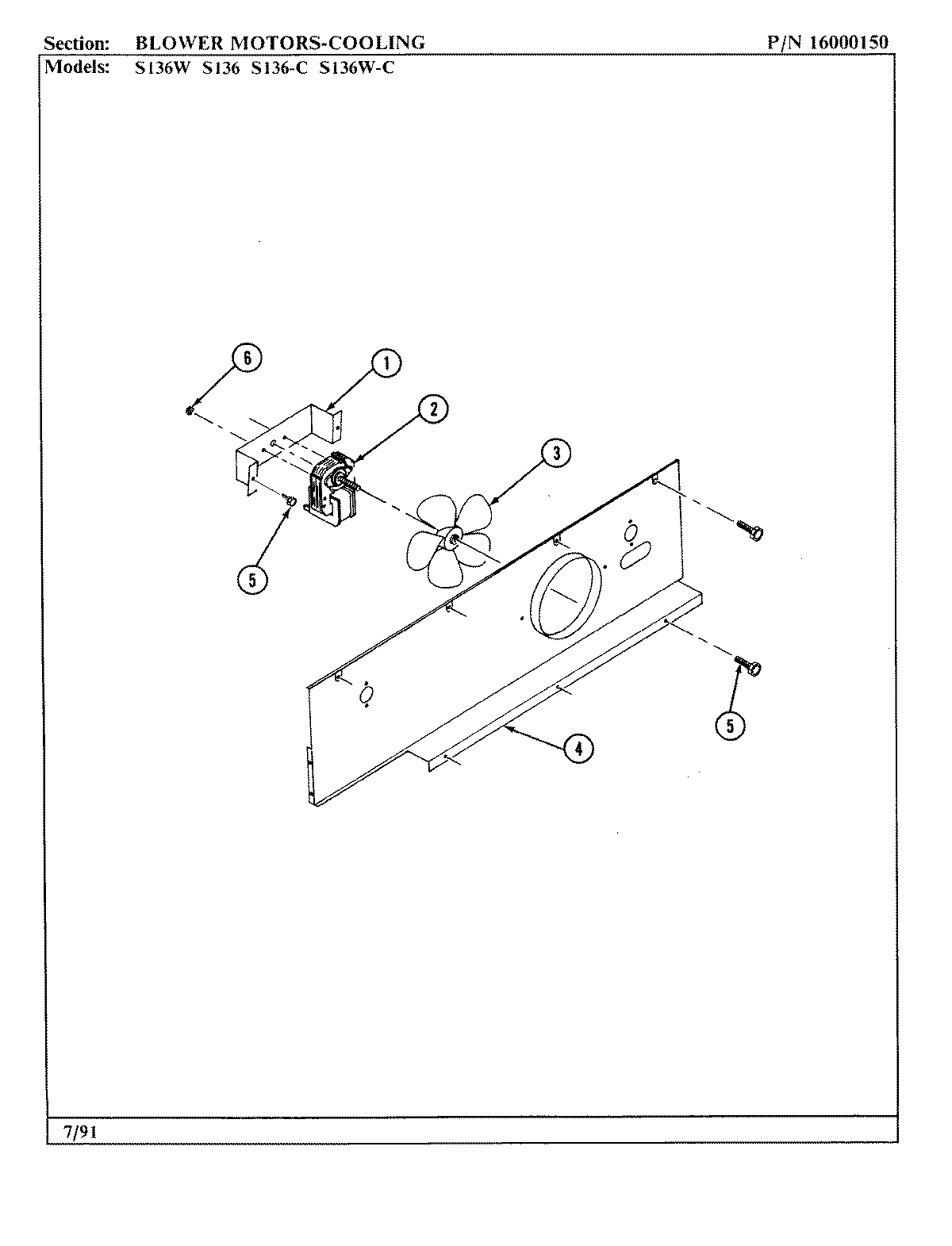

MOTOR, FAN WPL Y702549 Contact Us For Availability

2

HANDLE (BLK) WPL 704226 Contact Us For Availability

2

PANEL, BASE WPL 703435 Contact Us For Availability

2

CAP, END (LT) WPL 702388 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

3

GRATE, GRILL WPL 703905 Contact Us For Availability

3

BLADE, FAN WPL Y702525 Contact Us For Availability

3

COVER, MOTOR WPL Y704760 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

END CAP (BLK) WPL Y704224 Contact Us For Availability

3

SPACER, BASE DOOR WPL Y702896 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

4

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $70.11

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $114.02

4

SCREW WPL 707407 Contact Us For Availability

4

PLATE, ROCK WPL 708929 Contact Us For Availability

4

CLOSURE, FRONT WPL 702329 Contact Us For Availability

4

LINER, DOOR WPL Y703965 Contact Us For Availability

5

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $148.74

5

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

5

MOTOR WPL Y704759 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

NUT WPL 707161 Contact Us For Availability

5

GLASS, SCREENED WPL Y705292 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

5

PANEL, KICK WPL Y702744 Contact Us For Availability

5

KNOB, INFINITE (BLK) WPL 703900 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

6

LEVER, LATCH (BLK) WPL Y704227 Contact Us For Availability

6

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

6

KIT, WIRE WPL 712228 Contact Us For Availability

6

WIRE, BROWN WPL Y712197 Contact Us For Availability

6

WIRE, YELLOW WPL Y712200 Contact Us For Availability

6

WIRE, VIOLET WPL Y712203 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

CLIP, SPRING WPL Y702476 Contact Us For Availability

6

WASHER WPL Y704230 Contact Us For Availability

6

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

6

SWITCH, SELECTOR WPL Y704850 Contact Us For Availability

7

SPRING, KNOB WPL 701671 Contact Us For Availability

7

KNOB (BLK) WPL Y703932 Contact Us For Availability

7

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

WASHER WPL Y700446 Contact Us For Availability

7

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

7

STUD, BALL WPL Y702633 Contact Us For Availability

7

KNOB, SELECTOR (BLK) WPL Y703911 Contact Us For Availability

8

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

8

LIMIT, FAN WPL Y702750 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

8

LENS, LIGHT WPL Y704143 Contact Us For Availability

8

THERMOSTAT WPL Y703674 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

9

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $93.43

9

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $60.93

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

9

WIRE, BLUE WPL Y712227 Contact Us For Availability

9

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

9

WIRE, BROWN WPL Y712199 Contact Us For Availability

9

KIT, WIRE WPL Y712229 Contact Us For Availability

9

PLATE, BACK WPL Y702345 Contact Us For Availability

9

CLIP----S WPL 708763 Contact Us For Availability

9

LINER WPL 712567 Contact Us For Availability

9

KNOB, THERMOSTAT WPL 703917 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

SOLENOID WPL Y702526 Contact Us For Availability

TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability

COVER, REAR (LOWER) WPL 702307 Contact Us For Availability

NUT, PUSH IN WPL 701643 Contact Us For Availability

TUBE, VENT WPL 702730 Contact Us For Availability

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $74.48

SHIELD, SWITCH WPL 701706 Contact Us For Availability

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

PAD, SPACER WPL 715938 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $9.04

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

PIN, COTTER WPL Y701686 Contact Us For Availability

BRACKET WPL Y702698 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

PACK, WINDOW WPL 703804 Contact Us For Availability

SCREW WPL 705170 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

BRACKET WPL 704337 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability

LATCH ASSY. WPL Y703357 Contact Us For Availability

INSULATOR WPL Y700449 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

INSULATION WPL 702293 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

CLOCK WPL Y04100133 Contact Us For Availability

CLOCK WPL Y703708 Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $107.11

SCREW WPL 702807 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

KNOB, CLOCK (LG/BLK) WPL 7711P49260 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $7.31

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

BRACKET, HAT WPL 702658 Contact Us For Availability

PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

SCREW, HEX WPL Y702976 Contact Us For Availability

RACK, OVEN WPL Y704660 Contact Us For Availability

WIRE, GREY WPL 703750 Contact Us For Availability

INSULATOR WPL Y702350 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

PLENUM, UPPER WPL 712025 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

CLIP WPL Y700834 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

LENS, TIMER (WHT) WPL 704608 Contact Us For Availability

SWITCH, DOOR WPL 702806 Contact Us For Availability

ESCUTCHEON (BLK) WPL Y04100547 Contact Us For Availability

ESCUTCHEON (BLK) WPL Y704232 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

BUMPER, BUTTON WPL Y704223 Contact Us For Availability

LIGHT, OVEN PILOT (240V) WPL Y704222 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

SWITCH, LATCH WPL Y703732 Contact Us For Availability

BRACKET, FILLER WPL Y704233 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability

BRACKET, CLOCK WPL 703667 Contact Us For Availability

WIRE, ORANGE WPL 703749 Contact Us For Availability

WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability

HARNESS, WIRE (LIMIT) WPL 703833 Contact Us For Availability

WIRE, BROWN WPL 704243 Contact Us For Availability

WIRE, BLUE WPL 704244 Contact Us For Availability

HARNESS, CONTROL WPL 705296 Contact Us For Availability

HARNESS, SUPPLY WPL 705297 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $12.02

INSULATOR WPL 703264 Contact Us For Availability

LEVELER, LEG WPL Y04100573 Contact Us For Availability

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $19.68

ELEMENT, GRILL (240V) WPL Y04100007 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $71.74

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

BAFFLE, INNER WPL 704466 Contact Us For Availability

BAFFLE WPL 703782 Contact Us For Availability

WASHER WPL 702593 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

CLIP, SHUNT WPL Y700450 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

RETAINER, GLASS WPL Y704819 Contact Us For Availability

PLATE, NON-CONVECT WPL 705343 Contact Us For Availability

SCREW WPL 71001395 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $9.78

SPACER WPL 702745 Contact Us For Availability

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

SCREW WPL Y704231 Contact Us For Availability

TERMINAL WPL Y702711 Contact Us For Availability

LIMIT, OVEN WPL Y702727 Contact Us For Availability

26

Y708572 Whirlpool Spade Contact In Stock WPL Y708572 $7.78

26

WASHER, CONICAL WPL 702462 Contact Us For Availability

26

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

27

SWITCH, FAN (BLACK) WPL Y704221 Contact Us For Availability

27

WASHER, FLAT WPL 712005 Contact Us For Availability

NUT, PUSH WPL Y04100035 Contact Us For Availability

PALNUT WPL Y705023 Contact Us For Availability

TRIM, SIDE WPL 702337 Contact Us For Availability

SCREW (BLACK) WPL Y704488 Contact Us For Availability

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

29

WASHER WPL Y703449 Contact Us For Availability

30

SCREW WPL 715870 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

INSULATOR WPL 702898 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

36

HARNESS, BACKSPLASH WPL 703648 Contact Us For Availability

36

STRAP, GROUND WPL Y702335 Contact Us For Availability

37

SCREW WPL 702731 Contact Us For Availability

38

SCREW WPL 704335 Contact Us For Availability

40

WIREWAY WPL 703492 Contact Us For Availability

41

ENCLOSURE, CIRCUIT BREAKER WPL 702523 Contact Us For Availability

42

COVER, CIRCUIT BREAKER WPL 702524 Contact Us For Availability

43

BREAKER, CIRCUIT (30 AMP) WPL Y702613 Contact Us For Availability

44

CIRCUIT BREAKER (15 AMP) WPL 701774 Contact Us For Availability

45

BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability

46

BAFFLE, AIR WPL 702743 Contact Us For Availability

46

HARNESS, WIRE WPL 703834 Contact Us For Availability

46

BUSHING WPL 708939 Contact Us For Availability

47

BLOCK, TERMINAL WPL Y702607 Contact Us For Availability

PANEL DECORATOR (AVOCADO) WPL 701996 Contact Us For Availability

PANEL DECORATOR (BLACK) WPL 701997 Contact Us For Availability

PANEL DECORATOR (HARVEST GOLD) WPL 701998 Contact Us For Availability

PANEL DECORATOR (COFFEE) WPL 701999 Contact Us For Availability

PANEL DECORATOR (ALMOND) WPL 702000 Contact Us For Availability

PANEL DECORATOR (WHITE) WPL 702001 Contact Us For Availability

COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
