Model Whirlpool RT12VKYHN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - SHELF

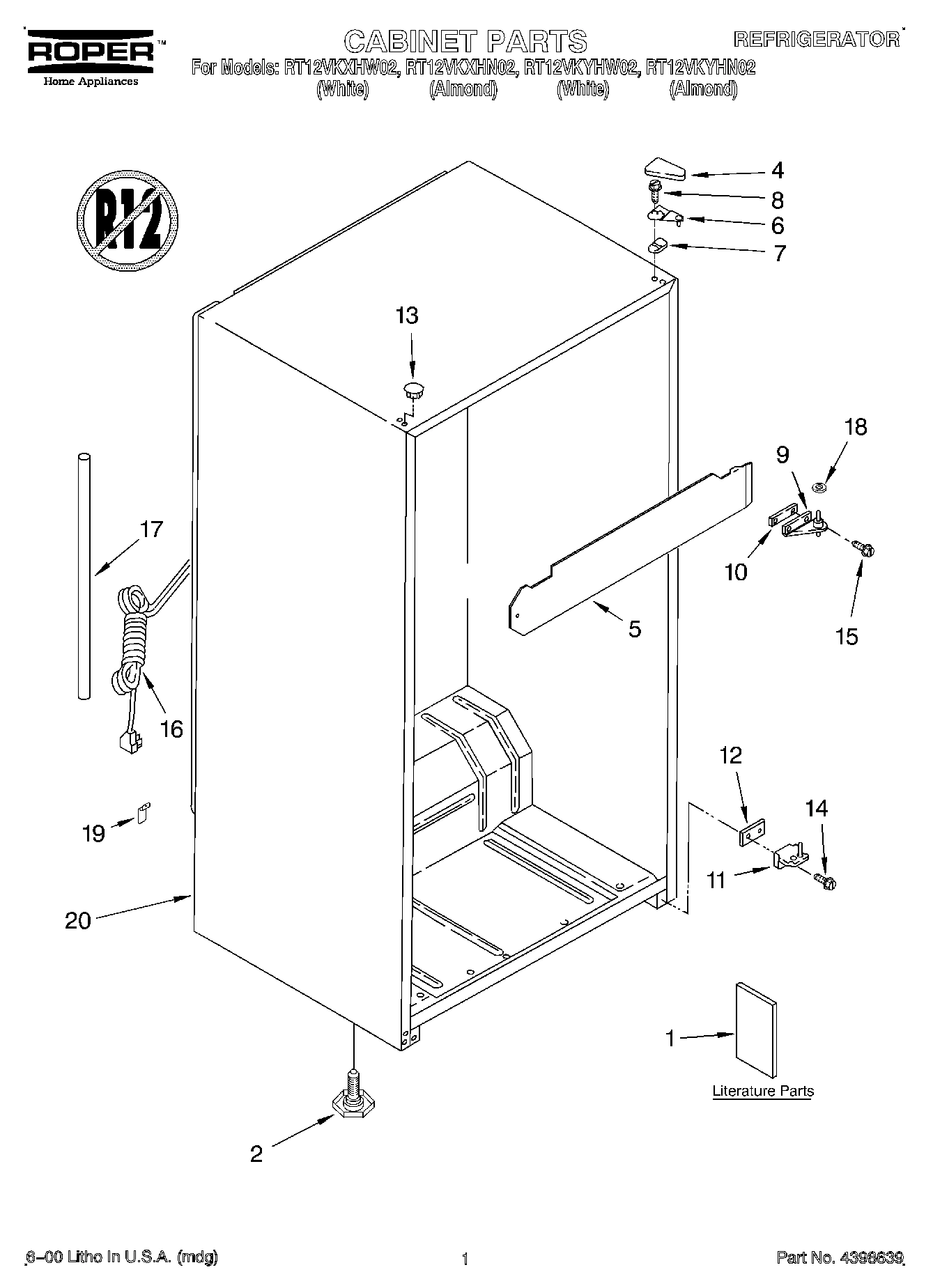

01 - CABINET, LITERATURE

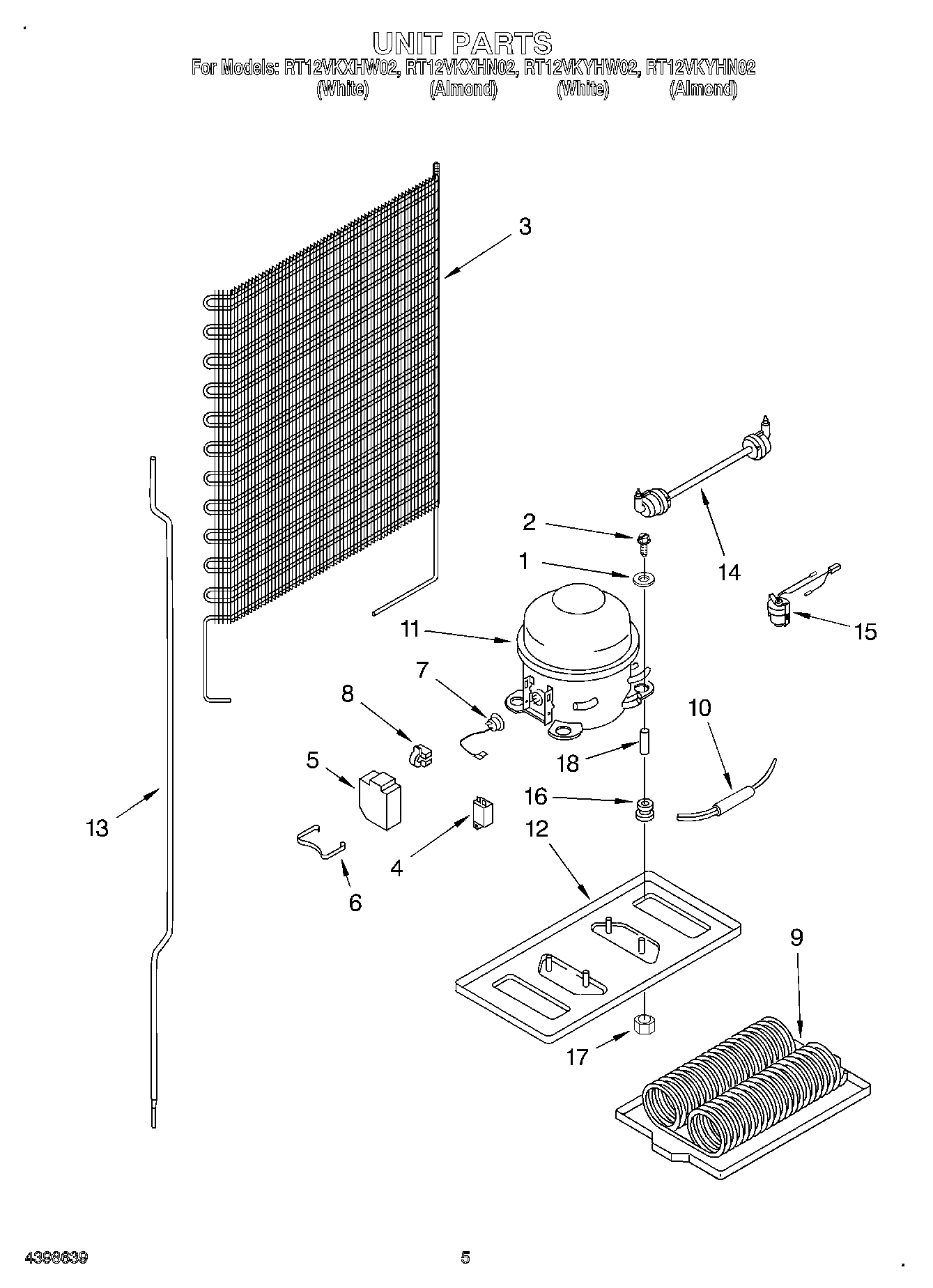

03 - UNIT

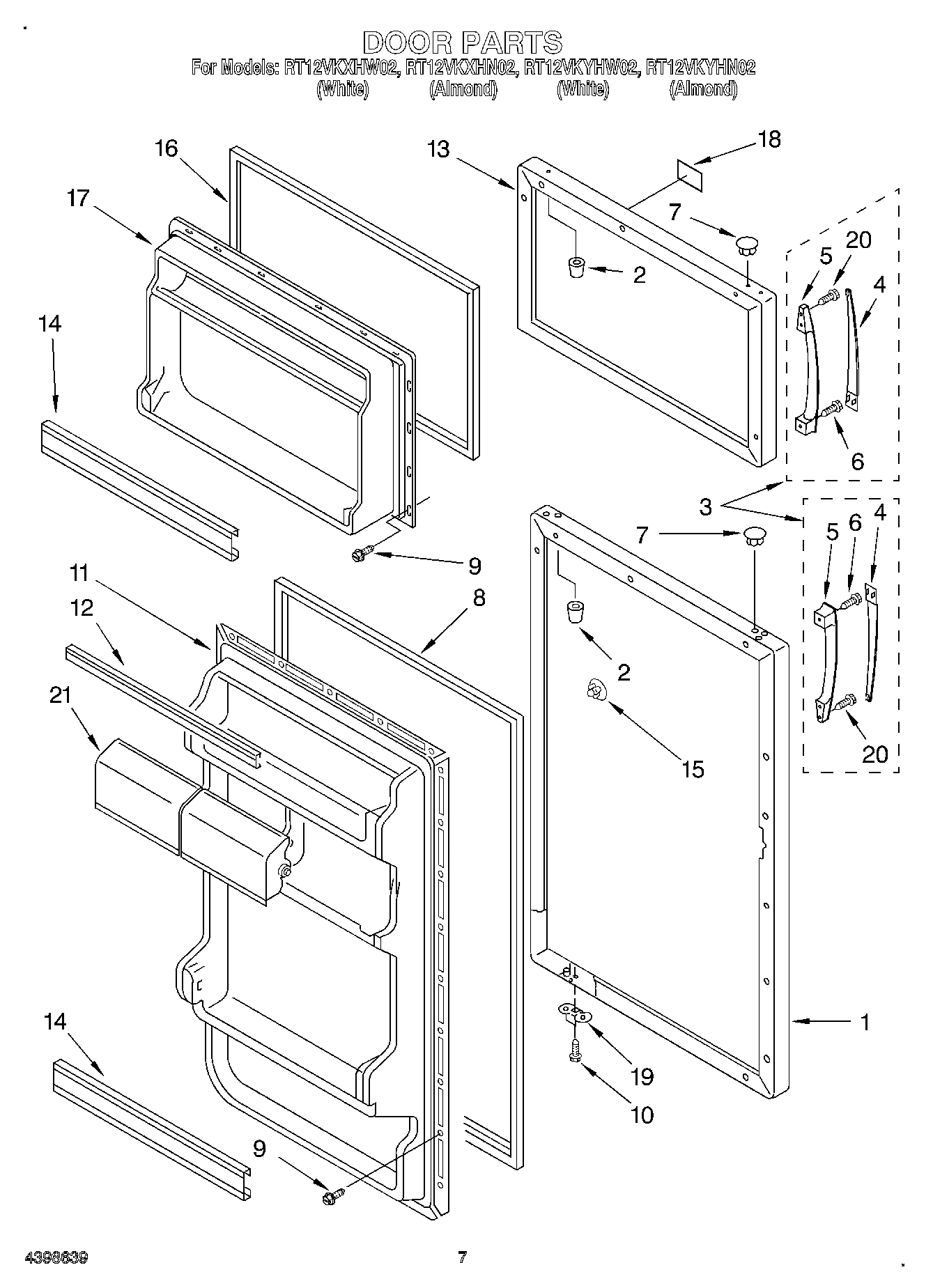

04 - DOOR, OPTIONAL

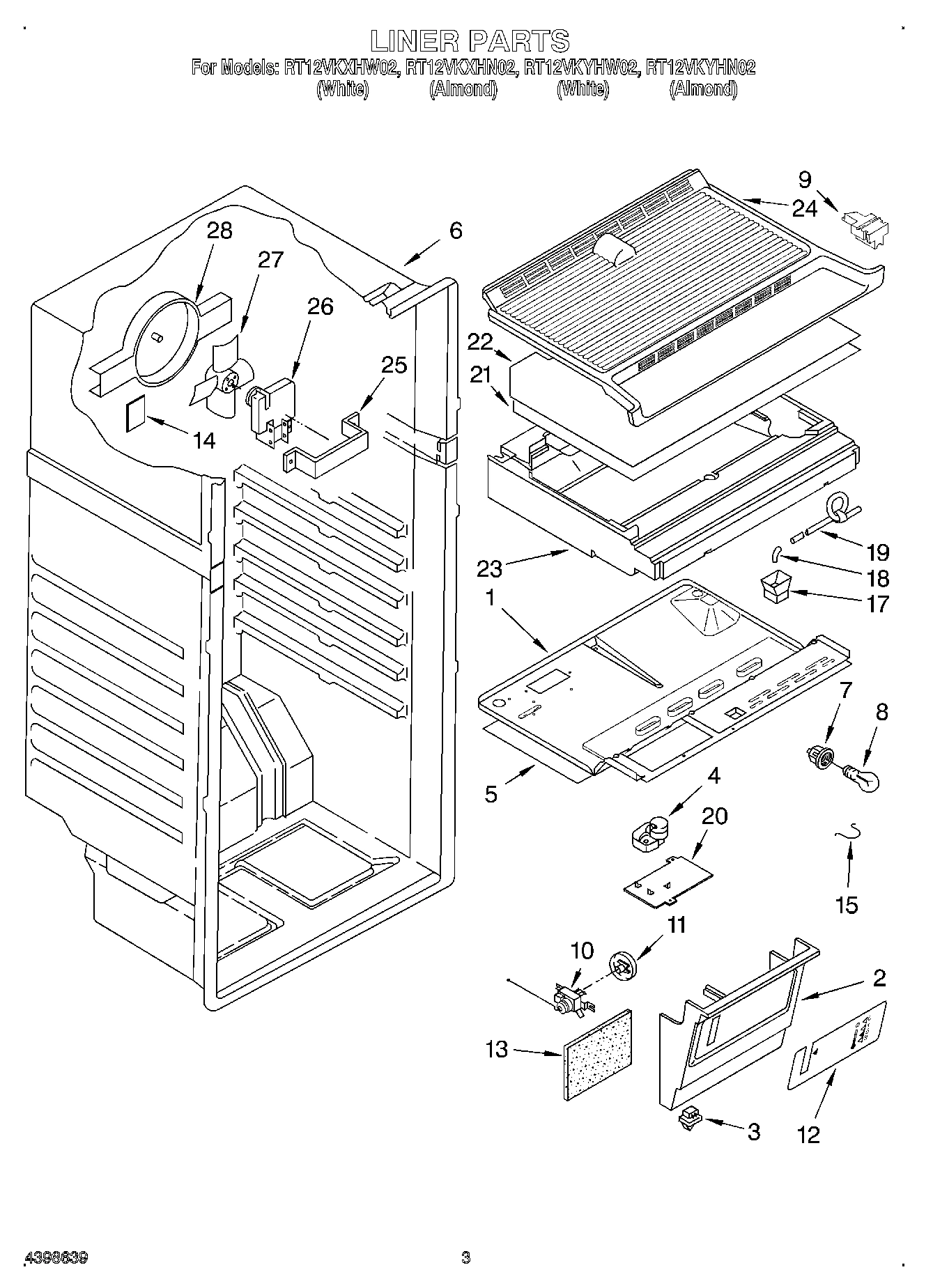

02 - LINER
Common parts from model Whirlpool RT12VKYHN02 TOP MOUNT REFRIGERATOR
1
Washer WPL 4356847 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4390549 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 4390550 Contact Us For Availability
1
Bottom, Compartment Separator WPL 4390458 Contact Us For Availability
2
Screw WPL 4356852 Contact Us For Availability
2
Box, Control WPL 4390536 Contact Us For Availability
3
Condenser WPL 4390647 Contact Us For Availability
3
Handle Kit (White) WPL 4357275 Contact Us For Availability
3
Handle Kit (Almond) WPL 4390592 Contact Us For Availability
4
Timer, Defrost WPL 4390515 Contact Us For Availability
4
Insert, Handle (White) WPL 4357036 Contact Us For Availability
4
Insert, Handle (Almond) WPL 4390553 Contact Us For Availability
5
Cover WPL 4356946 Contact Us For Availability
5
Handle (White) WPL 4357035 Contact Us For Availability
5
Handle (Almond) WPL 4390571 Contact Us For Availability
5
Heat Shield WPL 4390459 Contact Us For Availability
6
Clip WPL 4356951 Contact Us For Availability
6
Screw WPL 4390511 Contact Us For Availability
6
Liner (Not A Serviceable Part) WPL ARI124889A Contact Us For Availability
7
Hole Plug (White) WPL 4390499 Contact Us For Availability
7
Hole Plug (Almond) WPL 4390547 Contact Us For Availability
7
Lamp, Socket WPL 4390644 Contact Us For Availability
8
Relay WPL 4356738 Contact Us For Availability
9
Center Hinge WPL 4390542 Contact Us For Availability
9
Evaporator WPL 4390561 Contact Us For Availability
9
Plug, Evaporator WPL 4390457 Contact Us For Availability
10
Shim, Center Hinge WPL 4390646 Contact Us For Availability
10
Screw WPL 4390559 Contact Us For Availability
10
Thermostat WPL 4390587 Contact Us For Availability
11
Bottom Hinge (White Model) WPL 4390545 Contact Us For Availability
11
Bottom Hinge (Almond Model) WPL 4390546 Contact Us For Availability
11
Interior Door Panel (Refrigerator) WPL 4390645 Contact Us For Availability
11
Knob, Thermostat WPL 4390480 Contact Us For Availability
12
Shim, Bottom Hinge WPL 4390497 Contact Us For Availability
12
Unit Mounting Plate WPL 4390600 Contact Us For Availability
12
Trim, Door Shelf WPL 4390467 Contact Us For Availability
12
Insert WPL 4390476 Contact Us For Availability
13
Hole Plug (Almond) WPL 4390541 Contact Us For Availability
13
Exchanger, Heat WPL 4390597 Contact Us For Availability
13
Freezer Door Panel (White) WPL 4390554 Contact Us For Availability
13
Freezer Door Panel (Almond) WPL 4390555 Contact Us For Availability
13
Insulation WPL 4390477 Contact Us For Availability
14
Heater, Defrost WPL 4390453 Contact Us For Availability
14
Trim, Door Shelf WPL 4390464 Contact Us For Availability
15
Bi-Metal, Defrost WPL 4390584 Contact Us For Availability
15
Clip WPL 4390481 Contact Us For Availability
16
Cord, Service WPL 4390591 Contact Us For Availability
16
Grommet WPL 4356335 Contact Us For Availability
16
Door Gasket, Magnetic (Almond Model) WPL 4390531 Contact Us For Availability
17
Tube Insulation, Heat Exchanger WPL 4390648 Contact Us For Availability
17
Nut WPL 4390590 Contact Us For Availability
17
Interior Door Panel (Freezer) WPL 4390599 Contact Us For Availability
17
Drain Cup WPL 4390483 Contact Us For Availability
18
Washer, Door Adjust WPL 4390623 Contact Us For Availability
18
Nameplate WPL 4390622 Contact Us For Availability
18
Elbow, Drain WPL 4390484 Contact Us For Availability
19
Clip WPL 4356728 Contact Us For Availability
19
Bracket, Door Stop WPL 4390524 Contact Us For Availability
19
Drain Tube WPL 4390537 Contact Us For Availability
20
Cabinet (Not A Serviceable Part) WPL ARI124888A Contact Us For Availability
20
Plate, Defrost Timer WPL 4390514 Contact Us For Availability
21
Compartment Door WPL 4390578 Contact Us For Availability
21
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
21
Shield, Heater (Aluminum) WPL 4390556 Contact Us For Availability
22
Cover, Evaporator Housing WPL 4390517 Contact Us For Availability
23
Insulation, Compartment WPL 4390577 Contact Us For Availability
24
Separator, Compartment (Top) WPL 4390450 Contact Us For Availability
25
Bracket, Motor WPL 4390452 Contact Us For Availability
26
Motor, Fan WPL 4390451 Contact Us For Availability
27
Blade, Fan WPL 4390518 Contact Us For Availability
28
Scroll, Fan WPL 4390519 Contact Us For Availability
× ![]()
