Model Whirlpool RS675PXEZ0 COOKTOP – Common Parts & Diagrams

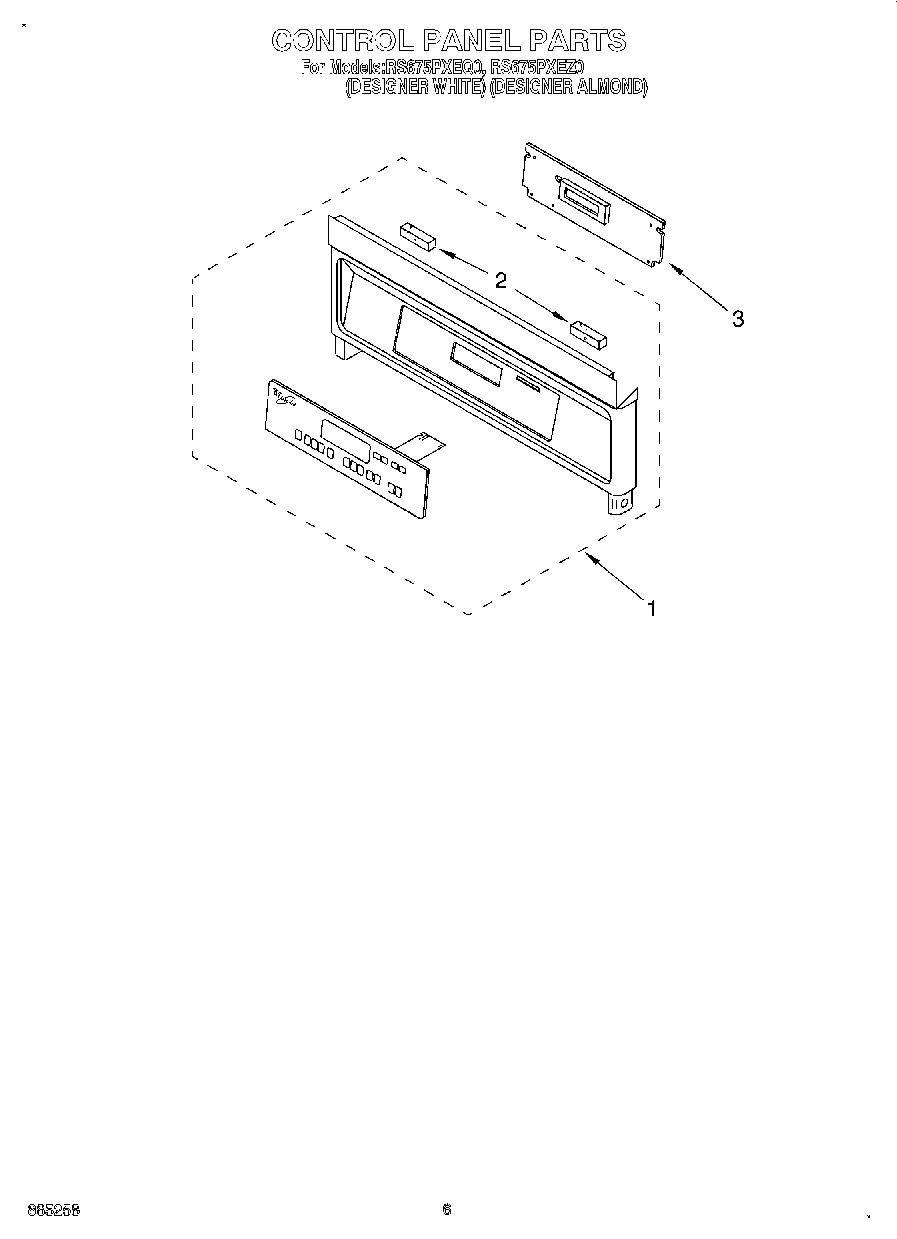

05 - CONTROL PANEL, LITERATURE

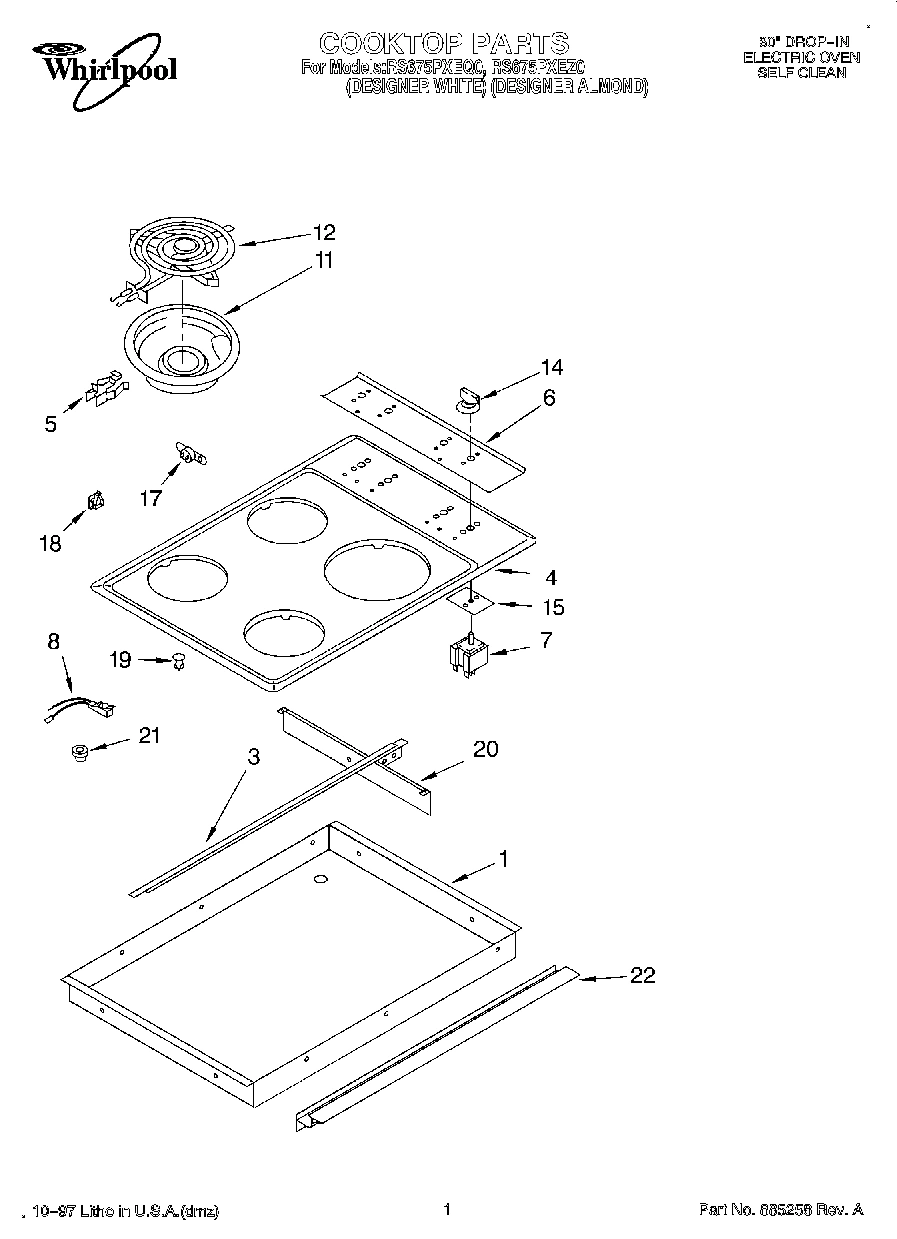

01 - COOKTOP

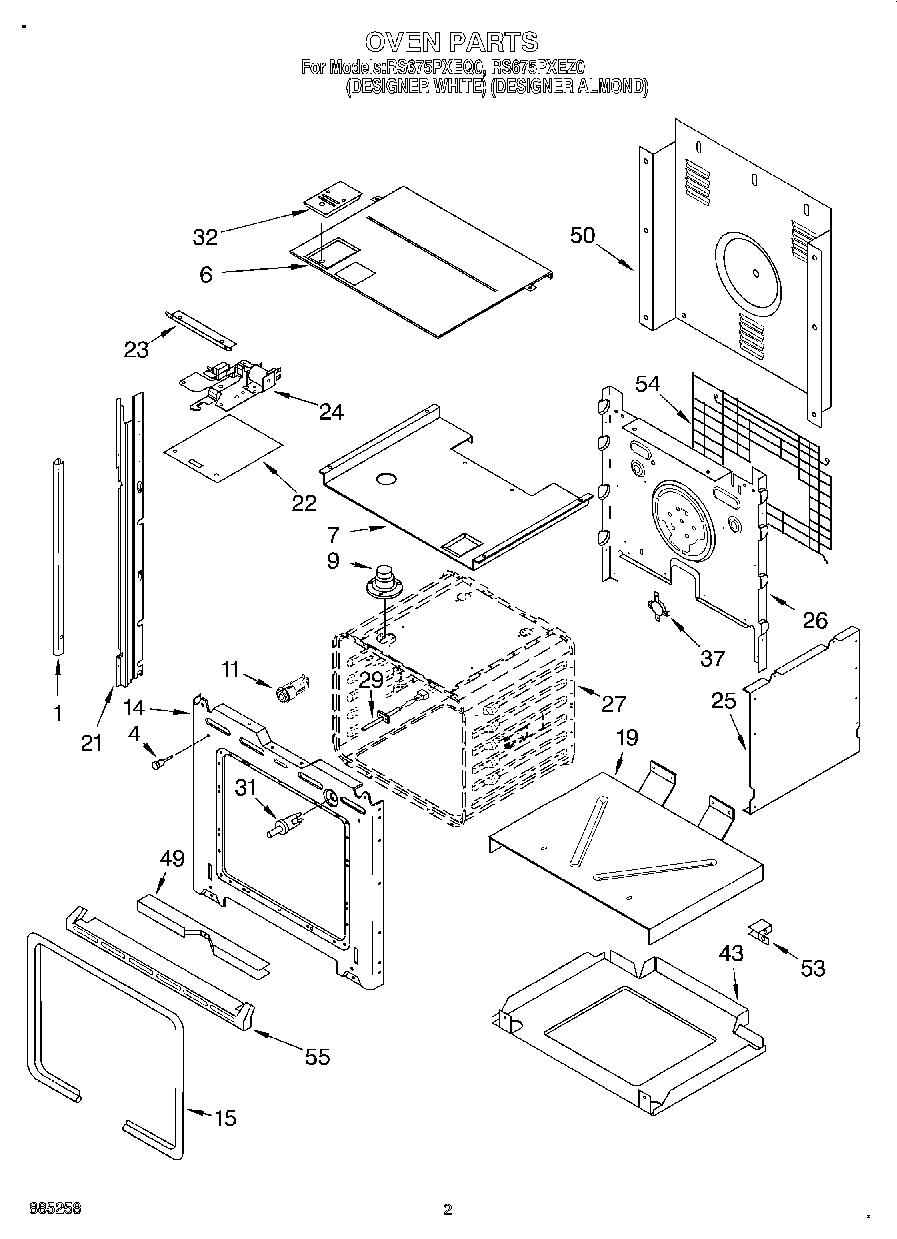

02 - OVEN

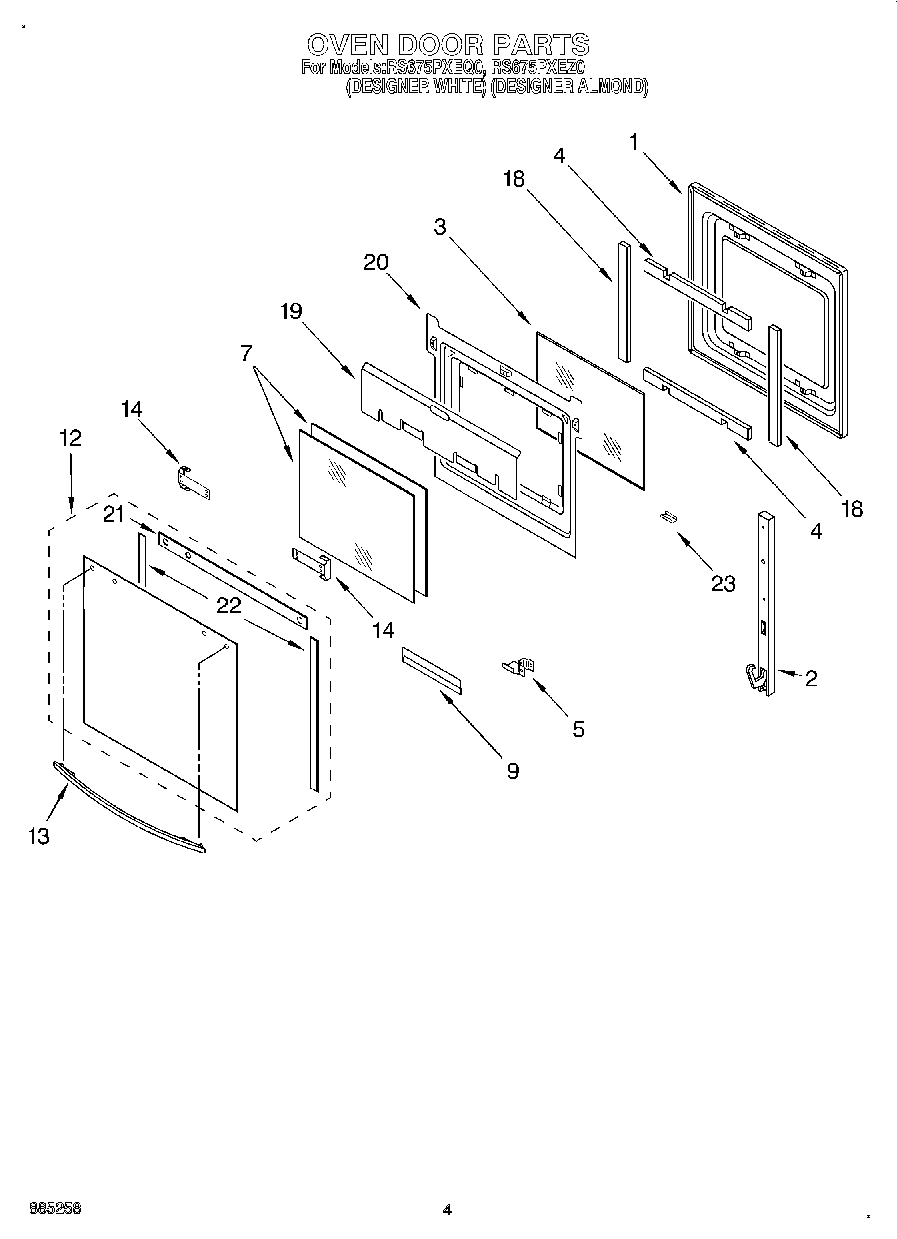

03 - OVEN DOOR

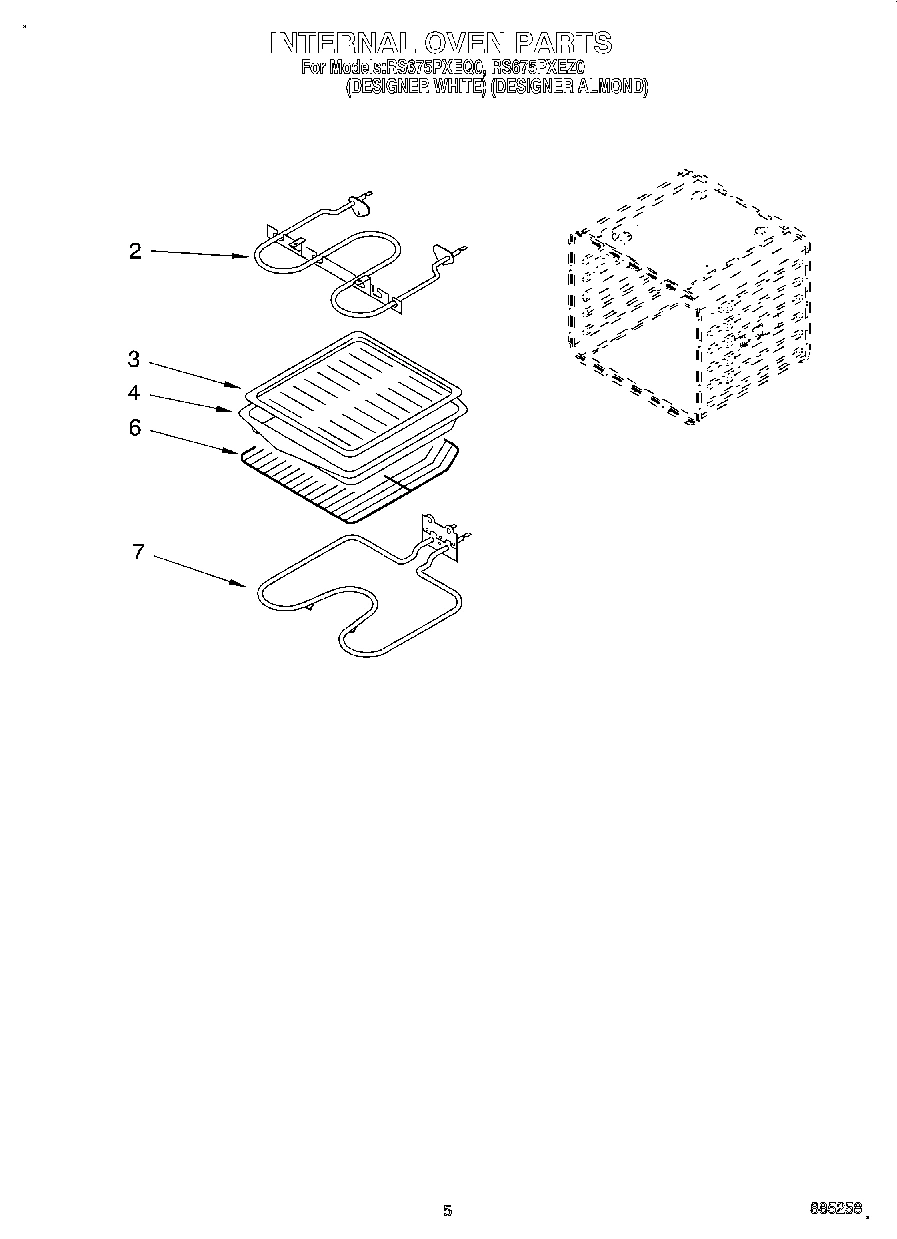

04 - INTERNAL OVEN

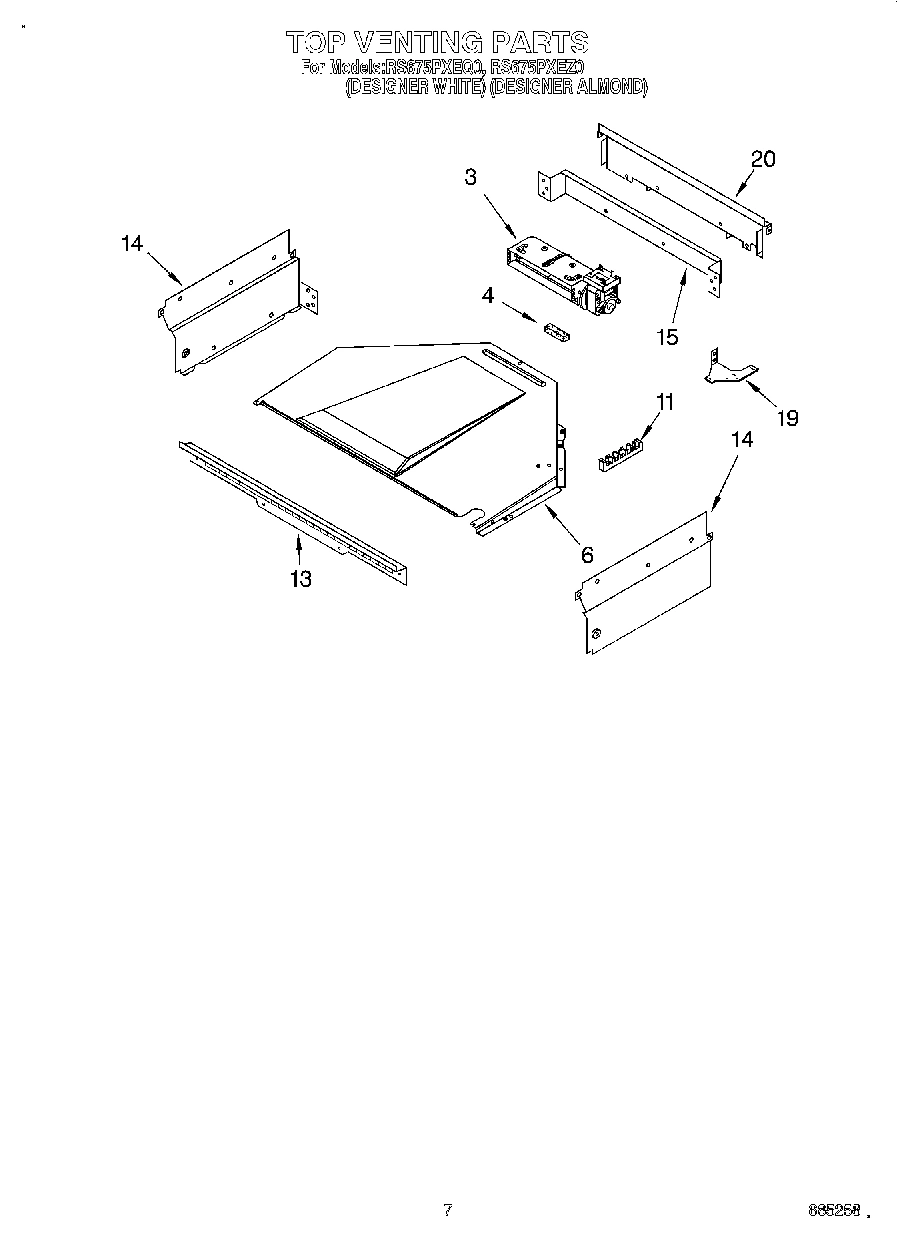

06 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RS675PXEZ0 COOKTOP
1
Trim, Side (Left Hand) (Screw) WPL 4449041 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability
1
Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability
1
(Trim, Side (Left Hand)) (Almond Model) WPL 4450849 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Block, Foam WPL 3182384 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
6
Divider, Vent WPL 4451039 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
7
Partition WPL 4454833 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
12
Door Glass, Outer (Almond Model) WPL 4450704 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4451213 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Knob, Control (White) WPL 3183119 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450417 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Side, Control Compt. (Right) WPL 4451579 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
19
Support, Insulation WPL 4450542 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Bracket, Support WPL 4454840 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
20
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
20
Cover, Rear WPL 4449973 Contact Us For Availability
20
Conduit WPL 4451163 Contact Us For Availability
20
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
20
Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability
20
Harness, Wire (Main) (Also, order Door Switc WPL 4454872 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
WPL 814387 WPL 814387 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Screw WPL 4450289 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451169 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI124553A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
55
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
55
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
